SYS8F360VGGA Quick Installation Guide
SYS8F360VGGA 简易说明书

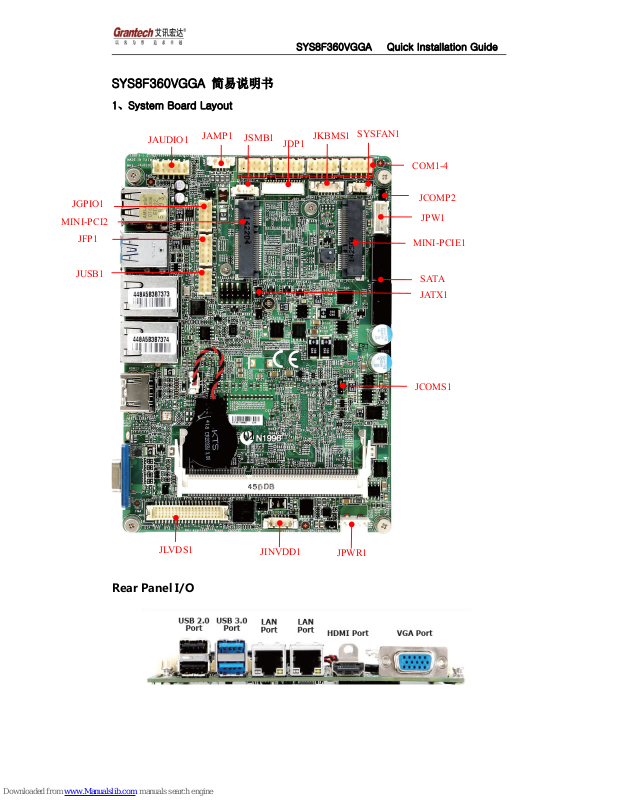

1、System Board Layout
Rear Panel I/O
JAUDIO1
JAMP1
JSMB1
JDP1
JKBMS1
SYSFAN1
JPWR1
JINVDD1
JLVDS1
JFP1
JUSB1
JCOMS1
JATX1
SATA
MINI-PCIE1
JPW1
JCOMP2
COM1-4
JGPIO1
MINI-PCI2
Page 2
SYS8F360VGGA Quick Installation Guide
2、Jumper List
Jumper Function
JATX1 AT/ATX mode Select
JCOMP2 COM Port Voltage Jumper
JAUDIO1 Front Audio Connector
JCMOS1 Clear CMOS Selection
JAMP1 Amplifier Connector
JSMB1
SMBus Connector
JDP1
LPC Debug Port Connector
COM1-4
COM Port Connector
JPW1
SATA Power Connector
MINI-PCIE1
Mini-PCIe/mSATA Slot
MINI-PCIE1
Mini-PCIe Slot
JPWR1
DC-In 12V/19V/24VPower Connector
JINVDD1
LVDS Inverter Connector
JLVDS1
LVDS Connector
JUSB1
USB 2.0 Connector
JFP1
Front Panel Connector
JGPIO1
GPIO Connector
3、Front Panel Connector setting :（JFP1）
Pin
Define
Function
Pin
Define
Function
1
HD LED+
HDD
LED
2
Power LED+(5V)
Power
LED
3
HD LED-
4
Power LED-
5
Reset_SW+
Reset
6
Power SW+
Power
button
7
Reset_SW-
8
GND
9
N/A10N/A
Page 3
SYS8F360VGGA Quick Installation Guide

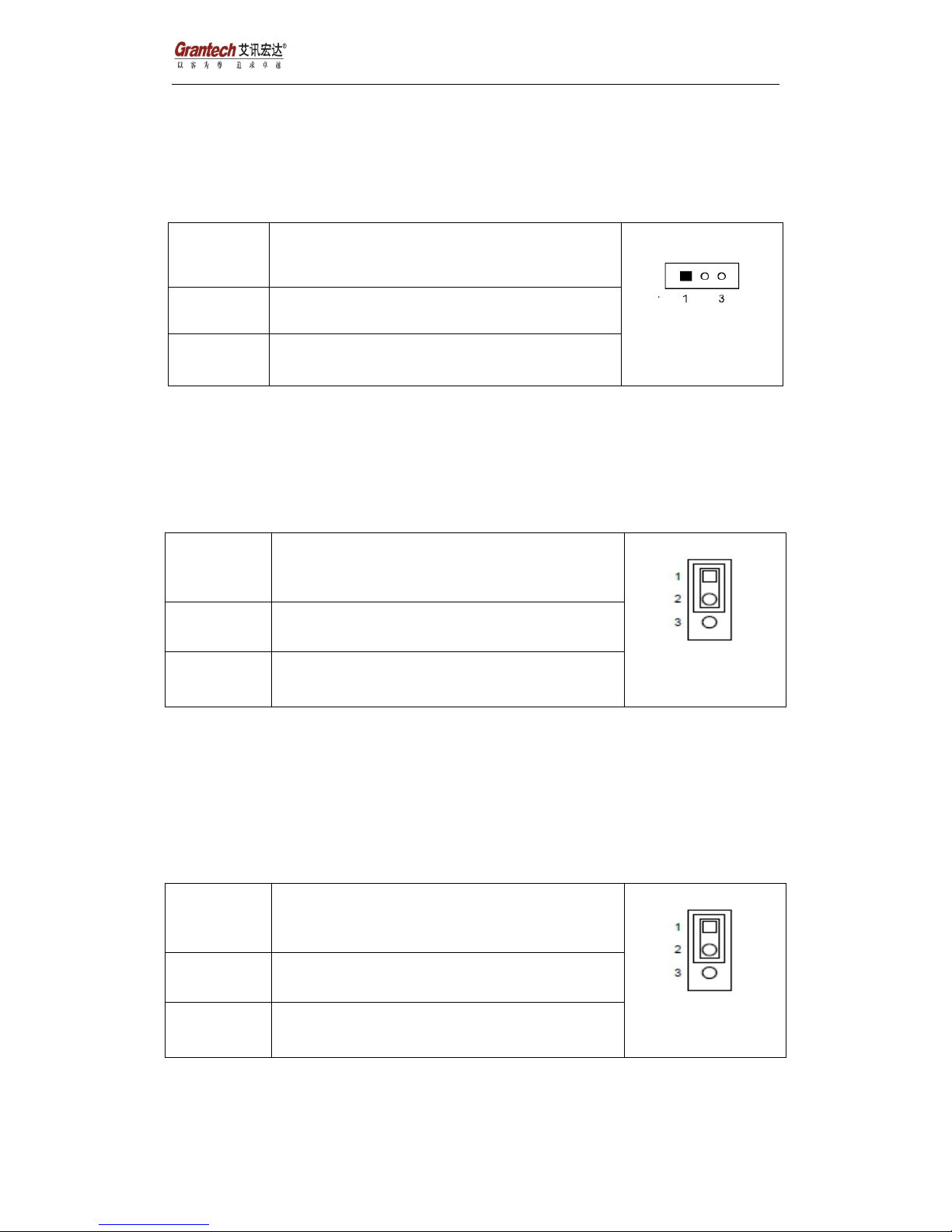

5、Jumper Setting :
A、JCMOS1: Clear CMOS Select
Jumper status
1-2 Close Normal Operation
2-3 Close Clear CMOS data
B、JAT1: AT/ATX Power Select
Jumper status
1-2 short ATXMode
2-3 Short AT Mode
C、JCOMP2: Serial Port Power Jumper
Jumper status
1-2 short +5V
2-3 Short +12V
Page 4
SYS8F360VGGA Quick Installation Guide

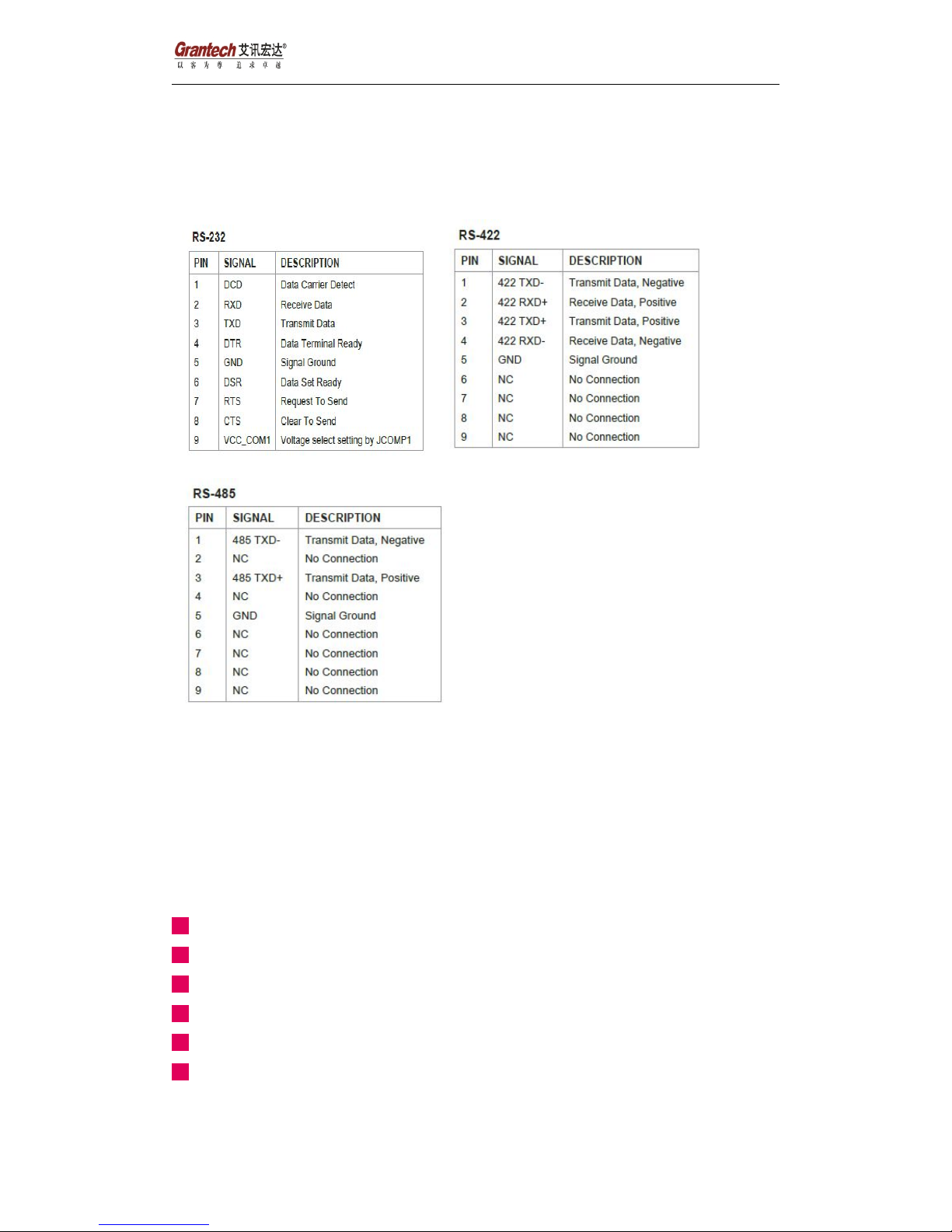

D、Serial Port RS-232/422/ 485
Packing list:
SYS8F360VGGA *1pcs
Utility CD for Drivers *1pcs
Installation Guide *1pcs
USB cable *1 pcs
SATA Power cable *1pcs;
COM Extension cables *4pcs
