SYS76992VGGA Quick Installation Guide

1

SYS76992VGGA 简易说明书

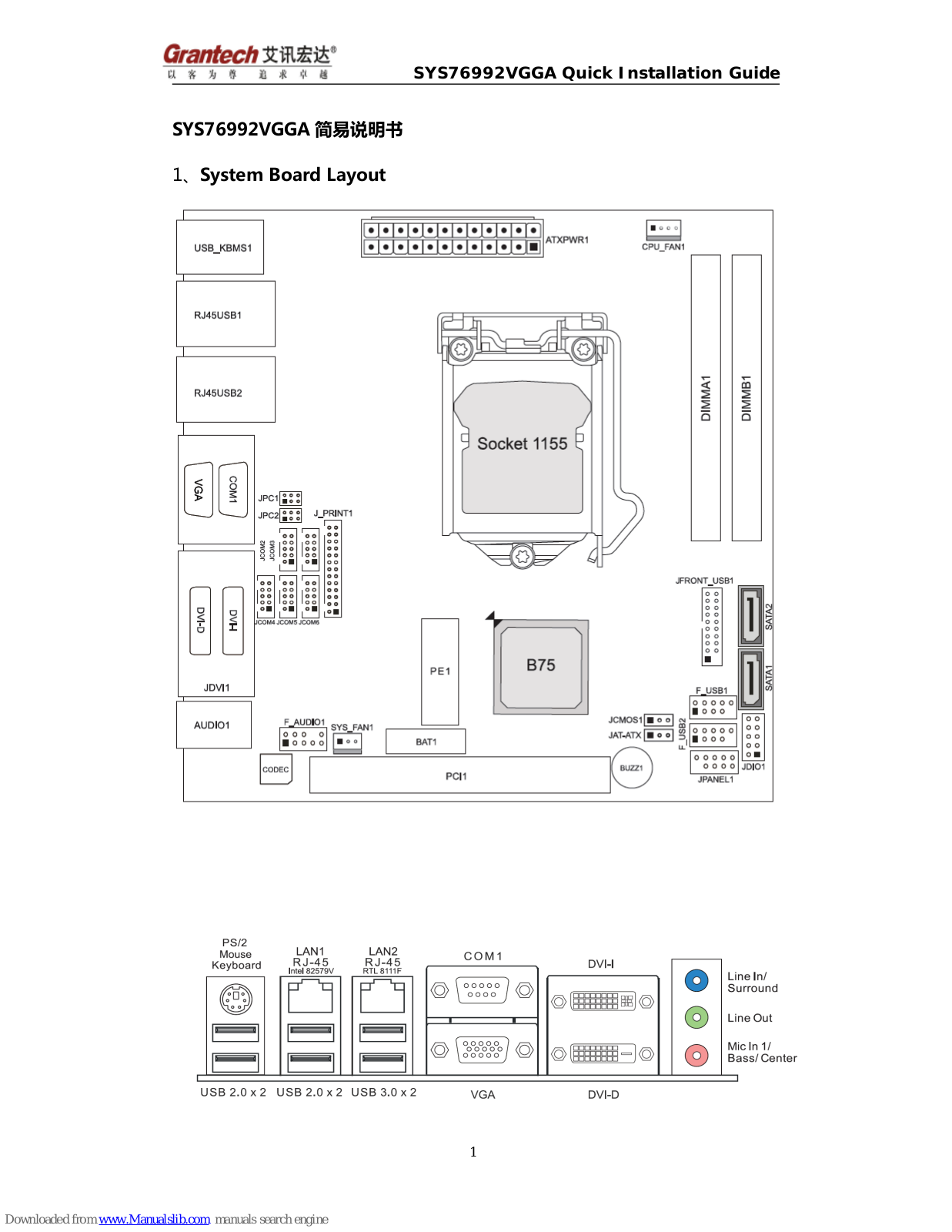

1、System Board Layout

SYS76992VGGA Quick Installation Guide

2

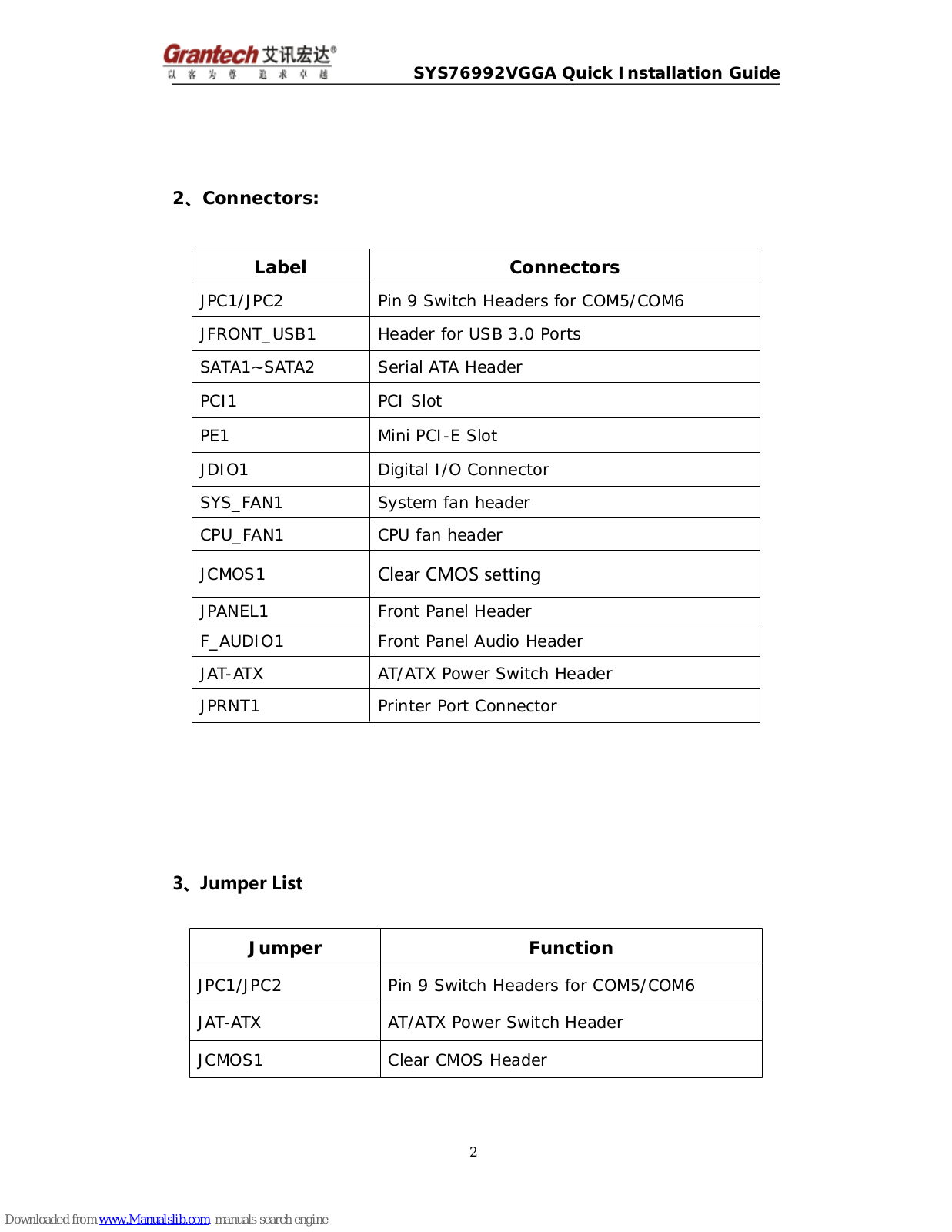

2、Connectors:

Label Connectors

JPC1/JPC2 Pin 9 Switch Headers for COM5/COM6
JFRONT_USB1 Header for USB 3.0 Ports
SATA1~SATA2 Serial ATA Header
PCI1 PCI Slot
PE1 Mini PCI-E Slot
JDIO1 Digital I/O Connector
SYS_FAN1 System fan header
CPU_FAN1 CPU fan header

JCMOS1

Clear CMOS setting

JPANEL1 Front Panel Header
F_AUDIO1 Front Panel Audio Header

JAT-ATX AT/ATX Power Switch Header
JPRNT1 Printer Port Connector

3、Jumper List

Jumper Function

JPC1/JPC2 Pin 9 Switch Headers for COM5/COM6
JAT-ATX AT/ATX Power Switch Header
JCMOS1 Clear CMOS Header
