Page 1
SYM86349VGGA Quick Installation Guide
SYM86349VGGA简易说明
书

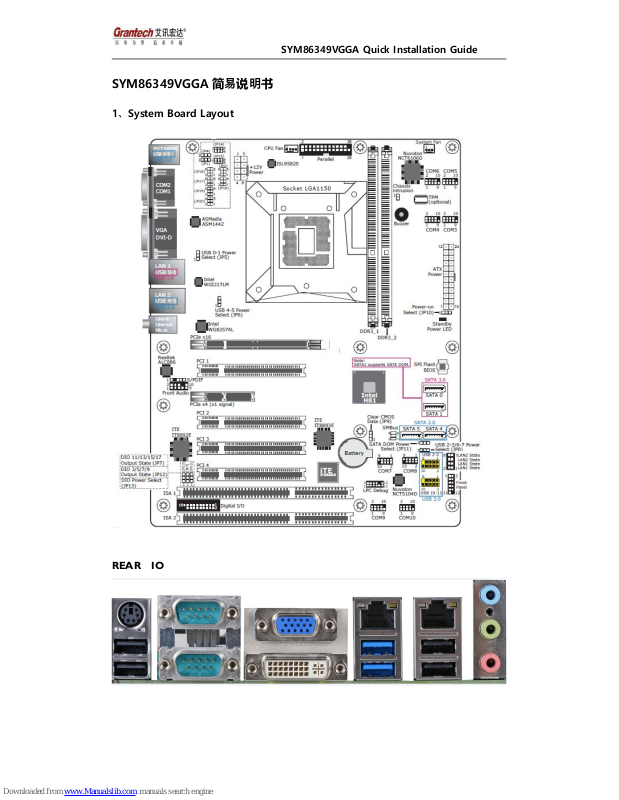

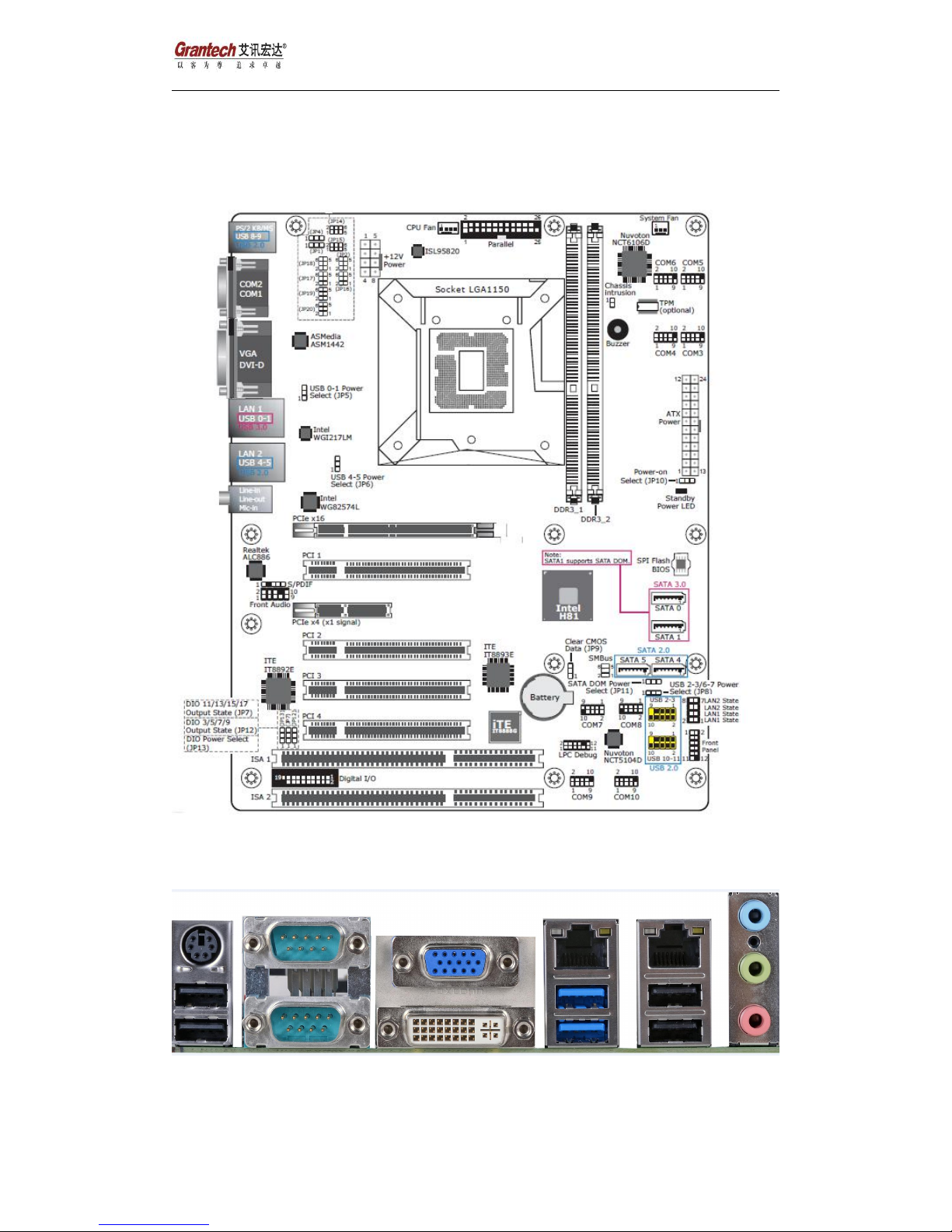

1、System Board Layout
REAR IO
Page 2
SYM86349VGGA Quick Installation Guide
2、Connectors:
Label
Connectors
Parallel
Standard LPT ports
USB2~3~USB10~11
USB 2.0 Headers
SATA0~SATA1
Serial ATA 3.0 Header
SATA4~SATA5
Serial ATA 2.0 Header
COM3~COM10
Serial Port Header
PCI1~PCI4
Standard PCI slots
PCIeX4
Standard PCI Express x4 Slot
PCIeX16
Standard PCI Express x16 Slot
ISA
Standard ISA
Slot
Front audio
Front Panel Audio Connector
CPU Fan
CPU FAN Pin Header
Digital I/O
Digital I/O Connector Pin Header
System FAN
System FAN Pin Header
ATX power
Standard ATX power Input connector
Front Panel
Front Panel Connector
3、Jumper List
Jumper
Function
JP1
PS/2 Power Select
JP2/JP16/J17/J18
COM1 RS232/422/485 Mode Select
JP4/JP5/JP6/JP8
USB Power Select
JP9
Clear CMOS Data
JP10
Power on select
JP13
Digital I/O Power Select
J14/J15
COM 1/COM 2 RS232/Power Select
Page 3
SYM86349VGGA Quick Installation Guide

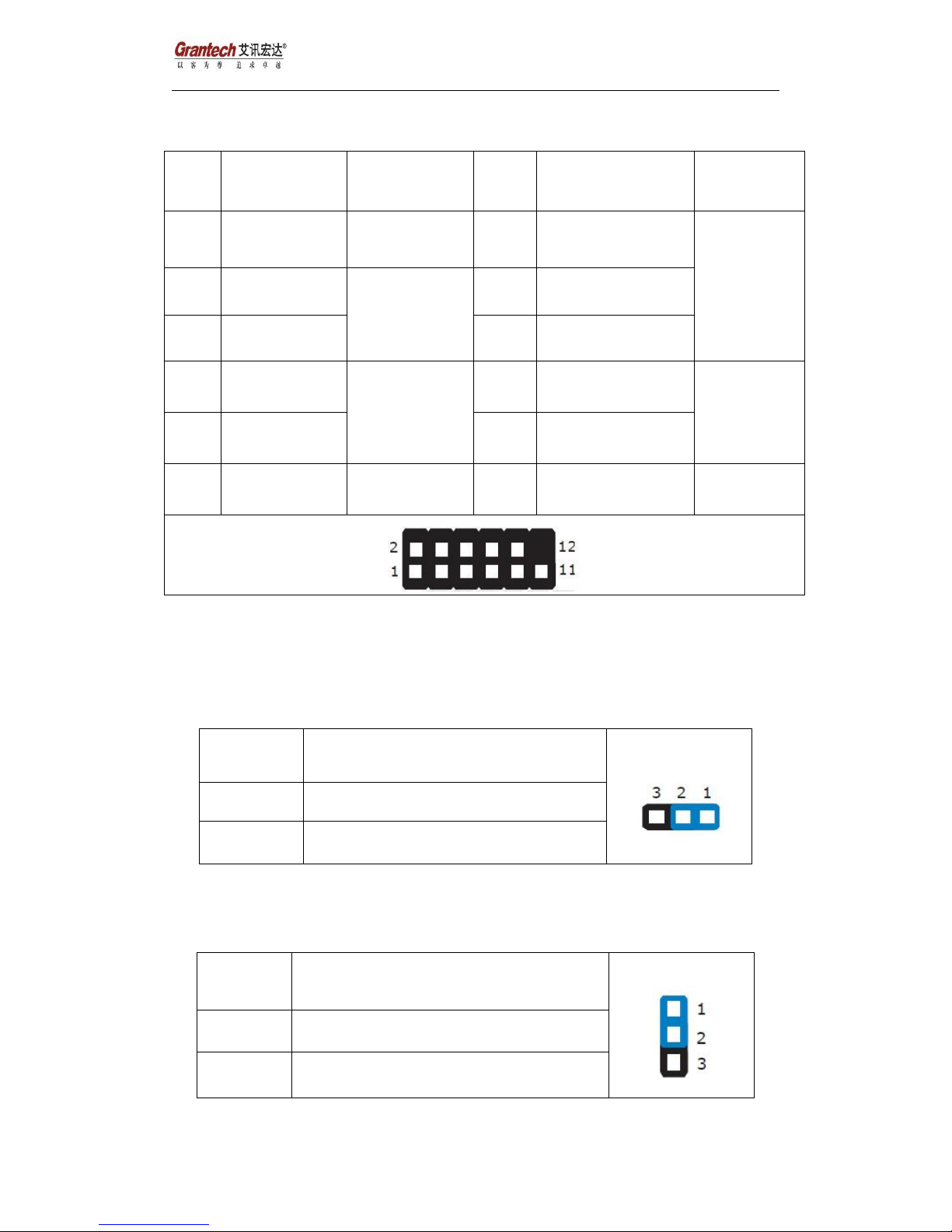

4、Front Panel Connector setting :
Pin
Define
Function
Pin
Define
Function
1
N/A
N/A
2
Power LED+
Power LED
3
HDD LED+
HDD LED
4
Power LED+
5
HDD LED-
6
Power LED-
7
Reset +
Reset
8
Power Button+
Power Button
9
Reset -
10
GND
11
N/A12N/A
N/A
5、Jumper Setting (JP9、JP10):
A、JP9: Clear CMOS Select
Jumper
status
1-2 short
Normal
2-3 Short
Clear CMOS data
B、JP10: AT/ATX Power Select
Jumper
status
1-2 short
ATX Mode
2-3 Short
AT Mode
Page 4
SYM86349VGGA Quick Installation Guide

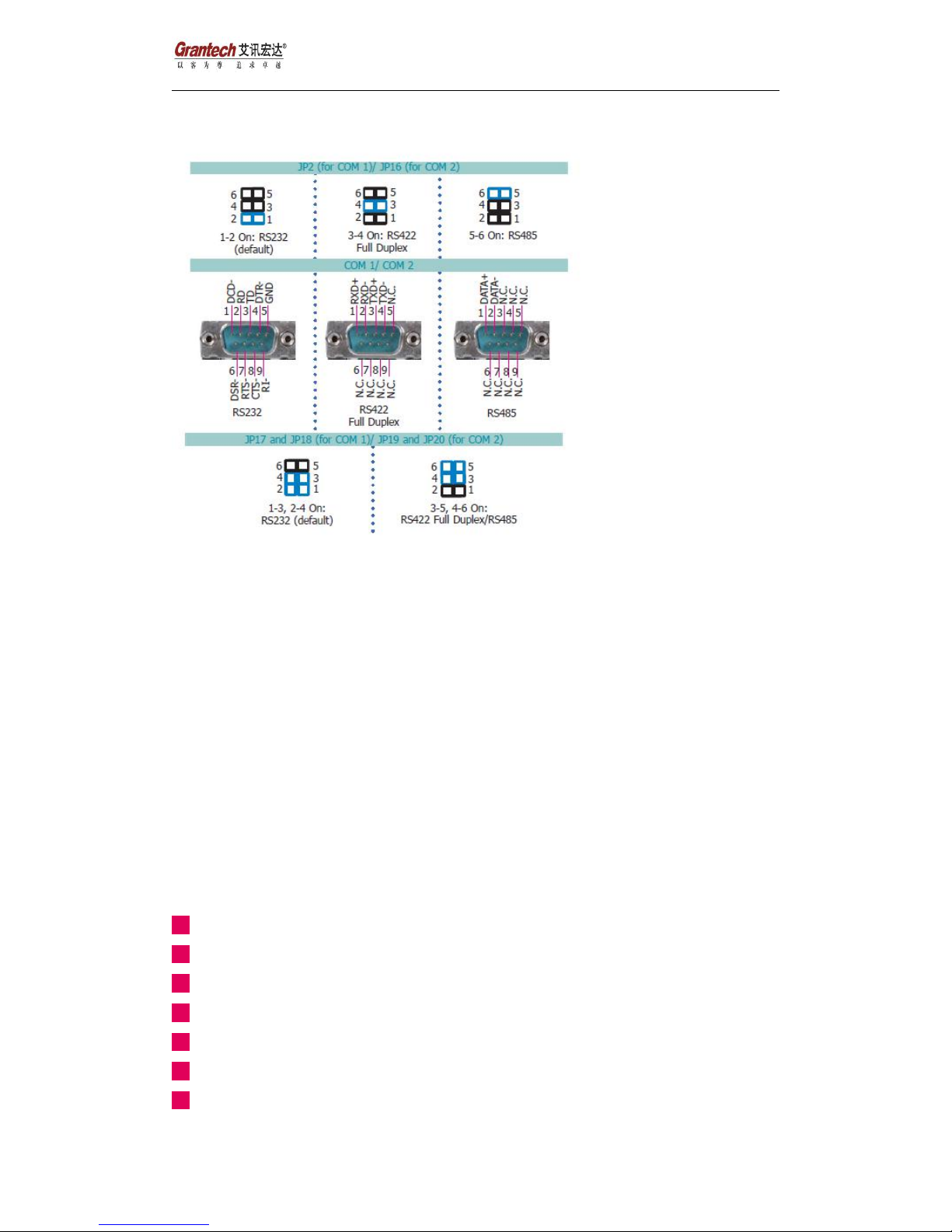

C、COM port define
Packing list:
SYM86349VGGA Mainboard *1pcs
Utility CD for SYM86349VGGA *1pcs
Installation Guide *1pcs
USB cable *2 pcs
SATA cable *2pcs;
COM and LPT extension cables *4pcs
I/O Shield *1pcs
