Page 1
UK | DOC 0117 | Rev 1.1 | November 2017
Grant Vortex
Boiler House Floor Standing Condensing Oil
Boiler Range
User Handbook

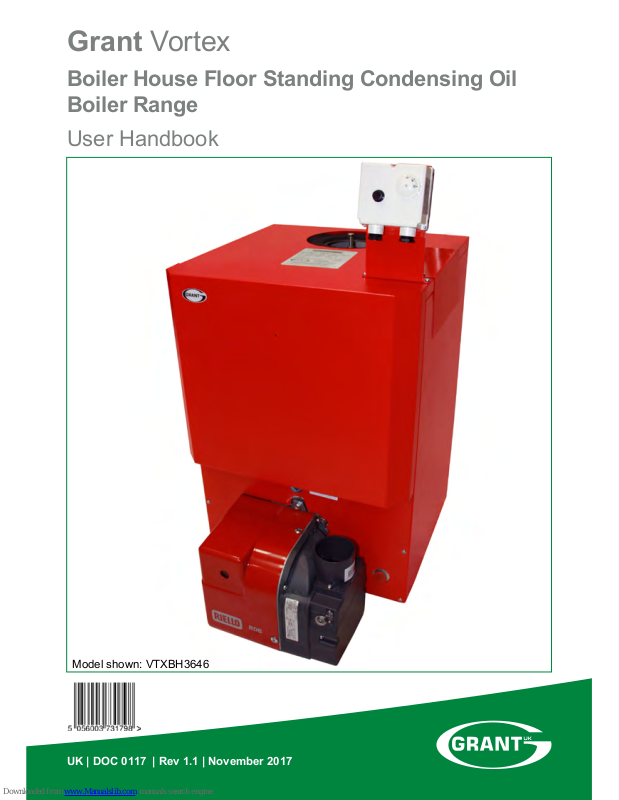

Model shown: VTXBH3646
Page 2
GRANT ENGINEERING (UK) LIMITED
Hopton House, Hopton Industrial Estate, Devizes, Wiltshire, SN10 2EU
Tel: +44 (0)1380 736920 Fax: +44 (0)1380 736991
Email: [email protected] www.grantuk.com
This manual is accurate at the date of printing but will be superseded and should be disregarded if specications and/or appearances are changed in the interests of continued product improvement. However, no responsibility of any kind for any injury, death, loss, damage or delay however caused resulting from the use of this manual can be accepted by Grant Engineering (UK)
Limited, the author or others involved in its publication.
All good sold are subject to our ofcial Conditions of Sale, a copy of which may be obtained on application.
© Grant Engineering (UK) Limited. No part of this manual may be reproduced by any means without prior written consent.
IMPORTANT NOTE FOR USERS
This user handbook is intended to assist the user in the operation
of the Grant Vortex oil boiler.
A separate manual is available to guide installers on the
installation, commissioning and servicing of the Grant Vortex oil
boiler.
SPECIAL TEXT FORMATS
The following special text formats are used in this user handbook
for the purposes listed below:
! WARNING !
Warning of possible human injury as a consequence of not
following the instructions in the warning.
! CAUTION !
Caution concerning likely damage to equipment or tools
as a consequence of not following the instructions in the
caution.
! NOTE !
Used for emphasis or information not directly concerned
with the surrounding text but of importance to the reader.
PRODUCT CODES COVERED
This user handbook covers the following product codes:
VTXBH1521, VTXBH2126, VTXBH2635, VTXBH3646,
VTXBH4658 and VTXBH5870.
SERVICING
The boiler should be serviced at least every twelve months and
the details entered in the Service Log in this User Handbook.
FUEL TYPE
All Grant Vortex boilers are suitable for use with Class C2
Kerosene. If your boiler uses Bio-Kerosene (B30K), refer to the
installation and servicing instructions.
Page 2
Page 3
1 INTRODUCTION 4
What the installer should leave you with 4
What to do now 4
Our guarantee 4
When should the boiler be serviced 4
Boiler data plate 4
User safety 4
2 USING YOUR BOILER 5
Boiler operation 5
The boiler controls and how to use them 5
The heating controls and how to use them 5
Turning the boiler ON/OFF 6
Fuel for your boiler 7
Electricity supply 7
3 CARE OF YOUR BOILER 7

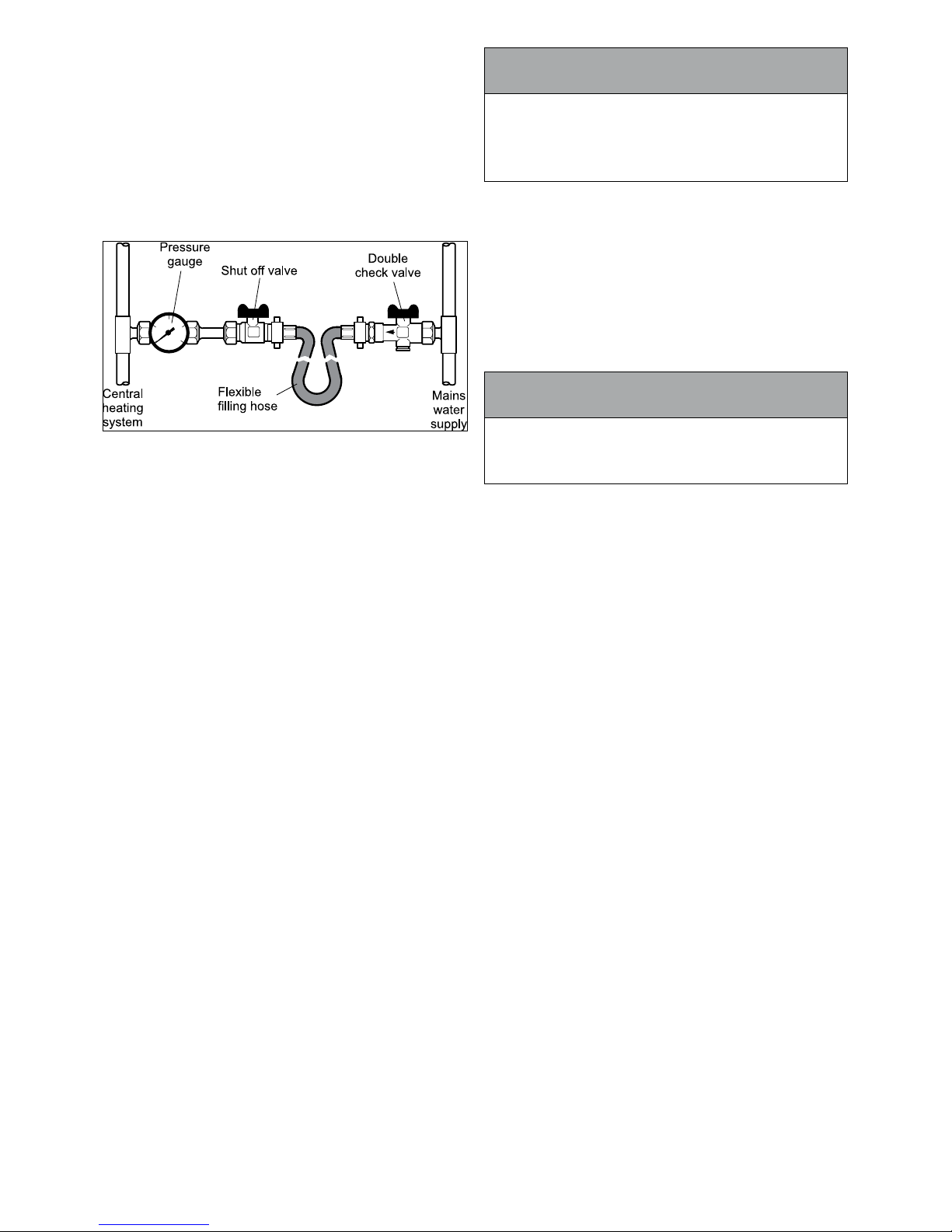

Checking system pressure 7
(sealed system only)
Expansion vessel 8
(sealed system only)
Ventilation 8
Flue terminal and condensate disposal 8
Servicing 9
Cleaning your boiler 9
Frost protection 9
Contents Page 3
4 FAULT FINDING 10
If your boiler fails to start 10
5 AFTER SALES SERVICE 11
Grant UK Customer Support 11
6 YOUR GUARANTEE 12
7 SERVICE LOG 14
This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge
if they have been given supervision or instruction concerning use of the appliance in a
safe way and understand the hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
CONTENTS
Page 4
User HandbookPage 4
1 INTRODUCTION
Thank you for choosing a Grant Vortex high
efciency oil-red boiler.
This appliance has been designed to provide
you with years of trouble free operation.
However, it is important to ensure that regular
servicing is carried out.
Please take time to read the following useful
information and retain this user handbook to
record all future servicing.
What the installer should
leave you with
• A completed OFTEC CD10 (installation
completion report)
• A completed OFTEC CD11 (service and
commissioning report)
• The installation and servicing instructions
• This user handbook
The installer should have advised you how to
operate the boiler and controls and where a
sealed system is tted, how to check and top
up the heating system (if applicable).
Commissioning?
Following installation, your boiler should be
commissioned by a ‘competent person’, such
as an OFTEC Registered Engineer, to validate
the guarantee.
The boiler will be set to its optimum efciency
using specialist ue gas analysis equipment.
Your installer should arrange for this to be
carried out. If required, Grant UK can provide
details of commissioning engineers in your
area.
What to do now
Your installer may have registered the product
on your behalf and provided you with the
relevant documentation. Should this not be the
case, you can register your guarantee online
at:
www.grantuk.com/support/product-registration
Alternatively, please call 01380 736920 and
ask for Customer Services..
Upon completion of the product registration,
Grant UK will register your boiler for two years.
There is also an option to take out extended
warranty cover (the application is available on
the Grant UK website).
We recommend that you complete the
required information on the back cover of this
user handbook for future reference.
Our guarantee
The boiler is automatically covered against
manufacturing defects for twelve months from
the date of purchase*.
A further twelve months cover will be applied
upon receipt by Grant UK of the completed
guarantee within thirty days of installation.
To register your boiler visit: www.grantuk.com
The steel heat exchanger is covered for ve
years against manufacturing defects. For
the guarantee to apply, the boiler must be
installed, commissioned and operated in
accordance with the installation and servicing
instructions provided.
* Terms & Conditions apply. Refer to Section 6.
When should the boiler be
serviced?
A service must be completed every 12 months
from the date of installation to maintain your
guarantee. This is also a condition of the
second year manufacturer’s guarantee.
The nozzle and braided oil hose should be
replaced annually and on sealed systems, the
expansion vessel air charge must be checked.
Please make sure that your engineer has
recorded the service information in the Service
Log at the rear of this user handbook. You will
be asked for your service history on any inguarantee repair visit.
Boiler data plate
The data label can be found on the top casing
panel of the boiler.
You should record the relevant information on
the rear cover of this user handbook for future
reference.
User safety
! WARNING !
Interference with the boiler (or any sealed component) is
strictly forbidden other than where information is given in
these instructions.
Incorrect use of the boiler can result in danger to the user
and will invalidate the guarantee.
Page 5
User handbook Page 5
2 USING YOUR
BOILER
Boiler operation
Your boiler is fully automatic once switched
on, providing you with central heating and also
heating your domestic hot water (if you have a
hot water cylinder tted as part of the system).
For more information, refer to ‘The heating
controls and how to use them’.
The boiler controls and how
to use them
Your boiler is tted with a dual thermostat
control. This is located on the top of the boiler.
Figure 2-1: Dual thermostat
This dual thermostat incorporates two
separate temperature controls:
The boiler thermostat
This controls the temperature of the water
owing from your boiler to the heating system.
This should have been set by your installer to
the required temperature and should not be
adjusted.
The overheat thermostat
This is a safety device which will automatically
switch off your boiler should it overheat for any
reason.
The burner reset button
If there is a problem with the burner tted to
your boiler, a built-in safety system switches
the burner OFF and the red lockout reset
button on the burner will be lit.
Figure 2-2: Burner reset button
Usually such problems are short lived and
simply pressing the lockout reset button after
waiting a short while will restore normal burner
and boiler operation.
The heating controls and
how to use them
Your Grant Vortex Boiler House boiler will
usually be controlled by a domestic heating
control system.
The information below is only a general
description of the heating and hot water
system controls that you may have.
The operation and setting of these system
controls should have been explained to you by
your installer.
For full details of the correct setting and
operation, always refer to the manufacturer’s
user instructions provided with each of these
controls.
This control system will typically consist of the
following controls:
A heating timer or programmer
This device allows you to set the ON and
OFF times for your heating and (if it is a
programmer) the ON and OFF times for
your hot water heating also. Refer to the
manufacturer’s user instructions for guidance.
Page 6
User HandbookPage 6
A room thermostat
This allows you to set the required air
temperature. When the air temperature is
below this setting, the thermostat will ‘call’ for
the boiler to operate to provide heating.
The room thermostat is usually located in a
downstairs area such as the hallway or living
room. You may have more than one room
thermostat if your heating system is ‘zoned’.
Refer to the manufacturer’s user instructions
for guidance.
! NOTE !
For your boiler to operate to provide you
with heating, the programmer (or timer)
must be in an ‘ON’ period for heating AND
the room thermostat must be ‘calling’ for
heat.
A cylinder thermostat
This controls the temperature of the water in
your hot water cylinder (if tted), as long as
your cylinder is being heated by the boiler.
When the water temperature in the cylinder is
below the thermostat set temperature, it will
‘call’ for the boiler to operate to heat your hot
water.
! NOTE !
For your boiler to operate to heat your hot
water cylinder, the programmer (or timer)
must be in an ‘ON’ period for hot water
AND the cylinder thermostat must be
‘calling’ for heat.
Thermostat radiator valves (TRVs)
Your heating system may also include
Thermostatic Radiator Valves (or TRVs). If you
have them, these will be tted on some or all
of your heating system radiators.
A TRV is a self-regulating valve, i.e. not
connected to the other heating system controls
such as the programmer and room thermostat,
designed to regulate the temperature in the
room in which it is situated.
It senses the air temperature around it and
controls the water ow to the radiator on which
it is tted to regulate its heat output to the
room.
The head of the TRV can be rotated to set it
to give the required room temperature. Once
correctly set, it should ideally be left in that
position and not used as an on/off control for
the radiator.
As the correct operation of the TRV is based
on it sensing the room air temperature, take
care not to cover the TRV head, e.g. with
curtains.
You should refer to the manufacturer’s
operating instructions for further details on
both the setting and use of TRVs.
Turning the boiler ON/OFF
Switching ON
Start the boiler as follows:
1. First, check that the electricity supply to the
boiler is OFF.
2. Make sure that there is sufcient fuel, of
the correct type, in the oil storage tank.
3. Check that all valves in the fuel supply pipe
are open.
4. Next, check that the programmer (if tted)
is set to the required settings for both
heating and hot water. This should have
been done by your installer but refer to the
manufacturer’s user instructions if you wish
to check or change the settings.
5. Check that the room thermostat is set to
the required temperature.
6. Switch on the electricity supply to the
boiler.
7. The boiler will start as soon as the
electricity supply is switched ON.
Switching OFF
If you just want to switch your boiler OFF for a
short period:
• Switch OFF the electricity supply to the
boiler.
To re-start your boiler, follow the instructions
given in the section above (switching on).
Page 7
User Handbook Page 7
Fuel for your boiler
Your Grant Vortex Boiler House boiler can only
be operated on Kerosene (Class C2 to BS
2869).
Always quote this type of fuel when ordering
from your supplier.
If your boiler operates on Bio-Kerosene, your
installer should have informed you of this and
explained how to order this from your supplier.
! NOTE !
Please do not wait for the fuel to run out
before you order more!
If you do, sludge in the bottom of the tank
may be drawn in to the oil supply pipe
and cause a blockage.
Don’t forget to switch your boiler OFF when
your tank is being lled and leave the fuel to
settle for an hour after lling before re-starting
the boiler.
Electricity supply
The boiler requires a ~230 1ph 50Hz supply. It
must be protected by a 5A fuse.
! WARNING !
The electricity connections to the boiler
must be earthed.
3 CARE OF YOUR
BOILER
Checking system pressure
(sealed system only)
If your boiler is operating on a sealed heating
system, your installer will have pressurised
the system and should have told you (or set it
on the pressure gauge) the system pressure
when cold (this is normally between 0.5 and
1.0 bar, which will increase slightly when hot).
0
1
2
3
4
Normal Operating
Pressure Range
NOTES:
Figure 3-1: Pressure gauge
You should frequently check that the system
pressure is correct. If the pressure (when
cold) is below the set pressure mentioned
above, you can re-pressurise the system. If
this is frequently required, ask your installer or
service engineer to check the heating system
for leaks and to check the expansion vessel air
charge.
Automatic air vent
The boiler or system will be tted with an
automatic air vent to remove air from the
system. Any air trapped in the radiators should
be removed by venting the radiators using the
vent screw at the top of each radiator. Only
vent a radiator if the top is cool and the bottom
is hot. Excessive venting will reduce the
system pressure, so only vent when necessary
and check the system pressure as mentioned
above.
Re-pressurise the system if necessary.
Page 8
User HandbookPage 8
Safety valve
The sealed system is tted with a safety valve
to release excess pressure from the system.
If water or steam is emitted from the end of
the safety valve discharge pipe, switch off the
boiler and contact your installer or service
engineer.
To ll or top up your sealed system
Figure 3-2: Sealed system lling loop arrangement
Firstly, check the boiler and circulating pump
are switched off and any automatic air vents
on the system are open.
Next, Connect exible lling loop* between the
two lling valves.
Then, open the lling valve on mains water
end of lling loop (the valve is open when
operating lever is in line with valve).
Also, open the lling valve on heating system
end of lling loop to allow water to ow into
system (valve is open when operating lever is
in line with valve).
When pressure gauge shows required system
pressure (refer to the ‘checking system
pressure’ section on page 7), close lling valve
on heating system.
Now, Vent each radiator to remove any air –
starting with the lowest one on the system, i.e
downstairs.
Locate the circulating pump(s) and vent the
pump(s) – unscrew the plug from the centre
of the pump and remove. Using a suitable
screwdriver rotate the shaft of the pump about
one turn. When water starts to trickle out,
replace the plug.
Now, check the system pressure on the gauge.
If necessary, re-open the lling valve on the
system until the gauge shows the required
pressure. Take care not to over ll!
Finally, close both lling valves and disconnect
the lling loop at one end only. Take care as
the lling loop may contain water!
* If you cannot locate the lling loop, please
contact your installer.
! NOTE !
If the system has been drained down or
requires frequent topping up, then the
level of inhibitor will need to be checked
by your installer.
Expansion vessel
(sealed system only)
The expansion vessel (red vessel usually
attached to boiler) must be checked annually
to ensure that there is a 1.0 bar air charge in
the vessel. Failure to do this will invalidate the
boiler guarantee.
! NOTE !
The pressure shown on the system
pressure gauge is not the air charge
pressure in the vessel.
Ventilation
Always ensure the boiler has adequate
ventilation. Any ventilation provided by the
installer must not be obstructed. You should
periodically check that they are clear.
Do not attempt to ‘box in’ or build a
compartment around it before consulting
your installer. If the boiler is installed in a
compartment, then that compartment must not
be used for storage purposes.
For safety reasons, do not place any
combustible material around or on the boiler or
ue pipe.
Flue terminal and
condensate disposal
Flue terminal
If your boiler ue system has a terminal on the
outside wall, make sure that the terminal is not
damaged or obstructed in any way.
A wire mesh guard is required if the terminal is
less than 2 metres above ground level. If one
is required, contact your installer.
You should periodically check for and remove
any obstructions, e.g. cut back any bushes
that may have grow over the terminal. Do
not stack anything against or in front of the
terminal.
In severe conditions, check that the terminal
does not become blocked by snow.
Page 9
User Handbook Page 9
‘Pluming’ from the ue terminal
Whilst operating, it is quite normal for
the boiler to produce a white plume of
condensation vapour from the ue terminal.
This is due to the high efciency of the boiler
and may be particularly evident with low
outdoor temperatures.
Condensate disposal
During the operation of the boiler, condensate
is produced from the ue gases and this is
drained to a suitable disposal point through the
plastic waste pipe on the left hand side of the
boiler.
The condensate drain must not be modied or
blocked.
Blockage of the condensate drain, caused by
debris or freezing can cause automatic shutdown of the boiler. If you suspect freezing
and the pipe run is accessible, you can try to
free the obstruction by pouring hot water over
the exposed pipe and clearing any blockage
from the end of the pipe. If this fails to remedy
the problem, you should contact your service
engineer.
Servicing
The boiler should be serviced at least every 12
months.
Regular boiler servicing (ideally before the
start of the heating season) ensures your
boiler is working safely, efciently and reliably.
This is also a condition of the second year
manufacturer’s guarantee.
The nozzle and braided oil hose should be
replaced annually.
• Have the boiler serviced regularly by a
competent, OFTEC registered (or Grant
UK approved) engineer.
• Have any repair work carried out by a
competent, OFTEC registered (or Grant
UK approved) engineer.
• Always use Grant UK approved spares
to help maintain the efciency, safety and
reliability of the appliance.
When should the boiler be serviced?
A service must be completed every 12 months
from the date of installation to maintain your
guarantee. This is also a condition of the
second year manufacturer’s guarantee.
The nozzle and braided oil hose should be
replaced annually and on sealed systems, the
expansion vessel air charge must be checked.
Please make sure that your engineer has
recorded the service information in the Service
Log at the rear of this user handbook. You will
be asked for your service history on any inguarantee repair visit.
Cleaning your boiler
Lightly wipe over the case with a damp cloth
and a little detergent then dried completely. Do
not use abrasive pads or cleaners.
Take care not to touch any hot surfaces.
Frost protection
Your installer may have tted a frost
thermostat. If not and you are likely to be away
for a short time, leave the boiler on with the
boiler thermostat set at a low setting.
If the boiler is not going to be used for longer
periods, the boiler and system should be
drained.
Contact your service engineer for draining and
lling the system.
Page 10
User HandbookPage 10
4 FAULT FINDING
If your boiler fails to start
Things to check before calling Grant UK or your service engineer
In line with our current guarantee policy, we would ask that you check through the following
information to identify any problems external to the boiler prior to requesting a service engineers
visit.
Should the problem be found to be other than with the appliance, we reserve the right to levy a
charge for the visit or for any pre-arranged visit where access is not gained by the engineer.
Problem Solution
There is no
power to the
boiler
• Is the electrical supply to the boiler switched ON?
• Has the fuse in the electrical supply to the boiler blown? If so, t a replacement 5A
fuse only.
• Has the overheat thermostat tripped and switched the boiler OFF? Refer to ‘The
overheat thermostat’ section on page 5.
There has been
a power cut
• If the electricity supply fails, the boiler will not operate. It should relight automatically
when the supply is restored.
If a programmer is tted, it will retain the time settings for up to 24 hours and will not
have to be reset to the correct time of day when the supply is restored (the display will
remain for up to 1 hour, but will re-appear when the supply is restored).
There is no
heating or hot
water
• Is the programmer (if tted) working and in an ON period for heating or hot water?
If not, set the programmer to ON. Refer to the manufacturer’s user instructions for the
programmer for guidance if necessary.
• Are the room thermostat and cylinder thermostat set to the required settings and
‘calling’ for heat?
• Sealed systems – check that the system pressure is correct (refer to Section 3). If
necessary, top up the system (refer to page 8).
• Your boiler is tted with a safety overheat thermostat which will automatically switch
off the boiler in the case of a control malfunction causing overheating.
If your boiler goes off and you try to light it but nothing happens and the ‘Lock-out’
reset button on the burner is not lit, the overheat thermostat has probably operated.
The boiler will not light until the thermostat is reset.
To reset, unscrew the small plastic cap marked reset (refer to Figure 2-1), press the
button then replace the cap.
If this condition continually repeats, contact your installer or service engineer.
The burner is
not operating
• Is the red lockout button on the burner lit? If there is a problem with the burner tted to
your boiler, a built-in safety system switches the burner OFF and the red lockout reset
button on the burner will be lit. Refer to Figure 2-2 for the position of the lockout reset
button.
Usually such problems are short lived and simply pressing the lockout reset button
after waiting a short while will restore normal burner and boiler operation.
• If it is, press the button to re-start the burner.
• If the burner fails to light and the red lockout is lit again, is there sufcient fuel in
the oil storage tank and are all the valves in the oil supply pipe open?
• Has the re valve in the oil supply pipe tripped shutting off the ow of oil?
• Check that you have fuel in the tank. Some sight gauges have a button that must be
pulled out, or pressed in, to obtain an up to date reading.
• Check that the remote acting re valve has not tripped.
• Locate the re valve (it should be in the oil line, just before it enters the building)
and reset it, following the operating instructions supplied with the valve. Most
types commonly in use have a reset button which must be pressed in order to
allow fuel through.
You have run
out of heating oil
• If you run out of fuel, the oil line will require purging of air after you tank has been
lled. Contact your installer or service engineer to do this for you.
If your boiler still fails to start after carrying out these checks, then there is a fault.
Switch off the electricity supply to the boiler and contact your installer or service engineer.
Page 11
User Handbook Page 11
5 AFTER SALES
SERVICE
If your boiler breaks down during the
guarantee period, in the rst instance you
should contact your installer to identify the
cause of the problem and if necessary your
installer will contact us.
If you are unable to contact your installer
please telephone the Grant UK Service
Department for assistance. Authorisation to
carry out guarantee repairs must be obtained
from Grant UK before any work is carried out.
Costs incurred by unauthorised work will not
be covered by Grant UK.
Grant UK Customer Support:
01380 736920
If you need to contact Grant UK, please have
the following information available:
• The correct name and address for the
installation.
• Details of the fault and what you have
checked.
• The information on the rear cover of this
user handbook.
Page 12
User HandbookPage 12
6 YOUR
GUARANTEE
You are now the proud owner of a Grant Vortex condensing boiler
from Grant Engineering (UK) Limited which has been designed to
give years of reliable, trouble free operation.
Grant Engineering (UK) Limited guarantees the manufacture of
the boiler including all electrical and mechanical components for a
period of twelve months from the date of installation
4
, provided
that the boiler has been installed in full accordance with the
installation and servicing instructions issued.
This will be extended to a total period of two years if the boiler is
registered with Grant Engineering (UK) Limited within thirty days
of installation and it is serviced at twelve month intervals
3
. See
main Terms and Conditions below.
If the boiler is installed as part of a VortexAir (hybrid) installation,
the guarantee for the boiler will start from its original date of
installation and NOT from the date of installation of the heat pump
(if installed on different dates).
Registering the product with Grant Engineering (UK) Limited
Please register your Grant Vortex condensing boiler with Grant
Engineering UK Limited within thirty days of installation. To do
so visit:
www.grantuk.com/support/product-registration
You can register your boiler for a further twelve months
guarantee (giving two years from the date of installation
4
). This
does not affect your statutory rights1.
If a fault or defect occurs within the manufacturer’s
guarantee period
If your boiler should fail within the guarantee period, you must
contact Grant Engineering (UK) Limited who will arrange for the
repair under the terms of the guarantee, providing that the boiler
has been correctly installed, commissioned and serviced (if the
appliance has been installed for more than twelve months) by a
competent person and the fault is not due to tampering, running
out of oil, oil contamination, debris, system water contamination,
misuse, trapped air or the failure of any external components
not supplied by Grant Engineering (UK) Limited, e.g. re valve,
motorised valve, etc.
This two year guarantee only applies if the boiler is
registered with Grant Engineering (UK) Limited within thirty
days of installation
4
and is serviced after twelve months3.
In the rst instance
Contact your installer or commissioning engineer to ensure
that the fault does not lie with the system components or any
incorrect setting of the system controls that falls outside of the
manufacturer’s guarantee otherwise a service charge could result.
Grant Engineering (UK) Limited will not be liable for any charges
arising from this process.
If a fault covered by the manufacturer’s guarantee is found
Ask your installer to contact Grant Engineering (UK) Limited
Service Department on +44 (0)1380 736920 who will arrange for
a competent service engineer to rectify the fault.
Remember - before you contact Grant Engineering (UK)
Limited
• Ensure the boiler has been installed, commissioned and
serviced by a competent person in accordance with the
installation and servicing instructions.
• Ensure there is oil to supply the burner.
• Ensure the problem is not being caused by the heating
system or its controls. Consult the boiler handbook for
guidance.
Free of charge repairs
During the two year guarantee period no charge for parts or
labour will be made provided that the boiler has been installed and
commissioned correctly in accordance with the manufacturer’s
installation and servicing instructions, it was registered with Grant
Engineering (UK) Limited within thirty days of installation
4
and,
for boilers over twelve months old, details of annual service is
available
3
.
The following documents must be made available to Grant
Engineering (UK) Limited on request:
• Proof of purchase
• CD10 Installation Completion Form (or equivalent document)
• CD11 Commissioning Report Form (or equivalent document)
• Service documents (CD11 or equivalent document)
Chargeable repairs
A charge may be made (if necessary following testing of parts)
if the breakdown is due to any fault(s) caused by the plumbing
or heating system, e.g. contamination of parts due to system
contamination, sludge, scale, debris or trapped air. Refer to
‘Extent of manufacturer’s guarantee’.
Extent of manufacturer’s guarantee
The manufacturer’s guarantee does NOT cover the following:
• If the boiler has been installed for over two years.
• If the boiler has not been installed, commissioned, or
serviced by a competent person in accordance with the
installation and servicing instructions.
• Instances where the serial number has been removed or
made illegible.
• Fault(s) due to accidental damage, tampering, unauthorised
adjustment, neglect, misuse or operating the boiler contrary
to the manufacturer’s installation and servicing instructions.
• Damage due to external causes such as bad weather
conditions (ood, storms, lightning, frost, snow, or ice), re,
explosion, accident or theft.
• Fault(s) due to incorrectly sized expansion vessel(s),
incorrect vessel charge pressure or inadequate expansion on
the system.
• Fault(s) caused by external electrics and external
components not supplied by Grant Engineering (UK) Limited.
• Problems caused by lack of oil or faults with the oil storage
and supply system.
• Fault(s) due to contamination of the oil storage and supply
system, e.g. water or debris.
• Bleeding or removing oil storage tank contamination or
blockages from oil lines.
• Problems due to the ue system being incorrectly tted or not
installed to meet installation requirements.
• Boiler servicing, de-scaling or ushing.
• Cleaning out condensate traps/discharge pipes or thawing
out frozen condensate pipework.
• Checking and replenishing system pressure.
• Oil supply pipelines, electrical cables and plugs, external
controls not supplied by Grant Engineering (UK) Limited.
• Heating system components, such as radiators, pipes,
ttings, pumps and valves not supplied by Grant Engineering
(UK) Limited.
• Instances where the oil boiler has been un-installed and re-
installed in another location.
• Use of spare parts not authorised by Grant Engineering (UK)
Limited.
• Consumable items including, but not limited to, oil nozzles, oil
hoses, gaskets and seals.
Page 13
User Handbook Page 13
IMPORTANT
The nozzle and braided oil hose supplied with the boiler are only
covered for the period up to the time of the rst service (twelve
months). Both must be changed on the rst service and on every
annual service thereafter.
IMPORTANT
A suitable oil lter with a minimum 15µ ltration must be installed
in the oil supply line.
Do not wait until the fuel supply runs out before you re-order.
Sludge in the bottom of the tank may be drawn into the fuel lines.
It is recommended that the boiler is switched off when the new oil
supply is delivered and that the fuel is allowed to settle for an hour
before restarting the boiler.
Terms of manufacturer’s guarantee
• The Company shall mean Grant Engineering (UK) Limited.
• The boiler must be installed by a competent person and
in full accordance with the relevant Codes of Practice,
Regulations and Legislation in force at the time of installation.
• The boiler is guaranteed for two years from the date of
installation
4
, providing that every twelve months the annual
service has been completed3 and the boiler registered with
the Company within thirty days of installation. Any work
undertaken must be authorised by the Company and carried
out by a competent service engineer.
• This guarantee will be invalid if the boiler does not have an
annual (every twelve month) service and will then be limited
to twelve months from the date of installation
4
.
• The shell (heat exchanger) of the oil boiler is covered by a
ve year parts only guarantee from the date of installation
4
.
This is subject to the following:
• The boiler is operated correctly, in accordance with the
Installation and servicing instructions.
• Grant Engineering (UK) Limited strongly recommends
that a Grant Mag-One in-line magnetic lter/s (or
equivalent
5
) is tted in the heating system pipework. This
should be installed and regularly serviced in accordance
with the lter manufacturer’s instructions. We reserve
the right to ask for proof of installation – failure to
provide this may result in the guarantee becoming
invalid.
• Proof is provided that the system has been ushed or
chemically cleaned where appropriate (refer to BS 7593)
and that the required quantity of a suitable corrosion
inhibitor added.
• Proof of annual servicing (including the checking of any
expansion vessels and pressure relief valves) must be
provided if and when requested by the Company.
• This guarantee does not cover breakdowns caused by
incorrect installation, neglect, misuse, accident or failure to
operate the boiler in accordance with the manufacturer’s
installation and servicing instructions.
• The boiler is registered with the Company within thirty days
of installation. Failure to do so does not affect your statutory
rights
1
.
• The balance of the guarantee is transferable providing the
installation is serviced prior to the dwelling’s new owners
taking up residence. Grant Engineering (UK) Limited must be
informed of the new owner’s details.
• The Company will endeavour to provide prompt service in
the unlikely event of a problem occurring, but cannot be held
responsible for any consequences of delay however caused.
• This guarantee applies to Grant Engineering (UK) Limited
boilers purchased and installed on the UK mainland, Isle of
Wight, Channel Islands and Scottish Isles only
2
. Provision
of in-guarantee cover elsewhere in the UK is subject to
agreement with the Company.
• All claims under this guarantee must be made to the
Company prior to any work being undertaken. Invoices for
call out/repair work by any third party will not be accepted
unless previously authorised by the Company.
• Proof of purchase and date of installation, commissioning
and service documents must be provided on request.
• If a replacement boiler is supplied under the guarantee (due
to a manufacturing fault) the product guarantee continues
from the installation date of the original boiler and not from
the installation date of the replacement
4
.
• The oil boiler must be connected to a mains water supply
(installations utilising a private water supply are not covered
by this guarantee).
• Breakdown/failure due to lime scale will not be covered by
this guarantee.
• The replacement of a boiler under this guarantee does not
include any consequential costs, such as the removal or
replacement of worktops, kitchen units, etc.
• The boiler (excluding external modules) must not be sited in
a location where it may be subjected to frost.
Hard water advice (for Combi boilers only)
If you live in a hard water area, protection against scaling must
be given to the domestic hot water heat exchanger of your
combination boiler.
You should t an appropriate scale inhibitor or water softener as
any breakdown caused by water scaling is not covered by the
manufacturer’s guarantee. Ask your installer for advice.
Foot notes
1. Your statutory rights entitle you to a one year guarantee
period only.
2. The UK mainland consists of England, Scotland and
Wales only. Please note that for the purposes of this
denition, Northern Ireland, Isle of Man and Scilly Isles
are not considered part of the UK mainland.
3. We recommend that your oil boiler is serviced every twelve
months (even when the guarantee has expired) to prolong
the lifespan and ensure it is operating safely and efciently.
4. The guarantee period will commence from the date of
installation, unless the installation date is more than six
months from the date of purchase, in which case the
guarantee period will commence six months from the date of
purchase.
5. As measured by gauss. The MagOne magnetic lter has a
gauss measurement of 12,000.
Version 1.2 – February 2017
Page 14
Service 1
Date
Engineer
Company name
Telephone number
OFTEC Technician number
Comments
Signature
Service 2
Date
Engineer
Company name
Telephone number
OFTEC Technician number
Comments
Signature
Service 3
Date
Engineer
Company name
Telephone number
OFTEC Technician number
Comments
Signature
Service 4
Date
Engineer
Company name
Telephone number
OFTEC Technician number
Comments
Signature
Service 5
Date
Engineer
Company name
Telephone number
OFTEC Technician number
Comments
Signature
Service 6
Date
Engineer
Company name
Telephone number
OFTEC Technician number
Comments
Signature
Service 7
Date
Engineer
Company name
Telephone number
OFTEC Technician number
Comments
Signature
Service 8
Date
Engineer
Company name
Telephone number
OFTEC Technician number
Comments
Signature
User HandbookPage 14
7 SERVICE LOG
Page 15
User Handbook Page 15
Service 9
Date
Engineer
Company name
Telephone number
OFTEC Technician number
Comments
Signature
Service 10
Date
Engineer
Company name
Telephone number
OFTEC Technician number
Comments
Signature
Service 11
Date
Engineer
Company name
Telephone number
OFTEC Technician number
Comments
Signature
Service 12
Date
Engineer
Company name
Telephone number
OFTEC Technician number
Comments
Signature
Service 13
Date
Engineer
Company name
Telephone number
OFTEC Technician number
Comments
Signature
Service 14
Date
Engineer
Company name
Telephone number
OFTEC Technician number
Comments
Signature
Service 15
Date
Engineer
Company name
Telephone number
OFTEC Technician number
Comments
Signature
Service 16
Date
Engineer
Company name
Telephone number
OFTEC Technician number
Comments
Signature
Page 16
GRANT ENGINEERING (UK) LIMITED
Hopton House, Hopton Industrial Estate, Devizes, Wiltshire, SN10 2EU
Tel: +44 (0)1380 736920 Fax: +44 (0)1380 736991
Email: [email protected] www.grantuk.com
Boiler model
Serial number
Flue type Balanced:
□ Conventional: □
Sealed system Yes: □ No: □
Date of installation
Installer
Installer contact number
Date of commissioning
Commissioning engineer
Commissioning engineer
contact number
Notes
Loading...
