Grant 5847 User Manual

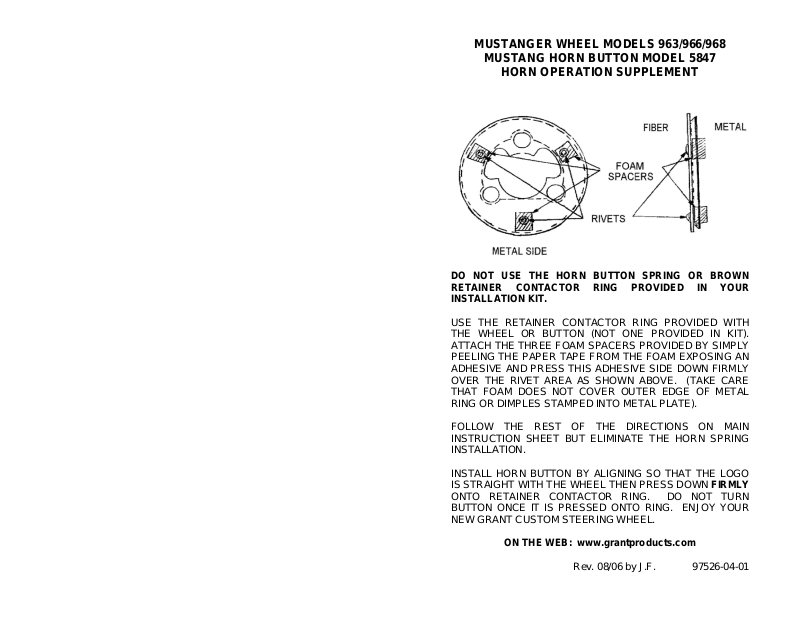

MUSTANGER WHEEL MODELS 963/966/968

MUSTANG HORN BUTTON MODEL 5847

HORN OPERATION SUPPLEMENT

DO NOT USE THE HORN BUTTON SPRING OR BROWN
RETAINER CONTACTOR RING PROVIDED IN YOUR
INSTALLATION KIT.

USE THE RETAINER CONTACTOR RING PROVIDED WITH
THE WHEEL OR BUTTON (NOT ONE PROVIDED IN KIT).
ATTACH THE THREE FOAM SPACERS PROVIDED BY SIMPLY
PEELING THE PAPER TAPE FROM THE FOAM EXPOSING AN
ADHESIVE AND PRESS THIS ADHESIVE SIDE DOWN FIRMLY
OVER THE RIVET AREA AS SHOWN ABOVE. (TAKE CARE
THAT FOAM DOES NOT COVER OUTER EDGE OF METAL
RING OR DIMPLES STAMPED INTO METAL PLATE).

FOLLOW THE REST OF THE DIRECTIONS ON MAIN
INSTRUCTION SHEET BUT ELIMINATE THE HORN SPRING
INSTALLATION.

INSTALL HORN BUTTON BY ALIGNING SO THAT THE LOGO
IS STRAIGHT WITH THE WHEEL THEN PRESS DOWN FIRMLY
ONTO RETAINER CONTACTOR RING. DO NOT TURN
BUTTON ONCE IT IS PRESSED ONTO RING. ENJOY YOUR
NEW GRANT CUSTOM STEERING WHEEL.

ON THE WEB: www.grantproducts.com

Rev. 08/06 by J.F. 97526-04-01
