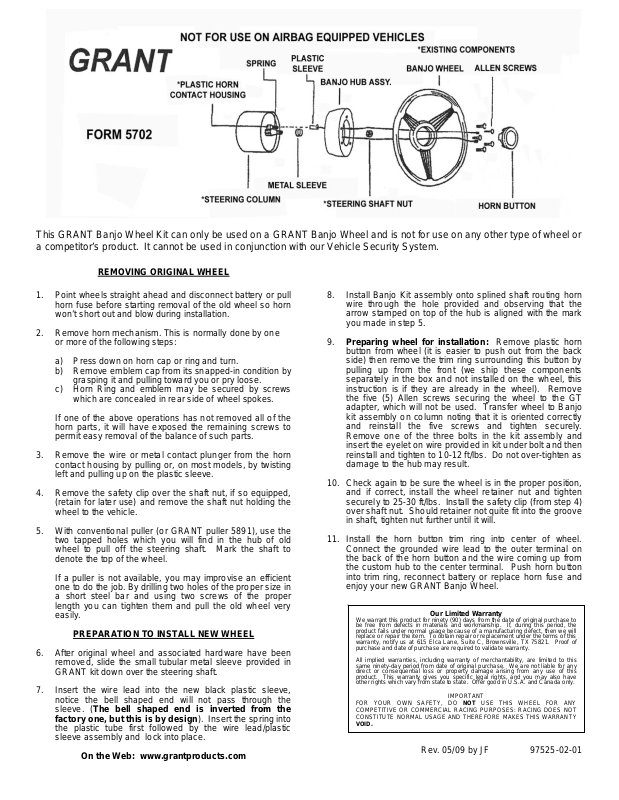

This GRANT Banjo Wheel Kit can only be used on a GRANT Banjo Wheel and is not for use on any other type of wheel or
a competitor’s product. It cannot be used in conjunction with our Vehicle Security System.
REMOVING ORIGINAL WHEEL
1. Point wheels straight ahead and disconnect battery or pull
horn fuse before starting removal of the old wheel so horn
won’t short out and blow during installation.
2. Remove horn mechanism. This is normally done by one
or more of the following steps:
a) Press down on horn cap or ring and turn.
b) Remove emblem cap from its snapped-in condition by
grasping it and pulling toward you or pry loose.
c) Horn Ring and emblem may be secured by screws
3. Remove the wire or metal contact plunger from the horn
contact housing by pulling or, on most models, by t wisting
left and pulling up on the plastic sleeve.
4. Remove the safet y clip over the shaft nut, if so equipped,
(retain for later use) and remove the shaft nut holding the
wheel to the vehicle.
5. With conventional pull er (or GRANT puller 5891), use the
two tapped holes which you will find in the hub of old
wheel to pull off the steering shaft. Mark the shaft to
denote the top of the wheel.
If a puller is not available, you may improvise an efficient
one to do the job. By drilling two holes of the proper size in
a short steel bar and using two screws of the proper
length you can tighten them and pull the ol d wheel very
easily.
6. After original wheel and associated hardware have been
removed, slide the small tubular metal sle eve provided in
GRANT kit down over the steering shaft.
7. Insert the wire lead into the new black plastic sleeve,
notice the bell shaped end will not pass through the
sleeve. (The bell shaped end is inverted from the
factory one, but this is by design). Insert the spring into
the plastic tube first followed by the wire lead/plastic
sleeve assembly and lock into place.
which are concealed in rear side of wheel spokes.
If one of the above operations has n ot removed all of the
horn parts, it will have exposed the remaining screws to
permit easy removal of the balance of such parts.
PREPARATION TO INSTALL NEW WHEEL
On the Web: www.grantproducts.com
8. Install Banjo Kit assembly onto splined shaft routing horn
wire through the hole provided and observing that the
arro w stamped on top of the hub is aligned with the mark
you made in step 5.
9. Preparing wheel for installation: Remove plastic horn
button from wheel (it is easier to push out from the back
side) then remove the trim ring surrounding this button by
pulling up from the front (we ship these components
separately in the box and not installed on the wheel, this
instruction is if they are already in the wheel). Remove
the five (5) Allen screws securing the wheel to the GT
adapter, which will not be used. Transfer wheel to Banjo
kit assembly on column notin g that it is oriented correctly
and reinstall the five screws and tighten securely.
Remove one of the three bolts in the kit assembly and
insert the eyelet on wire provided in kit under bolt and then
reinstall and tighten to 10-12 ft/lbs. Do not over-tighte n as
damage to the hub may result.
10. Check again to be sure the wheel is in the proper position,
and if correct, install the wheel retainer nut and tighten
securely to 25-30 ft/lbs. Install the safety clip (from step 4)
over shaft nut. Should retainer not quite fit into the gr oove
in shaft, tighten nut further until it will.
11. Install the horn button trim ring into center of wheel.
Connect the grounded wire lead to the outer terminal on
the back of the horn button and the wire coming up from
the custom hub to the center terminal. Push horn button
into trim ring, reconnect battery or replace horn fuse and
enjoy your new GRANT Banjo Wheel.
We warrant this product for ninety (90) days from the date of original purchase to
be free from defects in materials and workmanship. If, during this period, the
product fails under normal usage because of a manufacturing defect, then we will
replace or repair the item. To obtain repair or replacement under the terms of this
warranty, notify us at 615 Elca Lane, Suite C, Brownsville, TX 75821. Proof of
purchase and date of purchase are required to validate warranty.
All implied warranties, including warranty of merchantability, are limited to this
same ninety-day period from date of original purchase. We are not liable for any
direct or consequential loss or property damage arising from any use of this
product. This warranty gives you specific legal rights, and you may also have
other rights which vary from state to state. Offer good in U.S.A. and Canada only.
FOR YOUR OWN SAFETY, DO NOT USE THIS WHEEL FOR ANY
COMPETITIVE OR COMMERCIAL RACING PURPOSES: RACING DOES NOT
CONSTITUTE NORMAL USAGE AND THEREFORE MAKES THIS WARRANTY
VOID.
Our Limited Warranty
IMPORTANT
Rev. 05/09 by JF 97525-02-01
