Grant 457 User Manual

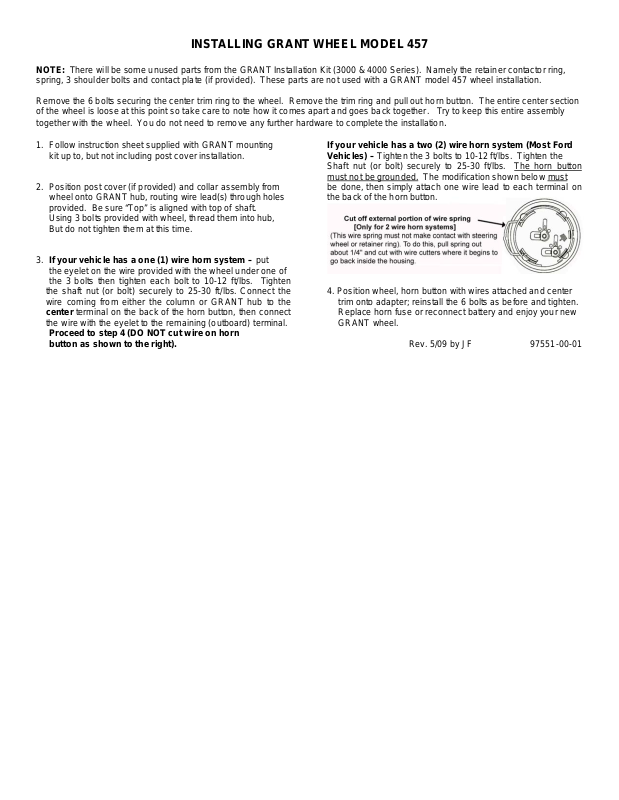

INSTALLING GRANT WHEEL MODEL 457

NOTE: There will be some unused parts from the GRANT Installation Kit (3000 & 4000 Series). Namely the retainer contactor ring,

spring, 3 shoulder bolts and contact plate (if provided). These parts are not used with a GRANT model 457 wheel installation.
Remove the 6 bolts securing the center trim ring to the wheel. Remove the trim ring and pull out horn button. The entire center section

of the wheel is loose at this point so take care to note how it comes apart and goes back together. Try to keep this entire assembly
together with the wheel. You do not need to remove any further hardware to complete the installation

.

1. Follow instruction sheet supplied with GRANT mounting
kit up to, but not including post cover installation.

2. Position post cover (if provided) and collar assembly from
wheel onto GRANT hub, routing wire lead(s) through holes
provided. Be sure “Top” is aligned with top of shaft.
Using 3 bolts provided with wheel, thread them into hub,
But do not tighten them at this time.

3. If your vehicle has a one (1) wire horn system – put
the eyelet on the wire provided with the wheel under one of
the 3 bolts then tighten each bolt to 10-12 ft/lbs. Tighten

the shaft nut (or bolt) securely to 25-30 ft/lbs. Connect the
wire coming from either the column or GRANT hub to the
center terminal on the back of the horn button, then connect
the wire with the eyelet to the remaining (outboard) terminal.

Proceed to step 4 (DO NOT cut wire on horn

button as shown to the right).

If your vehicle has a two (2) wire horn system (Most Ford
Vehicles) – Tighten the 3 bolts to 10-12 ft/lbs. Tighten the

Shaft nut (or bolt) securely to 25-30 ft/lbs. The horn button
must not be grounded.
be done, then simply attach one wire lead to each terminal on
the back of the horn button.

4. Position wheel, horn button with wires attached and center
trim onto adapter; reinstall the 6 bolts as before and tighten.
Replace horn fuse or reconnect battery and enjoy your new
GRANT wheel.

The modification shown below must

Rev. 5/09 by JF 97551-00-01
