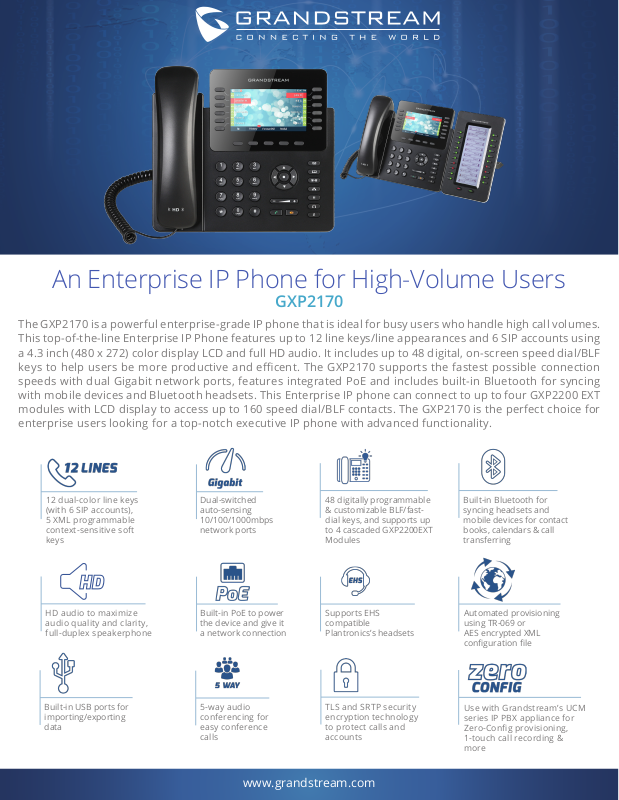

GRANDSTREAM GRS GXP-2170 Datasheet

An Enterprise IP Phone for High-Volume Users

GXP2170

The GXP2170 is a powerful enterprise-grade IP phone that is ideal for busy users who handle high call volumes.
This top-of-the-line Enterprise IP Phone features up to 12 line keys/line appearances and 6 SIP accounts using
a 4.3 inch (480 x 272) color display LCD and full HD audio. It includes up to 48 digital, on-screen speed dial/BLF

keys to help users be more productive and ecent. The GXP2170 supports the fastest possible connection

speeds with dual Gigabit network ports, features integrated PoE and includes built-in Bluetooth for syncing
with mobile devices and Bluetooth headsets. This Enterprise IP phone can connect to up to four GXP2200 EXT
modules with LCD display to access up to 160 speed dial/BLF contacts. The GXP2170 is the perfect choice for
enterprise users looking for a top-notch executive IP phone with advanced functionality.

12 dual-color line keys
(with 6 SIP accounts),
5 XML programmable
context-sensitive soft
keys

HD audio to maximize
audio quality and clarity,
full-duplex speakerphone

Built-in USB ports for
importing/exporting
data

Dual-switched
auto-sensing
10/100/1000mbps
network ports

Built-in PoE to power
the device and give it
a network connection

5-way audio
conferencing for
easy conference
calls

www.grandstream.com

48 digitally programmable
& customizable BLF/fast­dial keys, and supports up
to 4 cascaded GXP2200EXT
Modules

Supports EHS
compatible
Plantronics’s headsets

TLS and SRTP security
encryption technology
to protect calls and
accounts

Built-in Bluetooth for
syncing headsets and
mobile devices for contact
books, calendars & call
transferring

Automated provisioning
using TR-069 or
AES encrypted XML

conguration le

Use with Grandstream’s UCM
series IP PBX appliance for

Zero-Cong provisioning,

1-touch call recording &
more

Protocols/Standards

SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV,
NAPTR), DHCP, PPPoE, SSH, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069,

802.1x, TLS, SRTP, IPV6, CDP/SNMP/RTCP-XR

Network Interfaces

Graphic Display 4.3 inch (480x272) TFT color LCD

Bluetooth Yes, integrated

Feature Keys

Voice Codecs

Auxiliary Ports RJ9 headset jack (allowing EHS with Plantronics headsets), USB, extension module port

Telephony Features

HD Audio Yes, HD handset and speakerphone with support for wideband audio

Extension Module

Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with integrated
PoE

12 line keys with up to 6 SIP accounts, 5 XML programmable context sensitive soft­keys, 5 navigation/menu keys, 11 dedicated function keys for : MESSAGE (with LED
indicator), PHONEBOOK, TRANSFER, CONFERENCE, HOLD, HEADSET, MUTE, SEND/
REDIAL, SPEAKERPHONE, VOL+, VOL-

Support for G7.29A/B, G.711µ/a-law, G.726, G.722(wide-band), G723.1, iLBC, Opus,
in-band and out-of-band DTMF(in audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB,
AGC

Hold, transfer, forward, 5-way conference, call park, call pickup, shared-call-appea­rance (SCA)/bridged-line-appearance(BLA), downloadable phonebook (XML, LDAP, up
to 2000 items), call waiting, call log(up to 500 records), XML customization of screen,
o-hook auto dial, auto answer, click-to-dial, exible dial plan, hot desking, persona­lized music ringtones and music on hold, server redundancy and fail-over

Yes, can power up to 4 GXP2200EXT modules which features a 128x384 graphic LCD,
20 quick-dial/BLF keys which dual-color LED, 2 navigation keys, and less than 1.2W
power consumption per unit.

Base Stand Yes, 2 angle positions available, Wall Mountable

QoS Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiServ, MPLS) QoS

Security

Multi-language

Upgrade/Provisioning

Power & Green Energy Eciency

Physical

Temperature and Humidity Operation: 0°C to 40°C Storage: -10°C to 60°C Humidity: 10% to 90% Non-condensing

Package Content

Compliance

User and administrator level passwords, MD5 and MD5-sess based authentication,

256-bit AES encrypted conguration le, SRTP, TLS, 802.1x media access control

English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, simplied

and traditional Chinese, Korean, Japanese and more

Firmware upgrade via TFTP / HTTP / HTTPS, mass provisioning using TR-069 or AES

encrypted XML conguration le, FTP/FTPS

Universal power adapter included: Input:100-240V ; Output: +12V, 1.0A ;
Integrated Power-over-Ethernet (802.3af)
Max power consumption : 5.4W(without GXP2200EXT) or 9.2W(with 4 cascaded GX­P2200EXTs)

Dimension: 228mm(W) x 206mm(L) x 46mm(H); Unit weight:0.98kg ; Package
weight:1.43kg

GXP2170 phone, handset with cord, base stand, universal power supply, network
cable, Quick Installation Guide, GPL license

FCC: Part 15 (CFR 47) Class B

CE: EN55022 Class B; EN55024 Class B;EN61000-3-2; EN61000-3-3;EN60950-1
RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950.1
