Rigid Inflatable Boat
SILVER LINE
Models:
S650,S650L,S650GL
User’s Manual
GRAND Silver Line S650,S650L,S650GL UM16500
INTRODUCTION.
"GRAND" inflatable motor boat of the "SILVER LINE" series: S650 has been designed under requirements of ISO
6185 "Plastomer and Elastomer Inflatable Boats" and DIN 7870 "Inflatable Boats with Reinforced Shells".
PURPOSE.
The rigid inflatable motor boat of the "SILVER LINE" series relates to the category of pleasure boats and is intended for
water sports, tourism and rest.
GRAND Silver Line S650,S650L,S650GL UM16500
2
TECHNICALDAT ASPECIFICATION Mo
Model Unit S650/S650L/S650GL
Length overall m 6.5
ft-inches 15'5"
Length inside m 5.00
ft-inches 16'4"
Width overall m 2.6
ft-inches 8'6"
Width inside m 1.5
ft-inches 4'11"
Tube diameter max m 0,55
ft-inches 1'9"
Number of chambers 5
Passenger capacity pers. 15
Load capacity kg 1700
lbs 3740
Boat weight kg 550
lbs 1100
Engine power recommended HP 140
kW 105
Engine power max HP 175
kW 136
Engine weight max kg 240
lbs 528
Engine shaft length (L-long, XL-ultralong) 2L / 1XL
Boat design Category(Dir.94/25/EC) C
GRAND Silver Line S650,S650L,S650GL UM16500
3
COMPLETESET
Model
S650 S650L S650GL
Description unit q-ty availability
1.Inflatableboat pcs. 1
1.1 Oar / paddle pcs. 2
1.2 Bow locker cushion pcs. 1
1.3 Foot pump «Bravo-2» pcs. 1
1.4 Rear seat soft back pcs. 1
1.5 Bolt M8*50 pcs. 4
1.6 Washer 8*24 pcs. 4
1.7 Fashion washer pcs. 4
1.8 Arrester nut M 8 pcs. 4
1.9 Pilot seating bar SD-04 pcs. 1
1.10 BoltM8x25 pcs. 4
1.11 Serrated lock washer 8 pcs. 4
1.12 Washer 8 pcs. 4
1.13 Bow railing pcs. 2
1.14 Rear seat extended hand rails pcs. 2
1.15 Set of spare part and repear kit: pcs. 1
2. Steering console CL-04 pcs. 1
2.1 Windscreen pcs. 1
2.2 Stainless steel windscreen railing pcs. 1
2.3 Support windscreen railing pcs. 4
GRAND Silver Line S650,S650L,S650GL UM16500
4
COMPLETESET(continuation)
Model
S650 S650L S650GL
Description unit q-ty availability
2.4 Screw M6*25 pcs. 5
2.5 Screw bush (bush #1) pcs. 5
2.6 Bush #2 pcs. 5
2.7 Nut M6 pcs. 5
2.8 Serrated lock washer 6 pcs. 5
2.9 Washer 6 pcs. 5
2.10 Bolt M8 x25 pcs. 6
2.11 Serrated lock washer 8 pcs. 6
2.12 Washer 8 pcs. 6
2.13 Bolt M12x30 pcs. 4
2.14 Serrated lock washer 12 pcs. 4
2.15 Washer 12 pcs. 4
2.16 Speedometer pcs. 1
2.17 Tachometer pcs. 1
2.18 Compass pcs. 1
2.19 Automatic circuit breakers pcs. 8
2.20 Main boat cable pcs. 1
2.21 Battery wire pcs. 1
2.22 Electric accessory socket(phone charge pluge) pcs. 1
2.23 Battery disconnector with wire pcs. 1
GRAND Silver Line S650,S650L,S650GL UM16500
5
COMPLETESET(continuation)
Model
S650 S650L S650GL
Description unit q-ty availability
2.24 Battery container pcs. 1
2.25 Fire extinguisher container pcs 1
3. Fuel system
3.1 Fuel tank (150 liters) pcs. 1
3.2 Fuel level sender pcs. 1
3.3 Fuel level gauge pcs. 1
3.5 Fuel filler pcs. 1
3.6 Fuel tank vent pcs. 1
4. Shower kit pcs 1
4.1 Water tank (50 liters) pcs. 1
4.2 External deck water fill pcs. 1
4.3 Shower hahdset pcs. 1
4.4 Shower pump pcs. 1
4.5 Box with cap for showerhandset pcs. 1
5. Fiberglass arc pcs. 1
5.1 Electric horn pcs. 1
5.2 Masthead (white) pcs. 1
5.3 Port (red) pcs. 1
5.4 Starboard (green) pcs. 1
GRAND Silver Line S650,S650L,S650GL UM16500
6
COMPLETESET(ending)
Model
S650 S650L S650GL
Description unit q-ty availability
5.5 Nut M12 pcs. 4
5.6 Washer 12x36 pcs. 4
5.7 Serrated lock washer 12x36 pcs. 4
6. Drain automatic bilgepump pcs. 1
7. Additional options
7.1 Transom mounted swimming ladder w/ handrail pcs. 1
7.2 Removable bow sundeck w/ cusion pcs. 1
7.3 Adjustable pilot chear pcs. 2
7.4 St. console head for standart side mount engin
control box pcs. 1
7.5 Overallcover pcs. 1
7.6 Console CL-04 cover pcs. 1
7.7 Pilot seat SD-04 cover pcs. 1
7.8 Hydraulic steering system set w/ wheel pcs. 1
7.9 Mechanical steering system set w/ wheel pcs. 1
7.10 Delux steering wheel pcs. 1
7.11 Courtesy deck lights set w/ wiring pcs. 1
7.12 Collapsed st.steel suntop w/ mount bases pcs. 1
7.13 St.steel polished navigation arch pcs. 1
GRAND Silver Line S650,S650L,S650GL UM16500
— Your
"GRAND" boat "SILVER LINE" complete set included this items.
7
GRAND Silver Line S650,S650L,S650GL UM16500
S650
910 8 7 1114 412 6 521513 17
11
1916
8
13
GRAND Silver Line S650,S650L,S650GL UM16500
Pos Item
1 Fiberglass hull
2 Reinforced buoyancy tube
3 Inflation / deflation valve
4 Doubled rubbing strake
5 Lifeline holder
6 Internallifeline
7 Towing bow eye
8 Bow step-plate with antiskid layer
9 Anchor roller
10 Continental fairlead
11 Pull-upcleat
12 Stainless steel bow railing
13 Safety handle
14 Bow locker with access hatch
15 Molded-in console CL-04 with front stowage, cushion,
soft back and rear access hatch
16 Molded-in container SD-04 with front stowages, cushions,
soft backs and rear access hatch
17 Stern locker seating
18 Stern seating soft back
19 Fiberglass arch
20 Cockpit drain system socket (2pcs.)
21 Fuelfill
18
21
20
9
GRAND Silver Line S650,S650L,S650GL UM16500
INFLATION/ DEFLATIONVALVES OPERA TION
The inflation/deflation valve is intended for:
—filling the compartment with air from a standart pump or filling
system and maintaining pressure in the tube for prolonged time,
—adjustable drop of pressure in compartment.
The air fill valve is designed as a tab-type non-return valve.
Every inflation / deflation valve includes the following parts : valve
body 1, valve nut 5, valve cap 2 with strap 3, washerwith gasket 4,
spindel 6 with spring 7, cup diaphragm 8 ( Fig.1).
INFLATION MODE : valve is closed with gasket 4 tight . Tomove the
valve to deflation mode : push the button 6 and turn it clockwise to fix
it in lower position
DEFLATION MODE : button is fixed in lower position. To move the
valve to inflation mode : push the button 6 and turn it counter
clockwise. The button goes to upper position.
A TTENTION!
1. Overinflating of your boat,when the air pressureis
more than nominal, sufficiently decreases the boat
life time.
2.Thevalves are airtight just in case theyareclosedwith
the caps tight.
3. The tube is airtight in case it keeps its form for 8
hours at least.
5687
41 23
Fig.1
10
A TTENTION! Toavoid water penetration into the console
inner layers, please, tight all hole free space with any
water resistant filler.
In order to set the boat in operation condition perform as follows:
- unfold the inflatable tube;
- mount outboard engine on the transom in accordance
with it`s own installation instruction.
- extend engine remote control cables and steering
cable from engine mounting place to steering console mounting
place through holes on the deck and helm stowage.

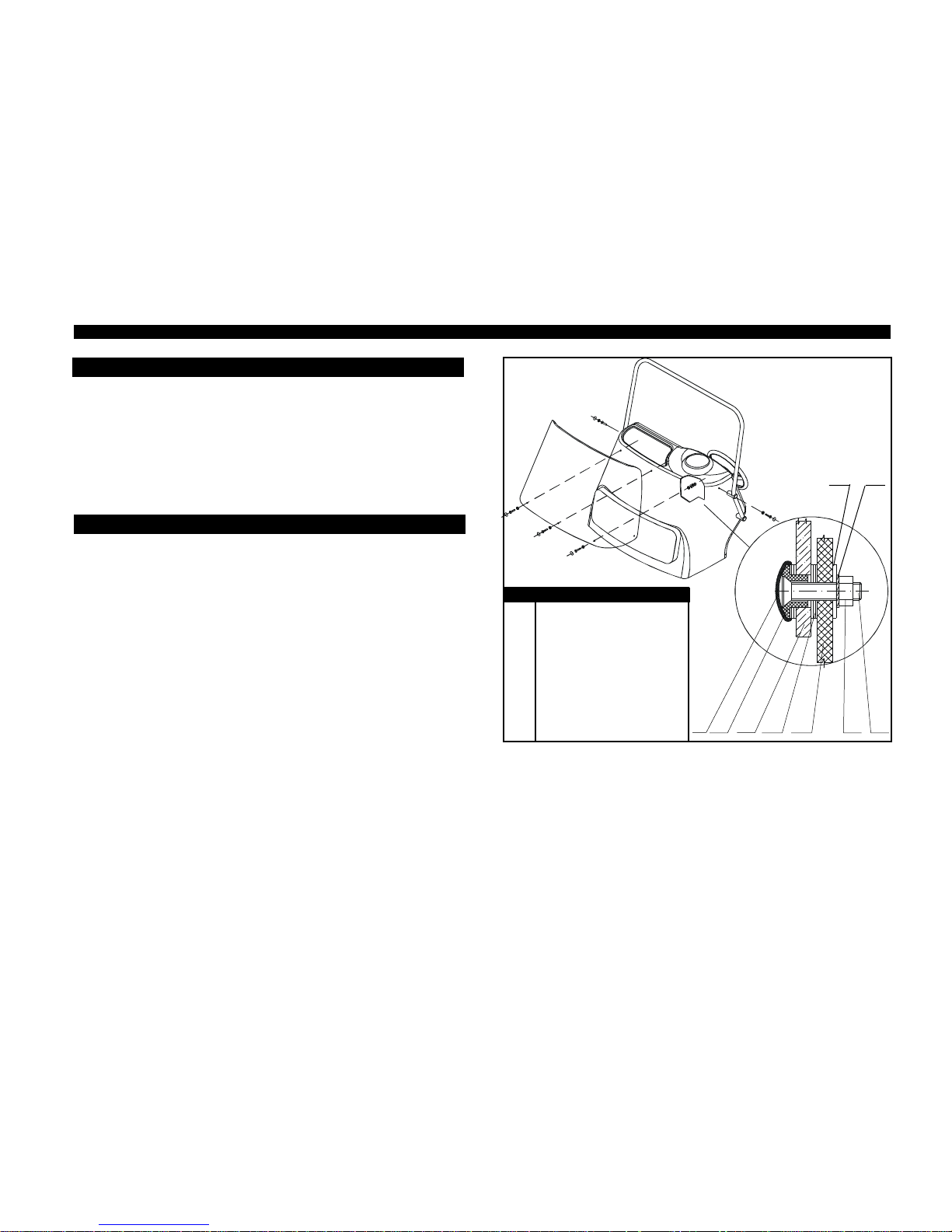

STEERINGCONSOLEINSTALLA TION
In order to install the windscreen onto console perform the next
operations ( Fig. 2 ):
- align windscreen holes with holes on console overhead
part;
- fix the windscreen by means of the screws M6x25,
bushs #1, bushs #2, serrated lock washers, washers and
nuts M6 from the complete set;
- tighten all the nuts.
STEERINGCONSOLEINSTALLA TION
PREPARATIONFOREXPLOITATION.
62 4 3 5 7 1
Fig.2
GRAND Silver Line S650,S650L,S650GL UM16500
Pos Item
1 Screw
2 Bush #1
3 Bush #2
4 Windscreen
5 Steering console
6 Cup
7 Nut
8 Serrated lock washer
9 Washer
9
8
11
GRAND Silver Line S650,S650L,S650GL UM16500

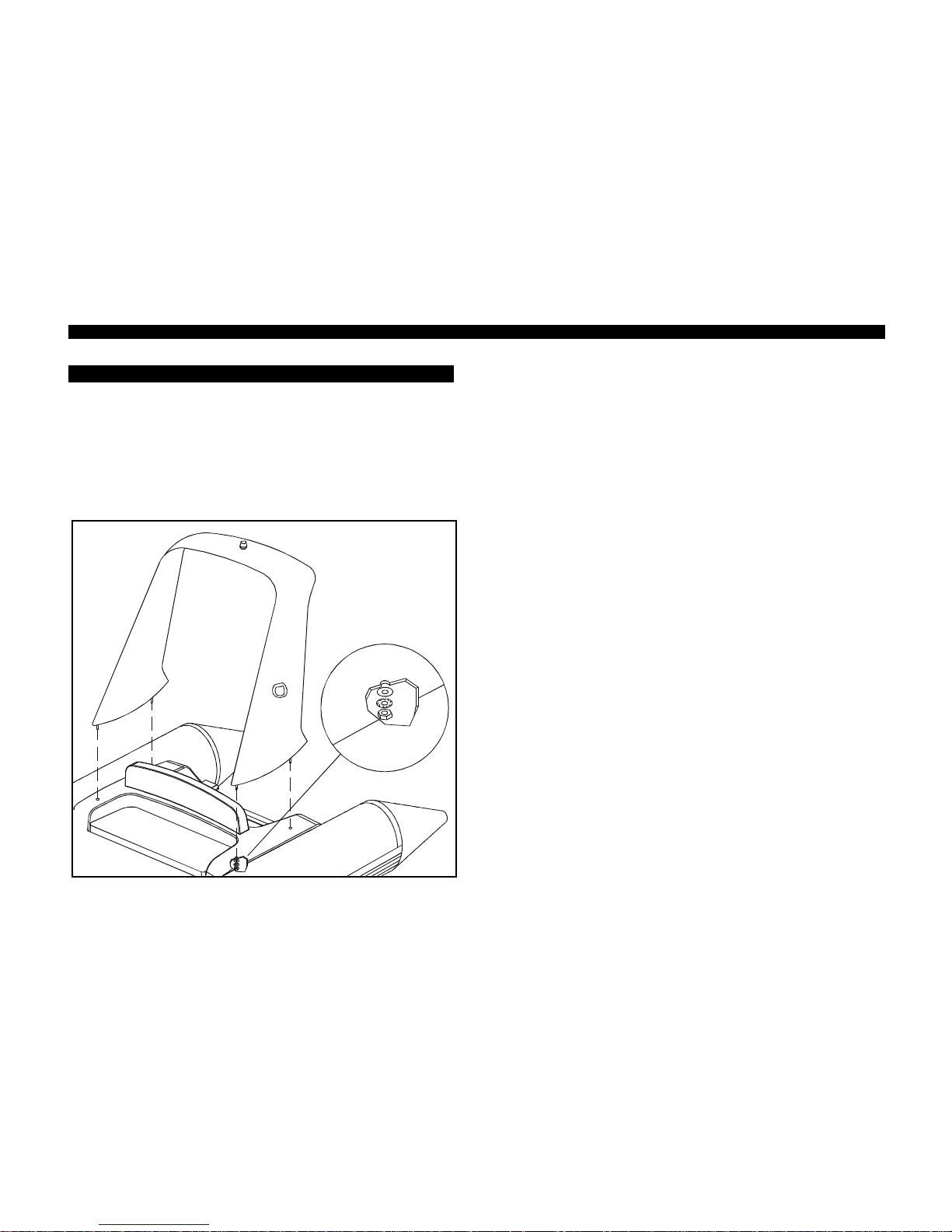

In order to install the windscreen railing onto console perform the
next operations ( Fig. 3 ):
- align holes in the windscreen railing supports with
holes on console overhead part;
- fix windscreen railing by means of the bolts M12x30, serrated
lock washers and washers from the complete set;
- tighten all the bolts.
Fig.3
12
In order to install the steering console, perform the next operations
( Fig. 4, Fig5 ):
- hinge out the steering console overhead;
- open the front seating;
- open hatch of the console back locker;
- extend steering cable and engine remote control cables
through hole in the steering console bottom;
- align console bottom holes with holes in the deck
surfaces and fix console to deck by means of bolts M8x30,
serrated lock washers and washers from complete set;
- attach steering cable to the steering mechanism and install
engine remote control block to the overhead console;
- connect electric cable to the steering console (see wiring
diagram);
- double-check that the steering and remote control cables
have been connected correctly. For checking refer to the
steering mechanism and engine instructions manual;
- fix the overhead console part by means of washers, serrated
lock washers and nuts;
- close front seating and hatch of the locker.
GRAND Silver Line S650,S650L,S650GL UM16500
Fig.4
ATTENTION ! To avoid the water penetration into the
consoleinner layers, please, tight all theholefree space
withany water resistant filler.
13
Fig.5
CONTAINERINSTALA TION
In order to install container onto deck perform the next operations
(Fig.6):
- open hatch of the back locker;
- align bottom container holes with holes on the deck;
- fix container by means of bolt M8x25,
serrated lock washers, washers from the complete set;
- tighten all the bolts;
- replace hatch of the back locker.
ATTENTION ! To avoid the water penetration into the
console and container inner layers, please, tight allthe
hole free space with anywater resistant filler.
Fig.6
GRAND Silver Line S650,S650L,S650GL UM16500
14
GRAND Silver Line S650,S650L,S650GL UM16500
STERNSOFTSEAT-BACK MOUNTING.
In order to install the stern locker seat-back, perform the next
operations (Fig.7)
- hinge out the seat of stern locker;
- insert seat-back support into the holes of stern surface;
- fix seat-back by means of the bolts M8x50, shaped washers,
washers and arrester nuts M8 from the complete set;
- tighten all the bolts;
- replace the locker seat.

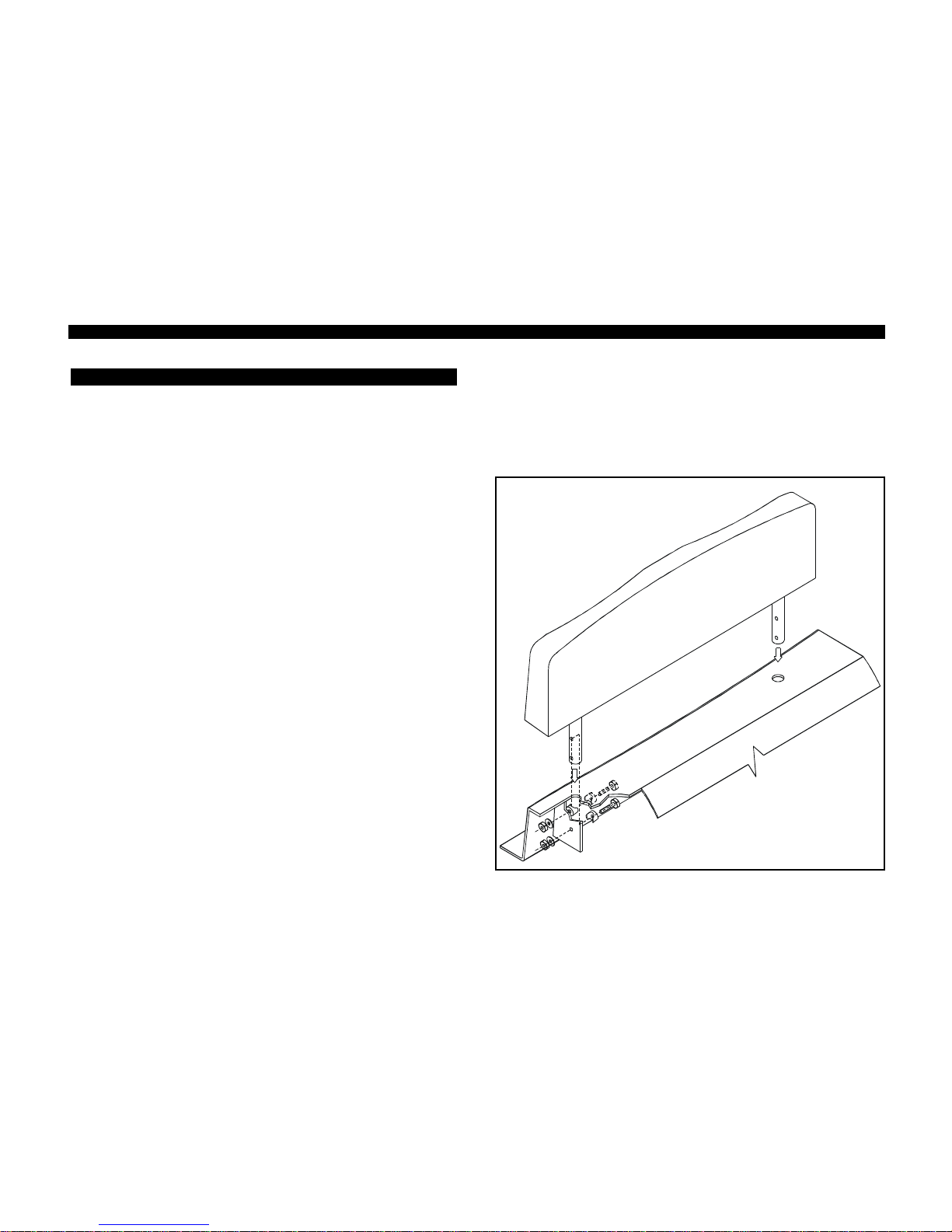

Fig.7
15
In order to install the arc, perform the next operations (Fig.8):
- hinge out the seat of stern locker;
- insert arc stud in the stern surface holes ;
- fix arc by means of the nuts M12, serrated lock washers
and washers from the complete set ;
- tighten all nuts;
- replace the locker seat.
ARCMOUNTING.
GRAND Silver Line S650,S650L,S650GL UM16500
Fig.8
16
GRAND Silver Line S650,S650L,S650GL UM16500
Wiringdiagram
17
MAINTENANCE
Main conditions of long service life is right and careful service.
Avoid excessive increasing of pressure in the board,
especially from heating by the sun rays.
After exploitation take off sand and dirt from boat surface,
and carefully dry it.
Avoid the water getting into the chambers. If a fuel or an oil / gas
gets to the boat surface it is necessary to wash the soiling place by
soap water as soon as possible and dry.
Pay attention to the condition of bottom and seat surfaces. If
the coating is destroyed it is necessary to dry this element and
restore the defend ply.
After the season prepare the boat to winter keeping.
Clean boat surface from sand and dirt and make the necessary
repairs, if damages take place. If it is possible, keep the boat
in the open and slightly pumped state in air temperature 025°C. The boat must be protected from the sun rays.
Insignificant boat repairing (eliminating the board punctures
or cuts) you may carry out by yourself. In this case use the
coated fabric patches from the complete set. Ask your dealer
for the correct type of glue you may use for the repair.
In case if sufficient damagesof hull, tube body, partitions
or seams it is recommended to apply for professional repair
in authorized service station.
OPERATINGREGULATIONS
OPERATINGREGULATIONS
Dear user,
We thank your for your purchase and do hope that you will
have a great fun of it. However, to make your joy and
pleasure complete, we would request you to read carefully
and observe the directions and recommendations specified
below.
IT IS STRICTLY FORBIDDEN:
to handle the boat in the state of intoxication and without individual
rescue means being used (life-saving belts, jackets, etc.)
IT IS FORBIDDEN :
- to overload the boat above the design weight-carrying capacity;
- to use an outboard engine of power exceeding the maximum
allowable value;
- to bring the tube pressure up to the value exceeding the rated
one ( 0.15 bar/ 2.15 psi );
- to drag the boat across a rough surface.
Danger of usage of engine having insufficient or
excessive power
According to the safety regulations, each inflatable boat
should be furnished with an outboard engine having the
maximum allowable power. You will find the data on the
maximum allowablepowerof the engine onthemanufacturer's
plate with the designationofthemodeltypeinscribed thereon.
The plate is fixed in the afterbody of the boat. However, your
should choose the engine power within the allowable range
so as to ensure that you may safely reach the shore when
heading into the wind or into the current.
GRAND Silver Line S650,S650L,S650GL UM16500
18
Observation of local shipping regulations
For each particular water area the local shipping regulations
are in force. You may apply for information to the appropriate
water transport and shipping directorate, as well as to the
water police.
Proper usage of boat equipment and accessories
Use the boat equipment and accessories only on their direct
purpose to ensure reliable service.
Availability of Oars
Even when sailing with an outboard engine you should
always have the oars available with you so that you were able
to reach the shore without outside assistance in case of any
damage to the boat.
Usage of emergency stop switch
On your request any outboard engine seller may provide your
engine with the emergency stop switch. During navigation the
switch should be connected to the wrist of your hand by
means of a cord. In case you fall overboard, even if being a
steersman, the switch will cut out the engine and the propeller.
This arrangement will enable you to avoid any traumas and to
reach the boat.
Prevention of damages caused by electrolyte or
fuel leakages
Take all possible precautions against penetration of fuel or
electrolyte from the storage battery into the inflatable boat. If
it does happen wash thoroughly the fouled spots with water.
Cargo arrangement and stowing, attachment of
items and prevention of falling overboard
You should be always sure that the number of people on
board never exceeds that specified in the user's manual or
on the manufacturer's plate provided on the transom. The boat
will retain an adequate floatability and will not keel over only
provided that the load is arranged reasonably. Therefore,do
not accommodate all passengers on the same side of theboat.
Arrange the cargo to be carried uniformly inside the boat, all
items being reliable secured on the bottom of the boat. All
passengers should be accommodated inside the boat. The
occupied seats should not be left throughout the entire
sail ing time. When sailing with an outboard engine the
steersman should shift his body forward in the course of
accelerationto preventthe boat forebodyfromraisingunder
the force of upthrust waves.
Presence of sharp and pricking objects on board
Despitethe strong shellof the boatwearerecommendedto
handlesharp and prickingobjectsbeingonboard withcare.
Forexample, it concernsaknifeblade,fish-hook point,etc.
Rockyshore, mole, shoals(forexample,sandbanks,
coral reefs, rocks)
Approachrocky shores,shoals, moles,etc. carefullyto avoid
damagesto the boat.Itis strictlyprohibited todragthe boat
acrossrough surfaces (shingle,rocks,concrete, etc.).
Check atnavigation
Incase of prolongednavigationwith theuse ofanoutboard
engine,regularlycheck toensure thattheengine isreliably
attachedto theboat.Iftheenginewasattached carelessly the
attachmentmay work looseundertheactionof vibration.
Besides,checkair chamberspressure atregularintervals,
sincethe pressure mayvaryunder theeffects ofoutsideair
temperatureand atmosphericpressure variations.
Neverforget tomonitor regularlythe quantityoffuelinthefuel
tank.Keep always inmindthatthequantity offuel shouldbe
sufficientforyou tosail toyourfinal destination.
Availability of rescue means (life-saving jackets,
distress signals, spare parts)
Ifyouare planningto gobeyondthe protectedwater areas
youshould provideall passengers on board withlife-saving
GRAND Silver Line S650,S650L,S650GL UM16500
19
In emergency stay in boat
In any unexpected situation (engine failure, boat damage,
etc.) do not ever leave the boat provided it is still afloat. Even
if you believe that the shore is just nearby stay in the boat,
since you will be looked for in this particular place and, most
probably, will be found. Should the boat become partially
flooded throw heavy objects (batteries, fuel tank, engine)
overboard to ensure additional floatability.
The "GRAND" Company employees would like to wish you a
pleasant and safe leisure time!
jackets. All passengers should put on life-saving jackets
under strong wind and heavy seaways conditions. Those
passengerswhocannot swimshould always carry thelifesavingjackets whileonboard!Itisalsorecommended to keep
constantlydistress signal meansonboard.
Towing
At towing the towing rope length should not be at least 3
lengthsof theboat,theropebeingsecuredto bothboats ina
manner ensuring
its immediately, single-motion release. The
steersman of the towed boat should be assisted by another
crew member to monitor the process of towing. In this case,
certain communication gestures should be agreed upon
beforehand.
Damage to one of air chambers
Theinflatableboat isdesignedto provide anadequate stability
in case of the complete damage to one the air chambers
(balloon compartments) at the expense of the remaining air
chambers and the hull. Thanks to it, you will be able to reach
safely the nearest shore. Reduce the speed and shift your
body to the undamaged part of the boat. Watch changes in
stability. After this immediately head for the nearest shore. To
prevent penetration of water into the boat, pull the shell of the
damaged air chambers upwards.
Anchor and mooring fast fastening
Fix the anchor and towing ropes in the forebody of the boat
to the front towing ring. Fix the back spring on the transom via
special holes.
Danger of currents and wind
Before navigation of the boat in unfamiliar waters make detail
inquiries about local conditions and regulations! Currents,
wind, shoals, rising and falling tides, as well as weather
variations may imply serious danger!
GRAND Silver Line S650,S650L,S650GL UM16500
20
MODEL
SERIAL No.
Dateof manufacture
Qualityinspection stamp
GRAND Silver Line S650,S650L,S650GL UM16500
Loading...
