Model No.: MX0808-31F

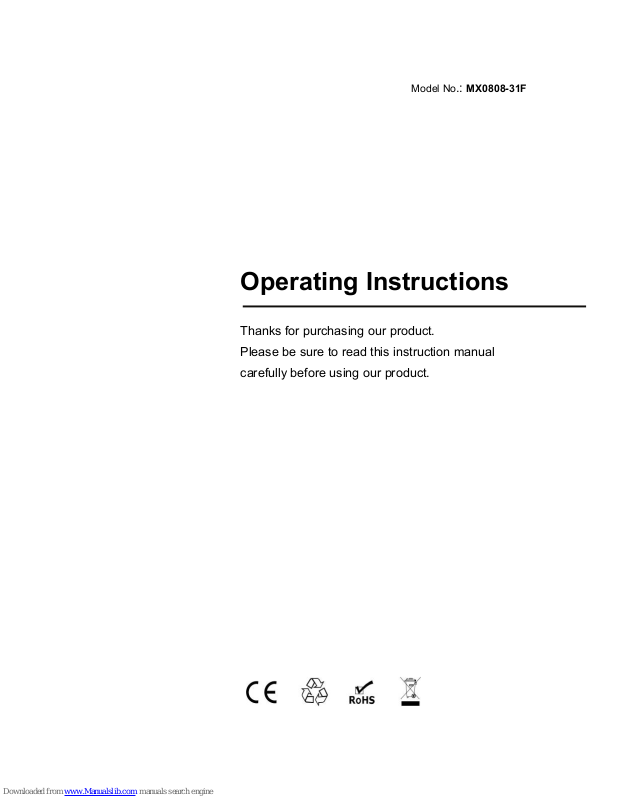

Operating Instructions
Thanks for purchasing our product.
Please be sure to read this instruction manual
carefully before using our product.
Page 2
Introduction
Grandbeing’s MX0808-31F is an 8-by-8 HDMI in HDMI out matrix. It allows any
of the eight Inputs to be routed to any of the eight Outputs simultaneously, no
matter the source is HDCP or not. When sources’ video formats are same,
outputs can switch between sources seamlessly. If sources’ formats are
different, switch time will be very fast.
Users can choose several different ways to control the matrix: by using infrared
extension receiver, RS232, RS485, and LAN and supplied remote control. IR
emitters in the matrix are for controlling the sources; the IR control signal could
be from remote locations when work with EX0101-H01 and EX0101-H02.
Also provide Optical SPIDF out for every HDMI OUT.
MX0808-31F offers solutions for digital entertainment center, HDTV retail and
show site, HDTV, STB, DVD and projector factory, noise, space and security
concerns, data center control, information distribution, conference room
presentation, school and corporate training environments.
Page 3
Contents
HDMI Matrix ....................................................................................... 1
Product Overview............................................................................... 1
Features ............................................................................................. 1
Package Contents.............................................................................. 3
Panel Descriptions ............................................................................. 3
Connections and Operations ............................................................. 5
Operation ...........................................................................................6
Specifications ...................................................................................21

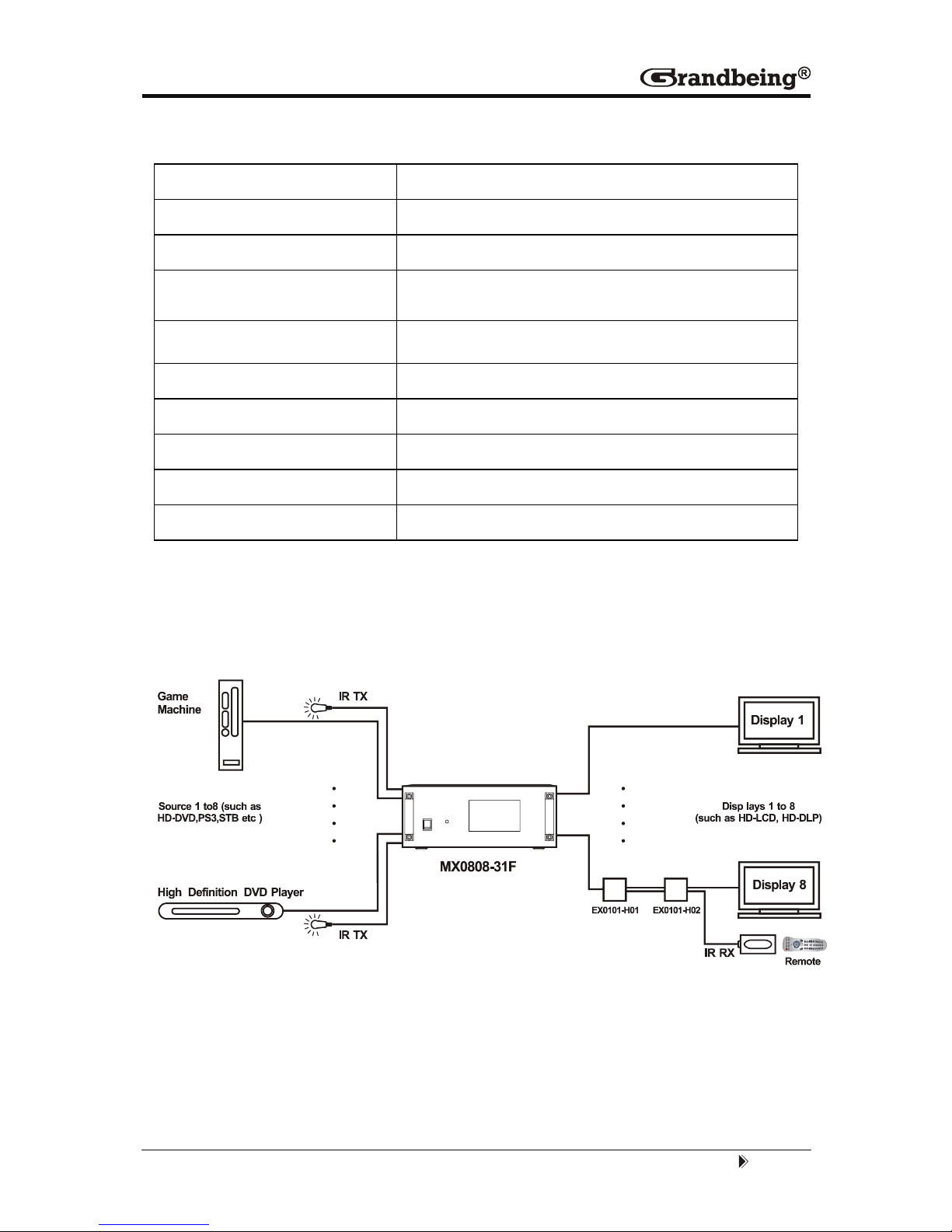

Typical Application ........................................................................... 21
Maintenance .................................................................................... 21
Provided Service .......................................................................... 22
Mail-In Service .............................................................................22
Warranty....................................................................................... 22
Warranty Limits And Exclusions ................................................... 23
Page 4
Page 1
HDMI Matrix (Routing Type)
■ Product Overview ( Model Number: MX0808-31F)
■ Features
z Allows up to eight HDMI audio/video devices to be independently switched
to eight HDMI monitors, HDTV’s, or projectors.
z The eight outputs could show the same or different source simultaneously
no matter the source is HDCP or not.
z Reading and saving EDID function from displays.
z Support high definition resolutions, including 1080p, 1080i, 720p and
other standard video formats.
z Each port supports both HDMI and DVI inputs.
z With extra infrared extension receiver.
z Six switching modes: Touch panel, local IR, IR call back from remote
locations, RS232, RS485 and Ethernet.
z Eight IR emitters to control the HDMI sources.
z HDCP compliant.
z HDMI 1.3.
Page 5
Page 2
" Notice
Grandbeing Inc. reserves the right to make changes in the hardware,
packaging and any accompanying documentation without prior written notice.
Warning
To reduce the risk of fire, electric shock or product damage:
1. Do not expose this apparatus
to rain, moisture, dripping or
splashing and that no objects
filled with liquids, such as vases,
shall be placed on the apparatus.
6. Clean this apparatus
only with dry cloth.
2. Do not install or place this unit
in a bookcase, built-in cabinet or
in another confined space.
Ensure the unit is well ventilated.
3. To prevent risk of electric
shock or fire hazard due to
overheating, do not obstruct
the unit’s ventilation openings
with newspapers, tablecloths,
curtains, and similar items.
4. Do not install near any heat
sources such as radiators, heat
registers, stoves, or other
apparatus (including amplifiers)
that produce heat.
5. Do not place sources of naked
flames, such as lighted candles,
on the unit.
7. Unplug this apparatus
during lightning storms or
when unused for long
periods of time.
8. Protect the power cord
from being walked on or
pinched particularly at
plug
s.
9. Only use attachments /
accessories specified by
the manufacturer.
10. Refer all servicing to
qualified service
personnel.
Page 6
Page 3
■ Package Contents
① 1x Main unit. P/N_MX0808-31F.
② 1x Remote. (One for main unit, others for IR calls back control from UTP
receiver).
③ 1x IR RX (IR receiver cable).
④ 8x IR TX (IR emitter cable).
⑤ 1x USB to UART cable.
⑥ 1x RS232 to RS485 converter.
⑦ 1 x 100~240V AC Power cable.
⑧ Operating Instructions. P/N_INS MX0808-31F.
⑨ Mounting ears.
⑩ Stylus.
NOTE: PART NUMBER (Abbreviation as P/N).
■
Panel Descriptions
Front Panel
① Power switch.
② IR receive window.
③ Touch Panel.
Page 7
Page 4
Rear Panel
① IR extension.
② DIP for matrix setting.
③ IR emitter, corresponding to the Input port from 1 to 8.
④ RS485 port.
⑤ LAN port.
⑥ RS232 port.
⑦ Power input.
⑧ HDMI IN.
⑨ HDMI OUT.
⑩ SPDIF OUT.
⑪ IR, corresponding to the Output port from 1 to 8.
NOTE: RS232 port and LAN port are for matrix control. The LAN port is connected to the computer
via cross UTP and connected to the router or switcher via direct UTP.
Page 8
Page 5
■ Connections and Operations
1) Connect the HDMI input source ( such as HD-DVD/ PS3 /STB etc.)Into
MX0808-31F.
2) Connect HDMI OUT of MX0808-31F to display equipment (
such as:
HD-LCD、HD-DLP).
3) Connect SPDIF OUT to SPDIF IN of audio equipment ( such as: AVR ).
4) Power on the input source you want to show. ( Keep the unused input
power off, otherwise it may interfere the normal display).
5) Plug the power cable into MX0808-31F.
6) Turn on power switch, the matrix is ready when Touch Panel show setting
screen.
7) Turn on the displays you want to watch.
8) Use the remote to control the matrix, or using Touch Panel, RS232, RS485
and LAN port to control.

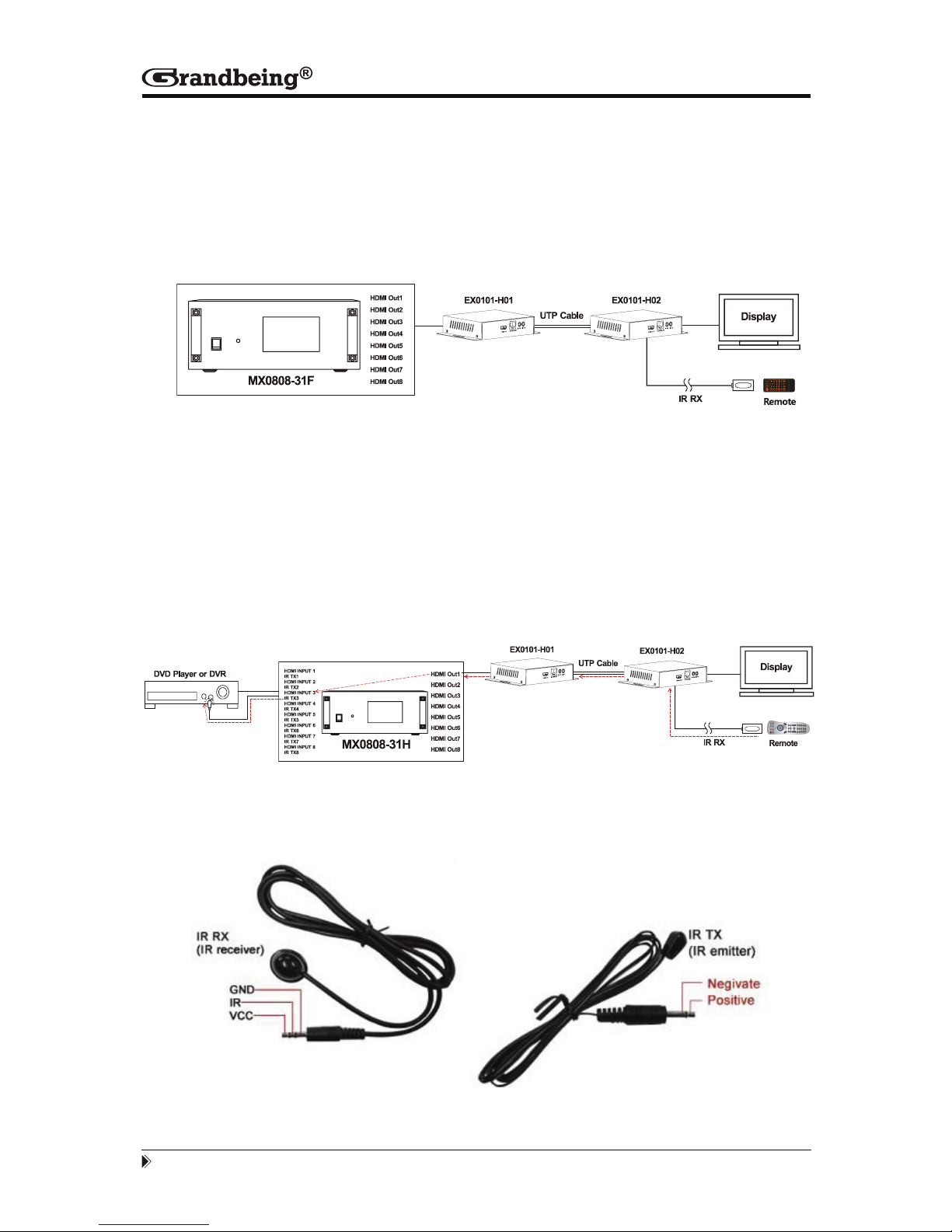

9) To use Remote IR call back, connect HDMI OUT of MX0808-31F to HDMI
IN of EX0101-H01, connect IR for HDMI OUT to IR-TX of EX0101-H01.
10) Connect UTP OUT of EX0101-H01 to UTP IN of EX0101-H02.
11) Connect the Broadband IR receive cable into EX0101-H02 IR-RX port.
12) Connect the IR emitter cables into MX0808-31F IR emitter ports.
Page 9
Page 6
■ Operation
1. Operation on Touch panel.
① Main Menu
② Switch Menu
TYPE A: Step A.1: Select an output port or ‘A’, and press “OK”,
Step A.2: Select an input source, and press “OK”.
TYPE B: Step B.1: Select a model, and press “OK”.
" NOTE: ‘C’ means Clear, if type the wrong number, press ‘C’. ‘A’ means All, only
valid at step A.1. ‘M’ means the model which records the state of the matrix routing
switch, and there are three models provided.
Page 10
Page 7

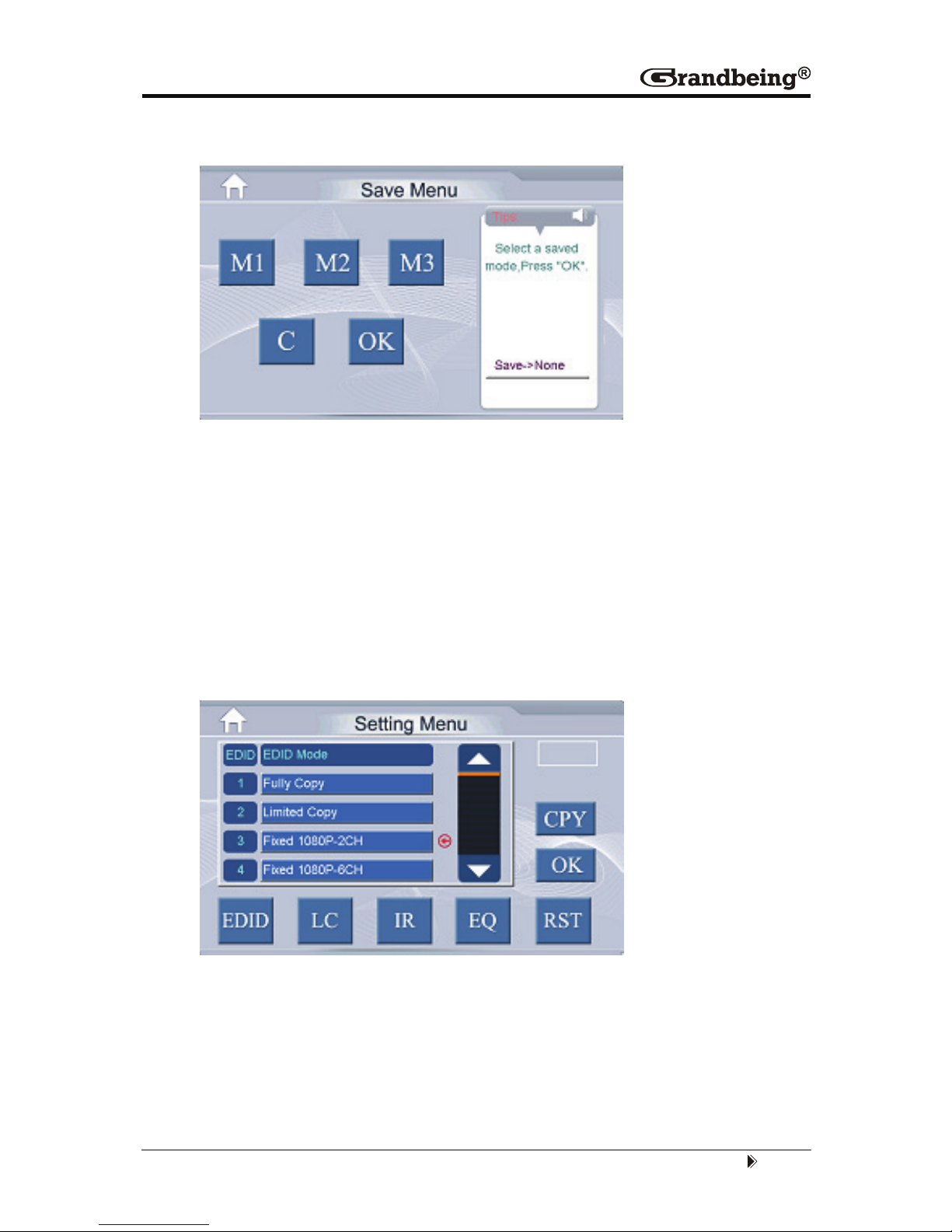

③ Save Menu
" Step: Select a save model, and press “OK”.
④ Setting Menu
There are 5 sub-menus here: EDID/LC/IR/EQ/RST.
MX0808-31F only use EDID/IR/RST menu.
i. EDID menu

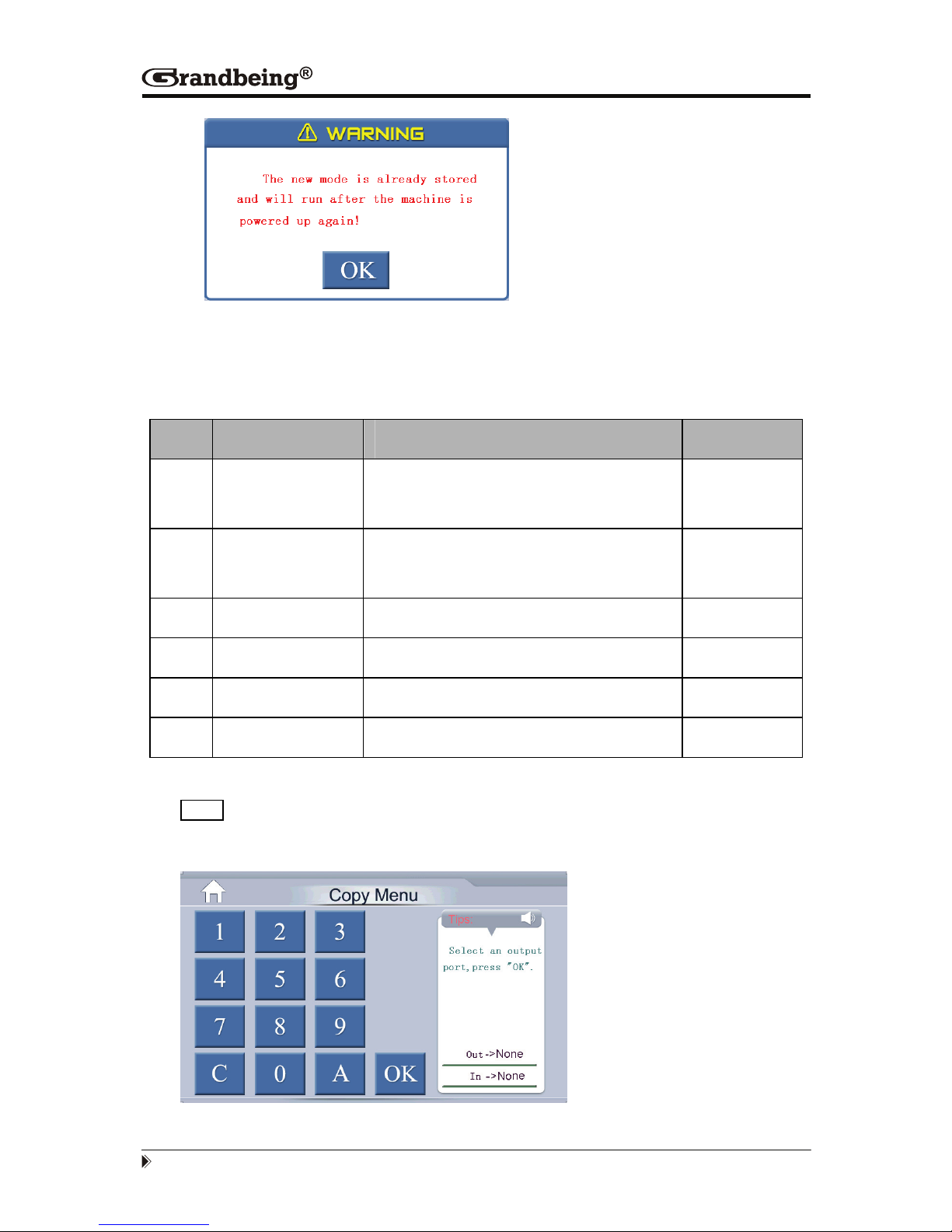

There are 6 mode provided. When select a different mode, and press
“OK”, the following warning box will pop up:
Page 11
Page 8
The mode selected will be effective after next power-on.
EDID mode details:
Index EDID Mode Details Remark
1 Full Copy
copy HDMI output's EDID to the specified
input port
Note1
2 Limited Copy
Limited copy HDMI output's EDID to the
specified input port
Note2
3 Fixed 1080P-2CH Fix EDID—1080p stereo(Default EDID) Note3
4 Fixed 1080P-6CH Fix EDID—1080p 5.1Audio Note4
5 Fixed 1080P-8CH Fix EDID—1080p 7.1Audio Note5
6 Fixed 1080i-2CH Fix EDID—1080i stereo Note6
" Note: 1.When this mode is effective, press “CPY”, select the output port and input port.
For example, if select output-3, input-8, if will copy the output-3’s EDID to input-8.
Page 12
Page 9
" Note: 2.See as note1. If the video appears noise or interference when using full copy
mode, you can change to limited copy mode.
" Note: 3.The matrix will use the embedded 1080p-stereo EDID when this mode is
effective.
" Note: 4.The matrix will use the embedded 1080p-5.1Audio EDID when this mode is
effective.
" Note: 5.The matrix will use the embedded 1080p-7.1Audio EDID when this mode is
effective.
" Note: 6.The matrix will use the embedded 1080i-stereo EDID when this mode is
effective.

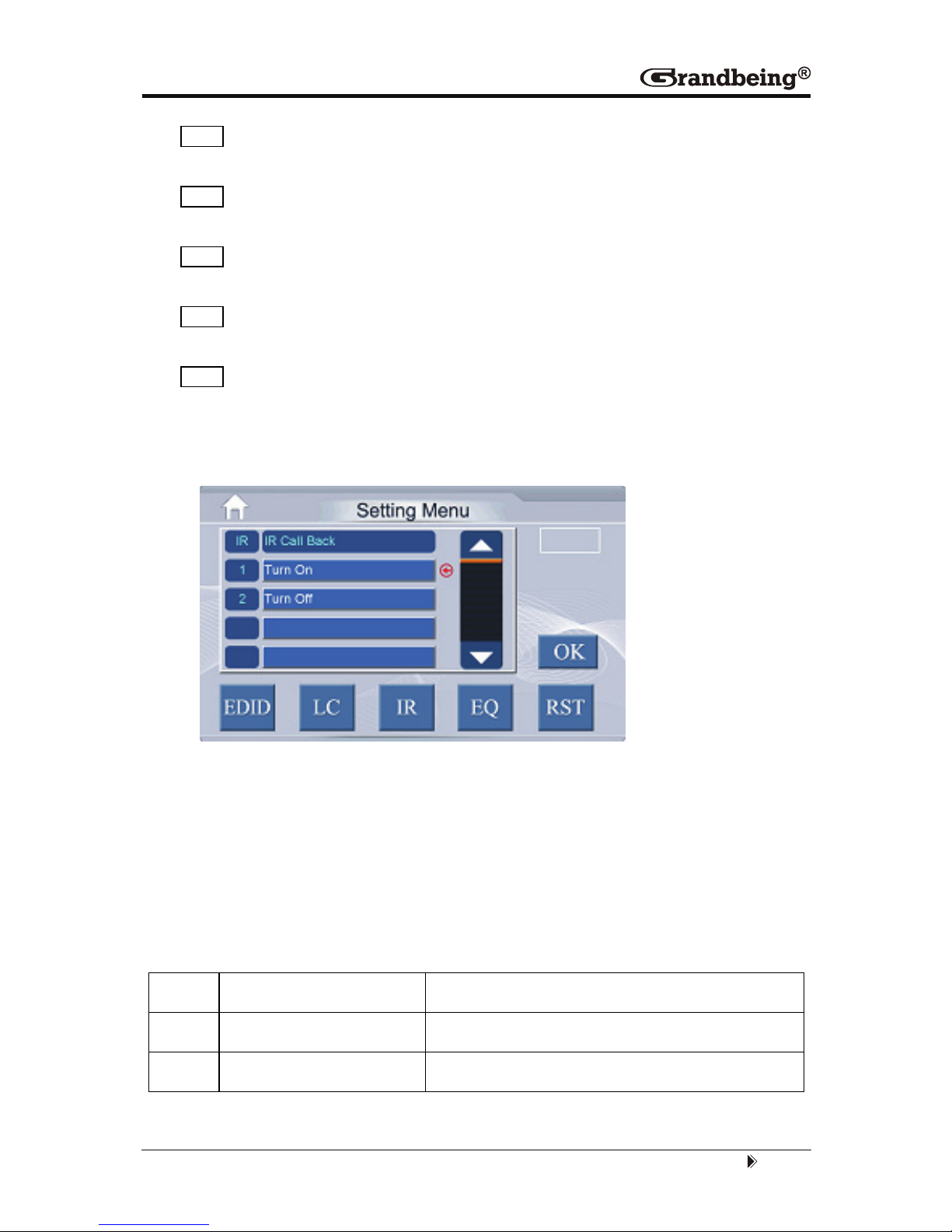

ii. IR menu
IR call back from remote locations to control the HDMI Matrix MX1616-31F.
You can use the MX1616-31F’s remote through the IR RX of EX0101-H02 to
change the input channel for the UTP out of MX1616-31F, just changing this
UTP output.
This function can be set on or off:
Index IR Call Back Details
1 Turn on Turn on IR callback function
2 Turn off Turn off IR callback function
Page 13
Page 10
iii. RST menu
Press “RST”, all of the settings will be reset to the default settings.

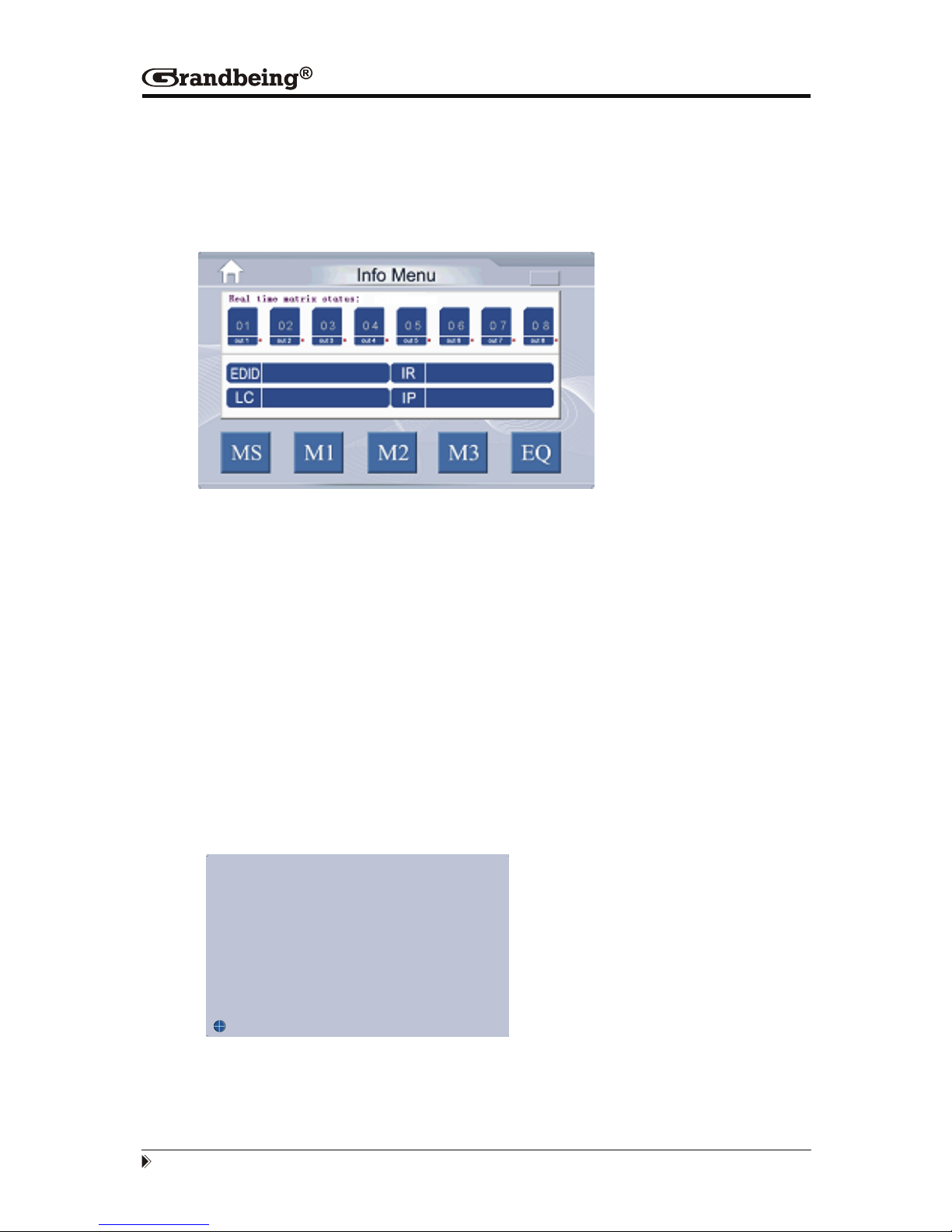

④ Info Menu
" NOTE: Red dot indicates that the corresponding RJ45 output port is in single output
mode. Details please see the attached CD-ROM about RJ45 output mode switch
instructions.
Press “MS”-----View the current status of matrix
Press “M1”-----View the pre-existing state of matrix (Model 1)
Press “M2”-----View the pre-existing state of matrix (Model 2)
Press “M3”-----View the pre-existing state of matrix (Model 3)
Press “EQ”----- View the current EQ setting status of matrix
" NOTE: If the touch screen becomes insensitive, calibration is necessary
Touch screen calibration method:
Press the panel button “Setting” in the home menu status, holding until the following prompt
appears (about 4s).
Press the symbol's center, until the one disappears and another symbol appears, and press its
center again until the end of the calibration—OK or Failure. If the calibration is fail, please
Page 14
Page 11
confirm whether the symbol’s center was aligned, then try again.
When finish the calibration, press the panel button “Setting”, holding until exit the calibration
menu (about 4s)

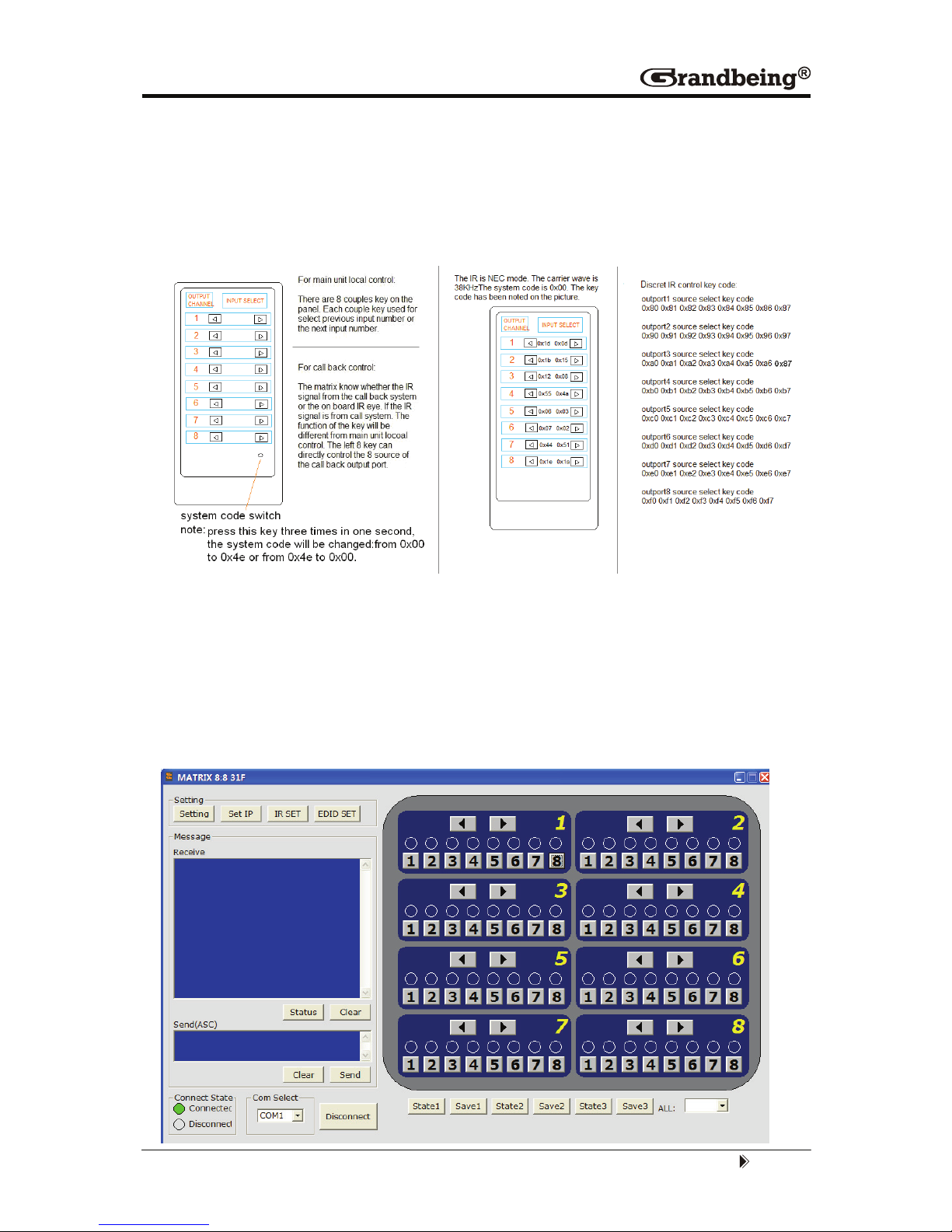

2. Control via IR remote.
NOTE: if the IR remote isn’t work, please press thee” system code switch key”, but please do not put
the remote against the MX0808-31F.
3. Control via RS232.

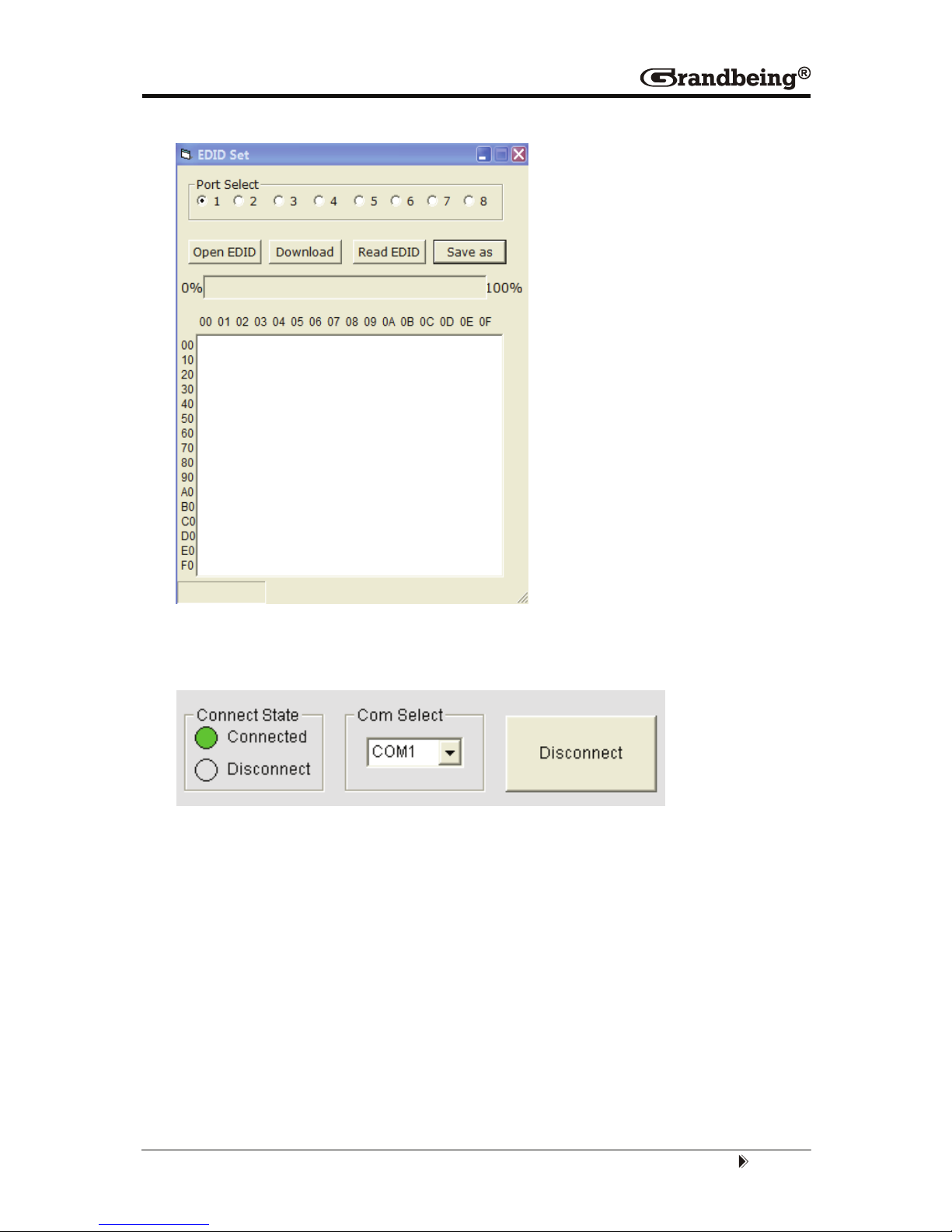

1) The Interface of MX0808-31F comctl.
Page 15
Page 12

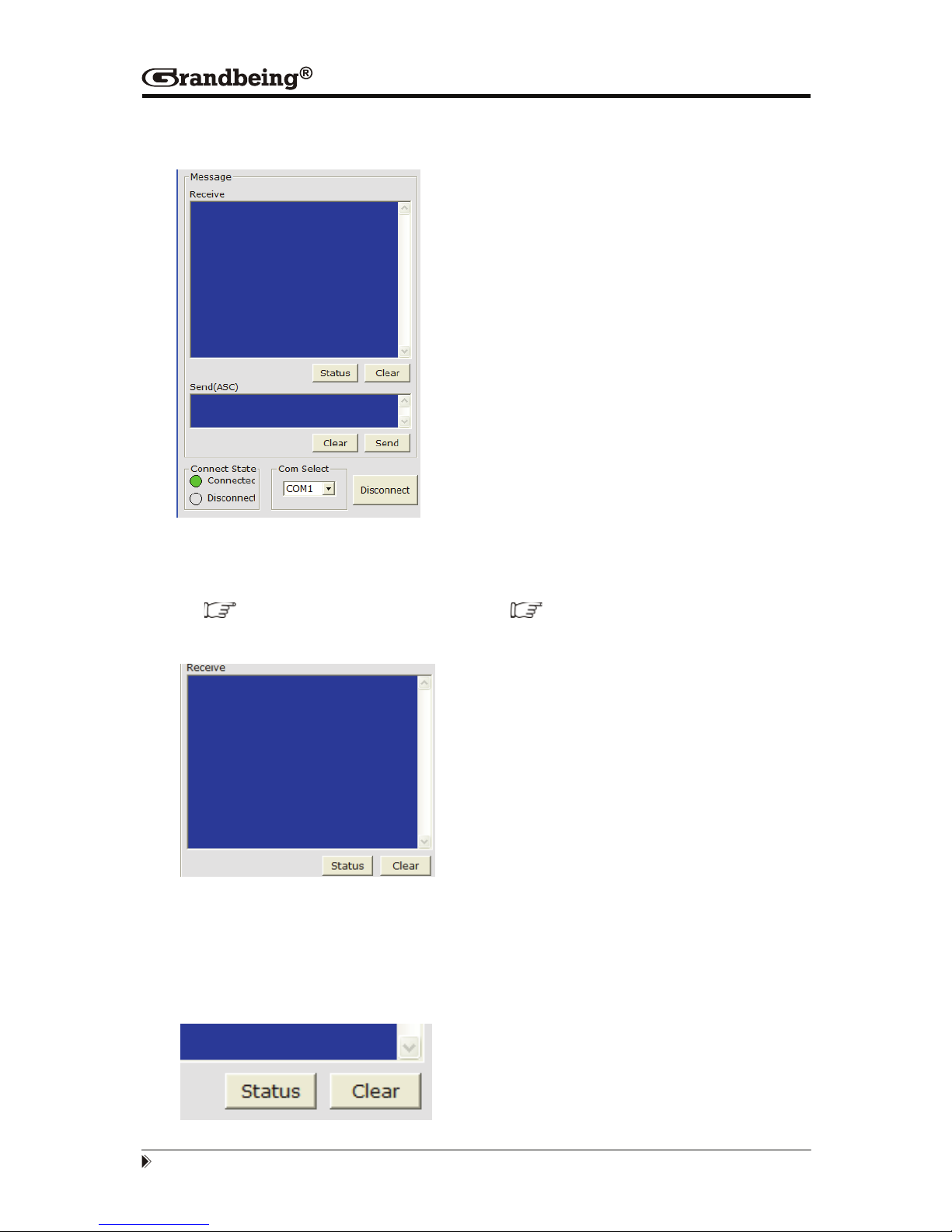

2) The Message Window.
2.1) Receive Window.
The “receive window” will show the message received from MX0808. When you click the Control
Buttons ( see step 4) or send Control Command ( see 2.3) to MX0808, it will send out the
message about “operation results” as below:
2.2) Status Button.
Click this button to read the status of MX0808. The status is about which input is selected by the
output.
Page 16
Page 13
2.3) Send Window.

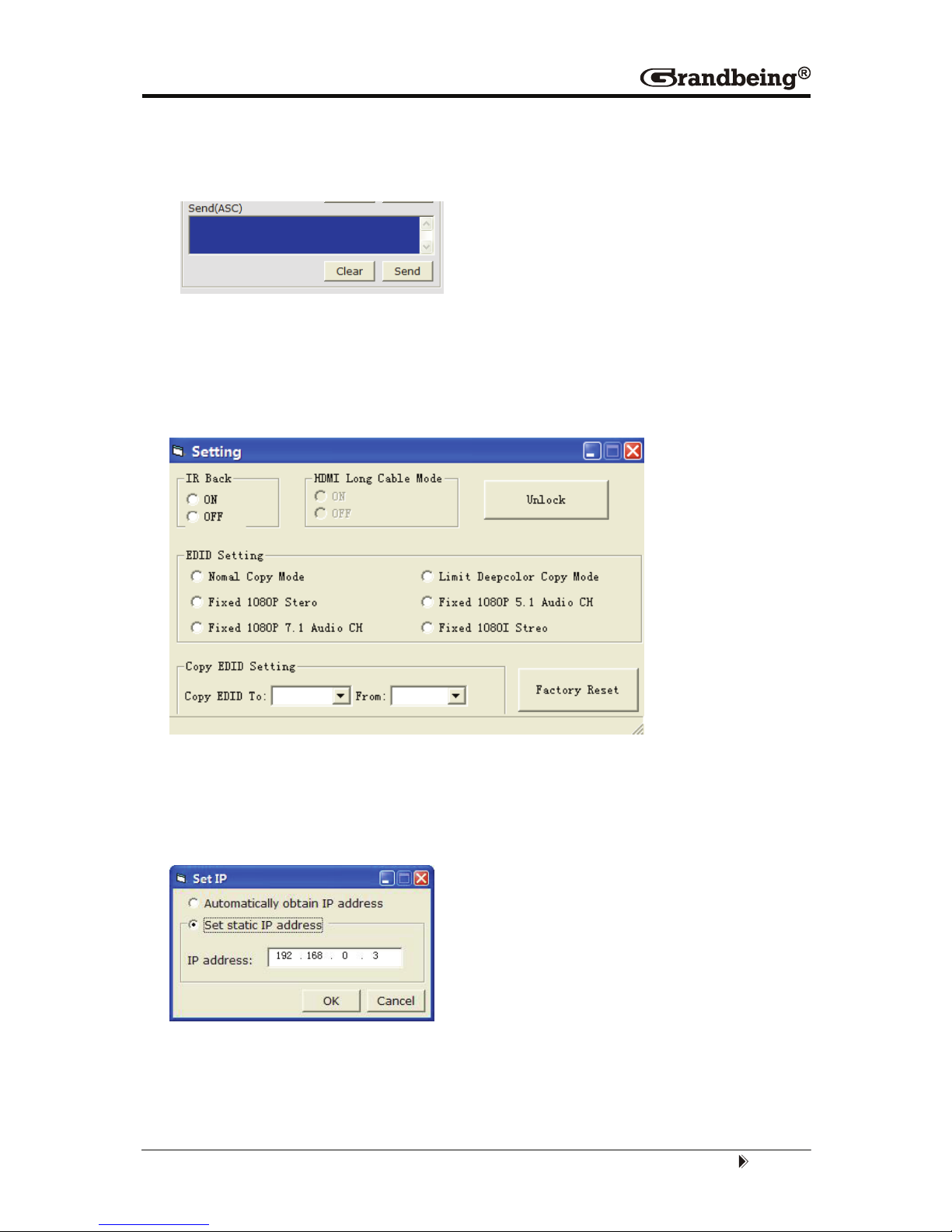

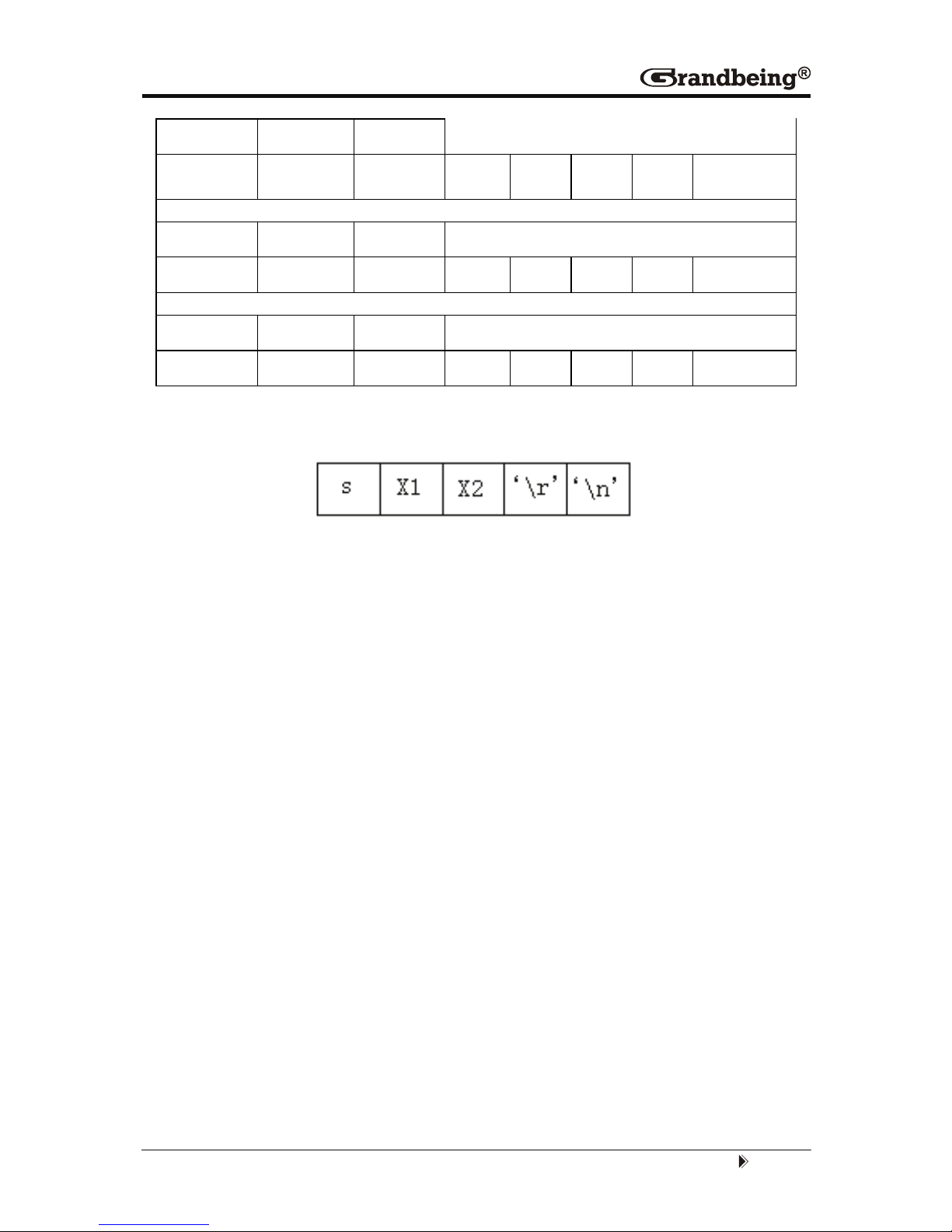

Input the control command in this window. The control command use ASCII.
2.4) Setting Button.
Click this button to enter Setting menu, MX0808-31F only use Switch/IR Back/EDID Setting/Copy
EDID Setting.
2.5) Set IP Button.

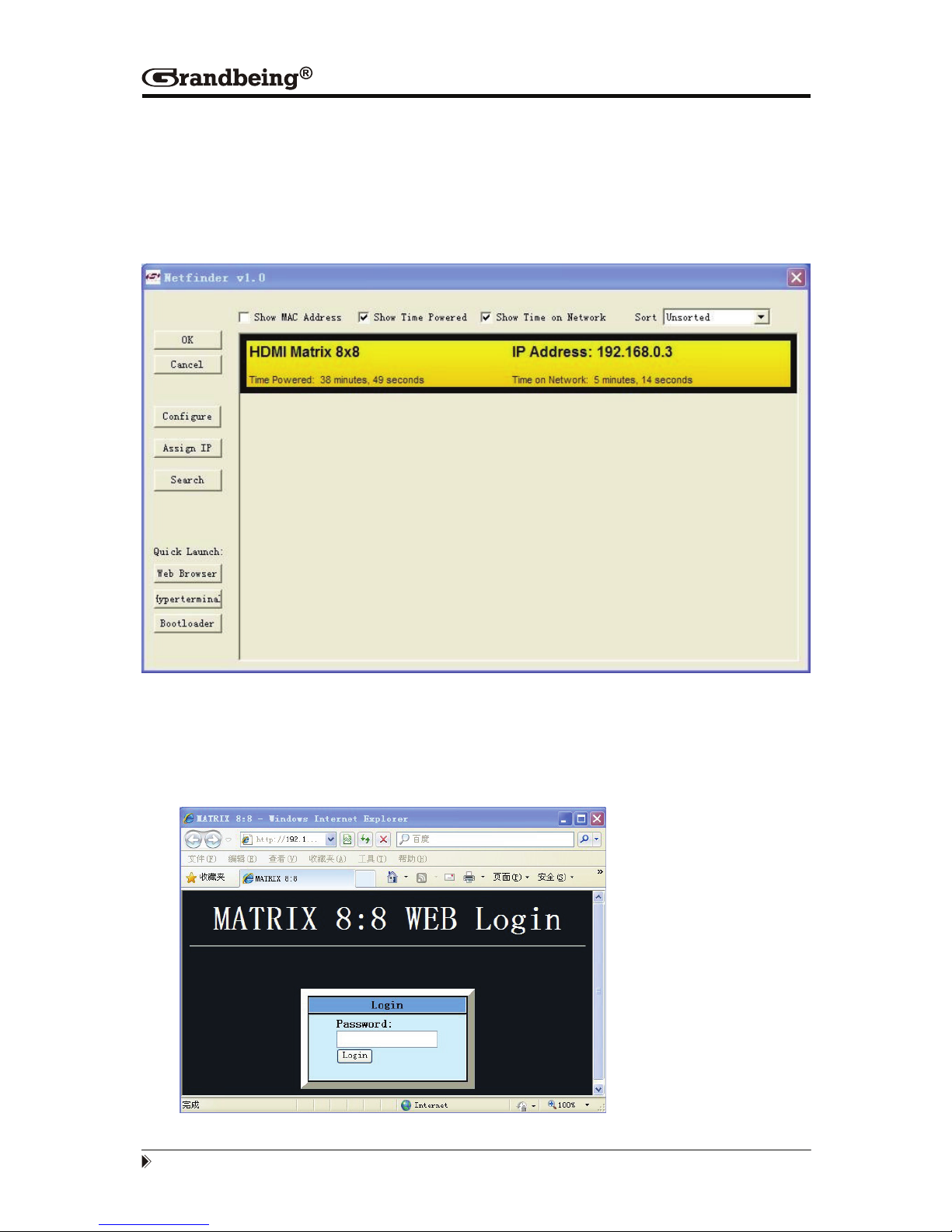

Click this button to set IP address for LAN control (for example: 192.168.0.3).
Page 17
Page 14

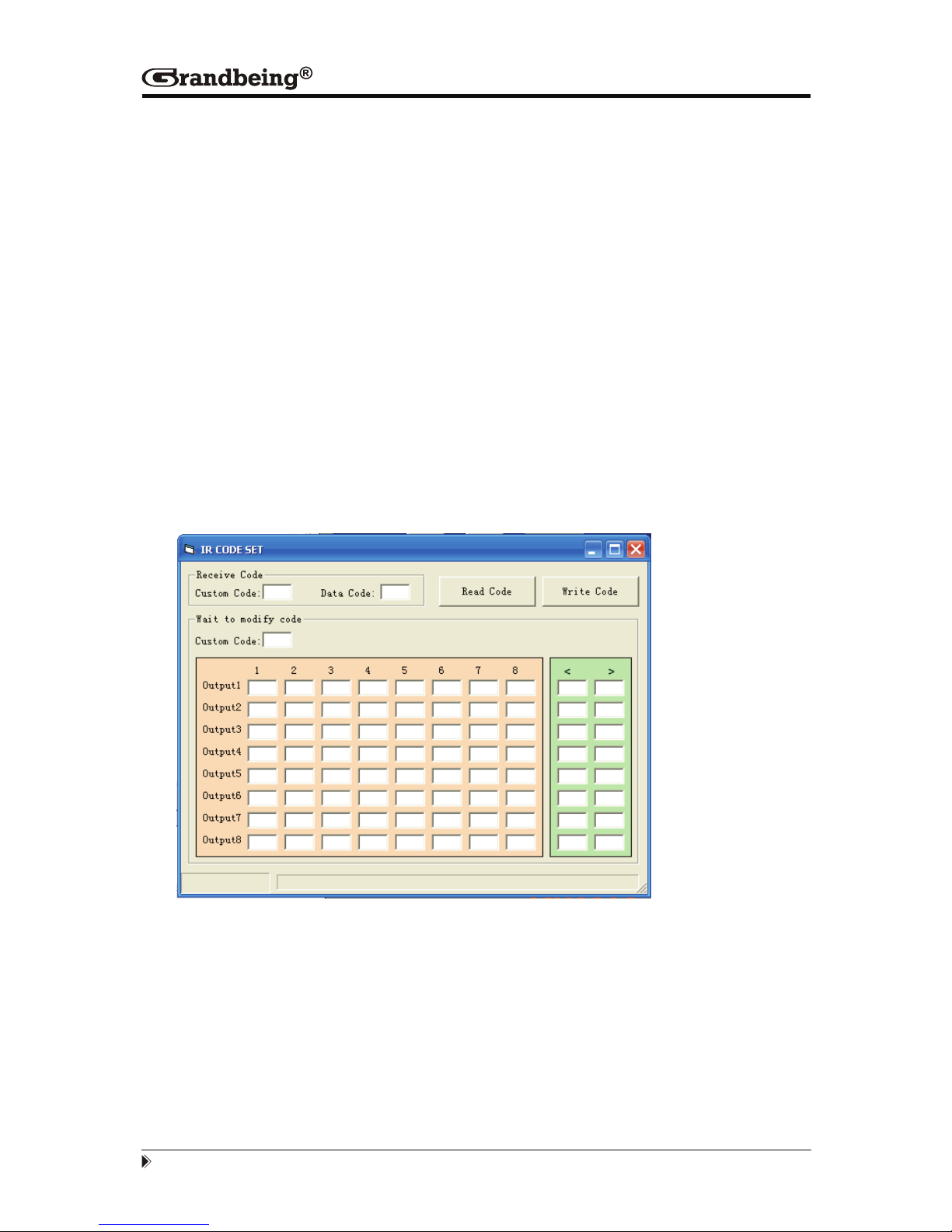

2.6) IR Set button.
Click this button to set IR code for remote control. The device will enter ire set mode.
You can edit your ire code in this mode.
Step:
" 1, Read the ire code first by pressing "Read Code” button.
" 2, Select the code with cursor which you want to change.
" 3, Press the button on your remote control with the remote against to the device. And the
selected code will change to this button code.
" 4, when you finish it, click the "write code" button. It will write the new code onto device.
" 5. Close the IR Code setting window. The device will enter normal mode from IR setting
mode.
Notices: All the codes have to be filled in and no blank is allowed. The same data codes are not
allowed, and every data code should be different.
2.6.1) Read Code button.
Click this button to take out the current ire code form the device.
2.6.2) Write Code button.
Click this button to write the codes onto the device.
Page 18
Page 15
2.7) EDID Set button
Select the Output Port in “Port Select”
column, click “Read EDID” button to
get EDID from display equipment.
Select the Input Port in “Port Select”
column, click “Download” button to set
EDID of this Input Port the same as
display equipment.
Click “Save as” button to save EDID
read from display equipment as “*.bin”
file.
Click “Open EDID” button to open
saved “*.bin” file, select the Input Port
in “Port Select” column, click
“Download” button to set EDID of this
Input Port the same as “*.bin” file.
3) The Com Status.
3.1) connect state.
Connect state shows the com open or not. If it is open, the state is green. Otherwise, the state is
red.
3.2) com select.
Æ Select which com you will use.
Æ Connect button.
The word on this button will change when the connection state changes. If the word is
“Disconnect”, then click this button, the com will be closed. If the word is “Connect”, then click this
button, the com will be opened.
Page 19
Page 16
4) Control command format.
If user want to write his own control software, below are data format and baud rate setting.
Com port setting:
Baud Rate: 9600 bps
Data bits: 8 bits
Parity: None
Stop bits: 1 bit
Flow control: None
The command format as follow:
Cir + ‘_’ + code + ‘ ’↙
“Cir” is the key word, ‘_’ is Space, “Code” is the Control code, and ‘↙’ is carriage return. For
example:
“Cir 39↙” (hex: 63 69 72 20 33 39 0D 0A), when the MX0808 received this command, it will
change the Outport4 status to the next input port. (“c”-0x63,”I”-0x69,”r”-0x72,”
“-0x20,”3”-0x33,”9”-0x39, ‘↙’-0x0d0a)
5) Control code (MX0808-31F)
Outport1 <“08” >“09”
1“00” 2“01” 3“02” 4“03”5“04” 6“05”7“06”8“07”
Outport2 < “18” > “19”
1 “10” 2 “11” 3 “12” 4 “13”5“14” 6“15”7“16”8“17”
Outport3 < “28” > “29”
1 “20” 2 “21” 3 “22” 4 “23”5“24” 6“25”7“26”8“27”
Outport4 < “38” > “39”
1 “30” 2 “31” 3 “32” 4 “33”5“34” 6“35”7“36”8“37”
Outport5 <“48” >“49”
1“40” 2“41” 3“42” 4“43”5“44” 6“45”7“46”8“47”
Page 20
Page 17
Outport6 < “58” > “59”
1 “50” 2 “51” 3“52” 4 “53”5“54” 6“55”7“56”8“57”
Outport7 < “68” > “69”
1 “60” 2 “61” 3“62” 4 “63”5“64” 6“65”7“66”8“67”
Outport8 < “78” > “79”
1 “70” 2 “71” 3 “72” 4 “73”5“74” 6“75”7“76”8“77”
When you send a control command to the MX0808, if succeed, it will feedback current output
port status to show which input port is selected. The return status format is as follows:
For example, if you send “cir 44↙” to MX0808,if succeeds, it will feedback “s55\r\n”, meanings
Output5 selects Input5.
6) Read Status Command
The command length is 4 bytes.
bc + ‘_’ + ‘ ’↙
“bc” is the key word, ‘_’ is Space, ‘ ’ is carriage return.↙
When you send the read status command to MX0808, if succeeds, it will feedback the status of
all outputs. When you send “bc” to MX0808, if succeed, it will feedback the current status of
MX0808.
For example, if you send "bc ↙ "to MX0808,if succeeds, it will feedback
"s11\r\n" ,"s22\r\n" ,"s33\r\n" ,"s44\r\n" ,"s55\r\n" ,"s66\r\n" ,"s77\r\n" ,"s88\r\n". it means that
the output 1 select the input 1, the output 2 selects the input 2, output 3 selects the input3,
output 4 selects the input 4, output 5 selects input 5, the output 6 selects the input 6, the output
7 selects the input 7, the output 8 selects the input 8.
7) Web password reset
The command length is 4 bytes.
rpw+ ‘↙’
“rpw” is the key word , ‘↙’is carriage return.
When you send the Web password reset command to MX0808, if succeed, it will feedback
"rpw", and the web password will be set as "0000000000".
Page 21
Page 18
4. LAN control
Note: Use the direct UTP cable to connect with PC, or use cross cable to connect to the
Ethernet switcher.
A. Double click Netfinder.exe. Click “Search” button to get the device IP address..
B. Click “Web Browser” button. A web browser will be shown. The default password is
"0000000000", input the password and login. The device controller page will be
displayed.
Page 22
Page 19

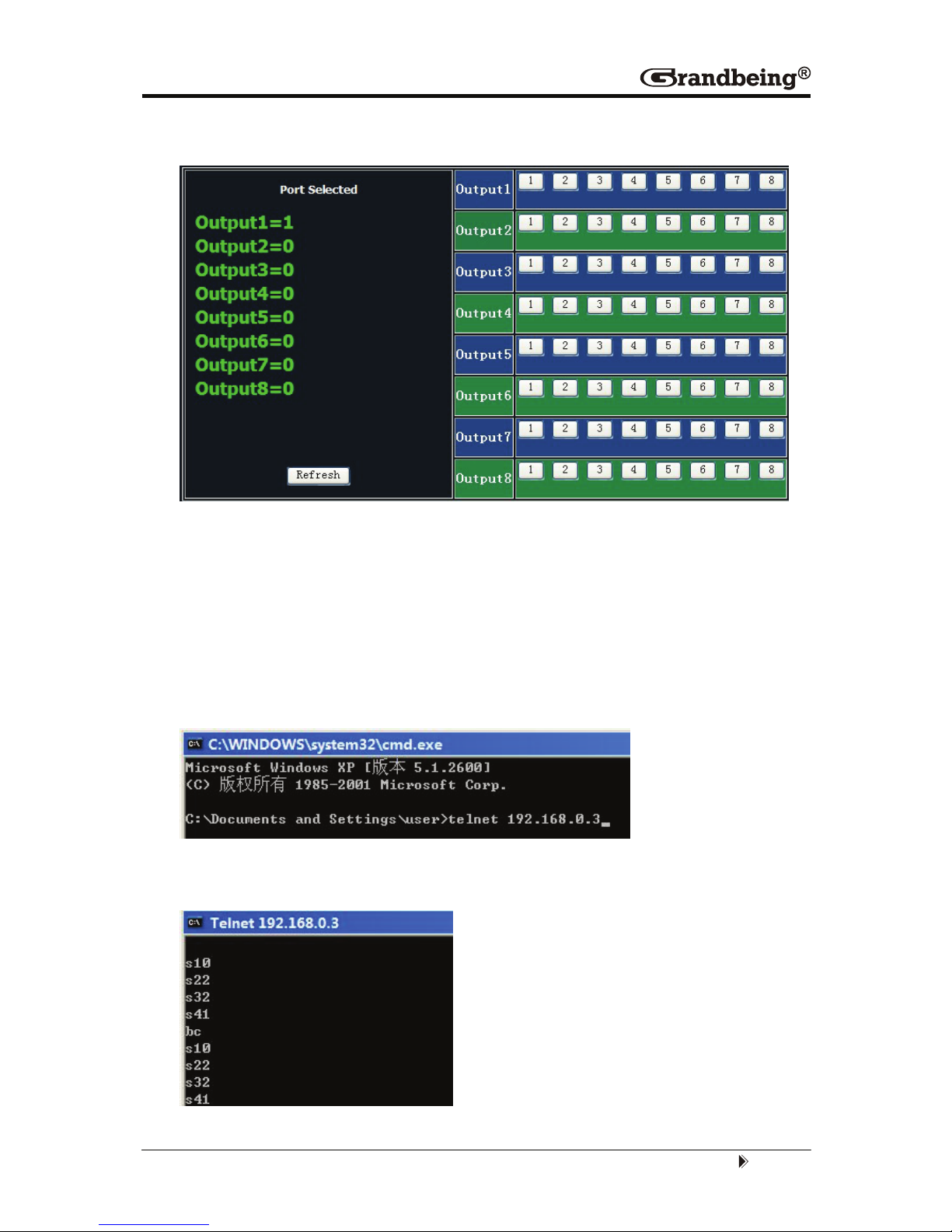

The right area is for device controlling. Click these buttons to control the device. It is the same as
using the remote controller. The left area shows which input ports are being chosen by the output
ports.
C. Telnet Control
Telnet matrix’s IP address
Now you can control the matrix (Page 14: Control command format)
Page 23
Page 20
5. IR Call Back
IR call back from remote locations to control the HDMI Matrix MX0808-31F .You can use the
MX0808-31F’s remote through the IR RX of EX0101-H02 to change the input source for UTP
output connected to this EX0101-H02.
This function can be set on or off through Touch Panel.
6. Instruction of IR TX
The sequence of "IR TX1,IR TX2,IR TX3,IR TX4,IR TX5,IR TX6,IR TX7,IR TX8" one-to-one
correspond with "HDMI INPUT1,HDMI INPUT2,HDMI INPUT3, HDMI INPUT4, HDMI INPUT5,
HDMI INPUT6, HDMI INPUT7, HDMI INPUT8". When an output chooses certain input, the
call-back IR signal of RJ45 on this output port will choose the corresponding "IR TX" port to send
the signal out.
For example, OUTPUT1 chooses INPUT3, then the call-back IR signal of RJ45 on OUTPUT1 will
choose "IR TX3" to send the signal out.
Definition of IR Earphone Jack.
Note: IR emitter should be sticked as near as to the DVD IR receive window.
Page 24
Page 21
■ Specifications
Operating Temperature Range 0 to +35°C (32 to +95 °F)
Operating Humidity Range 5 to 90 % RH (no condensation)
Input Video Signal 0.5-1.0 volts p-p
Input DDC Signal 5 volts p-p (TTL)
Video Format Supported DTV/HDTV: 1080P/1080i/720P/576P/480P/576i/480i
Audio Format Supported DTS、AC3、PCM 7.1
Output Video 1080P
Power Consumption 70wtts (Max.)
Dimensions 440mmL×288mmW×140mmH/17.3''L×11.3''W×5.5''H
Mass (Main unit) 8Kg/17.6Lb
NOTE: Specifications are subject to change without notice. Mass and dimensions are
approximate.
■ Typical Application
■ Maintenance
Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner or benzine to clean this
unit.
Page 25
Page 22
■ Product Service
● Provided Service
1) Damage Requiring service: The unit should be serviced by qualified
service personnel if:
z The DC power supply cord or AC adaptor has been damaged;
z Objects or liquids have gotten into the unit;
z The unit has been exposed to rain;
z The unit does not operate normally or exhibits a marked change in performance;
z The unit has been dropped or the cabinet damaged.
2) Servicing Personnel: Do not attempt to service the unit beyond that described in
these operating instructions. Refer all other servicing to authorized servicing personnel.
3) Replacement parts: When parts need replacing ensure the service uses parts
specified by the manufacturer or parts that have the same characteristics as the original
parts. Unauthorized substitutes may result in fire, electric shock, or other hazards.
4) Safety check: After repairs or service, ask the service to perform safety checks to
confirm that the unit is in proper working condition.
● Mail-In Service
When shipping the unit, carefully pack and send it prepaid, adequately insured and preferably
in the original carton. Include a letter detailing the complaint and provide a daytime phone
and/or email address where you can be reached.
If repair is needed during the limited warranty period the purchaser will be required to furnish a
sales receipt/proof of purchase indicating date of purchase, amount paid and place of
purchase. Customer will be charged for the repair of any unit received without such proof of
purchase.
● Warranty
If your product does not work properly because of a defect in materials or workmanship,
Grandbeing Company (referred to as “the warrantor”) will, for the length of the period indicated
Page 26
Page 23
as below, （Parts (1) Year, Labor(90) Days)which starts with the date of original purchase
(“Limited Warranty period”), at its option either (a) repair your product with new or refurbished
parts, or (b) replace it with a new or a refurbished product. The decision to repair or replace will
be made by the warrantor.
During the “Labor” Limited Warranty period there will be no charge for labor. During the “Parts”
warranty period, there will be no charge for parts. You must mail-in your product during the
warranty period. This Limited Warranty is extended only to the original purchaser and only
covers product purchased as new. A purchase receipt or other proof of original purchase date
is required for Limited Warranty service.
● Warranty Limits And Exclusions
1) This Limited Warranty ONLY COVERS failures due to defects in
materials or workmanship, and DOES NOT COVER normal wear and
tear or cosmetic damage.
The Limited Warranty ALSO DOES NOT COVER
damages which occurred in shipment, or failures which are caused by products not
supplied by the warrantor, or failures which result from accidents, misuse, abuse,
neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments,
maladjustment of consumer controls, improper maintenance, power line surge, lightning
damage, modification, or service by anyone other than a Factory Service Center or other
Authorized Service, or damage that is attributable to acts of God.
2) There are no express warranties except as listed under “limited warranty
coverage”. The warrantor is not liable for incidental or consequential
damages resulting from the use of this product, or arising out of any
breach of this warranty.
(As examples, this excludes damages for lost time, cost of
having someone remove or re-install an installed unit if applicable, travel to and from the
service location, loss of or damage to media or images, data or other recorded content.
The items listed are not exclusive, but are for illustration only.)
3) Parts and service, which are not covered by this limited warranty, are
your responsibility.
Page 27
Grandbeing Technology Co., Ltd.
Address:
B-301, Science and Technology Building Phase II,
1057 Nanhai Road,Nanshan District Shenzhen, P.R. China
Tel: 86-755-21620566
/Fax: 86-755-26880802
Post Code: 518067
www.grandbeing.biz
Loading...
