Grandbeing MX0404-330 Operating Instructions Manual

Model No.: MX0404-330

Operating Instructions

Thanks for purchasing our product.

Please be sure to read this instruction manual

carefully before using our product.

Introduction

Grandbeing’s MX0404-330 is a 4-by-4 DVI/HDMI true matrix. It allows any

source (Blue-Ray player, HD DVD player, satellite receiver, game system, etc.)

to be shown on the any of the four displays simultaneously, no matter the

source is HDCP or not. Extra infrared receiver extension, IR emitter are

supplied for the control.

MX0404-330 has the ability of equalization and amplification to ensure HDMI

signal's transmission through long cable without quality loss.

MX0404-330 offers solutions for digital entertainment center, HDTV retail and

show site, HDTV, STB, DVD and projector factory, noise, space and security

concerns, data center control, information distribution, conference room

presentation, school and corporate training environments.

Contents

HDMI Matrix..................................................................................................... 1

Product Overview ............................................................................................1

Features........................................................................................................... 1

Package Contents............................................................................................3

Panel Descriptions........................................................................................... 3

Connections and Operations ...........................................................................4

SPECIFICATIONS ...........................................................................................7

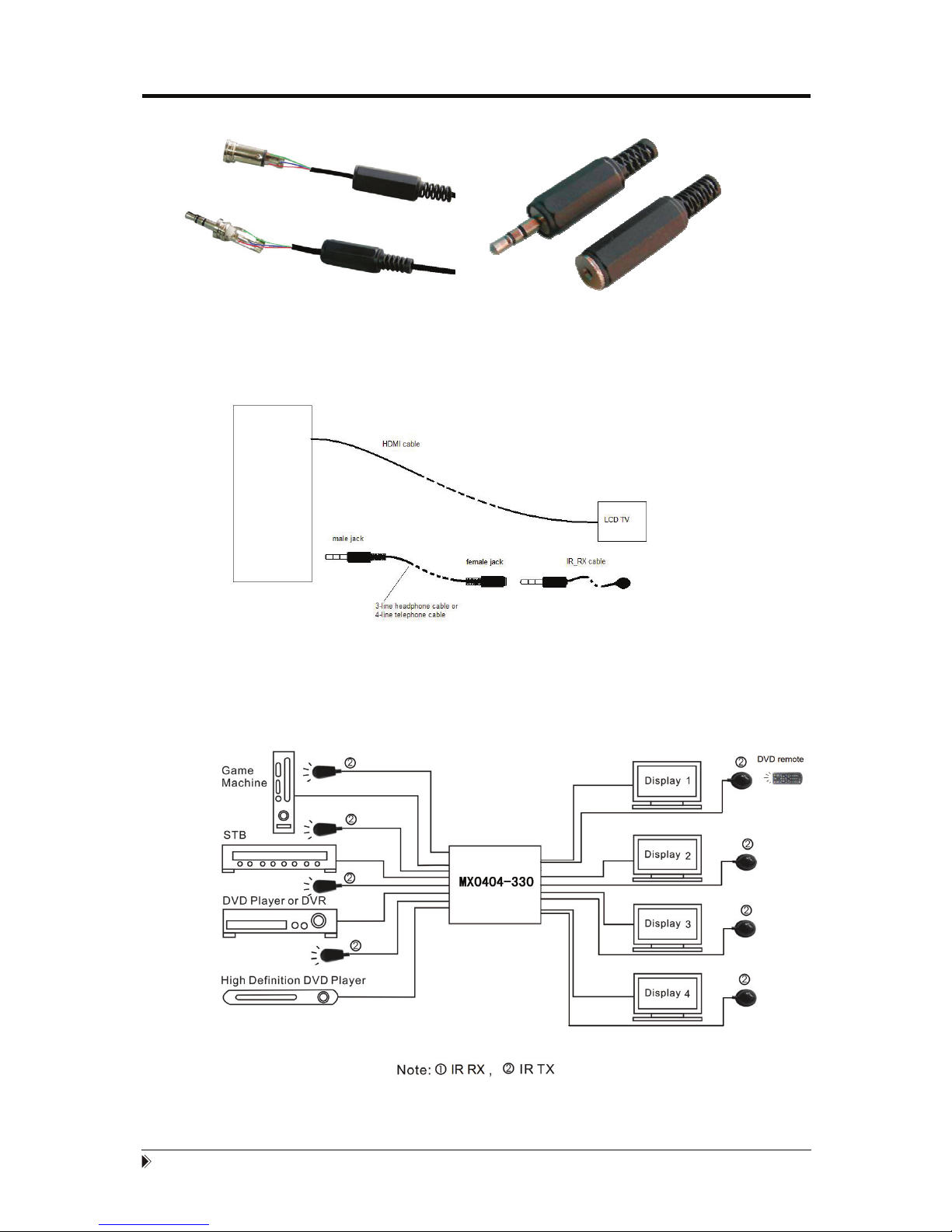

Typical Application ...........................................................................................8

Maintenance .................................................................................................... 9

Product Service ...............................................................................................9

● Provided Service ..........................................................................................9

● Mail-In Service.............................................................................................. 9

● Warranty ..................................................................................................... 10

● Warranty Limits And Exclusions.................................................................. 10

Page 1

HDMI Matrix (Router Type)

■ Product Overview ( Model Number: MX0404-330 )

■ Features

z Easy to use: install in seconds.

z Allows up to four HDMI audio/video devices to be independently switched

to four HDMI monitors, HDTV’s, or projectors.

z The four outputs could show the same or different source simultaneously

no matter the source is HDCP or not.

z Support high definition resolutions 1080p, 1080i, 720p and other standard

video formats.

z Each port supports HDMI or DVI inputs.

z With extra infrared receiver extension.

z Two switching modes: panel buttons, local IR.

z HDCP compliant.

z HDMI 1.4 version.

" Notice

Grandbeing Inc. reserves the right to make changes in the hardware,

packaging and any accompanying documentation without prior written notice.

Page 2

Warning

To reduce the risk of fire, electric shock or product damage:

1. Do not expose this apparatus

to rain, moisture, dripping or

splashing and that no objects

filled with liquids, such as vases,

shall be placed on the apparatus.

6. Clean this apparatus

only with dry cloth.

2. Do not install or place this unit

in a bookcase, built-in cabinet or

in another confined space.

Ensure the unit is well ventilated.

3. To prevent risk of electric
shock or fire hazard due to
overheating, do not obstruct
the unit’s ventilation openings
with newspapers, tablecloths,
curtains, and similar items.

4. Do not install near any heat

sources such as radiators, heat

registers, stoves, or other

apparatus (including amplifiers)

that produce heat.

5. Do not place sources of naked

flames, such as lighted candles,

on the unit.

7. Unplug this apparatus

during lightning storms or

when unused for long

periods of time.

8. Protect the power cord

from being walked on or

pinched particularly at

plug

s.

9. Only use attachments /

accessories specified by

the manufacturer.

10. Refer all servicing to

qualified service

personnel.
