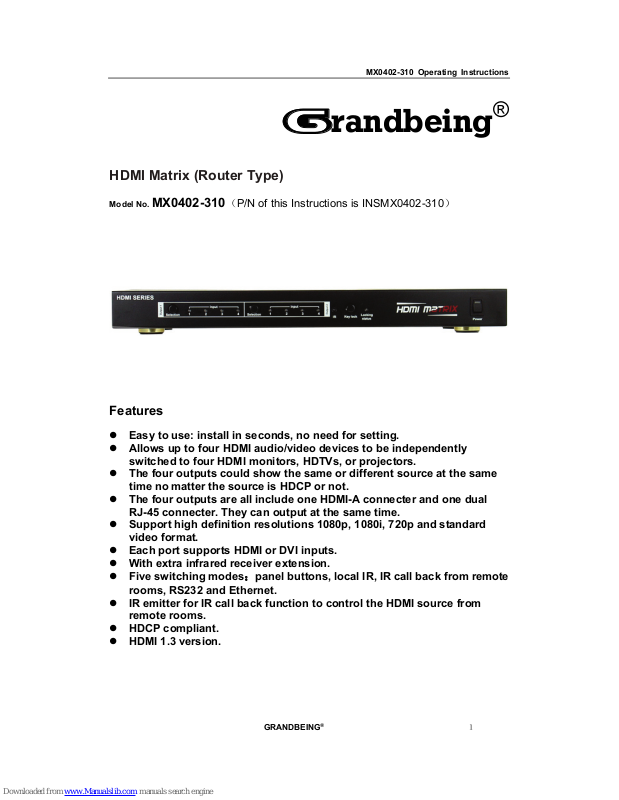

Grandbeing MX0402-310 Operating Instructions Manual

MX0402-310 Operating Instructions

GRANDBEING

®

１

Grandbeing

®

HDMI Matrix (Router Type)

Model No. MX0402-310（P/N of this Instructions is INSMX0402-310）

Features

z Easy to use: install in seconds, no need for setting.
z Allows up to four HDMI audio/video devices to be independently

switched to four HDMI monitors, HDTVs, or projectors.

z The four outputs could show the same or different source at the same

time no matter the source is HDCP or not.

z The four outputs are all include one HDMI-A connecter and one dual

RJ-45 connecter. They can output at the same time.

z Support high definition resolutions 1080p, 1080i, 720p and standard

video format.

z Each port supports HDMI or DVI inputs.
z With extra infrared receiver extension.
z Five switching modes：panel buttons, local IR, IR call back from remote

rooms, RS232 and Ethernet.

z IR emitter for IR call back function to control the HDMI source from

remote rooms.

z HDCP compliant.
z HDMI 1.3 version.

MX0402-310 Operating Instructions

GRANDBEING

®

２

Dear customer:

Thank you for purchasing this product. For optimum performance and safety,
please read these instructions carefully before connecting, operating or adjusting
this product. Please keep this manual for future reference.

Notice

Grandbeing Inc. reserves the right to make changes in the hardware,
packaging and any accompanying documentation without prior written
notice.

WARNING:

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT
DAMAGE:

1) DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE, DRIPPING
OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH
AS VASES, SHALL BE PLACED ON THE APPARATUS.

2) DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE, BUILT-IN
CABINET OR IN ANOTHER CONFINED SPACE. ENSURE THE UNIT IS
WELL VENTILATED.

3) TO PREVENT RISK OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO
OVERHEATING, DO NOT OBSTRUCT THE UNIT’S VENTILATION
OPENINGS WITH NEWSPAPERS, TABLECLOTHS, CURTAINS, AND
SIMILAR ITEMS.

4) DO NOT INSTALL NEAR ANY HEAT SOURCES SUCH AS RADIATORS,
HEAT REGISTERS, STOVES, OR OTHER APPARATUS (INCLUDING
AMPLIFIERS) THAT PRODUCE HEAT.

5) DO NOT PLACE SOURCES OF NAKED FLAMES, SUCH AS LIGHTED
CANDLES, ON THE UNIT.

6) CLEAN THIS APPARATUS ONLY WITH DRY CLOTH.

7) UNPLUG THIS APPARATUS DURING LIGHTNING STORMS OR WHEN
UNUSED FOR LONG PERIODS OF TIME.

8) PROTECT THE POWER CORD FROM BEING WALKED ON OR PINCHED
PARTICULARLY AT PLUGS.

9) ONLY USE ATTACHMENTS/ACCESSORIES SPECIFIED BY THE
MANUFACTURER.

10) REFER ALL SERVICING TO QUALIFIED SERVICE PERSONNEL.

MX0402-310 Operating Instructions

GRANDBEING

®

３

TABLE OF CONTENTS

Introduction···························································································· 3

Package Contents ················································································· 3

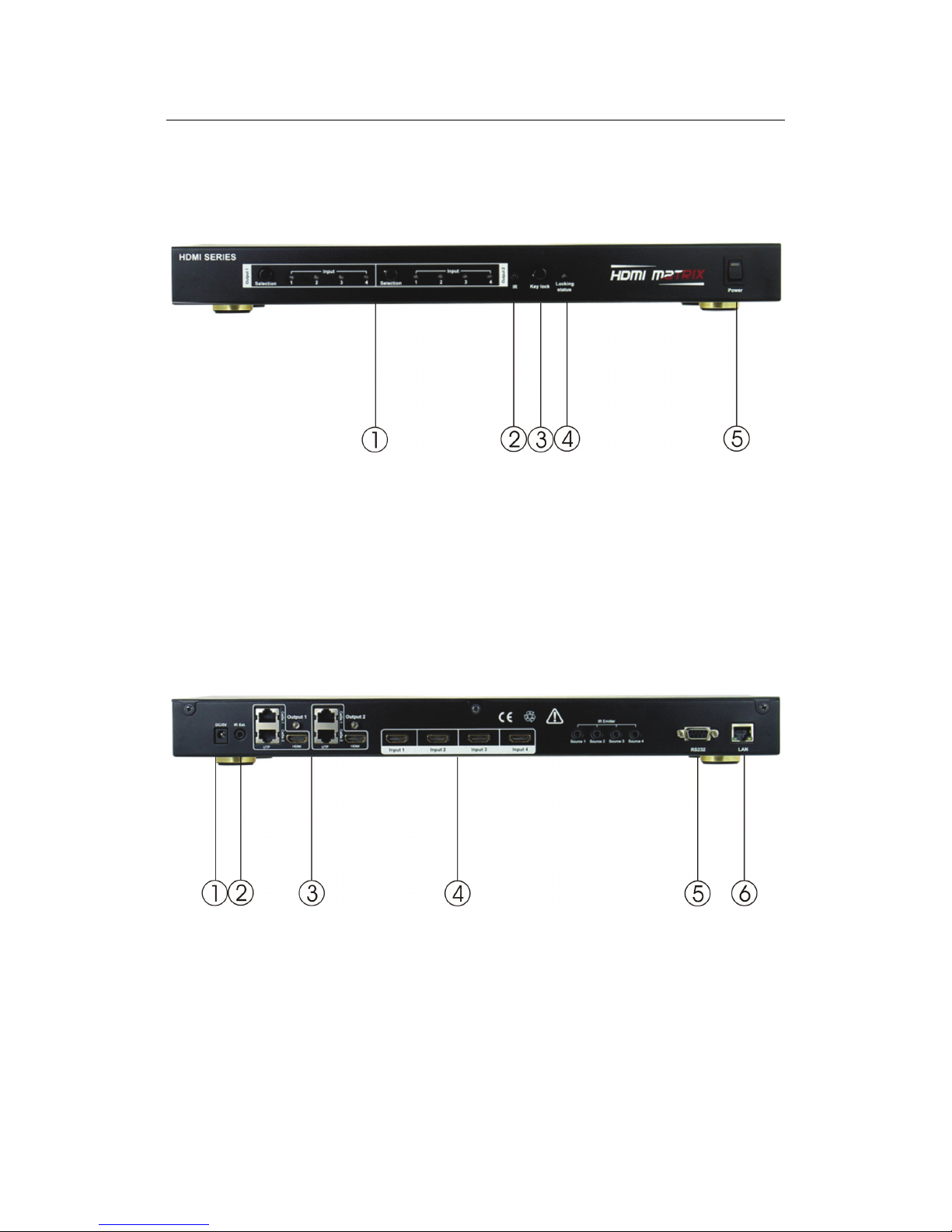

Panel Descriptions················································································· 4

Connect and Operation ········································································· 5

Specification ·························································································· 6

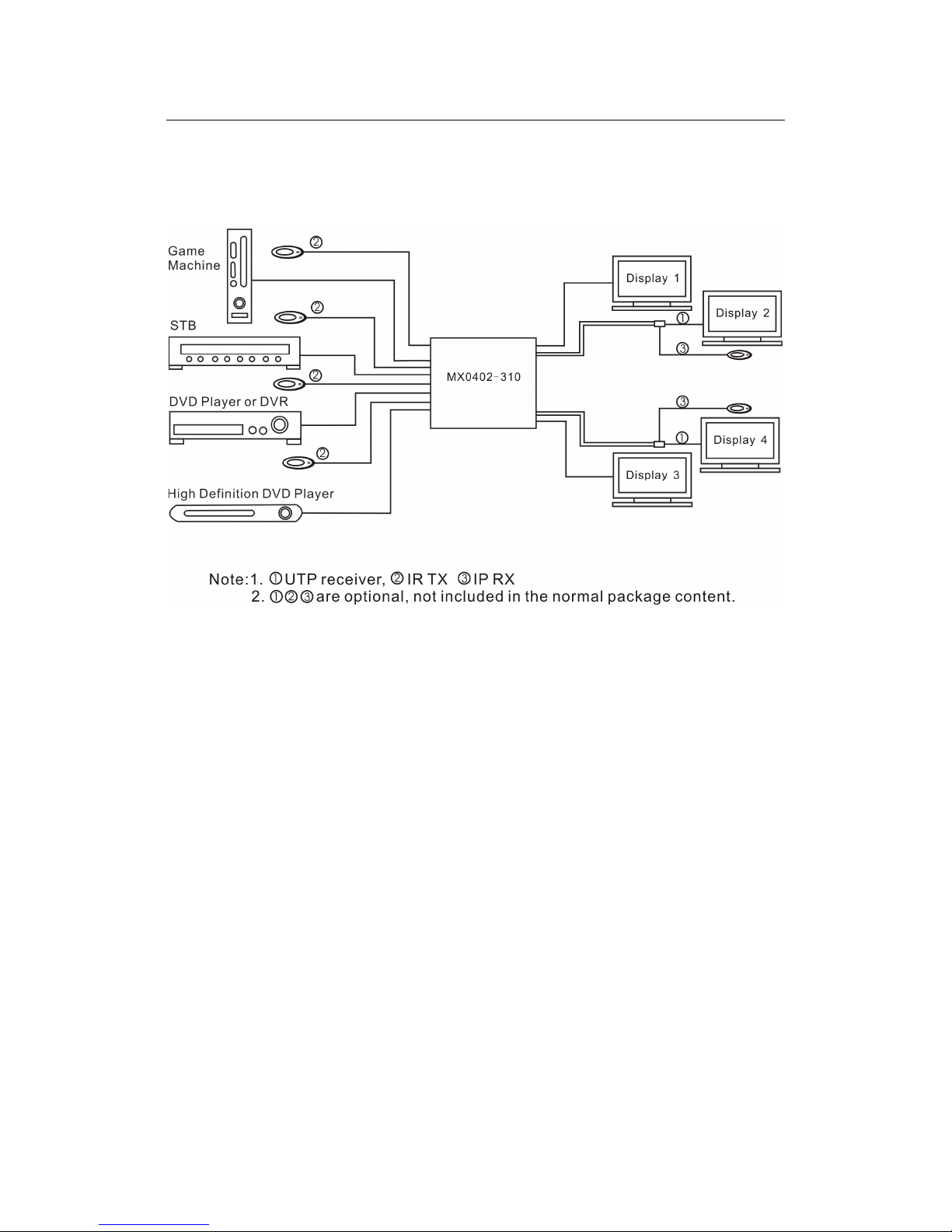

Typical Application ················································································· 7

Maintenance·························································································· 7

Product Service ····················································································· 7

Warranty································································································ 8

Contact Information ··············································································· 9

INTRODUCTION

Grandbeing’s MX0402-310 is a 4-by-2 DVI/HDMI true matrix. It allows any source
(Blue-Ray player, HD DVD player, satellite receiver, game system, etc.) to be
shown on the any of the four displays simultaneously, no matter the source is
HDCP or not. Extra infrared receiver extension, IR emitter, RS232 and Ethernet
port are supplied for remote control.

MX0402-310 has the ability of equalization and amplification to ensure HDMI

signal's transmission through long cable without quality loss.

MX0402-310 offers solutions for digital entertainment center, HDTV retail and
show site, HDTV, STB, DVD and projector factory, noise, space and security
concerns, data center control, information distribution, conference room
presentation, school and corporate training environments.

PACKAGE CONTENTS

1. Main unit. P/N_MX0402-310.

2. 5VDC Power Supply.P/N_VDC0503

3. Remote.

4. IR extension cable.

5. Operating Instructions. P/N_INS MX0402-310.

*PART NUMBER (Abbreviation as P/N).
