Page 1
Rigid Inflatable Boat
SILVER LINE
Models:
S520, S520L, S520LF, S520S
User’s Manual
GRAND Silver Line S520, S520L,S520F,S520S UM14650
Page 2
INTRODUCTION.
"GRAND" inflatable motor boat of the "SILVER LINE" series: S520, S520L,S520F and S520S has been designed
under requirements of ISO 6185 "Plastomer and Elastomer Inflatable Boats" and DIN 7870 "Inflatable Boats with
Reinforced Shells".
PURPOSE.
The rigid inflatable motor boat of the "SILVER LINE" series relates to the category of pleasure boats and is intended for
water sports, tourism, the use as a floating means on board of launches, yachts and other vessels.
2
GRAND Silver Line S520, S520L,S520F,S520S UM14650
Page 3
TECNICAL DA T A SPECIFICA TION Mo
Model Unit S520 / S520L/S520F/S520S
Length overall m 5,2
ft-inches 17'1"
Length inside m 3.85
ft-inches 12'8"
Width overall m 2,2
ft-inches 7'3"
Width inside m 1,15
ft-inches 3'9"
Tube diameter max m 0,5
ft-inches 20"
Number of chambers 5
Passenger capacity pers. 9
Load capacity kg 1000
lbs 2200
Boat weight kg 265/325/340/290
lbs 583/715/750/638
Engine power recommended HP 70
kW 51,5
Engine power max HP 100
kW 73,6
Engine weight max kg 175
lbs 386
Engine shaft length ft-inches 20"(long)
Boat design Category(Dir.94/25/EC) Ñ
3
GRAND Silver Line S520, S520L,S520F,S520S UM14650
Page 4
4
COMPLETE SET
Model
S520 S520L/F S520S
Description unit q-ty availability availability availability
ST ANDART FEA TURES
Fiberglass hull pcs. 1
Molded-in spacious bow locker with access door pcs. 1
Towing bow eye, 2front and 2 rear lifting eyes set. 1
Cocpit drain plug and hull drain plug pcs. 1
Soft curved multi-chamber buoyancy tube pcs. 1
Rear cleats pcs. 2
Tough raised rubbing strake with splash guard pcs. 1
Bow grab handle, safety grab handles pcs. 1+12
Paddles with posts pcs. 2
Foot pump pcs. 1
Maintenance kit set. 1
User’s manual pcs. 1
STANDART FEATURES FOR DELUXE VERSION
Steering console CL-03 with windshield pcs. 1
Steering system with cable, and wheel
Rear duble seat with seat back pcs 1
STANDART FEATURES FOR SPORT VERSION
Steering console CS-01W with windshield and railing pcs 1
Steering system with cable, and wheel pcs 1
GRAND Silver Line S520, S520L,S520F,S520S UM14650
Page 5
—
Your
"GRAND" boat "SILVER LINE" complete set included this items.
5
√√
√√
√
GRAND Silver Line S520, S520L,S520F,S520S UM14650
COMPLETE SET
Model
S520 S520L/F S520S
Description unit q-ty availability availability availability
OPTIONAL EQUIPMENT
Fiberglass step end of the inflatable tube pcs. 2
Keel protection set 1
Tube protection set. 1
Upgrade to close sell foam cushions pcs. 1
Stainles steel railing for steering console CL-03 pcs. 1
Overal cover pcs. 1
Steering console cover pcs. 1
Overpressure valve pcs. 1
Bow step plate with clam bollard pcs. 1
Bow locker removable cushion pcs. 1
Stainles steel navigation arch pcs 1
Removable sundeck pcs 1
Collapsible bimini top pcs 1

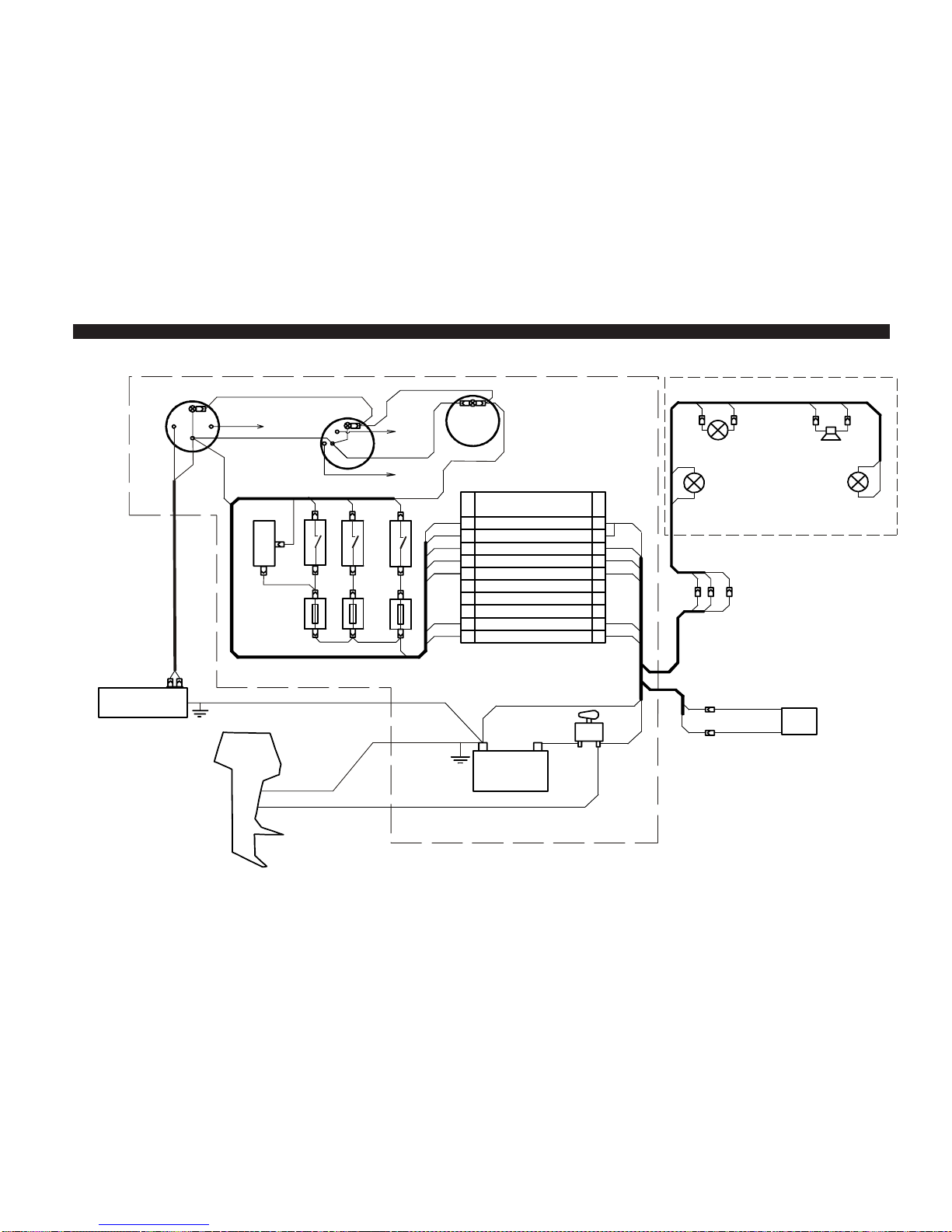

Electic package set 1
90 lit. build-in fuel system with send and filler pcs. 1
Page 6

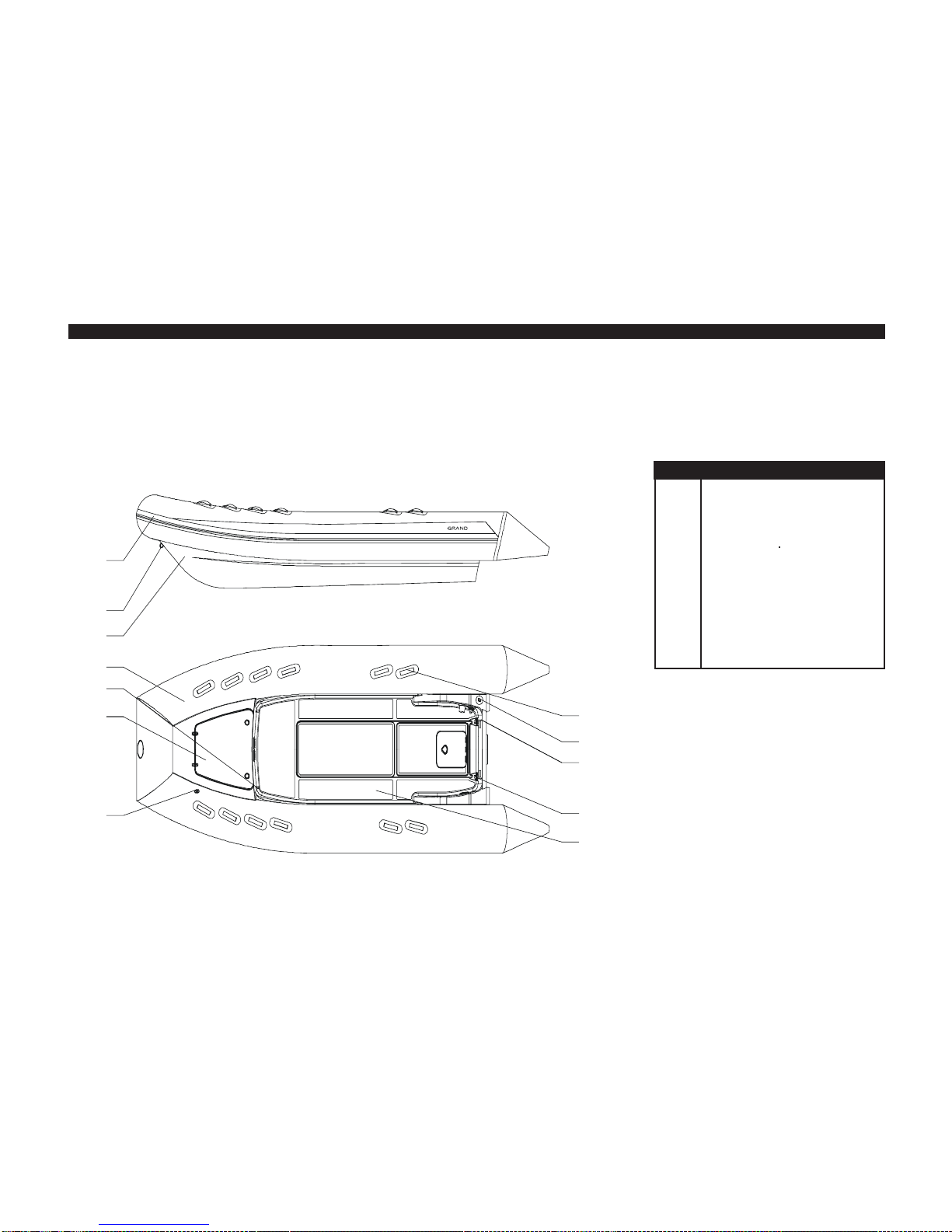

S520
6
GRAND
4
5
10
3
2
1
12
9
8
7
11
6
GRAND Silver Line S520, S520L,S520F,S520S UM14650
Pos Item
1 Fiberglass hull
2 Buoyancy tube
3 Inflation / deflation valve
4 Bow towing eye
5 Bow lifting eye
6 Stern lifting eye
7 Antiskid deck surface
8 Raised rubbing strake
9 Safety grab handles
10 Molded-in bow stowage
11 Hull drain plug
12 Fuel fill
Page 7
7

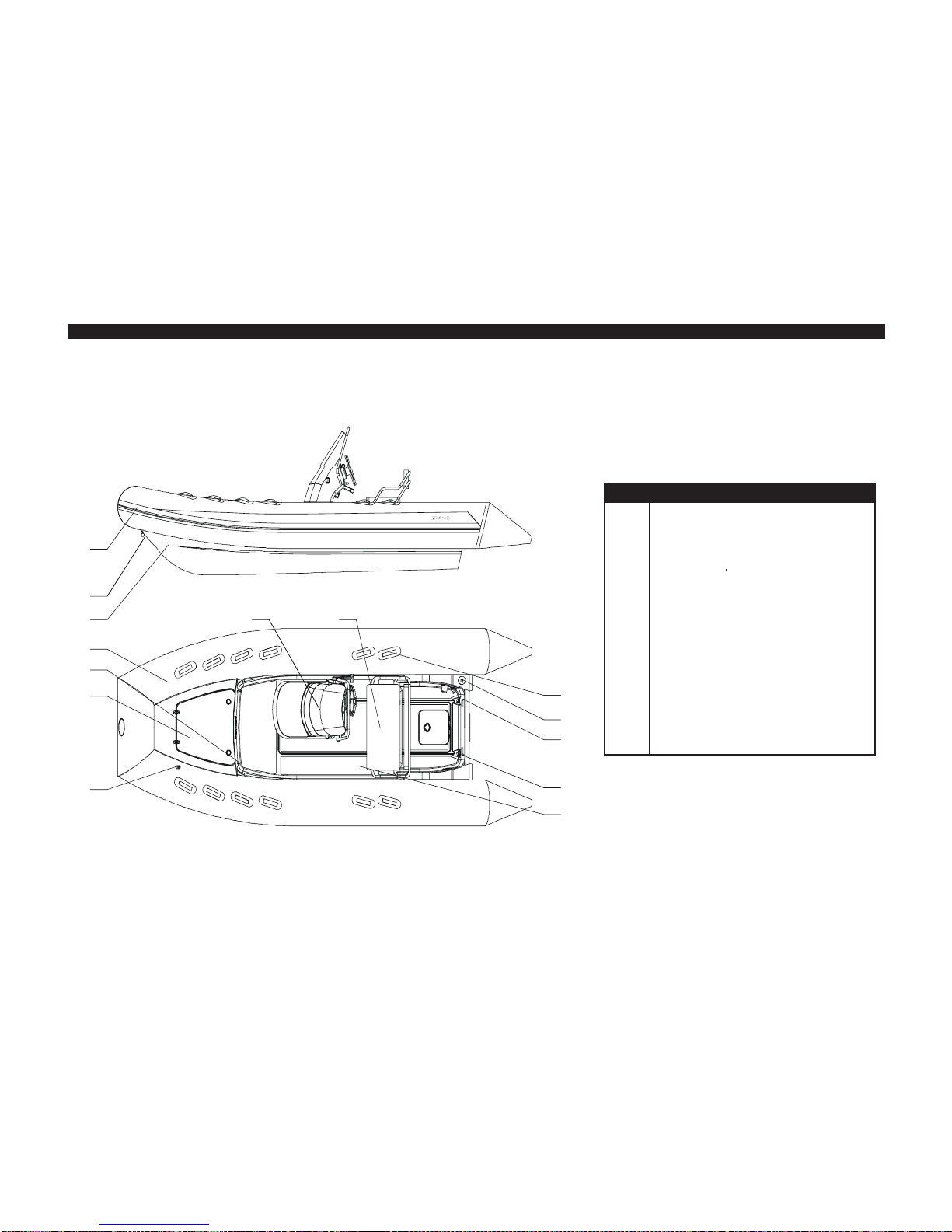

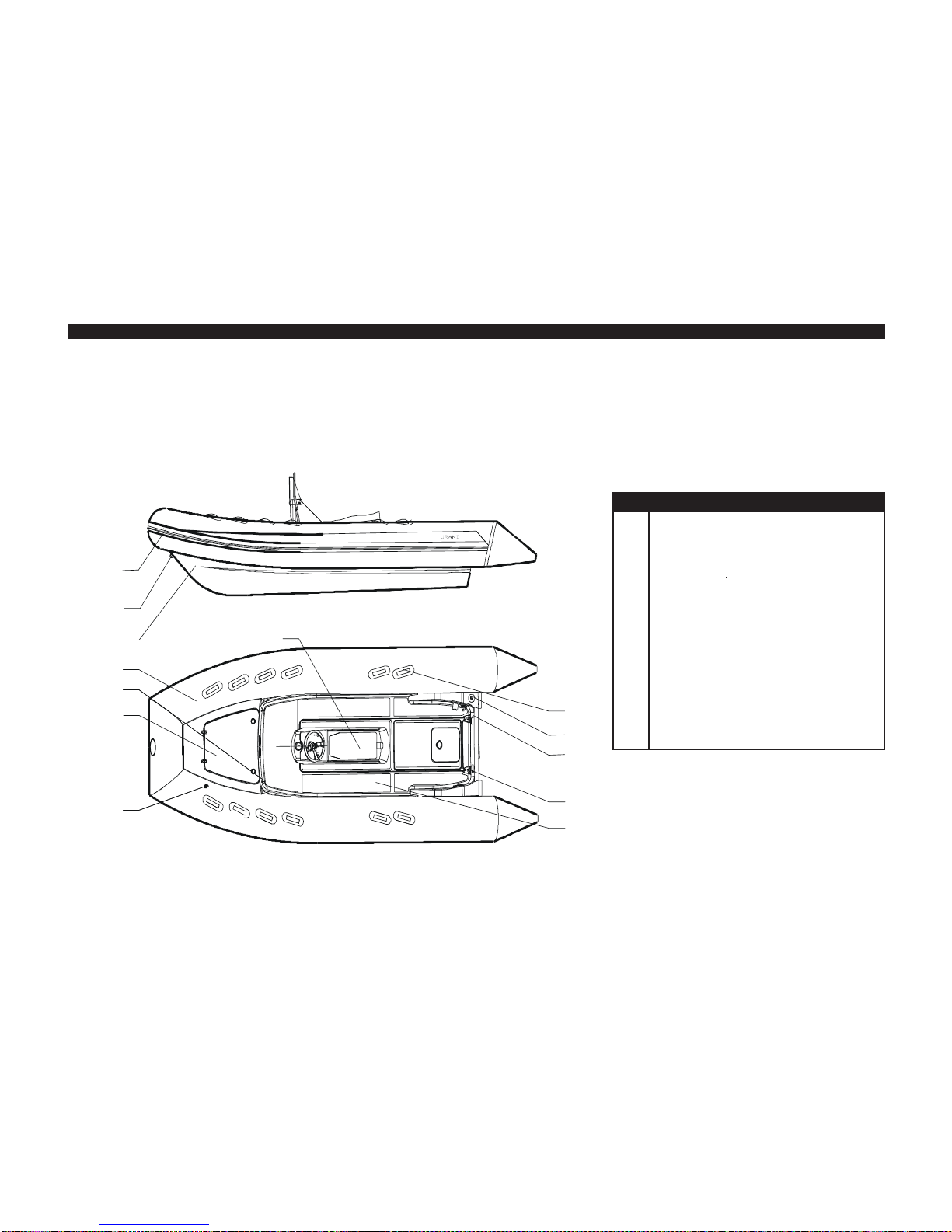

S520L
GRAND Silver Line S520, S520L,S520F,S520S UM14650
Pos Item
1 Fiberglass hull
2 Buoyancy tube
3 Inflation / deflation valve
4 Bow towing eye
5 Bow lifting eye
6 Stern lifting eye
7 Antiskid deck surface
8 Raised rubbing strake
9 Safety grab handles
10 Molded-in bow stowage
11 Hull drain plug
12 Fuel fill
13 Double seat SD-02 with container,
cushion,soft back
14 Steering console CL-03
GRAND
4
5
10
13
3
2
1
12
9
8
7
14
6
11
Page 8
8
S520F
GRAND Silver Line S520, S520L,S520F,S520S UM14650
GRAND
4
5
10
13
3
2
1
6
9
8
7
14
11
15
12
Pos Item
1 Fiberglass hull
2 Buoyancy tube
3 Inflation / deflation valve
4 Bow towing eye
5 Bow lifting eye
6 Stern lifting eye
7 Antiskid deck surface
8 Raised rubbing strake
9 Safety grab handles
10 Molded-in bow stowage
11 Hull drain plug
12 Fuel fill
13 Double seat SD-02 with container,
cushion,soft back
14 Steering console CL-03
15 Fiberglass step end
Page 9
9

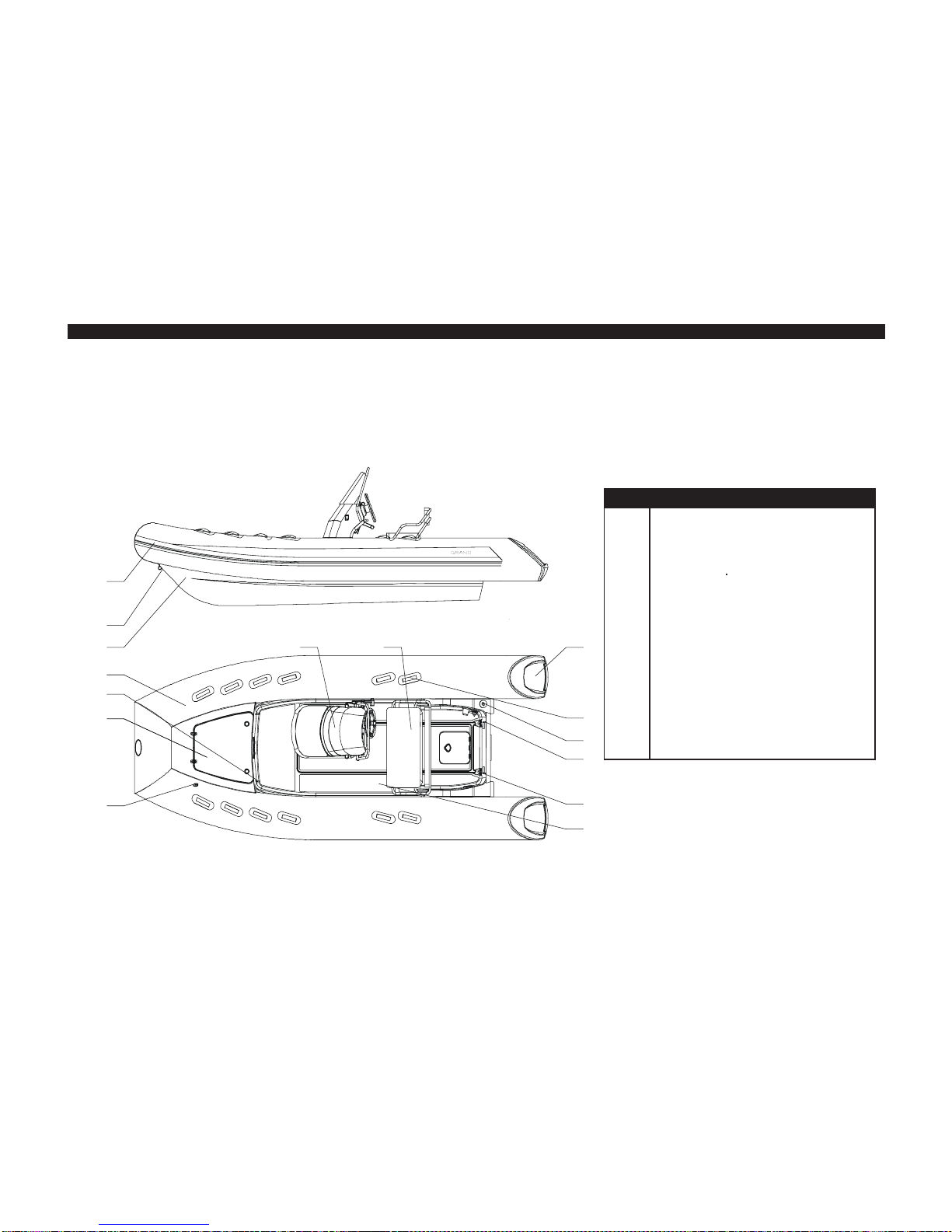

S520S
GRAND Silver Line S520, S520L,S520F,S520S UM14650
Pos Item
1 Fiberglass hull
2 Buoyancy tube
3 Inflation / deflation valve
4 Bow towing eye
5 Bow lifting eye
6 Stern lifting eye
7 Antiskid deck surface
8 Raised rubbing strake
9 Safety grab handles
10 Molded-in bow stowage
11 Hull drain plug
12 Fuel fill
13 Steering console CS-01 with
container and cushion
G
R
A
N
D
4
5
10
13
3
2
1
12
9
8
7
11
6
Page 10
10
B
A
Inflation/deflation
valve
ATTENTION ! Overinflating of your boat, when the
air pressure is more than nominal, sufficiently
decreases the boat life time.
Fig. 1
PREPARATION FOR EXPLOITATION.
In order to set the boat in the operation condition perform as follows:
- unfold the inflatable tube;
- mount the outboard engine on the transom in accodance
with it`s own installation instruction.
For boats S470L, S470S:
- extend the engine remote controle cables and steering
system cable from the engine mounting place to the
steering console mounting place .

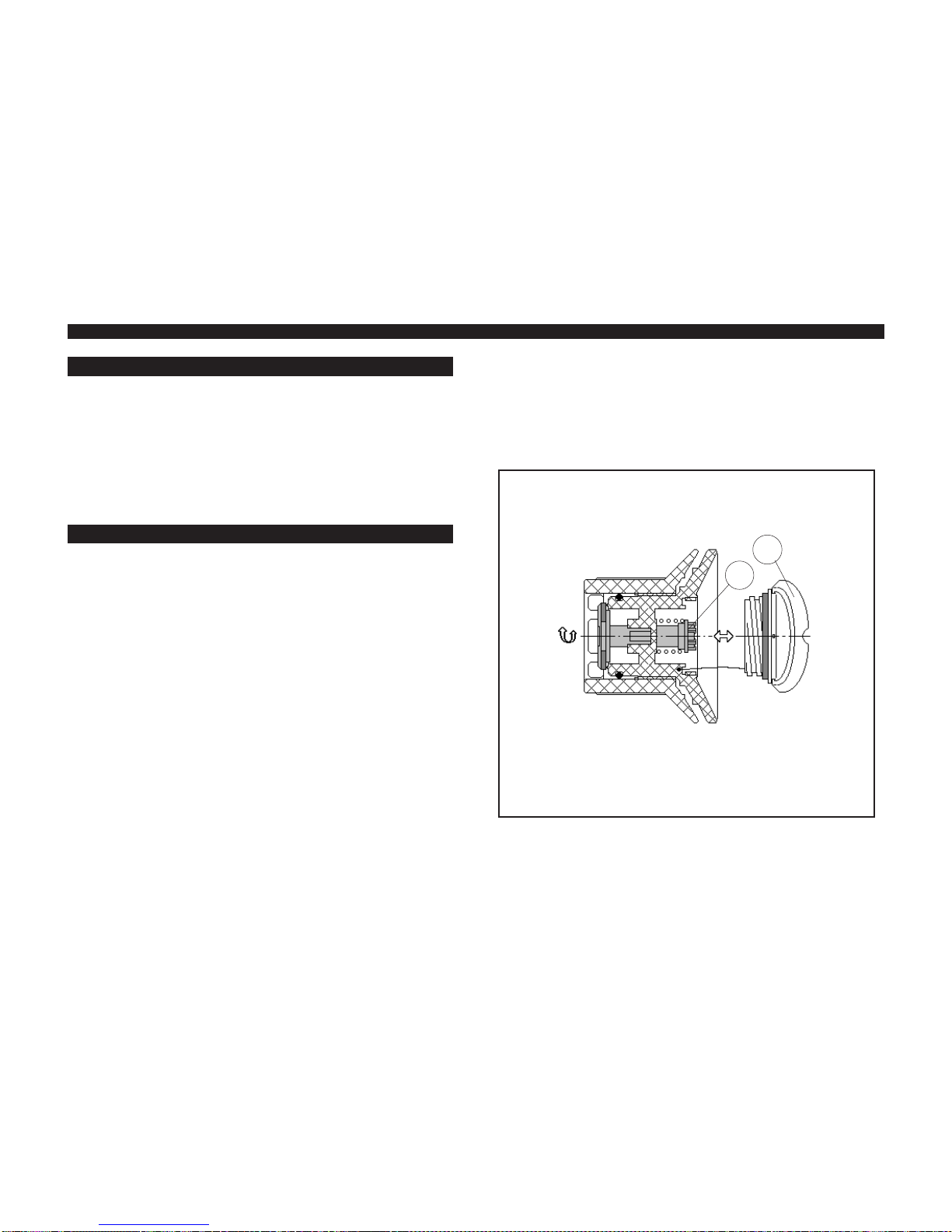

INFLATION / DEFLATION VALVE OPERATION.
The valve has two positions of sliding part A corresponding
to its two conditions (modes):
– sliding part A is with drawn - operation condition of
the valve (compartment air filling mode);
– sliding part A is recessed - valve in condition "OPEN"
(compartment air discharge mode).
In order to switch the valve over from one condition to
another, just press sliding part A with your finger to turn
it by 90 degrees in any direction until it is fixed (See Fig.1).
Prior to begin the compartment filling process set all valves
in the operating condition. On completion of filling close the
valves with bonnets B (rotate them clockwise).
In order to discharge air from the compartments, open the
valves (by counterclockwise rotation) and switch the valves
over into condition "OPEN".
GRAND Silver Line S520, S520L,S520F,S520S UM14650
Page 11
11
Mount the engine remote controle block on the right side of the
steering console;

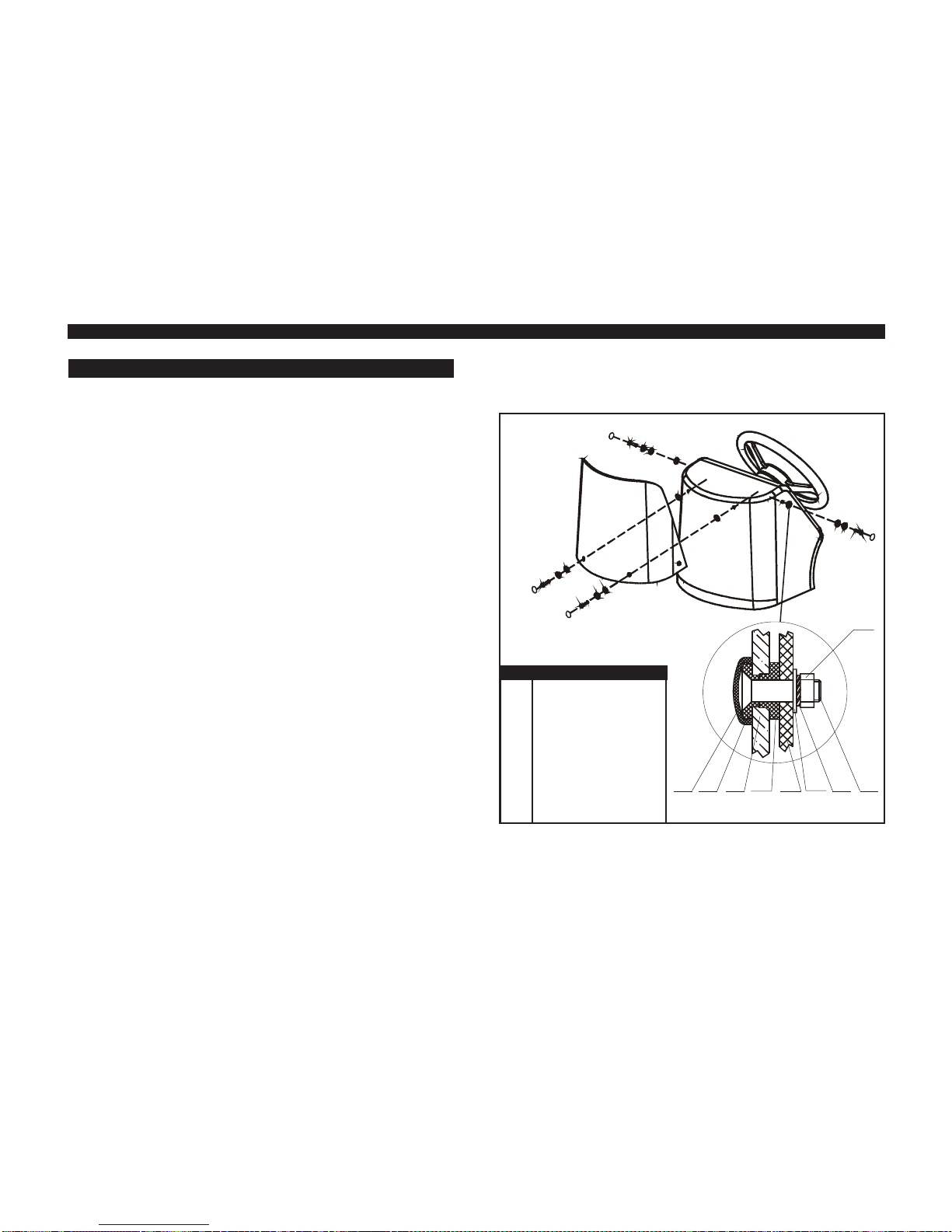

In order to install the windscreen onto the console perform the next
operations ( Fig. 2 ):
- unfix and hinge out overhead part of steering console
or seat for steering console CS-01 «Sport»;
- align holes in the windscreen with holes in the console
overhead part;
-fix windscreen by means of the screws M6x25, bushs ,
washers and nuts M6 from the complete set;
For steering console CS-01 «Sport»:
- align holes in the windscreen railing with holes in the
- console «Sport»;
- fix windscreen railing by means of the bolts M12x20,
support windscreen railing and washers from the
complete set;
- tighten all the bolts and screws.
STEERING CONSOLE INSTALATION
1 Screw
2 Bush #1
3 Bush #2
4 Windscreen
5 Steering console
6 Cup
7 Serrated lock washer
8 Washer
9 Nut
ATTENTION ! To aviod the water penetration into the
console inner layers, please, tight all the hole free
space with any water resistant filler.
GRAND Silver Line S520, S520L,S520F,S520S UM14650
Fig. 2
6 2 4 3 5 8 7 1
9
Page 12
12

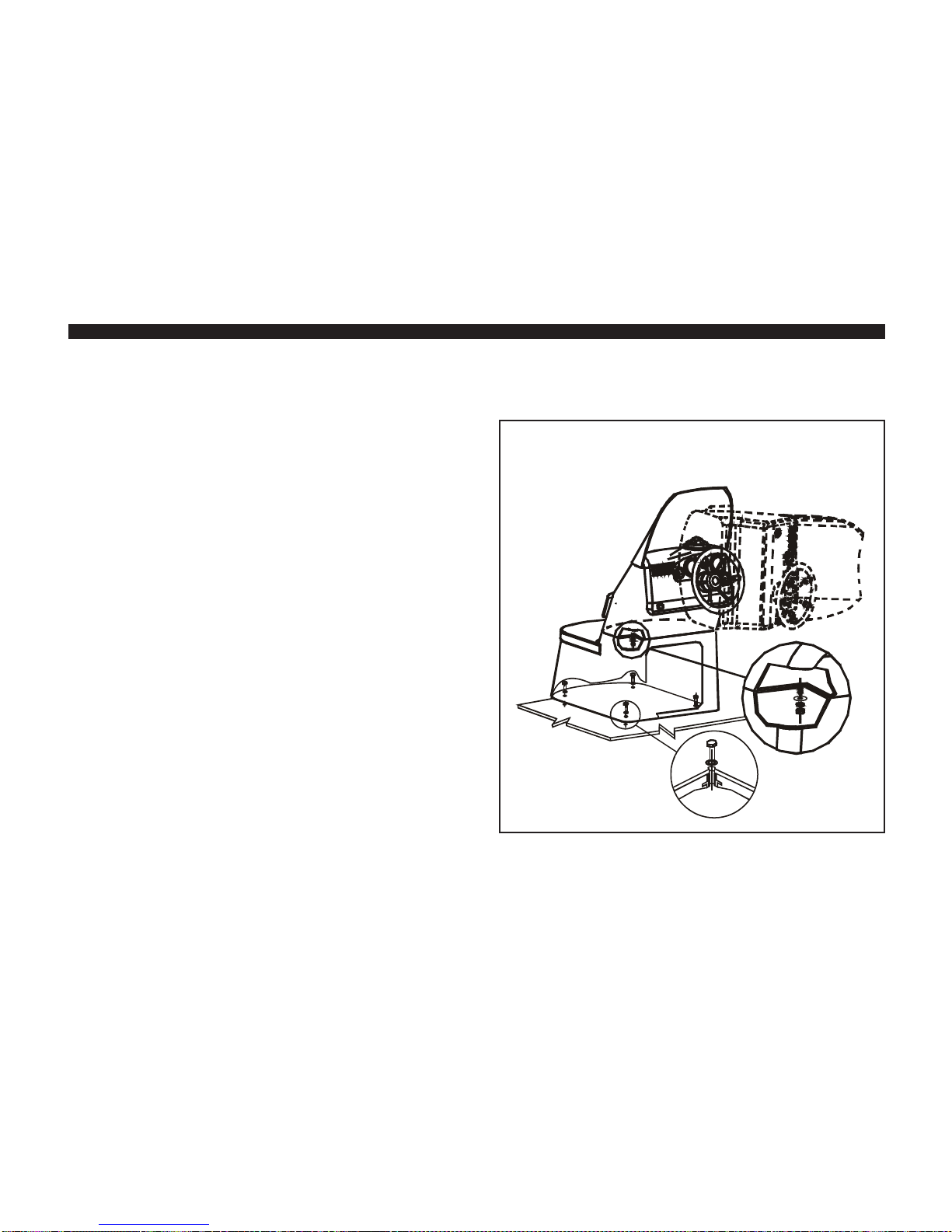

In order to install the steering console CL-03 on the deck
perform the next operations ( Fig. 3 ):
- align holes in the bottom of steering console with
holes on the deck;
- fix steering console to the deck by means of bolts M8*25
and washers (see Fig.3);
- attach steering system cable in accodance with its own
installation (manual);
- replace and fix overhead part of the steering console by
means of serrated lock washers, washers and nuts M8
from complete set
(see Fig.3).
- tighten all the bolts and nuts.
ATTENTION ! To aviod the water penetration into the
console and hull inner layers, please, tight all the
hole free space with any water resistant filler.
GRAND Silver Line S520, S520L,S520F,S520S UM14650
Fig. 3
Fig.3
Page 13
13

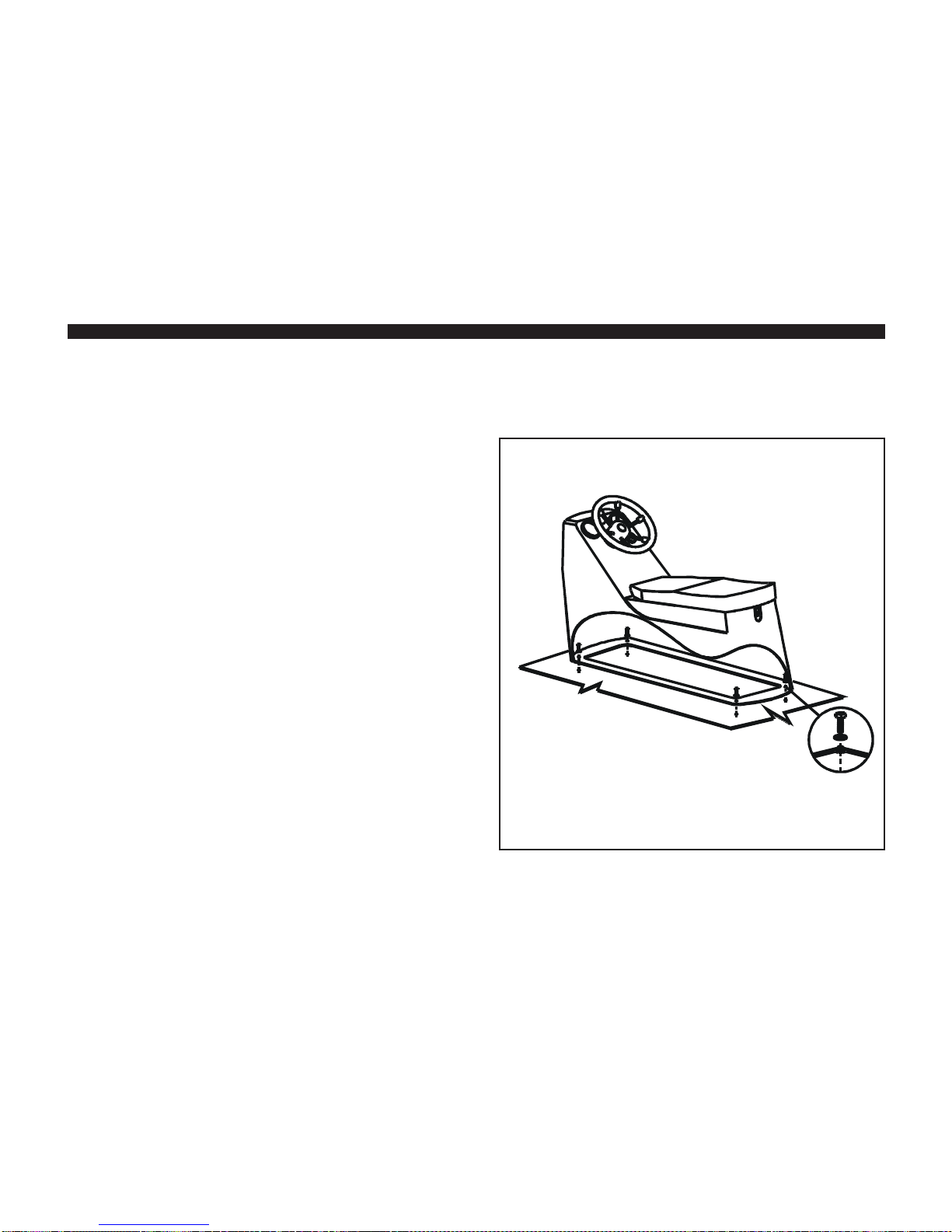

For steering console CS-01:
- align holes in the bottom of steering console with
holes on the deck;
- fix steering console to the deck by means of bolts M8*25
and washers (see Fig.3a);
- attach steering system cable in accodance with its own
installation (manual);
- tighten all the bolts.
Fig. 3
ATTENTION ! To aviod the water penetration into the
console and hull inner layers, please, tight all the
hole free space with any water resistant filler.
Fig. 3
Fig.3a
GRAND Silver Line S520, S520L,S520F,S520S UM14650
Page 14
14

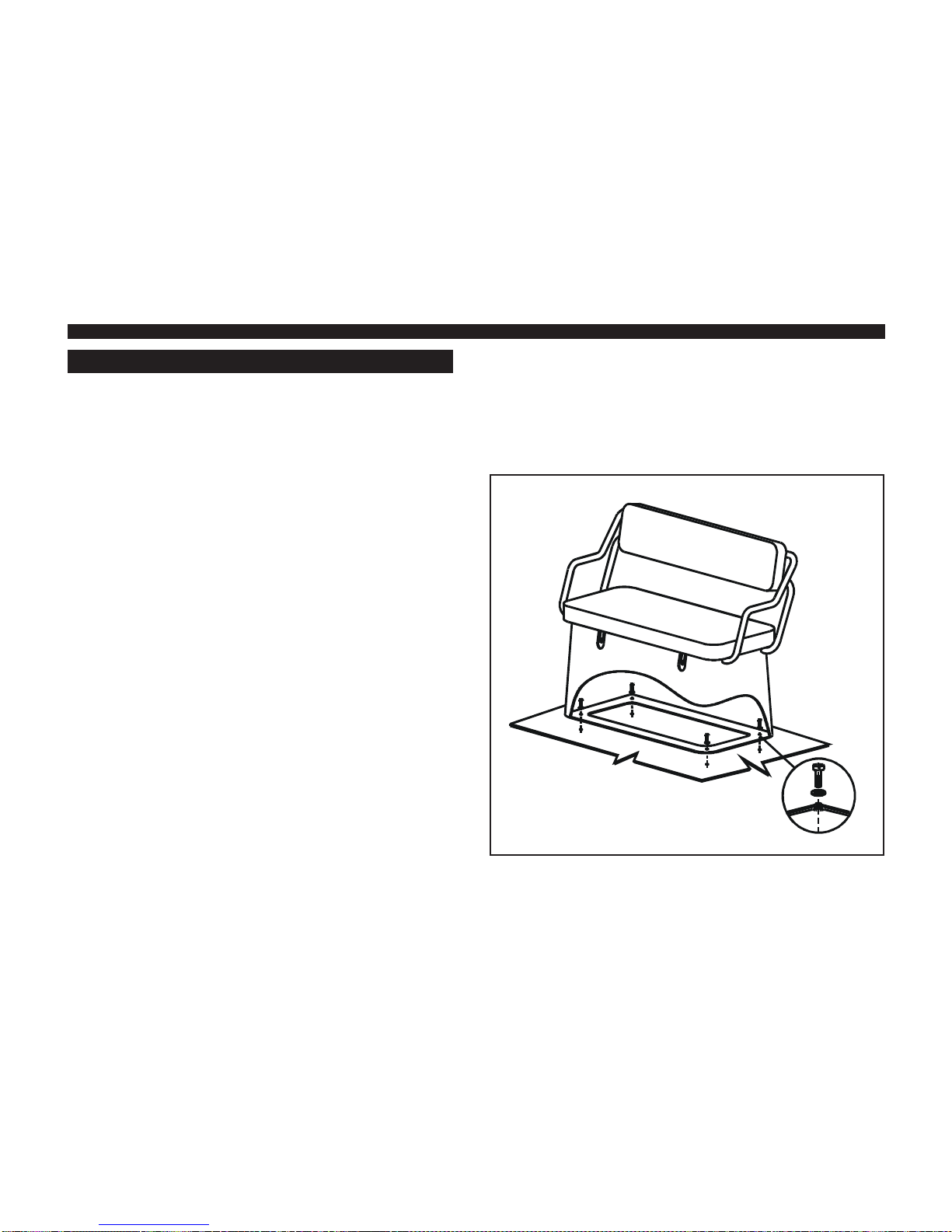

CONTAINER INSTALATION
In order to install the container onto the deck perform the next
operations ( Fig. 4):
- hinge out the seat;
- align holes on the bottom container with holes on
the deck;
- fix container to the deck by means of bolts M8*25
and washers (see Fig.4).
- tigten all the bolts.
- replace the seat.
ATTENTION ! To aviod the water penetration into the
hull and container inner layers, please, tight all the
hole free space with any water resistant filler.
Fig.4
GRAND Silver Line S520, S520L,S520F,S520S UM14650
Page 15
kjkjkjkk
MAINTENANCE
Main conditions of long service life is right and careful service.
Avoid excessive increasing of pressure in the board,
especially from heating by the sun rays.
After exploitation take off sand and dirt from boat surface,
and carefully dry it.
Avoid the water getting into the chambers. If a fuel or an oil / gas
gets to the boat surface it is necessary to wash the soiling place by
soap water as soon as possible and dry.
Pay attention to the condition of bottom and seat surfaces. If
the coating is destroyed it is necessary to dry this element and
restore the defend ply.
After the season prepare the boat to winter keeping. Clean
boat surface from sand and dirt and make the necessary
repairs, if damages take place. If it is possible, keep the boat
in the open and slightly pumped state in air temperature 025°C. The boat must be protected from the sun rays.
Insignificant boat repairing (eliminating the board punctures
or cuts) you may carry out by yourself. In this case use the
coated fabric patches from the complete set. Ask your dealer
for the correct type of glue you may use for the repair.
In case if sufficient damagesof hull, tube body, partitions
or seams it is recommended to apply for professional repair in
authorised service station.
OPERATING REGULATIONS
Dear user,
We thank your for your purchase and do hope that you will have
a great fun of it. However, to make your joy and pleasure
complete, we would request you to read carefully and observe
the directions and recommendations specified below.
IT IS STRICTLY FORBIDDEN :
to handle the boat in the state of intoxication and without individual
rescue means being used (life-saving belts, jackets, etc.)
IT IS FORBIDDEN :
- to overload the boat above the design weight-carrying capacity;
- to use an outboard engine of power exceeding the maximum
allowable value;
- to bring the tube pressure up to the value exceeding the rated
one ( 0.15 bar);
- to drag the boat across a rough surface.
Danger of usage of engine having insufficient or exces-
sive power
According to the safety regulations, each inflatable boat should
be furnished with an outboard engine having the maximum
allowable power. You will find the data on the maximum
allowable power of the engine on the manufacturer's plate with
the designation of the model type inscribed thereon. The plate
is fixed in the afterbody of the boat. However, your should
choose the engine power within the allowable range so as to
ensure that you may safely reach the shore when heading into
the wind or into the current.
Observation of local shipping regulations
For each particular water area the local shipping regulations
are in force. You may apply for information to the appropriate
water transport and shipping directorate, as well as to the
water police.
15
GRAND Silver Line S520, S520L,S520F,S520S UM14650
OPERATING REGULATIONS
Page 16
occupied seats should not be left throughout the entire sail ing
time. When sailing with an outboard engine the
steersman
should shift his body forward in the course of acceleration
to prevent the boat forebody from raising under the force
of upthrust waves.
Presence of sharp and pricking objects on board
Despite the strong shell of the boat we are recommended
to handle sharp and pricking objects being on board with
care. For example, it concerns a knife blade, fish-hook
point, etc.
Rocky shore, mole, shoals (for example, sand
banks, coral reefs, rocks)
Approach rocky shores, shoals, moles, etc. carefully to
avoid damages to the boat. It is strictly prohibited to drag
the boat across rough surfaces (shingle, rocks, concrete,
etc.).
Check at navigation
In case of prolonged navigation with the use of an outboard
engine, regularly check to ensure that the engine is reliably
attached to the boat. If the engine was attached carelessly
the attachment may work loose under the action of vibration.
Besides, check air chambers pressure at regular intervals,
since the pressure may vary under the effects of outside
air temperature and atmospheric pressure variations.
Never forget to monitor regularly the quantity of fuel in the
fuel tank. Keep always in mind that the quantity of fuel
should be sufficient for you to sail to your final destination.
Availability of rescue means (life-saving jackets,
distress signals, spare parts)
If you are planning to go beyond the protected water areas
you should provide all passengers on board with lifesaving
Proper usage of boat equipment and accessories
Use the boat equipment and accessories only on their direct
purpose to ensure reliable service.
Availability of Oars
Even when sailing with an outboard engine you should always
have the oars available with you so that you were able to reach
the shore without outside assistance in case of any damage to
the boat.
Usage of emergency stop switch
On your request any outboard engine seller may provide your
engine with the emergency stop switch. During navigation the
switch should be connected to the wrist of your hand by means
of a cord. In case you fall overboard, even if being a steersman,
the switch will cut out the engine and the propeller. This
arrangement will enable you to avoid any traumas and to reach
the boat.
Prevention of damages caused by electrolyte or fuel
leakages
Take all possible precautions against penetration of fuel or
electrolyte from the storage battery into the inflatable boat. If it
does happen wash thoroughly the fouled spots with water.
Cargo arrangement and stowing, attachment of items
and prevention of falling overboard
You should be always sure that the number of people on board
never exceeds that specified in the user's manual or on the
manufacturer's plate provided on the transom. The boat will
retain an adequate floatability and will not keel over only
provided that the load is arranged reasonably. Therefore,do
not accommodate all passengers on the same side of the boat.
Arrange the cargo to be carried uniformly inside the boat, all
items being reliable secured on the bottom of the boat. All
passengers should be accommodated inside the boat. The
16
GRAND Silver Line S520, S520L,S520F,S520S UM14650
Page 17
In emergency stay in boat
In any unexpected situation (engine failure, boat damage,
etc.) do not ever leave the boat provided it is still afloat. Even
if you believe that the shore is just nearby stay in the boat, since
you will be looked for in this particular place and, most probably,
will be found. Should the boat become partially flooded throw
heavy objects (batteries, fuel tank, engine) overboard to ensure
additional floatability.
The "GRAND" Company employees would like to wish you a
pleasant and safe leisure time!
jackets. All passengers should put on life-saving jackets
under strong wind and heavy seaways conditions. Those
passengers who cannot swim should always carry the lifesaving jackets while on board! It is also recommended to
keep constantly distress signal means on board.
Towing
At towing the towing rope length should not be at least 3
lengths of the boat, the rope being secured to both boats
in a manner ensuring
its immediately, single-motion release.
The steersman of the towed boat should be assisted by another
crew member to monitor the process of towing. In this case,
certain communication gestures should be agreed upon
beforehand.
Damage to one of air chambers
The inflatable boat is designed to provide an adequate stability
in case of the complete damage to one the air chambers
(balloon compartments) at the expense of the remaining air
chambers and the hull. Thanks to it, you will be able to reach
safely the nearest shore. Reduce the speed and shift your body
to the undamaged part of the boat. Watch changes in stability.
After this immediately head for the nearest shore. To prevent
penetration of water into the boat, pull the shell of the damaged
air chambers upwards.
Anchor and mooring fast fastening
Fix the anchor and towing ropes in the forebody of the boat to
the front towing ring. Fix the back spring on the transom via
special holes.
Danger of currents and wind
Before navigation of the boat in unfamiliar waters make detail
inquiries about local conditions and regulations! Currents,
wind, shoals, rising and falling tides, as well as weather
variations may imply serious danger!
17
GRAND Silver Line S520, S520L,S520F,S520S UM14650
Page 18
18
GRAND Silver Line S520, S520L,S520F,S520S UM14650
S
I
X1- Connector block
Wire legend
Con.
Con.
1
3A
3
4
A
B
1
3
4
A
B
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
6
7
8
9
10
Navigation light
Panel light
Horn
Bilge pump
+12v disconnector
-12v battery
NAVIGATION ARCH
HL1
B
B
1
1
B
3
HA
HL2
HL3
Port light (red)
Starboard light (green)
Horn
Masthead light (white)
B
1
1
1
33B
B
4
B
Bilge
pump
Brown/white
QS
Disconnector
Battery
+12v
- 12v +
-12v
B
A
Ground
Outboard
motor
SA1
SA2
FU1FU2
A
10A
Navigation light
1
3
2
2
3
2
3
Accessory socket
FU3
SA3
XS
10A
10A
4
3
B
Speedometer
+12v panel light
Fuel meter
+12v on ignition switch
3A
3A
GRN
+12v on ignition switch
Signal
GRN
B
4A
T achometer
Bilge pump
Horn
4A
B
Fuel send
Fuel tank
Ground
B
Black
WIRING DIAGRAM
Page 19
19
For notes
GRAND Silver Line S520, S520L,S520F,S520S UM14650
Loading...
