Equipment List

1 STEEL HORN

1 WOOD BASE

1 USB ADAPTER

1 4ft 3.5mm AUDIO CABLE

1 6ft MICROUSB CABLE

Assembly

1. Insert horn tip into wood base bushing.

2. Match horn tip with bushing notch.

3. Gently rest horn in wood base.

NOTE: DO NOT pick up the Gramophone by the horn.

Controls

At the back of the base, the Gramovox Bluetooth Gramophone

has a 3.5mm stereo input ( A ), On/O power button ( B ),

and a Micro-USB port ( C ).

A B C

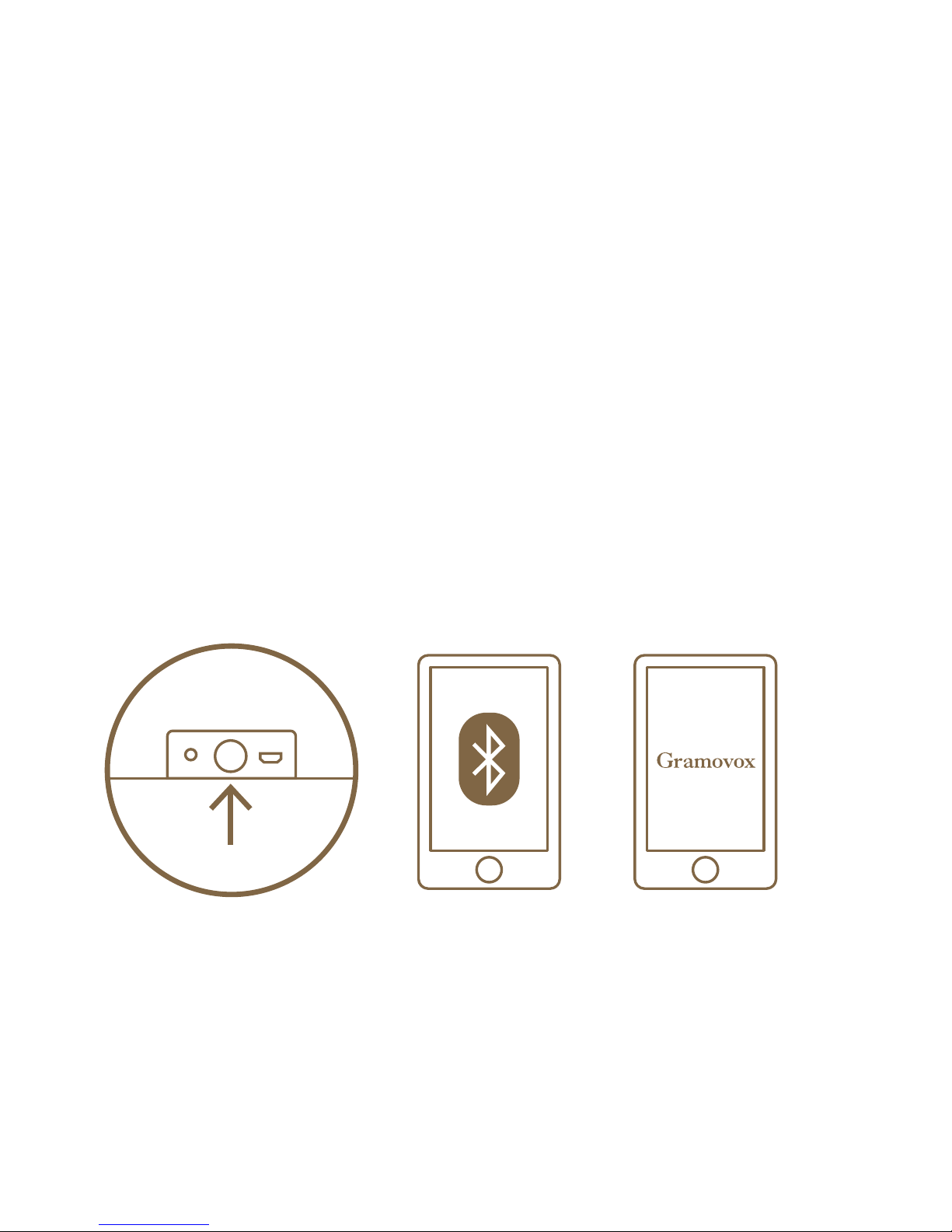

How To Pair

1. Power on the Gramovox Bluetooth Gramophone by pressing

the On/O power button ( A ).

2. Turn on Bluetooth on your Bluetooth-enabled device.

3. When prompted, select “Gramovox” to pair.

It may take up to a minute to pair.

4. For troubleshooting suggestions, email support@gramovox.com

1 2 3

HOW TO TRANSFER PAIRING

TO ANOTHER DEVICE

1. Select “unpair” or “forget this device” under your Bluetooth settings.

2. Turn o Bluetooth on the paired Bluetooth-enabled device.

3. Power o the Gramovox Bluetooth Gramophone.

4. Turn on Bluetooth on the new Bluetooth-enabled device.

5. Follow instructions for “How to Pair” (opposite page).

WHEN USING THE AUX INPUT:

1. Verify the Gramovox Bluetooth Gramophone is in the OFF state.

2. Connect the 3.5mm cable provided between your source device and

the Gramovox Bluetooth Gramophone input.

3. Begin audio playback on your source device.

4. Press the power button on the back of the Gramovox Bluetooth

Gramophone unit to turn it to the ON state.

5. You should now hear audio playing.

NOTE: The AUX will override a Bluetooth connection, and you will not be able to stream

music via Bluetooth while the AUX cable is plugged into the Gramophone.

Sound Cues

The Bluetooth Gramophone emits four dierent sound cues,

indicating its various states:

ON: Three ascending notes after pressing the Power button indicate

that the Gramophone is ON.

OFF: Three descending notes after pressing the Power button

indicate that the Gramophone is OFF.

PAIRED: Three ascending notes (dierent from the ON tone).

If you are already paired with the Gramophone, You will hear this

immediately after the ON tone. Otherwise, you will hear this after

your Bluetooth-enabled device connects with the Gramophone.

LOW BATTERY: Three descending notes (dierent from the OFF

tone) that sound like a “sad horn”. You will hear this when the battery

in your Gramophone needs charging, and the tone will repeat every

10 minutes until the unit is plugged in.

NOTE: You can hear examples of the tones above at www.Gramovox.com/pages/FAQs

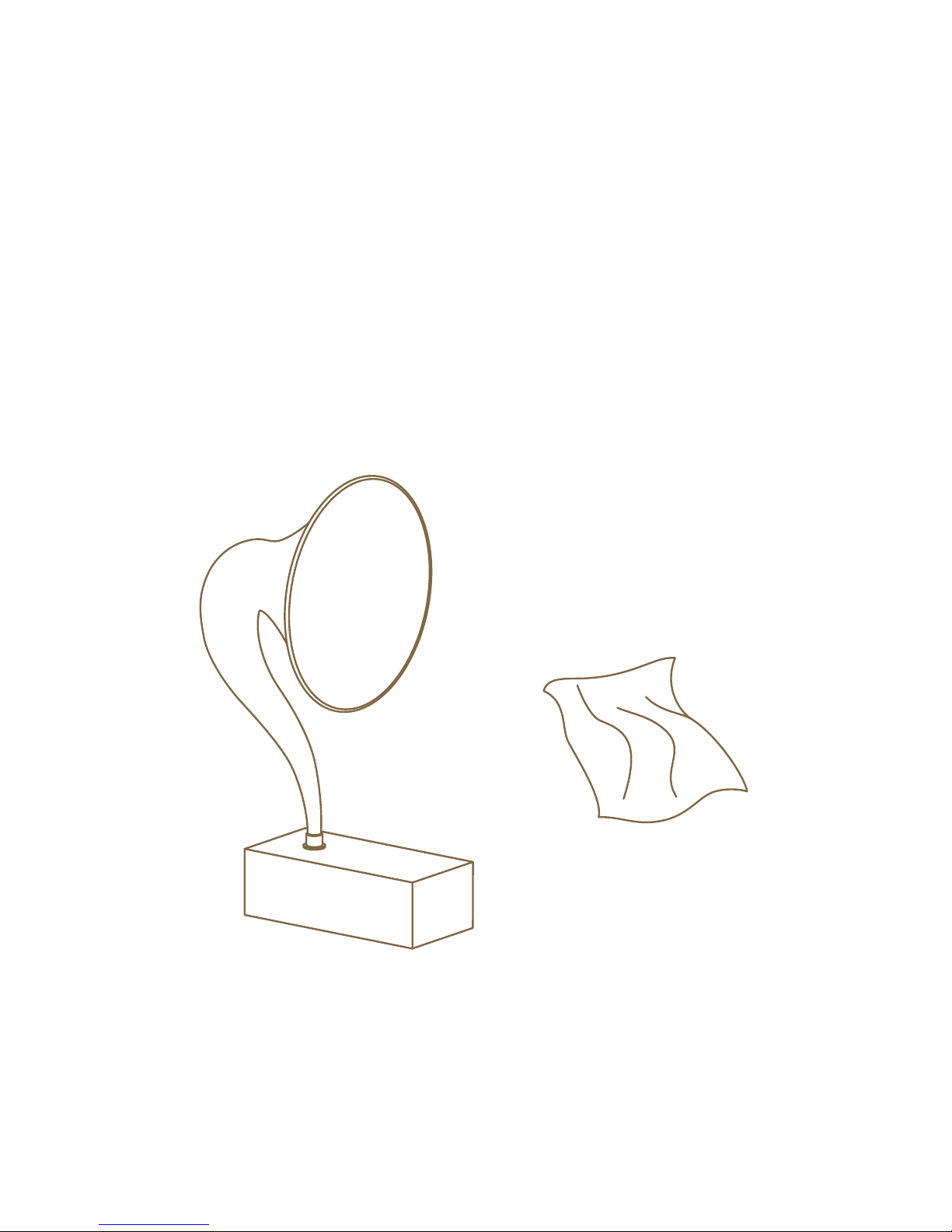

Cleaning

Only clean your Gramovox Bluetooth Gramophone with a clean, dry,

microﬁber cloth. Do not use abrasive cleaners to clean your

Gramovox Bluetooth Gramophone—this could damage the product.

Detailed Specications

LOUDSPEAKER

Driver: 1.5” (38mm) Horn Loaded Full Range

Magnet: Neodymium (Magnetically Shielded)

Impedance: 8 ohm

Cone Type: Paper (w/ Mylar dust cap)

BLUETOOTH

Version: 4.0 (backwards compatible with

Bluetooth 3.0, 2.1, 2.0)

Frequency: 2.4GHz

Proﬁle: A2DP

Range: 30ft (~10m)

Antenna: Internal

POWER

Battery: Built in 3.7V Li-Ion battery (3300mAh)

Playback time: 12 to 18 hours

Charging time: 3 to 4 hours

Charger Type: Micro USB B O-line

USB charger (1A)

PHYSICAL PROPERTIES

Horn Diameter: 10.64 in.

Horn Height: 17.99 in.

Wood: 8.50in. X 4.00in. x. 2.75in.

Weight: 5lbs

AUDIO

Stereo: Yes (L+R Combined)

Ampliﬁer: 2W

Ampliﬁer Type: Class D w/ Boost

Frequency Response: 200Hz - 15kHz

Signal to noise ratio: > 100dB

Maximum SPL: 101dB (1m)

CONNECTIVITY

Wireless: Bluetooth

Wired: AUX port (3.5mm)

PACKAGE CONTENTS

USB charger

6’ MicroUSB Cable

4’ Stereo Auxiliary Cable

User Manual

WARNING

Gramovox is not responsible or liable for any injuries, damages or death caused by negligence, misuse or any other action taken involving your Gramovox® Bluetooth

Gramophone.

Please read these safety warnings and cautions carefully

to ensure your personal safety and prevent property damage.

FIRE AND ELECTRIC SHOCK HAZARD

• Do not expose your Gramovox® Bluetooth Gramophone to liquid, moisture, humidity, or rain.

• Do not use the Gramovox® Bluetooth Gramophone near a bathtub, sink, sauna, pool, or steam room.

• Exposure of the Gramovox® Bluetooth Gramophone to moisture could result in electric shock and/or damage to the device.

• Do not drop, disassemble, open, crush, bend, deform, puncture, shred, microwave, incinerate, paint, or insert foreign objects in to the Gramovox® Bluetooth Gramophone. Such actions could result in electric shock.

• Clean the Gramovox® Bluetooth Gramophone only with a dry cloth.

• Do not expose your Gramovox® Bluetooth Gramophone to extremely high or low temperatures.

• Do not leave your Gramovox® Bluetooth Gramophone in direct sunlight for extended periods of time. Exposure to excessive sunlight can cause overheating and damage, including damage to the paint and ﬁnish.

• Do not leave your Gramovox® Bluetooth Gramophone near open ﬂames such as cooking burners, candles, or ﬁreplaces.

• Do not block any ventilation openings.

BATTERY/CHARGER HAZARD

• Do not dispose of your Gramovox® Bluetooth Gramophone in a ﬁre. The battery could explode causing injury or death.

• Only charge the battery in accordance with the user instructions supplied with the Gramovox® Bluetooth Gramophone.

• Do not attempt to disassemble the Gramovox® Bluetooth Gramophone charger or force open the built-in battery because this may result in electric shock.

• Do not charge the Gramovox® Bluetooth Gramophone in damp areas or in extremely high or low temperatures because this could result in electric shock.

• Do not clean the Gramovox® Bluetooth Gramophone when it is being charged. Always unplug the charger ﬁrst before cleaning the Gramovox® Bluetooth Gramophone.

AUTOMOBILE ACCIDENT HAZARD

• Do not leave or store the Gramovox® Bluetooth Gramophone or any of its accessories near or over your automobile’s air bag because serious injury may result when an air bag deploys.

CAUTION

• Do not use abrasive cleaners to clean your Gramovox® Bluetooth Gramophone because this could cause scratches and damage.

• Do not place the Gramovox® Bluetooth Gramophone

on high surfaces such as shelves. During music playback the Gramovox® Bluetooth Gramophone may move which could cause the Gramovox® Bluetooth Gramophone to shift and fall o of the edge.

• Do not place the Gramovox Bluetooth Gramophone

within reach of children or pets.

• Do not bring your Gramovox® Bluetooth

Gramophone in to contact with any sharp objects

because this could cause scratches and damage.

• Do not insert anything into your Gramovox®

Bluetooth Gramophone unless otherwise speciﬁed in the user instructions. This may damage the internal components.

• Do not attempt to repair, modify, or disassemble your Gramovox® Bluetooth Gramophone yourself, it does not contain any user-serviceable components.

• Do not attempt to replace your Gramovox® Bluetooth Gramophone battery, it is built-in and is not changeable under warranty.

• Use only the manufacturer supplied charger to charge your Gramovox® Bluetooth Gramophone. Other chargers may look similar, but using them could result in electric shock and could damage the Gramovox® Bluetooth Gramophone.

• Observe all signs and displays that require an electrical device or RF radio product to be switched o in designated areas.

• Turn o your Gramovox® Bluetooth Gramophone prior to boarding an aircraft. Do not use the Gramovox® Bluetooth Gramophone inside an aircraft unless allowed by your airline.

• Dispose of the Gramovox® Bluetooth Gramophone and the Gramovox® Bluetooth Gramophone’s battery in accordance with local regulations. Do not dispose of the battery with regular household waste.

• Do not use the Gramovox® Bluetooth Gramophone on an uneven and/or unsteady surface.

• Do not attempt to operate the Gramovox® Bluetooth Gramophone in windy conditions.

• Do not drop, disassemble, open, crush, bend, deform, puncture, shred, microwave, incinerate, paint, or insert foreign objects in to the Gramovox® Bluetooth Gramophone.
