Graham Field Mp701404, Mp7114, MM7074, MM7014, Mp7074 User Manual

service Manual for Basic American’s Matrix 709 series

InstructIons For use

etL/uL/csA Approved uL 60601-1 Iec 60601-2-38 csA 22.2 601.1

Basic American Medical products is a division of GF Health products, Inc.

999-0807-190 • rev d • 2011

Basic American Medical Products

336 Trowbridge Drive Fond du Lac, WI 54937 www.basicamerican.com

For Matrix II Bed Service Parts please contact our Customer Service Department at 1-800-365-2338

GF Health Products, Inc.

2935A Northwest Parkway

Atlanta, GA 30360 www.grahamfield.com

To order a Matrix II Bed please contact a Graham Field Sales Representative at 1-800-554-9215

This service manual covers the following Matrix II Models:

Full-electric with standard caster carriage: 76” Grid = Mp7074; 80” Grid = Mp7174; 76” pan = Mp7014; 80” pan = Mp7114 Full-electric with M-Lok caster carriage: 76” Grid = MM7074; 80” Grid = MM7174; 76” pan = MM7014; 80” pan = MM7114 Full-electric with total Lock caster carriage: 76” Grid = Mp707404; 80” Grid = Mp717404; 76” pan = Mp701404; 80” pan = Mp711404

Important notIce

The information contained in this document is subject to change without notice.

Please check all parts for shipping damage and test before using.

In case of damage, DO NOT USE.

Copyright 2011 Basic American Medical Products

T ABLE OF CONTENTS

safety information and specifications

safety & warning information . . . . . . . . . . . . . . . . . . . . . . . 1 entrapment compliance information . . . . . . . . . . . . . . . . 2 bed features & specifications . . . . . . . . . . . . . . . . . . . . . . . . . 3

Features & Mechanical Dimensions

Electrical Specifications

Available Options/Accessories

bed positioning specifications . . . . . . . . . . . . . . . . . . . . . . . . 4

Maximum High and Low Bed Positions

Maximum Head/Back Elevation/Angle

Maximum Knee/Foot Elevation/Angle

operating your bed

operation - std. pendant/hand controller . . . . . . . . . . 5

• Pendant Diagram and Operational Instructions

operation - opt. staff/nurse control . . . . . . . . . . . . . . . . . 6

• Staff Diagram and Operational Instructions

board assembly & Misc. features

standard head- & footboards . . . . . . . . . . . . . . . . . . . . 7 - 10

Std. Head- & Footboard Boring Patterns

Assembly Instructions

Head- & Footboard Assembly Parts

Head- & Footboard Assembly Diagram

optional embedded staff control . . . . . . . . . . . . . . . . . . . . 11

Assembly Instructions

Footboard Embedded Control Parts & Diagram—single control box

standard & optional wallsavers . . . . . . . . . . . . . . . . . . . . . 13

Assembly Instructions

Standard Wallsaver & Side Wallsaver Assembly Parts

Wallsaver Assembly Diagrams

standard mattress retainers . . . . . . . . . . . . . . . . . . . . . . . . 14

Assembly Instructions

Mattress Retainer Assembly Parts & Diagram

OPTIONAL edema foot ratchet . . . . . . . . . . . . . . . . . . . . . . . . 15

• Edema Diagram and Operational Instructions

accessories assembly

Head & foot half-rails . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 & 18

• Diagram, Parts, and Assembly Instructions

Foot rail bracket assembly . . . . . . . . . . . . . . . . . . . . . . . . . . 19

• Diagram, Parts, and Assembly Instructions

Head & foot assist bars/rails . . . . . . . . . . . . . . . . . . . . 20 & 21

• Diagram, Parts, and Assembly Instructions

standard 4” extension pan . . . . . . . . . . . . . . . . . .

. . . . . . . . 22

• Diagram, Parts, and Assembly Instructions



optional 42” wide deck & Wide deck ext. pan

. . . 23 & 24

• Diagram, Parts, and Assembly Instructions



trapeze support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . 25

• Diagram, Parts, and Assembly Instructions



bed parts and hardware



Head, Knee & foot decks to main frame . . . . . .

. . . . . . . 27

• Diagram, Parts, and Assembly Instructions



main frame to u-levers AND DRAG LINK . . . . . . . . . . . . . . 28

• Diagram, Parts, and Assembly Instructions

LOWER u-levers to standard caster carriage . . . . . . . 29

• Diagram, Parts, and Assembly Instructions

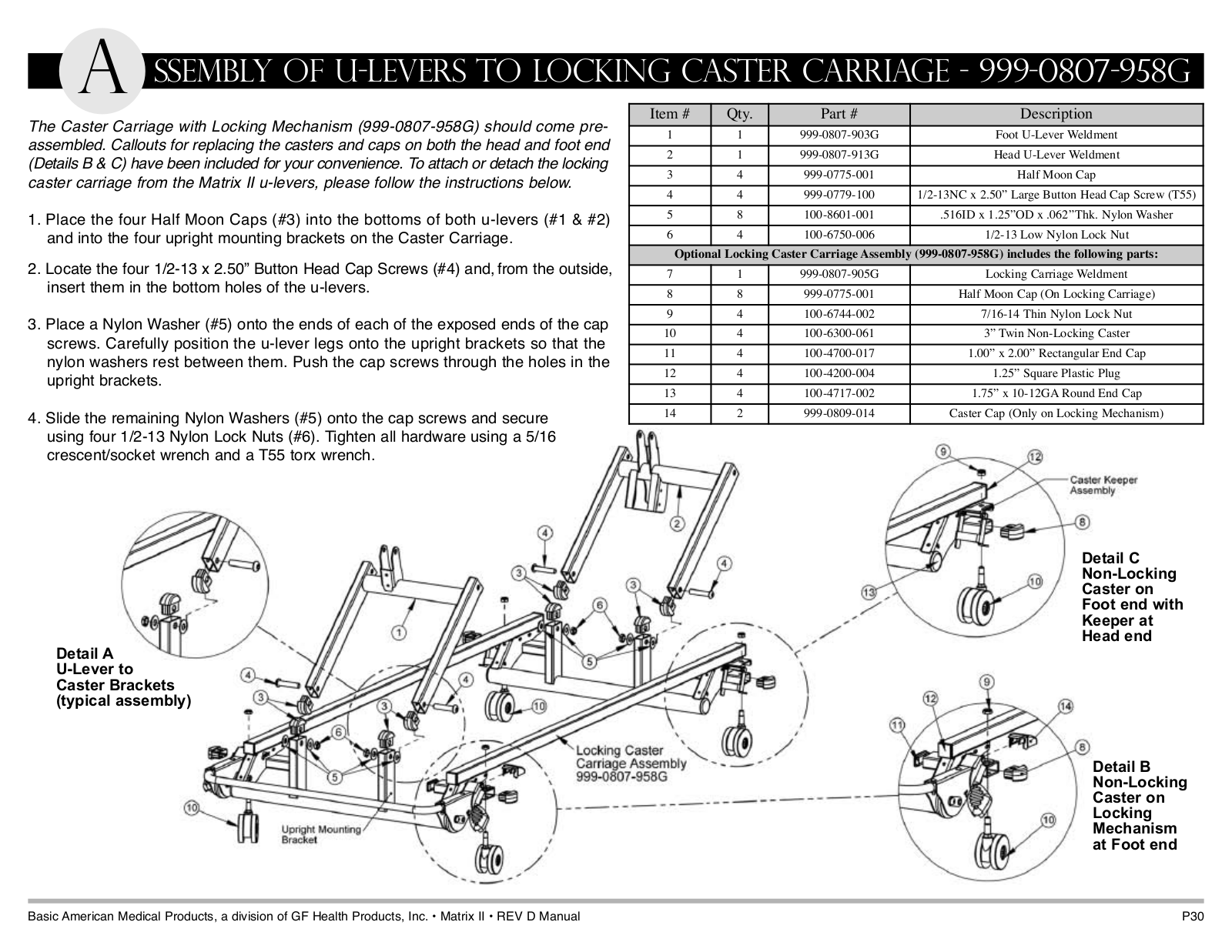

LOWER u-levers to lock caster carriage w/m-lok . . . 30

• Diagram, Parts, and Assembly Instructions

electronics & cabling

head motor to head deck and main frame . . . . . . . . . 32

• Diagram, Parts, and Assembly Instructions

foot motor to knee deck and main frame . . . . . . . . . . 33

• Diagram, Parts, and Assembly Instructions

hi/lo motorS to drag linkS and u-leverS . . . . . . . . . . . . 34

• Diagram, Parts, and Assembly Instructions

control box connections & cabling . . . . . . . . . . . . . . . . 36

• Diagram, Parts, and Connection Instructions

Head, Foot, and Hi/Lo cable routing . . . . . . . . . . . . . 37 - 39

• Diagram and Routing Instructions

pendant cable & power cord routing . . . . . . . . . . 40 & 41

• Diagram and Routing Instructions

miscellaneous

electronic troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . 42 recommended service and maintenance . . . . . . . . . . . . . 43 notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Basic American Medical products, a division of GF Health products, Inc.

S AFETY & WARNING INFORMATION - please read before operation

This product is a variable height, adjustable mattress platform, which will provide comfort and convenience for residents/patients and caregivers in long term care settings. All Warning/Caution labels attached to the bed apply to any hazards or unsafe practices that could result in personal injury and/or property damage. DO NOT remove any Warning/Caution labels attached to the bed. Whenever you see this symbol ! please pay special attention to the warning instructions and comments for your safety and the safety of the resident/patient.

IMPORTANT Safety Operating Information

!side rails, and accessories, taking into consideration proper positioning, patient size, realignment, transfer, and overall care, is 450 lbs.

MAKE SURE all electrical cords DO NOT get tangled around the bed, side rails, or legs during

!transport or normal operation of the bed. NEVER operate the bed if a Power Cord or Plug is damaged or not working properly. Contact qualified Service Personnel for examination and repair. ALWAYS unplug the Power Cord when performing any maintenance on the bed.

The bed’s Pendant Cord MUST BE ROUTED AND SECURED PROPERLY to ensure it does

!not become entangled and eventually severed during use.

MAKE SURE all locking casters and/or locking mechanisms are properly engaged when the

!bed is not in transport in order to avoid any rolling movement when the bed is at rest.

When operating the High/Low, Knee, or Back Functions of the bed, ALWAYS ensure that the

!confined individual is positioned properly within the confines of the bed. DO NOT let any extremities protrude over the side or between the bed rails when performing these functions.The MAXIMUM SAFE WORKING LOAD for the Matrix II Bed, including the mattress, panels,

!personnel perform work on these components, the manufacturer’s warranty becomes void.

DO NOT use unauthorized parts, accessories, or adapters other than those specified/authorized by Graham-Field Health Products.

!When using nasalor masked-type administering equipment, all oxygen or air tubing MUST

BE ROUTED AND SECURED PROPERLY to ensure that the tubing does not become entangled and eventually severed during the normal operation of the bed.

!Keep all moving parts free of obstructions (i.e. blankets/ sheets, heating blankets/pads, wiring, etc.)

!The bed is intended for use, storage, and transport within a temperature range of -40˚C to +60˚C. It has a water-resistance rating of IPX4 and IS NOT to be power-washed or submersed.DO NOT open assemblies such as the Actuators, Hand Control, or Control Box. If unauthorized

Operating Conditions

Operation of the bed is based on the following conditions:

Ambient Temperature of +10˚C to +40˚C; Relative Humidity of 30% to 75% (Non-condensing);

Atmospheric Pressure of 700hPa to 1060hPa; and a Splash Protection of IEC 60529.

!the frame for cleaning. This is also a safety feature for when the bed is powered down. ALWAYS make sure the deck is fully engaged in the upright position when lifting or lowering it manually.

Not doing so could result in damage to property or personal injury.

DO NOT lower the bed when objects are beneath it. Failure to inspect under the bed can result

!in damage to property or personal injury.

DO NOT use the side rails as push handles for moving the bed. Side rails can be deformed or

!broken if excessive side pressure is exerted. The purpose of the rails is to define the edge of the sleeping surface. They are not meant for patients considered as high risks for entrapment

(i.e. patients with pre-existing conditions such as confusion, restlessness, lack of muscle control, altered mental status, either organic or medicinal, or a combination thereof). Additional safety measures should be considered for such high-risk patients.

!NEVER permit more than one (1) person on/in the bed AT ANY TIME.

Body weight should be evenly distributed over the sleeping surface of the bed. DO NOT allow

!the patient to lay, sit, or lean in such a way that their entire body weight is placed only on the raised head or foot sections of the bed. This especially applies when repositioning or transferring

a patient in or out of the bed. Increased risk may occur when the patient’s size and/or weight are inappropriate for the bed’s dimensions or weight capacity.The head/back deck is designed to remain in its full upright angled position when accessing

Storage

Storage of the bed is based on the following conditions:

Ambient Temperature of -10˚C to 70˚C; Relative Humidity of 10% to 100%; and an Atmospheric

Pressure of 500hPa to 1060hPa.

Radio Frequency Interference (RFI)

RFI influences most electronic equipment. Caution should be exercised with regard to the use of portable communications equipment in the area around such equipment. If RFI causes erratic behavior, shut the bed off immediately. Leave it off while the transmission is in progress.

label symbol definitions

! !

consult

safe

protected

type B

Accompanying

Working

Grounded

equipment &

documents

Load

device

Applied parts

Basic American Medical products, a division of GF Health products, Inc. • Matrix II • rev d Manual

p1

E ntrapment compliance information

On March 10, 2006, the FDA (U.S. Food and Drug Administration) released long-awaited guidelines for reducing the risk of bed entrapment: “Hospital Bed System Dimensional and Assessment Guidance to Reduce Entrapment”. The new Guidance identifies potential entrapment areas and those body parts most at risk for entrapment; provides design criteria for manufacturers of new hospital/convalescent beds; recommends particular test methods to assess the conformance of existing hospital/convalescent bed systems; and answers frequently-asked questions about entrapment issues.

The new Guidance was a result of a long-standing collaboration between the FDA and the Hospital Bed Safety Workgroup (HBSW), formed in 1999. Graham-Field’s Long-Term Care Bed division: Basic American Medical Products, is an HBSW charter member. As a result of Graham-Field’s commitment to product safety, all of Graham-Field current long-term care beds have been strictly tested and conform to the new FDA Guidance.

The guidelines set forth by the FDA Guidance layout specific dimensional limitations on potentially injury-threatening gaps and spaces that can occur between bed system components, such as rails, when not properly installed. Graham-Field and Basic American Medical Products have conformed to these guidelines from a manufacturing aspect. However, entrapment issues can often arise when a healthcare provider/facility has not correctly assembled the components on a bed. It is essential that the provider/ facility fully understand their responsibility in complying to the guidelines set forth by the FDA in order to avoid injury. To that end, we have provided the links below as a resource for understanding and following these guidelines for the safety of the patient/resident.

Graham-Field encourages all hospital bed owners to read the FDA guidance.

Please visit the FDA’s Hospital Bed Safety page at "http://www.fda.gov/cdrh/beds/"

To find many resources, including a link to the new Guidance page go to "http://www.fda.gov/cdrh/beds/guidance/1537.pdf"

Ordering instructions for a Testing Kit which you can use to determine whether your beds are in conformance with the guidance can be found at "http://www.fda.gov/cdrh/beds/entrapmentkit.html"("http://www.fda.gov/cdrh/beds/entrapmentkit.html" http://www.fda.gov/cdrh/beds/entrapmentkit.html) ;

A discussion of Clinical Guidance protocol which you can use to assess an individual patient’s needs when using a side rail can be found at "http://www.ute.kendal.org/learning/documents/clinicalguidance_SideRails.pdf"

These resources will supply you with the knowledge to evaluate the safety of the hospital beds you currently own.

It is also essential to have the correct bed components/accessories that correspond with the needs of your patient/resident and the particular bed you have purchased. Matching the correct bed component that correlates with the regulatory guidelines can be a daunting task. Our Graham-Field Sales team and the friendly Customer Service Representatives at Basic American Medical Products can help you sift through the wide array of compliance and bed options. We will help you determine which bed/bed part is best for your patient’s/resident’s particular needs and help you with your compliance issues.

Basic American Medical products, a division of GF Health products, Inc. • Matrix II • rev d Manual

p2

B ED features & SPECIFICATIONS

The Matrix II Full-Electric Bed Series offers some outstanding standard and optional features all geared for safety and comfort. We have included both mechanical and electrical specifications below for your records. *We are excited to introduce a new Anti-Microbial Powder Coat Painting process which has been proven to inhibit the growth of damaging and disease causing microbes (bacteria, mold, fungus, algae, etc.) on the surface of coated items. Recorded result-reduction of bacteria has been 99.9%.

Features

Sleep Surface Availability

76” & 80”





Sleep Surface Options

Steel Welded Wire Grid (std)

or Pan







Sleep Surface Material

11 GA. Hot Rolled Steel





Base Frame Material

Welded Tubular





Main Frame Material

Steel (Rectangular

& Square Tubing)







Travel Range

8.90” to 25.00”





Standard Locking System

Lock and/or Roll

at any height







Baseboard Wallsaver

Wire - Standard





Mattress Retainers

Two std. on foot deck





Hand Pendant

6-function with long

coil cord







Pendant Holster

Standard





Motors & Control Box

Quiet DC Electronics





Heavy Duty Casters

Four Standard





*Anti-Microbial Powder Coat

Soft Pantone Grey

Paint Finish







Entrapment

FDA Compliant





Mechanical Dimensions



76”

80”







Overall Bed Length

82.00”

86.00”

(with standard wallsaver)











Overall Bed Width

39.75”

39.75”

(with standard rails)











Overall Bed Width

36.00”

36.00”

(with standard boards-no rails)











Sleep Deck Surface Length

75.00”

79.00”







Sleep Deck Surface Width

35.00”

35.00”







Sleep Deck Surface Height

25.00”

25.00”

(high position)











Sleep Deck Surface Height

8.90”

8.90”

(low position)











Under Bed Minimum Clearance

5.25”

5.25”

(high position)











Maximum Head Deck Angle

70º

70º







Maximum Knee Deck Angle

30º

30º







Maximum Knee to Leg Angle

45º

45º







Maximum Safe Working Load

450 lbs.

450 lbs.





(including mattress, panels, side





rails and accessories, and taking





into consideration patient size,





proper positioning, realignment,





transfer, and overall care.











electrical specifications

Power/Frequency

120 Volt/60 Hz





Current Actuator Rating

LA27





Overall Movement Draw

4 Amps





Classification

Class I, Type B





Mode of Operations

10% Max. Duty Cycle

2 minutes on/18 minutes off







Electrical Cord

Type SJT 3/18AWG

Grounded w Hospital Plug







options/accessories

One Step Locking

Foot end/360º roll

Mechanism



Std. 4” Pan Extension Kit

Foot end - adds 4” to length





Staff/Nurse Control

Embedded in Footboard





Lockout

Economy or Single





Tubular Wallsaver

Steel





Side Rails

LH and RH/Head or Foot





Assist Bar

LH or RH/Head or Foot





Edema Foot Ratchet

Foot end





Trapeze

Support & Bar





Traction

Adapter & IV Socket





Battery Backup

Charger, Cable & Battery





Standard Pan Deck

Pan Head, Knee & Foot





42” Wide Deck Kit

Two RH & two LH Sections





Wide 4” Pan Extension Kit

Foot end - adds 4” to length





NOTE: When ordering parts or contacting our customer service department, please have the bed’s model and serial number available. These can be found on the identification labels which are usually located on the bed frame under the sleep deck.

Basic American Medical products, a division of GF Health products, Inc. • Matrix II • rev d Manual

p3

P ositioning Specifications

The Matrix II Bed Series has infinite positions that serve to help the patient be more comfortable and gives the practitioner easy access during procedures, transfers, etc. The correct placement of the bed is essential for the patient’s safety.

The bed should always be set to its lowest position when the patient is left unattended. The head and knee functions allow the resident/patient to raise their head or legs.

Floor

The recommended maximum distance for the head function is 70˚. In the event of a power outage, it is preferred that the knee and back sections be lowered using an emergency battery pack. If unavailable, the sections can be set into the flat position by easily removing the actuator mounting pins.

25.00”

8.90”

QUICK REFERENCE:

MAXIMUM (High Position)

Bed height from floor to sleep deck top = 25.00”

MINIMUM (Low Position) Bed height from floor to sleep deck top = 8.90”

DISTANCE TO WALL (High)

Headboard mounting tube to end of std. wallsaver = 1.75”

DISTANCE TO WALL (Low) Headboard mounting tube to end of std. wallsaver = 1.50”

MAXIMUM (Head Angle) Head deck to sleep surface = 70º

MINIMUM (Knee Angle)

Knee deck to sleep surface = 30º

MAXIMUM (Knee/Foot Angle)

Knee deck to foot deck = 45º

Basic American Medical products, a division of GF Health products, Inc. • Matrix II • rev d Manual

p4

O PERATION OF STANDARD PENDANT/HAND CONTROLLER

Easy Patient Controls

Each Matrix II Bed is equipped with a pendant-type hand control— standard. Each control function (head, bed, and knee) has two easily recognizable switches for up and down movement. The pendant can be easily disconnected to deactivate the patient control functions.

The controls are designed so that more than one function can be activated simultaneously. To operate, push the appropriate buttons to activate the desired function.

Pendant Holster

Male End Connector

999-0791-000

of Pendant Cable

Raise =

Head Up

Raise =

Bed Up

Raise =

Knees Up

Lower =

Head Down

Lower =

Bed Down

Lower =

Knees Down

Model # HB00 part # 999-0775-305

(Also includes alligator clip 100-0510-001)

Basic American Medical products, a division of GF Health products, Inc. • Matrix II • rev d Manual

p5

O PERATION OF OPTIONAL STAFF/NURSE CONTROL

part # 999-0775-901

Staff/nurse Controller

The staff/nurse control allows the caregiver to individually lock out all functions of only the pendant control. The caregiver can also operate the bed from this panel without walking to the side of the bed.

To Operate the Travel Controls

Press the “HOLD SELECT” (#13) first, then the appropriate “UP” (#4, 6, or 8) OR “DOWN” (#5, 7, or 9) on the panel.

To Lock Out a Pendant Function

Press the “HOLD SELECT” (#13) first, then the appropriate “NO PENDANT” (#1, 2, or 3) on the panel. The corresponding illuminated LED light (#10, 11 &12) indicates that the function is now locked out on the pendant.

To Unlock a Pendant Function

Press the “HOLD SELECT” (#13) first, then the appropriate "NO PENDANT" (#1, 2, or 3) on the panel. The corresponding LED light (#10, 11 & 12) is no longer illuminated, indicating that the pendant can now operate that function.

Lockout Led LIGHt

Lockout Led LIGHt

Lockout Led LIGHt

STAFF CONTROL REFERENCE

Head LED Light

Item 10





Foot LED Light

Item 11





Hi/Lo LED Light

Item 12





Hold & Select Button

Item 13





TO OPERATE BED FROM STAFF CONTROL





Raise Head/Back Deck

Push 13 then 4





Lower Head/Back Deck

Push 13 then 5





Raise Knee/Foot Decks

Push 13 then 6





Lower Knee/Foot Decks

Push 13 then 7





Raise Entire Bed (Hi/Lo)

Push 13 then 8





Lower Entire Bed (Hi/Lo)

Push 13 then 9





TO LOCK OUT HAND CONTROL FUNCTION





Lock Out Head Function

Push 13 then 1





Lock Out Foot Function

Push 13 then 2





Lock Out Hi/Lo Function

Push 13 then 3





PLEASE NOTE:

When the Pendant Hand Controller is locked out, you can still operate the bed from the Staff/Nurse Control without unlocking the pendant hand controller.

Head deck



HI/LO (raise bed)

foot deck

functions &

hold

functions &

functions &

lockout



lockout

lockout









Basic American Medical products, a division of GF Health products, Inc. • Matrix II • rev d Manual

p6

HEAD- & FOOTBOARDS

Basic American Medical products, a division of GF Health products, Inc. • Matrix II • rev d Manual

p7

Standard Headboard and Footboard BORING DIAGRAM

The diagrams below outline the manufacturer’s standardized headboard and footboard boring specifications. All of the dimensions are referenced from the center and bottom. Before making any significant variations to these dimensions, please contact the manufacturer.

HeAdBoArd

FootBoArd

Basic American Medical products, a division of GF Health products, Inc. • Matrix II • rev d Manual

p8

A ssembly - standard head and foot boards

1.Assemble two Mounting Tubes (#4) to the Headboard (#1) and two to the Footboard (#2) using eight 1/4-20 x 4mm JCB-B Hex Drive Bolts (#6), going through the pre-drilled holes on the boards and into the eight 1/4-20 x .60” Long Threaded Inserts (#3) (already attached to the boards) as shown. Hand tighten only at this time.

2.Insert the Mounting Tubes into the Main Bed Frame Tubes so that the holes match up as shown. Secure with four 5/16 x 1-1/2” Clevis Pins (#7) and 1-9/16 Hair Pin Clips (#8) (1 each per bed frame tube). The mounting tubes will slide underneath the two 5/16-18 x 1.50” Carriage bolts that were pre-inserted into the Main Frame Rails at the head-end of the bed by the manufacturer.

3.Now tighten all screws with a phillips screwdriver. Be careful not to overtighten.

Item #

Quantity

Part #

Description









1

1

-

Headboard*









2

1

-

Footboard*









3

8

100-7025-004

1/4-20 UNC x .60” Long Threaded Insert

(pre-inserted into footboard and headboard)

















Headboard & Footboard Mounting Kit (999-0775-000) includes the following parts:









4

4

999-0746-035G

Mounting Tubes









5

4

100-4700-015

1” x 1” Square Tube End Cap (pre-inserted in tubes)









6

8

100-5425-094

1/4-20 x 4mm JCB-B Hex Drive Bolt









7

4

100-7931-007

Clevis Pin - 5/16 x 1-1/2” w/cross hole









8

4

100-2001-006

1-9/16 Hair Pin Clip









not shown

1

100-9900-060

M4 4mm Hex Allen Wrench











Hardware Pre-inserted into Main Frame Rails to Hold Mounting Tubes









9

2

100-5231-003

5/16-18 x 1.50” Carriage Bolt









10

2

100-6731-006

5/16-18 Thin Nylon Lock Nut









*There are a number of stylish options for Matrix II Headboards and Footboards including Oak, Walnut, and Mahogany finishes. Please consult your catalog, our website (www.graham-field.com), or contact one of our Sales Representatives for options. Please note that headboards and footboards come as a kit and are not interchangeable.

Basic American Medical products, a division of GF Health products, Inc. • Matrix II • rev d Manual

p9

Standard Headboard and Footboard Assembly

Standard beds do NOT include Staff Control. (Complete footboard assembly with staff control shown on page 11)

close-up of Hair pin clip (#8) inserted into hole in clevis pin (#7)

to safely remove Hair pin clip

grasp on circular end and pull.

Tools Needed:

(1) Phillips Screwdriver

tube end caps are pre-assembled on Mounting tubes

HEADBOARD

threaded Inserts are pre-assembled

on Headboard

tube end caps are pre-assembled on Mounting tubes

Main Frame

Weldment

threaded Inserts are pre-assembled

on Footboard

FOOTBOARD

Staff control not shown.

FootBoArd posItIon For 76” Bed - 3rd HoLe FroM end

FootBoArd posItIon For 84” Bed - 1st HoLe FroM end

Basic American Medical products, a division of GF Health products, Inc. • Matrix II • rev d Manual

p10

A ssembly - OPTIONAL foot board EMBEDDED STAFF CONTROL

Item #

Qty

Part #

Description











STAFF CONTrOL ASSEMBLy KIT (ZL788053) INCLuDES:









1

1

Z53650

Std. Oak Head- & Footboard (with cut out)









2

1

999-0775-901

Staff Control Assembly with Cables









3

1

999-0775-006G

Wide Staff Control Shroud









4

6

100-5506-002

#6 x .50” Phillips Truss Head Screws (Blk)









5

3

100-1100-024

4” Nylon Cable Tie













Mounting Tube to Main Frame Hardware









6

2

100-7931-007

5/16 x 1.50” Clevis Pin w/hole (existing)









7

2

100-2001-006

1-9/16 x .072 Hair Pin Clip (existing)









1.Assemble the footboard mounting tubes to the “staff control footboard” as shown on the previous pages if not already assembled. Note that the standard footboard does not have the cut outs for the staff control assembly. A separate footboard with cut outs must be ordered for the staff controller option.

2.Facing the footboard from the foot-end of the bed, carefully thread the male and female staff control cables through the hole in the footboard and position

the staff control assembly (#2) into the pre-formed slot on the footboard, making sure all screw holes line up correctly. Using two black

#6 X .50” Phillips Truss Head Screws (#4), from the back of the footboard secure the Staff Control via the outermost holes.

3.Place the Staff Control Shroud (#3) over the cables on the back of the footboard and attach with four black #6 X .50” Phillips

Truss Head Screws (#4). Lightly tighten all screws with a phillips screwdriver. Tie the cables to the mounting tubes with ties (#5).

4.Insert the Footboard Mounting Tubes into the Main Bed Frame Tubes so that the holes match up as shown. Secure with two 5/16 x 1-1/2” Clevis Pins (#6) and Hair Pin Clips (#7) (1 each per bed frame tube).

5.Unplug the Pendant cable from the Extension Cable that’s already attached to the left side frame rail at the foot end of the bed.

6.Plug the male staff control cable into the cable extension that has been plugged into the control box in the HB Port. Plug the Pendant cable into the female staff control cable.

7.Tighten all screws on the Footboard with a phillips screwdriver. Be careful not to overtighten.

close-up of Hair pin clip (#6) inserted into hole in clevis pin (#7)

to safely remove Hair pin clip grasp on circular end and pull.

Tools Needed:

(1) Phillips Screwdriver

Basic American Medical products, a division of GF Health products, Inc. • Matrix II • rev d Manual

p11

WALLSAVERS, MATTRESS RETAINERS

& EDEMA RATCHETS

Basic American Medical products, a division of GF Health products, Inc. • Matrix II • rev d Manual

p12

Loading...
+ 33 hidden pages
