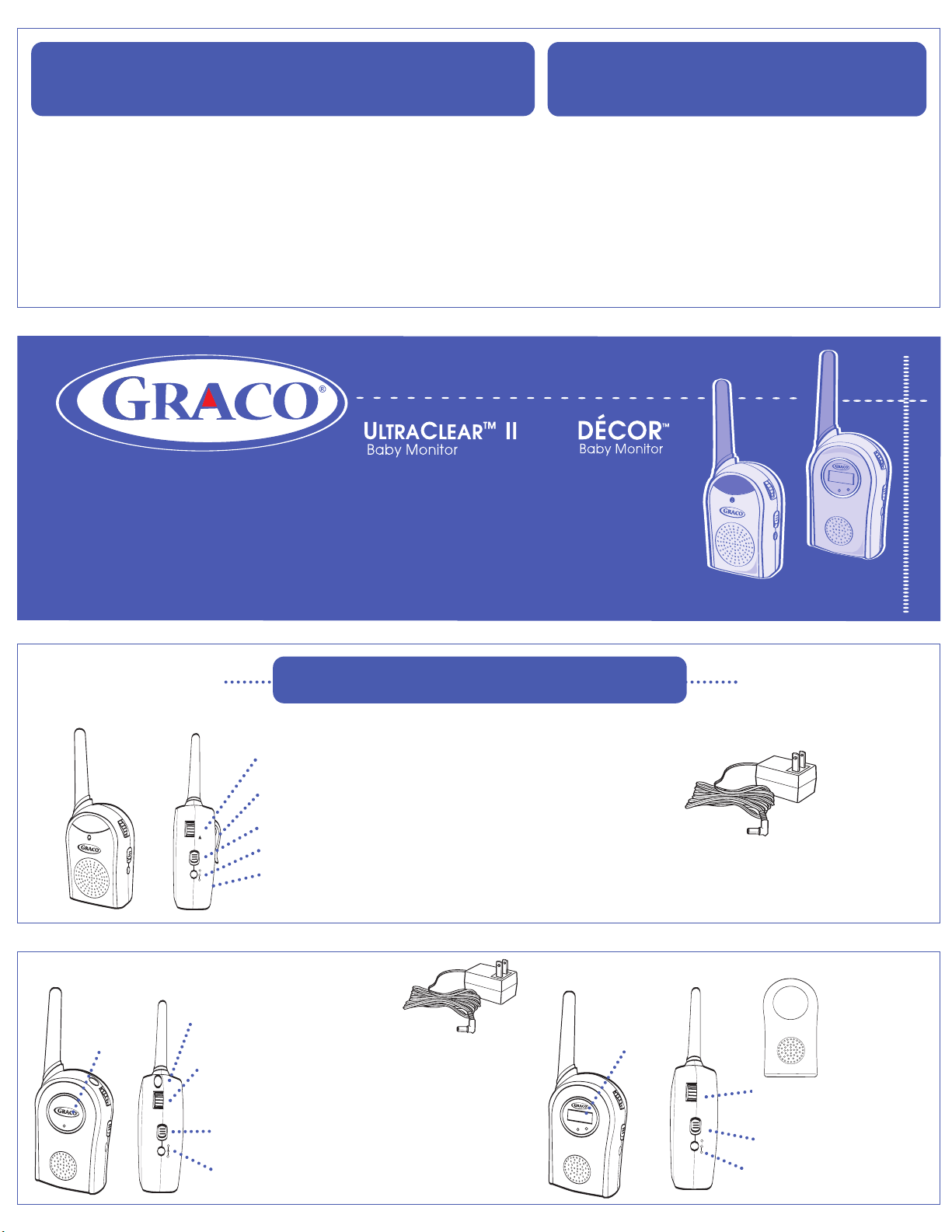

Product Features

Parent Unit (2)

Power Volume: Up/Down

Clip

Channel Selector

DC Adapter Jack

Battery Cover

AC Adapter (2)

Nursery Unit Model 2M02

Night Light

Night Light Button

AC Adapter

ON/OFF

Channel Selector

Adapter Jack

Nursery Unit Model 2M03

Temperature

°F/°C

Face plates (3)

ON/OFF

Channel Selector

Adapter Jack

Failure to follow these warnings and the assembly instructions could result in serious injury or death.

This device is designed only to monitor the sounds of your child. It will not alert you to your child’s silent activities. This product is not designed or intended for use as a medical monitor. Always be sure that both the transmitter and receiver are working properly and are within range of each other.

• STRANGULATION HAZARD. Keep the adapter cords out of the reach of children. Do not use with extension cords.

• DO NOT place the Nursery Unit or its cord within your child’s reach. Do not put the Nursery Unit inside a crib or play yard.

• Use ONLY with 110-120 volt AC electrical outlets.

• Protect the AC adapter cords. Place them so they are not walked on or pinched by furniture or other items.

• Allow for proper ventilation when units are in use. Do not cover the Nursery Unit or Parent Units with any object such as a blanket. Do not place it in a drawer or in any location which would muffle the sound or interfere with the normal flow of air.

• DO NOT immerse any part of the Nursery Unit or Parent Unit in water. Clean only with a dry cloth.

• DO NOT place unit near water and moisture. Do not use the Nursery Unit outdoors. Do not use the monitor near possible wet areas, such as a bathtub, shower, wash basin, sink, laundry tub, swimming pool, wet basement, etc.

• Keep Nursery Unit away from heat sources, such as fireplaces, radiators, stoves, and TVs or other appliances. Heat can damage the case or electrical parts.

• DO NOT use the monitor if:

• The adapter cords or plugs have been damaged.

• The unit has been exposed to liquids.

• Unit has been dropped or is damaged.

• DO NOT OPEN THE TRANSMITTER, RECEIVER OR ADAPTER. No user-serviceable parts inside. Risk of electrical shock, fire or death.

FCC Statement:

WARNING Modifications not authorized by the manufacturer may void users authority to operate this device.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Battery Installation

Parent Unit

• To replace the batteries, remove the battery door cover on the Parent Unit with a key or flat blade screw driver.

• Remove the old batteries from the compartment.

Place 4-AAA (1.5V-LR03) batteries into the battery compartment.

• Note the proper orientation of the batteries.

• Place the battery door back on the unit.

• Remove a dead battery promptly. A dead battery left in unit may leak, damaging your unit.

• Do not attempt to recharge a non-rechargeable battery.

• A rechargeable battery CANNOT be recharged by plugging the AC adapter into the Nursery Unit.

• Remove the batteries from the unit if it is no longer being used or will be stored for an extended period of time.

Using AC Adapters

• The Parent Unit(s) can use either 4-AAA (1.5V-LR03) batteries or standard 120 volt AC household current. The Nursery Unit uses standard 120 volt AC household current.

• To use AC adapters, plug the connector on the cord into the AC adapter jack on the side of the Parent Unit and the Nursery Unit. Then plug adapter into a standard wall outlet.

• Use ONL cumstances.

cir

Y the Graco adapters included with the unit. Do not use these adapters with other equipment under any

• If units do not work, check that AC adapters are plugged into working outlets.

• When electricity is off (from a power failure, etc.), the Parent Unit will operate on 4-AAA (1.5V-LR03) batteries, however, the Nursery Unit will not operate until power is restored.

Low Battery

Parent Unit

• When the battery is low in the parent unit you may hear static or other noise. You may either plug in the A/C adapter or

replace the batteries.

Out of Range Indication

• If the Parent Unit begins to lose the signal from the Nurser

Parent Unit closer to the Nursery Unit to regain connection.

***Note: It is not uncommon for the Parent Unit to occasionally lose and regain connection with the Nursery

Unit in environments that have a significant amount of obstructions.

y Unit you may hear static or other noise. Immediately move the

Selecting Channels

• In case you are experiencing some interference, the channel on the Nursery Unit can be changed by switching the channel button on the side of the unit. The Parent Unit and Nursery Unit must both be set to the same channel, either channel “A” or “B” (“X” or “Y”).

Night Light or Temperature

• Some models have a night light on the Nursery Unit that will illuminate when the button on the top of the unit is pressed and will automatically shut off in 15 minutes or push the button again to turn the light off.

• Some models will display the temperature of the Nursery Unit. Push the button on the front of the Nursery Unit to switch from °F to °C.

Setting Up the Baby Monitor

1. For optimum operation, it is best to use new batteries in the Parent Unit.

2. Place the Nursery Unit within 10 feet (3 meters) of your baby. Plug an AC adapter into the jack on the side of the Nursery Unit. Plug it into a working 120 volt AC outlet.

3. Aim the Nurser

4. Set both the Nurser

5. Turn on the Nursery Unit using the On/Off switch on the side. The green power light should come on.

6. Place the Parent Unit within five (5) feet (1.5 meters) of the Nursery Unit and turn on the Parent Unit using the On/Off switch on the side of the unit. The green power light should come on.

7. Repeat same set-up procedure for second Parent Unit.

8. Your monitor is now ready for use.

y Unit toward your baby. Check that there are no walls or large objects that could block sound transmission.

y Unit and Parent Unit to the same channel, “A” or “B” (“X” or “Y”).
