Graco TX 65 254970 User Manual

Operation

Interior Texture Sprayer

TX 65

For Water-Based Materials Only

Model 254970:

50 psi (3.5 bar) Maximum Fluid Working Pressure 100 psi (7 bar) Maximum Air Input Pressure

Important Safety Instructions

Read all warnings and instructions in this manual. Save these instructions.

311763B

Related Manuals:

311769

311763

ti8370a

Model 254970 Shown

Warnings

The following are general warnings related to the setup, use, grounding, maintenance and repair of this equipment. Additional, more specific warnings may be found throughout the body of this manual where applicable. Symbols appearing in the body of the manual refer to these general warnings. When these symbols appear through the manual, refer back to these pages for a description of the specific hazard.

Warnings

Fire and Explosion Hazard

Improper grounding, poor ventilation, open flames or sparks can cause a hazardous condition and result in fire or explosion and serious injury.

• The system is for use with water-based materials only. Only use fluids compatible with the equipment. Refer to Technical Data of all equipment manuals. Read fluid and solvent manufacturers warnings.

• Ground the equipment. See Grounding and Electrical Requirements, page 6.

• If there is any static sparking or you feel an electric shock while using this equipment, stop spraying immediately. Do not use the equipment until you identify and correct the problem.

• Keep work area free of debris, including solvent, rags and gasoline.

• Comply with all applicable state and national fire, electrical and safety regulations.

Equipment Misuse Hazard

Equipment misuse can cause equipment to rupture, malfunction, or start unexpectedly and cause serious injury.

• Before operating this equipment, read all manuals, tags, and labels including material labels and instructions.

• Do not expose system to rain. Always store system indoors.

• Do not alter or modify equipment.

• Do not spray cementitious materials.

• Do not exceed maximum working pressure of lowest rated component in your system.

• Check equipment daily. Repair or replace worn or damaged parts immediately.

• To reduce risk of serious injury, including electric shock and splashing fluid in eyes, follow Pressure Relief Procedure on page 6 before servicing the unit.

• Do not use hoses to pull equipment.

• Route hoses away from traffic areas, sharp edges, moving parts and hot surfaces.

• Do not expose Graco hoses to temperatures above 130° F (55° C) or below -35° F (-37° C). Store hazardous fluid in an approved container. Dispose of hazardous fluid according to all local, state and national guidelines.

• Never directly inhale compressed air. Compressed air may contain toxic vapors.

Warnings

Electric Shock Hazard

To reduce the risk of electric shock:

• Be sure sprayer is adequately grounded through electrical outlet.

• Use only 3-wire, extension cords.

• Make sure ground prongs are intact on sprayer and extension cords. Improper installation of grounding plug will result in a risk of electrical shock, fire or explosion that could cause serious injury or death.

• Do not operate with cover removed.

• Turn off sprayer. Follow Pressure Relief Procedure, page 6, and unplug unit, before removing any parts.

Pressurized Equipment Hazard

Fluid from gun, leaks or ruptured components can splash in the eyes or on skin and cause serious injury.

• Follow Pressure Relief Procedure, page 6 when you stop spraying and before cleaning, checking or servicing.

• Do not point spray gun at anyone; put hand, fingers or rag over nozzle, or stop or deflect leaks with your hand, body, glove, or rag.

• Wear protective clothing, gloves, and eyewear.

Cleaning Solvent Hazard with Plastic Parts

Use only compatible water-based solvents to clean plastic structural or pressure-containing parts. Many solvents can degrade plastic parts to the point where they could fail. Such failure could cause serious injury or property damage. See Technical Data on page 14 of this instruction manual and in all other equipment manuals. Read fluid and solvent manufacturer’s warnings.

Personal Protective Equipment

You must wear appropriate protective equipment when operating, servicing, or when in the operating area of the equipment to help protect you from serious injury, including eye injury, inhalation of toxic fumes, burns, and hearing loss. This equipment includes but is not limited to:

• Protective eyewear

• Clothing and respirator as recommended by the fluid and solvent manufacturer

•Gloves

• Hearing Protection

ti9075

ti8376a

Warnings

CAUTION

Water or material remaining in unit when temperatures are below freezing can damage motor and/or delay pump startup. To insure water and material are completely drained out of unit:

1. Remove material line from sprayer.

2. Tip sprayer up as shown. Before adding material or starting unit in cold weather, run warm water through pump.

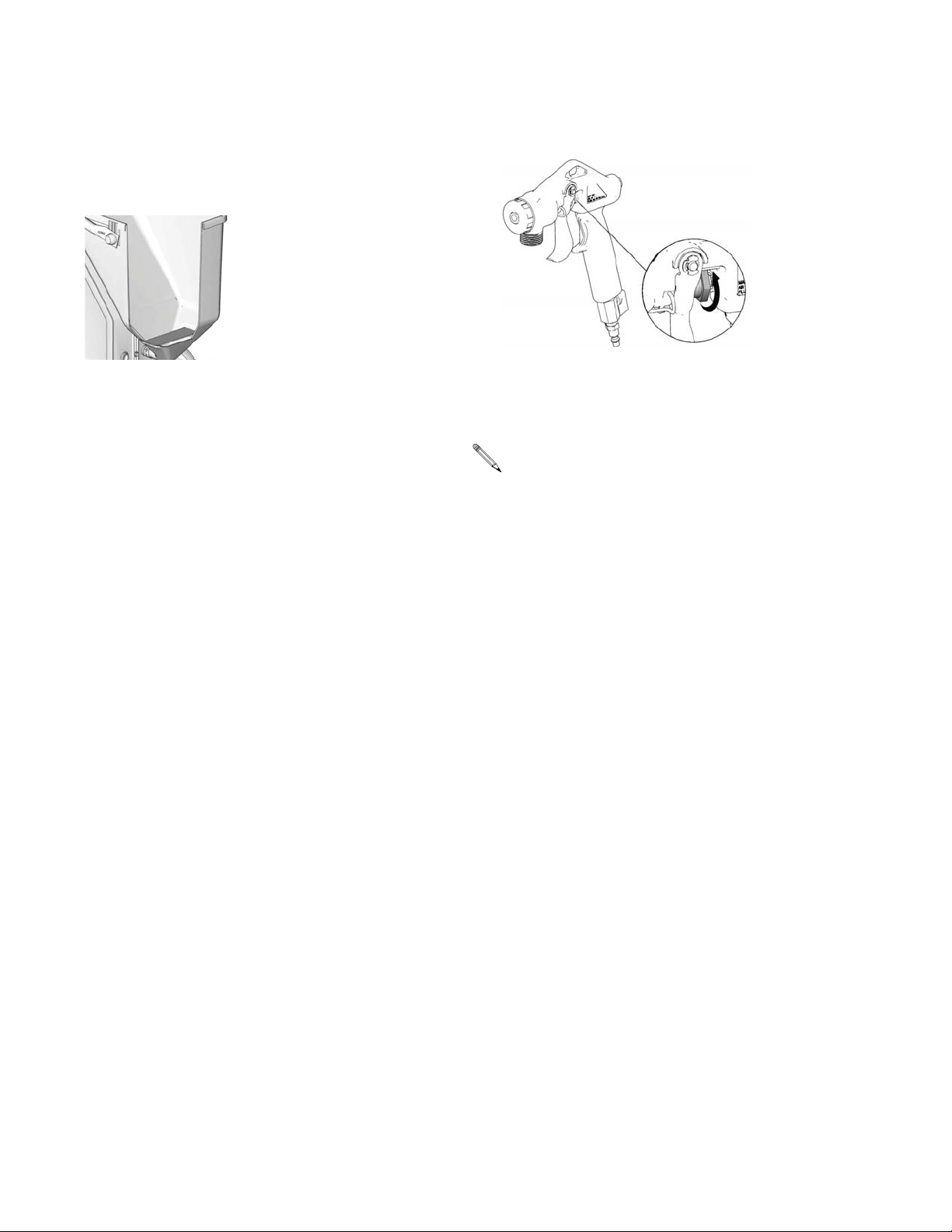

Before adding material to hopper, install burp guard. When only a small amount of material remains in the hopper, the burp guard prevents material from shooting out when the unit is turned off. This material could splash in the operator’s eyes or on skin, or into the air.

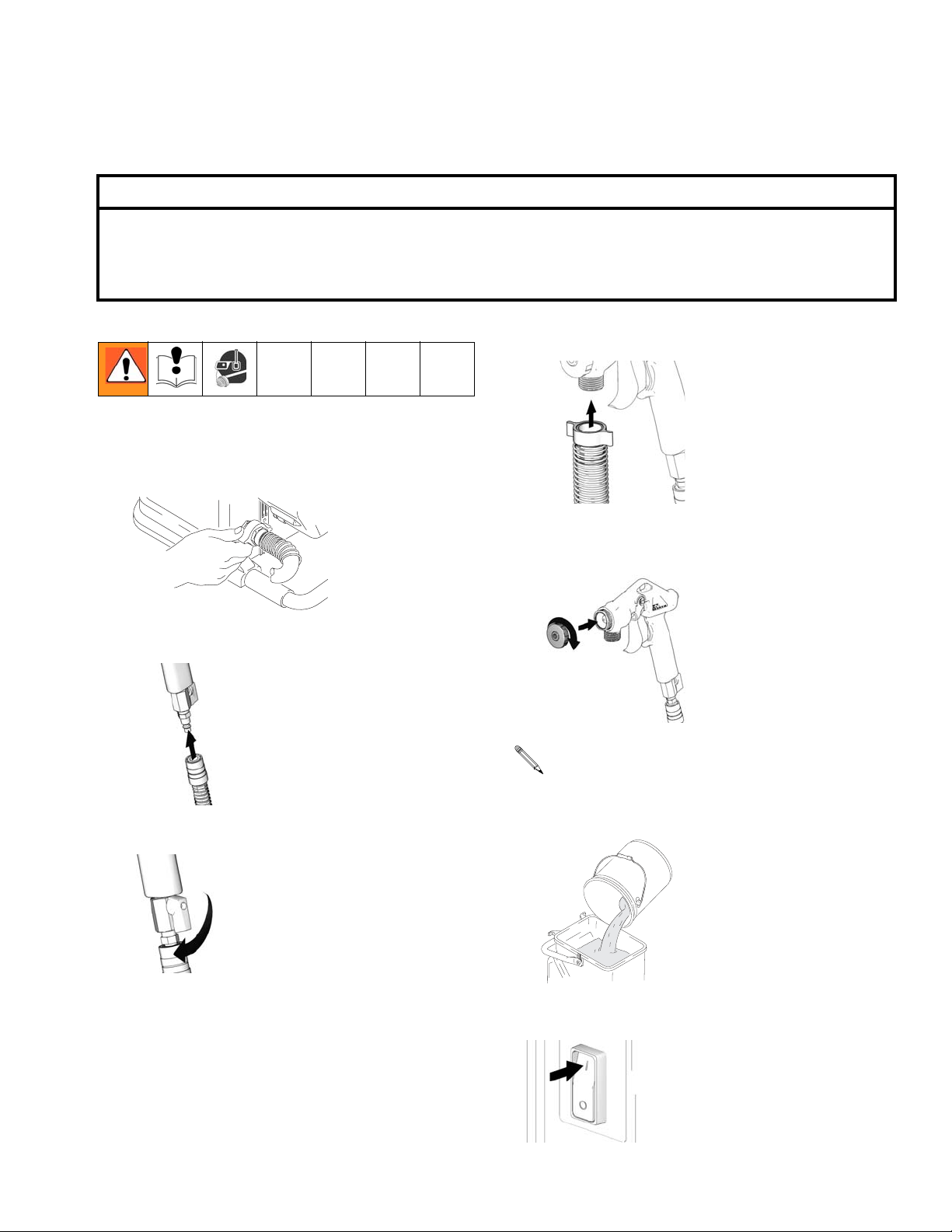

Component Identification

ti8369a

Item Component Item Component

A Pump Hose Outlet H Gun Air Valve B RotoFlex™ II Pump (inside) J Burp Guard C Texture Spray Gun (Manual 311777) K ON/OFF Switch D Nozzle (2 included, see Nozzle Selection, page 10) L Power Cord (120V, 15 ft) E Material Hose (20 ft) M Material Hopper - 5 gallon F Material Thickness Gauge N Cord Wrap G Accessories Bag P Handle

Q Air Compressor (Not Supplied by Graco)

3.5 cfm@40 min.
