Graco Inc SG3-E, 243238, 3Z9097, 243382, SG3-A User Manual

3Z9097

INSTRUCTIONS –

–

SG3-E, SG3-A Airless Spray Guns

3600 psi (248 bar, 24.8 MPa) Maximum Working Pressure

SG3-E 243238, A

Reversible Tip Guard, 515 Tip

Rev. A

SG3-A 243382, A

Reversible Tip Guard, 515 Tip

All models not available in all countries

TI0103

243012

GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441

Graco Inc. is registered to I.S. EN ISO 9001

WARNING

Fire and explosion hazard: Solvent and paint fumes can ignite or

explode.

To help prevent a fire and explosion:

DUse in an extremely well ventilated area. DEliminate all ignition sources; such as pilot lights, cigarettes and

static arcs from plastic drop cloths. Do not plug or unplug power cords or turn lights on or off in spray area.

DGround Sprayer, object being sprayed, paint and solvent pails. DHold gun firmly to side of grounded pail when triggering into pail. DUse only conductive airless paint hose. DDo not use 1,1,1-trichloroethane, methylene chloride, other haloge-

nated hydrocarbon solvents or fluids containing such solvents in pressurized aluminum equipment. Such use could result in a chemical reaction, with the possibility of explosion.

Fluid injection and high pressure hazard: High pressure spray or leaks can inject fluid into the body.

To help prevent injection, always:

DEngage trigger safety latch when not spraying. DKeep clear of nozzle and leaks. DNever spray without a tip guard. DDo PRESSURE RELIEF if you stop spraying or begin servicing

sprayer.

DDo not use components rated less than sprayer Maximum Working

Pressure.

DNever allow children to use this unit. DBrace yourself; gun may recoil when triggered.

If high pressure fluid pierces your skin, the injury might look like “just a cut”. But it is a serious wound! Get immediate medical attention.

2 3Z9097

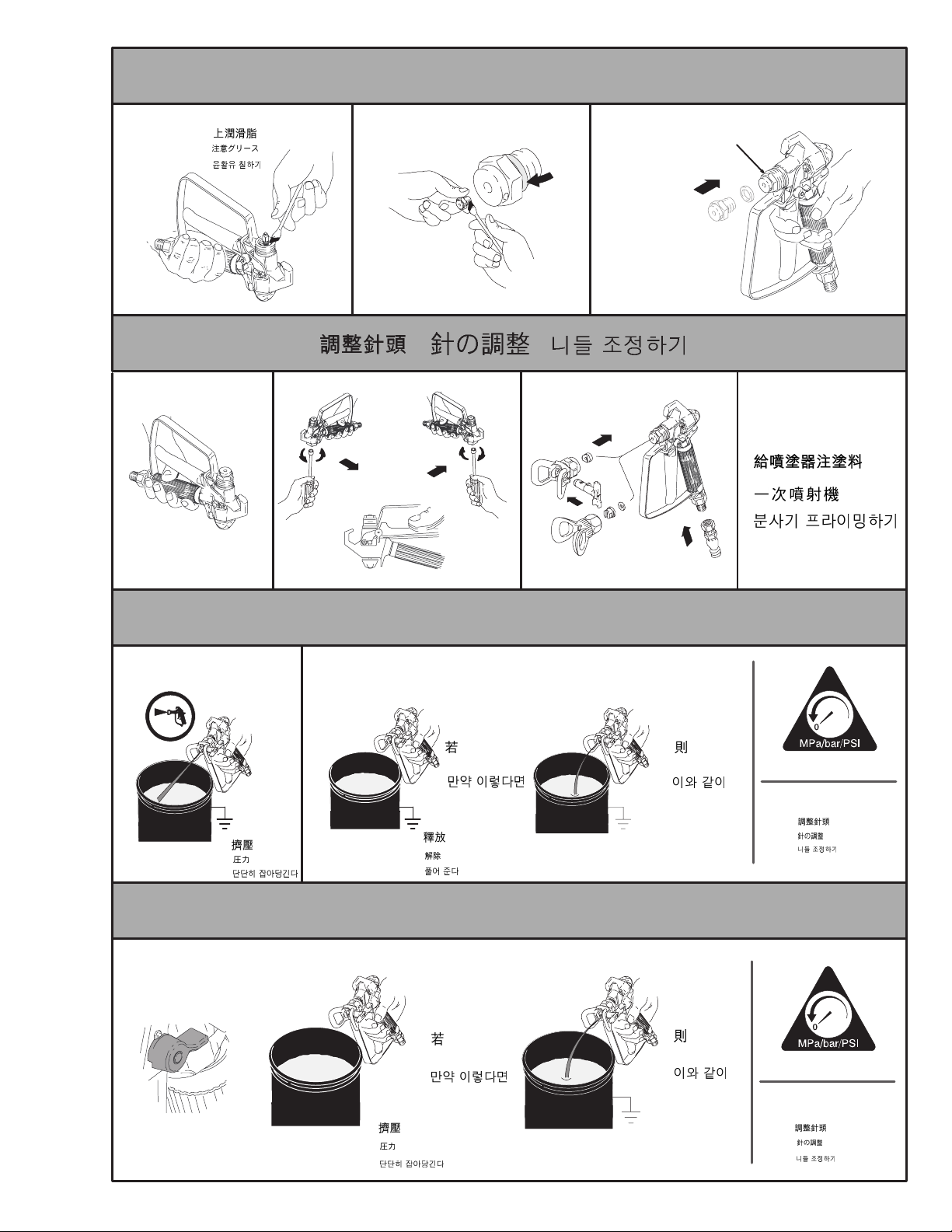

CONTROLS /

Trigger Lock /

Tip Guard /

/ /

Needle Adjustment

Trigger /

Tip /

PRESSURE RELIEF /

Follow 1–5 when you stop spraying.

TI0103

/ /

ALIGN SPRAY /

3Z9097
