Graco PD220791A User Manual
Booster Seat
Owner’s Manual
READ THIS MANUAL.
Do not install or use this car seat until you read
and understand the instructions in this manual.
FAILURE TO PROPERLY USE THIS CAR
SEAT INCREASES THE RISK OF SERIOUS
INJURY OR DEATH IN A SUDDEN STOP OR
CRASH.
© 2012 Graco PD220791A 8/12
Table of Contents
Registration Information ...............................3
For Recall Information ..................................3
If You Need Help ..........................................4
Parts List .......................................................5
Warnings to Parents and Other Users ........6-8
Assembling the Booster Seat ................... 9-10
Assembling the Back Support ...............11-15
Weight and Height Limits......................16-17
Vehicle Seat Location Requirements ..........18
Vehicle Seat Belt Requirements ............19-20
SAFE Vehicle Belt Systems ....................... 19
UNSAFE Vehicle Belt Systems .................20
Using your Graco Booster Seat .................21-23
Booster Seat Positions .......................................24
Securing your Child in Vehicle .............25-27
Adjusting the Head Support ........................28
Removing the Back Support (on certain
models) to Use as Backless Booster .........29
Securing Child in Vehicle with
Shoulder Belt Positioning Clip ............. 30-33
Additional Information ...............................34
Airplane Use ...............................................34
Cupholders ..................................................34
Instruction Sheet Storage ............................35
Care and Maintenance ...........................36-37
Replacement Parts ......................................40
2
Registration Information
Model Number:
Date of Manufacture:
Purchase Date:
Register Your Booster Seat
Please fill in the above information. The model
number and date of manufacture can be found
on a label underneath your booster seat. Fill out the
prepaid registration postcard attached to the seat
cover and mail it today.
Booster seats could be recalled for safety reasons.
You must register this restraint to be reached in a
recall. Send your name, address, model number and
date of manufacture to:
Elfe Juvenile Products
4500 Thimens
Saint-Laurent, QC
H4R 2P2
or call 1-800-667-8184
or 514-344-3533
For Recall Information
&DOO&XVWRPHU6HUYLFHDW
(514-344-3533 in Montreal)
ZZZHOIHQHW
3
If You Need Help
Please contact our Customer Service Department
with any questions you may have concerning parts,
use, or maintenance. When you contact us, please
have your product’s model number ready so that
we may help you efficiently. This number can be
found on a sticker on the underside of your booster
seat.
1-800-667-8184 or www.elfe.net
In Montreal: 514-344-3533
Booster Seat Useful Life
STOP using this child restraint and throw it away 10
years after the date of manufacture.
Look for this sticker on the bottom of the child
restraint:
Model / Modèle : Name/Nom :
ELFE, 4500 THIMENS
SAINT-LAURENT, QC H4R 2P2
Date of manufacture/ Date de fabrication
Serial # / No. de série
Made in China Fabriqué aux Chine
year/année month/mois day/jour
4
PD186939A
Parts List
Adult assembly required.
Tool required: Philips screwdriver
Base
Height adjustment screw (2)
On certain models
Left / right armrests
Shoulder belt
positioning clip
Head support
Lower back support
Armrest covers
5
Warnings to Parents and
Other Users
NO BOOSTER SEAT CAN GUARANTEE
PROTECTION FROM INJURY. HOWEVER,
PROPER USE OF THIS BOOSTER SEAT
REDUCES THE RISK OF SERIOUS INJURY
OR DEATH TO YOUR CHILD.
DO NOT INSTALL OR USE THIS
BOOSTER SEAT UNTIL YOU READ AND
UNDERSTAND THE INSTRUCTIONS IN
THIS MANUAL AND IN YOUR VEHICLE
OWNER’S MANUAL. DO NOT let others
install or use the booster seat unless they
understand how to use it.
FAILURE TO PROPERLY USE THIS
BOOSTER SEAT INCREASES THE RISK OF
SERIOUS INJURY OR DEATH IN A SHARP
TURN, SUDDEN STOP OR CRASH. Your
child can be injured in a vehicle even if you are
not in a crash. Sudden braking and sharp turns can
injure your child if the booster seat is not properly
installed or if your child is not properly secured in
the booster seat.
6
NEVER PLACE THIS BOOSTER SEAT IN
A VEHICLE SEATING LOCATION THAT
HAS AN AIR BAG. If an air
bag inflates, it can hit the child
and booster seat with great force
and cause serious injury or death
to your child. Refer to your
vehicle owner’s manual for
information about air bags and
booster seat installation.
$FFRUGLQJWRDFFLGHQWVWDWLVWLFVCHILDREN
ARE SAFER WHEN PROPERLY
RESTRAINED IN REAR VEHICLE
SEATING POSITIONS, RATHER THAN
FRONT SEATING POSITIONS. For a vehicle
with a front passenger air bag, refer to your
vehicle owner’s manual as well as these
instructions for booster seat installation.
NEVER LEAVE YOUR CHILD
UNATTENDED.
NEVER LEAVE A BOOSTER SEAT
UNSECURED IN YOUR VEHICLE. An
unsecured booster seat can be thrown around and
may injure occupants in a sharp turn, sudden
stop or crash. Remove it or make sure that it is
securely belted in the vehicle.
REPLACE THE BOOSTER SEAT AFTER
AN ACCIDENT OF ANY KIND. An accident
can cause damage to the booster seat that you
cannot see.
7
DO NOT MODIFY YOUR BOOSTER SEAT
or use any accessories or parts supplied by other
manufacturers.
NEVER USE BOOSTER SEAT IF IT HAS
DAMAGED OR MISSING PARTS. DO NOT
use a cut, frayed or damaged vehicle seat belt.
THE BOOSTER SEAT CAN BECOME VERY
HOT IF LEFT IN THE SUN. Contact with these
parts can burn your child’s skin. Always touch the
surface of any metal or plastic parts before
putting your child in the booster seat.
THIS BOOSTER SEAT CONFORMS to the
requirements of Canada Motor Vehicle Safety
Standards 213.2 and is certified for use in motor
vehicles. This restraint is NOT certified for use in
aircraft because there is no shoulder belt available.
NEVER GIVE THIS BOOSTER SEAT to
someone else without also giving them this
manual.
NEVER USE A SECOND-HAND BOOSTER
SEAT or a booster seat whose history you do not
know.
NEVER USE THIS BOOSTER SEAT without
the armrests attached to the base.
DO NOT USE BOOSTER SEAT without seat
pad.
8
Assembling the Booster Seat
Step 1.
Insert armrest into base
as shown until buttons
snap into slots on side of
1
base .
Step 2.
Select the desired
armrest height for your
child, then insert the
height adjustment
screw and tighten.
2
Repeat for other
armrest.
Step 3.
To adjust armrests,
remove screw and press
in button on side of
base as shown to raise
or lower . Reinsert
screw and tighten.
CHECK to make sure
armrests are securely
attached by pulling up
on them.
3
1
SNAP!
2
3
9
Step 4.
Slip armrest covers
(on certain models)
onto armrests as shown.
Step 5.
Your Graco booster seat
is now ready to use.
See page 30, “Securing
Child in Vehicle
with Shoulder Belt
Positioning Clip”.
FOR MODELS with a
back support continue
on to Step 6.
10
Assembling the Back Support
(on certain models)
Step 6.
On certain models, your lower back support pad may
not be attached to the back support. Place lower back
support pad around edges of support as shown. Then
fasten lower elastic strap to the metal hook on the other
side of the seat pad. If your lower back support pad is
already attached go to Step 6a.
Step 6a.
Flip head support and lower back support over
as shown .
1
1
11
Step 7.
Squeeze red adjustment button and slide two pieces
together until they snap into place .
CHECK to make sure two pieces are securely snapped
together by pulling on them.
2
SNAP!
2
12
Step 8.
Attach elastic strap as shown 3 . If your elastic strap is
already attached you can skip to Step 9.
3
3
Step 9.
Flip seat over and insert the fabric from the head
support underneath the fabric on the lower back support
as shown .
To make insertion of fabric easier, slide the upper and
lower back pieces apart by squeezing the red adjustment
button.
4
4
13
Step 10.
Attach backrest to base. “U”-shaped hooks on bottom
of backrest will interlock with bars on base .
Make sure that no part of the seat covering interferes
when attaching backrest to the base.
5
5
14
Step 11.
Once backrest is securely attached to the base, push
backrest up as shown .
6
6
Step 12.
Your Graco booster
seat is now ready to use.
See page 21-27, “Using
your Graco Booster Seat”
and “Securing Your Child
in Vehicle”.
15
Weight and Height Limits
FAILURE TO USE booster seat in a manner
appropriate for your child’s size may increase the
risk of serious injury or death.

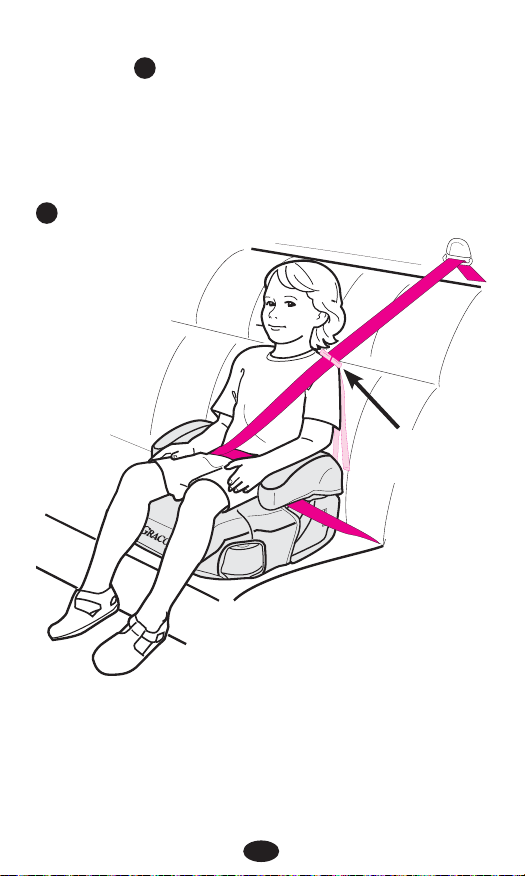

To use this Graco booster seat,
your child MUST meet ALL
of the following requirements:
(approximately 4 to 10 years old):
ZHLJKEHWZHHQDQG
45 kg (mass between 40
and 100 lbs), and
DUHEHWZHHQDQGFP
(40 and 57 inches)
in height, and
WKHVKRXOGHUEHOWMUST lie
across child’s shoulders in
red zone as shown in
and the lap portion is
2
1
or
positioned low on the
childs hips, and (see next page)
1
2
16
When using back support, the child’s ears are
below top of booster seat. If tops of ears are
above top of seat, your child is too large for the
booster seat.
Without back support, when sitting on the booster
seat, your child’s ears are below the top of the
vehicle seat cushion / head rest.
Your Graco booster seat can be used with or without
the back support (on certain models) as long as the
requirements on page 16 are met.
17
Vehicle Seat Location Requirements
IMPROPER PLACEMENT OF THE
BOOSTER SEAT INCREASES THE RISK OF
SERIOUS INJURY OR DEATH. Some seating
positions in your vehicle may NOT be safe for this
booster seat. Some vehicles do not have any seating
positions that can be used safely with the booster
seat. If you are not sure where to place the booster
seat in your vehicle, consult your vehicle owner’s
manual or call Elfe at 1-800-667-8184.
Children are safer when properly restrained in
rear vehicle seating positions. Whenever possible
secure the Graco booster seat in the center position
of the seat directly behind the front seats. However,
this position is often equipped with a lap belt only
and cannot be used.
The vehicle seat MUST face forward.
18

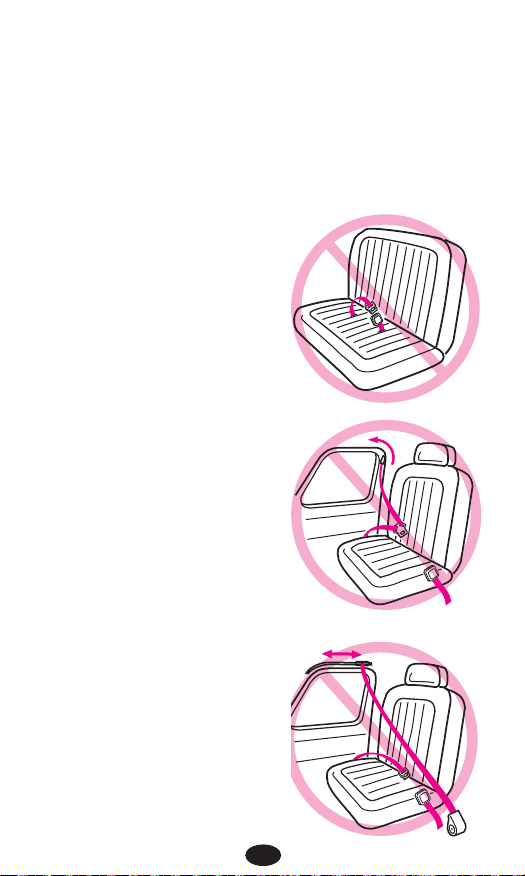

Vehicle Seat Belt Requirements
MANY SEAT BELT SYSTEMS ARE NOT
SAFE TO USE WITH THE BOOSTER SEAT.
Pay careful attention to these systems; some of
the seat belts that are NOT safe to use look very
much like seat belts that are safe to use. If you
are unsure,
or call Elfe at 1-800-667-8184.
VEHICLE TYPES WHICH THE RESTRAINT
SYSTEM CAN NOT BE USED
7KLVERRVWHULVQRWWREHXVHGLQYHKLFOHVWKDWGR
not have seat belts.
CLASSES OF VEHICLES WHICH THE
RESTRAINT SYSTEM CAN BE USED
7KHERRVWHUVHDWPD\RQO\EHXVHGLQWKHVHFODVVHV
of vehicles: passenger cars, multi-purpose passenger
vehicles and trucks that have vehicle lap/shoulder
belts.
consult your vehicle owner’s manual
SAFE Vehicle Seat Belt System
ONLY A LAP/SHOULDER
BELT SYSTEM CAN BE
USED WITH THIS BOOSTER
SEAT, IF the seat location meets
all other requirements of these
instructions and those in your
vehicle owner’s manual.
19
UNSAFE Vehicle Seat Belt Systems
DO NOT USE ANY
OF THE FOLLOWING
VEHICLE BELT
SYSTEMS.
NEVER use a
lap-only belt.
NEVER use a
Passive Restraint Lap or Shoulder Belt
Mounted on Door
NEVER use a
Passive Restraint Lap Belt with
Motorized Shoulder
Belt
NEVER use vehicle
belts that are attached to
the door in any way or
that move along a track
to automatically
surround the passenger
when the door is closed.
20
Using your Graco Booster Seat
FAILURE TO PROPERLY SECURE YOUR
CHILD AND THE BOOSTER SEAT IN YOUR
VEHICLE INCREASES THE RISK OF
SERIOUS INJURY OR DEATH IN THE
EVENT OF A SHARP TURN, SUDDEN STOP
OR CRASH.
WARNING! Use only
the vehicle’s lap and
shoulder belt system
when restraining the child
in this booster seat .
1
NEVER use a vehicle
lap-only belt across front
of child .
2
1
2
21
Vehicle belts MUST lie
flat against child and
MUST not be twisted.
DO NOT use shoulder
belt loose or positioned
under child’s arm .
3
DO NOT position
vehicle belt over top of
the armrests . It must
4
pass underneath the
armrests.
Make sure vehicle belt
is not twisted.
Lap portion of
lap/shoulder belt MUST
be low and snug on
hips, just touching
thighs.
DO NOT allow child
to slide down in booster
seat .
5
If child will not keep
vehicle restraint properly
positioned, DO NOT
use this booster seat.
Use a different child
restraint system.
3
4
5
22
Vehicle seat headrest
must not interfere
with booster seat
head support. The
front of booster seat
MUST NOT hang over
front of vehicle seat .
6
6
The back of the booster
seat MUST fit tight
against the vehicle seat
back as shown .
7
7
23
Booster Seat Positions
Your booster seat has two positions as shown.
Upright
1
Reclined
2
The back of the booster
seat MUST fit tight
against the vehicle seat
back as shown in in
3
either the first or second
position.
DO NOT USE
booster seat beyond
reclined position .
2
3
24
Loading...
