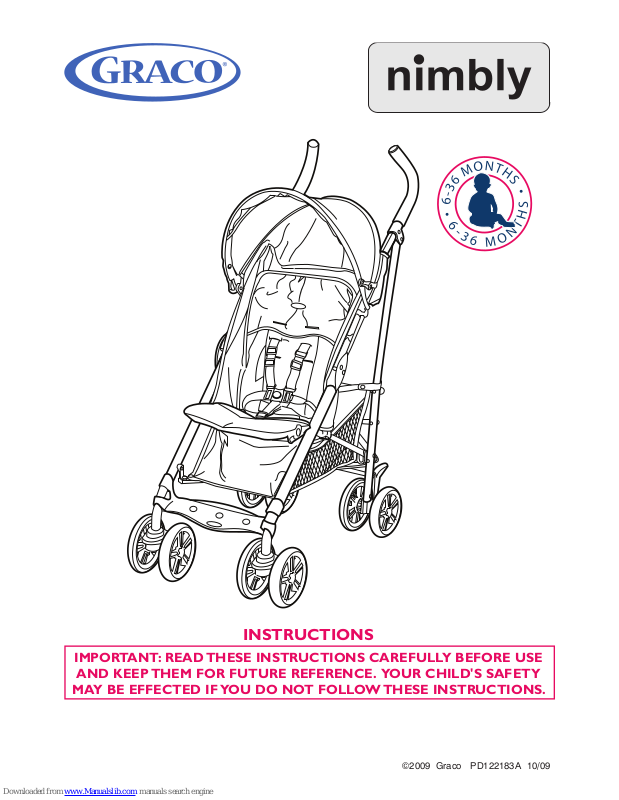

©2009 Graco PD122183A 10/09
INSTRUCTIONS
IMPORTANT: READ THESE INSTRUCTIONS CAREFULLY BEFORE USE
AND KEEP THEM FOR FUTURE REFERENCE. YOUR CHILD'S SAFETY
MAY BE EFFECTED IF YOU DO NOT FOLLOW THESE INSTRUCTIONS.
Page 2
2X
PARTS ACCESSORIES (certain models only)
7
5
6
2
Front wheels
1
4
3
Rear wheels
CLIK
CLIK
CLIK
Opening Pushchair
2
Page 3
To recline back
8
10
9
Hood
17
18
11
14
12
15
13
shoulder
harness
anchor
slide
adjuster
16
Securing Child
3
Page 4

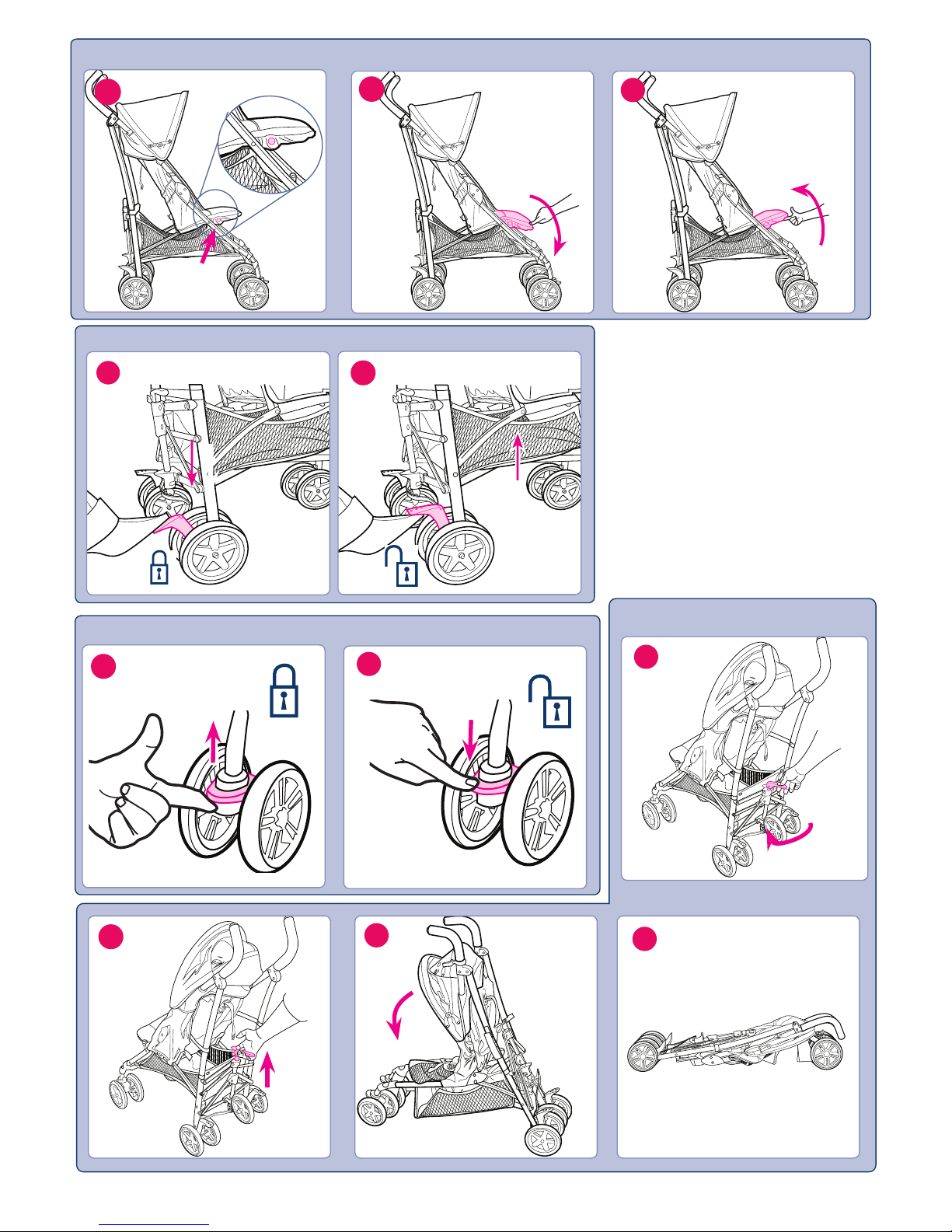

To fold stroller
21
20
Swivel wheels
19
Brakes
To raise and lower seat
24
25
26
27
23
22
29
28
4
Page 5
30

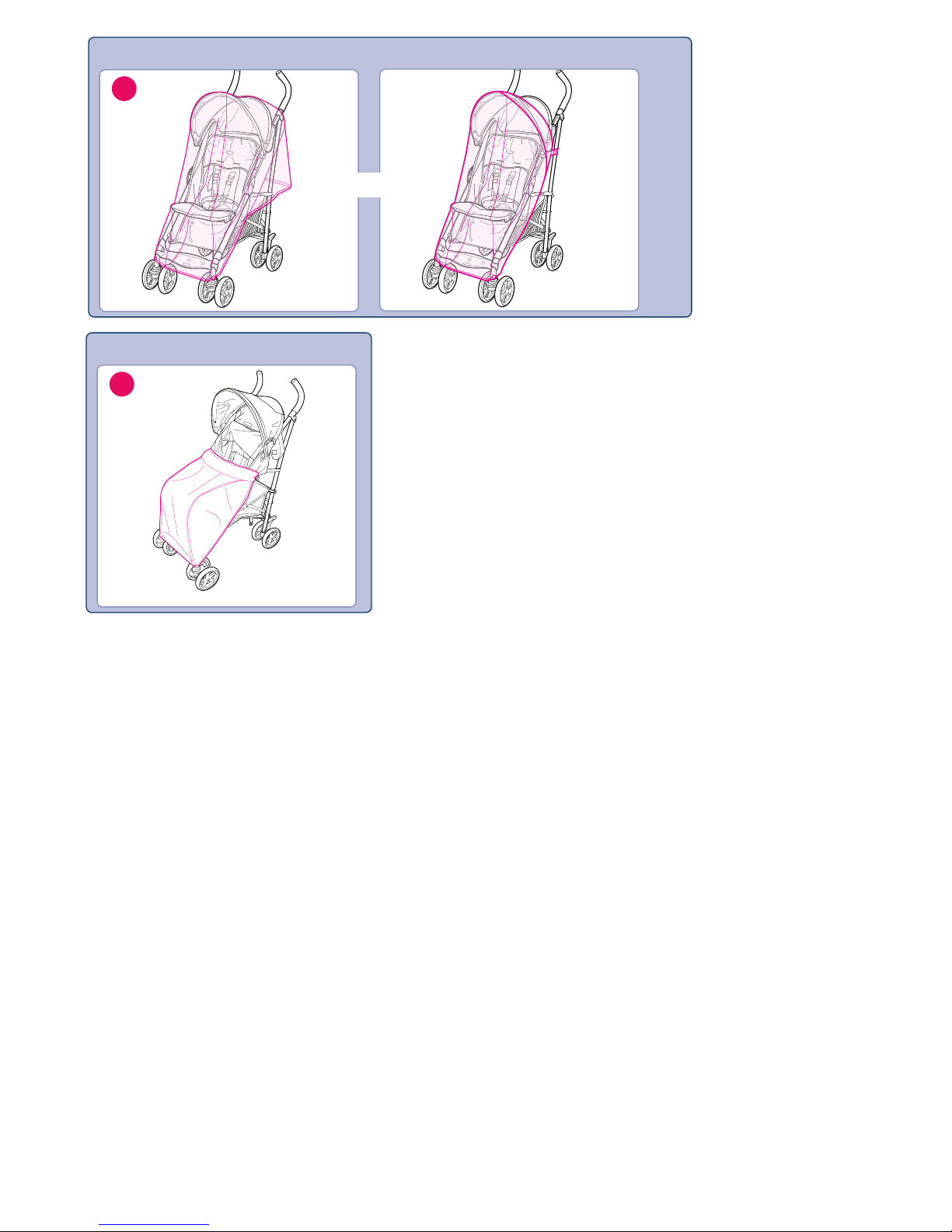

Rain Cover (certain models only)
Boot (certain models only)
31
OR
5
Page 6
66
WARNINGS
WARNING: Remember a child’s safety is your
responsibility.
WARNING: This seat unit is not suitable for
children under 6 months.
WARNING: It may be dangerous to leave your
child unattended.
Children should be harnessed in at all times and
should never be left unattended.
The child should be clear of all moving parts
while making adjustments.
This vehicle requires regular maintenance by
the user.
Overloading, incorrect folding and the use of
non-approved accessories may damage or break
this vehicle.
Read the instructions.
Do not hang shopping bags from the handle or
carry shopping bags on the pushchair except in
a Graco-approved shopping tray. Maximum load
5 kg. NEVER ON THE FOOTREST.
It may be unsafe to use accessories e.g. child
seats, bag hooks, rain covers, etc. other than
those approved by Graco®.
It may be unsafe to use replacement parts other
than those approved by Graco.
This vehicle is intended for one child only.
Use of this pushchair with a child weighing more
than 15 kg will cause excessive wear and stress
on this pushchair.
This vehicle is intended for children from 6
months and up to 15kg.
WARNING: This product is not suitable for
running or skating.
WARNING: Ensure that all the locking devices
are engaged before use.
WARNING: Check that the pram body or seat
unit attachment devices are correctly engaged
before use.
WARNING: Use a harness as soon as your
child can sit unaided.
WARNING: Always use the crotch strap in
combination with the waist belt.
WARNING: Any load attached to the handle
affects the stability of the pram/pushchair.
WARNING: Regularly lubricate all moving parts
sparingly with a light general purpose machine
oil, making sure that the oil penetrates between
the components where these move against
each other in use.
Check the various safety devices and use
them correctly.
Keep your child away from the folded
free-standing unit so that it does not fall and
injure your child.
Pushchairs should be serviced after an extended
period of no use.
If your pushchair is used by anyone unfamiliar
with it, e.g. grandparents, always show them
how it works. D rings are provided at the ends
of the waist belts on either side of the seat for
the
attachment of a safety harness approved to
BS 6684 or EN13210.
Do not use a PVC rain hood indoors, in a hot
atmosphere or near a direct heat source - baby
may overheat.
Do not let go of your pushchair when close to
moving road vehicles or trains, even with the
brake on, the draught from the vehicle or train
may move a free standing pushchair.
When ascending or descending stairs or
escalators, always remove your child and fold
the puschchair.
Avoid strangulation. DO NOT suspend strings
from your pushchair or place items with strings
on your child.
Please fully remove raincover before folding the
pushchair.
CARE AND MAINTENANCE
REMOVABLE SEAT PAD may be machine
washed in cold water on delicate cycle and
drip-dried.
WHEN USING YOUR PUSHCHAIR at the
beach, completely clean your pushchair
afterwards to remove sand and salt from the
wheel assemblies.
FROM TIME TO TIME CHECK YOUR
PUSHCHAIR for loose screws, worn parts,
torn material or stitching. Replace or repair
the parts as needed.
DISCONTINUE USING YOUR PUSHCHAIR
should it become damaged or broken.
TO CLEAN PUSHCHAIR FRAME, use only
household soap or detergent and warm
water. NO BLEACH, SPIRIT OR ABRASIVE
CLEANERS. Allow to dry before storing.
EXCESSIVE EXPOSURE TO THE SUN
could cause premature fading of pushchair
plastic and fabric.
GB
Page 7
3
1
8
9
10
20
21
27
28
29
GB
Instructions
See images -
Opening pushchair
Hood
Attach hood onto connectors on
the sides of pushchair as shown.
Wrap hood around frame and
fasten tape.
To open or close hood.
To secure your child
See images –
To adjust Use either shoulder harness anchor in the slots that are
closest to child’s shoulder height.
Use slide adjuster for further
adjustment.
To raise and lower legrest
Press buttons on side of seat to
lower legrest.
Pull legrest up to raise or push in
buttons on side of seat to raise
legrest.
19
Brakes
Push down on lever to lock.
Push up on lever to unlock.
22
Fold pushchair
Rotate lever as shown.
Place finger under hook and pull
up on lever.
Push pushchair forward to fold.
23
26
11
To recline or raise backrest
Pull on tab to lower seat back.
Pull strap up to raise seat back.
17
18
16
Swivel wheels
24
25
Snap rear wheel assembly onto
frame. Make sure brake levers are
pointing to rear of pushchair.
Wrap strap with snaps under brake
bar and insert into hole as shown.
Fasten snap.
Rear wheels
5
6
4
Snap front wheel onto leg tubes as
shown. Repeat on other leg.
Front wheels
7
Raincover (certain models only)
See
30
Boot (certain models only)
See
31
See images.
7
Page 8
8
UK GRACO CONSUMER SERVICES
Newell Rubbermaid
Graco Children’s Product
Halifax Avenue
Fradley Park
Lichfield WS13 8SS
United Kingdom
44844 412 1212
GRACO CONTINENTAL EUROPE
Newell Rubbermaid Luxembourg SARL
1 rue Edmond Reuter
L-5326 CONTERN
Luxembourg
