Graco ISPC090BB User Manual
Infant
Restraint/
Carrier
Owner’s Manual
READ THIS MANUAL
KEEP INSTRUCTIONS
FOR FUTURE USE.
Do not install or use
this infant restraint until you
read and understand the
instructions in this manual.
FAILURE TO PROPERLY
USE THIS INFANT
RESTRAINT INCREASES
THE RISK OF SERIOUS
INJURY OR DEATH
IN A SUDDEN STOP
OR CRASH.
© 2007 Graco ISPC090BB 2/07 US
1.0 Warning to Parents and Other Users . . . . . . . . . . . . . . . . . .4-5
2.0 Registration Information . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-7
2.1 Register Your Infant Restraint . . . . . . . . . . . . . . . . . . . . . . .6
2.2 Recall Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
2.3 If You Need Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
3.0 Features and Components . . . . . . . . . . . . . . . . . . . . . . . . .8-14
3.1 Removing and Attaching Base . . . . . . . . . . . . . . . . . . . . . .10
3.2 Adjusting Handle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
3.3 Attaching Canopy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
3.4 Head Support (on certain models) . . . . . . . . . . . . . . . . . . .12
3.5 Seat Pad Assembly (certains models) . . . . . . . . . . . . . . . .13
3.6 Cold Weather Boot (certain models) . . . . . . . . . . . . . . . . .14
3.7 Harness Covers (certain models) . . . . . . . . . . . . . . . . . . .14
4.0 Important Information . . . . . . . . . . . . . . . . . . . . . . . . . . . .15-19
4.1 Warnings for Use as Infant Restraint . . . . . . . . . . . . . . . . .15
4.2 Warning for Use With a Stroller . . . . . . . . . . . . . . . . . . . . .17
4.3 Additional Warnings for Use as Carrier . . . . . . . . . . . . . . .18
4.4 Height and Weight Limits . . . . . . . . . . . . . . . . . . . . . . . . . .19
2
5.0 Infant Restraint Location . . . . . . . . . . . . . . . . . . . . . . . . . .20-25
5.1 Vehicle Seat Requirements . . . . . . . . . . . . . . . . . . . . . . . .20
5.2 Vehicle Seat Belt Requirements . . . . . . . . . . . . . . . . . . . .21

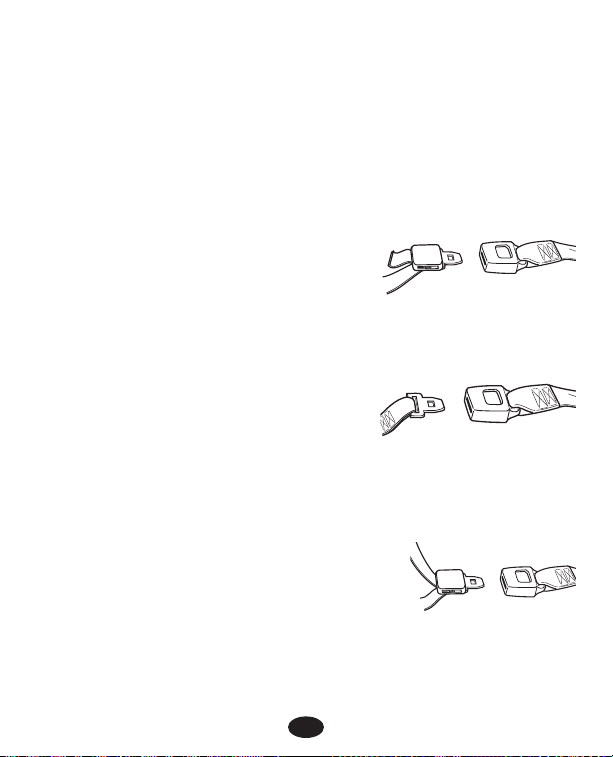

5.2.1 UNSAFE Vehicle Belt Systems . . . . . . . . . . . . . . . . .22
5.2.2 SAFE Vehicle Belt Systems . . . . . . . . . . . . . . . . . . .23

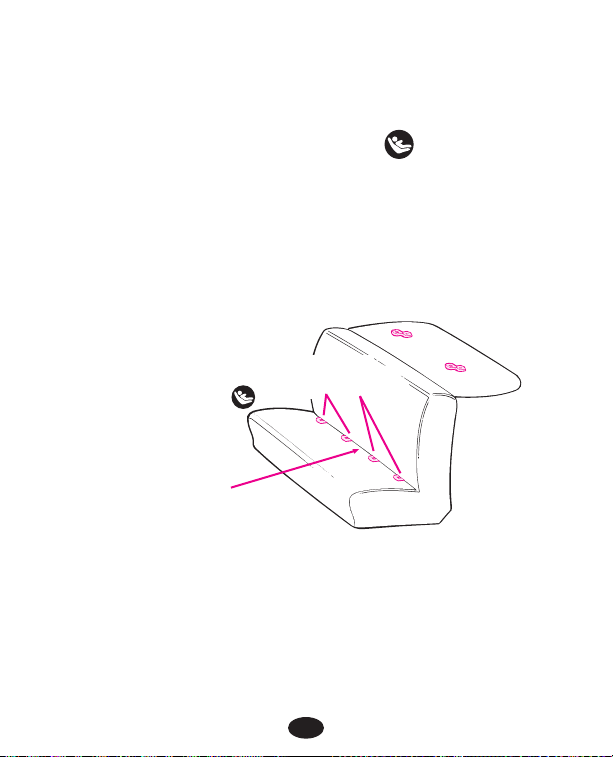

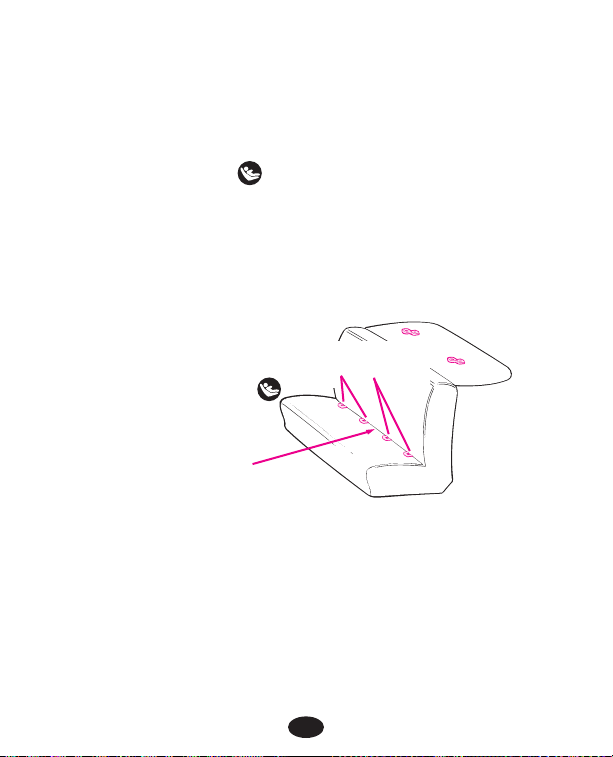

5.3 LATCH Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
6.0 Using Infant Restraint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26-36
6.1 Positioning Harness Straps . . . . . . . . . . . . . . . . . . . . . . . .26
6.2 Securing Child in Infant Restraint . . . . . . . . . . . . . . . . . . .28
6.3 Installing the Infant Restraint/Base Using Vehicle Belt . . .30
6.4 Using LATCH to Install Base . . . . . . . . . . . . . . . . . . . . . . .33

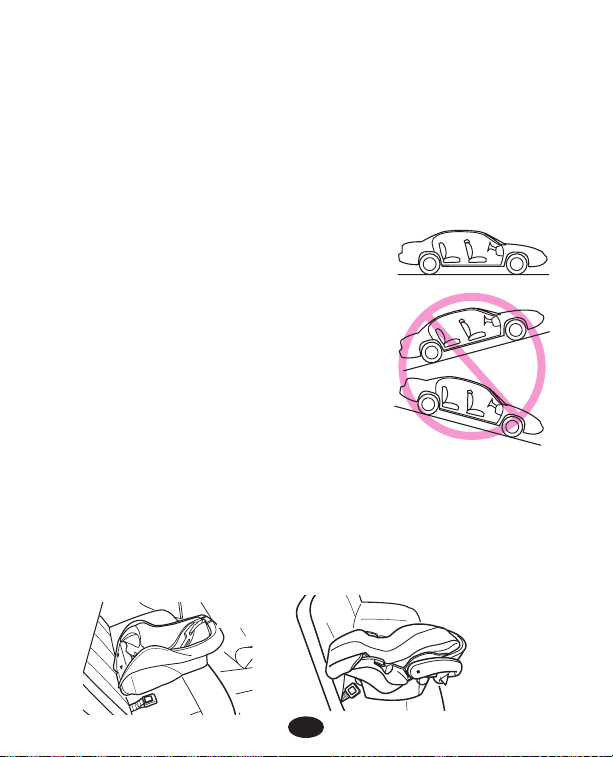

6.5 Reclining Infant Restraint/Base . . . . . . . . . . . . . . . . . . . . .34

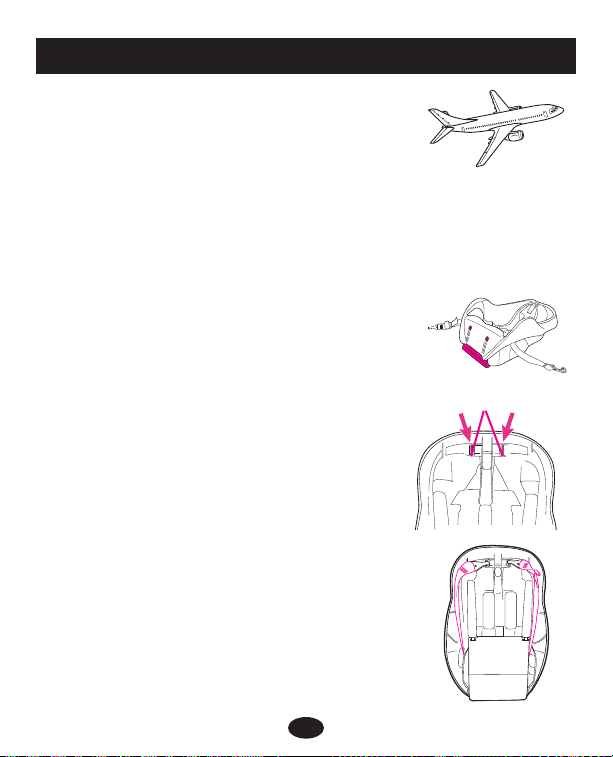

7.0 Additional Information . . . . . . . . . . . . . . . . . . . . . . . . . . . .37-38
7.1 Airplane Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
7.2 Storing LATCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
7.3 Cleaning and Maintenance . . . . . . . . . . . . . . . . . . . . . . . .38
Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
3
1.0 Warnings to Parents and
Other Users
No infant restraint can guarantee protection from injury in every
situation. However, proper use of this infant restraint reduces the
risk of serious injury or death to your child.
Failure to properly use this infant restraint increases the risk of
serious injury or death in a sharp turn, sudden stop or crash.
Your child’s safety depends on you installing and using this
infant restraint correctly.
Even if using this infant restraint seems easy to figure out on your
own, it is very important to READ THE OWNER’S MANUAL.
The manual is located in the back pocket of the infant restraint.
You must also read your vehicle owner’s manual.
Your child’s safety depends on:
1. Choosing a suitable location in your vehicle. Some seating
positions, such as those equipped with air bags, may not be
safe locations for this infant restraint.
2. Inserting the harness straps in the proper slots for your child.
3. Properly securing your child in the infant restraint.
4

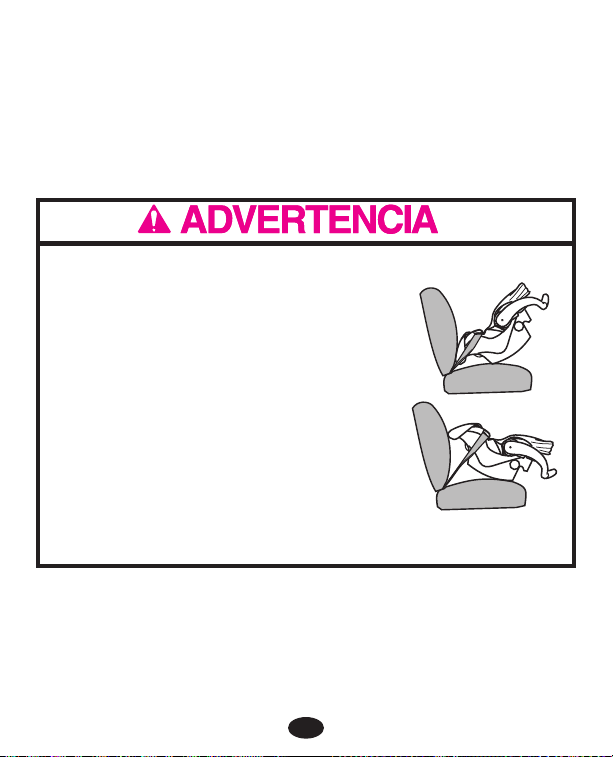

4. Placing infant restraint/base in a rear-facing position.
5. Properly routing the vehicle seat belt or LATCH.
6. Properly reclining the infant restraint.
7. Properly securing the infant restraint in the vehicle using a
seat belt designed to restrain an infant restraint or by using
LATCH. Many seat belts are NOT safe to use with infant
restraints, even though they can easily be threaded through
the infant restraint!
5
2.0 Registration Information
Model Number:
Manufactured in:
Purchase Date:
2.1 Register Your Infant Restraint
Please fill in the above information. The model number and the
manufactured in (date) can be found on a label underneath your
infant restraint. Fill out the prepaid registration postcard attached to
the seat cover and mail it today.
Child restraints could be recalled for safety reasons. You must
register this restraint to be reached in a recall. Send your name,
address and model/serial numbers to:
Graco Children’s Products Inc.
150 Oaklands Blvd.
Exton, PA 19341
or call 1-800-345-4109
or www.gracobaby.com
2.2 Recall Information
• Call the U.S. Government’s Vehicle Safety Hotline
at 1-888-327-4236 (TTY: 1-800-424-9153) or go to
http://www.NHTSA.gov
• Graco: 1-800-345-4109 or www.gracobaby.com
6
2.3 If You Need Help
In the U.S.A. or Canada, please contact our Customer Service
Department with any questions you may have concerning parts, use,
or maintenance. When you contact us, please have your product’s
model and serial numbers ready so that we may help you
efficiently. These numbers can be found on a sticker on the
underside of your infant restraint.
USA: 1-800-345-4109 or www.gracobaby.com
Canada: 1-800-667-8184 Montreal: 514-344-3533
7

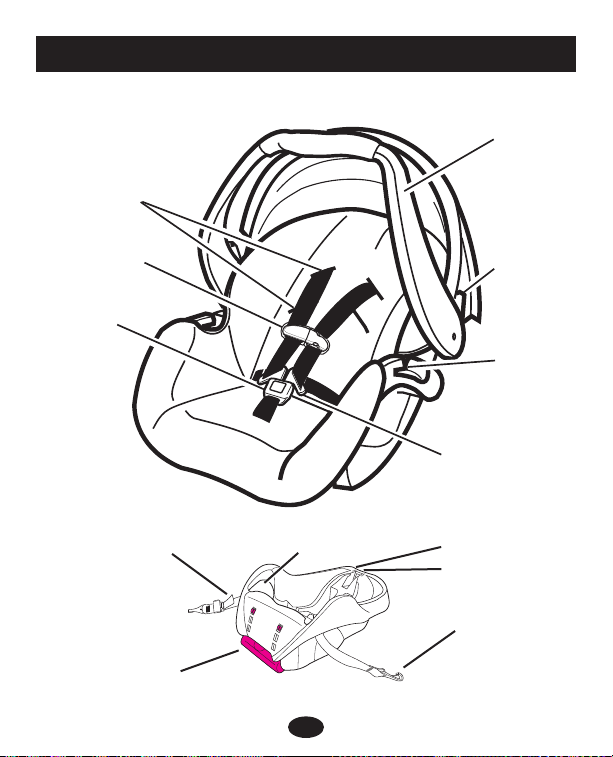

3.0 Features and Components
FRONT VIEW
Harness
slots
Handle
Harness
clip
Harness
buckle
Adjustment Belt
Adjustable Foot
Vehicle belt/LATCH path
Base
8
Handle
adjustment
button
Vehicle
belt
hook
Harness
buckle tongues
LATCH
Storage
Bars
LATCH Connector

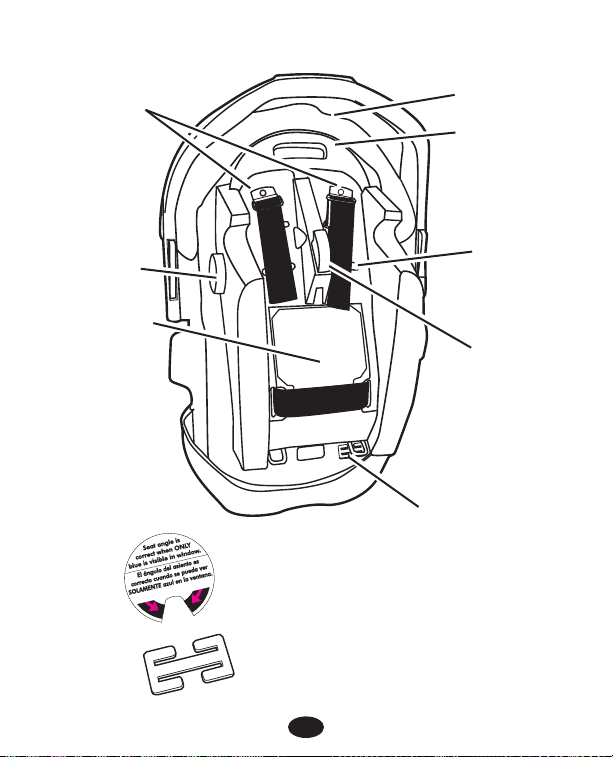

REAR VIEW
Harness
tightener
Level
indicator*
Owner’s manual
pocket
*Level
Indicator
**Locking
Clip
Canopy
Release handle
Harness slot
Attachment
latch
Locking clip**
The level indicator is attached to the side of
the infant restraint, and indicates whether or
not the infant restraint is properly reclined.
The locking clip is stored on the bottom of
the infant restraint. You will need to use it
with certain types of vehicle seat belts.
9

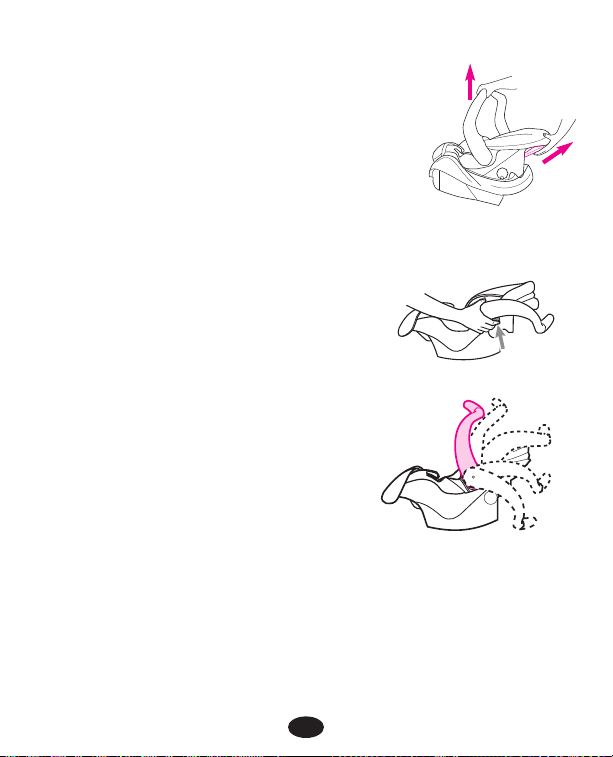

3.1 Removing and Attaching Base
To remove infant restraint, squeeze handle at
back of seat and lift infant restraint from base
as shown
To put infant restraint in base, push infant
restraint down until it clicks into base. Pull up
on infant restraint to be sure it is latched
firmly into base.
.
3.2 Adjusting Handle
1. Press handle adjustment buttons on
both sides of handle
2. Rotate handle until it clicks into any
of the 5 positions:
Position A: MUST be used
when carrying by handle,
Position B,C,D: are convenience
Position E: is the sitting position,
NEVER use positions B or C
in the vehicle.
BOTH handle adjustment
buttons must pop out to lock
handle in place
3. Push and pull on the handle
to be sure it is locked firmly
in position.
positions,
.
.
Carrying
A
B
C
D
E
Sitting
10

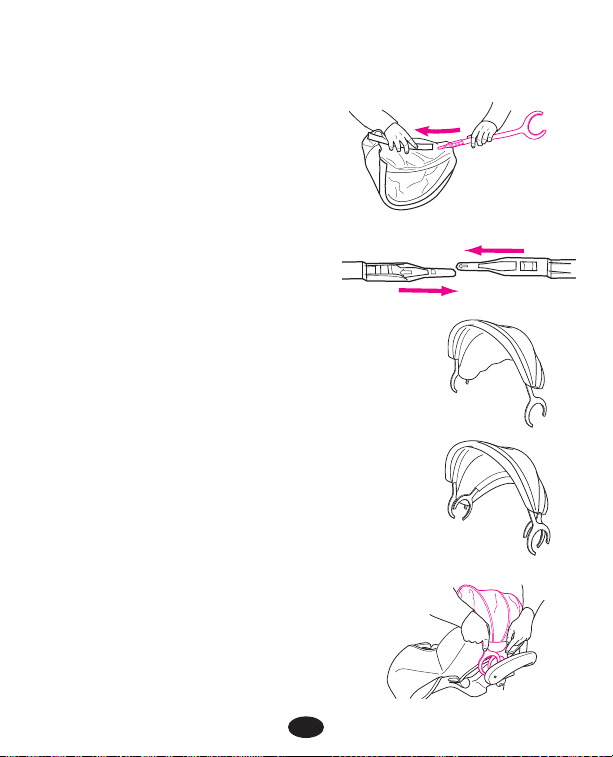

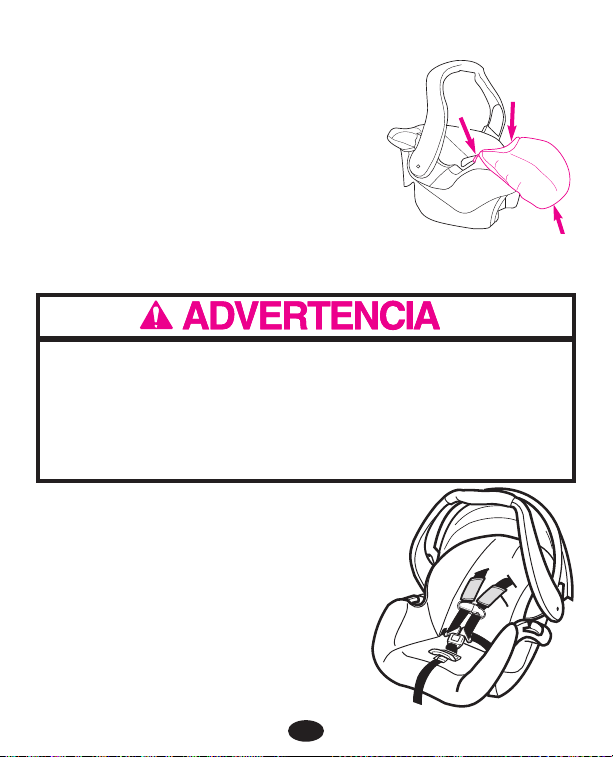

3.3 Attaching Canopy
1. Infant restraint comes with four
(two on certain models) identical
canopy support parts.
Thread one canopy support
completely through one sewn
tunnel
.
2. Slide straight end of a second
support into the straight end of
the first support
3. On models with four canopy supports,
repeat steps one and two for the other
canopy tunnel. The canopy should appear
as shown
4. Attach canopy in the areas between the
infant restraint and the handle base
.
.
.
OR
To remove the canopy, reverse the steps.
11

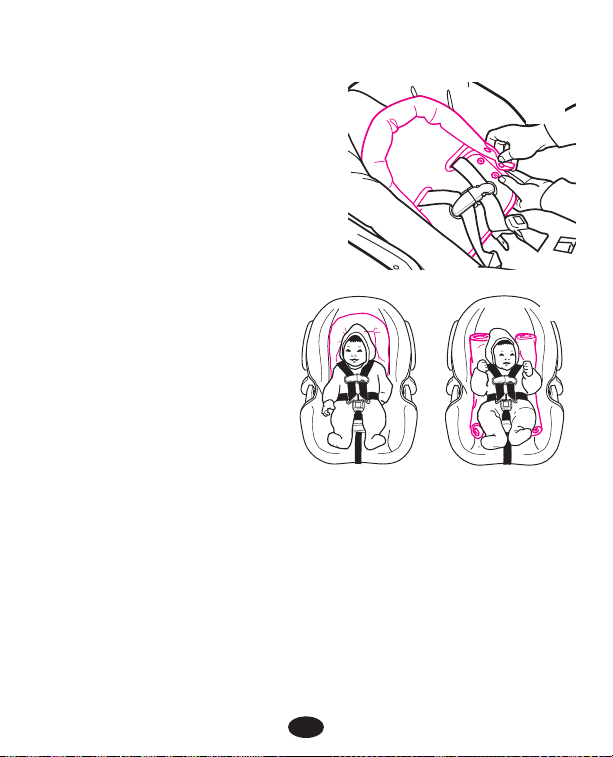

3.4 Head Support (on certain models)
Some infants may need extra support
to keep their head and body in a
comfortable position. Unsnap the sides
and resnap them with the harness
straps threaded through the slots in
the cushion
If your model does not include
a head support, you may want
to use a rolled towel or a
blanket for support
MAKE SURE THAT NOTHING
INTERFERES WITH THE
HARNESS OR THE BLANKET.
It must still be flat and snug
against your child’s shoulders.
.
.
12

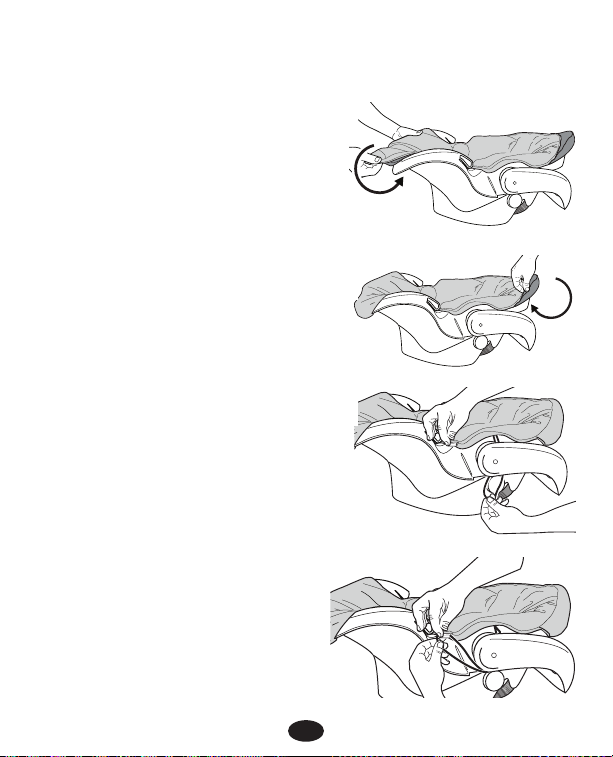

3.5 Seat Pad Assembly
(on certain models)
Step 1.
Wrap bottom edge of seat pad
around the foot end of seat as
shown.
Step 2.
Wrap the top edge of the seat pad
around the head end of the seat
as shown.
Step 3.
On side of seat, wrap elastic strap
around the handle as shown.
Skip Steps 3 and 4 if your model
does not include straps.
Step 4.
Fasten strap to hook that is
attached to the seat pad. Repeat
steps for the elastic strap and
hook on the other side of the seat
pad.
13
3.6 Cold Weather Boot
(on certain models)
Some models come with a cold weather
boot. To use, wrap elastic around bottom
of seat and place both elastic loops around
vehicle belt hooks as shown
.
3.7 Harness Covers (on certain models)
To prevent ejection in sudden stop or crash:
• Always make sure shoulder straps are threaded through slots and
properly positioned on shoulders.
• Make sure that harness covers do not interfere with placement of
the chest clip at armpit level.
14
4.0 Important Information
4.1 Warnings for Use as Infant Restraint
• DO NOT INSTALL OR USE THIS INFANT RESTRAINT
AND BASE UNTIL YOU READ AND UNDERSTAND THE
INSTRUCTIONS IN THIS MANUAL AND IN YOUR VEHICLE
OWNER’S MANUAL. DO NOT let others install or use the
infant restraint unless they understand how to use it.
• FAILURE TO PROPERLY USE THIS INFANT RESTRAINT
AND BASE INCREASES THE RISK OF SERIOUS INJURY
OR DEATH IN A SUDDEN STOP OR CRASH. Your child can
be injured in a vehicle even if you are not in a crash. Sudden
braking and sharp turns can injure your child if the infant
restraint is not properly installed or if your child is not properly
secured in the infant restraint.
• PLACE THIS INFANT RESTRAINT IN A REAR-FACING
POSITION when using it in the vehicle.

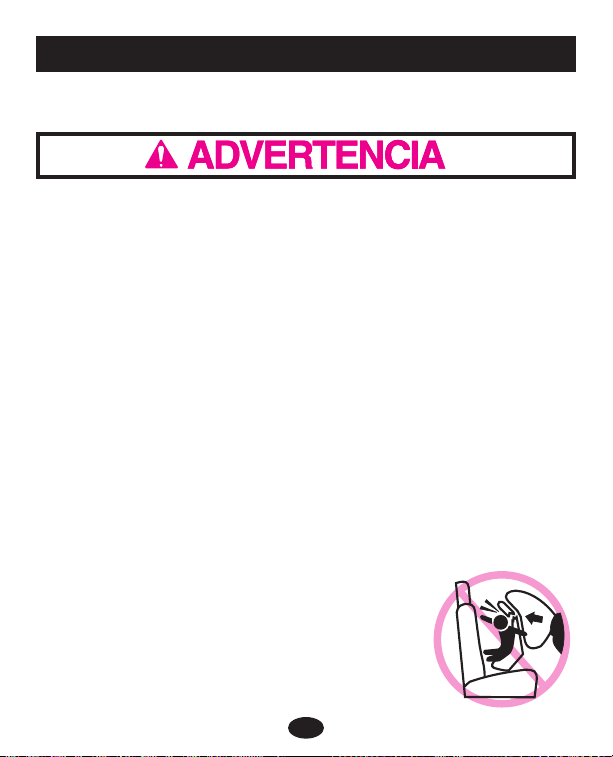

• DO NOT PLACE THIS INFANT RESTRAINT IN A VEHICLE
SEATING LOCATION THAT HAS A FRONT
AIR BAG. If the air bag inflates, it can hit the
infant restraint with great force and cause
serious injury or death to your child. Check
vehicle owner’s manual for information about
side air bags and infant restraint installation.
15
• SOME SPECIAL NEEDS CHILDREN, such as pre-term babies
or those who have tested positive for positional apnea, may be
at increased risk of suffering breathing or other difficulties in an
infant restraint. If your child has special needs, we recommend
that you have your physician or hospital staff evaluate your child
and recommend the proper infant restraint or car bed before
using this product.
• According to accident statistics, CHILDREN ARE SAFER WHEN
PROPERLY RESTRAINED IN REAR VEHICLE SEATING
POSITIONS, RATHER THAN FRONT SEATING POSITIONS.
For a vehicle with a front passenger air bag, refer to your vehicle
owner’s manual as well as these instructions for infant restraint
installation.
• NEVER LEAVE YOUR CHILD UNATTENDED.
• NEVER LEAVE AN INFANT RESTRAINT AND BASE
UNSECURED IN YOUR VEHICLE. An unsecured infant
restraint or base can be thrown around and may injure occupants
in a sharp turn, sudden stop or crash. Remove it or make sure
that it is securely belted in the vehicle. If not using LATCH, make
sure unsecured LATCH connectors are properly stored on base.
• REPLACE THE INFANT RESTRAINT AND BASE AFTER AN
ACCIDENT OF ANY KIND. An accident can cause damage to
the infant restraint that you cannot see.
• STOP USING INFANT RESTRAINT AND BASE AND THROW IT
AWAY after the date molded into the back of the infant restraint.
• DO NOT MODIFY YOUR INFANT RESTRAINT AND BASE or
use any accessories or parts supplied by other manufacturers.
16
• NEVER USE INFANT RESTRAINT AND BASE IF IT HAS
DAMAGED OR MISSING PARTS. DO NOT use a cut, frayed
or damaged infant restraint harness or vehicle seat belt or
LATCH belt.
• THE INFANT RESTRAINT CAN BECOME VERY HOT IF LEFT IN
THE SUN. Always touch the surface of any metal or plastic parts
before putting your child in the infant restraint.
• THIS INFANT RESTRAINT CONFORMS to all applicable
Federal Motor Vehicle Safety Standards and is certified for
use in motor vehicles and aircraft.
• NEVER GIVE THIS INFANT RESTRAINT AND BASE to
someone else without also giving them this manual.
• NEVER USE A SECOND-HAND INFANT RESTRAINT AND BASE
or an infant restraint whose history you do not know.
4.2 Warning for Use With a Stroller
• USE ONLY WITH STROLLERS THAT ARE PART OF THE
GRACO TRAVEL SYSTEM. Refer to stroller instruction sheet
for details about how to attach the infant restraint to your stroller.
If you do not have an instruction sheet, please call toll-free,
1-800-345-4109 to obtain one, or visit our website,
www.gracobaby.com.
• Improper use of Graco’s infant car seat with other manufacturer’s
strollers may result in serious injury or death.
17
4.3 Additional Warnings
for Use as Carrier
• FALL HAZARD: Child’s movements can slide carrier.
NEVER place carrier near edges of countertops, tables or other
high surfaces. Always stay within arms reach whenever carrier is
not on floor/ground.
BE SURE handle locks into position before lifting carrier.
NEVER place carrier in the top of a shopping cart.
• SUFFOCATION HAZARD: Infant carrier can roll over on soft
surfaces and suffocate child. Never place carrier on beds, sofas
or other soft surfaces.
• STRANGULATION HAZARD: Child can strangle in loose restraint
straps. Always use harness, never leave child in carrier when
straps are loose or undone.
KEEP STRINGS AND CORDS AWAY FROM CHILD. Strings and
cords can cause strangulation.
DO NOT place carrier near a window where cords from blinds or
drapes can strangle a child.
DO NOT hang strings on or over the carrier.
DO NOT place items with a string around a child’s neck, such
as hood strings, pacifier cords, etc.
DO NOT attach strings to toys.
18
4.4 Height and Weight Limits
FAILURE TO USE INFANT RESTRAINT IN A MANNER
APPROPRIATE FOR YOUR CHILD’S SIZE MAY INCREASE
THE RISK OF SERIOUS INJURY OR DEATH.
Your child MUST meet all requirements:
• WEIGHT: 5-22 lbs. (2.3-10 kg)
• HEIGHT: 29 inches (73 cm) or less
19

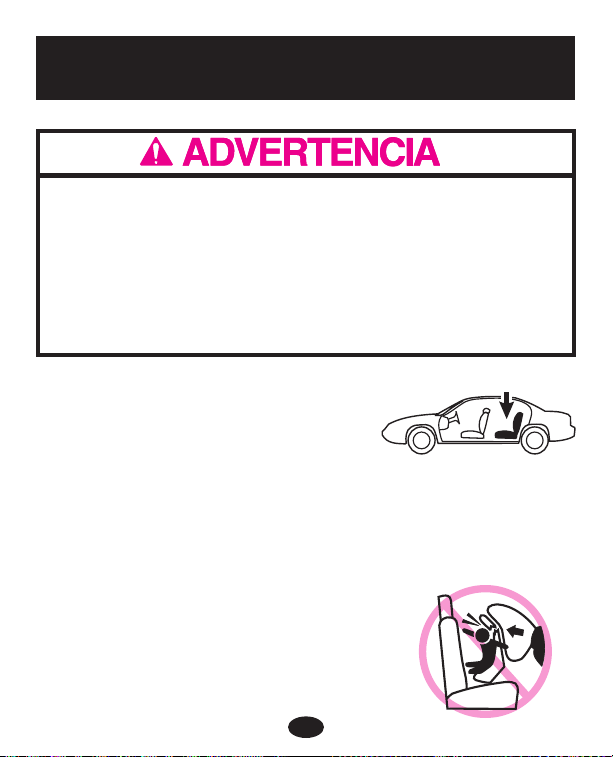

5.0 Infant Restraint Location
5.1 Vehicle Seat Requirements
IMPROPER PLACEMENT OF THE INFANT RESTRAINT
INCREASES THE RISK OF SERIOUS INJURY OR DEATH.
Some seating positions in your vehicle may not be safe for this infant
restraint. Some vehicles do not have any seating positions that can
be used safely with the infant restraint. If you are not sure where to
place the infant restraint in your vehicle, consult your vehicle owner’s
manual or call Graco at 1-800-345-4109.
• Whenever possible, secure the infant
restraint in the center position of the
seat directly behind the front seats
An adult should ride in the rear seat to
watch the child. If the driver is the only
adult present, a child may need to ride in the front seat. BUT
ONLY if there is no passenger-side air bag and all of the other
vehicle seat and seat belt requirements listed are met.
• NEVER place this infant restraint in a
vehicle seating location that has a
front air bag
Use as Infant Restraint”, p.15.
. See “4.1 Warnings for
20
.

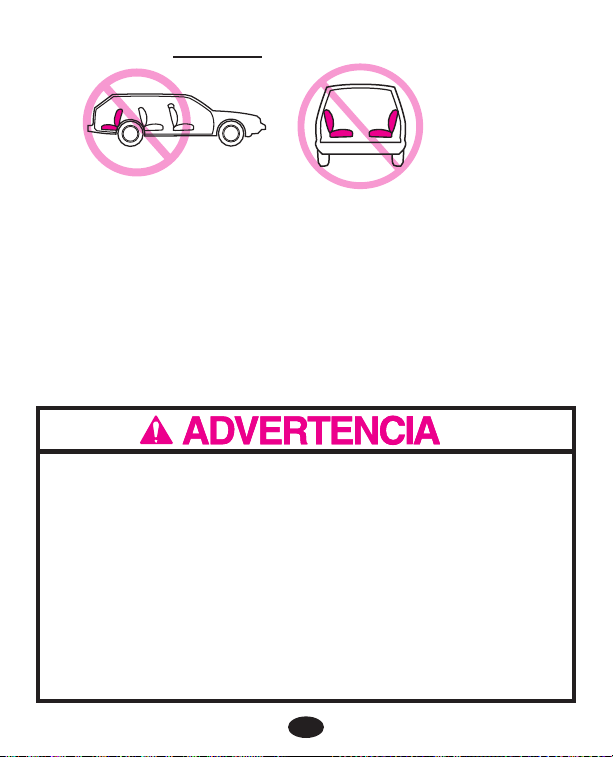

• The VEHICLE seat must face forward.
• DO NOT use infant restraint on vehicle seats with seat backs
that will not lock in an upright position. DO NOT use seats that
can fold down without having to release a lock or latch of some
kind. These seats can fly forward and strike the child in a sudden
stop or crash.
5.2 Vehicle Seat Belt Requirements
MANY SEAT BELT SYSTEMS ARE NOT SAFE TO USE WITH
THE INFANT RESTRAINT. THE VEHICLE SEAT BELT MUST BE
DESIGNED TO HOLD THE INFANT RESTRAINT TIGHTLY AT
ALL TIMES.
Pay careful attention to these systems; some of the seat belts that
are not safe to use look very much like seat belts that are safe to
use. If you are unsure,
Graco at 1-800-345-4109.
consult your vehicle owner’s manual or call
21

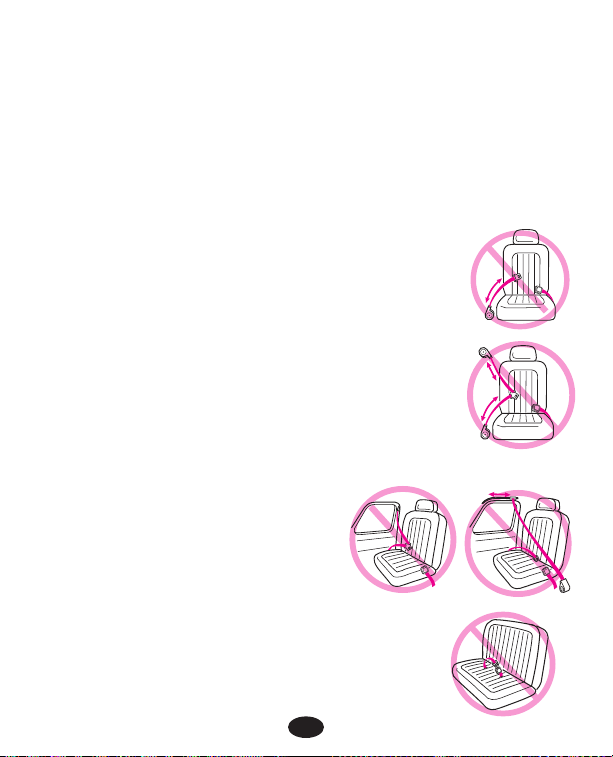

5.2.1 UNSAFE Vehicle Belt Systems
DO NOT use any of the following systems to secure the infant restraint.
LATCH can be used IN PLACE OF the vehicle belt system. Please
refer to vehicle owners manual for LATCH locations.
• Lap Belts with Emergency Locking Retractor (ELR)
This lap belt stays loose and can move until it locks
in a crash or sudden stop.
• Combination Lap/Shoulder Belt with Retractor
Each strap has a retractor at one end and is
attached to the latch plate at the other end.
• Passive Restraint - Lap Belt with Motorized
Shoulder Belt
• Passive Restraint - Lap or
Shoulder Belt Mounted on Door
DO NOT use vehicle belts that are
attached to the door in any way or
that move along a track to
automatically surround the
passenger when the door is closed.
• Lap Belts Forward of Seat Crease
22
5.2.2 SAFE Vehicle Belt Systems
THE FOLLOWING BELT SYSTEMS CAN BE USED WITH YOUR
INFANT RESTRAINT, IF the seat location meets all other
requirements of these instructions and those in your vehicle owner's
manual. LATCH can be used in place of the vehicle belt system.
Please refer to vehicle owners manual for LATCH locations.
• Lap Belts - Manually Adjusted
When buckled, the belt is
tightened manually by pulling
on the excess belt while pushing
down hard on the infant restraint.
• Lap Belts with Automatic
Locking Retractor (ALR)
The automatic locking retractor
will not permit the lap belt to
lengthen once it is buckled. Tighten
the belt by feeding the belt back
into the retractor while pushing
down hard on the infant restraint.
• Combination Lap/Shoulder Belt
with Locking Latch Plate
Once it is buckled, this type of
belt has a latchplate that will not
allow the lap portion of the belt to
loosen. Belt is tightened by pulling
hard on the shoulder portion of the
vehicle belt while pushing down
hard on the infant restraint.
23

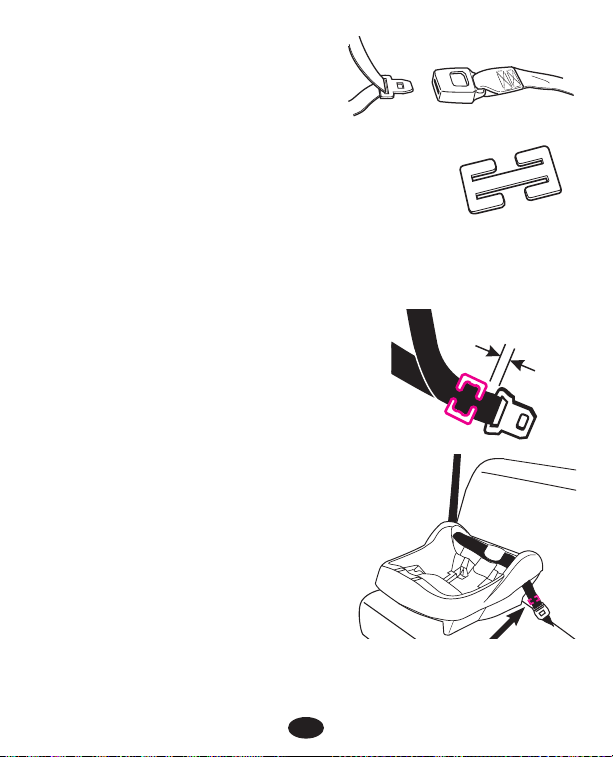

• Combination Lap/Shoulder
Belt with Sliding Latch Plate
This belt has a latchplate that
slides freely along the belt.
This belt MUST be converted to prevent
movement of the lap portion of the belt. You
must use the locking clip provided with the
infant restraint, unless your vehicle's seat belt
can be converted in another way as described in
your vehicle owner's manual.
To Install Locking Clip:
1. Tighten the buckled belt by pushing down
hard on the infant restraint and pulling
hard on the shoulder belt.
2. While pushing down on infant restraint,
pinch the two straps together behind the
buckle tongue. Unbuckle the belt
without allowing it to slip.
3. Connect lap and shoulder belts
with locking clip as shown
and .
4. Rebuckle belt. Check that lap belt
does not move by pulling and
pushing hard on infant restraint.
If belt loosens or lengthens,
repeat procedure.
Locking clip goes here,
1
/2 inch from the buckle
24
Locking clip
½
inch
Loading...
