Instruction Manual
ISPC054BA 06/03 US
Avoid injury or death -
Read and understand this manual!
TABLE OF CONTENTS
Important Information.....................................1
Warnings.......................................................2
What is LATCH?...............................................5
LATCH System..................................................6
Vehicle Seat Belts........................................... 26
• Locking Clip........................................ 31
Additional Information ...................................32
• Tether Storage
• Cup Holder
• Body Pillow
• Care and Cleaning
• Aircraft Use
• Second Hand Child Restraint
Replacement Parts.........................................
38
Storage.....................................Back Cover
• Locking Clip
• Instruction Manual
Help Information.......................
Back Cover
Instruction manual is for:
• ComfortSport5-Point Newborn/Toddler Child Restraint
• ComfortSport Overhead Shield Newborn/Toddler Child Restraint
Instructions for these models are the same unless otherwise noted.
Before You Begin
Use
Special Information
Height & Weight Limits....................................7
Rear-facing Installation With LATCH..................8
Forward-facing Installation With LATCH.........10
Rear-facing Installation With
Vehicle Seat Belts............................................
12
Forward-facing Installation With
Vehicle Seat Belts............................................
14
Placing Child in Child Restraint.......................16
Operations and Adjustments..........................18
• Harness Straps
• Harness Tie
• Buckle
• Recline / Upright Positions
• 5-Point Crotch Strap Adjustment
• Overhead Shield Adjustment
• Changing Harness Strap Slots
LATCH Belt Routing
• Removing LATCH from Vehicle Anchor Points
LATCH Storage
IMPORTANT INFORMATION
No child restraint can guarantee protection from injury in every situation, but proper use helps reduce the risk of serious injury or death.
READ THIS MANUAL CAREFULLY.
Child restraints could be recalled for safety
reasons. You must register this restraint
to be reached in a recall. Fill out the
registration card attached to child restraint and
mail today or send your name, address, and the
restraint’s model number and manufacturing
date to:
Graco Children’s Products, Inc. 150 Oaklands Blvd. Exton, PA 19341 or call 1-800-345-4109 www.gracobaby.com
For recall information:
• Call the U.S Government’s Auto Safety Hotline at 1-800-424-9393 (202-366-0123 in D.C. area)
• www.nhtsa.dot.gov
• Call Graco Children’s Products Inc. at 1-800-345-4109 www.gracobaby.com
Read and understand instruction manual
and child restraint labels.
Infants less than 20 lbs. (9 kg) must use
child restraint rear-facing.
Do not use child restraint rear-facing in
vehicle seat with air bag.
Secure children in rear seat of vehicle
whenever possible.
Never leave child unattended.Install child restraint securely with vehicle seat
belt or LATCH belt.
Do not use after date shown on back of
child restraint.
Do not allow anyone (babysitter, relatives,
etc.) to use child restraint without first understanding all instructions.
1
Registration Information
Safety First Check List
LATCH
This child restraint may be installed in a vehicle using either the vehicle seat belt or the
LATCH system (for vehicles equipped with LATCH).
WARNINGS - Prevent serious injury or death:
Failure to follow these instructions and child restraint labels can result in child striking the vehicle’s interior during a sudden stop or crash. Secure child restraint with a vehicle seat belt or LATCH that is properly routed as shown in this manual.
Select a suitable location for the child restraint in your vehicle.
Choose the correct mode of use for the child restraint depending on your child’s size. Infants less than 20 lbs. (9 kg) must use this child restraint rear-facing. Serious crippling injury or death can result if infant faces front of vehicle. The American Academy of Pediatrics recommends that children should be at least one year of age before being positioned forward facing.
2
Vehicle seat belt system MUST hold child restraint securely. Not all vehicle seat belts can be used with a child restraint.
If vehicle seat belt does not hold child restraint securely, read “Vehicle Seat Belts” section.
Never put a child restraint in a front vehicle seat unless recommended by vehicle owner’s manual. National Highway Traffic Safety Administration (NHTSA) alerts vehicle owners that according to accident statistics, children up to age 12 are safer in the back seat. For vehicles with air bags, refer to vehicle owner’s manual for child restraint installation information.
3
If child restraint is in a crash, it must be replaced. DO NOT use it again! A crash can cause unseen damage and using it again could result in serious injury or death.
DO NOT use child restraint if it is
damaged or missing parts.
DO NOT use accessories or parts
other than those provided by Graco. Their use could alter the performance of the child restraint.
Rear-facing child restraint must be
properly leveled:
• Too reclined can result in injury or ejection.
• Too upright can result in breathing difficulties.
Insert the harness straps in the proper slots for your child. Never leave child unattended, even when sleeping. Child may become tangled in harness straps and suffocate or strangle.
DO NOT remove LATCH system from child restraint. If using vehicle seat belt to secure child restraint, LATCH connectors must be stored. (see section “LATCH storage”)
Never attach two
LATCH connectors
to one vehicle lower anchor point unless specifically allowed by the vehicle manufacturer.
WARNINGS - Prevent serious injury or death (continued):
BASIC INFORMATION
This child restraint meets or exceeds all applicable requirements of Federal Motor Vehicle Safety Standard 213 for use in motor vehicles and aircraft.
Always secure child restraint with LATCH or a vehicle seat belt, even when unoccupied. In a crash, an unsecured child restraint can injure passengers.
Protect vehicle seat. Use a child restraint mat, towel or thin blanket under and behind child restraint.
Child restraint parts can get very hot in the sun or warm weather.
To avoid burns, always check before putting child in child restraint.
4
Do not use child restraint on rear-facing or side-facing vehicle seats.
Certification
Unoccupied Child Restraint
STOP using child restraint and throw it away after the date molded into the back of the child restraint.
Look for:
Do not use this car
seat after December
Year
Child Restraint Useful Life
Dangerous Vehicle Seats
Vehicle Seat Protection
Warm Weather
DO NOT place this
child restraint in a vehicle seating location that has a front air bag. If an air bag inflates, it can hit the child and child restraint with great force and cause serious injury or death to your child. Check vehicle owner’s manual for information about side air bags and child restraint installation.
WARNING
5
Vehicle
Top Tether Anchor
Points
Vehicle
Lower Anchor
Points
Vehicle
Seat Crease
Typical seat in a passenger vehicle. Other vehicle types may have different
LATCH locations.
United States Federal Motor Vehicle Safety Standards have defined a new system for installing child restraints in vehicles. The system is called LATCH. LATCH stands for:
L
ower Anchorage and Tether for CHildren.
LATCH System for Vehicles:
LATCH in the vehicle consists of a top tether
anchor point and two lower anchor points. Some vehicle owner manuals use the term
ISOFIX to identify the new child restraint anchorage system. This child restraint with
LATCH can also be used in vehicle seating
positions equipped with ISOFIX.
Newer vehicles may have one or more seating positions equipped with LATCH anchor points.
If vehicle is equipped with LATCH, the vehicle lower anchor points may be visible at the vehicle seat crease. If not visible, they may be marked with a symbol (Fig. a) or a colored dot.
See your vehicle owner’s manual for exact locations, anchor identification, and requirements for use with a child restraint.
Check vehicle owner’s manual for vehicle top tether anchor locations. They may be identified using one of the anchor symbols (Fig. b or Fig. c).
(Fig. a)
(Fig. b)
(Fig. c)
WHAT IS LATCH?
6
LATCH System:
LATCH consists of a permanently attached
lower anchorage belt and a top tether strap
(Fig. a).
ONLY use LATCH in a seating
position recommended by vehicle manufacturer.
Vehicle
Lower
Anchor
Points
Child Restraint
Lower Anchorage
Belt
(Fig. a)
LATCH SYSTEM
Child Restraint
Top Tether
Vehicle
Top Tether
Anchor
Point
Thank you for contacting Graco. LATCH is defined as anchorages 280mm (11.02 inches) on center. As a manufacturer, we do not recommend using the
LATCH system in the center
position if it exceeds this length. If you have further questions regarding LATCH usage, please contact NHTSA at 1-800-326-4236 or www.nhtsa.dot.gov.
HEIGHT & WEIGHT LIMITS
A preterm infant or low birth weight infant may be at special risk in a vehicle or aircraft.
According to the American Academy of Pediatrics, these infants may suffer breathing difficulties if improperly reclined in a child restraint.
Graco advises that you have your physician or hospital staff evaluate your infant and recommend the proper child restraint or car bed before you and your infant leave the hospital.
7
Preterm or Low Birth Weight
Infants
Outgrowing Child Restraint
Prevent serious injury or death:
• Top of child’s ears must be below top edge of child restraint.
• Child’s shoulders MUST not be above top harness slots.
WARNING
Rear-facing: 5 to 30 lbs. (2.2-13.6 kg)
• Infants who weigh less than 20 lbs. (9 kg) MUST be rear-facing.
• Infants or toddlers 20 to 30 lbs. (9 to 13.6 kg) may be rear-facing.
Forward-facing: 20 to 40 lbs. (9 to 18 kg)
• Toddlers 20 to 30 lbs. (9 to 13.6 kg) who are capable of sitting upright unassisted may be forward-facing
*
.
If unable to sit unassisted, use
rear-facing.
• Toddlers 30 to 40 lbs. (13.6 to 18 kg) and up to 40 inches (101.6 cm) tall MUST be forward-facing.
IMPORTANT: This child restraint is certified for use rear-facing with children up to 30 lbs. (13.6 kg). However, some children approaching 30 lbs. (13.6 kg) may be too tall to fit comfortably rear-facing. When child can no longer comfortably fit and knees remain bent, child should use car seat forward-facing only if child is over 20 lbs. (9 kg) and can sit upright unassisted.
*
*
The American Academy of Pediatrics recommends that children should be at least one year of age before being positioned forward facing.
Forward-facing
Rear-facing
40 lbs.
(18 kg)
5 lbs.
(2.2 kg)
30 lbs.
(13.6 kg)
20 lbs.
(9 kg)
LATCH belt must be routed through
opening in child restraint for rear-facing mode. (see page 23, fig. k).
Belt must lay flat and not be twisted.
Adjust child restraint to recline position (see pages 18 and 19, fig. b) and place
rear-facing on vehicle seat equipped with LATCH anchors.
For ease of installation, extend LATCH belt to its maximum length.
Hook connectors to vehicle lower anchors (fig. a). Pull connectors to be sure they are securely attached to the anchor points. (fig. b).
Press down firmly in center of child restraint while pulling LATCH adjustment belt. (fig. c).

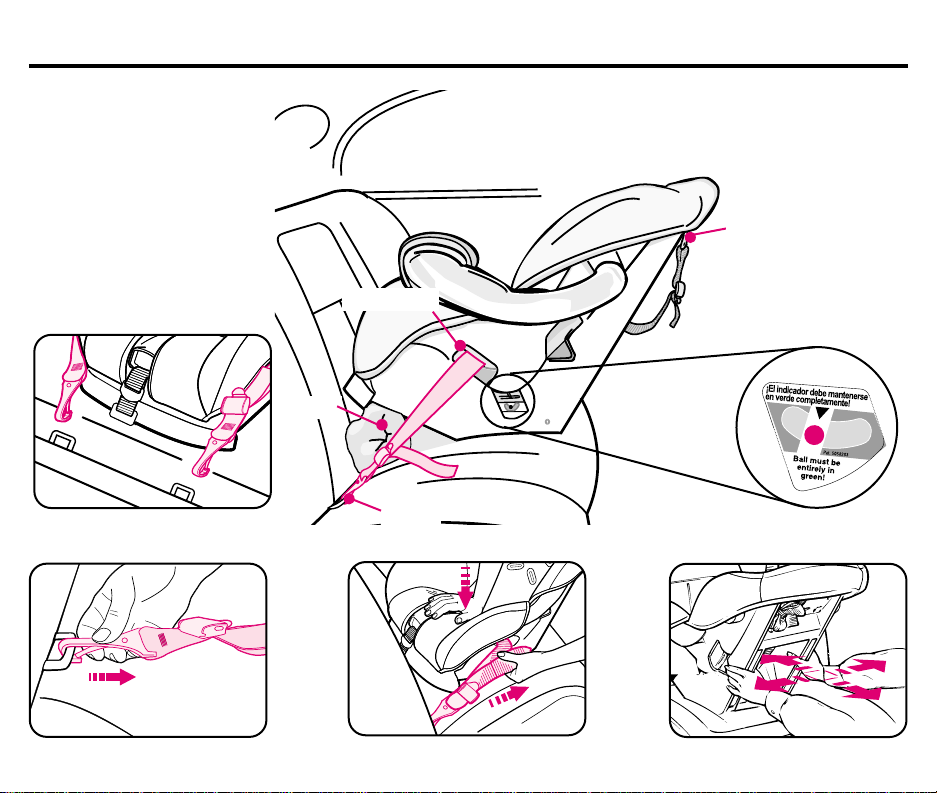

REAR-FACING INSTALLATION WITH LATCH
1
3
4
5
2
8
Pull front to back and left to right to check for secure installation (fig. d).
Check that the lower anchorage belt stays tight and does not slip from the tightened position. If it does not stay tight, try another seating position or contact Customer Service (see back cover).
Check level indicator on child restraint. Vehicle must be on level ground and child in
child restraint when checking level indicator. Ball MUST be entirely in green zone (fig. e). If
necessary, place rolled towels under child restraint, at vehicle seat crease, until entire ball is in green zone. Then re-check level indicator.
DO NOT use tether rear-facing. Tether must be stored (see “Tether Storage” page 32).
Periodically check that child restraint is securely installed and properly leveled; adjust if necessary.
6
7
(fig. b)
(fig. c)
Openings
Towels
9
REAR-FACING INSTALLATION WITH LATCH
(continued):
(fig. a)
LAPC0110A
(fig. e)
(fig. d)
Tether
LATCH
LATCH belt must be routed through
opening in child restraint for forward-facing (see page 23, fig. l).
Belt must lay flat and not be twisted.
Adjust child restraint to upright position (see pages 18 and 19, fig. b) and place
forward-facing on vehicle seat equipped
with LATCH anchors.
For ease of installation, extend LATCH belt to its maximum length.
Hook connectors to vehicle lower anchors (fig. a). Pull connectors to be sure they are securely attached (fig. b).
Press down firmly in center of child restraint to compress vehicle seat cushion while tightening
LATCH belt by pulling adjustment belt (fig. c).
Use your knee to press down in center of child restraint (fig. c).
FORWARD-FACING INSTALLATION WITH LATCH
1
3
4
5
2
10
Pull front to back and left to right to check for secure installation (fig. d).
Check that the lower anchorage belt stays tight and does not slip from the tightened position. If it does not stay tight, try another seating position or contact Customer Service (see back cover).
Attach tether strap hook (A) to anchor hardware (B) and tighten adjustment belt to remove any slack (fig. e).
Periodically check that child restraint is securely installed; adjust if necessary.
6
7
Openings
(fig. b)
(fig. c)
11
FORW ARD-F ACING INST ALLATION WITH LA TCH
(continued):
(fig. a)
(fig. e)
(fig. d)
(B)
(A)
Pull to
tighten
Tether
LATCH
Pull front to back and left to right to check for secure installation (fig. b). Vehicle lap belt MUST stay tight.
If not secure, see “Vehicle Seat Belts” page 26.
Check level indicator on child restraint. Vehicle must be on level ground and child in
child restraint when checking level indicator. Ball MUST be entirely in green zone (fig. c).
If necessary, place rolled towels under child restraint, at vehicle seat crease, until entire ball is in green zone. Then re-check level indicator.
DO NOT use tether rear-facing. Tether must be stored (see “Tether Storage” page 32).
Periodically check that child restraint is securely installed and properly leveled; adjust if necessary.
Store LATCH see page 25, fig. q.
Adjust child restraint to recline position (see page 18 and 19, fig. b) and place
rear-facing on vehicle seat.
Thread vehicle seat belt through openings and buckle belt.
Press down firmly in center of child restraint to compress vehicle seat cushion while tightening vehicle seat belt (fig. a).
REAR-FACING INSTALLATION WITH VEHICLE SEAT BELTS
1
3
4
5
2
12
LATCH belt MUST be stored when using vehicle seat belt to install child restraint.
WARNING
6
REAR-FACING INSTALLATION WITH VEHICLE SEAT BELTS
(continued):
Openings
Towels
13
LAPC0110A
(fig. c)
(fig. a) (fig. b)
Tether
LATCH (stored)
Installation with
Lap belt only
Installation with
Lap/shoulder belt
Store LATCH see page 25, fig. r.
Adjust child restraint to upright position (see pages 18 and 19, fig. b) and place forward-facing on vehicle seat.
Lift seat pad flap (available on some models). Thread vehicle seat belt through openings.
Buckle belt (fig. a).
Press down firmly in center of child restraint to compress vehicle seat cushion while tightening vehicle seat belt.
Use your knee to press down in center of child restraint (fig. b).
FORW ARD-FACING INSTALLA TION WITH VEHICLE SEAT BELTS
1
2
3
4
14
LATCH belt MUST be stored when
using vehicle seat belt to install child restraint.
WARNING
Pull front to back and left to right to check for secure installation (fig. c). Vehicle lap belt MUST stay tight.
If not secure, see “Vehicle Seat Belts” page 26.
Attach tether strap hook (A) to anchor hardware (B) and tighten adjustment belt to remove any slack (fig. d). If vehicle does not have anchor points to attach tether hook, tether hook should be stored, see “Tether Storage”, page 32.
Periodically check that child restraint is securely installed; adjust if necessary.
5
6
FORW ARD-FACING INSTALLATION WITH VEHICLE SEAT BEL TS
(continued):
(fig. a)
(fig. b) (fig. c)
Openings
Stand
15
(fig. d)
(B)
(A)
Pull to
tighten
LATCH (stored)
Tether
Installation with
Lap belt only
Installation with
Lap/shoulder belt
Check harness system:
Rear-facing - 5-30 lbs (2.2-13.6 kg) Harness straps must be through bottom or middle slots at or below shoulders.
Forward-facing - 20-30 lbs (9-13.6 kg)
and are at least one year old.
Harness straps must be through middle or top slots at or above shoulders.
Forward-facing - 30-40 lbs (13.6-18 kg) Harness straps must be through top slots only. DO NOT use middle slots for child over 30 lbs. (13.6 kg).
Place child in child restraint with child’s back flat against back of child restraint.
Place harness straps over child’s shoulders and insert tongue(s) into buckle. Pull up on tongue(s) to be sure they are locked.
Close harness tie:
Position harness tie at arm pit level.
Adjust harness straps to be snug. A snug strap should not allow any slack. It lies in a relatively straight line without sagging. It does not press on the child’s flesh or push the child’s body into an unnatural position (fig. a). Check that harness straps on chest and thighs are snug.
A rolled towel can be used on each side to support small children (fig. b). Be sure towels do not interfere with harness system. Towels should NOT be placed under child.
To prevent serious injury or death:
• Keep harness straps snug and positioned on shoulders with harness tie at arm pit level.
• Do not use strap covers, blankets, cushions, or padding under harness straps or child unless provided by Graco.
• Child should be dressed in clothing that does not interfere with buckling the harness.
1
2
3
4
5
16
PLACING CHILD IN CHILD RESTRAINT
WARNING
5-Point Models Only:
• Crotch strap must be in opening closest to but not under child.
Overhead Shield Models Only:
• Harness tongue must be in opening closest to but not under child.
17
2
3
3
5-Point
Models
Overhead
Shield
Models
(fig. a)
2
(fig. b)
PLACING CHILD IN CHILD RESTRAINT (continued)
4
4
OPERATIONS and ADJUSTMENTS
18
Recline / Upright Positions (fig. b):
Rear-facing - MUST use Recline position. Forward-facing - MUST use Upright position
Upright Position: Rotate stand out and push into child restraint (fig. b).
Recline Position: Pull stand out and rotate into child restraint.
Harness straps MUST move freely. Make sure harness straps are not pinched by recline stand.
5-Point Crotch Strap Adjustment (fig. c):
• From bottom of child restraint, pull crotch strap clip out and remove clip from crotch strap loop.
• From top of child restraint, pull crotch strap out and thread through desired slot. Make sure red button is facing away from child.
• From bottom of child restraint, re-attach clip to crotch strap loop exactly as shown.
Overhead Shield Adjustment (fig. d):
• To adjust: Press button down and slide
shield to desired position closest to child. Release button to lock shield into one of multiple positions.
NOTE: Shield does not need to contact
child when in closest position; harness system restrains child.
Harness Straps (fig. a):
• To tighten: Pull lower belt tab.
• To loosen: Pull and hold upper belt tab while pulling shoulder harness straps.
Harness Tie:
• To open: Press tabs and pull apart.
• To close: Snap halves together. Make sure harness tie is locked by pulling out on each half.
Buckle: MUST be in opening closest to but not under
child. 5-Point Models
• To buckle: Insert both tongues into buckle. Pull up on tongues to be sure they are locked.
• To unbuckle: Press red button and pull tongues out of buckle.
Overhead Shield Models
• To buckle: Push tongue into opening. Pull up on tongue to be sure it is locked.
• To unbuckle: Press red button, pull tongue out of opening and lift shield over top of child restraint.
1
2
4
3
5
6
19
5-Point
Models
(fig. a)
(fig. d)
Overhead
Shield
Models
(fig. b)
(fig. c)
Upright
Recline
OPERATIONS and ADJUSTMENTS (continued)
Clip
Upper Tab
(to loosen)
Lower Tab
(to tighten)
1
2
3
4
1
2
3
4
20
Changing Harness Strap Slots:
A Loosen harness straps:
Pull and hold upper belt tab. Pull harness straps out.
B Remove both shoulder harness strap
loops from Splitter Plate on back of child restraint.
C Change harness strap slots.
Make sure harness straps are threaded through matching slot of seat pad and child restraint.
It may be necessary to remove seat pad from top of child restraint while relocating.
D Re-attach harness strap loops to Splitter
Plate:
5-Point Models (fig. e):
• For Infants or Small Toddlers:
Put Top right strap loop on Splitter Plate first, then attach Top left strap loop.
NOTE: Make sure ends of straps are behind Splitter Plate.
• For Toddlers:
Put Bottom right strap loop on Splitter Plate first, then attach Bottom left strap loop.
Overhead Shield Models (fig. f):
Put right strap loop on Splitter Plate first, then attach left strap loop.
NOTE:
• Make sure both strap loops are securely attached within Splitter Plate hook.
• Make sure straps are NOT twisted and are routed behind stand (fig. g).
7
OPERATIONS and ADJUSTMENTS (continued)
21
5-Point
Models
Overhead
Shield
Models
(fig. e)
(fig. f)
Bottom
Loop
Loop
Splitter Plate
Top
Loop
OPERATIONS and ADJUSTMENTS (continued)
(fig. g)
Stand
LATCH Belt Routing: LATCH belt MUST be routed through
the proper openings depending on direction of child restraint use.
A Remove pad from front of seat area by
pulling out 2-button clips on lower front edge of child restraint (fig. h) and 2-button clip in center of seat.
Removing pad will expose the rotating
LATCH belt. (fig. i)
B Rotate LATCH belt so that the belt routes
through the proper openings (Pg 23, fig. k and fig. l). Belts must remain flat and tight against the child restraint BEFORE reattaching the three seat pad 2-button clips. (fig. j) LATCH belt must not interfere with the harness.
C Re-attach pad to child restraint by
snapping the three 2-button clips back in place. DO NOT allow 2-button clip to interfere with the LATCH belt or vehicle seat belt.
22
8
OPERATIONS and ADJUSTMENTS (continued)
(fig. h)
(fig. i)
Rotating LATCH Belt
(under seat pad)
(fig. j)
Belt must be flat and tight
(fig. l)
(fig. k)
Rear-facing openings Forward-facing openings
OPERATIONS and ADJUSTMENTS (continued)
23
Route LATCH belt through Rear-facing openings for:
LATCH Rear-facing use. or
LATCH storage with Forward-facing
vehicle seat belt use. Pg. 25, fig. q.
Route LATCH belt through Forward-facing openings for:
LATCH Forward-facing use. or
LATCH storage with Rear-facing
vehicle seat belt use. Pg. 25, fig. r.
All belts must be flat and the adjuster belt must be facing out for easy adjustment.
24
OPERATIONS and ADJUSTMENTS (continued)
Removing LATCH from Vehicle Anchor Points:
A Tilt metal tab of adjuster to release tension
(fig. m). Press down on child restraint compressing
vehicle seat cushion to reduce tension on lower anchorage belt.
B Press and hold LATCH release hinge.
(fig. n).
C Push connector in, lift connector up and
pull out (away from anchor point) (fig. o).
Repeat step A, B and C for other
connector.
9
(fig. o)
(fig. n)
(fig. m)
25
OPERATIONS and ADJUSTMENTS (continued)
LATCH storage:
• Locate LATCH storage bars under arm rest on sides of child restraint (fig. p).
• Fasten LATCH onto storage bar as shown.
(fig. q or r)
Repeat for other side of seat.
10
(fig. q)
(fig. r)
(fig. p)
LATCH
storage bar
26
VEHICLE SEAT BELTS
To provide the most secure installation of the child restraint:
• Read the vehicle owner’s manual regarding child restraint installation and seat belt use with child restraints.
• Follow all instruction labels on vehicle seat belt and child restraint.
If child restraint is not held securely after following instructions in this manual, vehicle seat belt labels, and vehicle owner’s manual:
• Move child restraint to another seating location and try again, or
• Contact vehicle dealer for possible seat belt modification parts.
WARNING
Not all vehicle seat belts can be used
with a child restraint. The child restraint must be held securely at all times by a lap belt (or lap belt portion of a lap/shoulder belt) that will not change length while driving.
Vehicle seat belts located forward of seat crease may not securely hold child restraint. Check vehicle owner’s manual or see vehicle dealer for car seat installation requirements.
• If approved for use with child restraint, install child restraint and check for secure installation by pulling child restraint front to back. If child restraint slides forward, DO NOT use these seat belts.
Seat Crease
Seat Crease
Belts Forward of Seat Crease
VEHICLE SEAT BELTS (continued)
27
28
Lap belts with retractors may or may not hold a child restraint securely.
Follow these steps to determine if you have a retractor system that will hold child restraint securely:
a. Pull belt all the way out. b. Allow belt to retract about 6 inches (15 cm). c. Pull out on belt again.
If belt is locked and you cannot pull the belt out any further, you have an Automatic Locking Retractor which may be used with a child restraint. Remember, when installing a child restraint, pull belt all the way out, buckle belt, and then tighten.
If you can pull the belt out again (Step c above), you have an Emergency Locking Retractor which MUST NOT be used with a child restraint.
The locking latch plate on some seat belts may slip and loosen after being buckled on child restraint if positioned at a certain angle. If this happens, flip latch plate over (fig. a) and re-buckle. Test installation again to see if this works. If not, move child restraint to another seating position.
(fig. a)
Retractor
Lap Belts - Manually Adjustable
Lap Belts - With Retractor
Flip
VEHICLE SEAT BELTS (continued)
DO NOT use with any child restraint.
Passive Restraint - Lap Belt
with Motorized Shoulder Belt
DO NOT use with any child restraint. Belts will not stay tight while driving.
Passive Restraint- Lap or
Shoulder Belt Mounted on Door
VEHICLE SEAT BELTS (continued)
29
30

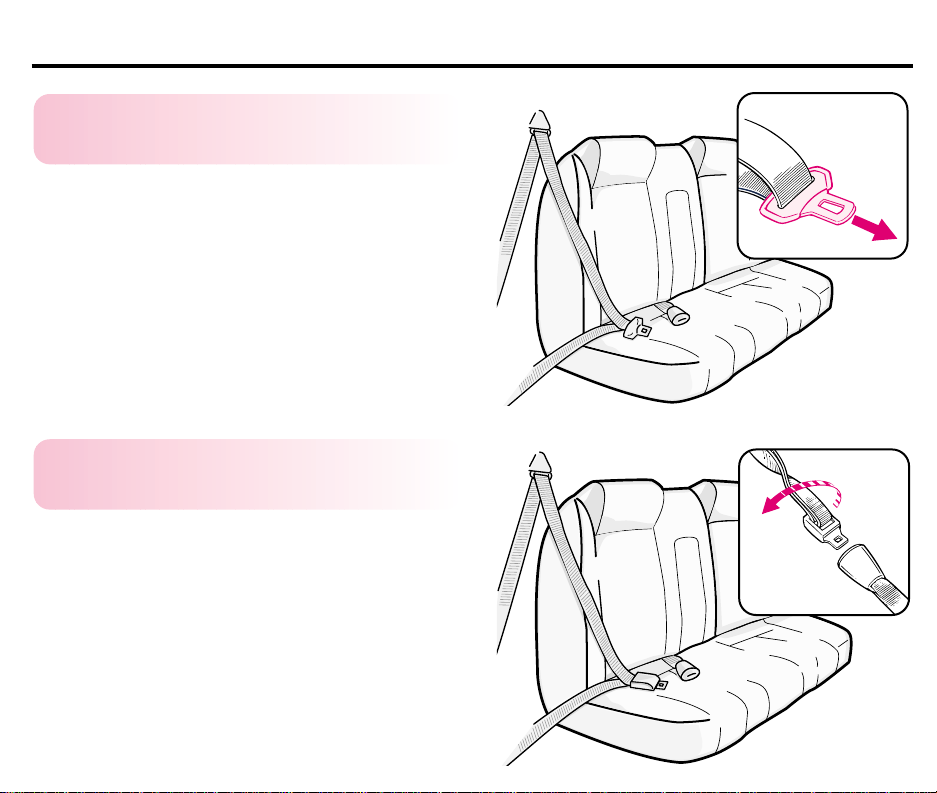

Pull on latch plate (fig. a). If belt slides freely through latch plate, a locking clip MUST be used (see Pg. 31 “Locking Clip” section).
Some combination lap/shoulder belts with sliding latch plates may be converted into an “automatic locking mode” that will allow use without a locking clip. See vehicle owner’s manual and label on vehicle belts for instructions.
(fig. a)
Combination Lap/Shoulder
Belt with Sliding Latch Plate
Combination Lap/Shoulder
Belt with Locking Latch Plate
The locking latch plate on some seat belts may slip and loosen after being buckled on child restraint if positioned at a certain angle. If this happens, flip the latch plate over (fig. b) and re-buckle. Test installation again to see if this works. If not, move child restraint to another seating position.
Pull
VEHICLE SEAT BELTS (continued)
(fig. b)
Flip
1/2 inch (1 cm)
(fig. a)
VEHICLE SEAT BELTS (continued)
Avoid serious injury or death:
• Failure to use locking clip where required will result in child restraint not being securely held in place.
• Remove locking clip from seat belts when not being used with child restraint.
• DO NOT use locking clip as a vehicle seat belt shortener.
WARNING
Locking Clip
Test installation to see if child restraint is secure. If not secure, additional belt tightening may be
required:
• Unbuckle vehicle seat belt.
• Hold belts together and remove locking clip.
• Shorten length of lap belt portion slightly by pulling belt through latch plate.
• Re-attach locking clip.
• Buckle vehicle seat belt.
Press child restraint further down into vehicle seat cushion to help buckle vehicle seat belt.
Test installation to see if child restraint is secure. If not secure, repeat above step until secure.
You MUST use locking clip provided with child restraint with a vehicle seat belt that slides freely through the latch plate or the lap belt cannot be tightly secured.
Install child restraint and tighten vehicle seat belt.
Hold seat belts together at latch plate (fig. a) then unbuckle.
Slide locking clip on seat belts approximately 1/2 inch (1 cm) away from latch plate.
Re-buckle seat belt.
1
2
3
4
5
31
32
ADDITIONAL INFORMATION
DO NOT anchor tether strap to the vehicle when using child restraint rear-facing.
Tether hook must be attached to child restraint for rear-facing use or if vehicle is not equipped with tether anchors.
For storage of tether hook:
• Attach tether hook to back of child restraint as shown.
• Pull loose end of adjustment strap to remove any slack.
• Roll loose end of adjustment strap up and secure with a rubber band.
Tether Storage
Back of Child Restraint
Tether Hook
33
Available on some models:
• Locate slot in armrest UNDER armrest pad on either side of child restraint.
• Push cupholder down over side of seat and snap cupholder into slot to secure.
ADDITIONAL INFORMATION
Removing Cup Holder:
• Reverse above steps.
Cup Holder
1
2
1
2
34
ADDITIONAL INFORMATION (continued)
Body Pillow
(available on some models)
Push top of body pillow in between harness straps and fit into seat exactly as shown.
To prevent ejection in sudden stop
or crash:
• Make sure that the harness system is properly secured and shoulder straps are threaded through slots and properly positioned on shoulders.
• Never allow pillow to interfere with the harness system or vehicle belt.
• Do not allow pillow to bunch under or behind child's body.
• This product is designed ONLY for Graco ComfortSport convertible child restraints.
WARNING
35
Removing Seat Pad (all models):
Remove both harness strap loops from Splitter Plate on back of child restraint and pull through front of pad. (see pages 20 & 21, fig. f ) Open harness tie, release tongues from buckle.
Unhook “J” hooks from child restraint shell. Pull three 2-button clips out of lower front
edge of child restraint shell and inside center of child restraint shell.
Removing Overhead Shield Pad:
Pull both 2-button clips out of shield and unwrap pad from around shield.
Reverse above steps for reattaching seat pad, overhead shield pad and harness system.
Care & Cleaning
ADDITIONAL INFORMATION (continued)
1 2
3
1
1
2
3
36
ADDITIONAL INFORMATION (continued)
Seat Pad and Overhead Shield Pad:
Remove the plastic 2-button clips. Machine-wash separately on gentle cycle and drip dry.
Harness Straps and LATCH belt:
Surface wash only with mild soap and damp cloth.
If harness straps or belt are frayed or heavily soiled, they MUST be replaced.
Shell and Overhead Shield Cup Holder:
Wipe with mild solution of soap and water. Avoid wetting labels.
Never use “household detergents”: they can weaken plastic.
Buckle:
Rinse buckle with warm water. DO NOT use household detergents. Never lubricate buckle.
Prevent serious injury or death:
• Buckle must be properly latched.
• Periodically inspect and clean buckle to remove objects or debris that could prevent latching.
WARNING
Graco Children’s Products Inc. advises against loaning or passing along a child restraint.
This child restraint is certified for use on aircraft (see label on child restraint). Contact airline about their policy.
Use this child restraint only on forward-facing aircraft seats.
Install child restraint on an aircraft the same way it is installed in a vehicle when using a vehicle seat belt.
Aircraft Use
Second Hand Child Restraint
NOTES
37
38
REPLACEMENT PARTS
NOTE: Prices subject to change.
How to Order:
Complete the form on the following page. Your child restraint model number and manufacture date MUST be included on the form to ensure proper replacement parts. Your model number can be found on a sticker on the side of your child restraint. Payment must accompany your order.
Parts may also be ordered from Graco’s web site at www.gracobaby.com.
Fabric Seat Pad (All Models)....................................$35.00
Fabric Shield Pad (Overhead Shield) ........................$10.00
Harness Strap (5-Point) ............................................$5.00
Harness Strap (Overhead Shield) ................................$5.00
Buckle, Crotch Strap and Tongues (5-Point)............$10.00
2-Piece Harness Tie (All models) ................................$5.00
Locking Clip (All models) ..........................................$5.00
LATCH Belt............................................................$20.00
Tether System ........................................................$10.00
Overhead Shield 2-Button Retainer Clip ..................FREE
Seat Pad 2-Button Retainer Clip (All models)..............FREE
Headrest Foam & Push-In Buttons (All models) ..........FREE
Instruction Manual (All models)..................................FREE
Subtotal: Shipping
& handling*: $5.00 Sales tax**: Total:
* $15.00 outside the continental U.S.
**CA 7.25%, IL 6.25%, IN 5%, NY 8.25%, OH 5.75%, PA 6%, SC 5%
Model No. Manufactured in
(Both Numbers Required)
Check or money order enclosed
(payable to Graco Children’s Products Inc.)
Charge to credit card Visa MasterCard Discover
Account # Expiration date
Signature
SHIP TO:
Name
Address
City, State, Zip Code
Telephone (including Area Code)
E-mail address
MAIL ORDER TO:
GRACO CHILDREN’S PRODUCTS, INC.
150 Oaklands Blvd.
Exton, PA 19341
ATTENTION: CUSTOMER SERVICE
DEPARTMENT
OR
FAX ORDER TO: (610) 884-8730
Fabric Seat Pad (All Models) $35.00 Fabric Shield Pad (Overhead Shield) $10.00 Harness Strap (5-Point) $5.00 Harness Strap (Overhead Shield) $5.00 Buckle, Crotch Strap and Tongues (5-Point) $10.00 2-Piece Harness Tie (All models) $5.00 Locking Clip (All models) $5.00 LATCH Belt $20.00 Tether System $10.00 Overhead Shield 2-Button Retainer Clip FREE Seat Pad 2-Button Retainer Clip (All models) FREE Headrest Foam & Push-In Buttons (All models) FREE Instruction Manual (All models) FREE
Store instruction manual
behind this tab.
Store locking clip
here.
Fold instruction manual.
1
If a part is damaged,
missing, or you need help
or replacement parts,
DO NOT return child restraint
to the store.
CALL US FIRST
Call toll-free 1-800-345-4109
from anywhere in the U.S. or Canada
or fax at 1-610-884-8730.
or write us at:
Graco Children’s Products
150 Oaklands Blvd.
Exton, PA 19341
Attention: Customer Service
Department
2
Graco Children’s Products Inc.
A Division of Newell Rubbermaid
150 Oaklands Blvd.
Exton, PA 19341
Evite lesiones o la muerte -
¡Lea detenidamente este manual!
ISPC054BA 06/03 US
Manual de instrucciones
TABLA DE CONTENIDO
Información importante ..................................1
Advertencia ..................................................2
Información básica ......................................... 4
¿Qué es el LATCH? ..........................................5
El sistema LATCH.............................................6
Cinturones de seguridad del vehículo ........... 26
• Clip de cierre ...................................... 31
Información adicional .....................................32
• Almacenaje del anclaje
• Portabebidas
• El cojín del cuerpo
• Cuidado y limpieza
• Uso en aeronaves
• Asiento de seguridad para autos de segunda mano
Lista de piezas...........................................38
Almacenaje.......................Contraportada
• Clip de cierre
• Manual de instrucciones
Información de ayuda ......
Contraportada
Este manual de instrucciones está indicado para el uso del:
• Asiento de seguridad ComfortSport de 5 puntos
para recién nacidos / niños de corta edad
• Asiento de seguridad ComfortSport con barra
protectora para recién nacidos / niños de corta edad
Las instrucciones para estos modelos son las mismas a menos que se indique lo contrario.
Antes de Empezar
Utilización
Información especial
Límites de altura y peso.............................................7
Instalación orientada hacia atrás con LATCH ............8
Instalación orientada hacia delante con LATCH .... 10
Instalación de
orientacion trasera con los
cinturones
de seguridad del vehículo ....................12
Instalación orientada hacia delante con
el cinturón de seguridad del vehículo ....................
14
Colocar al niño en el asiento de seguridad .............16
Operaciones y ajustes ...................................18
Correas del arnés
Cierre del arnés
Hebilla
Posiciones reclinada y vertical
Ajuste de la correa de entrepierna de 5 puntos
Ajuste de la barra protectora
Cambiar las ranuras de las correas del arnés
Colocación del cinturón LATCH
Retirar el LATCH de los puntos de anclaje del vehículo
Almacenaje del LATCH
INFORMACIÓN IMPORTANTE
Ningún asiento de seguridad garantiza la protección contra lesiones en cualquier situación, pero su utilización correcta ayuda a reducir el riesgo de lesiones graves o la muerte.
LEA ATENTAMENTE ESTE MANUAL.
Los asientos de seguridad para niños (asientos para autos) se pueden retirar por razones de seguridad. Debe registrar este asiento en caso de que deba ser retirado, para que le puedan localizar. Complete la tarjeta de registro adjunta al asiento y envíela por correo hoy, o envíe su nombre, dirección y el número de modelo y fecha de fabricación del asiento de seguridad para niños a:
Graco Children’s Products, Inc. 150 Oaklands Blvd. Exton, PA 19341
o llame al 1-800-345-4109 www.gracobaby.com
Para obtener información sobre las retiradas:
Llame a la línea gratuita de información de seguridad automotriz del Gobierno de EE.UU. al 1-800-424-9393 (202-366-0123 en la zona de Washington D.C)
www.nhtsa.dot.gov
Llame a Graco Children’s Products Inc. al 1-800-345-4109 www.gracobaby.com
Lea detenidamente este manual de instrucciones
y las etiquetas del asiento de seguridad.
Los niños de peso inferior a 20 libras (9 kg)
deben usar el asiento orientado hacia atrás
No coloque el asiento orientado hacia atrás
en el asiento del vehículo equipado con la bolsa de aire.
Siente a los niños con sistema de seguridad
en el asiento trasero del vehículo siempre que sea posible.
No deje a los niños solos.Coloque firmemente el asiento con el cinturón
de seguridad del vehículo o el cinturón LATCH.
No use el asiento de seguridad después de la
fecha indicada en la parte trasera del mismo.
No permita que nadie (niñera, familiares, etc.)
use el asiento de seguridad para autos sin haber leído y comprendido primero todas las instrucciones.
1
Información de registro
Lista de control de seguridad
LATCH
Este asiento de seguridad se puede colocar en el vehículo utilizando el cinturón de seguridad del vehículo o el sistema LATCH (para vehículos equipados con LATCH).
ADVERTENCIA - Prevenga lesiones graves o la muerte:
El incumplimiento de estas instrucciones y de las indicaciones de las etiquetas del asiento podría causar el choque del niño contra el interior del vehículo durante una parada repentina o un accidente. Sujete el asiento con un cinturón de seguridad del vehículo o un sistema
LATCH que esté bien colocado según
las indicaciones de este manual. Elija el lugar adecuado para el
asiento de seguridad en su vehículo. Elija el modo de empleo correcto
para el asiento de seguridad de acuerdo al tamaño de su niño. Los niños de peso inferior a 20 libras (9 kg) deben usar este asiento de seguridad orientado hacia atrás. La orientación de los niños hacia la parte delantera del vehículo les podría causar lesiones graves o la muerte. La Academia Americana de Pediatría advierte de que solo se debe sentar en posición orientada hacia la parte delantera a los niños de un año de edad como mínimo.
2
El sistema de cinturones de seguridad del vehículo DEBE sujetar firmemente el asiento de seguridad. No todos los cinturones de seguridad de todos los vehículos pueden utilizarse con los asientos de seguridad.
Si el cinturón de seguridad del vehículo no sujeta firmemente el asiento de seguridad, lea la sección "Cinturones de seguridad del vehículo".
Se debe reemplazar el asiento de seguridad si ha sufrido un accidente. ¡NO lo use de nuevo! Un accidente podría causar daños ocultos y usarlo de nuevo podría causar lesiones graves o la muerte.
NO use el asiento de seguridad si ha
resultado dañado o si faltan piezas.
3
NO retire el sistema LATCH del asiento de seguridad. Si usa el cinturón de seguridad del vehículo para sujetar el asiento de seguridad, debe almacenar los conectores
LATCH (consulte la sección
"Almacenaje del LATCH ").
No conecte nunca dos conectores LATCH a un punto de anclaje inferior del vehículo a menos que el fabricante del vehículo lo especifique.
ADVERTENCIA - Prevenga lesiones graves o la muerte:
El asiento de seguridad de
orientación trasera debe nivelarse
correctamente:
• Una posición demasiado reclinada podría causar lesiones o la expulsión del asiento.
• Una posición demasiado vertical podría causar dificultad respiratoria.
No coloque nunca el asiento de seguridad en el asiento delantero del vehículo a menos que lo recomiende el manual de propietario del vehículo. La Administración Nacional de Seguridad de Tráfico en Carreteras (NHTSA) advierte a los propietarios de vehículos de que según las estadísticas de accidentes, los niños de hasta 12 años de edad viajan más seguros en el asiento trasero. Remítase al manual del propietario del vehículo para obtener información sobre la instalación de los asientos de seguridad en los vehículos con la bolsa de aire.
NO use accesorios o piezas que
no sean los proporcionados por Graco, ya que ello podría alterar el rendimiento del asiento de seguridad.
Introduzca las correas de arnés en las ranuras adecuadas para su niño. No deje nunca al niño solo, ni siquiera mientras duerme, ya que se podría quedar atrapado entre las correas y asfixiarse o estrangularse.
INFORMACIÓN BÁSICA
Este asiento de seguridad cumple o excede todos los requisitos requeridos por la Norma Federal 213 de Seguridad de Automóviles para uso en automóviles y aeronaves.
Sujete siempre el asiento de seguridad con el sistema LATCH o el cinturón de seguridad del vehículo, incluso cuando esté desocupado. Al detenerse de repente, Si el asiento de seguridad no está sujeto puede causar lesiones a los pasajeros.
Proteja el asiento del vehículo. Use una alfombrilla, una toalla o una manta fina debajo y detrás del asiento de seguridad.
Las piezas del asiento de seguridad se pueden calentar mucho bajo el sol o cuando hace calor.
Para evitar quemaduras, compruebe siempre la temperatura del asiento antes de sentar a los niños.
4
No use el asiento de seguridad en los asientos del vehículo orientados hacia atrás o hacia un lado.
Certificación
Asiento de seguridad desocupado
DEJE de usar el asiento para automóvil y deséchelo después de la fecha MOLDEADA en la parte posteriora del asiento para automóvil.
Busque:
No use este asiento de seguridad después de
diciembre del
año
Vida útil del asiento de seguridad
Asientos peligrosos del vehículo
Protección del asiento del vehículo
Cuando hace calor
NO ponga este sistema
de seguridad para niños en un asiento del vehículo que tenga instalado una bolsa de aire delantera. Si la bolsa de aire se infla, puede golpear al niño y al sistema de seguridad para niños con mucha fuerza y causar lesiones serias o la muerte de su niño.Consulte el manual del dueño del vehículo para obtener información sobre las bolsas de aire laterales y la instalación del sistema de seguridad para niños.
ADVERTENCIA
5
Puntos de
anclaje
superior del
vehículo
Puntos de anclaje
inferior del
vehículo
Pliegue del asiento del
vehículo
Asiento típico en un vehículo de pasajeros. Otros tipos de vehículos pueden tener otras ubicaciones para el sistema LATCH.
Las Normas Federales para Seguridad de Automóviles de Estados Unidos han determinado un nuevo sistema de instalación de asientos de seguridad en los vehículos. Este sistema se denomina LATCH, que son las siglas en inglés de:
Anclaje inferior y superior para niños
Sistema LATCH para vehículos:
El LATCH del vehículo consta de un punto de anclaje superior y dos puntos de anclaje inferiores.
Los manuales del propietario de algunos vehículos emplean el término ISOFIX para definir al nuevo sistema de anclaje para asientos de seguridad para autos. El asiento de seguridad con LATCH también puede usarse en asientos del vehículo equipados con ISOFIX.
Los vehículos nuevos suelen tener uno o varios asientos equipados con puntos de anclaje LATCH.
Si el vehículo viene equipado con LATCH, se pueden ver los puntos de anclaje inferiores en el pliegue del asiento del vehículo. Si no se ven, puede que estén marcados con un símbolo (Fig. a) o un punto de color. Vea el manual del propietario de su vehículo
para informarse sobre las ubicaciones exactas, la identificación de los anclajes y los requisitos para su uso con el asiento de seguridad.
Compruebe las ubicaciones del anclaje superior del vehículo en el manual del propietario del vehículo. Se pueden localizar por medio de los símbolos de anclaje (Fig. b o Fig. c).
(Fig. a)
(Fig. b)
(Fig. c)
¿QUÉ ES EL LATCH?
6
El sistema LATCH:
El LATCH consta de un cinturón de anclaje inferior permanente y una correa de anclaje superior (Fig. a).
Utilice con LATCH ÚNICAMENTE en el asiento recomendado por el fabricante del vehículo.
Puntos de
anclaje
inferiores
del vehículo
Cinturón de anclaje
inferior del asiento de
seguridad
(Fig. a)
SISTEMA LATCH
Punto de anclaje
superior del
vehículo
Anclaje
superior del
asiento de
seguridad
Gracias por ponerse en contacto con Graco.
LATCH se define como
anclajes de hasta 280 mm (11,02 pulgadas) en el centro. Como fabricante, no recomendamos el uso del sistema LATCH en la posición central si sobrepase esta longitud. Si cuenta con más preguntas sobre el uso del sistema LATCH, póngase en contacto con NHTSA al 1-800-326-4236 o www.nhtsa.dot.gov.
*
La American Academy of Pediatrics recomienda que los niños tengan un año de edad como mínimo para poder sentarse orientados hacia delante.
LÍMITES DE ALTURA Y PESO
Un niño prematuro o de bajo peso de nacimiento corre peligro en un vehículo o aeronave.
Según la American Academy of Pediatrics (Academia de Pediatría de los Estados Unidos), estos niños podrían sufrir dificultades de respiración si son recostados de forma incorrecta en un asiento de seguridad.
Graco aconseja que pida a su médico o al personal del hospital que examinen a su niño y que le recomienden un asiento o cama para auto adecuado antes de que usted y su niño salgan del hospital.
7
Niños prematuros o de bajo
peso de nacimiento
Cuando el asiento de seguridad
se les queda chico a los niños
Prevenga lesiones graves o la muerte:
• La parte superior de las orejas del niño debe quedar por debajo del borde superior del asiento.
• Los hombros del niño NO DEBEN quedar por encima de la ranura superior del arnés.
ADVERTENCIA
Orientado hacia atrás: 5 a 30 libras (13,6 kg)
• Niños que pesan menos que 20 libras (9 kg) DEBEN sentarse orientados hacia atrás.
• Niños de 20 y 30 libras de peso (9,0 y 13,6 kg) pueden sentarse orientados hacia atrás.
Orientados hacia delante: de 20 a 40 libras (de 9 a 18 kg)
• Los niños de 20 a 30 libras (de 9 a 13,6 kg) que son capaces de sentarse por sí mismos pueden sentarse orientados hacia delante
*
. Si no se pueden sentar por sí solos, ajuste el asiento de seguridad orientado hacia atrás.
• Los niños de 30 a 40 libras (de 13,6 a 18 kg) y hasta 40 pulgadas (101,6 cm) de altura DEBEN sentarse orientados hacia delante.
IMPORTANTE: Este asiento de seguridad para autos cuenta con la certificación para utilizarlo
orientados hacia atrás con niños de hasta
30 libras de peso (13,6 kg). Sin embargo, es probable que algunos niños que se acercan a las 30 libras (13,6 kg) resulten ser demasiado altos para viajar cómodos
orientados hacia atrás. Cuando ya no se pueda
acomodar al niño fácilmente y tenga que doblar las rodillas, se debe ajustar su asiento de seguridad orientado hacia delante, solamente si pesa más de 20 libras (9 kg) y es capaz de sentarse por sí mismo *
Orientado hacia
delante
Orientado hacia atrás
40 libras
(18 kg)
5 libras
(2.2 kg)
30 libras
(13.6 kg)
20 libras
(9 kg)
El cinturón LATCH debe pasar por la apertura del asiento de seguridad destinada al modo de orientación trasera. (vea la página 23, fig. k).
El cinturón debe mantenerse en posición plana sin torcerse.
Coloque el asiento de seguridad en posición
reclinada (vea las páginas 18 y 19, fig. b) y
orientado hacia atrás en el asiento del
vehículo equipado con anclajes LATCH.
Para facilitar la instalación, extienda el cinturón
LATCH hasta el máximo.
Enganche los conectores a los anclajes inferiores del vehículo (fig. a). Jale los conectores para asegurarse que están bien sujetos a los puntos de anclaje. (fig. b).
Presione fuertemente en el centro del asiento de seguridad para comprimir el cojín del asiento del vehículo al tiempo que aprieta el cinturón
LATCH jalando la correa (fig. c).
Jálela de atrás hacia delante y de izquierda a derecha para asegurarse de que está perfectamente instalado (fig. d).
INSTALACIÓN ORIENTADA HACIA ATRÁS CON LATCH
1
3
4
5
2
8
Asegúrese de que el cinturón de anclaje inferior se mantiene apretado y no se suelta de la posición de apretado. De no mantenerse apretado, colóquelo en otro asiento o póngase en contacto con Servicio al Cliente (vea la contraportada).
Compruebe el indicador de nivel del asiento de seguridad.
El vehículo debe estar en una superficie plana con el niño dentro del asiento de seguridad al comprobar el indicador de nivel.
El indicador DEBE quedar completamente dentro de la zona verde (fig. e). Si es necesario, coloque toallas enrolladas debajo del asiento, exactamente en el pliegue del asiento del vehículo, hasta que quede completamente dentro de la zona verde. Vuelva a comprobar el indicador de nivel.
NO use el anclaje superior con el asiento de seguridad orientado hacia atrás. Se debe almacenar el anclaje superior (vea "Almacenaje del anclaje" en la página 32).
Compruebe periódicamente si el asiento de seguridad está perfectamente instalado y correctamente nivelado y ajústelo si es necesario.
6
7
(fig. b)
(fig. c)
Aperturas
Toallas
9
INSTALACIÓN ORIENTADA HACIA ATRÁS CON LATCH
(fig. a)
LAPC0110A
(fig. e)
(fig. d)
Anclaje
LATCH
El cinturón LATCH debe pasar por la apertura del asiento de seguridad destinada al modo de orientación delantera (vea la página 23, fig. l).
El cinturón debe quedar plano y no torcido.
Ajuste el asiento de seguridad a la posición vertical (vea las páginas 18 y 19, fig. b) y colóquelo orientado hacia delante en el asiento del vehículo equipado con anclajes
LATCH.
Para facilitar la instalación, extienda el cinturón
LATCH hasta el máximo.
Enganche los conectores a los anclajes inferiores del vehículo (fig. a). Jale los conectores para asegurarse de que están bien conectados a los puntos de anclaje (fig. b).
Presione fuertemente en el centro del asiento de seguridad para comprimir el cojín del asiento del vehículo al el cinturón LATCH jalando la correa (fig. c). Oprima el centro del asiento de seguridad con la rodilla (fig. c).
INSTALACIÓN ORIENTADA HACIA DELANTE CON LATCH
1
3
4
5
2
10
Jálela de atrás hacia delante y de izquierda a derecha para asegurarse de que está perfectamente instalado (fig. d).
Asegúrese de que el cinturón de anclaje inferior se mantiene apretado y no se suelta de la posición de apretado. De no mantenerse apretado, colóquelo en otro asiento o póngase en contacto con Servicio al Cliente (vea la contraportada).
Conecte el gancho de la correa de anclaje (A) al anclaje (B) y apriételo del todo (fig. e).
Compruebe periódicamente si el asiento de seguridad está perfectamente instalado y ajústelo si es necesario.
6
7
Aperturas
(fig. b)
(fig. c)
11
INSTALACIÓN ORIENTADA HACIA DELANTE CON LATCH
(fig. a)
(fig. e)
(fig. d)
(B)
(A)
Jale para
apretar
Anclaje
LATCH
Jálela de atrás hacia delante y de izquierda a derecha para asegurarse de que está perfectamente instalado (fig. b). El cinturón de regazo del vehículo DEBE mantenerse apretado.
Si no queda bien sujeto, vea "Cinturones de seguridad del vehículo" en la página 26.
Compruebe el indicador de nivel del asiento de seguridad.
El vehículo debe estar en una superficie plana con el niño dentro del asiento al comprobar el indicador de nivel.
El indicador DEBE quedar completamente dentro de la zona verde (fig. c). Si es necesario, coloque toallas enrolladas debajo del asiento, en el pliegue del asiento del vehículo, hasta que quede completamente dentro de la zona verde. Vuelva a comprobar el indicador de nivel.
NO use el anclaje superior con el asiento de seguridad orientado hacia atrás. Se debe almacenar el anclaje superior (vea "Almacenaje del anclaje" en la página 32).
Compruebe periódicamente si el asiento de seguridad está perfectamente instalado y correctamente nivelado y ajústelo si es necesario.
Almacene el cinturón LATCH vea la página 25, fig. q.
Coloque el asiento de seguridad en posición reclinada (vea las páginas 18 y 19, fig. b) y
orientada hacia atrás en el asiento del vehículo.
Pase el cinturón de seguridad del vehículo por las aperturas y abróchelo.
Presione fuertemente en el centro del asiento de seguridad para comprimir el cojín del asiento del vehículo al tiempo que aprieta el cinturón de seguridad del vehículo (fig. a).
INSTALACIÓN DE ORIENTACION TRASERA CON LOS CINTURONES DE SEGURIDAD DEL VEHÍCULO
1
3
4
5
2
12
ADVERTENCIA
6
El cinturón LATCH DEBE almacenarse cuando se utilice el cinturón de seguridad del vehículo para instalar el asiento de seguridad.
Aperturas
Toallas
13
(fig. a) (fig. b)
Anclaje
LATCH (Guardado)
INSTALACIÓN DE ORIENTACION TRASERA CON LOS CINTURONES DE SEGURIDAD DEL VEHÍCULO
Instalación con cinturón
de seguridad para la
cintura solamente
Instalación con cinturón de
seguridad para la cintura / hombro
LAPC0110A
(fig. c)
Presione fuertemente en el centro del asiento de seguridad para comprimir el cojín del asiento del vehículo al tiempo que aprieta el cinturón de seguridad del vehículo.
Oprima el centro del asiento de seguridad con la rodilla (fig. b).
Jálela de atrás hacia delante y de izquierda a derecha para asegurarse de que está perfectamente instalado (fig. c). El cinturón de regazo del vehículo DEBE mantenerse apretado.
Si no queda bien sujeto, vea "Cinturones de seguridad del vehículo" en la página 26.
Conecte el gancho de la correa de anclaje (A) al anclaje (B) y apriételo del todo (fig. d) . Si el vehículo no cuenta con puntos de anclaje para conectar el gancho, debe almacenarlo; vea "Almacenaje del anclaje" en la página 32.
Compruebe periódicamente si el asiento de seguridad está perfectamente instalado y ajústelo si es necesario.
Almacene el cinturón LATCH vea la página 25, fig. r.
Ajuste el asiento de seguridad a la posición vertical (vea las páginas 18 y 19, fig. b) y colóquelo orientado hacia delante en el asiento del vehículo.
Levante la lengüeta en la almohadilla del asiento (disponible en algunos modelos). Pase el cinturón de seguridad del vehículo por las aperturas. Abroche el cinturón (fig. a).
INSTALACIÓN ORIENTADA HACIA DELANTE CON
LOS CINTURONES DE SEGURIDAD DEL VEHÍCULO
1
2
3
4
14
ADVERTENCIA
5
6
El cinturón LATCH DEBE almacenarse cuando se use el cinturón de seguridad del vehículo para instalar el asiento de seguridad.
(fig. a)
(fig. b) (fig. c)
Aperturas
Soporte
15
(fig. d)
(B)
(A)
Jale para
apretar
LATCH (Guardado)
Anclaje
INSTALACIÓN ORIENTADA HACIA DELANTE CON
LOS CINTURONES DE SEGURIDAD DEL VEHÍCULO
Instalación con cinturón
de seguridad para la
cintura solamente
Instalación con cinturón de
seguridad para la cintura / hombro
Compruebe el sistema del arnés:
Orientado hacia atrás - 5 a 30 libras
(2.2 a 13.6 kg) Las correas del arnés deben
pasar por las ranuras inferiores o medianas a nivel o por debajo de los hombros.
Orientado hacia delante - 20 a 30 libras
(9 a 13.6 kg) y tienen por lo menos un año de edad. Las correas del arnés deben
pasar por las ranuras medianas o superiores a nivel o por encima de los hombros.
Orientado hacia delante - 30 a 40 libras
(13.6 a 18 kg) Las correas del arnés DEBE
pasar por las superiores. NO use las ranuras medianas para niños de peso superior a 30 libras (13.6 kg).
Coloque al niño en el asiento de seguridad con la espalda apoyada contra el respaldo del asiento.
Coloque las correas del arnés por encima de los hombros del niño e inserte la(s) lengüeta(s) en la hebilla.
Jale la(s) lengüeta(s) para asegurarse de que están bien sujeta(s).
Abroche el cierre del arnés: Coloque el cierre del arnés a nivel de las axilas.
Ajuste las correas del arnés para que estén apretadas. Una correa tensa no deberá estar floja. Se mantiene en una línea recta sin doblarse. No aprieta la carne del niño ni empuja el cuerpo del niño en una posición que no sea natural. (fig. a).
Compruebe si las correas del arnés en el pecho y los muslos están bien ajustadas.
Se puede usar una toalla enrollada en cada lado como soporte para los niños pequeños (fig. b). Asegúrese de que las toallas no interfieren en el sistema del arnés. NO se deben colocar toallas debajo del niño.
1 2
3
4
5
16
COLOCAR AL NIÑO EN EL ASIENTO DE SEGURIDAD
ADVERTENCIA
Para prevenir lesiones graves o la muerte:
• Mantenga las correas del arnés bien apretadas y colocadas en los hombros con el cierre del arnés abrochado al nivel de las axilas. Ajuste las correas del arnés para que estén apretadas.
• No ponga almohadillas, mantas ni cojines debajo de las correas o del niño, a menos que sean proporcionados por Graco.
• El niño debe llevar ropa que no estorbe al abrochar el arnés.
La lengüeta del arnés debe pasar por la apertura más cercana pero no por la de debajo del niño.
Modelos con barra protectora solamente:
Modelos de 5 puntos solamente:
La correa de la entrepierna debe pasar por la apertura más cercana pero no por la de debajo del niño.
17
(fig. a) (fig. b)
COLOCAR AL NIÑO EN EL ASIENTO DE SEGURIDAD
2
3
3
Modelos de
5 puntos
Modelos con barra protectora
2
4
4
OPERACIONES Y AJUSTES
18
Posiciones reclinada / vertical (fig. b):
Orientado hacia atrás -
SE DEBE usar la posición reclinada.
Orientado hacia delante -
SE DEBE usar la posición vertical.
Posición vertical: Gire el soporte hacia fuera y
empújelo dentro del asiento (fig. b).
Posición reclinada: Saque el soporte y gírelo para
meterlo dentro del asiento.
Las correas del arnés DEBEN quedar sueltas. Asegúrese de que las correas del arnés no quedan enganchadas en el soporte.
Ajuste de la correa de entrepierna
de 5 puntos (fig. c)
• Desde la parte inferior del asiento de seguridad, saque el clip de la correa de la entrepierna y quítelo del bucle de la correa.
• Desde la parte superior del asiento, saque la correa de la entrepierna y pásela por la ranura deseada. Asegúrese de que el botón rojo queda orientado hacia el lado opuesto al niño.
• Desde la parte inferior del asiento, vuelva a unir el clip al bucle de la correa de la entrepierna exactamente como se indica.
Ajustar la barra protectora (fig. d):
• Para ajustar: Oprima el botón y coloque la barra en la posición deseada más cercana al niño. Suelte el botón para cerrar la barra en una de las múltiples posiciones.
NOTA: La barra no tiene que tocar al niño en la posición
más cercana; el sistema del arnés sujetará al niño.
Correas del arnés (fig. a):
• Para apretar: Jale la lengüeta del cinturón.
• Para soltar: Jale la lengüeta superior del cinturón y sosténgala al tiempo que jala las correas de los hombros.
Cierre del arnés:
• Para abrir: Oprima los lengüetas y sepárela.
• Para abrochar: Junte las dos mitades. Asegúrese que el cierre del arnés está abrochado, jalando cada mitad.
Hebilla:
DEBE pasar por la apertura más cercana pero no por la de debajo del niño.
Modelos de 5 puntos
• Para abrochar: Inserte ambas lengüetas en la hebilla. Jale las lengüetas para asegurarse de que están cerradas.
• Para desabrochar: Oprima el botón rojo y jale las lengüetas de la hebilla.
Modelos con barra protectora
• Para abrochar: Introduzca la lengüeta en la apertura. Jale la lengüeta para asegurarse de que está cerrada.
• Para desabrochar: Oprima el botón rojo, saque la lengüeta de la apertura y levante la barra por encima de la parte superior del asiento.
1
2
4
3
5
6
19
Modelos de
5 puntos
(fig. a)
(fig. d)
Modelos con barra protectora
(fig. b)
(fig. c)
Vertical
Reclinada
OPERACIONES Y AJUSTES
Clip
1
2
3
4
1
2
3
4
Lengüeta
superior
(para
soltar)
Lengüeta
inferior
(para apretar)
20
Cambiar las ranuras de las correas del arnés:
A Suelte las correas del arnés:
Jale la lengüeta superior del cinturón y sosténgala al tiempo que jala las correas de los hombros.
B Quite ambos bucles de las correas de los
hombros de la placa de unión de la parte trasera del asiento.
C Cambie las ranuras de las correas del arnés.
Asegúrese que las correas del arnés pasan por las ranuras correspondientes de la almohadilla del asiento y del asiento de seguridad.
Puede resultar necesario quitar la almohadilla de la parte superior del asiento al realizar el cambio.
Modelos de 5 puntos (fig. e):
• Para bebés o niños pequeños:
Primero coloque el bucle de la correa derecha superior en la placa de unión, y después coloque el bucle de la correa izquierda superior.
NOTA: Asegúrese de que los extremos de las
correas quedan detrás de la placa de unión.
• Para niños más grandes:
Primero coloque el bucle de la correa derecha inferior en la placa de unión, y después coloque el bucle de la correa izquierda inferior.
Modelos con barra protectora (fig. f):
Primero coloque el bucle de la correa derecha en la placa de unión, y después coloque el bucle de la correa izquierda.
NOTA:
• Asegúrese que los bucles de ambas correas quedan bien sujetos dentro del gancho de la placa de unión.
• Asegúrese que las correas NO están torcidas y pasan detrás del soporte (fig. g).
7
OPERACIONES Y AJUSTES
D Vuelva a conectar los bucles de las correas
del arnés a la placa de unión:
21
Modelos de
5 puntos
Modelos con barra protectora
(fig. e)
(fig. f)
Bucle
inferior
Bucle
Placa de unión
Bucle
superior
OPERACIONES Y AJUSTES
(fig. g)
Soporte
Colocación del cinturón LATCH:
El cinturón LATCH DEBE pasar por las aperturas adecuadas según la orientación del asiento.
A Quite la almohadilla de la parte delantera
del asiento, sacando los clips de dos botones en el borde delantero inferior del asiento (fig. h) y la traba de 2 botones del centro del asiento.
Al quitar la almohadilla, se verá el cinturón
LATCH giratorio. (fig. i)
B Gire el cinturón LATCH para que pase por
las aperturas correctas (Pág. 23 fig. k y fig. l). Los cinturones deben estar planos y
tensos contra el sistema de seguridad para niños ANTES de reemplazar las tres almohadillas del asiento con trabas de 2 botones.(fig. j) El cinturón del LATCH no debe interferir con el arnés.
C Vuelva a colocar la almohadilla en el
asiento, apretando los clips de dos botones para colocarlos en su lugar. No deje que las trabas de 2 botones interfieran con el cinturón LATCH o el cinturón del asiento del vehículo.
22
8
OPERACIONES Y AJUSTES
(fig. h)
(fig. i)
Cinturón LATCH
giratorio (debajo
de la almohadilla
del asiento)
(fig. j)
El cinturón debe
estar plano y tenso
(fig. l)
(fig. k)
Aperturas orientado hacia atrás
Aperturas orientado hacia delante
OPERACIONES Y AJUSTES
23
Pase el cinturón LATCH por las aperturas de
orientación hacia atrás para:
usar el sistema LATCH orientado hacia atrás.
o
Almacenaje LATCH con el uso del cinturón de
seguridad del vehículo orientado hacia
delante. Pág. 25, fig q.
Pase el cinturón LATCH por las aperturas de
orientación hacia delante para:
usar el sistema LATCH orientado hacia delante.
o
Almacenaje LATCH con el uso del cinturón de
seguridad del vehículo orientado hacia atrás. Pág. 25, fig. r.
Todos los cinturones deben estar planos y la hebilla de ajuste debe mirar hacia adelante para facilitar el ajuste.
24
OPERACIONES Y AJUSTES
Retirar el LATCH de los puntos de anclaje
del vehículo:
A Incline la lengüeta metálica del dispositivo
de ajuste para soltar la tensión (fig. m). Oprima el asiento, comprimiendo el
cojín del asiento del vehículo para reducir la tensión del cinturón de anclaje inferior.
B Oprima y sujete la bisagra LATCH.
(bisagra inferior) (fig. n).
C Empuje el conector hacia dentro, levante el
conector y jálelo (en el sentido opuesto al punto de anclaje) (fig. o).
Repita los pasos A, B y C para el otro conector.
9
(fig. o)
(fig. n)
(fig. m)
25
OPERACIONES Y AJUSTES
Almacenaje LATCH:
• Ubique las barras de almacenaje LATCH debajo la almohadilla del asiento en el lado del asiento de seguridad infantil (fig. p).
• Abroche el sistema LATCH en la barra de almacenaje como se indica. (fig. q o r)
Repita para el otro lado del asiento.
10
(fig. r)
(fig. p)
Barra de almacenaje
LATCH
(fig. q)
26
CINTURONES DE SEGURIDAD DEL VEHÍCULO
Para lograr la instalación del asiento de seguridad más segura:
• Lea la sección del manual del propietario del vehículo referente a la instalación de los asientos de seguridad y el uso de los cinturones de seguridad con los asientos.
• Siga las instrucciones de todas las etiquetas del cinturón de seguridad del vehículo y del asiento de seguridad.
Si el asiento no queda bien sujeto después de seguir las instrucciones de este manual, de las etiquetas de los cinturones de seguridad del vehículo y del manual del propietario del vehículo:
• Coloque el asiento de seguridad en otro asiento diferente e inténtelo de nuevo, o
• Póngase en contacto con el concesionario del vehículo para que le proporcionen piezas de modificación de los cinturones de seguridad que posiblemente necesite.
ADVERTENCIA
No se pueden usar todos los cinturones de seguridad de vehículos con los asientos de seguridad Durante el manejo, sujete siempre el asiento con el cinturón de seguridad de regazo o con una parte del cinturón de regazo/hombro que no cambie de longitud.
Los cinturones de seguridad del vehículo ubicados delante del pliegue en el asiento quizá no sujeten bien el asiento. Consulte el manual del propietario del vehículo o visite el concesionario del vehículo para informarse sobre los requisitos de instalación de los asientos.
• Si queda aprobado para utilizarlo con el asiento, instálelo y compruebe si está perfectamente instalado jalando el asiento de atrás hacia delante. Si el asiento se desplaza hacia delante, NO use estos cinturones de seguridad.
Pliegue del
asiento
Pliegue del
asiento
Cinturones ubicados delante del pliegue del asiento
CINTURONES DE SEGURIDAD DEL VEHÍCULO
27
28
Los cinturones de regazo con retractor pueden o no sujetar el asiento firmemente.
Siga estos pasos para determinar si su sistema de retractor que sujeta el asiento firmemente :
a. Saque el cinturón de seguridad del todo. b. Deje que el cinturón se retraiga aproximadamente
6 pulgadas (15 cm).
c. Saque el cinturón de nuevo.
Si el cinturón se cierra a tope y no puede jalarlo más, usted dispone de un retractor de cierre automático que se puede usar con el asiento. Recuerde, cuando instale el asiento, saque el cinturón del todo, abróchelo y luego, apriételo.
Si puede sacar el cinturón de nuevo (paso c arriba), tiene un retractor de cierre para emergencias que NO SE DEBE usar con el asiento.
La placa de cierre en algunos cinturones de seguridad se puede deslizar y soltar tras abrocharla al asiento en ciertos ángulos. En este caso, dé la vuelta a la placa de cierre (fig. a) y vuelva a abrocharla. Compruebe la instalación de nuevo para ver si funciona. Si no funciona, coloque el asiento de seguridad en otra posición diferente.
(fig. a)
Retractor
Cinturones de regazo -
ajustables manualmente
Cinturones de regazo -
con retractor
Déle la vuelta
CINTURONES DE SEGURIDAD DEL VEHÍCULO
NO SE DEBE usar con ningún asiento.
NO SE DEBE usar con ningún asiento.
Los cinturones no se mantendrán apretados durante el manejo del auto.
Cinturón pasivo - cinturón de regazo y hombro montado en la puerta
CINTURONES DE SEGURIDAD DEL VEHÍCULO
29
Cinturón pasivo - cinturón de regazo con cinturón de hombro motorizado
30
Jale la placa de cierre (fig. a). Si el cinturón se desliza fácilmente por la placa de cierre, SE DEBE utilizar un clip de cierre (vea la sección "Clip de cierre" en la página 31).
Algunos cinturones combinados de regazo / hombro con placas de cierre deslizantes se pueden convertir al "modo de cierre automático" que permitirá utilizarlos sin clip de cierre. Consulte el manual del propietario del vehículo y lea la etiqueta ubicada en los cinturones para ver las instrucciones.
(fig. a)
Cinturón combinado de regazo / hombro con placa de cierre deslizante
Cinturón combinado de regazo / hombro con una placa de cierre fija
La placa de cierre fija de algunos cinturones de seguridad se puede deslizar y soltar tras abrocharla al asiento en ciertos ángulos. En este caso, dé la vuelta a la placa de cierre (fig. b) y vuelva a abrocharla. Compruebe la instalación de nuevo para ver si funciona. Si no funciona, coloque el asiento en otra posición diferente.
Jale
CINTURONES DE SEGURIDAD DEL VEHÍCULO
(fig. b)
Déle la vuelta
1/2 pulgada
(1 cm)
(fig. a)
CINTURONES DE SEGURIDAD DEL VEHÍCULO
ADVERTENCIA
Clip de cierre
Compruebe la instalación para ver si el asiento ha quedado bien sujeto.
Si no ha quedado bien sujeto, quizá sea necesario apretar más el cinturón:
• Desabroche el cinturón de seguridad del vehículo.
• Sujete los cinturones y quite el clip de cierre.
• Acorte la longitud de la parte del cinturón del regazo, jalándolo por la placa de cierre.
• Vuelva a colocar el clip de cierre.
• Abroche el cinturón de seguridad del vehículo.
Oprima el asiento en el cojín del asiento del vehículo para poder abrochar el cinturón de seguridad del vehículo.
Compruebe la instalación para ver si el asiento ha quedado bien sujeto. Si no, repita los pasos anteriores hasta que quede bien sujeto.
SE DEBE usar el clip de cierre que se incluye con el asiento con el cinturón de seguridad del vehículo que se desliza fácilmente por la placa de cierre o cuando el cinturón de regazo no se pueda mantener bien sujeto.
Instale el asiento y apriete el cinturón de seguridad del vehículo.
Sujete los cinturones de seguridad en la placa de cierre (fig. a) y desabróchelos.
Deslice el clip de cierre en el cinturón de seguridad aproximadamente 1/2 pulgada (1 cm) en sentido opuesto a la placa de cierre.
Vuelva a abrochar el cinturón de seguridad.
1
2 3
4
5
31
Evite lesiones graves o la muerte:
• No usar el clip de cierre cuando se requiere impide que el asiento quede bien sujeto.
• Quite el clip de cierre de los cinturones de seguridad cuando no lo utilice con el asiento.
• NO use el clip de cierre para acortar la longitud del cinturón de seguridad.
32
INFORMACIÓN ADICIONAL
NO conecte la correa de anclaje superior al vehículo al utilizar el asiento orientado hacia atrás.
El gancho del anclaje debe conectarse cuando el asiento se usa en orientación trasera o si el vehículo no viene equipado con los anclajes correspondientes.
Para almacenar el gancho del anclaje:
• Conecte el gancho del anclaje a la parte
trasera del asiento como se indica.
• Jale el extremo suelto de la correa para
apretarla.
• Enrolle el extremo suelto de la correa y
sujétela con una goma.
Almacenaje del anclaje
Parte trasera del asiento de seguridad
Gancho del anclaje
33
Disponible en algunos modelos:
• Ubique la ranura en el reposabrazos DEBAJO de la almohadilla del reposabrazos en uno o otros lados del asiento para el automóvil.
• Trabe el portabebidas en la ranura en el lado de asiento.
INFORMACIÓN ADICIONAL
Pestaña
Para quitar el portabebidas:
• Invierta los pasos anteriores.
Portabebidas
1
1
2
2
34
El cojín del cuerpo
(Disponible en algunos modelos)
Empuje la parte de arriba del cojín del cuerpo entre las correas del arnés y póngalo en el asiento exactamente como se indica.
Para prevenir la eyección en un
accidente o parada repentina:
• Asegúrese de que el sistema del arnés esté asegurado correctamente y las correas del hombro pasen a través de las ranuras y estén debidamente colocadas sobre los hombros.
• Nunca permita que la almohada interfiera con el sistema del arnés del cinturón del vehículo.
• No permita que la almohada se apretu­je debajo o atrás del cuerpo del niño.
• Este producto ha sido diseñado SOLA­MENTE para los asientos de automóviles convertibles Graco ComfortSport.
ADVERTENCIA
INFORMACIÓN ADICIONAL
35
Retirar la almohadilla (todos los modelos):
Retire los dos bucles de las correas del arnés de la placa de unión de la parte trasera del asiento y páselos por la parte delantera de la almohadilla. (vea las páginas 20 y 21, fig. f) Desabroche el cierre del arnés, retire las lengüetas de la hebilla.
Desenganche los ganchos en forma de "J" del armazón del asiento.
Saque tres clips de dos botones del borde delantero inferior del armazón del asiento y del centro de la parte interior del armazón del asiento.
Retirar la almohadilla de la barra protectora:
Saque ambos clips de dos botones de la barra y retire la almohadilla de alrededor de la barra.
Siga los pasos anteriores en orden inverso para reemplazar la almohadilla del asiento, la almohadilla de la barra y el sistema del arnés.
Cuidado y limpieza
INFORMACIÓN ADICIONAL
1
2
3
1
1
2
3
36
INFORMACIÓN ADICIONAL
Las almohadillas del asiento y de la
barra protectora:
Saque las dos trabas de 2 botones de plástico. Se lavan a máquina por separado en el ciclo delicado y se secan al aire.
Correas del arnés y del sistema LATCH:
Se lava la superficie solamente con un jabón suave y un paño mojado.
Si las correas del arnés están deshilachadas o muy sucias, DEBEN reemplazarse.
Armazón y apoyavasos de la barra protectora:
Se limpian con una solución de jabón suave y agua. Evite mojar las etiquetas.
Nunca use "detergentes domésticos": pueden dañar el plástico.
Hebilla:
Enjuague la hebilla con agua caliente. NO use detergentes domésticos. Nunca lubrique la hebilla.
Prevenga lesiones graves o la muerte:
• La hebilla debe abrocharse correctamente.
• Inspeccione y limpie la hebilla periódicamente para quitar objetos o desechos que podrían impedir la sujeción.
ADVERTENCIA
Graco Children's Products Inc. desaconseja prestar o regalar el asiento.
Este asiento ha sido certificado para uso en aeronaves (vea la etiqueta del asiento). Póngase en contacto con las aerolíneas para obtener información sobre su política.
Utilice este asiento solamente en asientos de aeronaves orientados hacia delante.
Instale el asiento en la aeronave de la misma manera que se instala en un vehículo, cuando se usa el cinturón de seguridad del vehículo.
Uso en aeronaves
Asiento de seguridad para autos de segunda mano
NOTAS
37
38
LISTA DE PIEZAS
NOTA: Los precios quedan sujetos a cambios.
Cómo efectuar pedidos:
Complete el formulario en la siguiente página. Se DEBEN incluir los números de modelo y de fabricacion de su asiento de seguridad infantil en el formulario para garantizar los repuestos correctos. El número de su modelo se encuentra en la etiqueta de la parte inferior de su asiento de seguridad infantil.
El pedido debe ir acompañado del pago correspondiente.
Las piezas también se pueden pedir desde el sitio Web de Graco en www.gracobaby.com.
Almohadilla de tela del asiento (todos los modelos) ............................35.00
Almohadilla de tela para la barra (barra protectora) .......................... $10.00
Correa del arnés (5 puntos) ................................................................ $5.00
Correa del arnés (barra protectora) ..................................................... $5.00
Hebilla, correa de la entrepierna y lengüetas (5 puntos) .................... $10.00
Cierre del arnés de 2 piezas (todos los modelos) .................................$5.00
Clip de cierre (todos los modelos)........................................................ $5.00
Cinturón LATCH................................................................................ $20.00
Sistema de anclaje superior................................................................ $10.00
Clip de retención de dos botones para la barra protectora................... FREE
Clip de retención de dos botones para la almohadilla del asiento
(todos los modelos).......................................................................... FREE
Apoyacabezas y botones (todos los modelos)....................................... FREE
Manual de instrucciones (todos los modelos)........................................ FREE
Subtotal: Envío y manejo *: $5.00 Impuestos sobre la venta **: Total:
* $15.00 fuera de EE.UU. continental **CA 7.25%, IL 6.25%, IN 5%, NY
8.25%, OH 5.75%, PA 6%, SC 5%
N° de modelo Fabricado en
(Se requieren ambos números)
Se adjunta cheque o giro postal
(a nombre de Graco Children's Products Inc.)
Cóbrese a la tarjeta de crédito Visa MasterCard Discover
N° de cuenta Fecha de vencimiento
Firma
ENVÍE A:
Nombre
Dirección
Cuidad, Estado, Código postal
Teléfono (incluido código de área)
Dirección E-mail
ENVÍE EL PEDIDO A:
GRACO CHILDREN’S PRODUCTS, INC.
150 Oaklands Blvd.
Exton, PA 19341
ATENCIÓN: DEPARTAMENTO
DE SERVICIO AL CLIENTE
O
ENVÍE EL PEDIDO POR FAX AL:
(610) 884-8730
Almohadilla de tela del asiento (todos los modelos) .............$35.00
Almohadilla de tela para la barra (barra protectora) ............ $10.00
Correa del arnés (5 puntos) ................................................... $5.00
Correa del arnés (barra protectora) ....................................... $5.00
Hebilla, correa de la entrepierna y lengüetas (5 puntos) ...... $10.00
Cierre del arnés de 2 piezas (todos los modelos)....................$5.00
Clip de cierre (todos los modelos).......................................... $5.00
Cinturón LATCH...................................................................$20.00
Sistema de anclaje superior................................................... $10.00
Clip de retención de dos botones para la barra protectora..... FREE
Clip de retención de dos botones para la almohadilla
del asiento (todos los modelos).......................................... FREE
Apoyacabezas y botones (todos los modelos)......................... FREE
Manual de instrucciones (todos los modelos).......................... FREE
Guarde el manual de instrucciones
detrás de estas lengüetas.
Guarde aquí el
clip de cierre.
Doble el manual de instrucciones.
1
Si falta alguna pieza o resulta dañada, o si necesita obtener
ayuda o pedir repuestos, NO
devuelva el asiento a la tienda.
LLÁMENOS PRIMERO
Llame a nuestra línea gratuita al 1-800-345-4109
desde cualquier lugar de EE.UU. o Canadá
o envíenos un fax al 1-610-884-8730.
o escríbanos a:
Graco Children’s Products
150 Oaklands Blvd.
Exton, PA 19341
Atención: Departamento de
Servicio al Cliente
2
Graco Children’s Products Inc.
Una división de Newell Rubbermaid
150 Oaklands Blvd.
Exton, PA 19341
Loading...
