Graco ISPA135AB User Manual

www.gracobaby.com
OWNER'S MANUAL
MANUEL D'UTILISATEUR
MANUAL DEL PROPIETARIO
©2005 Graco ISPA135AB 08/05
Failure to follow these warnings and the
assembly instructions could result in serious injury or death.
• PLEASE SAVE OWNER’S MANUAL FOR FUTURE USE.
• ADULT ASSEMBLY REQUIRED.
NEVER LEAVE child unattended. Always keep child in view while in stroller.
AVOID SERIOUS INJURY from falling or sliding out. Always use seat belt. After fastening buckles, adjust belts to get a snug fit around your child
AVOID FINGER ENTRAPMENT: Use care when folding and unfolding the stroller. Be certain the stroller is fully erected and latched before allowing your child near the stroller.
NEVER USE STROLLER ON STAIRS or escalators. You may suddenly lose control of the stroller or your child may fall out. Also, use extra care when going up or down a step or curb.
STROLLER TO BE USED only at walking speed. Product not intended for use while jogging, skating, etc.
USE OF THE STROLLER with a child weighing more than 40 lbs (18.1 kg) or taller than 43 in. (109 cm) will cause excessive wear and stress on the stroller. Use the stroller with only one child at a time.
TO PREVENT TIPPING, do not
place more than 3 lbs (1.4 kg) on the parent’s tray.
TO AVOID BURNS, never put
hot liquids in the parent’s tray.
TO PREVENT A HAZARDOUS, UNSTABLE CONDITION, never place purses, shopping bags, parcels or accessory items on the handle or canopy.
TO PREVENT A HAZARDOUS, UNSTABLE CONDITION, do not place more than 10 lbs (4.5 kg) in the storage basket and more than 2 lbs (0.9 kg) in the canopy pockets (on certain models).
DO NOT use storage basket as a child carrier.
DO NOT ALLOW your child to stand on the basket. It may collapse and cause injury.
NEVER PLACE child in the stroller with head toward front of stroller.
NEVER ALLOW YOUR STROLLER to be used as a toy.
DISCONTINUE USING YOUR STROLLER should it become damaged or broken.
2
AVOID STRANGULATION.
DO NOT place items with a string around your child’s neck, suspend strings from this product, or attach strings to toys.
CHILD MAY SLIP INTO LEG
OPENINGS AND STRANGLE.
Never use seat in a reclined carriage position unless enclosure is raised to cover the front opening. (See figure 34-36 Enclosure).
USING GRACO®INFANT CAR SEAT WITH STROLLER:
USE ONLY A GRACO
®
SNUGRIDE™OR INFANT SAFESEAT™CAR SEAT with this
travel system. (Not intended for use with AUTOBABY (Europe only) and ASSURA infant car seats.) Improper use of this stroller with other manufacturers’ car seats may result in serious injury or death.
READ THE MANUAL provided with your Graco carrier before using it with your stroller.
ALWAYS SECURE your child with the carrier harness when using the carrier in the stroller. If your child is already in the carrier, check that the child is secured with the harness.
3
Manquer de suivre ces avertissements et les instructions
d'assemblage peut entraîner de sérieuses blessures ou un décès.
VEUILLER GARDER LE MANUEL D’UTILISATEUR POUR USAGE ULTÉRIEUR.
• ASSEMBLAGE PAR UN ADULTE REQUIS.
NE LAISSEZ JAMAIS votre enfant sans surveillance. Ayez toujours l’enfant en vue.
ÉVITEZ DE SÉRIEUSES blessures. Utilisez toujours la ceinture de sécurité. Après avoir attaché les boucles, ajustez les ceintures pour obtenir un ajustement confortable autour de votre enfant.
EVITER DE COINÇER LES DOIGTS: Plier ou déplier la poussette avec soin. Soyez assuré(e) que la poussette est bien droite et que les loquets sont bien enclenchés avant de laisser votre enfant près de la poussette.
NE JAMAIS UTILISER LA
POUSSETTE SUR LES ESCALIERS ou les escaliers
roulants. L’enfant pourrait tomber ou vous pourriez perdre le contrôle de la poussette. Aussi, soyez très prudent lorsque vous montez et descendez une marche ou le bord du trottoir.
LA POUSSETTE DOIT ÊTRE UTILISÉE pour la marche seulement. Ce produit n’est pas conçu pour usage pendant la course à pied, pour patiner, etc.
L’USAGE DE LA POUSSETTE avec un enfant pesant plus de 40 livres (18,1 kg) ou mesure plus de 43 po (109 cm) occasionnera une usure et une tension excessive à la poussette. Utilisez la poussette avec seulement un enfant à la fois.
POUR NE PAS DÉSÉQUILIBRER LA POUSSETTE, NE PAS charger le plateau à plus de 3 livres (1,4 kg).
POUR ÉVITER LES BRÛLURES, ne jamais mettre de liquides brûlants dans le plateau pour parents.
POUR ÉVITER DES
CONDITIONS HASARDEUSES ET INSTABLE, ne jamais
placer de sacs à main, sacs à provisions ou accessoires sur le guidon ou le baldaquin.
POUR ÉVITER DES
CONDITIONS HASARDEUSES, ne placez
jamais plus de 10 livres (4,5 kg) dans le panier et 2 livres (0,9 kg) dans les pochettes de baldaquin (sur certain modèles).
4
NE PAS utiliser le panier
comme porte-bébé.
NE LAISSEZ PAS votre
enfant debout sur le panier. Il pourrait s’écrouler et causer des blessures.
NE JAMAIS PLACER l’enfant
dans la poussette avec la tête vers l’avant de la poussette.
NE JAMAIS UTILISER LA POUSSETTE comme un jouet.
CESSEZ L’USAGE DE VOTRE POUSSETTE si elle devient endommagée ou brisée.
ÉVITEZ D’ÉTRANGLEMENT. NE JAMAIS accrocher des objets avec ficelles autour du cou de votre enfant, suspendre des ficelles au-dessus de ce produit, ou attacher des jouets à des ficelles.
L'ENFANT PEUT GLISSER
DANS LES OUVERTURES DES ET S’ÉTRANGLER.
N'utilisez jamais en position complètement inclinée à moins que le enceinte qui se remonte (Voir l’illustration 34-36 Enceinte qui se remonte).
UTILISATION DU PORTE­BÉBÉ GRACO
®
AVEC LA
POUSSETTE :
UTILISER UNIQUEMENT UN PORTE-BÉBÉ SNUGRIDE OU SAFESEAT™DE GRACO
avec ce système de voyage. (Non conçu pour utiliser avec les dispositifs de retenue pour nourrisson AUTOBABY (Europe seulement) et ASSURA.) Ne pas se conformer à toutes les mises en garde et instructions de montage peut causer des blessures corporelles sérieuses ou même la mort.
LISEZ LE MANUEL d'utilisateur fournit avec votre porte-bébé Graco avant d'utiliser le porte-bébé avec votre poussette.
TOUJOURS ATTACHER votre enfant avec le harnais du porte-bébé quand vous utilisez le porte-bébé avec la poussette. Si votre enfant est déjà dans le porte-bébé, assurez-vous que l'enfant est attaché avec le harnais.
®
5
Si no se obedecen estas advertencias y se siguen las instrucciones
de montaje, podría resultar en lesiones graves o la muerte.
POR FAVOR, CONSERVELO EL MANUEL DEL PROPIETARIO PARA UTILIZARLO EN EL FUTURO.
• SE REQUIERE MONTAJE POR UN ADULTO.
NUNCA DEJE a su niño desatendido. Siempre tenga su niño a la vista.
EVITE UNA LESIÓN seria debido a una calda o resbalamiento del asiento. Use siempre el cinturón de seguridad. Luego de ajustar las hebillas, ajuste las correas para que queden ajustadas alrededor de su niño.
EVITE APRETARSE LOS DEDOS: Use cuidado cuando abre y cierra el cochecito. Asegúrese de que el cochecito esté totalmente montado y estable antes de que su niño esté se acerque al cochecito.
NUNCA USE EL COCHECITO EN LAS ESCALINATAS o las escaleras mecánicas. Usted puede perder súbitamente el control del cochecito, o su niño podrá caerse. Asimismo, tenga cuidado especial cuando suba o baje un escalón o la calzada.
EL COCHECITO DEBE SER USADO solamente a velocidad de caminar. El producto no está destinado para usarlo mientras está corriendo, patinando, etc.
SI USA EL COCHECITO para un niño que pese más de 40 libras (18,1 kg) o más alto que 43 pulgadas (109 cm) causará desgaste y tensión excesiva en el cochecito. Empléelo solamente con un niño a la vez.
PARA EVITAR VOLCAMIENTOS, no ponga mas de 3 libras (1,4 kg) sobre la bandeja.
EVITE QUEMADURAS, nunca ponga liquidos calientes sobre la bandeja para padres.
PARA PREVENIR UNA
SITUACIÓN PELIGROSA Y INESTABLE, nunca ponga
carteras, bolsas de compras o accesorios en la manija o capota.
NO DEJE QUE su niño se pare en la canasta. Puede desmoronarse y causar daño.
PARA PREVENIR UNA
SITUACIÓN PELIGROSA,
no coloque más de 10 libras (4,5 kg) en la canasta o 2 libras (0,9 kg) en los bolsillos de capota (en ciertos modelos).
6
NO use dicha canasta para
transportar el niño.
NUNCA COLOQUE el niño en
el cochecito con la cabeza en la delantera parte del cochecito.
NUNCA DEJE QUE EL COCHECITO sea usado como juguete.
PARE DE USAR EL COCHECITO si éste se daña o se quiebra.
EVITE LA ESTRANGULACIÓN. NO coloque artículos con cuerdas alrededor del cuello del niño, o suspenda cuerdas del producto, o coloque cordones en los juguetes.
EL NIÑO PUEDE DESLIZARSE
ENTRE LAS APERTURAS PARA LAS PIERNAS Y ESTRANGULARSE. Nunca lo
use en una posición reclinada a menos que el recinto esté en la posición vertical. (Vea la figura 34-36, Recinto).
USO DEL TRANSPORTADOR
PARA BEBÉ GRACO®CON EL COCHECITO:
USE SOLAMENTE UN TRANSPORTADOR SNUGRIDE™O SAFESEAT
DE GRACO®en este sistema
de viaje. (No debe usarse con AUTOBABY (Europa sola­mente) y asientos de automóvil para bebé ASSURA.) El uso inadecuado de este cochecito con asientos para automóvil de otros fabricantes podría resultar en lesiones serias o la muerte.
LEA EL MANUAL provisto con su transportador Graco antes de usarlo con su cochecito.
ASEGURE SIEMPRE asu bebé con el arnés del transportador cuando usa el transportador en el cochecito. Si su niño ya se encuentra en el transportador, verifique que el niño esté asegurado con el arnés.
7
Parts list • Liste des pièces
• Lista de las piezas
This model may not
include some
features shown
below. Check that
you have all the
parts for this model
BEFORE assembling
your product. If
any parts are
missing, call
Customer Service.
Ce modèle pourrait ne
pas inclure certaines
caractéristiques illustrée
ci-dessous. Vérifiez que
vous avez toutes les
pièces pour ce modéle
AVANT
d'assembler votre
produit. S'il vous manque
des pièces,
communiquez avec notre
indican a continuación.
todas las piezas de este
service à la clientèle.
Tools Required:
Hammer
Outils nécessaires:
Marteau
ALL MODELS • TOUS MODÈLES • TODOS MODELOS
Este modelo podría no
incluir algunas de las características que se
Verifique que tiene
modelo ANTES de
armar su producto. Si
falta alguna pieza,
llame al Departamento
de Servicio al Cliente.
Herramienta
necesaria:
Martillo
2X
GRACO
2X
GRACO
2X
2X
8

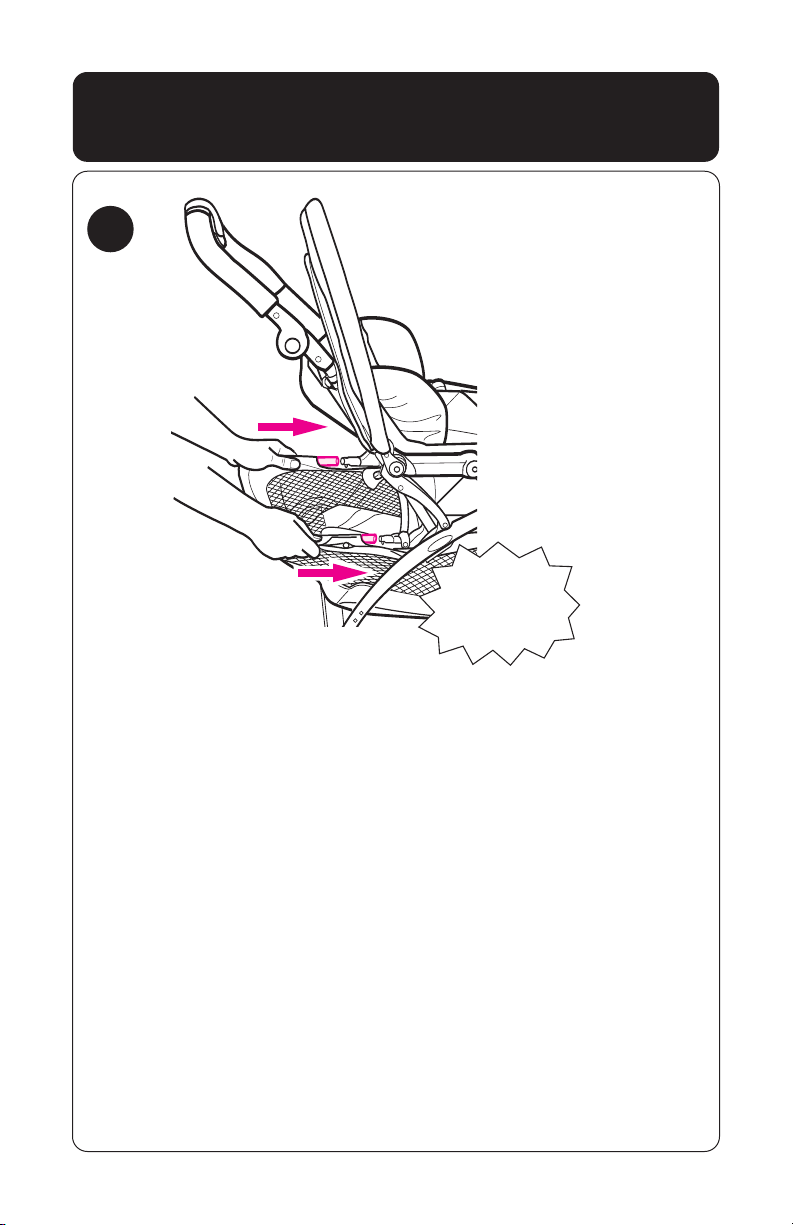

To Open Stroller • Ouvrir la poussette
• Abrir el cochecito
WARNING
Remove and IMMEDIATELY discard the zip tie.
1
2
MISE EN GARDE
Retirez l'attache et jetez­la IMMÉDIATEMENT.
Ziptie
L’attache
Cordón
Rotate handle up from storage position by pushing in buttons.
Faire pivoter la poignée vers le haut à partir de sa position de rangement en repoussant les boutons.
Gire la manija hacia arriba de la posición de almacenamiento oprimiendo los botones.
ADVERTENCIA
Quite y deseche INMEDIATAMENTE el cordón.
Carton • Boîte • Caja
SNAP! ENCLENCHEZ! ¡CHASQUIDO!
CHECK that stroller is completely open before continuing.
VÉRIFIEZ que la poussette est completement dépliée avant de continuer.
VERIFIQUE que el cochecito esté completamente abierto antes de continuar.
9
3
Basket • Le panier
• La canasta
SNAP! ENCLENCHEZ! ¡CHASQUIDO!
10
Front Wheels • Les roues avant
• Las ruedas delanteras
2X
4
Turn stroller over. Pull sleeve back to reveal metal
button. Retournez la poussette.
Retirez l'enveloppe pour révéler le bouton métallique.
SNAP! ENCLENCHEZ! ¡CHASQUIDO!
Vuelque el cochecito. Retire el manguito para ver el
botón metálico.
CHECK that wheels are securely attached by pulling on wheel assemblies.
ASSUREZ-VOUS que les roues sont attachées solidement en tirant sur les assemblages de roue.
VERIFIQUE que las ruedas estén bien contactadas, tirando de los montajes de las ruedas.
11
Rear Wheel/Rear Axle
• Les roues arrières/L’essieu arrière
• Las ruedas traseras/El eje trasero
WARNING
Choking Hazard: Remove and immediately discard plastic end caps on the rear axle.
5
MISE EN GARDE
Danger d'étranglement: enlevez et jetez immédiatement les embouts de plastique sur l'essieu arrière.
2X
ADVERTENCIA de
peligro de estrangulación: Saque y deseche inmediatamente las tapas de plástico de los extremos de las clavijas del eje trasero.
2X
SNAP! ENCLENCHEZ! ¡CHASQUIDO!
2X
12
BEFORE attaching wheel: Be sure to place stroller on top of a
piece of cardboard or some other protective cover to prevent any damage to floor.
AVANT de fixer la roue: Assurez-vous de placer la poussette sur un morceau de carton ou un autre revêtement de protection pour prévenir tout dégât au plancher.
ANTES de instalar la rueda: Asegúrese de poner el cochecito sobre un pedazo de cartón o algún otro material de protección para prevenir dañar el piso.
Turn stroller on its side and hammer cap onto axle.
6
7
2X
2X
Turn stroller over and repeat on other side.
Retournez la poussette sur le côté et fixez l’embout sur l’essieu.
Retournez la poussette et répétez cette opération de l’autre côté.
Ponga el cochecito de costado y martille la cubeta en el eje.
De vuelta el cochecito y repita el proceso del otro lado.
Snap hubcap into place. Repeat on other wheel.
Fixez l’enjoliveur en place. Répétez cette opération de l’autre côté.
Ponga la tapa de la cubeta en su lugar. Repita el procedimiento en la otra rueda.
13

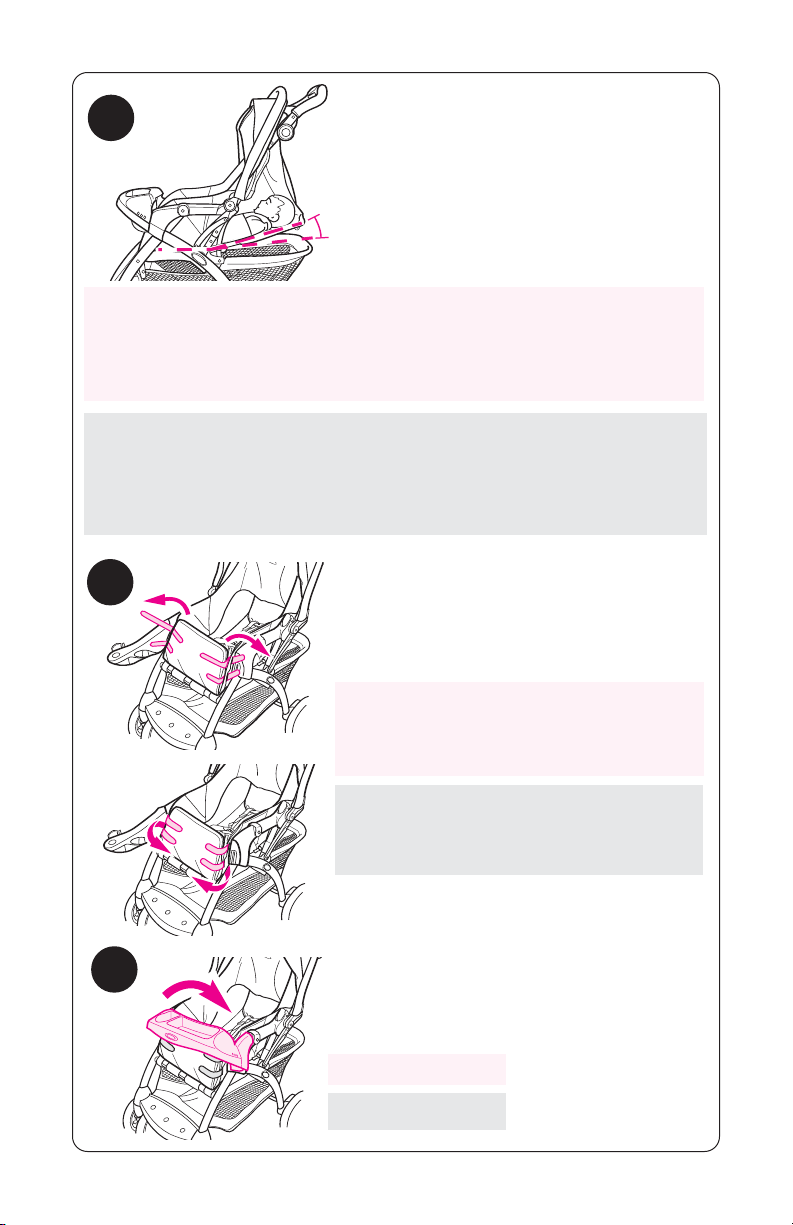

Child’s Tray • Le plateau pour enfant
• Bandeja para niños
WARNING
Always secure your child with the seat belt. The tray is not a restraint device. Use care when snapping the tray on the stroller with a child in the stroller.
GRACO
8
MISE EN GARDE
Toujours attaché votre enfant avec la ceinture de retenue. Le plateau pour enfant n’est pas un dispositif de retenue. Faites bien attention lorsque vous enclencher le plateau à la poussette quand l’enfant est dans la poussette.
ADVERTENCIA
Proteja siempre a su niño con el cinturón de seguridad. La bandeja para niños no es un dispositivo de seguridad. Use cuidado cuando traba la bandeja en el cochecito si el niño está sentado en el cochecito.
14
9
10
SNAP! ENCLENCHEZ! ¡CHASQUIDO!
To open tray. Pour ouvrir le plateau. Para abrir la bandeja.
15
11
12
Canopy • Le baldaquin
• La capota
Fasten hook/loop tape and snaps as shown.
Attachez la fermeture auto-agrippante et les bouton-pressions tel qu’illustré.
13
Sujete la cinta del gancho y nudo y los broches como se indica.
SNAP! ENCLENCHEZ! ¡CHASQUIDO!
16
Parent Tray • Le plateau pour adulte
• Bandeja para padres
GRACO
14
15
Open canopy. Ouvrez le baldaquin. Abra la capota.
16
SNAP! ENCLENCHEZ! ¡CHASQUIDO!
17
To remove tray. Pour retirer le plateau. Para sacar la bandeja.
17
18
Handle • Guidon
Manija
18
Brakes • Les freins • Los frenos
WARNING
Always apply both brakes. Check that brakes are on by trying to push stroller.
19
MISE EN GARDE
Toujours utiliser les deux freins. Vérifiez que les freins fonctionnent en essayant de pousser la poussette.
20
ADVERTENCIA
Siempre use ambos frenos. Inspeccione los frenos tratando de empujar el cochecito.
Swivel Wheels • Les roues pivotantes
• Las ruedas giratorias
21
Front swivel wheels lock for use on uneven surfaces such as grass, stones or gravel.
Les roues pivotantes avant se barrent pour un usage sur les surfaces irrégulières tel que le gazon, les cailloux ou le gravier.
22
Las ruedas giratorias delanteras se traban para el uso en superficies desparejas tales como césped, piedras o grava.
19
To Secure Child • Attacher l’enfant
• Para asegurar al niño
5 Point Harness • Harnais à 5 point
• Arnés de 5 puntos
23
24
25
To adjust harness. To change shoulder harness slots see page 22.
Pour ajuster le harnais. Pour changer des fentes de harnais d'épaule voir la page 22.
Para ajustar el arnés. Para cambiar ranuras del arnés del hombro vea la página 22.
20
3 Point Buckle • Boucle à 3 point
• Hebilla de 3 puntos
26
27
28
To convert to 3-pt buckle.
Pour convertir en boucle à 3-points.
Para convertirlo en un hebilla de 3 puntos.
29
21
To Change Shoulder Harness Slots
• Pour changer des dentes de harnais d'épaule
• Para cambiar ranuras del arnés del hombro
Shoulder harness anchor—larger child Harnais d 'ancrage à l 'épaule pour grand enfant Anclaje del arnés del hombro - niño grande
Shoulder harness anchor—smaller child Harnais d 'ancrage à l 'épaule pour petit enfant Anclaje del arnés del hombro - niño pequeño
Slide adjuster Glissez le régleur Ajustador deslizable
30
Use either shoulder harness anchor in the slots that are closest to child’s shoulder height.
Use slide adjuster for further adjustment. Utilisez l'un ou l'autre des harnais
d'ancrage à l'épaule dans les fentes qui sont les plus proches de la hauteur de l'épaule de l'enfant.
Utilisez le régleur pour plus d'ajustement.
Use uno de los anclajes del arnés del hombro en las ranuras que estén más cerca a la altura del hombro del niño.
Use el ajustador deslizable para lograr ajustes adicionales.
22
To Recline Seat • Pour incliner le siège
• Para reclinar el asiento
WARNING
When making adjustments to the stroller seat, make sure child’s head, arms, and legs are clear of moving seat parts and stroller frame.
Child may slip into leg openings and strangle. Never use seat in a reclined carriage position unless enclosure is raised to cover the front opening. (See figure 34-36 Enclosure).
MISE EN GARDE
Lorsque vous faites des ajustements au siège de la poussette, s'assurer que la tête de l'enfant, les bras, et les jambes soient dégagés des pièces du siège en mouvement et de l'armature de la poussette.
L'enfant peut glisser dans les ouvertures des et s’étrangler. N'utilisez jamais en position complètement inclinée à moins que le enceinte qui se remonte (Voir l’illustration 34-36 Enceinte qui sermonte).
ADVERTENCIA
Cuando realiza ajustes al asiento del cochecito, asegúrese que la cabeza, brazos y piernas del niño están lejos de las piezas del asiento que se mueven y del armazón del cochecito.
El niño puede deslizarse entre las aperturas para las piernas y estrangularse. Nunca lo use en una posición reclinada a menos que el recinto esté en la posición vertical. (Vea la figura 34-36, Recinto).
31
Recline strap
Courroie d'inclinaison
Correa de reclinación
Recline tab Languette d'inclinaison
Lengüeta de reclinación
23
32
To raise, pull recline strap up. Pour relever, tirer sur la
courroie d'inclinaison. Para levantarla, tire la
correa de reclinación hacia arriba.
33
WARNING
Do not use enclosure with an older child that can lift up on hands and knees or crawl out.
To recline, pull recline tab down. Pour incliner, abaisser la
languette d'inclinaison. Para reclinarla, tire la lengüeta
de reclinación hacia abajo.
Enclosure
Enceinte qui se remonte
Recinto
MISE EN GARDE
Ne pas utiliser enceinte qui se remonte avec un enfant plus âgé qui peut se remonter sur ses mains et ses genoux ou qui peut ramper hors de la poussette.
ADVERTENCIA
No use recinto con un niño mayor que puede levantarse en sus manos y rodillas o salir gateando.
24
34
When using the seat in a reclined carriage position, the enclosure must be raised at the front of the seat. Remove head support (on certain models). Never use any head support in the reclined carriage position.
Lorsque le siège est utilisé avec la poussette en position abaissée, l'enveloppe à pression doit être remontée à l'avant du siège. Consulter les mises en garde et directives dans le manuel du propriétaire. Pour ouvrir: Retirer l'appuie-tête (sur certains modèles). Ne jamais utiliser d'appui-tête avec la poussette en position abaissée.
Cuando usa el asiento en la posición reclinada del cochecito, se debe levantar el recinto adelante del asiento. Consulte el manual del dueño para obtener instrucciones y advertencias adicionales. Para abrir: Saque el soporte de la cabeza (en ciertos modelos). Nunca use un soporte de la cabeza en la posición reclinada del cochecito.
35
Open tray. Unfasten straps underneath footrest. Slide straps through slots on side of seat and refasten.
Ouvrez le plateau. Détachez les courroies sous le repose-pieds. Enfilez les courroies à travers les fentes du côté du siège et rattachez.
36
Abra la bandeja. Desate las correas debajo del apoyapiés. Pase las correas por las ranuras en el costado del asiento y vuelva a sujetarlas.
Close tray. Fermez le plateau.
Cierre la bandeja.
25
To Fold Stroller • Plier la poussette
• Para plegar el cochecito
37
38
26
To Attach Graco®Infant Car Seat
• Pour fixer le dispositif de retenue pour bébé Graco
®
• Cómo instalar el asiento de automóvil para bebé Graco
For models that do not come with an infant car seat one may be purchased separately.
WARNING Use only a Graco
seat with this travel system. (Not intended for use with AUTOBABY (Europe only) and ASSURA infant car seats.) If unsure of the model or for more information please call Graco’s customer service number: 1-800-345-4109. Improper use of this stroller with other manufacturers’ car seats may result in serious injury or death. Read the manual provided with your Graco car seat before using it with your stroller.
Always secure your child with the car seat harness when using the
car seat in the stroller. If your child is already in the car seat, check
that the child is secured with the harness
Pour les modèles qui n'ont pas un porte-bébé, vous pouvez en acheter un séparément.
®
SnugRide™or infant SafeSeat™car
®
.
MISE EN GARDE Utilisez uniquement un dispositif de retenue
pour enfant SnugRide™ou SafeSeat™de Graco®avec ce système de voyage. (Non conçu pour utiliser avec les dispositifs de retenue pour nourrisson AUTOBABY (Europe seulement) et ASSURA.) En cas de doute au sujet du modèle ou pour obtenir plus de renseignements, veuillez communiquer avec le service à la clientèle de Graco au 1-800-345-4109. Tout mauvais usage de cette poussette avec un siège d'auto d'une autre marque peut occasionner des blessures sérieuses ou mortelles. Lire le manuel d'utilisation fourni avec le porte-bébé Graco avant de l'utiliser avec cette poussette.
• Toujours attacher votre enfant avec le harnais du porte-bébé quand vous l'utilisez avec la poussette. Si votre enfant est déjà dans le porte-bébé, assurez-vous que l'enfant est attaché avec le
harnais.
27
En los modelos que no incluyen un asiento para automóvil, se puede comprar uno por separado.
ADVERTENCIA Use solamente los asientos infantiles para
automóviles SnugRide
o SafeSeat™de Graco®en este sistema de viaje. (No debe usarse con AUTOBABY (Europa solamente) y asientos de automóvil para bebé ASSURA.) Si no está seguro del modelo o para obtener más información, por favor llame al número de servicio al cliente de Graco: 1-800-345-4109. El uso inadecuado de este cochecito con asientos para automóvil de otros fabricantes podría resultar en lesiones serias o la muerte. Lea el manual incluido con su transportador Graco antes de usarlo con su cochecito.
• Asegure siempre a su niño con el arnés del transportador cuando
usa el transportador en el cochecito. Si su niño ya está en el transportador, verifique que esté asegurado con el arnés.
39
Attachment latch Loquet de sûreté
de l’attachement Traba de seguridad
• Recline the stroller seat back to its lowest position. Fold the canopy.
• Incliner le siège de la poussette en position la plus basse. Pliez le baldaquin.
• Recline el asiento del cochecito hacia atrás hasta la posición más baja. Pliegue la capota.
28
40
SNAP! ENCLENCHEZ! ¡CHASQUIDO!
• Snap carseat onto child’s tray.
• Verrouiller le siège d'auto au plateau pour enfant.
• Instale el asiento para automóvil en la bandeja del niño.
29
41
• Push carrier down so it is below latches on stroller handle as
shown. Turn and lock latches. ALWAYS LOCK LATCHES
OVER CARRIER.
Check that carrier is securely attached by pulling up on the carrier handle.
• Appuyez sur le porte-bébé vers le bas pour qu’il soit en-dessous des loquets de sûreté sur le guidon de la poussette comme illustré.
Tournez et verrouillez les loquets de sûreté. TOUJOURS VERROUILLEZ LES LOQUETS DE SÛRETÉ AU-DESSUS DU PORTE-BÉBÉ.
Assurez-vous que le porte-bébé est attaché solidement en tirant sur le guidon du porte-bébé.
• Empuje el transportador hacia abajo de manera que esté por debajo de las trabas de la manija del cochecito como se muestra.
Gire y trabe las trabas. TRABE SIEMPRE LAS TRABAS SOBRE EL TRANSPORTADOR.
Verifique que el transportador esté conectado confirmeza tirando hacia arriba de la manija del transportador.
30
42
To remove carrier: unlock
latches above carrier, squeeze release handle at back of carrier, and lift carrier out of the stroller. When carrier is not in use, latches should be in unlocked position, away from baby.
Pour enlever le porte-bébé,
déverrouillez les loquets de sûreté au dessus du porte-bébé, pressez la poignée de dégagement à l'arrière du porte-bébé, et enlevez le porte-bébé de la poussette. Quand le porte-bébé n'est pas utilisé, les loquets de sûreté doivent être déverrouillés, loin de bébé.
Para quitar el transportador:
abra los cierres arriba del transportador; apriete la manivela de soltar en la parte trasera del transportador, y levante el transportador del cochecito. Cuando el transportador no esté en uso, los cierres deben estar en la posición abierta, fuera del alcance del bebé.
31
Care and Maintenance
REMOVABLE SEAT PAD (if so equipped) may be machine washed
in cold water on delicate cycle and drip-dried. NO BLEACH.
TO CLEAN STROLLER FRAME, use only household soap and warm
water. NO BLEACH or detergent.
FROM TIME TO TIME CHECK YOUR STROLLER for loose screws,
worn parts, torn material or stitching. Replace or repair the parts as needed. Use only Graco replacement parts.
EXCESSIVE EXPOSURE TO SUN OR HEAT could cause fading or
warping of parts.
IF STROLLER BECOMES WET, open canopy and allow to dry
thoroughly before storing.
IF WHEEL SQUEAKS, use a light oil (e.g., WD-40, 3-in-1,
or sewing machine oil). It is important to get the oil into the axle and wheel assembly as illustrated.
WHEN USING YOUR STROLLER AT THE BEACH completely clean
your stroller afterward to remove sand and salt from mechanisms and wheel assemblies.
32
Soins et entretien
LE COUSSIN DE SIÈGE AMOVIBLE (si applicable) est lavable à la
machine à l’eau froide et au cycle délicat. Étendre pour sécher. PAS D’EAU DE JAVEL.
POUR NETTOYER L’ARMATURE DE LA POUSSETTE, utilisez
un savon de ménage et de l’eau tiède. PAS D’EAU DE JAVEL ou détergent.
DE TEMPS EN TEMPS, VÉRIFIEZ VOTRE POUSSETTE pour des vis
desserrées, pièces usagées, tissu ou couture déchiré. Remplacez ou réparez ces pièces si nécessaire. Utilisez seulement les pièces de remplacement Graco.
UNE EXPOSITION PROLONGÉE AU SOLEIL peut provoquer une
décoloration prématurée du tissu et du plastique.
SI LA POUSSETTE EST MOUILLÉE, ouvrez le baldaquin et laissez
sécher complètement avant l’entreposage.
SI LES ROUES GRINCENT, utilisez une huile légère (i.e.
WD-40, 3 dans 1, ou bien une huile pour machine à coudre). Il est important de déposer l’huile dans l’essieu de la roue.
LORSQUE VOUS UTILISEZ VOTRE POUSSETTE À LA PLAGE,
prenez soin de bien la nettoyer après l’usage afin d’enlever le sable et le sel du mécanisme et des roues.
33
Cuidado y mantenimiento
EL ASIENTO REMOVIBLE (si así está equipado) puede lavarse a
máquina en agua fria en el ciclo delicado y secarse al aire. NO USE CLORO.
PARA LIMPIAR EL ARMAZÓN DEL COCHECITO: usar solamente
jabón de uso doméstico y agua tibia. NO USE CLORO o detergente.
DE VEZ EN CUANDO, INSPECCIONE EL COCHECITO para
determinar si hay tornillos flojos, piezas gastadas, material o costuras rotas. Cambie o repare las piezas según sea necesario. Use solamente repuestos marca Graco.
EL CONTACTO EXCESIVO CON EL SOL o el calor podría causar que
se destiña o se tuerzan algunas piezas.
SI EL COCHECITO SE MOJA, abra la capota y déjelo secar
completamente antes de guardarlo.
SI LAS RUEDAS HACEN RUIDO, use un aceite liviano
(por ej., WD-40, 3-en-1, o aceite para máquinas de coser). Es importante hacer penetrar el aceite en el eje y equipo de la rueda como se ilustra.
CUANDO USA EL COCHECITO EN LA PLAYA, limpie el
cochecito completamente después para sacar la arena y la sal de los mecanismos y equipos de las ruedas.
34
Notes • Notas
35
Replacement Parts • Warranty Information (USA)
Pièces de rechange • Renseignements sur la garantie (au Canada)
Piezas de repuesto • Servicio de la garantía (EE.UU.)
In
To purchase parts or accessories or for warranty information in the United States, please contact us at
the following:
Para comprar repuestos o accesorios o para el servicio de la garantía en los Estados Unidos, por favor comuníquese
con nosotros en:
www.gracobaby.com
or/o
1-800-345-4109
To purchase parts or accessories or for warranty
information in Canada, contact Elfe at /
Pour commander des pièces ou pour service sous
garantie au Canada,
communiquez avec Elfe au:
1-800-667-8184
(Montréal : 514-344-3533 / Fax: 514-344-9296).
or/ou
www.elfe.net
Product Registration (USA)
Inscription de votre produit (au Canada)
Registro del producto (EE.UU.)
To register your Graco product from within the U.S.A. visit us
online at www.gracobaby.com/productregistration. We currently
do not accept product registrations from those living outside
the United States of America.
Pour inscrire votre produit Graco aux États-Unis, visitez notre site
Internet www.gracobaby.com/productregistration. Pour le moment
nous n’acceptons pas d’inscriptions de produits des
résidents hors des États-Unis.
Para registrar su producto Graco desde los EE.UU., visítenos en línea en
www.gracobebe.com/productregistration. Actualmente no
aceptamos el registro de productos de personas que viven fuera
de los Estados Unidos de América.
36
www.gracobaby.com
OWNER'S MANUAL
MANUEL D'UTILISATEUR
MANUAL DEL PROPIETARIO
©2005 Graco ISPA135AB 08/05
Failure to follow these warnings and the
assembly instructions could result in serious injury or death.
• PLEASE SAVE OWNER’S MANUAL FOR FUTURE USE.
• ADULT ASSEMBLY REQUIRED.
NEVER LEAVE child unattended. Always keep child in view while in stroller.
AVOID SERIOUS INJURY from falling or sliding out. Always use seat belt. After fastening buckles, adjust belts to get a snug fit around your child
AVOID FINGER ENTRAPMENT: Use care when folding and unfolding the stroller. Be certain the stroller is fully erected and latched before allowing your child near the stroller.
NEVER USE STROLLER ON STAIRS or escalators. You may suddenly lose control of the stroller or your child may fall out. Also, use extra care when going up or down a step or curb.
STROLLER TO BE USED only at walking speed. Product not intended for use while jogging, skating, etc.
USE OF THE STROLLER with a child weighing more than 40 lbs (18.1 kg) or taller than 43 in. (109 cm) will cause excessive wear and stress on the stroller. Use the stroller with only one child at a time.
TO PREVENT TIPPING, do not
place more than 3 lbs (1.4 kg) on the parent’s tray.
TO AVOID BURNS, never put
hot liquids in the parent’s tray.
TO PREVENT A HAZARDOUS, UNSTABLE CONDITION, never place purses, shopping bags, parcels or accessory items on the handle or canopy.
TO PREVENT A HAZARDOUS, UNSTABLE CONDITION, do not place more than 10 lbs (4.5 kg) in the storage basket and more than 2 lbs (0.9 kg) in the canopy pockets (on certain models).
DO NOT use storage basket as a child carrier.
DO NOT ALLOW your child to stand on the basket. It may collapse and cause injury.
NEVER PLACE child in the stroller with head toward front of stroller.
NEVER ALLOW YOUR STROLLER to be used as a toy.
DISCONTINUE USING YOUR STROLLER should it become damaged or broken.
2
AVOID STRANGULATION.
DO NOT place items with a string around your child’s neck, suspend strings from this product, or attach strings to toys.
CHILD MAY SLIP INTO LEG
OPENINGS AND STRANGLE.
Never use seat in a reclined carriage position unless enclosure is raised to cover the front opening. (See figure 34-36 Enclosure).
USING GRACO®INFANT CAR SEAT WITH STROLLER:
USE ONLY A GRACO
®
SNUGRIDE™OR INFANT SAFESEAT™CAR SEAT with this
travel system. (Not intended for use with AUTOBABY (Europe only) and ASSURA infant car seats.) Improper use of this stroller with other manufacturers’ car seats may result in serious injury or death.
READ THE MANUAL provided with your Graco carrier before using it with your stroller.
ALWAYS SECURE your child with the carrier harness when using the carrier in the stroller. If your child is already in the carrier, check that the child is secured with the harness.
3
Manquer de suivre ces avertissements et les instructions
d'assemblage peut entraîner de sérieuses blessures ou un décès.
VEUILLER GARDER LE MANUEL D’UTILISATEUR POUR USAGE ULTÉRIEUR.
• ASSEMBLAGE PAR UN ADULTE REQUIS.
NE LAISSEZ JAMAIS votre enfant sans surveillance. Ayez toujours l’enfant en vue.
ÉVITEZ DE SÉRIEUSES blessures. Utilisez toujours la ceinture de sécurité. Après avoir attaché les boucles, ajustez les ceintures pour obtenir un ajustement confortable autour de votre enfant.
EVITER DE COINÇER LES DOIGTS: Plier ou déplier la poussette avec soin. Soyez assuré(e) que la poussette est bien droite et que les loquets sont bien enclenchés avant de laisser votre enfant près de la poussette.
NE JAMAIS UTILISER LA
POUSSETTE SUR LES ESCALIERS ou les escaliers
roulants. L’enfant pourrait tomber ou vous pourriez perdre le contrôle de la poussette. Aussi, soyez très prudent lorsque vous montez et descendez une marche ou le bord du trottoir.
LA POUSSETTE DOIT ÊTRE UTILISÉE pour la marche seulement. Ce produit n’est pas conçu pour usage pendant la course à pied, pour patiner, etc.
L’USAGE DE LA POUSSETTE avec un enfant pesant plus de 40 livres (18,1 kg) ou mesure plus de 43 po (109 cm) occasionnera une usure et une tension excessive à la poussette. Utilisez la poussette avec seulement un enfant à la fois.
POUR NE PAS DÉSÉQUILIBRER LA POUSSETTE, NE PAS charger le plateau à plus de 3 livres (1,4 kg).
POUR ÉVITER LES BRÛLURES, ne jamais mettre de liquides brûlants dans le plateau pour parents.
POUR ÉVITER DES
CONDITIONS HASARDEUSES ET INSTABLE, ne jamais
placer de sacs à main, sacs à provisions ou accessoires sur le guidon ou le baldaquin.
POUR ÉVITER DES
CONDITIONS HASARDEUSES, ne placez
jamais plus de 10 livres (4,5 kg) dans le panier et 2 livres (0,9 kg) dans les pochettes de baldaquin (sur certain modèles).
4
NE PAS utiliser le panier
comme porte-bébé.
NE LAISSEZ PAS votre
enfant debout sur le panier. Il pourrait s’écrouler et causer des blessures.
NE JAMAIS PLACER l’enfant
dans la poussette avec la tête vers l’avant de la poussette.
NE JAMAIS UTILISER LA POUSSETTE comme un jouet.
CESSEZ L’USAGE DE VOTRE POUSSETTE si elle devient endommagée ou brisée.
ÉVITEZ D’ÉTRANGLEMENT. NE JAMAIS accrocher des objets avec ficelles autour du cou de votre enfant, suspendre des ficelles au-dessus de ce produit, ou attacher des jouets à des ficelles.
L'ENFANT PEUT GLISSER
DANS LES OUVERTURES DES ET S’ÉTRANGLER.
N'utilisez jamais en position complètement inclinée à moins que le enceinte qui se remonte (Voir l’illustration 34-36 Enceinte qui se remonte).
UTILISATION DU PORTE­BÉBÉ GRACO
®
AVEC LA
POUSSETTE :
UTILISER UNIQUEMENT UN PORTE-BÉBÉ SNUGRIDE OU SAFESEAT™DE GRACO
avec ce système de voyage. (Non conçu pour utiliser avec les dispositifs de retenue pour nourrisson AUTOBABY (Europe seulement) et ASSURA.) Ne pas se conformer à toutes les mises en garde et instructions de montage peut causer des blessures corporelles sérieuses ou même la mort.
LISEZ LE MANUEL d'utilisateur fournit avec votre porte-bébé Graco avant d'utiliser le porte-bébé avec votre poussette.
TOUJOURS ATTACHER votre enfant avec le harnais du porte-bébé quand vous utilisez le porte-bébé avec la poussette. Si votre enfant est déjà dans le porte-bébé, assurez-vous que l'enfant est attaché avec le harnais.
®
5
Si no se obedecen estas advertencias y se siguen las instrucciones
de montaje, podría resultar en lesiones graves o la muerte.
POR FAVOR, CONSERVELO EL MANUEL DEL PROPIETARIO PARA UTILIZARLO EN EL FUTURO.
• SE REQUIERE MONTAJE POR UN ADULTO.
NUNCA DEJE a su niño desatendido. Siempre tenga su niño a la vista.
EVITE UNA LESIÓN seria debido a una calda o resbalamiento del asiento. Use siempre el cinturón de seguridad. Luego de ajustar las hebillas, ajuste las correas para que queden ajustadas alrededor de su niño.
EVITE APRETARSE LOS DEDOS: Use cuidado cuando abre y cierra el cochecito. Asegúrese de que el cochecito esté totalmente montado y estable antes de que su niño esté se acerque al cochecito.
NUNCA USE EL COCHECITO EN LAS ESCALINATAS o las escaleras mecánicas. Usted puede perder súbitamente el control del cochecito, o su niño podrá caerse. Asimismo, tenga cuidado especial cuando suba o baje un escalón o la calzada.
EL COCHECITO DEBE SER USADO solamente a velocidad de caminar. El producto no está destinado para usarlo mientras está corriendo, patinando, etc.
SI USA EL COCHECITO para un niño que pese más de 40 libras (18,1 kg) o más alto que 43 pulgadas (109 cm) causará desgaste y tensión excesiva en el cochecito. Empléelo solamente con un niño a la vez.
PARA EVITAR VOLCAMIENTOS, no ponga mas de 3 libras (1,4 kg) sobre la bandeja.
EVITE QUEMADURAS, nunca ponga liquidos calientes sobre la bandeja para padres.
PARA PREVENIR UNA
SITUACIÓN PELIGROSA Y INESTABLE, nunca ponga
carteras, bolsas de compras o accesorios en la manija o capota.
NO DEJE QUE su niño se pare en la canasta. Puede desmoronarse y causar daño.
PARA PREVENIR UNA
SITUACIÓN PELIGROSA,
no coloque más de 10 libras (4,5 kg) en la canasta o 2 libras (0,9 kg) en los bolsillos de capota (en ciertos modelos).
6
NO use dicha canasta para
transportar el niño.
NUNCA COLOQUE el niño en
el cochecito con la cabeza en la delantera parte del cochecito.
NUNCA DEJE QUE EL COCHECITO sea usado como juguete.
PARE DE USAR EL COCHECITO si éste se daña o se quiebra.
EVITE LA ESTRANGULACIÓN. NO coloque artículos con cuerdas alrededor del cuello del niño, o suspenda cuerdas del producto, o coloque cordones en los juguetes.
EL NIÑO PUEDE DESLIZARSE
ENTRE LAS APERTURAS PARA LAS PIERNAS Y ESTRANGULARSE. Nunca lo
use en una posición reclinada a menos que el recinto esté en la posición vertical. (Vea la figura 34-36, Recinto).
USO DEL TRANSPORTADOR
PARA BEBÉ GRACO®CON EL COCHECITO:
USE SOLAMENTE UN TRANSPORTADOR SNUGRIDE™O SAFESEAT
DE GRACO®en este sistema
de viaje. (No debe usarse con AUTOBABY (Europa sola­mente) y asientos de automóvil para bebé ASSURA.) El uso inadecuado de este cochecito con asientos para automóvil de otros fabricantes podría resultar en lesiones serias o la muerte.
LEA EL MANUAL provisto con su transportador Graco antes de usarlo con su cochecito.
ASEGURE SIEMPRE asu bebé con el arnés del transportador cuando usa el transportador en el cochecito. Si su niño ya se encuentra en el transportador, verifique que el niño esté asegurado con el arnés.
7
Parts list • Liste des pièces
• Lista de las piezas
This model may not
include some
features shown
below. Check that
you have all the
parts for this model
BEFORE assembling
your product. If
any parts are
missing, call
Customer Service.
Ce modèle pourrait ne
pas inclure certaines
caractéristiques illustrée
ci-dessous. Vérifiez que
vous avez toutes les
pièces pour ce modéle
AVANT
d'assembler votre
produit. S'il vous manque
des pièces,
communiquez avec notre
indican a continuación.
todas las piezas de este
service à la clientèle.
Tools Required:
Hammer
Outils nécessaires:
Marteau
ALL MODELS • TOUS MODÈLES • TODOS MODELOS
Este modelo podría no
incluir algunas de las características que se
Verifique que tiene
modelo ANTES de
armar su producto. Si
falta alguna pieza,
llame al Departamento
de Servicio al Cliente.
Herramienta
necesaria:
Martillo
2X
GRACO
2X
GRACO
2X
2X
8
To Open Stroller • Ouvrir la poussette
• Abrir el cochecito
WARNING
Remove and IMMEDIATELY discard the zip tie.
1
2
MISE EN GARDE
Retirez l'attache et jetez­la IMMÉDIATEMENT.
Ziptie
L’attache
Cordón
Rotate handle up from storage position by pushing in buttons.
Faire pivoter la poignée vers le haut à partir de sa position de rangement en repoussant les boutons.
Gire la manija hacia arriba de la posición de almacenamiento oprimiendo los botones.
ADVERTENCIA
Quite y deseche INMEDIATAMENTE el cordón.
Carton • Boîte • Caja
SNAP! ENCLENCHEZ! ¡CHASQUIDO!
CHECK that stroller is completely open before continuing.
VÉRIFIEZ que la poussette est completement dépliée avant de continuer.
VERIFIQUE que el cochecito esté completamente abierto antes de continuar.
9
3
Basket • Le panier
• La canasta
SNAP! ENCLENCHEZ! ¡CHASQUIDO!
10
Front Wheels • Les roues avant
• Las ruedas delanteras
2X
4
Turn stroller over. Pull sleeve back to reveal metal
button. Retournez la poussette.
Retirez l'enveloppe pour révéler le bouton métallique.
SNAP! ENCLENCHEZ! ¡CHASQUIDO!
Vuelque el cochecito. Retire el manguito para ver el
botón metálico.
CHECK that wheels are securely attached by pulling on wheel assemblies.
ASSUREZ-VOUS que les roues sont attachées solidement en tirant sur les assemblages de roue.
VERIFIQUE que las ruedas estén bien contactadas, tirando de los montajes de las ruedas.
11
Rear Wheel/Rear Axle
• Les roues arrières/L’essieu arrière
• Las ruedas traseras/El eje trasero
WARNING
Choking Hazard: Remove and immediately discard plastic end caps on the rear axle.
5
MISE EN GARDE
Danger d'étranglement: enlevez et jetez immédiatement les embouts de plastique sur l'essieu arrière.
2X
ADVERTENCIA de
peligro de estrangulación: Saque y deseche inmediatamente las tapas de plástico de los extremos de las clavijas del eje trasero.
2X
SNAP! ENCLENCHEZ! ¡CHASQUIDO!
2X
12
BEFORE attaching wheel: Be sure to place stroller on top of a
piece of cardboard or some other protective cover to prevent any damage to floor.
AVANT de fixer la roue: Assurez-vous de placer la poussette sur un morceau de carton ou un autre revêtement de protection pour prévenir tout dégât au plancher.
ANTES de instalar la rueda: Asegúrese de poner el cochecito sobre un pedazo de cartón o algún otro material de protección para prevenir dañar el piso.
Turn stroller on its side and hammer cap onto axle.
6
7
2X
2X
Turn stroller over and repeat on other side.
Retournez la poussette sur le côté et fixez l’embout sur l’essieu.
Retournez la poussette et répétez cette opération de l’autre côté.
Ponga el cochecito de costado y martille la cubeta en el eje.
De vuelta el cochecito y repita el proceso del otro lado.
Snap hubcap into place. Repeat on other wheel.
Fixez l’enjoliveur en place. Répétez cette opération de l’autre côté.
Ponga la tapa de la cubeta en su lugar. Repita el procedimiento en la otra rueda.
13
Child’s Tray • Le plateau pour enfant
• Bandeja para niños
WARNING
Always secure your child with the seat belt. The tray is not a restraint device. Use care when snapping the tray on the stroller with a child in the stroller.
GRACO
8
MISE EN GARDE
Toujours attaché votre enfant avec la ceinture de retenue. Le plateau pour enfant n’est pas un dispositif de retenue. Faites bien attention lorsque vous enclencher le plateau à la poussette quand l’enfant est dans la poussette.
ADVERTENCIA
Proteja siempre a su niño con el cinturón de seguridad. La bandeja para niños no es un dispositivo de seguridad. Use cuidado cuando traba la bandeja en el cochecito si el niño está sentado en el cochecito.
14
9
10
SNAP! ENCLENCHEZ! ¡CHASQUIDO!
To open tray. Pour ouvrir le plateau. Para abrir la bandeja.
15
11
12
Canopy • Le baldaquin
• La capota
Fasten hook/loop tape and snaps as shown.
Attachez la fermeture auto-agrippante et les bouton-pressions tel qu’illustré.
13
Sujete la cinta del gancho y nudo y los broches como se indica.
SNAP! ENCLENCHEZ! ¡CHASQUIDO!
16
Parent Tray • Le plateau pour adulte
• Bandeja para padres
GRACO
14
15
Open canopy. Ouvrez le baldaquin. Abra la capota.
16
SNAP! ENCLENCHEZ! ¡CHASQUIDO!
17
To remove tray. Pour retirer le plateau. Para sacar la bandeja.
17
18
Handle • Guidon
Manija
18
Brakes • Les freins • Los frenos
WARNING
Always apply both brakes. Check that brakes are on by trying to push stroller.
19
MISE EN GARDE
Toujours utiliser les deux freins. Vérifiez que les freins fonctionnent en essayant de pousser la poussette.
20
ADVERTENCIA
Siempre use ambos frenos. Inspeccione los frenos tratando de empujar el cochecito.
Swivel Wheels • Les roues pivotantes
• Las ruedas giratorias
21
Front swivel wheels lock for use on uneven surfaces such as grass, stones or gravel.
Les roues pivotantes avant se barrent pour un usage sur les surfaces irrégulières tel que le gazon, les cailloux ou le gravier.
22
Las ruedas giratorias delanteras se traban para el uso en superficies desparejas tales como césped, piedras o grava.
19
To Secure Child • Attacher l’enfant
• Para asegurar al niño
5 Point Harness • Harnais à 5 point
• Arnés de 5 puntos
23
24
25
To adjust harness. To change shoulder harness slots see page 22.
Pour ajuster le harnais. Pour changer des fentes de harnais d'épaule voir la page 22.
Para ajustar el arnés. Para cambiar ranuras del arnés del hombro vea la página 22.
20
3 Point Buckle • Boucle à 3 point
• Hebilla de 3 puntos
26
27
28
To convert to 3-pt buckle.
Pour convertir en boucle à 3-points.
Para convertirlo en un hebilla de 3 puntos.
29
21
To Change Shoulder Harness Slots
• Pour changer des dentes de harnais d'épaule
• Para cambiar ranuras del arnés del hombro
Shoulder harness anchor—larger child Harnais d 'ancrage à l 'épaule pour grand enfant Anclaje del arnés del hombro - niño grande
Shoulder harness anchor—smaller child Harnais d 'ancrage à l 'épaule pour petit enfant Anclaje del arnés del hombro - niño pequeño
Slide adjuster Glissez le régleur Ajustador deslizable
30
Use either shoulder harness anchor in the slots that are closest to child’s shoulder height.
Use slide adjuster for further adjustment. Utilisez l'un ou l'autre des harnais
d'ancrage à l'épaule dans les fentes qui sont les plus proches de la hauteur de l'épaule de l'enfant.
Utilisez le régleur pour plus d'ajustement.
Use uno de los anclajes del arnés del hombro en las ranuras que estén más cerca a la altura del hombro del niño.
Use el ajustador deslizable para lograr ajustes adicionales.
22
To Recline Seat • Pour incliner le siège
• Para reclinar el asiento
WARNING
When making adjustments to the stroller seat, make sure child’s head, arms, and legs are clear of moving seat parts and stroller frame.
Child may slip into leg openings and strangle. Never use seat in a reclined carriage position unless enclosure is raised to cover the front opening. (See figure 34-36 Enclosure).
MISE EN GARDE
Lorsque vous faites des ajustements au siège de la poussette, s'assurer que la tête de l'enfant, les bras, et les jambes soient dégagés des pièces du siège en mouvement et de l'armature de la poussette.
L'enfant peut glisser dans les ouvertures des et s’étrangler. N'utilisez jamais en position complètement inclinée à moins que le enceinte qui se remonte (Voir l’illustration 34-36 Enceinte qui sermonte).
ADVERTENCIA
Cuando realiza ajustes al asiento del cochecito, asegúrese que la cabeza, brazos y piernas del niño están lejos de las piezas del asiento que se mueven y del armazón del cochecito.
El niño puede deslizarse entre las aperturas para las piernas y estrangularse. Nunca lo use en una posición reclinada a menos que el recinto esté en la posición vertical. (Vea la figura 34-36, Recinto).
31
Recline strap
Courroie d'inclinaison
Correa de reclinación
Recline tab Languette d'inclinaison
Lengüeta de reclinación
23
32
To raise, pull recline strap up. Pour relever, tirer sur la
courroie d'inclinaison. Para levantarla, tire la
correa de reclinación hacia arriba.
33
WARNING
Do not use enclosure with an older child that can lift up on hands and knees or crawl out.
To recline, pull recline tab down. Pour incliner, abaisser la
languette d'inclinaison. Para reclinarla, tire la lengüeta
de reclinación hacia abajo.
Enclosure
Enceinte qui se remonte
Recinto
MISE EN GARDE
Ne pas utiliser enceinte qui se remonte avec un enfant plus âgé qui peut se remonter sur ses mains et ses genoux ou qui peut ramper hors de la poussette.
ADVERTENCIA
No use recinto con un niño mayor que puede levantarse en sus manos y rodillas o salir gateando.
24
34
When using the seat in a reclined carriage position, the enclosure must be raised at the front of the seat. Remove head support (on certain models). Never use any head support in the reclined carriage position.
Lorsque le siège est utilisé avec la poussette en position abaissée, l'enveloppe à pression doit être remontée à l'avant du siège. Consulter les mises en garde et directives dans le manuel du propriétaire. Pour ouvrir: Retirer l'appuie-tête (sur certains modèles). Ne jamais utiliser d'appui-tête avec la poussette en position abaissée.
Cuando usa el asiento en la posición reclinada del cochecito, se debe levantar el recinto adelante del asiento. Consulte el manual del dueño para obtener instrucciones y advertencias adicionales. Para abrir: Saque el soporte de la cabeza (en ciertos modelos). Nunca use un soporte de la cabeza en la posición reclinada del cochecito.
35
Open tray. Unfasten straps underneath footrest. Slide straps through slots on side of seat and refasten.
Ouvrez le plateau. Détachez les courroies sous le repose-pieds. Enfilez les courroies à travers les fentes du côté du siège et rattachez.
36
Abra la bandeja. Desate las correas debajo del apoyapiés. Pase las correas por las ranuras en el costado del asiento y vuelva a sujetarlas.
Close tray. Fermez le plateau.
Cierre la bandeja.
25
To Fold Stroller • Plier la poussette
• Para plegar el cochecito
37
38
26
To Attach Graco®Infant Car Seat
• Pour fixer le dispositif de retenue pour bébé Graco
®
• Cómo instalar el asiento de automóvil para bebé Graco
For models that do not come with an infant car seat one may be purchased separately.
WARNING Use only a Graco
seat with this travel system. (Not intended for use with AUTOBABY (Europe only) and ASSURA infant car seats.) If unsure of the model or for more information please call Graco’s customer service number: 1-800-345-4109. Improper use of this stroller with other manufacturers’ car seats may result in serious injury or death. Read the manual provided with your Graco car seat before using it with your stroller.
Always secure your child with the car seat harness when using the
car seat in the stroller. If your child is already in the car seat, check
that the child is secured with the harness
Pour les modèles qui n'ont pas un porte-bébé, vous pouvez en acheter un séparément.
®
SnugRide™or infant SafeSeat™car
®
.
MISE EN GARDE Utilisez uniquement un dispositif de retenue
pour enfant SnugRide™ou SafeSeat™de Graco®avec ce système de voyage. (Non conçu pour utiliser avec les dispositifs de retenue pour nourrisson AUTOBABY (Europe seulement) et ASSURA.) En cas de doute au sujet du modèle ou pour obtenir plus de renseignements, veuillez communiquer avec le service à la clientèle de Graco au 1-800-345-4109. Tout mauvais usage de cette poussette avec un siège d'auto d'une autre marque peut occasionner des blessures sérieuses ou mortelles. Lire le manuel d'utilisation fourni avec le porte-bébé Graco avant de l'utiliser avec cette poussette.
• Toujours attacher votre enfant avec le harnais du porte-bébé quand vous l'utilisez avec la poussette. Si votre enfant est déjà dans le porte-bébé, assurez-vous que l'enfant est attaché avec le
harnais.
27
En los modelos que no incluyen un asiento para automóvil, se puede comprar uno por separado.
ADVERTENCIA Use solamente los asientos infantiles para
automóviles SnugRide
o SafeSeat™de Graco®en este sistema de viaje. (No debe usarse con AUTOBABY (Europa solamente) y asientos de automóvil para bebé ASSURA.) Si no está seguro del modelo o para obtener más información, por favor llame al número de servicio al cliente de Graco: 1-800-345-4109. El uso inadecuado de este cochecito con asientos para automóvil de otros fabricantes podría resultar en lesiones serias o la muerte. Lea el manual incluido con su transportador Graco antes de usarlo con su cochecito.
• Asegure siempre a su niño con el arnés del transportador cuando
usa el transportador en el cochecito. Si su niño ya está en el transportador, verifique que esté asegurado con el arnés.
39
Attachment latch Loquet de sûreté
de l’attachement Traba de seguridad
• Recline the stroller seat back to its lowest position. Fold the canopy.
• Incliner le siège de la poussette en position la plus basse. Pliez le baldaquin.
• Recline el asiento del cochecito hacia atrás hasta la posición más baja. Pliegue la capota.
28
40
SNAP! ENCLENCHEZ! ¡CHASQUIDO!
• Snap carseat onto child’s tray.
• Verrouiller le siège d'auto au plateau pour enfant.
• Instale el asiento para automóvil en la bandeja del niño.
29
41
• Push carrier down so it is below latches on stroller handle as
shown. Turn and lock latches. ALWAYS LOCK LATCHES
OVER CARRIER.
Check that carrier is securely attached by pulling up on the carrier handle.
• Appuyez sur le porte-bébé vers le bas pour qu’il soit en-dessous des loquets de sûreté sur le guidon de la poussette comme illustré.
Tournez et verrouillez les loquets de sûreté. TOUJOURS VERROUILLEZ LES LOQUETS DE SÛRETÉ AU-DESSUS DU PORTE-BÉBÉ.
Assurez-vous que le porte-bébé est attaché solidement en tirant sur le guidon du porte-bébé.
• Empuje el transportador hacia abajo de manera que esté por debajo de las trabas de la manija del cochecito como se muestra.
Gire y trabe las trabas. TRABE SIEMPRE LAS TRABAS SOBRE EL TRANSPORTADOR.
Verifique que el transportador esté conectado confirmeza tirando hacia arriba de la manija del transportador.
30
42
To remove carrier: unlock
latches above carrier, squeeze release handle at back of carrier, and lift carrier out of the stroller. When carrier is not in use, latches should be in unlocked position, away from baby.
Pour enlever le porte-bébé,
déverrouillez les loquets de sûreté au dessus du porte-bébé, pressez la poignée de dégagement à l'arrière du porte-bébé, et enlevez le porte-bébé de la poussette. Quand le porte-bébé n'est pas utilisé, les loquets de sûreté doivent être déverrouillés, loin de bébé.
Para quitar el transportador:
abra los cierres arriba del transportador; apriete la manivela de soltar en la parte trasera del transportador, y levante el transportador del cochecito. Cuando el transportador no esté en uso, los cierres deben estar en la posición abierta, fuera del alcance del bebé.
31
Care and Maintenance
REMOVABLE SEAT PAD (if so equipped) may be machine washed
in cold water on delicate cycle and drip-dried. NO BLEACH.
TO CLEAN STROLLER FRAME, use only household soap and warm
water. NO BLEACH or detergent.
FROM TIME TO TIME CHECK YOUR STROLLER for loose screws,
worn parts, torn material or stitching. Replace or repair the parts as needed. Use only Graco replacement parts.
EXCESSIVE EXPOSURE TO SUN OR HEAT could cause fading or
warping of parts.
IF STROLLER BECOMES WET, open canopy and allow to dry
thoroughly before storing.
IF WHEEL SQUEAKS, use a light oil (e.g., WD-40, 3-in-1,
or sewing machine oil). It is important to get the oil into the axle and wheel assembly as illustrated.
WHEN USING YOUR STROLLER AT THE BEACH completely clean
your stroller afterward to remove sand and salt from mechanisms and wheel assemblies.
32
Soins et entretien
LE COUSSIN DE SIÈGE AMOVIBLE (si applicable) est lavable à la
machine à l’eau froide et au cycle délicat. Étendre pour sécher. PAS D’EAU DE JAVEL.
POUR NETTOYER L’ARMATURE DE LA POUSSETTE, utilisez
un savon de ménage et de l’eau tiède. PAS D’EAU DE JAVEL ou détergent.
DE TEMPS EN TEMPS, VÉRIFIEZ VOTRE POUSSETTE pour des vis
desserrées, pièces usagées, tissu ou couture déchiré. Remplacez ou réparez ces pièces si nécessaire. Utilisez seulement les pièces de remplacement Graco.
UNE EXPOSITION PROLONGÉE AU SOLEIL peut provoquer une
décoloration prématurée du tissu et du plastique.
SI LA POUSSETTE EST MOUILLÉE, ouvrez le baldaquin et laissez
sécher complètement avant l’entreposage.
SI LES ROUES GRINCENT, utilisez une huile légère (i.e.
WD-40, 3 dans 1, ou bien une huile pour machine à coudre). Il est important de déposer l’huile dans l’essieu de la roue.
LORSQUE VOUS UTILISEZ VOTRE POUSSETTE À LA PLAGE,
prenez soin de bien la nettoyer après l’usage afin d’enlever le sable et le sel du mécanisme et des roues.
33
Cuidado y mantenimiento
EL ASIENTO REMOVIBLE (si así está equipado) puede lavarse a
máquina en agua fria en el ciclo delicado y secarse al aire. NO USE CLORO.
PARA LIMPIAR EL ARMAZÓN DEL COCHECITO: usar solamente
jabón de uso doméstico y agua tibia. NO USE CLORO o detergente.
DE VEZ EN CUANDO, INSPECCIONE EL COCHECITO para
determinar si hay tornillos flojos, piezas gastadas, material o costuras rotas. Cambie o repare las piezas según sea necesario. Use solamente repuestos marca Graco.
EL CONTACTO EXCESIVO CON EL SOL o el calor podría causar que
se destiña o se tuerzan algunas piezas.
SI EL COCHECITO SE MOJA, abra la capota y déjelo secar
completamente antes de guardarlo.
SI LAS RUEDAS HACEN RUIDO, use un aceite liviano
(por ej., WD-40, 3-en-1, o aceite para máquinas de coser). Es importante hacer penetrar el aceite en el eje y equipo de la rueda como se ilustra.
CUANDO USA EL COCHECITO EN LA PLAYA, limpie el
cochecito completamente después para sacar la arena y la sal de los mecanismos y equipos de las ruedas.
34
Notes • Notas
35
Replacement Parts • Warranty Information (USA)
Pièces de rechange • Renseignements sur la garantie (au Canada)
Piezas de repuesto • Servicio de la garantía (EE.UU.)
In
To purchase parts or accessories or for warranty information in the United States, please contact us at
the following:
Para comprar repuestos o accesorios o para el servicio de la garantía en los Estados Unidos, por favor comuníquese
con nosotros en:
www.gracobaby.com
or/o
1-800-345-4109
To purchase parts or accessories or for warranty
information in Canada, contact Elfe at /
Pour commander des pièces ou pour service sous
garantie au Canada,
communiquez avec Elfe au:
1-800-667-8184
(Montréal : 514-344-3533 / Fax: 514-344-9296).
or/ou
www.elfe.net
Product Registration (USA)
Inscription de votre produit (au Canada)
Registro del producto (EE.UU.)
To register your Graco product from within the U.S.A. visit us
online at www.gracobaby.com/productregistration. We currently
do not accept product registrations from those living outside
the United States of America.
Pour inscrire votre produit Graco aux États-Unis, visitez notre site
Internet www.gracobaby.com/productregistration. Pour le moment
nous n’acceptons pas d’inscriptions de produits des
résidents hors des États-Unis.
Para registrar su producto Graco desde los EE.UU., visítenos en línea en
www.gracobebe.com/productregistration. Actualmente no
aceptamos el registro de productos de personas que viven fuera
de los Estados Unidos de América.
36
© 2005 Graco ISPC089BA 05/05 US
READ THIS MANUAL
KEEP INSTRUCTIONS FORFUTUREUSE.
Do not install or use this infant restraint until you
read and understand the instructions in this manual.
FAILURE TO PROPERLY USE THIS INFANT RESTRAINT
INCREASES THE RISK OF SERIOUS INJURY OR DEATH IN
A SUDDEN STOP OR CRASH.
Infant Restraint/Carrier
Owner’s Manual
2
1.0 Warnings to Parents and Other Users . . . . . . . . . . . . . . . .4-5
2.0 Registration Information . . . . . . . . . . . . . . . . . . . . . . . . . . .6-7
2.1 Register Your Infant Restraint . . . . . . . . . . . . . . . . . . . . . .6
2.2 Recall Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
2.3 If You Need Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
3.0 Features and Components . . . . . . . . . . . . . . . . . . . . . . . .8-15
3.1 3-Point Harness Model . . . . . . . . . . . . . . . . . . . . . . . . . . .9
3.2 5-Point Harness Model . . . . . . . . . . . . . . . . . . . . . . . . . .11
3.3 Removing and Attaching Base . . . . . . . . . . . . . . . . . . . . .13
3.4 Adjusting Handle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
3.5 Attaching Canopy (certain models) . . . . . . . . . . . . . . . . .14
3.6 Head Support (certain models) . . . . . . . . . . . . . . . . . . . .15
3.7 Cold Weather Boot (certain models) . . . . . . . . . . . . . . . .15
4.0 Important Information . . . . . . . . . . . . . . . . . . . . . . . . . . .16-20
4.1 Warnings for Use as Infant Restraint . . . . . . . . . . . . . . . .16
4.2 Warning for Use With a Stroller . . . . . . . . . . . . . . . . . . . .18
4.3 Additional Warnings for Use as Carrier . . . . . . . . . . . . . .19
4.4 Height and Weight Limits . . . . . . . . . . . . . . . . . . . . . . . .20
5.0 Infant Restraint Location . . . . . . . . . . . . . . . . . . . . . . . .21-26
5.1 Vehicle Seat Requirements . . . . . . . . . . . . . . . . . . . . . . .21
5.2 Vehicle Seat Belt Requirements . . . . . . . . . . . . . . . . . . .22
5.2.1 UNSAFE Vehicle Belt Systems . . . . . . . . . . . . . . . .23
5.2.2 SAFE Vehicle Belt Systems . . . . . . . . . . . . . . . . . .24
5.3 LATCH locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
3
6.0 Using Infant Restraint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27-40
6.1 Positioning Harness Straps . . . . . . . . . . . . . . . . . . . . . . .27
6.1.1 3-Point Harness . . . . . . . . . . . . . . . . . . . . . . . . . .28
6.1.2 5-Point Harness . . . . . . . . . . . . . . . . . . . . . . . . . .29
6.2 Securing Child in Infant Restraint . . . . . . . . . . . . . . . . . .31
6.2.1 3-Point Harness . . . . . . . . . . . . . . . . . . . . . . . . . .32
6.2.2 5-Point Harness . . . . . . . . . . . . . . . . . . . . . . . . . .33
6.3 Installing Infant Restraint/Base Using Vehicle Belt . . . . . .34
6.4 Using LATCH to Install Base . . . . . . . . . . . . . . . . . . . . . .37
6.5 Reclining Infant Restraint/Base . . . . . . . . . . . . . . . . . . . .38
7.0 Additional Information . . . . . . . . . . . . . . . . . . . . . . . . . .41-43
7.1 Airplane Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
7.2 Storing LATCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
7.3 Cleaning and Maintenance . . . . . . . . . . . . . . . . . . . . . . .42
Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
4
No infant restraint can guarantee protection from injury in every situation. However, proper use of this infant restraint reduces the risk of serious injury or death to your child.
Failure to properly use this infant restraint increases the risk of serious injury or death in a sharp turn, sudden stop or crash.
Your child’s safety depends on you installing and using this infant restraint correctly.
Even if using this infant restraint seems easy to figure out on your own, it is very important to READ THE OWNER’S MANUAL.
The manual is located in the back pocket of the infant restraint. You must also read your vehicle owner’s manual.
Your child’s safety depends on:
1. Choosing a suitable location in your vehicle. Some seating positions, such as those equipped with air bags, may not be safe locations for this infant restraint.
2. Inserting the harness straps in the proper slots for your child.
3. Properly securing your child in the infant restraint.
4. Placing infant restraint/base in a rear-facing position.
1.0 Warnings to Parents and
Other Users
5
5. Properly routing the vehicle seat belt or LATCH.
6. Properly reclining the infant restraint.
7. Properly securing the infant restraint in the vehicle using a seat belt designed to restrain an infant restraint or by using LATCH. Many seat belts are NOTsafe to use with infant restraints, even though they can easily be threaded through the infant restraint!
6
Model Number: Manufactured in: Purchase Date:
2.1 Register Your Infant Restraint
Please fill in the above information. The numbers can be found on a label underneath your infant restraint. Fill out the prepaid registration postcard attached to the seat cover and mail it today.
Child restraints could be recalled for safety reasons. You must register this restraint to be reached in a recall. Send your name,
address and model number to:
Graco Children’s Products Inc. 150 Oaklands Blvd. Exton, PA19341 or call 1-800-345-4109 or www.gracobaby.com
• Call the U.S. Government’s Auto Safety Hotline
at 1-800-424-9393 (202-366-0123 in D.C. area)
• www.nhtsa.dot.gov
• Graco: 1-800-345-4109 or www.gracobaby.com
2.2 Recall Information
2.0 Registration Information
7
2.3 If You Need Help
In the U.S.A. or Canada, please contact our Customer Service Department with any questions you may have concerning parts, use, or maintenance. When you contact us, please have your product’s model and serial numbers ready so that we may help you efficiently. These numbers can be found on a sticker on the underside of your infant restraint.
USA: 1-800-345-4109 or www.gracobaby.com
Canada: 1-800-667-8184 Montreal: 514-344-3533
8
Vehicle belt/LATCH* path
Each model of the infant restraint comes with different harness options. To adjust your infant restraint properly, it is very
important to follow the instructions that are appropriate for the model you have purchased.
3.0 Features and Components
OR
5-Point Harness3-Point Harness
United States Federal Motor Vehicle Safety Standards have defined a new system for installing car seats in vehicles. The system is called LATCH.
* LATCH may be used IN PLACE of vehicle belt ONLY if vehicle is equipped with LATCH anchor points. Please refer to vehicle owners manual for LATCH locations.
Base
Adjustable Foot
LATCH Connectors
Adjustment Belt
LATCH
Storage
Bars
9
3.1 3-Point Harness Model
Handle
Harness
slots
Vehicle belt
hook
Handle
adjustment
button
Harness
clip
Harness
buckle
Harness
straps
FRONT VIEW: 3-POINT HARNESS
10
REAR VIEW: 3-POINT HARNESS
Canopy
(on certain models)
Harness
slot
Release
handle
Attachment
latch
Level
indicator*
Owner’s
manual
pocket
Locking
clip**
Harness
anchor
buckle
Harness
tightener
The level indicator is attached to the side of the infant restraint, and indicates whether or not the infant restraint is properly reclined.
The locking clip is stored on the bottom of the infant restraint. You will need to use it with certain types of vehicle seat belts.
**Locking
Clip
*Level
Indicator
11
3.2 5-Point Harness Model
FRONT VIEW: 5-POINT HARNESS
Handle
Harness
slots
Vehicle
belt
hook
Handle
adjustment
button
Harness
clip
Harness
adjustment strap
Harness
buckle
Harness
adjustment
button
Harness
buckle tongues
12
REAR VIEW: 5-POINT HARNESS
Canopy
(on certain models)
Harness slot
Release handle
Attachment
latch
Level
indicator*
Owner’s manual
pocket
Harness adjustment
strap
Metal
junction
plate
Locking clip**
Waist strap
anchor buckle
The level indicator is attached to the side of the infant restraint, and indicates whether or not the infant restraint is properly reclined.
The locking clip is stored on the bottom of the infant restraint. You will need to use it with certain types of vehicle seat belts.
**Locking
Clip
*Level
Indicator
13
3.3 Removing and Attaching Base
3.4 Adjusting Handle
To remove infant restraint, squeeze handle at back of seat and lift infant restraint from base as shown
.
To put infant restraint in base, push infant restraint down until it clicks into base. Pull up
on infant restraint to be sure it is latched firmly into base.
1. Press handle adjustment buttons on
both sides of handle
.
2. Rotate handle until it clicks into any
of the 5 positions: Position A: MUST be used
when carrying by handle,
Position B,C,D: are convenience
positions, Position E: is the sitting position, NEVER use positions B or C
in the vehicle. BOTH handle adjustment
buttons must pop out to lock handle in place
.
3. Push and pull on the handle
to be sure it is locked firmly in position.
Carrying
Sitting
A
B
C
D
E
1. Infant restraint comes with four (two on certain models) identical canopy support parts.
Thread one canopy support completely through one sewn tunnel
.
2. Slide straight end of a second support into the straight end of the first support
.
3. On models with four canopy supports, repeat steps one and two for the other canopy tunnel. The canopy should appear as shown
.
4. Attach canopy in the areas between the infant restraint and the handle base
.
To remove canopy, reverse the steps.
3.5 Attaching Canopy (on certain models)
14
OR
Some infants may need extra support to keep their head and body in a comfortable position. Unsnap the sides and resnap them with the harness straps threaded through the slots in the cushion
.
If your model does not include a head support, you may want to use a rolled towel or a blanket for support
. MAKE
SURE THAT NOTHING INTERFERES WITH THE HARNESS. It must still be
flat and snug against your child’s shoulders.
3.7 Cold Weather Boot
(on certain models)
Some models come with a cold weather boot. To use, wrap elastic around bottom of seat and place both elastic loops around vehicle belt hooks as shown
.
3.6 Head Support (on certain models)
15
16
4.0 Important Information
4.1 Warnings for Use as Infant Restraint
DO NOT INSTALL OR USE THIS INFANT RESTRAINT
AND BASE UNTIL YOU READ AND UNDERSTAND THE INSTRUCTIONS IN THIS MANUAL AND IN YOUR VEHICLE OWNER’S MANUAL. DO NOT let others install or use the
infant restraint unless they understand how to use it.
FAILURE TO PROPERLY USE THIS INFANT RESTRAINT
AND BASE INCREASES THE RISK OF SERIOUS INJURY OR DEATH IN A SUDDEN STOP OR CRASH. Your child can
be injured in a vehicle even if you are not in a crash. Sudden braking and sharp turns can injure your child if the infant restraint is not properly installed or if your child is not properly secured in the infant restraint.
PLACE THIS INFANT RESTRAINT IN A REAR-FACING
POSITION when using it in the vehicle.
DO NOT PLACE THIS INFANT RESTRAINT
IN AVEHICLE SEATING LOCATION THAT HAS A FRONT AIR BAG. If the air bag
inflates, it can hit the infant restraint with great force and cause serious injury or death to your child. Check vehicle owner’s manual for information about side air bags and infant restraint installation.
17
SOME SPECIAL NEEDS CHILDREN, such as pre-term babies
or those who have tested positive for positional apnea, may be at increased risk of suffering breathing or other difficulties in an infant restraint. If your child has special needs, we recommend that you have your physician or hospital staff evaluate your child and recommend the proper infant restraint or car bed before using this product.
• According to accident statistics, CHILDREN ARE SAFER WHEN
PROPERLY RESTRAINED IN REAR VEHICLE SEATING POSITIONS, RATHER THAN FRONT SEATING POSITIONS.
For a vehicle with a front passenger air bag, refer to your vehicle owner’s manual as well as these instructions for infant restraint installation.
NEVER LEAVE YOUR CHILD UNATTENDED.
NEVER LEAVE AN INFANT RESTRAINT AND BASE
UNSECURED IN YOUR VEHICLE.An unsecured infant restraint or base can be thrown around and may injure occupants in a sharp turn, sudden stop or crash. Remove it or make sure that it is securely belted in the vehicle. If not using LATCH, make sure LATCH connectors are properly stored on base.
REPLACE THE INFANT RESTRAINT AND BASE AFTER AN
ACCIDENT OF ANY KIND. An accident can cause damage to the infant restraint that you cannot see.
STOP USING INFANT RESTRAINT AND BASE AND THROW IT
AWAY after the date molded into the underside of the infant restraint.
18
DO NOT MODIFY YOUR INFANT RESTRAINT AND BASE or
use any accessories or parts supplied by other manufacturers.
NEVER USE INFANT RESTRAINT AND BASE IF IT HAS
DAMAGED OR MISSING PARTS.DO NOT use a cut, frayed or damaged infant restraint harness, LATCHbelt or vehicle seat belt.
THE INFANT RESTRAINT CAN BECOME VERY HOT IF LEFT
IN THE SUN. Always touch the surface of any metal or plastic parts before putting your child in the infant restraint.
THIS CHILD RESTRAINT CONFORMS to all applicable Federal
Motor Vehicle Safety Standards and is certified for use in motor vehicles and aircraft.
NEVER GIVE THIS INFANT RESTRAINT AND BASE to someone
else without also giving them this manual.
NEVER USE ASECOND-HAND INFANT RESTRAINT AND BASE
or an infant restraint whose history you do not know.
USE ONLY WITH STROLLERS THAT ARE PART OF THE
GRACO TRAVELSYSTEM. Refer to stroller instruction sheet for details about how to attach the infant restraint to your stroller. If you do not have an instruction sheet, please call toll-free, 1-800-345-4109 to obtain one, or visit our website, www.gracobaby.com.
• Improper use of Graco’s infant car seat with other manufacturer’s
strollers may result in serious injury or death.
4.2 Warning for Use With a Stroller
• FALLHAZARD: Child’s movements can slide carrier.
NEVER place carrier near edges of countertops, tables or other
high surfaces. Always stay within arms reach whenever carrier is not on floor/ground.
BE SURE handle locks into position before lifting carrier. NEVER place carrier in the top of a shopping cart.
• SUFFOCATION HAZARD: Infant carrier can roll over on soft
surfaces and suffocate child. Never place carrier on beds, sofas or other soft surfaces.
• STRANGULATION HAZARD: Child can strangle in loose restraint
straps. Always use harness, never leave child in carrier when straps are loose or undone.
• KEEP STRINGS AND CORDS AWAYFROM CHILD. Strings and
cords can cause strangulation.
DO NOT place carrier near a window where cords from blinds or drapes can strangle a child.
DO NOT hang strings on or over the carrier. DO NOT place items with a string around a child’s neck, such
as hood strings, pacifier cords, etc. DO NOT attach strings to toys.
4.3 Additional Warnings for Use as Carrier
19
20
4.4 Height and Weight Limits
FAILURE TO USE INFANT RESTRAINT IN AMANNER APPROPRIATE FOR YOUR CHILD’S SIZE MAYINCREASE THE RISK OF SERIOUS INJURY OR DEATH.
Your child MUST meet all requirements:
• WEIGHT: 5-22 lbs (2.3-10 kg)
• HEIGHT: 29 inches (73 cm) or less
5.0 Infant Restraint Location
5.1 Vehicle Seat Requirements
IMPROPER PLACEMENT OF THE INFANT RESTRAINT INCREASES THE RISK OF SERIOUS INJURY OR DEATH.
Some seating positions in your vehicle may not be safe for this infant restraint. Some vehicles do not have any seating positions that can be used safely with the infant restraint. If you are not sure where to place the infant restraint in your vehicle, consult your vehicle owner’s manual or call Graco at 1-800-345-4109.
Whenever possible, secure the infant
restraint in the center position of the seat directly behind the front seats
. An adult should ride in the rear seat to watch the child. If the driver is the only adult present, a child may need to ride in the front seat. BUT ONLY if there is no passenger-side air bag and all of the other vehicle seat and seat belt requirements listed are met.
NEVER place this infant restraint in a
vehicle seating location that has a front air bag
. See “4.1 Warnings for
Use as Infant Restraint”, p.16.
21
22
5.2 Vehicle Seat Belt Requirements
The VEHICLE seat must face forward.
DO NOT use infant restraint on vehicle seats with seat backs that will not lock in an upright position. DO NOT use seats that can fold down without having to release a lock or latch of some kind. These seats can fly forward and strike the child in a sudden stop or crash.
MANY SEAT BELT SYSTEMS ARE NOT SAFE TO USE WITH THE INFANT RESTRAINT. THE VEHICLE SEAT BELT MUST BE DESIGNED TO HOLD THE INFANT RESTRAINT TIGHTLYAT ALL TIMES.
Pay careful attention to these systems; some of the seat belts that are not safe to use look very much like seat belts that are safe to use. If you are unsure,
consult your vehicle owner’s manual or Graco
at 1-800-345-4109.
LATCH can be used IN PLACE OF the vehicle belt system. Please refer to vehicle owners manual for LATCHlocations.
Lap Belts with Emergency Locking Retractor (ELR) This lap belt stays loose and can move until it locks
in a crash or sudden stop.
• Combination Lap/Shoulder Belt with Retractor
Each strap has a retractor at one end and is attached to the latch plate at the other end.
• Passive Restraint - Lap Belt with Motorized Shoulder Belt
• Passive Restraint - Lap or Shoulder Belt Mounted on Door
DO NOT use vehicle belts that
are attached to the door in any way or that move along a track to automatically surround the passenger when the door is closed.
• Lap Belts Forward of Seat Crease
DO NOT use any of the following systems to secure the infant restraint.
5.2.1 UNSAFE Vehicle Belt Systems
23
5.2.2 SAFE Vehicle Belt Systems
THE FOLLOWING BELT SYSTEMS CAN BE USED WITH YOUR INFANT RESTRAINT, IF the seat location meets all other
requirements of these instructions and those in your vehicle owner's manual. LATCH can be used in place of the vehicle belt system. Please refer to vehicle owners manual for LATCHlocations.
• Lap Belts - Manually Adjusted
When buckled, the belt is tightened manually by pulling on the excess belt while pushing down hard on the infant restraint.
• Lap Belts with Automatic Locking Retractor (ALR)
The automatic locking retractor will not permit the lap belt to lengthen once it is buckled. Tighten the belt by feeding the belt back into the retractor while pushing down hard on the infant restraint.
• Combination Lap/Shoulder Belt with Locking Latch Plate
Once it is buckled, this type of belt has a latchplate that will not allow the lap portion of the belt to loosen. Belt is tightened by pulling hard on the shoulder portion of the vehicle belt while pushing down hard on the infant restraint.
24
• Combination Lap/Shoulder Belt with Sliding Latch Plate
This belt has a latchplate that slides freely along the belt.
This belt MUST be converted to prevent movement of the lap portion of the belt. You must use the locking clip provided with the infant restraint, unless your vehicle's seat belt can be converted in another way as described in your vehicle owner's manual.
To Install Locking Clip:
1. Tighten the buckled belt by pushing
down hard on the infant restraint and pulling hard on the shoulder belt.
2. While pushing down on infant restraint,
pinch the two straps together behind the buckle tongue. Unbuckle the belt without allowing it to slip.
3. Connect lap and shoulder belts
with locking clip as shown
and .
4. Rebuckle belt. Check that lap
belt does not move by pulling and pushing hard on infant restraint. If belt loosens or lengthens, repeat procedure.
Locking clip
½
inch
Locking clip goes here,
1
/2 inch from the buckle
25
26
5.3 LATCH locations
Newer vehicles may have one or more seating positions with LATCH anchorage systems. If vehicle is equipped with LATCH, the vehicle lower anchor points may be visible at the vehicle seat crease. If not visible, they may be marked with the symbol .
See your vehicle owner’s manual for exact locations, anchor identification, and requirements for use with an infant restraint.
Vehicle Lower
Anchor Points
Vehicle
Seat Crease
Typical seat in a passenger vehicle. Other vehicle types may have different LATCHlocations or different markings.
LATCH is defined as anchorages 280mm (11.02 inches) on center. As a manufacturer, we do not recommend using the LATCH system in the center position if it exceeds this length.
27
6.1 Positioning Harness Straps
FAILURE TO PROPERLYADJUST THE HARNESS STRAPS FOR YOUR CHILD INCREASES THE RISK OF SERIOUS INJURY OR DEATH IN THE EVENT OF ASHARP TURN, SUDDEN STOP OR CRASH.
The harness straps must be properly
adjusted to fit your child according to the following instructions.
1. Remove infant restraint from base and rotate handle down to
sitting position. See “3.3 Removing and Attaching Base”and “3.4 Adjusting Handle”, p. 13.
2. Place child in infant restraint as shown
.
3. Determine which pair of harness slots are even
with or just below your child’s shoulders
.
DO NOT use upper harness slots if they are above your child’s shoulders. They will not hold a small child securely in a sudden stop or crash.
4. If the harness straps must be adjusted:
remove child from infant restraint and follow directions for your type of harness system:
6.1.1 3-Point Harness - p. 28
6.1.2 5-Point Harness - p. 29
Use harness slots
even with or just below
child’s shoulders
6.0 Using Infant Restraint
28
6.1.1 3-Point Harness
1. From back, push harness anchor
buckle back through harness slot. If necessary, from front, use harness strap to pull buckle from slot
.
2. Reinsert harness anchor buckle in the
appropriate slot
.
3. From back, remove harness strap from
harness tightener. If necessary, from front, use harness strap to pull strap from slot.
4. Reinsert strap in the appropriate slot. Thread
strap through tightener exactly as shown
.
5. SAFETY CHECK:
a) CHECK that straps are not twisted; b) CHECK that straps are secure: pull on
harness straps from front.
c) CHECK that harness anchor buckle is
snapped flat against back as shown
.
Harness tightener
Harness anchor
buckle
Loading...
