OWNER'S MANUAL

MANUEL D'UTILISATEUR

MANUAL DEL PROPIETARIO

• PLEASE SAVE OWNER’S MANUAL FOR FUTURE USE.

• ADULT ASSEMBLY REQUIRED.

• NEVER LEAVE CHILD unattended. Always keep child in view while in stroller.

• AVOID FINGER ENTRAPMENT: Use care when folding and unfolding the stroller. Be certain the stroller is fully erected and latched before allowing your child near the stroller.

• NEVER USE STROLLER ON STAIRS or escalators. You may suddenly lose control of the stroller or your child may fall out. Also, use extra care when going up or down a step or curb.

• AVOID STRANGULATION. DO NOT place items with a string around your child’s neck, suspend strings from this product, or attach strings to toys.

• USE OF THE STROLLER with a child weighing more than 40 lbs (18.1 kg) or taller than 43 in (109 cm) will cause excessive wear and stress on the stroller. Use the stroller with only one child at a time.

• DISCONTINUE USING YOUR STROLLER should it become damaged or broken.

• TO PREVENT TIPPING, do not place more than 2 lbs (0.9 kg) on the parent’s tray.

• TO AVOID BURNS, never put hot liquids in the parent’s tray.

• TO PREVENT A HAZARDOUS, UNSTABLE CONDITION, never place purses, shopping bags, parcels or accessory items on the handle or canopy.

• TO PREVENT A HAZARDOUS, UNSTABLE CONDITION, do not place more than 10 lbs (4.5 kg) in the storage basket.

• DO NOT use storage basket as a child carrier.

• DO NOT ALLOW your child to stand on the basket. It may collapse and cause injury.

• NEVER PLACE child in the stroller with head toward front of stroller.

• NEVER ALLOW YOUR STROLLER to be used as a toy.

• STROLLER TO BE USED only at walking speed. Product not intended for use while jogging, skating, etc.

Failure to follow these warnings and the

assembly instructions could result in serious injury or death.

• AVOID SERIOUS INJURY from

falling or sliding out. Always use seat belt. After fastening buckles, adjust belts to get a snug fit around your child.

USING GRACO®INFANT CARRIER WITH STROLLER:

• USE ONLY A GRACO

SNUGRIDE carrier with

this travel system.

• READ THE MANUAL provided

with your Graco carrier before using it with your stroller.

• ALWAYS SECURE your child

with the carrier harness when using the carrier in the stroller. If your child is already in the carrier, check that the child is secured with the harness.

• VEUILLER GARDER LE MANUEL D’UTILISATEUR POUR USAGE ULTÉRIEUR.

• ASSEMBLAGE PAR UN ADULTE REQUIS.

• NE LAISSEZ JAMAIS votre enfant sans surveillance. Ayez toujours l’enfant en vue.

• EVITER DE COINÇER LES DOIGTS: Plier ou déplier la poussette avec soin. Soyez assuré(e) que la poussette est bien droite et que les loquets sont bien enclenchés avant de laisser votre enfant près de la poussette.

• NE JAMAIS UTILISER LA

POUSSETTE SUR LES ESCALIERS ou les escaliers

roulants. L’enfant pourrait tomber ou vous pourriez perdre le contrôle de la poussette. Aussi, soyez très prudent lorsque que vous montez et descendez une marche ou le bord du trottoir.

• ÉVITEZ D’ÉTRANGLEMENT. NE JAMAIS accrocher des objects avec ficelles autour du cou de votre enfant, suspendre des ficelles au-dessus de ce produit, ou attacher des jouets à des ficelles.

• L’USAGE DE LA POUSSETTE

avec un enfant pesant plus de 40 livres (18,1 kg) ou mesure plus de 43 po (109 cm) occasionnera une usure et une tension excessive à la poussette. Utilisez la poussette avec seulement un enfant à la fois.

• POUR NE PAS DÉSÉQUILIBRER LA POUSSETTE, ne pas charger le plateau à plus de 2 livres (0,9 kg).

• POUR ÉVITER LES BRÛLURES, ne jamais mettre de liquides brûlants dans ce plateau.

• POUR ÉVITER DES

CONDITIONS HASARDEUSES ET INSTABLE, ne jamais placer

de sacs à main, sacs à provisions ou accessoires sur le guidon ou le baldaquin.

• POUR ÉVITER DES

CONDITIONS HASARDEUSES ET INSTABLE, ne placez jamais

plus de 10 livres (4,5 kg) dans le panier.

• NE PAS utiliser le panier comme porte-bébé.

• NE LAISSEZ PAS votre enfant debout sur le panier. Il pourrait s’écrouler et causer des blessures.

• NE JAMAIS PLACER l’enfant dans la poussette avec la tête vers l’avant de la poussette.

• NE JAMAIS UTILISER LA

POUSSETTE comme un jouet.

Manquer de suivre ces avertissements et les instructions

d'assemblage peut entraîner de sérieuses blessures ou un décès.

• LA POUSSETTE DOIT ÊTRE UTILISÉE pour la marche

seulement. Ce produit n’est pas conçu pour usage pendant la course à pied, pour patiner, etc.

• CESSEZ L’USAGE DE VOTRE POUSSETTE si elle devient endommagée ou brisée.

• ÉVITEZ DE SÉRIEUSES blessures. Utilisez toujours la ceinture de sécurité. Après avoir attaché les boucles, ajustez les ceintures pour obtenir un ajustement confortable autour de votre enfant.

UTILISER LE PORTE-BÉBÉ GRACO®AVEC POUSSETTE:

• UTILISEZ SEULEMENT UN PORTE-BÉBÉ DE GRACO

SNUGRIDE avec ce système de

voyage.

• LISEZ LE MANUEL d'utilisateur

fournit avec votre porte-bébé Graco avant d'utiliser le porte-bébé avec votre poussette.

• TOUJOURS ATTACHER votre

enfant avec le harnais du porte-bébé quand vous utilisez le porte-bébé avec la poussette. Si votre enfant est déjà dans le porte-bébé, assurez-vous que l'enfant est attaché avec le harnais.

Si no se obedecen estas advertencias y se siguen las instrucciones

de montaje, podría resultar en lesiones graves o la muerte.

• POR FAVOR, CONSERVELO EL MANUEL DEL PROPIETARIO PARA UTILIZARLO EN EL FUTURO.

• SE REQUIERE MONTAJE POR UN ADULTO.

• NUNCA DEJE a su niño desatendido. Siempre tenga su niño a la vista.

• EVITE APRETARSE LOS DEDOS: Use cuidado cuando abre y cierra el cochecito. Asegúrese de que el cochecito esté totalmente montado y estable antes de que su niño esté se acerque al cochecito.

• NUNCA USE EL COCHECITO EN LAS ESCALINATAS o las escaleras mecánicas. Usted puede perder súbitamente el control del cochecito, o su niño podrá caerse. Asimismo, tenga cuidado especial cuando suba o baje un escalón o la calzada.

• EVITE LA ESTRANGULACIÓN. No coloque artículos con cuerdas alrededor del cuello del niño, o suspenda cuerdas del cochecito, o coloque cordones en los juguetes.

• SI USA EL COCHECITO para

un niño que pese más de 40 libras (18,1 kg) o más alto que 43 pulgadas (109 cm) causará desgaste y tensión excesiva en el cochecito. Empléelo solamente con un niño a la vez.

• PARA EVITAR

VOLCAMIENTOS,

no ponga mas de 2 libras (0,9 kg) sobre la bandeja.

• PARA EVITAR QUEMADURAS,

nunca ponga liquidos calientes sobre la bandeja.

• PARA PREVENIR UNA

SITUACIÓN PELIGROSA Y INESTABLE, nunca ponga

carteras, bolsas de compras o accesorios en la manija o capota.

• PARA PREVENIR UNA

SITUACIÓN PELIGROSA Y INESTABLE, no coloque

más de 10 libras (4,5 kg) en la canasta.

• NO use dicha canasta para

transportar el niño.

• NO DEJE QUE su niño

se pare en la canasta. Puede desmoronarse y causar daño.

• NUNCA COLOQUE el niño en

el cochecito con la cabeza en la delantera parte del cochecito.

• NUNCA DEJE QUE EL COCHECITO sea usado

como juguete.

• EL COCHECITO DEBE SER USADO solamente a velocidad de caminar. El producto no está destinado para usarlo mientras está corriendo, patinando, etc.

• PARE DE USAR EL COCHECITO si éste se daña o se quiebra.

• EVITE UNA LESIÓN SERIA debido a una calda o resbalamiento del asiento. Use siempre el cinturón de seguridad. Luego de ajustar las hebillas, ajuste las correas para que queden ajustadas alrededor de su niño.

USAR EL TRANSPORTADOR GRACO

CON COCHECITO:

• USE SOLAMENTE UN TRANSPORTADOR SNUGRIDE GRACO

con este sistema de viaje.

• LEA EL MANUAL provisto con su transportador Graco antes de usarlo con su cochecito.

• ASEGURE SIEMPRE a su bebé con el arnés del transportador cuando usa el transportador en el cochecito. Si su niño ya se encuentra en el transportador, verifique que el niño esté asegurado con el arnés.

Parts list • Liste des pièces

• Lista de las piezas

Vérifiez que vous

avez toutes les pièces

pour ce modèle AVANT

d'assembler votre produit. S'il vous manque des pièces, communiquez

avec notre service à la

clientèle.

Outils nécessaires:

Marteau

Check that you

have all the parts for

this model BEFORE

assembling your

product. If any parts

are missing, call

Customer Service.

Tools Required:

Hammer

Verifique que tiene

todas las piezas de

este modelo ANTES

de armar su producto.

Si falta alguna pieza,

llame al Departamento

de Servicio al Cliente.

Herramienta

necesaria:

Martillo

On certain models

Sur certains modèles

En ciertos modelos

To Open Stroller • Ouvrir la poussette

• Abrir el cochecito

Carton • Boîte • Caja

SNAP! ENCLENCHEZ! ¡CHASQUIDO!

Check that stroller is

completely open (by trying

to fold it) before continuing.

Vérifiez que la poussette est

completement dépliée (en

essayant de la plier) avant

de continuer.

Verifique que el cochecito

esté completamente abierto

(intente doblarlo) antes

de continuar.

Basket • Le panier • La canasta

Align hooks with pegs, and pull back to attach.

Alignez les crochets avec les fiches, et retirez pour attacher.

Alinee los ganchos con las estacas y tire hacia atrás para conectarlo.

SNAP! ENCLENCHEZ! ¡CHASQUIDO!

Trous et boutons métallique en dessous.

Agujeros y botones metálicos por debajo.

Holes and metal buttons on underside.

SNAP! ENCLENCHEZ! ¡CHASQUIDO!

Tirez le levier pour abaisser le panier.

Tire la manija para bajar la canasta.

Pull lever to lower basket.

Footrest and Front Wheels

• Le repose-pied et les roues avant

• Reposapies y las ruedas delanteras

SNAP! ENCLENCHEZ! ¡CHASQUIDO!

Retire el manguito (en ciertos modelos) para ver el botón metálico. Verifique que las ruedas estén bien contactadas, tirando de los montajes de las ruedas.

Pull sleeve back (on certain models) to reveal metal button. Check that wheels are securely attached by pulling on wheel assemblies.

Retirez l'enveloppe (sur certains modèles) pour révéler le bouton métallique. Assurez-vous que les roues sont attachées solidement en tirant sur les assemblages de roue.

SNAP! ENCLENCHEZ! ¡CHASQUIDO!

Rear Axle • L’essieu arrière

• El eje trasero

MISE EN GARDE

Danger d'étranglement: enlevez et jetez immédiatement les embouts de plastique sur l’essieu arrière. Après avoir enclenché l'essieu arrière, assurez-vous que l'essieu arrière est attaché solidement en tirant sur l'assemblage du frein.

WARNING

Choking Hazard: Remove and immediately discard plastic end caps on the rear axle. After snapping on rear axle, check that rear axle is securely attached by pulling on brake assembly.

ADVERTENCIA

de peligro de estrangulación: Saque y deseche inmediatamente las tapas de plástico del eje trasero. Después de conectar el eje trasero, verifique que el eje trasero esté bien conectado tirando del equipo de frenos.

SNAP! ENCLENCHEZ! ¡CHASQUIDO!

Brake levers point toward rear of stroller.

Leviers des freins vers l’arrière de la poussette.

Las palancas del freno deben apuntar hacia la parte trasera del cochecito.

Rear Wheels • Les roues arrières

• Las ruedas traseras

ANTES de instalar la rueda: Asegúrese de poner el cochecito sobre un pedazo de cartón o algún otro material de protección para prevenir dañar el piso.

Coloque la rueda en el eje trasero y fije el tapacubos en su lugar. Coloque el tapacubos en el eje golpeando suavemente con un martillo. ASEGÚRESE que la rueda esté segura tirando de ella.

AVANT de fixer la roue: Assurez-vous de placer la poussette sur un morceau de carton ou un autre revêtement de protection pour prévenir tout dégât au plancher.

Replacez la roue sur l'essieu arrière, et fixez le capuchon en place. Abaissez le capuchon sur l'essieu avec un marteau. VÉRIFIEZ que cette roue est solide en la tirant.

BEFORE attaching wheel: Be sure to place stroller on top of a piece of card board or some other protective cover to prevent any damage to floor.

Place wheel on rear axle, and set the cap in place. Tap cap onto axle with hammer. CHECK that wheel is secure by pulling on it.

Cap Capuchon

Tapacubos

On certain models Sur certains modèles En ciertos modelos

SNAP! ENCLENCHEZ! ¡CHASQUIDO!

Child’s Tray • Le plateau pour enfant

• La bandeja del niño

To open Pour ouvrir Para abrir

SNAP! ENCLENCHEZ! ¡CHASQUIDO!

Parents Tray and Fold Mechanism

• Le plateau pour adulte et le mèchanisme pour pliage • La bandeja para y el

mecanismo de plegar

The parent’s tray includes the mechanism for folding the stroller. You should locate the following parts before attaching it: Tabs on each end secure the tray to the stroller handle. The release button and grip are the parts you will use to do the folding. Plastic straps will be hidden, but they actually fold the stroller.

Le plateau pour parent inclut le mécanisme pour plier la poussette. Vous devriez localiser les pièces suivantes avant de l'attacher: Les onglets sur chaque extrémité fixent le plateau au guidon de la poussette. Le bouton de dégagement et l'empoigne sont les pièces que vous utiliserez pour plier. Les courroies de plastique seront cachées, mais elles sont en fait utiliser pour plier la poussette.

La bandeja para padres incluye el mecanismo para plegar el cochecito. Debe ubicar las piezas siguientes antes de conectarla: Las lengüetas de cada lado conectan la bandeja a la manija del cochecito. Usará el botón y la empuñadura para plegar el cochecito. Las correas de plástico se mantendrán ocultas, pero ayudarán a cerrar el cochecito.

Tab Onglet Lengüeta

Grip Empoigne Empuñadura

Plastic strap Courroie de

plastique

Correa de plástico

Release button Bouton de dégagement Botón de plegar

Verifique que la bandeja para

padres esté bien conectada, tirando de la misma hacia arriba.

Assurez-vous que le plateau pour parent est bien attaché en tirant fort sur le plateau.

Check that parent’s tray is securely attached by pulling up on parent’s tray.

Las correas de plástico deben estar en la parte trasera.

Les courroies de plastique doivent être à l'arrière.

Plastic straps must be to the rear.

SNAP! ENCLENCHEZ! ¡CHASQUIDO!

Deslice los manguitos hacia abajo y tire las cintas de plástico hacia arriba todo lo posible como se indica en la figura 20A; NO deje las correas como se indica en la figura 20B.

La conexión de las correas de plástico puede desenganchar el cochecito. Verifique que el cochecito esté completamente abierto antes de continuar.

Glissez les pochettes et remontez les courroies de plastique jusqu’en haut tel qu’illustré sur 20A; NE PAS laissez les courroies tel qu’illustré sur 20B.

En attachant les courroies de plastique, vous risquez de déverrouiller la poussette. Vérifiez que la poussette est ouverte complètement avant de continuer.

Slide sleeves back down and pull plastic straps all the way up as in figure 20A; DO NOT leave straps as shown in 20B.

Attaching plastic straps may unlatch stroller. Check that stroller is all the way open before continuing.

Pull up sliding sleeves on stroller handle and insert ends of plastic straps.

Remontez les pochettes coulissantes sur le guidon de la poussette et insérez les extrémités des courroies de plastique.

Tire hacia arriba los manguitos deslizantes de la manija del cochecito e inserte los extremos de las correas de plástico.

To adjust harness, slide up or down. Repeat on other side.

Pour ajuster le harnais, glissez vers le haut ou vers le bas. Répétez de l'autre côté.

Para ajustar el arnés, deslícelo hacia arriba o abajo. Repita el procedimiento del otro lado.

To Secure Child • Attacher l’enfant

• Para asegurar al niño

5 Point Harness • Harnais à 5 point

• Arnés de 5 puntos

To convert to 3-pt harness.

Pour convertir en harnais 3-points.

Para convertirlo en un arnés de 3 puntos.

3 Point Buckle • Boucle à 3 point

• Hebilla de 3 puntos

Anclaje del arnés del hombro - niño grande

Harnais d 'ancrage à l 'épaule pour grand enfant

Shoulder harness anchor—larger child

Anclaje del arnés del hombro - niño pequeño

Harnais d 'ancrage à l 'épaule pour petit enfant

Shoulder harness anchor—smaller child

Ajustador deslizable

Glissez le régleur

Slide adjuster

Use uno de los anclajes del arnés del hombro en las ranuras que estén más cerca a la altura del hombro del niño.

Use el ajustador deslizable para lograr ajustes adicionales.

Utilisez l'un ou l'autre des harnais d'ancrage à l'épaule dans les fentes qui sont les plus proches de la hauteur de l'épaule de l'enfant.

Utilisez le régleur pour plus d'ajustement.

Use either shoulder harness anchor in the slots that are closest to child’s shoulder height.

Use slide adjuster for further adjustment.

Correa adicional - niño pequeño

Excédent de courroie pour petit enfant

Excess strap—smaller child

To Change Shoulder Harness Slots

• Pour changer des dentes de harnais d'épaule

• Para cambiar ranuras del arnés del hombro

WARNING

Always apply both brakes. Check that brakes are on by trying to push stroller.

MISE EN GARDE

Toujours utiliser les deux freins. Assurez-vous que les freins fonctionnent en essayant de pousser la poussette.

ADVERTENCIA

Siempre use ambos frenos. Inspeccione los frenos tratando de empujar el cochecito.

Brakes • Les freins • Los frenos

Swivel Wheels • Les roues pivotantes

• Las ruedas giratorias

Front swivel wheels lock for use on uneven surfaces such as grass, stones or gravel.

Les roues pivotantes avant se barrent pour un usage sur les surfaces irrégulières tel que le gazon, les cailloux ou le gravier.

Las ruedas giratorias delanteras se traban para el uso en superficies desparejas tales como césped, piedras o grava.

Elija una de las tres posiciones para la manija o bájela completamente para almacenar.

Choisissez une des trois positions du guidon ou abaissez complètement pour le rangement.

Choose from three handle positions or flip all the way down for storage.

To Adjust Handle • Pour ajuster le guidon

• Para ajustar la manija

Recline Seat • Pour incliner le siège

• Para reclinar el asiento

CAUTION When making adjustments to the stroller seat,

make sure child’s head, arms, and legs are clear of moving seat parts and stroller frame.

PRECAUCIÓN: Cuando realiza ajustes al asiento del

cochecito, asegúrese que la cabeza, brazos y piernas del niño están lejos de las piezas del asiento que se mueven y del armazón del cochecito.

AVERTISSEMENT: Lorsque vous faites des ajustements au

siège de la poussette, s'assurer que la tête de l'enfant, les bras, et les jambes soient dégagés des pièces du siège en mouvement et de l'armature de la poussette.

To Fold Stroller • Plier la poussette

• Para plegar el cochecito

Before folding stroller: 1) lock front swivel wheels, 2) adjust seat back to upright position and 3) apply brakes.

Avant de replier la poussette: 1) verrouillez les roues pivotantes,

2) ajuster le dossier à la position assise et 3) appliquez les freins.

Antes de plegar el cochecito: 1) Trabe las ruedas giratorias delanteras, 2) coloque el respaldo del asiento en posición vertical y

3) aplique los frenos.

First push release button, then squeeze grip.

Premièrement pressez le

bouton de dégagement et

ensuite serrez l'empoigne. Primero, apriete el botón

de soltar y luego apriete la empuñadura.

To Attach Graco®Infant Carrier

• Attacher le porte-bébé Graco

• Instalación del transportador Graco

WARNING For models that do not come with an infant carrier

one may be purchased separately. Use only a Graco®SnugRide carrier with this travel system. Improper use of this stroller with a carrier may result in serious injury or death. Read the manual provided with your Graco carrier before using it with your stroller.

ADVERTENCIA Para los modelos que no vienen con un

transportador para el bebé, se puede comprar uno por separado.Use solamente un transportador SnugRide Graco®con este sistema de viaje. El uso indebido de este cochecito con un transportador podra resultar en lesiones serias o la muerte. Lea el manual provisto con su transportador Graco antes de usarlo con su cochecito.

MISE EN GARDE Pour les modèles qui n'ont pas de porte-

bébé, il est possible de s'en procurer un séparément. Utilisez seulement un porte-bébé de Graco®SnugRide avec ce système de voyage. Un usage inadéquat de cette poussette avec le porte-bébé peut causer de sérieuses blessures ou la mort. Lisez le manuel d'utilisateur fournit avec votre porte-bébé Graco avant d'utiliser le porte-bébé avec votre poussette.

• Recline el asiento del cochecito hacia atrás hasta la posición más baja. Pliegue la capota.

Loquet de sûreté de l’attachement

Traba de seguridad

Attachment latch

• Recline the stroller seat back to its

lowest position. Fold the canopy.

• Incliner le siège de la poussette en

position la plus basse. Pliez le baldaquin.

SNAP! ENCLENCHEZ! ¡CHASQUIDO!

• Push carrier down so it is below latches on stroller handle as shown. Turn and lock latches.

ALWAYS LOCK LATCHES OVER CARRIER.

• Check that carrier is securely attached by pulling up on the carrier handle.

• Appuyez sur le porte-bébé vers le bas pour qu’il soit en-dessous des loquets de sûreté sur le guidon de la poussette comme illustré.

Tournez et verrouillez les loquets de sûreté. TOUJOURS VERROUILLEZ LES LOQUETS DE SÛRETÉ AU-DESSUS DU PORTE-BÉBÉ.

• Assurez-vous que le porte-bébé est attaché solidement en tirant sur le guidon du porte-bébé.

• Empuje el transportador hacia abajo de manera que esté por debajo de las trabas de la manija del cochecito como se muestra.

Gire y trabe las trabas. TRABE SIEMPRE LAS TRABAS SOBRE EL TRANSPORTADOR.

• Verifique que el transportador esté conectado con firmeza tirando hacia arriba de la manija del transportador.

• To remove carrier: unlock

latches above carrier, squeeze release handle at back of carrier, and lift carrier out of the stroller. When carrier is not in use, latches should be in unlocked position, away from baby.

• Para quitar el transportador: abra los cierres arriba del transportador; apriete la manivela de soltar en la parte trasera del transportador, y levante el transportador del cochecito. Cuando el transportador no esté en uso, los cierres deben estar en la posición abierta, fuera del alcance del bebé.

• Pour enlever le porte-bébé, déverrouillez les loquets de sûreté au dessus du porte-bébé, pressez la poignée de dégagement à l'arrière du porte-bébé, et enlevez le porte-bébé de la poussette. Quand le porte-bébé n'est pas utilisé, les loquets de sûreté doivent être déverrouillés, loin de bébé.

To Remove Seat Cover • Enlever la housse

du siege • Para quitar la funda del asiento

Four plastic tabs under seat front. Quatre onglets de plastique sous

l’avant du siège.

Cuatro lengüetas de plástico debajo del asiento.

A stiffener rod is sewn into the fabric. It slides out of a plastic channel here.

Une tringle rigide est cousue dans le tissu. Elle se glisse hors d'un conduit de plastique ici.

Una varilla está cosida en la tela y sale de un canal de plástico de esta manera.

Pull shoulder straps through back board when removing.

Tirez les courroies aux épaules à travers le panneau du dossier.

Para quitar las correas de los hombros, páselas a través del tablero.

Pull straps back through seat slots. Straps remain attached to frame.

Tirez les courroies à travers les fentes du siège. Les courroies restent attachées à l'armature.

Pase las correas por las ranuras del asiento. Las correas se mantienen fijas al bastidor.

Push tray down and pull tabs inward.

Abaissez le plateau et retirez les onglets.

Empuje la bandeja hacia abajo y saque las lengüetas.

To Remove Canopy • Enlever le baldaquin

• Para sacar la capota

Remove support wire and U tube from canopy (note orientation) before washing.

Enlever le support et le tube en U du baldaquin (noter bien l'orientation) avant de laver le baldaquin.

Saque el alambre de apoyo y el tubo en U de la capota (note la orientación) antes de lavarla.

Screwdriver required

Destornillador necesaria

Tournevis nécessaires

• REMOVABLE SEAT may be machine washed in cold water on

delicate cycle and drip-dried. NO BLEACH.

• TO CLEAN STROLLER FRAME, use only household soap and warm

water. NO BLEACH or detergent.

• FROM TIME TO TIME CHECK YOUR STROLLER for loose screws,

worn parts, torn material or stitching. Replace or repair the parts as needed. Use only Graco®replacement parts.

• EXCESSIVE EXPOSURE TO SUN OR HEAT could cause fading or

warping of parts.

• IF STROLLER BECOMES WET, open canopy and allow to dry

thoroughly before storing.

• IF WHEEL SQUEAKS, use a light oil (e.g., WD-40, 3-in-1,

or sewing machine oil). It is important to get the oil into the axle and wheel assembly as illustrated.

• WHEN USING YOUR STROLLER AT THE BEACH completely clean

your stroller afterward to remove sand and salt from mechanisms and wheel assemblies.

Care and Maintenance

• LE SIÈGE AMOVIBLE est lavable à la machine à l’eau froide et au

cycle délicat. Étendre pour sécher. PAS D’EAU DE JAVEL.

• POUR NETTOYER L’ARMATURE DE LA POUSSETTE, utilisez

un savon de ménage et de l’eau tiède. PAS D’EAU DE JAVEL ou détergent.

• DE TEMPS EN TEMPS, VÉRIFIEZ VOTRE POUSSETTE pour des vis

desserrées, pièces usagées, tissu ou couture déchiré. Remplacez ou réparez ces pièces si nécessaire. Utilisez seulement les pièces de remplacement Graco®.

• UNE EXPOSITION PROLONGÉE AU SOLEIL peut provoquer une

décoloration prématurée du tissu et du plastique.

• SI LA POUSSETTE EST MOUILLÉE, ouvrez le baldaquin et laissez

sécher complètement avant l’entreposage.

• SI LES ROUES GRINCENT, utilisez une huile légère (i.e.

WD-40, 3 dans 1, ou bien une huile pour machine à coudre). Il est important de déposer l’huile dans l’essieu de la roue.

• LORSQUE VOUS UTILISEZ VOTRE POUSSETTE À LA PLAGE,

prenez soin de bien la nettoyer après l’usage afin d’enlever le sable et le sel du mécanisme et des roues.

Soins et entretien

• EL ASIENTO REMOVIBLE puede lavarse a máquina en agua fria en

el ciclo delicado y secarse al aire. NO USE CLORO.

• PARA LIMPIAR EL ARMAZÓN DEL COCHECITO: usar solamente

jabón de uso doméstico y agua tibia. NO USE CLORO o detergente.

• DE VEZ EN CUANDO, INSPECCIONE EL COCHECITO para

determinar si hay tornillos flojos, piezas gastadas, material o costuras rotas. Cambie o repare las piezas según sea necesario. Use solamente repuestos marca Graco®.

• EL CONTACTO EXCESIVO CON EL SOL o el calor podría causar que

se destiña o se tuerzan algunas piezas.

• SI EL COCHECITO SE MOJA, abra la capota y déjelo secar

completamente antes de guardarlo.

• SI LAS RUEDAS HACEN RUIDO, use un aceite liviano

(por ej., WD-40, 3-en-1, o aceite para máquinas de coser). Es importante hacer penetrar el aceite en el eje y equipo de la rueda como se ilustra.

• CUANDO USA EL COCHECITO EN LA PLAYA, limpie el

cochecito completamente después para sacar la arena y la sal de los mecanismos y equipos de las ruedas.

Cuidado y mantenimiento

Graco Limited Warranty

At Graco, we make innovative, high quality products for babies and children. We warrant this product to be free from defects in material and workmanship existing at the time of manufacture for a period of one year from the date of initial purchase (sales receipt is required for proof of purchase). If such a defect is discovered during the limited warranty period, we will, at our sole option, repair or replace your product at no cost to you.

This limited warranty does not cover claims resulting from misuse, failure to follow the instructions on installation, maintenance and use, abuse, alteration, involvement in an accident, and normal wear and tear.

THIS LIMITED WARRANTY IS EXCLUSIVE AND IN LIEU OF ANY OTHER WARRANTY, WRITTEN OR ORAL, INCLUDING BUT NOT LIMITED TO ANY EXPRESS WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. THE DURATION OF ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, IS EXPRESSLY LIMITED TO THIS LIMITED WARRANTY PERIOD.

Some states or provinces do not allow limitations on how long an implied warranty lasts; therefore, the above limitations and exclusions may not apply to you.

THE CUSTOMER'S EXCLUSIVE REMEDY FOR BREACH OF THIS LIMITED WARRANTY OR OF ANY IMPLIED WARRANTY OR OF ANY OTHER OBLIGATION ARISING BY OPERATION OF LAW OR OTHERWISE SHALL BE LIMITED AS SPECIFIED HEREIN TO REPAIR OR REPLACEMENT, AT OUR SOLE OPTION. IN ANY EVENT, RESPONSIBILITY FOR SPECIAL, INCIDENTAL AND CONSEQUENTIAL DAMAGES IS EXPRESSLY EXCLUDED.

Some states or provinces do not allow an exclusion or limitation of special, incidental or consequential damages, therefore, that limitation or exclusion may not apply to you.

This limited warranty gives you specific legal rights, and you may have other rights that vary from state to state or province to province.

For warranty service or replacement part information: USA: Please call 1-800-345-4109, or write to Consumer Services, Graco

Children's Products, 150 Oaklands Boulevard, Exton, PA 19341. Canada: Please email us at service@graco.net, call 1-800-667-8184, or write

to Elfe Juvenile Products, 4580 Hickmore, Montreal, Quebec, Canada H4T 1K2. Outside USA and Canada: Please contact place of purchase for

warranty service.

Some replacement parts may be available for purchase after this limited warranty expires. Please visit us at www.gracobaby.com or call us at 1-800-345-4109 for details. In Canada Call 1-800-667-8184 or e-mail: service@elfe.ca.

Garantie limitée de Graco

Chez Graco, nous fabriquons des produits innovateurs de haute qualité pour bébés et enfants. Nous garantissons que ce produit est exempt de défauts des matériaux et de la main-d'oeuvre au moment de la fabrication pour une période de 1 an suivant la date d'achat (reçu de caisse nécessaire comme preuve d'achat). Si un tel défaut est découvert pendant la période de garantie limitée, nous, à notre seule option, feront la réparation où remplaceront votre produit sans frais.

Cette garantie limitée ne couvre pas les réclamations résultant d'un usage inadéquat, de manquer de suivre les instructions d'installation, de l'entretien et de l'utilisation, de l'abus, de modification, d'avoir subit un accident, et d'un usage et usure normal.

CETTE GARANTIE LIMITÉE EST EXCLUSIVE ET TIENT LIEU DE N'IMPORTE QUELLE AUTRE GARANTIE, ÉCRITE OU ORALE, INCLUANT, MAIS NON LIMITÉE À TOUTE GARANTIE EXPRÈS DE LA VALEUR MARCHANDE OU DE L'APTITUDE À UN BUT PARTICULIER. LA DURÉE DE TOUTES GARANTIES TACITES, Y COMPRIS N'IMPORTE QUELLE GARANTIE TACITE DE VALEUR MARCHANDE OU D'APTITUDE À UN BUT PARTICULIER, EST EXPRESSÉMENT LIMITÉE À CETTE PÉRIODE LIMITÉE DE LA GARANTIE.

Certains états ou provinces ne permettent pas les limitations de durée d'une garantie tacite ; donc, les limitations et exclusions ci-dessus mentionnées peuvent ne pas s'appliquer.

LA VOIE DE DROIT EXCLUSIVE DU CLIENT POUR INFRACTION À CETTE GARANTIE LIMITÉE OU À N'IMPORTE QUELLE GARANTIE TACITE OU À N'IMPORTE QUEL AUTRE ENGAGEMENT PROVENANT DE LA LOI D'OPÉRATION OU AUTRE, SERA LIMITÉE, TEL QU'INDIQUÉ CI-APRÈS, À RÉPARER OU REMPLACER, À NOTRE SEULE OPTION. QUOI QU'IL ARRIVE, LA RESPONSABILITÉ DES DOMMAGES SPÉCIAUX, FORTUITS ET CONSÉCUTIFS EST EXPRESSÉMENT EXCLUE.

Certains états ou provinces ne permettent pas les exclusions ou limitations de dommages spéciaux, fortuits ou consécutifs, donc, les limitations et exclusions ci-dessus mentionnées peuvent ne pas s'appliquer.

Cette garantie limitée vous donne des droits légaux spécifiques, et vous pouvez avoir d'autres droits qui varient d'un état ou un province à l'autre.

Pour service sous garantie ou information concernant les pièces de remplacements:

États-Unis: Communiquez avec le 1-800-345-4109, ou écrivez-nous aux Services au Consommateurs, Produits Juvéniles Graco, 150 boulevard Oaklands, Exton, PA 19341.

Canada: Par courriel au service@graco.net, téléphonez au 1-800-667-8184, ou écrivez-nous aux Produits Juvéniles Elfe, 4580 Hickmore, Montréal, Québec, Canada H4T 1K2.

À l'extérieur des États-Unis et du Canada: Veuillez communiquer avec l'endroit ou vous avez acheté l'article pour le service sous garantie.

Certaines pièces de remplacements peuvent être disponibles après l'expiration de cette garantie. Visitez notre site Internet à www.gracobaby.com ou téléphonez au 1-800-345-4109 pour plus d'information. Au Canada téléphonez au 1-800-667-8184 ou par courriel au service@elfe.ca.

Garantía limitada de Graco

En Graco, fabricamos productos innovadores de alta calidad para bebés y niños. Garantizamos este producto como libre de defectos de material y mano de obra existentes en el momento de la fabricación durante un período de un año desde la fecha de compra inicial (se requiere el recibo de la compra como prueba). Si dicho defecto se descubre durante el período de la garantía limitada, nosotros repararemos o cambiaremos su producto, a nuestra entera discreción, sin costo alguno para usted.

Esta garantía limitada no cubre reclamaciones que resulten del mal uso, del no cumplir las instrucciones de la instalación, mantenimiento y uso, abuso, alteración, participación en un accidente y uso y desgaste normal.

ESTA GARANTÍA LIMITADA ES EXCLUSIVA Y EN LUGAR DE CUALQUIER OTRA GARANTÍA, ESCRITA U ORAL, INCLUYENDO PERO SIN LIMITACIÓN A CUALQUIER GARANTÍA EXPRESA DE COMERCIABILIDAD O APTITUD PARA UN PROPÓSITO PARTICULAR. LA DURACIÓN DE LAS GARANTÍAS IMPLÍCITAS, INCLUYENDO CUALQUIER GARANTÍA IMPLÍCITA DE COMERCIABILIDAD O APTITUD PARA UN PROPÓSITO PARTICULAR, ESTÁ EXPRESAMENTE LIMITADA A ESTE PERÍODO DE LA GARANTÍA LIMITADA.

Algunos estados no permiten limitaciones sobre cuánto dura una garantía implícita; por lo tanto, las limitaciones y exclusiones anteriores podrían no aplicarse a su caso.

LA SOLUCIÓN EXCLUSIVA DEL CLIENTE POR EL INCUMPLIMIENTO DE ESTA GARANTÍA LIMITADA O DE CUALQUIER GARANTÍA IMPLÍCITA O DE CUALQUIER OTRA OBLIGACIÓN QUE SURJA COMO RESULTADO DE LA LEY O DE OTRA MANERA SE LIMITARÁ SEGÚN SE ESPECIFICA EN ESTA GARANTÍA A LA REPARACIÓN O REEMPLAZO, A NUESTRA ENTERA DISCRECIÓN. EN CUALQUIER CASO, SE EXCLUYE EXPRESAMENTE LA RESPONSABILIDAD POR DAÑOS ESPECIALES, INCIDENTALES Y CONSECUENTES.

Algunos estados no permiten una exclusión o limitación de los daños especiales, incidentales o consecuentes, por lo tanto, dicha limitación o exclusión podría no aplicarse a su caso.

Esta garantía limitada le brinda derechos legales específicos y usted podría tener otros derechos que varían de un estado a otro.

Para obtener servicio bajo la garantía o información sobre piezas de repuesto: EE.UU.: Por favor, llame al 1-800-345-4109, o escriba a Consumer Services, Graco

Children's Products, 150 Oaklands Boulevard, Exton, PA 19341. Canadá: Por favor, envíenos un mensaje electrónico a service@graco.net, llame al

1-800-667-8184, o escriba a Elfe Juvenile Products, 4580 Hickmore, Montreal, Quebec, Canadá H4T 1K2.

Fuera de EE.UU. y Canadá: Por favor, comuníquese con el lugar de compras para obtener el servicio bajo la garantía.

Algunas piezas de repuesto podrían estar disponibles para la compra luego de que haya vencido esta garantía limitada. Por favor, visítenos en www.gracobebe.com o llámenos al 1-800-345-4109 para detalles.

Notes • Notas

Complete the following form. Your model number MUST be included on the form to ensure proper replacement parts. Your model

number can be found under the footrest of the stroller. Payment must accompany your order.

Return the form with payment to:

GRACO Children’s Products Inc. Customer Service Department 150 Oaklands Blvd. Exton, PA 19341

Complete el formulario a continuación. El número de modelo DEBE incluirse en este formulario para asegurar las piezas de repuesto apropiadas. El

número de modelo puede encontrarse debajo el repoyapiés del cochecito. El pago en dólares estadounidenses debe incluirse con el pedido.

Devuélvase con pago a:

GRACO Children’s Products Inc. Customer Service Department 150 Oaklands Blvd. Exton, PA 19341

Replacement Parts (USA)

Piezas de repuesto (EE.UU)

Questions? Telephone us at: • ¿Preguntas? Llámenos al:

1-800-345-4109

www.gracobaby.com

or/o

Replacement Parts (Canada)

Des pièces de remplacement (au Canada)

To purchase parts in Canada,

contact Elfe at / Pour commander les pièces

au Canada, communiquez

avec Elfe au:

1-800-667-8184

(Montreal: 514-344-3533

Fax: 514-344-9296).

or/ou

www.elfe.net

• Circle the part you need.

• Marque con un círculo el repuesto que necesita.

$18.00

$12.00$12.00

$ 8.00

$ 5.00

$12.00

$16.00

$12.00

2 3

8 9

10 11

$ 7.00

$15.00

$10.00

$ 5.00 (2)

$ 7.00 (2)

$ 5.00

$ 12.00

no charge

sin costo

Check or money order enclosed (payable to Graco Children’s Products Inc.)

Cheque o giro adjunto (a nombre de Graco Children's Products Inc.)

Charge to credit card •Cargar a la tarjeta de crédito

Account #: •

Cuenta N°:

Visa

Exp. date•Fecha de

vencimiento

Mastercard

Signature•Firma:

Discover

Total • Total:

Shipping & handling*: Gastos de envío*: $5.00

Sales tax**: Impuestos**:

Total due: T

otal a pagar: *$15.00 outside the continental U.S. *US$ 15,00 para fuera del continente de EE.UU **CA 7.25%, IL 6.25%, IN 5%, NY 8.25%, OH 5.75%, PA 6%, SC 5%

Must be filled in: Debe completarse:

Model No. N.° de modelo

Serial No. N.° de serie

Ship to • Enviar a:

Name • Nombre

Address • Dirección

City, State, Zip • Ciudad, Estado, Código postal

( )

Telephone • Telefóno

E-Mail Address • Dirección electrónica

READ THIS MANUAL

KEEP INSTRUCTIONSFORFUTURE USE.

Do not install or use this infant restraint until you

read and understand the instructions in this manual.

FAILURE TO PROPERLYUSE THIS INFANT RESTRAINT

INCREASES THE RISK OF SERIOUS INJURY OR DEATH IN

A SUDDEN STOP OR CRASH.

Infant Restraint/Carrier

Owner’s Manual

1.0 Warnings to Parents and Other Users . . . . . . . . . . . . . . . .4-5

2.0 Registration Information . . . . . . . . . . . . . . . . . . . . . . . . . . .6-7

2.1 Register Your Infant Restraint . . . . . . . . . . . . . . . . . . . . . .6

2.2 Recall Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

2.3 If You Need Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

3.0 Features and Components . . . . . . . . . . . . . . . . . . . . . . . .8-15

3.1 3-Point Harness Model . . . . . . . . . . . . . . . . . . . . . . . . . . .9

3.2 5-Point Harness Model . . . . . . . . . . . . . . . . . . . . . . . . . .11

3.3 Removing and Attaching Base . . . . . . . . . . . . . . . . . . . . .13

3.4 Adjusting Handle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

3.5 Attaching Canopy (certain models) . . . . . . . . . . . . . . . . .14

3.6 Head Support (certain models) . . . . . . . . . . . . . . . . . . . .15

3.7 Cold Weather Boot (certain models) . . . . . . . . . . . . . . . .15

4.0 Important Information . . . . . . . . . . . . . . . . . . . . . . . . . . .16-20

4.1 Warnings for Use as Infant Restraint . . . . . . . . . . . . . . . .16

4.2 Warning for Use With a Stroller . . . . . . . . . . . . . . . . . . . .18

4.3 Additional Warnings for Use as Carrier . . . . . . . . . . . . . .19

4.4 Height and Weight Limits . . . . . . . . . . . . . . . . . . . . . . . .20

5.0 Infant Restraint Location . . . . . . . . . . . . . . . . . . . . . . . .21-26

5.1 Vehicle Seat Requirements . . . . . . . . . . . . . . . . . . . . . . .21

5.2 Vehicle Seat Belt Requirements . . . . . . . . . . . . . . . . . . .22

5.2.1 UNSAFE Vehicle Belt Systems . . . . . . . . . . . . . . . .23

5.2.2 SAFE Vehicle Belt Systems . . . . . . . . . . . . . . . . . .24

5.3 LATCH locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

6.0 Using Infant Restraint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27-40

6.1 Positioning Harness Straps . . . . . . . . . . . . . . . . . . . . . . .27

6.1.1 3-Point Harness . . . . . . . . . . . . . . . . . . . . . . . . . .28

6.1.2 5-Point Harness . . . . . . . . . . . . . . . . . . . . . . . . . .29

6.2 Securing Child in Infant Restraint . . . . . . . . . . . . . . . . . .31

6.2.1 3-Point Harness . . . . . . . . . . . . . . . . . . . . . . . . . .32

6.2.2 5-Point Harness . . . . . . . . . . . . . . . . . . . . . . . . . .33

6.3 Installing Infant Restraint/Base Using Vehicle Belt . . . . . .34

6.4 Using LATCH to Install Base . . . . . . . . . . . . . . . . . . . . . .37

6.5 Reclining Infant Restraint/Base . . . . . . . . . . . . . . . . . . . .38

7.0 Additional Information . . . . . . . . . . . . . . . . . . . . . . . . . .41-43

7.1 Airplane Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

7.2 Storing LATCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

7.3 Cleaning and Maintenance . . . . . . . . . . . . . . . . . . . . . . .42

Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44-45

No infant restraint can guarantee protection from injury in every situation. However, proper use of this infant restraint reduces the risk of serious injury or death to your child.

Failure to properly use this infant restraint increases the risk of serious injury or death in a sharp turn, sudden stop or crash.

Your child’s safety depends on you installing and using this infant restraint correctly.

Even if using this infant restraint seems easy to figure out on your own, it is very important to READ THE OWNER’S MANUAL.

The manual is located in the back pocket of the infant restraint. You must also read your vehicle owner’s manual.

Your child’s safety depends on:

1. Choosing a suitable location in your vehicle. Some seating positions, such as those equipped with air bags, may not be safe locations for this infant restraint.

2. Inserting the harness straps in the proper slots for your child.

3. Properly securing your child in the infant restraint.

4. Placing infant restraint/base in a rear-facing position.

1.0 Warnings to Parents and

Other Users

5. Properly routing the vehicle seat belt or LATCH.

6. Properly reclining the infant restraint.

7. Properly securing the infant restraint in the vehicle using a seat belt designed to restrain an infant restraint or by using LATCH. Many seat belts are NOTsafe to use with infant restraints, even though they can easily be threaded through the infant restraint!

Model Number: Manufactured in: Purchase Date:

2.1 Register Your Infant Restraint

Please fill in the above information. The numbers can be found on a label underneath your infant restraint. Fill out the prepaid registration postcard attached to the seat cover and mail it today.

Child restraints could be recalled for safety reasons. You must register this restraint to be reached in a recall. Send your name,

address and model number to:

Graco Children’s Products Inc. 150 Oaklands Blvd. Exton, PA19341 or call 1-800-345-4109

• Call the U.S. Government’s Auto Safety Hotline

at 1-800-424-9393 (202-366-0123 in D.C. area)

• www.nhtsa.dot.gov

• Graco: 1-800-345-4109 or www.gracobaby.com

2.2 Recall Information

2.0 Registration Information

2.3 If You Need Help

In the U.S.A. or Canada, please contact our Customer Service Department with any questions you may have concerning parts, use, or maintenance. When you contact us, please have your product’s model and serial numbers ready so that we may help you efficiently. These numbers can be found on a sticker on the underside of your infant restraint.

USA: 1-800-345-4109 or www.gracobaby.com

Canada: 1-800-667-8184 Montreal: 514-344-3533

Vehicle belt/LATCH* path

Each model of the infant restraint comes with different harness options. To adjust your infant restraint properly, it is very

important to follow the instructions that are appropriate for the model you have purchased.

3.0 Features and Components

5-Point Harness3-Point Harness

United States Federal Motor Vehicle Safety Standards have defined a new system for installing car seats in vehicles. The system is called LATCH.

* LATCH may be used IN PLACE of vehicle belt ONLYif vehicle is equipped with LATCH anchor points. Please refer to vehicle owners manual for LATCH locations.

Base

Adjustable Foot

LATCH Connectors

Adjustment Belt

LATCH

Storage

Bars

3.1 3-Point Harness Model

Handle

Harness

slots

Vehicle belt

hook

Handle

adjustment

button

Harness

clip

Harness

buckle

Harness

straps

FRONT VIEW: 3-POINT HARNESS

REAR VIEW: 3-POINT HARNESS

Canopy

(on certain models)

Harness

slot

Release

handle

Attachment

latch

Level

indicator*

Owner’s

manual

pocket

Locking

clip**

Harness

anchor

buckle

Harness

tightener

The level indicator is attached to the side of the infant restraint, and indicates whether or not the infant restraint is properly reclined.

The locking clip is stored on the bottom of the infant restraint. You will need to use it with certain types of vehicle seat belts.

**Locking

Clip

*Level

Indicator

3.2 5-Point Harness Model

FRONT VIEW: 5-POINT HARNESS

Handle

Harness

slots

Vehicle

belt

hook

Handle

adjustment

button

Harness

clip

Harness

adjustment strap

Harness

buckle

Harness

adjustment

button

Harness

buckle tongues

REAR VIEW: 5-POINT HARNESS

Canopy

(on certain models)

Harness slot

Release handle

Attachment

latch

Level

indicator*

Owner’s manual

pocket

Harness adjustment

strap

Metal

junction

plate

Locking clip**

Waist strap

anchor buckle

The level indicator is attached to the side of the infant restraint, and indicates whether or not the infant restraint is properly reclined.

The locking clip is stored on the bottom of the infant restraint. You will need to use it with certain types of vehicle seat belts.

**Locking

Clip

*Level

Indicator

3.3 Removing and Attaching Base

3.4 Adjusting Handle

To remove infant restraint, squeeze handle at back of seat and lift infant restraint from base as shown



To put infant restraint in base, push infant restraint down until it clicks into base. Pull up

on infant restraint to be sure it is latched firmly into base.



1. Press handle adjustment buttons on

both sides of handle



2. Rotate handle until it clicks into any

of the 5 positions: Position A: MUST be used

when carrying by handle,

Position B,C,D: are convenience

positions, Position E: is the sitting position, NEVER use positions B or C

in the vehicle. BOTH handle adjustment

buttons must pop out to lock handle in place

.

3. Push and pull on the handle

to be sure it is locked firmly in position.





Carrying

Sitting

3.5 Attaching Canopy (on certain models)

1. Infant restraint comes with four (two on certain models) identical canopy support parts.

Thread one canopy support completely through one sewn tunnel

.

2. Slide straight end of a second support into the straight end of the first support

.

3. On models with four canopy supports, repeat steps one and two for the other canopy tunnel. The canopy should appear as shown

.

4. Attach canopy in the areas between the infant restraint and the handle base

.









To remove canopy:

Pull the canopy fabric back. With both thumbs on the

center of the canopy bow, wiggle back and forth while pulling out on the two parts of the canopy bow .



Some infants may need extra support to keep their head and body in a comfortable position. Unsnap the sides and resnap them with the harness straps threaded through the slots in the cushion



If your model does not include a head support, you may want to use a rolled towel or a blanket for support



. MAKE

SURE THAT NOTHING INTERFERES WITH THE HARNESS. It must still be

flat and snug against your child’s shoulders.





3.7 Cold Weather Boot

(on certain models)

Some models come with a cold weather boot. To use, wrap elastic around bottom of seat and place both elastic loops around vehicle belt hooks as shown



3.6 Head Support (on certain models)

4.0 Important Information

4.1 Warnings for Use as Infant Restraint

• DO NOT INSTALL OR USE THIS INFANT RESTRAINT

AND BASE UNTIL YOU READ AND UNDERSTAND THE INSTRUCTIONS IN THIS MANUAL AND IN YOUR VEHICLE OWNER’S MANUAL. DO NOT let others install or use the

infant restraint unless they understand how to use it.

• FAILURE TO PROPERLY USE THIS INFANT RESTRAINT

AND BASE INCREASES THE RISK OF SERIOUS INJURY OR DEATH IN A SUDDEN STOP OR CRASH. Your child can

be injured in a vehicle even if you are not in a crash. Sudden braking and sharp turns can injure your child if the infant restraint is not properly installed or if your child is not properly secured in the infant restraint.

• PLACE THIS INFANT RESTRAINT IN AREAR-FACING

POSITION when using it in the vehicle.

• DO NOT PLACE THIS INFANT RESTRAINT

IN AVEHICLE SEATING LOCATION THAT HAS A FRONT AIR BAG. If the air bag

inflates, it can hit the infant restraint with great force and cause serious injury or death to your child. Check vehicle owner’s manual for information about side air bags and infant restraint installation.

• SOME SPECIAL NEEDS CHILDREN, such as pre-term babies

or those who have tested positive for positional apnea, may be at increased risk of suffering breathing or other difficulties in an infant restraint. If your child has special needs, we recommend that you have your physician or hospital staff evaluate your child and recommend the proper infant restraint or car bed before using this product.

• According to accident statistics, CHILDREN ARE SAFER WHEN

PROPERLY RESTRAINED IN REAR VEHICLE SEATING POSITIONS, RATHER THAN FRONT SEATING POSITIONS.

For a vehicle with a front passenger air bag, refer to your vehicle owner’s manual as well as these instructions for infant restraint installation.

• NEVER LEAVE YOUR CHILD UNATTENDED.

• NEVER LEAVE AN INFANT RESTRAINT AND BASE

UNSECURED IN YOUR VEHICLE.An unsecured infant restraint or base can be thrown around and may injure occupants in a sharp turn, sudden stop or crash. Remove it or make sure that it is securely belted in the vehicle. If not using LATCH, make sure LATCH connectors are properly stored on base.

• REPLACE THE INFANT RESTRAINT AND BASE AFTER AN

ACCIDENT OF ANY KIND. An accident can cause damage to the infant restraint that you cannot see.

• STOP USING INFANT RESTRAINT AND BASE AND THROW IT

AWAY after the date molded into the underside of the infant restraint.

• DO NOT MODIFY YOUR INFANT RESTRAINT AND BASE or

use any accessories or parts supplied by other manufacturers.

• NEVER USE INFANT RESTRAINT AND BASE IF IT HAS

DAMAGED OR MISSING PARTS.DO NOT use a cut, frayed or damaged infant restraint harness, LATCHbelt or vehicle seat belt.

• THE INFANT RESTRAINT CAN BECOME VERYHOT IF LEFT

IN THE SUN. Always touch the surface of any metal or plastic parts before putting your child in the infant restraint.

• THIS CHILD RESTRAINT CONFORMS to all applicable Federal

Motor Vehicle Safety Standards and is certified for use in motor vehicles and aircraft.

• NEVER GIVE THIS INFANT RESTRAINT AND BASE to someone

else without also giving them this manual.

• NEVER USE A SECOND-HAND INFANT RESTRAINT AND BASE

or an infant restraint whose history you do not know.

• USE ONLYWITH STROLLERS THAT ARE PART OF THE

GRACO TRAVELSYSTEM. Refer to stroller instruction sheet for details about how to attach the infant restraint to your stroller. If you do not have an instruction sheet, please call toll-free, 1-800-345-4109 to obtain one, or visit our website, www.gracobaby.com.

4.2 Warning for Use With a Stroller

• FALL HAZARD: Child’s movements can slide carrier.

NEVER place carrier near edges of countertops, tables or other

high surfaces. Always stay within arms reach whenever carrier is not on floor/ground.

BE SURE handle locks into position before lifting carrier. NEVER place carrier in the top of a shopping cart.

• SUFFOCATION HAZARD: Infant carrier can roll over on soft

surfaces and suffocate child. Never place carrier on beds, sofas or other soft surfaces.

• STRANGULATION HAZARD: Child can strangle in loose restraint

straps. Always use harness, never leave child in carrier when straps are loose or undone.

• KEEP STRINGS AND CORDS AWAYFROM CHILD. Strings and

cords can cause strangulation.

DO NOT place carrier near a window where cords from blinds or drapes can strangle a child.

DO NOT hang strings on or over the carrier. DO NOT place items with a string around a child’s neck, such

as hood strings, pacifier cords, etc. DO NOT attach strings to toys.

4.3 Additional Warnings for Use as Carrier

4.4 Height and Weight Limits

FAILURE TO USE INFANT RESTRAINT IN AMANNER APPROPRIATE FOR YOUR CHILD’S SIZE MAYINCREASE THE RISK OF SERIOUS INJURY OR DEATH.

Your child MUST meet all requirements:

• WEIGHT: 20 lbs (9 kg) or less

• HEIGHT: 26 inches (66 cm) or less

5.0 Infant Restraint Location

5.1 Vehicle Seat Requirements

IMPROPER PLACEMENT OF THE INFANT RESTRAINT INCREASES THE RISK OF SERIOUS INJURY OR DEATH.

Some seating positions in your vehicle may not be safe for this infant restraint. Some vehicles do not have any seating positions that can be used safely with the infant restraint. If you are not sure where to place the infant restraint in your vehicle, consult your vehicle owner’s manual or call Graco at 1-800-345-4109.

• Whenever possible, secure the infant

restraint in the center position of the seat directly behind the front seats



. An adult should ride in the rear seat to watch the child. If the driver is the only adult present, a child may need to ride in the front seat. BUT ONLY if there is no passenger-side air bag and all of the other vehicle seat and seat belt requirements listed are met.

• NEVER place this infant restraint in a

vehicle seating location that has a front air bag



. See “4.1 Warnings for

Use as Infant Restraint”, p.16.





5.2 Vehicle Seat Belt Requirements

• The VEHICLE seat must face forward.

• DO NOT use infant restraint on vehicle seats with seat backs that will not lock in an upright position. DO NOT use seats that can fold down without having to release a lock or latch of some kind. These seats can fly forward and strike the child in a sudden stop or crash.

MANY SEAT BELT SYSTEMS ARE NOT SAFE TO USE WITH THE INFANT RESTRAINT. THE VEHICLE SEAT BELT MUST BE DESIGNED TO HOLD THE INFANT RESTRAINT TIGHTLYAT ALL TIMES.

Pay careful attention to these systems; some of the seat belts that are not safe to use look very much like seat belts that are safe to use. If you are unsure,

consult your vehicle owner’s manual or Graco

at 1-800-345-4109.

LATCH can be used IN PLACE OF the vehicle belt system. Please refer to vehicle owners manual for LATCH locations.

• Lap Belts with Emergency Locking Retractor (ELR) This lap belt stays loose and can move until it locks

in a crash or sudden stop.

• Combination Lap/Shoulder Belt with Retractor

Each strap has a retractor at one end and is attached to the latch plate at the other end.

• Passive Restraint - Lap Belt with Motorized Shoulder Belt

• Passive Restraint - Lap or Shoulder Belt Mounted on Door

DO NOT use vehicle belts that

are attached to the door in any way or that move along a track to automatically surround the passenger when the door is closed.

• Lap Belts Forward of Seat Crease

DO NOT use any of the following systems to secure the infant restraint.

5.2.1 UNSAFE Vehicle Belt Systems

5.2.2 SAFE Vehicle Belt Systems

THE FOLLOWING BELT SYSTEMS CAN BE USED WITH YOUR INFANT RESTRAINT, IF the seat location meets all other

requirements of these instructions and those in your vehicle owner's manual. LATCH can be used in place of the vehicle belt system. Please refer to vehicle owners manual for LATCH locations.

• Lap Belts - Manually Adjusted

When buckled, the belt is tightened manually by pulling on the excess belt while pushing down hard on the infant restraint.

• Lap Belts with Automatic Locking Retractor (ALR)

The automatic locking retractor will not permit the lap belt to lengthen once it is buckled. Tighten the belt by feeding the belt back into the retractor while pushing down hard on the infant restraint.

• Combination Lap/Shoulder Belt with Locking Latch Plate

Once it is buckled, this type of belt has a latchplate that will not allow the lap portion of the belt to loosen. Belt is tightened by pulling hard on the shoulder portion of the vehicle belt while pushing down hard on the infant restraint.

• Combination Lap/Shoulder Belt with Sliding Latch Plate

This belt has a latchplate that slides freely along the belt.

This belt MUST be converted to prevent movement of the lap portion of the belt. You must use the locking clip provided with the infant restraint, unless your vehicle's seat belt can be converted in another way as described in your vehicle owner's manual.

To Install Locking Clip:

1. Tighten the buckled belt by pushing

down hard on the infant restraint and pulling hard on the shoulder belt.

2. While pushing down on infant restraint,

pinch the two straps together behind the buckle tongue. Unbuckle the belt without allowing it to slip.

3. Connect lap and shoulder belts

with locking clip as shown



and .

4. Rebuckle belt. Check that lap

belt does not move by pulling and pushing hard on infant restraint. If belt loosens or lengthens, repeat procedure.

Locking clip

inch



Locking clip goes here,

/2 inch from the buckle



5.3 LATCH locations

Newer vehicles may have one or more seating positions with LATCH anchorage systems. If vehicle is equipped with LATCH, the vehicle lower anchor points may be visible at the vehicle seat crease. If not visible, they may be marked with the symbol .

See your vehicle owner’s manual for exact locations, anchor identification, and requirements for use with an infant restraint.

Vehicle Lower

Anchor Points

Vehicle

Seat Crease

Typical seat in a passenger vehicle. Other vehicle types may have different LATCHlocations or different markings.

LATCH is defined as anchorages 280mm (11.02 inches) on center. As a manufacturer, we do not recommend using the LATCH system in the center position if it exceeds this length.

6.1 Positioning Harness Straps

FAILURE TO PROPERLYADJUST THE HARNESS STRAPS FOR YOUR CHILD INCREASES THE RISK OF SERIOUS INJURY OR DEATH IN THE EVENT OF ASHARP TURN, SUDDEN STOP OR CRASH.

The harness straps must be properly

adjusted to fit your child according to the following instructions.

1. Remove infant restraint from base and rotate handle down to

sitting position. See “3.3 Removing and Attaching Base” and “3.4 Adjusting Handle”, p. 13.

2. Place child in infant restraint as shown

.

3. Determine which pair of harness slots are even

with or just below your child’s shoulders

.

DO NOT use upper harness slots if they are above your child’s shoulders. They will not hold a small child securely in a sudden stop or crash.

4. If the harness straps must be adjusted:

remove child from infant restraint and follow directions for your type of harness system:

6.1.1 3-Point Harness - p. 28

6.1.2 5-Point Harness - p. 29

Use harness slots

even with or just below

child’s shoulders





6.0 Using Infant Restraint

6.1.1 3-Point Harness

1. From back, push harness anchor

buckle back through harness slot. If necessary, from front, use harness strap to pull buckle from slot

.

2. Reinsert harness anchor buckle in the

appropriate slot

.

3. From back, remove harness strap from

harness tightener. If necessary, from front, use harness strap to pull strap from slot.

4. Reinsert strap in the appropriate slot. Thread

strap through tightener exactly as shown

.

5. SAFETY CHECK:

a) CHECK that straps are not twisted; b) CHECK that straps are secure: pull on

harness straps from front.

c) CHECK that harness anchor buckle is

snapped flat against back as shown

.

Harness

tightener









Harness anchor

buckle

6.1.2 5-Point Harness

1. Depress the harness adjustment button

under the seat flap

. Pull the shoulder

straps out to loosen the harness.

2. Behind seat, remove the ends of the two

shoulder straps from the metal junction plate

.

3. From front, pull straps through the

harness slots and then reinsert them through the appropriate slots.

4. Behind seat, push both shoulder

straps UNDER owner’s manual pocket and out the bottom.

5. Reassemble the strap ends onto the

metal junction plate

. Follow the

appropriate instructions for a smaller or larger baby on the following page.





Harness adjustment button

6. SAFETY CHECK:

After the harness has been completely reinstalled, a) CHECK that harness straps are not twisted in front or back. b) CHECK that straps are secure by pulling on them.

FOR SMALLER BABY:

Use the lower harness slots

 (if they are even with or just

below your child’s shoulders) and the upper strap loops

. The

ends of the straps must hang in front of the metal plate as shown in

, not as shown in .

 

CHECK that the loops are completely within junction plate slots

.

CHECK that straps are secure by pulling on them.



FOR LARGER BABY:

Use upper harness slots and the end strap loops

.

CHECK that the loops are completely within junction plate slots

.

CHECK that straps are secure by pulling on them.





6.2 Securing Child in Infant Restraint

Failure to properly secure your child in the infant restraint/carrier increases the risk of serious injury or death from suffocation or falls, or in the event of a sudden stop or crash. Even when used only as a carrier, make sure the harness straps are properly secured.

1. Move infant restraint handle to sitting position (see page 13).

2. Open harness clip by

squeezing both sides and unbuckle as shown

.

3. Place your child in the infant

restraint as shown in

, not .

Pull the harness straps down over your child.

4. Follow directions for your

harness:

6.2.1 3-Point Harness: p. 32

6.2.2 5-Point Harness: p. 33







5. Buckle harness to the latch between child’s legs. Make sure that

you hear a “click.”

DO NOT use the infant restraint if the harness does not latch in place. Call Graco at 1-800-345-4109.

6. From the back, pull strap through

harness tightener to tighten the straps as shown

. CHECK that both straps

are flat and tight on child’s shoulders.

7. Snap harness clip pieces together

.

Position harness clip in middle of chest, level with armpits and away from the neck

.

8. SAFETY CHECK:

a) CHECK that harness straps are not

twisted.

b) CHECK that the harness is snug. A snug strap should not allow any slack. It lies in a relatively straight line without sagging. It does not press on the child’s flesh or push the child’s body into an unnatural position

.

6.2.1 3-Point Harness







6.2.2 5-Point Harness

5. Insert the two buckle tongues into the harness buckle on the

crotch strap. Make sure that you hear each tongue click into

the buckle. DO NOT use the infant restraint if the

harness does not latch in place. Call Graco at 1-800-345-4109.

6. Snap harness clip pieces together

.

7. Pull on harness adjustment strap to tighten

straps as shown

. CHECK that both

straps are flat and tight on shoulders.

8. Position harness clip in middle of chest,

level with armpits and away from the neck

.

9. SAFETY CHECK:

a) CHECK that harness straps are

not twisted.

.







6.3 Installing the Infant Restraint/Base Using Vehicle Belt

You must carefully follow the instructions provided by your vehicle manufacturer, in addition to the information in this manual. Be sure you have read and understood section 5, “Infant Restraint Location” on p.21-26.

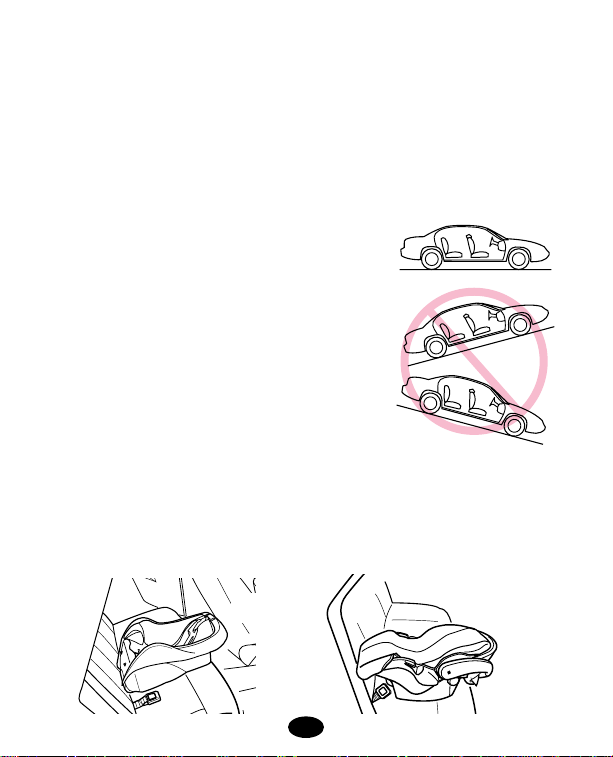

Make sure vehicle is on level ground so that the level indicator, which is attached to the infant restraint, can be used to properly recline the infant restraint .

If a front passenger seat is used, slide the vehicle seat rearward as far as possible from the dashboard. If a rear seat is used, make sure the seat in front of it is moved forward enough and is upright enough to allow room for the infant restraint.

1. Remove infant restraint from base, regardless of whether or not

you plan on using the base.

2. Place the base



or infant restraint without base  in a

rear-facing position in a forward-facing vehicle seat.







3. Thread the seat belt:

4. Buckle the seat belt. Make sure the buckle tongue goes into the

correct buckle



. The seat belt should not

be twisted or turned.

Infant restraint with seat belt



Base with seat belt

Belt MUST go under tongue

5. Tighten the vehicle seat belt. Refer to your vehicle owners manual and the instructions in “5.2.2 SAFE Vehicle Belt Systems”, p. 24-25, on tightening your vehicle belt.

To create a very tight installation, push down hard with your knee or free hand in the middle of the infant restraint or base



and pull and tighten the vehicle belt.

6. Push the infant restraint down into the base and make sure that you hear a “click”



. Pull up on the infant restraint to be sure

it is latched securely into the base. If the infant restraint does not securely

latch into the base, the infant restraint provides NO protection for your child. DO NOT use the infant restraint/base if the infant restraint does not securely latch into the base.





1. For ease of installation, extend LATCH to its maximum length.

2. Position base in vehicle seat as

shown.

3. Thread LATCH through base belt path normally used for vehicle seat belt. Make sure that LATCHis

UNDER tongue on base . Belt must lay flat and not be twisted.

4. Hook Connectors to vehicle lower anchors. Pull firmly on Connectors to

be sure they are attached

.

5. TightenLATCH by pushing down

hard on base and pulling the

adjustment belt

.

6. NEVER put two LATCH connectors on one vehicle LATCHanchor unless specifically allowed by the vehicle

manufacturer



7. Test infant restraint for secure installation as described in infant restraint “Final Safety Check” p.40.

8. Check that the LATCH stays tight and does not slip from the tightened position. If it does not stay tight, try another seating position or contact Customer Service.

6.4 Using LATCH to install Base





Tongue





For your child’s safety, it is important that your infant restraint/base be properly reclined. Attached to the side of your infant restraint is a level indicator to help properly recline the infant restraint/base on the vehicle seat.

Failure to properly recline the infant restraint on the vehicle seat increases the risk of serious injury or death.

If the infant restraint is too upright, a child’s head may drop forward and cause breathing problems.

If the infant restraint is too reclined, a crash could put too much force on a child’s neck and shoulders.

The infant restraint must be properly reclined according to the following instructions.

6.5 Reclining Infant Restraint/Base

Check the level indicator. You must look straight on at the indicator. —If the indicator shows ONLYblue, the infant restraint is properly

leveled.

—If any orange is showing in the level indicator adjust the recline.

When using the base: To lower the foot; pull down on the bottom of

the foot to the desired setting to adjust the recline .

To raise the foot; set the base on a flat surface, push in on the fingers on the base and push down on the base to adjust the recline .

If there is still orange in the level indicator when the foot is completely extended then place a rolled towel under the foot until ONLYblue shows .

When using only the infant restraint, if there is still orange in the level indicator when the infant restraint is resting on the vehicle seat then place a rolled towel under the infant restraint until ONLYblue shows .

Readjust the vehicle seat belt as necessary to secure the infant restraint firmly in the vehicle seat.









Final Safety Check: Every time you drive with your child,

PUSH DOWN on the top of the infant restraint slowly but firmly to make sure the vehicle belt does not lengthen at all and that the vehicle belt or LATCHis fastened very tightly around the infant restraint/base



Holding the infant restraint near the vehicle belt path, TWISTAND PULL the seat forward and to both sides to make sure the vehicle belt or LATCHdoes not lengthen or loosen and the infant restraint does not easily move







7.0 Additional Information

7.2 Storing LATCH

1. For ease of storing, extend LATCHto its maximum length.

2. Locate the storage bars on bottom of infant restraint base

.

3. Fasten end of LATCH (without adjustment belt) onto storage bar as shown.



Storage bars

7.1 Airplane Use

Install in an airplane the same way as in an automobile. Notify the airline ahead of time that you intend to bring the seat on board.

Use only in forward-facing aircraft seat. Follow the flight attendant’s instructions about infant restraint placement. Do not use this infant restraint if the airplane seat belt does not hold the infant restraint tightly.

7.3 Cleaning and Maintenance



TO REMOVE AND WASH INFANT RESTRAINT PAD, follow instructions in “6.1 Positioning Harness Straps”, p. 27-30. On 5-point harness models, push aside the small tab that holds the anchor buckles in place



and pull the anchor buckles out of their indentations. Push a corner of each anchor buckle back into its slot



4. Repeat step 3 for LATCHwith

adjustment belt. After fastening onto storage bar, pull on adjustment belt to make sure LATCHis securely fastened.

5. LATCHstorage should look like this

when complete

.





Underside of base



Carefully remove the seat pad. Machine wash on delicate cycle and drip-dry. DONOT USE BLEACH.

Reverse steps to reinstall seat pad. Check that harness system is not twisted, and pull on harness system to be sure harness is securely reinstalled.



INFANTRESTRAINT METAL AND PLASTIC PARTS may be cleaned by wiping with a mild soap and water solution. DO NOT USE BLEACH. Use of bleach may weaken plastic parts.



HARNESS STRAPS may be spot cleaned or replaced. DO NOT IMMERSETHE HARNESS STRAPSINWATER. Doing so may weaken the harness straps.



BUCKLE may be cleaned with a damp cloth.



DO NOT LUBRICATE the buckle.



DO NOT USE INFANTRESTRAINT without seat pad.



CONTINUOUS USE OF INFANT RESTRAINT MAY CAUSE DAMAGE TO VEHICLE SEAT. Use an infant restraint mat, towel

or thin blanket to protect upholstery.

Replacement Parts:

Complete the form that follows. Your infant restraint model number and manufactured date MUST be included on the form to ensure

proper replacement parts. Your model number can be found on a sticker on the underside of your infant restraint. Payment must accompany your order.

Parts may also be ordered from Graco’s web site at www.gracobaby.com.

Parts List:

Seat pad .................................

Canopy ...................................

Canopy bow ...........................

3-point harness* ....................

5-point harness* ....................

Harness clip ...........................

Locking clip ...........................

Head support*.........................

Base w/LATCH..........................

LATCH ......................................

* On certain models

Price:**

$20.00 $17.00 $ 5.00 $10.00 $10.00 $ 5.00 $ 5.00 $ 8.00 $37.00 $20.00 ** Prices subject to change

without notice.

IF YOU NEED HELP

If you have any questions or need any parts not listed, please call

toll-free: 1-800-345-4109

or visit our Internet website,

www.gracobaby.com.

Seat pad Canopy Canopy bow 3-point harness 5-point harness Harness clip Locking clip Head support Base w/LATCH LATCH

Return the form with payment to:

Graco Children’s Products Inc. Customer Service Department

150 Oaklands Blvd.

Exton, PA19341

Subtotal: Shipping

& handling*: $5.00 Sales tax**: Total:

* $15.00 outside the continental U.S.

**CA7.25%, IL6.25%, IN 5%, NY 8.25%, OH 5.75%, PA6%, SC 5%

Model No. Manufactured in:

(Both Numbers Required)

Check or money order enclosed (payable to Graco Children’s Products Inc.)

Charge to credit card

Visa MasterCard Discover

Account # Expiration date

Signature

SHIP TO:

Name Address

City, State, Zip Code

Telephone (including Area Code)

E-mail Address

LEA ESTE MANUAL

GUARDE ESTAS INSTRUCCIONES PARAUSO FUTURO.

No instale ni use este sistema de seguridad para niños hasta que

haya leído y entendido las instrucciones en este manual.

NO USAR DEBIDAMENTE ESTE SISTEMA DE SEGURIDAD PARA NIÑOS AUMENTA EL RIESGO DE LESIONES SERIAS O FATALES

EN UN ACCIDENTE O ALDETENERSE DE REPENTE.

Asiento de seguridad infantil/portabebés

Manual del propietario

1.0 Advertencias a padres y otros usuarios . . . . . . . . . . . . . .4-5

2.0 Información sobre el registro . . . . . . . . . . . . . . . . . . . . . . .6-7

2.1 Registro de su sistema de seguridad para niños . . . . . . . .6

2.2 Información sobre el retiro de productos del mercado . . . .7

2.3 Si necesita ayuda . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

3.0 Funciones y componentes . . . . . . . . . . . . . . . . . . . . . . . .8-15

3.1 Modelo con arnés de 3 puntos . . . . . . . . . . . . . . . . . . . . .9

3.2 Modelo con arnés de 5 puntos . . . . . . . . . . . . . . . . . . . .11

3.3 Sacar y conectar la base . . . . . . . . . . . . . . . . . . . . . . . . .13

3.4 Ajuste de la manija . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

3.5 Colocación de la capota (ciertos modelos) . . . . . . . . . . .14

3.6 Apoyacabezas (ciertos modelos) . . . . . . . . . . . . . . . . . . .15

3.7 Bota para tiempo frío (ciertos modelos) . . . . . . . . . . . . . .15

4.0 Información importante . . . . . . . . . . . . . . . . . . . . . . . . . .16-20

4.1 Advertencias para uso como sistema de seguridad

para niños . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

4.2 Advertencias para el uso con un cochecito . . . . . . . . . . .18

4.3 Advertencias adicionales para el uso como transportador 19

4.4 Limitaciones de peso y estatura . . . . . . . . . . . . . . . . . . .20

5.0 Ubicación del sistema de seguridad para niños . . . . . .21-26

5.1 Requisitos del asiento del vehículo . . . . . . . . . . . . . . . . .21

5.2 Requisitos del cinturón de seguridad del vehículo . . . . . .22

5.2.1Sistemas PELIGROSOS de cinturones para vehículos 23

5.2.2 Sistemas SEGUROS de cinturones para vehículos .24

5.3 Ubicación del LATCH . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

6.0 Usar el asiento de seguridad infantil . . . . . . . . . . . . . . . . . . .27-40

6.1 Colocación de las correas del arnés . . . . . . . . . . . . . . . .27

6.1.1 Arnés de 3 puntos . . . . . . . . . . . . . . . . . . . . . . . . .28

6.1.2 Arnés de 5 puntos . . . . . . . . . . . . . . . . . . . . . . . .29

6.2 Cómo sujetar el niño al sistema de seguridad para niños 31

6.2.1 Arnés de 3 puntos . . . . . . . . . . . . . . . . . . . . . . . . .32

6.2.2 Arnés de 5 puntos . . . . . . . . . . . . . . . . . . . . . . . .33

6.3 Instalación del sistema de seguridad para niños/base

usando el cinturón del vehículo . . . . . . . . . . . . . . . . . . . .34

6.4 Uso del LATCH para instalar la base . . . . . . . . . . . . . . .37

6.5 Inclinación del sistema de seguridad para niños/base . . .38

7.0 Información adicional . . . . . . . . . . . . . . . . . . . . . . . . . . .41-43

7.1 Uso en aeronaves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

7.2 Almacenamiento del LATCH . . . . . . . . . . . . . . . . . . . . . .41

7.3 Limpieza y mantenimiento . . . . . . . . . . . . . . . . . . . . . . . .43

Piezas de repuesto . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44-45

Ningún asiento de seguridad infantil puede garantizar la protección contra lesiones en todas las situaciones. Sin embargo, el uso correcto de este asiento de seguridad infantil reduce el riesgo de que su niño sufra lesiones serias o la muerte.

El uso incorrecto de este sistema de seguridad infantil aumenta el riesgo de graves lesiones o la muerte durante un giro brusco, una parada repentina o un accidente. La seguridad de su niño depende de la correcta instalación y uso de este sistema de seguridad infantil.

Incluso si el uso de este sistema de seguridad infantil le parece muy fácil, es muy importante que LEAEL MANUAL DEL PROPIETARIO. El manual se encuentra en el bolsillo trasero del sistema de seguridad infantil. También debe leer el manual del propietario de su vehículo.

La seguridad de su niño depende de:

1. Elegir una ubicación adecuada en su vehículo. Algunos asientos, tales como los equipados con bolsas de aire, pueden resultar ubicaciones inseguras para este sistema de seguridad infantil.

2. Insertar los cinturones en las ranuras apropiadas para su niño.

1.0 Advertencias a padres y otros usuarios

3. Sujetar a su niño de manera adecuada en el sistema de

seguridad infantil.

4. Colocar el sistema de seguridad infantil/base en una posición

orientada hacia atrás.

5. Colocar el cinturón de seguridad del vehículo o LATCH de

manera correcta.

6. Reclinar de manera correcta el sistema de seguridad infantil.

7. Sujetar el sistema de seguridad infantil de manera correcta

en el vehículo usando un cinturón de seguridad diseñado para sujetar un sistema de seguridad infantil o usando LATCH. Muchos cinturones de seguridad NO son seguros para su uso con sistemas de seguridad infantil, a pesar de que se colocan fácilmente en el mismo.

Número de modelo: Fabricado en: Fecha de compra:

2.1 Registro de su sistema de

seguridad para niños

Por favor, complete la información que se solicita más arriba. Los números de modelo y de serie pueden encontrarse en una etiqueta ubicada debajo del sistema de seguridad para niños. Llene la tarjeta postal de registro prepagada que se encuentra en la funda del asiento y envíela hoy mismo.

Los dispositivos de seguridad para niños podrán ser retirados del mercado por problemas de seguridad. Debe registrar este sistema para que lo podamos contactar en dicho caso. Envíe su nombre y

apellido, dirección y números de serie y de modelo a:

Graco Children’s Products Inc. 150 Oaklands Blvd. Exton, PA19341 o llame al 1-800-345-4109

2.0 Información sobre el registro

2.3 Si necesita ayuda

En los EE.UU. o Canadá, por favor, comuníquese con el Departamento de Servicio al Cliente con cualquier pregunta que pudiera tener sobre piezas, uso o mantenimiento. Cuando se ponga en contacto con nosotros, por favor tenga listo los números de modelo y de serie de su producto para que lo podamos ayudar más eficientemente. Estos números pueden encontrarse en una etiqueta ubicada en la parte inferior del sistema de seguridad para niños.

EE.UU.: 1-800-345-4109 o www.gracobaby.com Canadá: 1-800-667-8184 Montreal: 514-344-3533

2.2 Información sobre el retiro de

productos del mercado

• Llame a la línea telefónica sobre seguridad en automóviles del

gobierno de EE.UU. al 1-800-424-9393 (202-366-0123 en la zona de Washington, D.C.)

• www.nhtsa.dot.gov

• Graco: 1-800-345-4109 o www.gracobaby.com

Cinturón del vehículo/recorrido

del LATCH*

Cada modelo del sistema de seguridad para niños viene con diferentes opciones en el arnés. Para ajustar debidamente el

sistema de seguridad para niños, es muy importante que observe las instrucciones que son apropiadas para el modelo que compró.

3.0 Funciones y componentes

Arnés de 5 puntosArnés de 3 puntos

Las Normas Federales para Seguridad de Automóviles de Estados Unidos han determinado un nuevo sistema de instalación de asientos de seguridad en los vehículos. El sistema se denomina LATCH.

* LATCH debe usarse EN LUGAR del cinturón del vehículo SOLAMENTE si el vehículo está equipado con puntos de anclaje LATCH. Por favor, consulte el manual del propietario del vehículo para obtener las ubicaciones donde debe instalarse el LATCH.

Base

Apoyapiés ajustable

Gancho del LATCH

Cinturón de ajuste

Barras de

almacenamiento

del LATCH

3.1 Modelo con arnés de 3 puntos

Manija

Ranura para el

arnés

Gancho del

cinturón del

vehículo

Botón de

ajuste de la

manija

Traba del

arnés

Hebilla del

arnés

Correas

del arnés

VISTADELANTERA: ARNÉS DE 3 PUNTOS

VISTATRASERA: ARNÉS DE 3 PUNTOS

Capota

(en ciertos modelos)

Ranura para

el arnés

Manija de

liberación

Traba de conexión

Indicador del nivel*

Bolsillo del manual del

propietario

Traba de

seguridad**

Hebilla del anclaje del

arnés

Tensionador

del arnés

El indicador de nivel se conecta al costado del sistema de seguridad para niños e indica si el sistema de seguridad para niños está debidamente inclinado.

La traba de seguridad se guarda en el fondo del sistema de seguridad para niños. Necesitará usarlo con ciertos tipos de cinturones de seguridad de automóviles.

**Traba de seguridad

*Indicador

del nivel

3.2 Modelo con arnés de 5 puntos

VISTADELANTERA: ARNÉS DE 5 PUNTOS

Manija

Ranura para

el arnés

Gancho del

cinturón del

vehículo

Botón de ajuste de la manija

Traba del

arnés

Correa de ajuste

del arnés

Hebilla del

arnés

Botón de

ajuste del

arnés

Lengüetas de la

hebilla del arnés

Graco ISPA081AA User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
