G-Mini™ Compact Pump
Small size. Big value. Huge Impact
PROVEN QUALITY. LEADING TECHNOLOGY.
Make the most of your space, budget and machines. The new full-featured G-Mini offers reliable lubrication with
a small footprint to suit more types of machine. Use it to simplify everyday maintenance, extend life cycles and
optimise uptime. It’s rugged and tough, perfect for handling the daily 24/7 rigours of any job big or small. Best of
all, it comes with a modest price tag – boosting your productivity and profitability.
Follower Plate and
Stir Paddle
This unique combination
combats oil separation while
ensuring the pump element
“loading chamber”
is always full.
Patent-Pending Heater
Pump grease down to -40º C/F
when ordered with the heater
option.
M12 Input
M12 cycle or proximity switch
input standard on all pumps with
a controller.
Multiple Reservoir
Options
Comes in both 0.5-litre and
1-litre sizes.
Up to Two Pump
Elements
3
4 cm
/min (0.25 in3/min)
280 bar (4,100 psi)
Two Control Options
No Controller: pair with either
an external controller or PLC.
Controller: Easy-to-program
controller can be utilised for
both time-based and cycle-
based
systems and provides
low-level alert and alarm.
5-Wire CPC Power Cable
Multi-function cable supplies
power to the pump, pairs with a
remote manual run button, and
provides low-level or cycle fault
output.
Typical Applications
• Wind energy
• Food and beverage
• Off-road mobile equipment
• On-road mobile equipment
2
Rugged Construction
Designed to withstand the
harshest of environments;
IP69K rated.
Part Number
Power Input
CPC
DIN

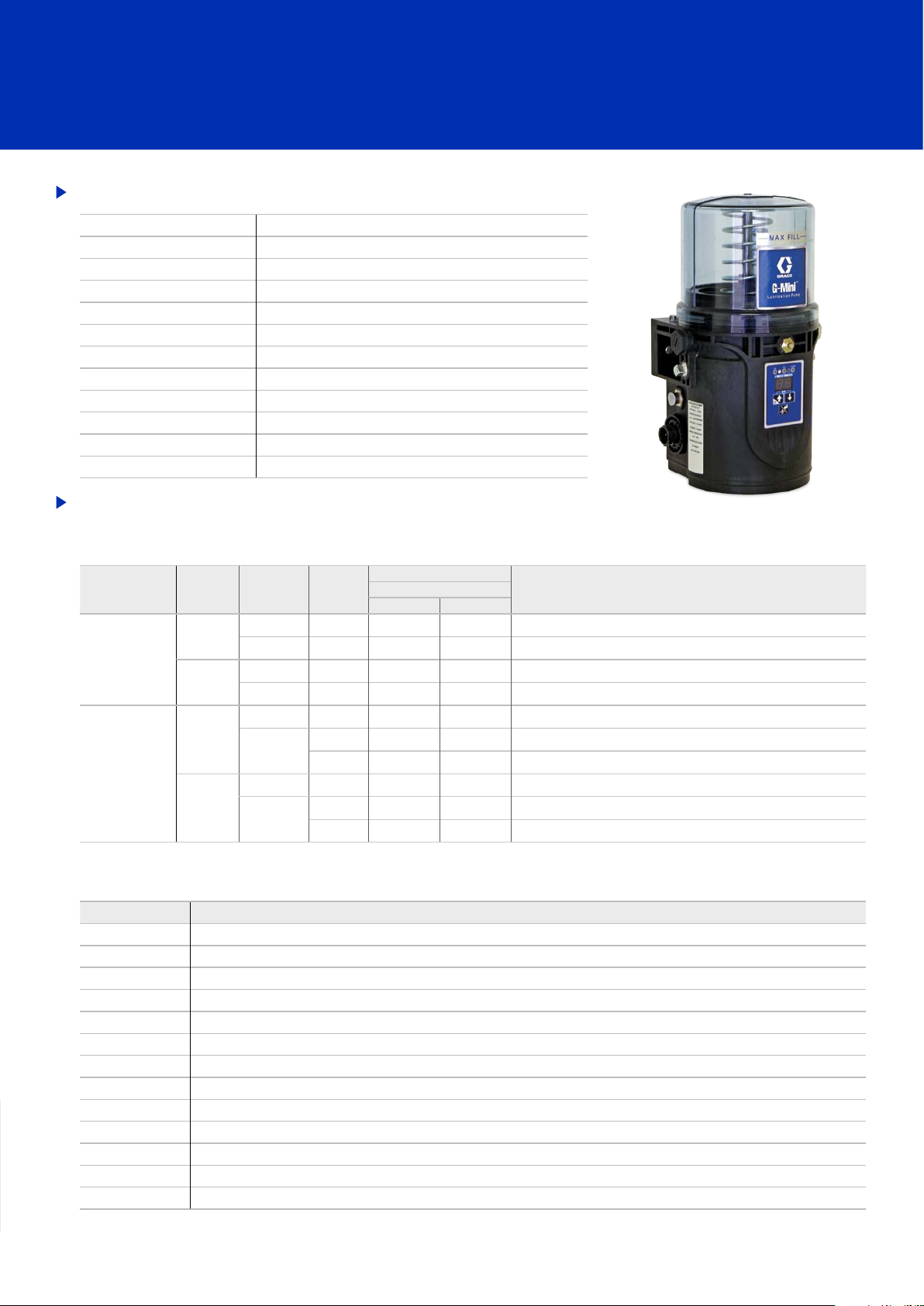

Technical Specifications
Power source 12 VDC or 24 VDC
Handles fluids Grease NLGI 000 to #2
System Pump to point or series progressive
Operating temperature -40°C to 70°C (-40°F to 158°F)
Reservoir size 0.5 L / 1 L
Control option No control, controller (time or cycle)
Pump elements Up to 2
Output pressure 280 bar (4,100 psi)
3
Pump output 4 cm
Pump outlet 1/4-18 NPSF, mates with 1/4-18 NPT male fittings
Protection grade IP69K
Instruction Manual 3A6714
/min (0.25 in3/min)
Ordering Information
Pumps
G-Mini pumps do not come with power cables. See Accessories below for power cable options.
Controller
Option
No Controller
Controller
Voltage
12V
24V
12V
24V
Reservoir
Size
0.5L No 25R809 25R829 0.5 Litre, 12 Volt G-Mini Pump
1L No 25R802 25R822 1 Litre, 12 Volt G-Mini Pump
0.5L No 25R807 25R827 0.5 Litre, 24 Volt G-Mini Pump
1L No 25R800 25R820 1 Litre, 24 Volt G-Mini Pump
0.5L No 25R810 25R830 0.5 Litre, 12 Volt G-Mini Pump with Controller
1L
0.5L No 25R808 25R828 0.5 Litre, 24 Volt G-Mini Pump with Controller
1L
Heater
No 25R803 25R823 1 Litre, 12 Volt G-Mini Pump with Controller
Yes 25R806 25R826 1 Litre, 12 Volt G-Mini Pump with Controller and Heater
No 25R801 25R821 1 Litre, 24 Volt G-Mini Pump with Controller
Yes 25R804 25R824 1 Litre, 24 Volt G-Mini Pump with Controller and Heater
Part Description
Accessories
Additional accessories can be found in the Graco Industrial Lubrication Equipment (ILE) Buyer’s Guide (p/n 340821).
Part Number Description
127783* 3-Wire CPC Power Cable 4.6 mm
127780* 5-Wire CPC Power Cable 4.6 mm
25C981 12V Manual Run Button (5-Wire CPC power cable required)
25C982 24V Manual Run Button (5-Wire CPC power cable required)
26C825 Direct Mount CSP Bracket
26C826 Universal Mounting Bracket (allows for drop-in replacement of competition)
17L879 Graco CSP Solid State Proximity Switch (DC PNP)
17R703 1 ft Proximity Switch Cable, M12 female straight to M12 male straight cable
124333 16.5 ft Proximity Cable, M12 female straight to M12 male straight
26A910 4,000 PSI Pressure Relief Kit (1/4 NPT to 1/8 NPT reducer bushing, 1/8 NPT branch T-fitting, 4,000 PSI pressure relief valve)
25N827 Pump Element Kit (add a second pump element or replace existing element)
24M644 High Capacity Fill Stud Quick Disconnect and Dust Cover
247886 Manual Fill Pump – fits 5 gallon or 35 lb pail (requires 24M644)
*G-Mini pumps do not come with power cables. Power cables needed for installation.
