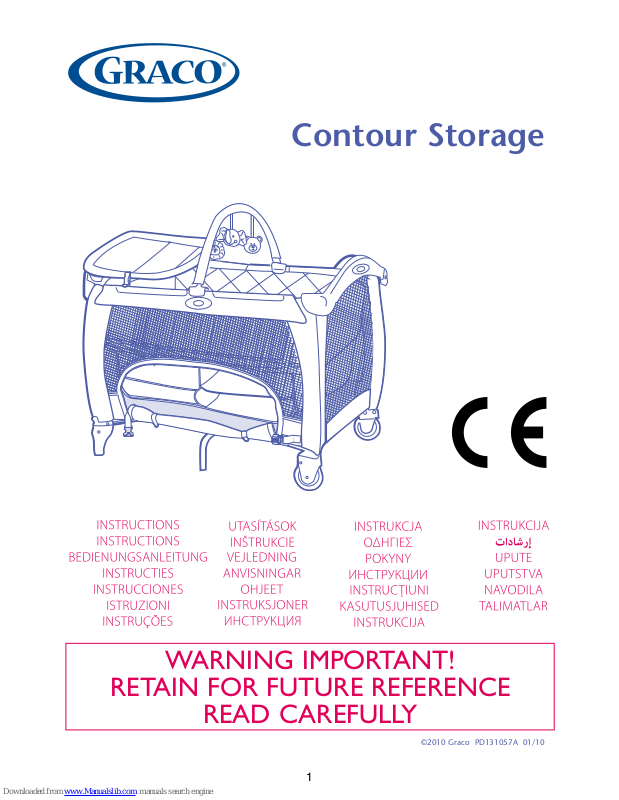

Page 1
1
Contour Storage
©2010 Graco PD131057A 01/10
WARNING IMPORTANT!
ReTAIN FOR FUTURe ReFeReNCe
ReAd CAReFUlly
Page 2
2 3
Parts On Certain Models
2X
2X
2X
2X
2X
1
3
4
75 6
2
To Set Up Travel Cot
To Fold Travel Cot
8
109 11
12
To Cover Travel Cot
13
14
Bassinet (on certain models)
15
17
2018 19
2X
2X
21
22 23
16
Page 3
4 5
28 29 30
25
26
27
Using the Electronics Module (on certain models)
31
32
34
3736
33
(A)
(B)
35
24
Changing Table (on certain models)
2X
3938
40 41 42
43
4544
2X
Toy Bar (on certain models)
2X
46
49
47 48
50
Page 4
6 7
Page 5
8 9
ALL WARNINGS AND INSTRUCTIONS ON THE
PRODUCT ARE TRANSLATED IN THIS INSTRUCTION MANUAL.
IMPORTANT — Keep for future reference.
WARNING: Never leave your child unattended.
Always keep your child in view.
A cot is only ready for use when the locking mechanisms are engaged.
Check carefully that locking systems are fully engaged
before using the folding cot.
Your Pack ’N Play, including side rails and bottom pad,
must be fully assembled prior to use.
• Top rail must be completely latched.
• Centre hub must be locked.
• Mattress must be flat and secured by Velcro straps.
Never use playard without a mattress.
Always use the mattress provided with fixings to the
underside.
TO AVOID SUFFOCATION, DO NOT use extra
padding such as a water mattress, or pillows inside the
playard.
This travel cot is sold with a base hardcover mattress
specifically designed to avoid any danger of suffocation.
WARNING: Only use the mattress provided
WARNING: Do not use more than one mattress in
the cot
Mattress nominal lenth 950mm, width 650mm.
To protect your child from falls and other injuries:
WARNING: DO NOT LEAVE THE CHILD UNATTENDED.
This product complies to EN12221:2008,
EN716:2008.
This travel cot can also be used as a playpen.
WARNING: Always keep objects out of child’s reach.
Remove the accessory when child is able to pull himself up in the playard.
Unlike cribs that have rigid sides, the Pack ’N Play has
flexible sides. As a result, the Pack ’N Play mattress is
specially designed to prevent suffocation.
The lowest position of the mattress is the safest.
It is essential to remove the bassinet, and its support
tubes before using the cot/playpen with the mattress
in its lowest position.
Discontinue using your bassinet when the child
reaches one of the following conditions: when the
child can sit, kneel or pull itself up, or weighs more
than 6.5 kg or is over 3 mths old.
Your playard/ bassinet, including side rails and bottom
pad, must be fully assembled prior to use.
Centre hub must be locked.
To remove bassinet: remove mattress pad, unhook
4 clips from side rails and 2 tubes.
WARNING: Do not use the cot/playpen/bassinet
without its base.
Pack N Play’s main components are the frame and
the mattress:
all other parts are defined as accessories.
All accessories should be removed when bassinet is
not used.
WARNING: Be aware of the risk of open fire and
other sources of strong heat such as electric bar fires,
gas fires etc. in the near vicinity of the cot/playpen.
Inspect the product for damaged hardware, loose
joints, missing parts or sharp edges.
WARNING: Do not leave anything inside which could
act as a climbing aid.
Warning: Do not leave anything in the cot or place
the cot close to another product, which could provide
a foothold or present a danger of suffocation or strangulation, e.g. strings, blind/curtain cords etc.
Always use on a flat, level floor. Keep away from trailing cords and flexes.
Should the padded rim be split or bitten through to
expose the padding, do not use the Pack ’N Play.
Regularly check the locks and fittings for security.
When folded, store away from children.
All assembly fittings should be tightened properly as
parts of the body or clothing can get caught with a
danger of strangulation.
WARNING: Do not use the Cot, Playpen, Bassinet,
Changing Table if any part is broken,torn or missing and
use only spare parts approved by the manufacturer.
Use only additional parts obtained from the manufacturer or distributor.
Discontinue using your Pack N’ Play when the child
reaches 86cm in height, weighs more than 14kg or is
able to climb out.
To prevent injury from falls, when the child is able to
climb out of the cot, the cot shall no longer be used
for that child.
This cot (which length is less than or equal to
1100mm) is intended for children under 3 years old.
Possible entanglement injury.
Keep out of baby’s reach.
Do not use accessory not recommended by the
manufacturer.
Changing table is not suitable for children over 11kg.
Changing table is suitable for a child from birth up to
12 months old.
WARNING: Always remove the changing table
before placing the child in the Pack’ N Play or bassinet.
Bassinet with storage: If you leave the child unattended in the cot, always make sure that the storage
opening is closed and latched
Remove electronic module when removing bassinet
from the bed.
WARNING: Only use vibration module in the bassinet when using playard.
Always remove vibration module from the bassinet
when bassinet is not in use.
For models with an electronic unit with vibration:
WARNING: Strangulation hazard:
Keep the vibration unit cord out of the reach of children.
Do not use with an extension cord.
Do not remove tag from cord.
Do not allow young children to play unsupervised in
the vicinity of the playard/ bassinet.
Do not use an additional mattress with the bassinet.
Graco Children’s Products is committed to doing its
part to protecting the global environment.
As a result, we remind you that under Directive
2002/96/EC, the Directive on Waste Electrical and
Electronic Equipment which became effective on
August 13, 2005, products which are covered by the
directive can no longer be discarded via the municipal
waste stream.
Manufacturers are obligated to take back such products at the end of their useful life, and therefore,
Graco will comply with the reclamation requirements
for all affected products sold in the European Union.
Please return this product to a local collection point
when the product is at the end of its life.
WARNING
The crossed out wheelie bin symbol
indicates the product is to be recycled.
GB
Page 6
10 11
WARNING
Your Pack ’N Play can be spot cleaned with a sponge
and soapy water. The covering material is not removable.
At the beach or in the garden, clean sand and grit off
your Pack ’N Play, including feet, before packing into
cover. Sand in the top rail locks may cause damage.
From time to time check your Pack ’N Play for worn
parts, torn material or stitching. Replace or repair the
parts as needed.
To wash carry bag, machine wash in lukewarm
water on delicate cycle and drip-dry. DO NOT USE
BLEACH.
To wash bassinet: Remove electronic module and
vibration unit (ON CERTAIN MODELS). NEVER
remove cord from bassinet. Hand wash with warm
water and household soap. Drip dry.
Keep the batteries out of children’s reach.
DO NOT ATTEMPT TO RECHARGE REGULAR,
NON-RECHARGEABLE OR ALKALINE
BATTERIES. THEY MAY EXPLODE OR LEAK.
NEVER RECHARGE A CELL OF ONE TYPE IN A
RECHARGER MADE FOR A CELL OF ANOTHER
TYPE.
DO NOT DISPOSE OF BATTERIES IN FIRE.
BATTERIES MAY BURST OR RELEASE HARMFUL
SUBSTANCES.
REPLACE/RECHARGE ALL BATTERIES AT THE
SAME TIME. DISCARD USED BATTERIES.
TO AVOID POSSIBLE DAMAGE FROM BATTERY
LEAKAGE, REMOVE EXHAUSTED BATTERIES
FROM THE BASSINET.
BATTERIES MUST ONLY BE INSERTED WITH THE
CORRECT POLARITY.
Exhausted batteries are to be removed from the
product.
THE SUPPLY TERMINALS MUST NOT BE SHORTCIRCUITED.
Do not mix new and used batteries. Only the recommended batteries or equivalent are to be used.
Rechargeable batteries are to be removed from the
toy before recharging.
Rechargeable batteries are only to be recharged
under adult supervision.
Remove batteries before storing product.
Recommended Type Batteries—
Vibrator:
1-1.5V-“D”-LR20 cell battery.
Electronic Module:
3-1.5V ”AA”-LR6 cell batteries.
Rechargeable—
Use and recharge according to manufacturer’s instructions.
Disposable—Alkaline.
NEVER mix battery types.
GB
CARe ANd MAINTeNANCe
FOR SAFe BATTeRy USe
To Cover Travel Cot
See Image 13 -
14
To Set Up Travel Cot
See Image 1 -
7
Lock end rails
• Rails will not lock when centre of oor
is down.
• If top rails do not lock, centre may be
too low. Lock side rails It’s easy: to lock
or unlock top rails, centre of oor
must be UP.
Push centre down
• Hold one end of the unit up and push
the centre of the oor down.
• Install mattress, soft side up, and fasten
with straps.
To Fold Travel Cot
See Image 8 -
12
Pull centre halfway up. Unlock all four top
rails
1. Pull up
2. Push in the button on the rails.
3. Lower each rail. If rail does not fold
• Rails have 2 joints. If rail does not fold
completely, one side is not released.
• Push button to release.
DO NOT FORCE FOLD!
Bassinet (on certain models)
See Image 15 -
30
Using The Electronics Module
on certain models)
See Image 31 -
37
Changing Table
(on certain models)
See Image 38 -
45
Toy Bar (on certain models)
Toy style may vary
depending on model
See Image 46 -
50
GB
Instructions
Features may vay depending
on the model
Page 7
1212
UK Graco consumer Services
Newell Rubbermaid
Graco Children’s Products
Halifax Avenue
Fradley Park
Lichfield WS13 8SS
United Kingdom
44844 412 1212
Graco Continental Europe
Newell Rubbermaid Luxembourg SARL
1 rue Edmond Reuter
L-5326 CONTERN
Luxembourg
www.gracobaby.eu www.graco.co.uk
