Comfort Sport® Classic Ride® Ready Ride

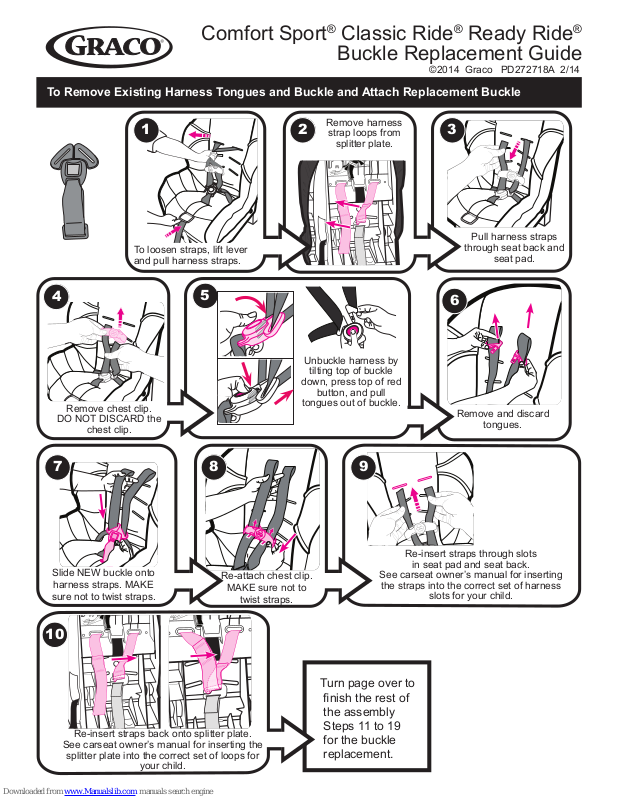

Buckle Replacement Guide
©2014 Graco PD272718A 2/14
To Remove Existing Harness Tongues and Buckle and Attach Replacement Buckle
Remove harness
1
To loosen straps, lift lever
and pull harness straps.
2
strap loops from
3
splitter plate.
Pull harness straps
through seat back and
seat pad.
®
4
Remove chest clip.
DO NOT DISCARD the
chest clip.
7
Slide NEW buckle onto
harness straps. MAKE
sure not to twist straps.
5
8
Re-attach chest clip.
MAKE sure not to
twist straps.
6
Unbuckle harness by
tilting top of buckle
down, press top of red
button, and pull
tongues out of buckle.
Remove and discard
tongues.
9
Re-insert straps through slots
in seat pad and seat back.
See carseat owner’s manual for inserting
the straps into the correct set of harness
slots for your child.
10
Re-insert straps back onto splitter plate.
See carseat owner’s manual for inserting the
splitter plate into the correct set of loops for
your child.
Turn page over to
nish the rest of
the assembly
Steps 11 to 19
for the buckle
replacement.
11
12
UNDERSIDE OF SEAT
13
Unfasten the 2-button clips
(quantity 2) at the front of
the seat pad. Pull pad up
then pull buckle through
crotch slot.
14
19
17
UNDERSIDE OF SEAT
Insert metal retainer
from NEW buckle into
crotch slot in the seat
bottom as shown.
Reach under seat to the
metal retainer.
Push the retainer up
through bottom of seat and
remove buckle and discard.
15
Re-insert buckle
through the slot in
seat pad.
18
Push button and
remove tongues from
the NEW buckle.
16
Pull up on buckle
to be sure it is
secured in the slot.
CLICK!
19
Wrap seat pad around
edge of seat.
Re-attach the 2-button
clips ( quantity 2) to
the front of the seat.
FINAL CHECK :
• Tug on the buckle to be sure
it is properly secured in the
bottom of the seat and does
not come out.
• MAKE SURE the harness
straps are not twisted.
• Make sure the chest clip is
properly threaded as shown
in Step 8.
Insert NEW tongues
into buckle.
Any questions please
contact us at :
Graco Children’s Products
3 Glenlake Parkway
Atlanta, GA 30328
1-800-345-4109
www.gracobaby.com
