READ THIS MANUAL
KEEP INSTRUCTIONS FOR FUTURE USE.
Do not install or use this infant restraint until you
read and understand the instructions in this manual.
FAILURE TO PROPERLY USE THIS INFANT RESTRAINT
INCREASES THE RISK OF SERIOUS INJURY OR DEATH IN
A SUDDEN STOP OR CRASH.
Infant Restraint/Carrier
Owner’s Manual Model 8444
4480402
2
1.0 Registration Information . . . . . . . . . . . . . . . . . . . . . . . . . . .4-5
1.1 Register Your Infant Restraint . . . . . . . . . . . . . . . . . . . . . .4
1.2 Recall Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
1.3 If You Need Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
2.0 Features and Components . . . . . . . . . . . . . . . . . . . . . . . .6-10
2.1 Removing and Attaching Base . . . . . . . . . . . . . . . . . . . . .8
2.2 Adjusting Handle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
2.3 Attaching Canopy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
2.4 Head Support (on certain models) . . . . . . . . . . . . . . . . . .10
3.0 Important Information . . . . . . . . . . . . . . . . . . . . . . . . . . .11-15
3.1 Warnings for Use as Infant Restraint . . . . . . . . . . . . . . . .11
3.2 Warning for Use With a Stroller . . . . . . . . . . . . . . . . . . . .13
3.3 Additional Warnings for Use as Carrier . . . . . . . . . . . . . .14
3.4 Height and Weight Limits . . . . . . . . . . . . . . . . . . . . . . . .15
4.0 Infant Restraint Location . . . . . . . . . . . . . . . . . . . . . . . .16-20
4.1 Vehicle Seat Requirements . . . . . . . . . . . . . . . . . . . . . . .16
4.2 Vehicle Seat Belt Requirements . . . . . . . . . . . . . . . . . . .17
4.2.1 UNSAFE Vehicle Belt Systems . . . . . . . . . . . . . . . .18
4.2.2 SAFE Vehicle Belt Systems . . . . . . . . . . . . . . . . . .19
4.3 LATCHLocations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
3
5.0 Using Infant Restraint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22-32
5.1 Positioning Harness Straps . . . . . . . . . . . . . . . . . . . . . . .22
5.2 Securing Child in Infant Restraint . . . . . . . . . . . . . . . . . .24
5.3 Installing the Infant Restraint/Base with Vehicle Belt . . . .26
5.4 Using LATCHto Install Base . . . . . . . . . . . . . . . . . . . . . .29
5.5 Reclining Infant Restraint/Base . . . . . . . . . . . . . . . . . . . .30
6.0 Additional Information . . . . . . . . . . . . . . . . . . . . . . . . . .33-35
6.1 Airplane Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
6.2 Storing LATCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
6.3 Cleaning and Maintenance . . . . . . . . . . . . . . . . . . . . . . .34
Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38-39
4
Model Number: Serial Number: Purchase Date:
1.1 Register Your Infant Restraint
Please fill in the above information. The model and serial numbers can be found on a label underneath your infant restraint. Fill out the prepaid registration postcard attached to the seat cover and mail it today.
Child restraints could be recalled for safety reasons. You must register this restraint to be reached in a recall. Send your name,
address and model/serial numbers to:
Graco Children’s Products Inc. P.O. Box 100 Elverson, PA19520-9974 or call 1-888-224-6549
• Call the U.S. Government’s Auto Safety Hotline at 1-800-424-9393 (202-366-0123 in D.C. area)
• www.nhtsa.dot.gov
• Graco: 1-888-224-6549 or www.gracobaby.com
1.2 Recall Information
1.0 Registration Information
5
1.3 If You Need Help
In the U.S.A. or Canada, please contact our Customer Service Department with any questions you may have concerning parts, use, or maintenance. When you contact us, please have your product’s model and serial numbers ready so that we may help you efficiently. These numbers can be found on a sticker on the underside of your infant restraint.
USA: 1-888-224-6549 or www.gracobaby.com
Canada: 1-800-667-8184 Montreal: 514-344-3533
2.0 Features and Components
FRONT VIEW
Handle
Harness
slots
Vehicle
belt
hook
Handle
adjustment
button
Harness
clip
Harness
buckle
Harness
buckle tongues
Vehicle belt/LATCH path
Base
Adjustable Foot
LATCH Connector
Adjustment Belt
LATCH
Storage
Bars
6
7
REAR VIEW
Canopy
Harness slot
Release handle
Attachment
latch
Level
indicator*
Owner’s manual
pocket
Harness
tightener
Locking clip**
The level indicator is attached to the side of the infant restraint, and indicates whether or not the infant restraint is properly reclined.
The locking clip is stored on the bottom of the infant restraint. You will need to use it with certain types of vehicle seat belts.
**Locking
Clip
*Level Indicator
8

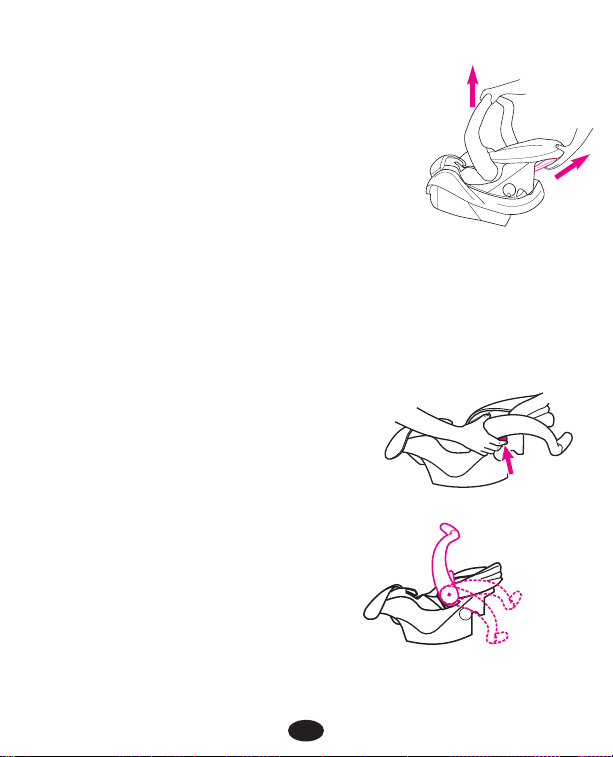

2.1 Removing and Attaching Base
2.2 Adjusting Handle
To remove infant restraint, squeeze release handle at back of seat and lift infant restraint from base as shown
.
To put infant restraint in base, push infant restraint down until it clicks into base.
Pull up on infant restraint to be sure it is latched firmly into base.
1. Press handle adjustment buttons on
both sides of handle
.
2. Rotate handle until it clicks into any
of three positions (for carrying, reclining, or sitting). BOTH handle adjustment buttons must pop out to lock handle in place
.
3. Push and pull on the handle to be
sure it is locked firmly in position.
Carrying
Reclining
Sitting
9
2.3 Attaching Canopy
1. Infant restraint comes with two
identical canopy support parts. Thread one canopy support
completely through sewn tunnel
.
2. Slide straight end of a second
support into the straight end of the first support
.
3. The canopy should appear as
shown
.
4. Attach canopy in the areas
between the infant restraint and the handle base
.
10
2.4 Head Support (on certain models)
Some infants may need extra support to keep their head and body in a comfortable position. Unsnap the sides and resnap them with the harness straps threaded through the slots in the cushion
.
If your model does not include a head support, you may want to use a rolled towel or a blanket for support
.
MAKE SURE THAT NOTHING INTERFERES WITH THE HARNESS OR THE BLANKET.
It must still be flat and snug against your child’s shoulders.
11
3.0 Important Information
3.1 Warnings for Use as Infant Restraint
DO NOT INSTALL OR USE THIS INFANT RESTRAINT AND BASE UNTIL YOU READ AND UNDERSTAND THE INSTRUCTIONS IN THIS MANUAL AND IN YOUR VEHICLE OWNER’S MANUAL. DO NOT let others install or use the
infant restraint unless they understand how to use it.
FAILURE TO PROPERLY USE THIS INFANT RESTRAINT
AND BASE INCREASES THE RISK OF SERIOUS INJURY OR DEATH IN A SUDDEN STOP OR CRASH. Your child can
be injured in a vehicle even if you are not in a crash. Sudden braking and sharp turns can injure your child if the infant restraint is not properly installed or if your child is not properly secured in the infant restraint.
PLACE THIS INFANTRESTRAINT IN A REAR-FACING POSITION when using it in the vehicle.
NEVER PLACE THIS INFANT RESTRAINT IN A VEHICLE SEATING LOCATION THAT HAS AN AIR BAG. If an air bag inflates, it can hit the infant restraint with great force and cause serious injury or death to your child. Refer to your vehicle owner’s manual for information about air bags and infant restraint installation.
12
SOME SPECIAL NEEDS CHILDREN, such as pre-term babies or those who have tested positive for positional apnea, may be at increased risk of suffering breathing or other difficulties in an infant restraint. If your child has special needs, we recommend that you have your physician or hospital staff evaluate your child and recommend the proper infant restraint or car bed before using this product.
• According to accident statistics, CHILDREN ARE SAFER WHEN
PROPERLY RESTRAINED IN REAR VEHICLE SEATING POSITIONS, RATHER THAN FRONT SEATING POSITIONS.
For a vehicle with a front passenger air bag, refer to your vehicle owner’s manual as well as these instructions for infant restraint installation.
NEVER LEAVE YOUR CHILD UNATTENDED.
NEVER LEAVE AN INFANT RESTRAINT AND BASE UNSECURED IN YOUR VEHICLE.An unsecured infant restraint or base can be thrown around and may injure occupants in a sharp turn, sudden stop or crash. Remove it or make sure that it is securely belted in the vehicle. If not using LATCH, make sure unsecured LATCHconnectors are properly stored on base.
REPLACE THE INFANT RESTRAINT AND BASE AFTER AN ACCIDENT OF ANY KIND. An accident can cause damage to the infant restraint that you cannot see.
STOP USING INFANT RESTRAINT AND BASE AND THROW IT AWAY after the date molded into the back of the infant restraint.
DO NOT MODIFY YOUR INFANT RESTRAINT AND BASE or use any accessories or parts supplied by other manufacturers.
13
NEVER USE INFANT RESTRAINT AND BASE IF IT HAS DAMAGED OR MISSING PARTS.DO NOT use a cut, frayed
or damaged infant restraint harness or vehicle seat belt or LATCHbelt.
THE INFANT RESTRAINT CAN BECOME VERY HOT IF LEFT IN THE SUN. Always touch the surface of any metal or plastic parts before putting your child in the infant restraint.
THIS INFANT RESTRAINT CONFORMS to all applicable Federal Motor Vehicle Safety Standards and is certified for use in motor vehicles and aircraft.
NEVER GIVE THIS INFANT RESTRAINT AND BASE to someone else without also giving them this manual.
NEVER USE ASECOND-HAND INFANT RESTRAINT AND BASE or an infant restraint whose history you do not know.
USE ONLY WITH STROLLERS THAT ARE PART OF THE GRACO TRAVELSYSTEM. Refer to stroller instruction sheet for details about how to attach the infant restraint to your stroller. If you do not have an instruction sheet, please call toll-free, 1-888-224-6549 to obtain one, or visit our website, www.gracobaby.com.
3.2 Warning for Use With a Stroller
14
• FALLHAZARD: Child’s movements can slide carrier. NEVER place carrier near edges of countertops, tables or other
high surfaces. Always stay within arms reach whenever carrier is not on floor/ground.
BE SURE handle locks into position before lifting carrier. NEVER place carrier in the top of a shopping cart.
• SUFFOCATION HAZARD: Infant carrier can roll over on soft
surfaces and suffocate child. Never place carrier on beds, sofas or other soft surfaces.
• STRANGULATION HAZARD: Child can strangle in loose restraint straps. Always use harness, never leave child in carrier when straps are loose or undone.
KEEP STRINGS AND CORDS AWAY FROM CHILD. Strings and cords can cause strangulation.
DO NOT place carrier near a window where cords from blinds or drapes can strangle a child.
DO NOT hang strings on or over the carrier. DO NOT place items with a string around a child’s neck, such
as hood strings, pacifier cords, etc. DO NOT attach strings to toys.
3.3 Additional Warnings
for Use as Carrier
15
3.4 Height and Weight Limits
Your child MUST meet all requirements:
• WEIGHT: 20 lbs. (9 kg) or less
• HEIGHT: 26 inches (66 cm) or less
FAILURE TO USE INFANT RESTRAINT IN A MANNER APPROPRIATE FOR YOUR CHILD’S SIZE MAY INCREASE THE RISK OF SERIOUS INJURY OR DEATH.
4.0 Infant Restraint Location
4.1 Vehicle Seat Requirements
IMPROPER PLACEMENT OF THE INFANT RESTRAINT INCREASES THE RISK OF SERIOUS INJURY OR DEATH.
Some seating positions in your vehicle may not be safe for this infant restraint. Some vehicles do not have any seating positions that can be used safely with the infant restraint. If you are not sure where to place the infant restraint in your vehicle, consult your vehicle owner’s manual or Graco at 1-888-224-6549.
Whenever possible, secure the infant
restraint in the center position of the seat directly behind the front seats
. An adult should ride in the rear seat to watch the child. If the driver is the only adult present, a child may need to ride in the front seat. BUT ONLY if there is no passenger-side air bag and all of the other vehicle seat and seat belt requirements listed are met.
NEVER place this infant restraint in a
vehicle seating location that has an air bag
. See “3.1 Warnings for Use
as Infant Restraint”, p.11.
16
17
4.2 Vehicle Seat Belt Requirements
The VEHICLE seat must face forward.
DO NOT use infant restraint on vehicle seats with seat backs that will not lock in an upright position. DO NOT use seats that can fold down without having to release a lock or latch of some kind. These seats can fly forward and strike the child in a sudden stop or crash.
MANY SEAT BELT SYSTEMS ARE NOT SAFE TO USE WITH THE INFANT RESTRAINT. THE VEHICLE SEAT BELT MUST BE DESIGNED TO HOLD THE INFANT RESTRAINT TIGHTLY AT ALL TIMES.
Pay careful attention to these systems; some of the seat belts that are not safe to use look very much like seat belts that are safe to use. If you are unsure,
consult your vehicle owner’s manual or Graco
at 1-888-224-6549.
LATCH can be used IN PLACE OF the vehicle belt system. Please refer to vehicle owners manual for LATCH locations.
Lap Belts with Emergency Locking Retractor (ELR) This lap belt stays loose and can move until it locks in a crash or sudden stop.
• Combination Lap/Shoulder Belt with Retractor
Each strap has a retractor at one end and is attached to the latch plate at the other end.
• Passive Restraint - Lap Belt with Motorized Shoulder Belt
• Passive Restraint - Lap or Shoulder Belt Mounted on Door
DO NOT use vehicle belts that are
attached to the door in any way or that move along a track to automatically surround the passenger when the door is closed.
• Lap Belts Forward of Seat Crease
DO NOT use any of the following systems to secure the infant restraint.
4.2.1 UNSAFE Vehicle Belt Systems
18
19
4.2.2 SAFE Vehicle Belt Systems
THE FOLLOWING BELT SYSTEMS CAN BE USED WITH YOUR INFANT RESTRAINT, IF the seat location meets all other
requirements of these instructions and those in your vehicle owner's manual. LATCH can be used in place of the vehicle belt system. Please refer to vehicle owners manual for LATCH locations.
• Lap Belts - Manually Adjusted
When buckled, the belt is tightened manually by pulling on the excess belt while pushing down hard on the infant restraint.
• Lap Belts with Automatic Locking Retractor (ALR)
The automatic locking retractor will not permit the lap belt to lengthen once it is buckled. Tighten the belt by feeding the belt back into the retractor while pushing down hard on the infant restraint.
• Combination Lap/Shoulder Belt with Locking Latch Plate
Once it is buckled, this type of belt has a latchplate that will not allow the lap portion of the belt to loosen. Belt is tightened by pulling hard on the shoulder portion of the vehicle belt while pushing down hard on the infant restraint.
• Combination Lap/Shoulder Belt with Sliding Latch Plate
This belt has a latchplate that slides freely along the belt.
This belt MUST be converted to prevent movement of the lap portion of the belt. You must use the locking clip provided with the infant restraint, unless your vehicle's seat belt can be converted in another way as described in your vehicle owner's manual.
To Install Locking Clip:
1. Tighten the buckled belt by pushing down
hard on the infant restraint and pulling hard on the shoulder belt.
2. While pushing down on infant restraint,
pinch the two straps together behind the buckle tongue. Unbuckle the belt without allowing it to slip.
3. Connect lap and shoulder belts
with locking clip as shown
and .
4. Rebuckle belt. Check that lap belt
does not move by pulling and pushing hard on infant restraint. If belt loosens or lengthens, repeat procedure.
Locking clip
½
inch
Locking clip goes here,
1
/2 inch from the buckle
20
21
4.3 LATCH Locations
Newer vehicles may have one or more seating positions with LATCH anchorage systems. If vehicle is equipped with LATCH, the vehicle lower anchor points may be visible at the vehicle seat crease. If not visible, they may be marked with the symbol .
See your vehicle owner’s manual for exact locations, anchor identification, and requirements for use with an infant restraint.
Vehicle Lower Anchor Points
Vehicle
Seat Crease
Typical seat in a passenger vehicle. Other vehicle types may have different LATCHlocations or different markings.
5.1 Positioning Harness Straps
FAILURE TO PROPERLY ADJUST THE HARNESS STRAPS FOR YOUR CHILD INCREASES THE RISK OF SERIOUS INJURY OR DEATH IN THE EVENT OF ASHARP TURN, SUDDEN STOP OR CRASH.
The harness straps must be properly
adjusted to fit your child according to the following instructions.
1. Remove infant restraint from base and rotate handle down to
sitting position. See “2.1 Removing and Attaching Base” and “2.2 Adjusting Handle”, p. 8.
2. Place child in infant restraint as shown
.
3. Determine which pair of harness slots are even
with or just below your child’s shoulders
.
DO NOT use upper harness slots if they are above your child’s shoulders. They will not hold a small child securely in a sudden stop or crash.
4. If the harness straps must be adjusted:
remove child from infant restraint and move harness straps to other harness slots.
Use harness slots
even with or just below
child’s shoulders
22
5.0 Using Infant Restraint
5. From back, remove harness straps from
harness tighteners. From front pull strap from slot
.
6. Reinsert strap in the appropriate slot
.
7. Thread straps through tighteners exactly
as shown
.
8. SAFETY CHECK:
a) CHECK that straps are not twisted; b) CHECK that straps are secure:
pull on harness straps from front.
Harness tighteners
23
5.2 Securing Child in Infant Restraint
Failure to properly secure your child in the infant restraint/carrier increases the risk of serious injury or death from suffocation or falls, or in the event of a sudden stop or crash. Even when used only as a carrier, make sure the harness straps are properly secured.
1. Move infant restraint handle to sitting position (see page 8).
2. Open harness clip by squeezing both sides and
unbuckle as shown
.
3. Place your child in the infant
restraint as shown in
, not
. Pull the harness straps
down over your child.
4. Insert the two buckle tongues into the harness buckle on the
crotch strap. Make sure that you hear each tongue click into
the buckle. DO NOT use the infant restraint if the harness does not latch
in place. Call Graco at 1-888-224-6549.
24
Loading...
+ 54 hidden pages
