Avoid serious injury from falling or
sliding out. Always use seat belt.
Never leave child unattended.
Always keep your child in view.
Never use stroller on stairs or escalators.
You may suddenly lose control of the
stroller or your child may fall out. Also,
use extra care when going up or down
a step or curb.
Avoid strangulation. DO NOT place
items with a string around your
childs neck, suspend strings from
this product, or attach strings to toys.
Congratulations on your purchase of a
Graco
®
stroller!
Graco is a world leader in strollers and
has helped thousands of parents transport
their children in comfort. We believe your
new Graco
®
stroller is a wise choice,
promising many hours of enjoyment for
your baby.
Before using your stroller, please take a
few minutes to read this Owners Manual.
The short time you spend reading these
instructions will help you assemble and
use your stroller properly.
Please save your Owners Manual
for future use.
Customer Satisfaction
Our goal is to make every product the best it
can be! We are also committed to supporting our
products after purchase. If you would like to speak
to Graco about your product, please contact our
Customer Service Department at 1-800-345-4109
or visit our Internet website, www.gracobaby.com.
Our knowledgeable staff will be ready to answer
any questions you may have concerning parts, use
or maintenance. When you call, please have the
model and serial numbers ready so your call
may be processed quickly and efficiently.
OWNERS MANUAL
Model No.
Serial No.
Dear Customer,
Please fill in the
model and serial
numbers above
from the label on
the rear leg of
your new stroller.
Model Nos. 7927 & 7928
Stroller
TO PREVENT A HAZARDOUS CONDITION, do not place more than 10 lbs.
(4.5 kg) in the storage basket.
NEVER ALLOW YOUR STROLLER to be used as a toy.
STROLLER TO BE USED only at walking speed. Product not intended for
use while jogging, skating, etc.
DISCONTINUE USING YOUR STROLLER should it become damaged or
broken.
Be certain the stroller is fully erected
and latched before allowing your
child near the stroller.
Use of the stroller with two children weighing
a total of more than 80 lbs. (36 kg) will cause
excessive wear and stress on the stroller.
The weight in either seat should not exceed
40 lbs. (18 kg).
Failure to follow these warnings and the assembly instructions
could result in serious injury or death.
Avoid rearward tipping. Placing weight
only in the rear of this stroller could
cause the stroller to tip backwards.
!
Always place the heaviest child or
the heaviest child/carrier combination in the front seat.
!
Always place the front child first.
When unloading, remove the rear
child first.
!
Never place purses, shopping bags
or accessory items on the handle or
canopy.
Child may slip into leg openings
and strangle. Never use rear seat in a
reclined carriage position unless closure
flap is properly secured.
To secure the closure flap:
!
Fabric side panels must be snapped
at front of both armrests.
!
Two lower hook/loop tabs must be
threaded through buttonholes in fabric
side panels and tightly fastened.
!
Two upper hook/loop tabs must be
threaded through plastic slots at front
of armrests and tightly fastened.
FOR ADDITIONAL IMPORTANT INFORMATION, please see the Helpful Hints
and Care and Maintenance sections in these instructions.
6785
832-6-00
To Assemble Front Wheels
To Unpack Stroller

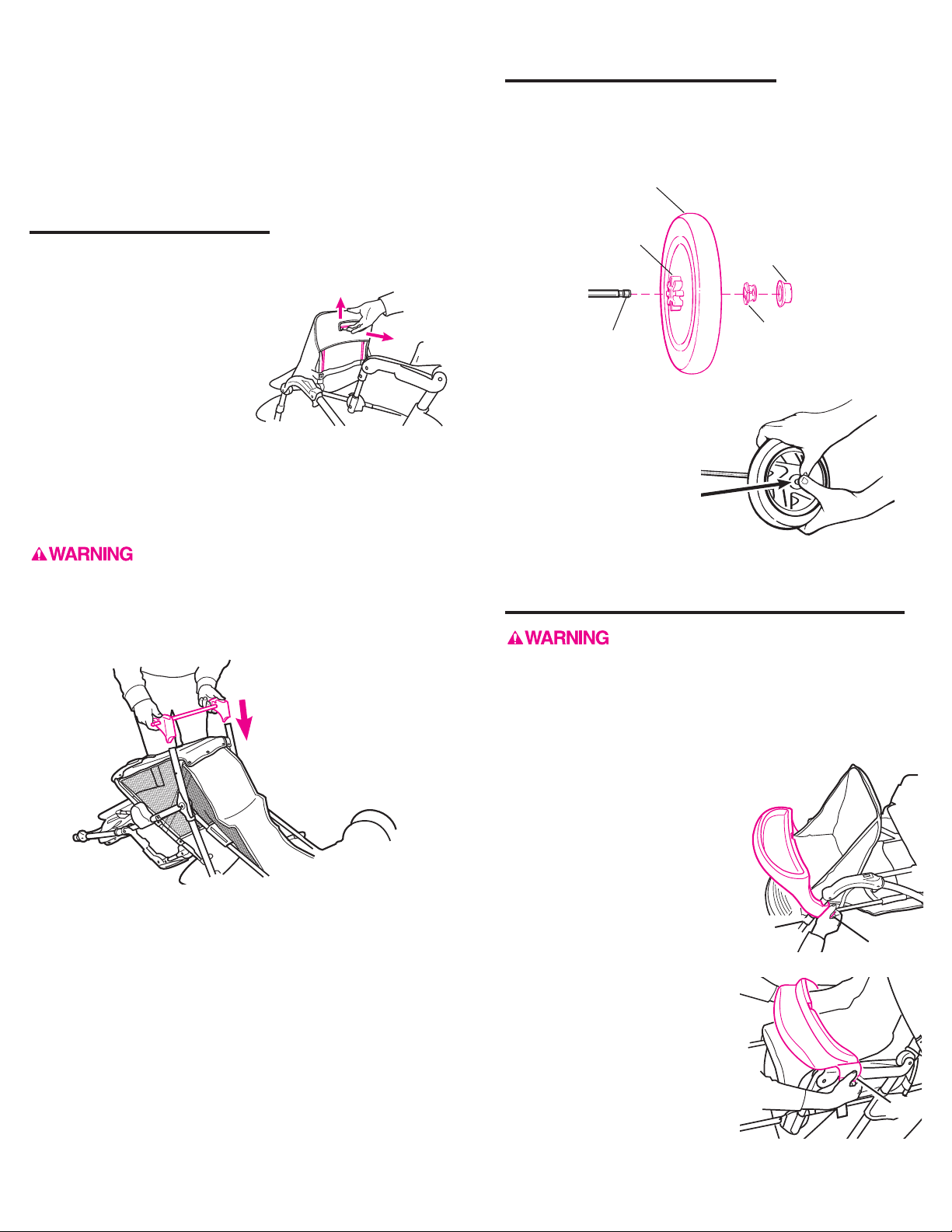

Step 1.
Flatten stroller carton to
protect floor.
Release storage latch on front
leg. Open stroller on carton as
shown until latched. Use care
not to pinch fingers.
Be sure frame is latched as
shown before continuing
assembly.
Step 2.
Push footrest down onto tube
beneath it.
Step 3.
At rear of stroller, fasten the
three basket snaps around
basket frame.
Flattened
carton
Snaps
Storage
latch
To prevent serious injury or death from
choking, remove and immediately discard the plastic
covers on the front leg pins.
Step 1.
Line up wheel assembly with
pin on front leg as shown.
Plastic snaps inside wheel
mount must be away from pin.
Step 2.
Push wheel assembly onto pin
until it snaps in place.
PARTS LIST
CHECK that you have all the parts listed below
BEFORE assembling your stroller.
If any parts are missing,
call Customer Service at 1-800-345-4109
or visit our Internet website, www.gracobaby.com.
THIS PRODUCT REQUIRES ADULT ASSEMBLY
.
No tools required for assembly.
Rear axle
Frame
Front wheel
assembly (2)
Rear canopy
(with rear flap)
Rear wheel (2)
Rear arm bar
(on certain models)
Front canopy
(no flap)
Retainer
(2, 1 extra)
Cap
(2, 1 extra)
Front tray
Step 3.
Repeat above steps for the other side.
Pull firmly on each wheel assembly to be sure the
wheel assemblies are securely attached.
Step 1.
Before assembling rear axle,
it is necessary to recline the
front seat to protect it while the
stroller is inverted. To recline
the front seat, push back of seat
slightly forward while pulling up
on wire as shown to unlock.
Recline seat back.
Step 2.
Turn stroller over.
Step 3.
To prevent serious injury or death from
choking, remove and immediately discard the plastic
covers on the axle.
Position rear axle assembly as shown, with brake levers
pointing toward rear of stroller.
Step 4.
Push both brackets on until plastic tabs snap into the holes
on the leg tubes.
Pull firmly on each bracket to be sure the brackets are
securely attached.
To Assemble Rear Axle
Snap red retainer
into axle groove.
Then snap cap over
red retainer as shown.
Spokes toward
inside
Rear axle
Retainer (red)
Wide end
toward wheel
Place one rear wheel, red retainer and white cap on one end
of rear axle in order as shown below. Push red retainer onto
axle BEFORE attaching white cap. Repeat on other side.
Wheel
Cap (white)
Attach AFTER
retainer is on axle
To Assemble Rear Wheels
To Attach Front Tray and Rear Arm Bar
(arm bar on certain models only)
Always secure your child with the seat
belt. The tray and arm bar are not restraint devices.
DO NOT lift the stroller by the tray or arm bar.
Use care when clamping the tray or arm bar on the
stroller with a child in the stroller.
Ensure plastic tray supports
are positioned as low on front
legs as possible. Snap the tray
onto front legs of stroller as
shown. Snap the arm bar onto
the rear armrests. Push down
on tray and arm bar to be sure
they are securely clamped onto
the stroller.
To remove, first pull tab on one
side out and toward you, then
unsnap the other side of the
tray or arm bar.
Ta b
Ta b
Tray
support
10 11 12
9
832-6-00
Front Canopy:
Push both canopy brackets
down at the same time into
openings on stroller frame.

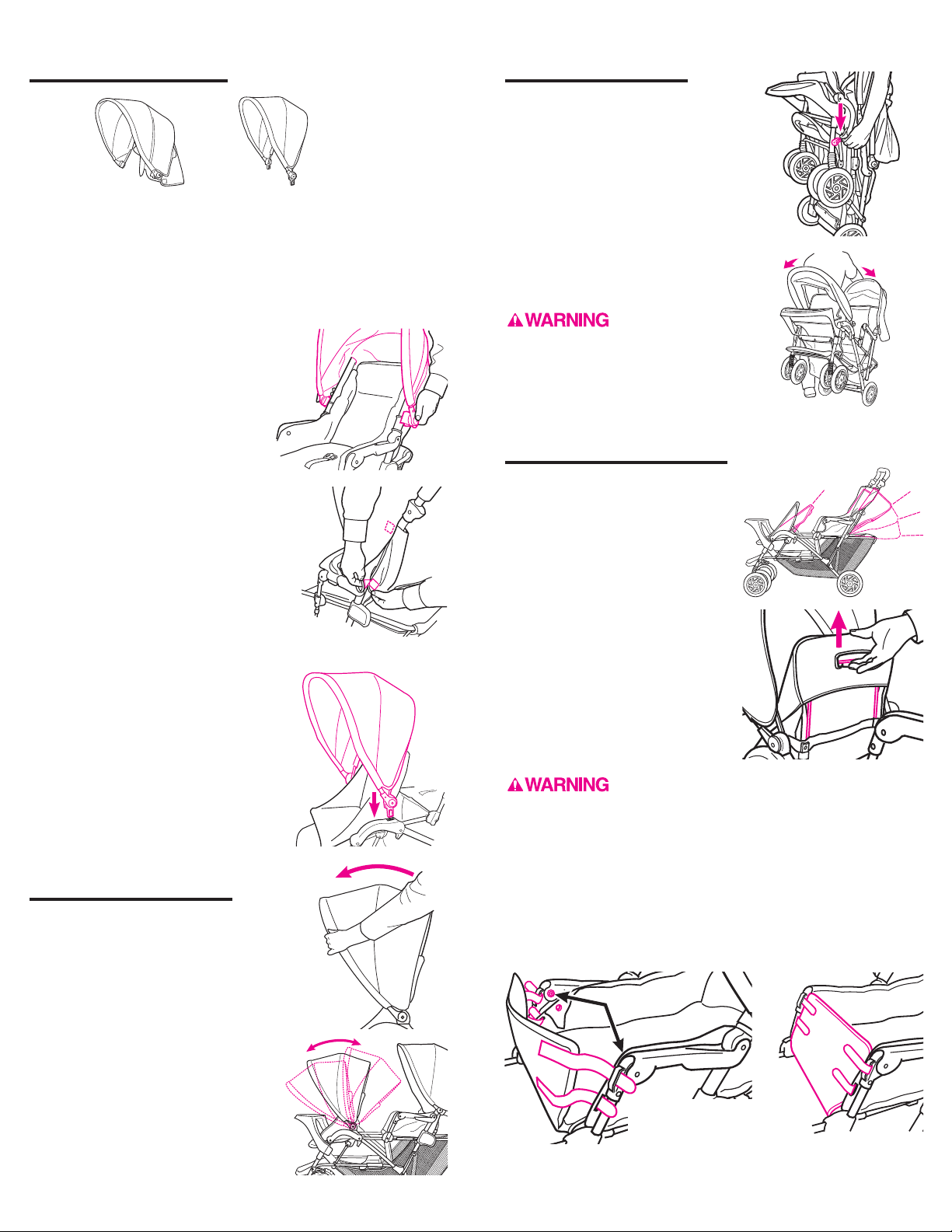

To Adjust Canopies
Push or pull either canopy to
desired position.
Front canopy pivots to the front
or to the rear.
To Adjust Seat Backs
To Unfold Stroller
Step 1.
Push down on the storage latch.
Step 2.
Unfold stroller as shown.
Be certain
the stroller is fully erected and
latched before allowing your
child near the stroller.
Front seat back has one recline
position. Rear seat back has
three, including fully reclined
carriage position.
To recline either the front or rear
seat back, push back of seat
slightly forward while pulling up on
wire as shown to unlock. Recline
seat back to the desired position.
Child may slip into leg openings and
strangle. Never use rear seat in a reclined carriage
position unless closure flap is properly secured.
!
Fabric side panels must be snapped at front of both
armrests.
!
Two lower hook/loop tabs must be threaded through
buttonholes in fabric side panels and tightly fastened.
!
Two upper hook/loop tabs must be threaded through
plastic slots at front of armrests and tightly fastened.
Snaps
Insert tabs through
fabric buttonholes
and plastic slots
Rear Canopy:
Step 1.
Snap canopy mounts between
rings on plastic sleeves above
the armrests.
Step 2.
Fasten two hook tabs on rear
canopy flap to the loop tabs on
canopy. Repeat on other side.
To remove canopy, reverse
above steps.
To Install Canopies
Before installing the canopies, first identify the front and
rear canopies according to the pictures above. Position both
canopies with the large sewn tunnel toward the front.
Rear canopy
(with rear flap)
Front canopy
(no flap)
To Change to Swivel
or Non-swivel Wheels
Front swivel wheels lock for use on uneven surfaces
such as grass, stones or gravel.
Before locking swivels, first push stroller forward a few
feet to ensure that the wheels are correctly positioned.
Push lock button UP to lock
the swivels.
Push button DOWN to release.
Turn swivel to check that it is
locked or released.
Step 1.
Place crotch strap between legs and
fasten both belt buckles together.
Step 2.
Adjust belt at both buckles as needed to get a snug fit
around your child.
Step 3.
Squeeze sides of buckles to release.
To Secure Your Child
Avoid serious injury from falling or
sliding out. Always use seat belt.
To Attach the Graco®Safety Seat
(sold separately)
Improper use of this stroller with a
carrier may result in serious injury or death.
Do not use this stroller with a safety seat that is not
the Graco®brand.
Read the owners manual provided with your Graco
®
safety seat before using the seat with this stroller.
If you do not have the owners manual for the
Graco®safety seat, call Graco at 1-888-224-6549.
Make sure the stroller is fully assembled according to the
preceding instructions, with the front tray or rear armbar
(on certain models) attached. Do not use a safety seat
in any stroller seat that does not have a tray or arm
bar installed.
Step 1.
If the stroller is folded, unfold it. Fully recline the back
of the stroller seat that is to be used with a safety
seat. Push down on the tray or arm bar to be sure
it is securely attached to the stroller.
Step 2.
Unbuckle the stroller seat belt, move the buckles all the
way to the loose end of the seat belt webbing, and
hang buckles outside of the stroller.
To Put Children in the Stroller
Avoid rearward tipping. Placing weight
only in the rear of this stroller could cause the stroller
to tip backwards.
!
Always place the heaviest child
or the heaviest child/carrier
combination in the front seat.
!
Always place the front child first.
When unloading, remove the
rear child first.
!
Never place purses, shopping
bags or accessory items on the
handle or canopy.
Place more weight
in front seat
To Use Brakes
Always apply
both brakes to park stroller.
Push DOWN to park.
Check to make sure brakes are
on by trying to push the stroller.
Lift UP to stroll.
14 15 1613
832-6-00
Step 1.
Pull back both fold latches
at handle. Begin pushing
handle forward.
Step 2.
Hold stroller frame at base of
front canopy and fold ends
together until storage latch on
side catches automatically.
Stroller will fold more compactly
if tray and front canopy are
removed and front wheels are
facing backwards.
If rear wheels are locked, folded
stroller will stand on its own.
To Remove Seat Pads
Front and rear seat pads can be removed if desired for
cleaning or replacement.
Rear Seat Pad:
Unfasten the four snaps and three hook/loop tabs on each
side, and the two snaps on back as shown. Push crotch
strap and waist belt through slots in pad and remove pad.
Step 3.
If your child is already in the safety seat because you
have been using it as a carrier, make sure child is
secured with the harness.
Always secure your child with the
safety seat harness when using the safety seat in
the stroller.
Step 4.
Move the safety seat handle
into the carrying position.
Step 5.
Position the safety seat so
that the mounting notches
fit over the edge of the rear
arm bar or front tray. Push
down on the safety seat until
attachment latch snaps onto
the arm bar or tray.
Step 6.
Slide stroller seat belt
webbing under vehicle belt
hooks on each side of the
safety seat. Tighten stroller
seat belt buckles against
inside of safety seat.
Step 7.
Pull up on safety seat handle to be sure the safety seat
is securely attached to the stroller.
To remove safety seat
from the stroller, remove
stroller seat belts from
vehicle belt hooks,
squeeze release handle
at back of safety seat,
and lift safety seat out
of the stroller.
To Fold Stroller
Before folding,
(1) remove safety seat if in
use; (2) adjust seat backs
to upright position; (3) lock
brakes; (4) fold canopies
and lower front canopy
as shown.
Return the form below with payment to:
GRACO CHILDRENS PRODUCTS INC.
CUSTOMER SERVICE DEPARTMENT
P.O. BOX 100, MAIN STREET
ELVERSON, PA 19520
Replacement Parts
Instructions for ordering stroller parts:
Complete form below. Your stroller model number MUST
be included on the form to ensure proper replacement
parts. Your model number can be found on a sticker
on the rear leg of your stroller. Payment must
accompany your order.
Parts List:
Front seat ................................
Rear seat .................................
Seat pads (front or rear) ..........
Front wheel assembly .............
(2 wheels per unit)
Rear wheel ..............................
Rear axle .................................
Front tray .................................
Rear arm bar* ..........................
Basket ......................................
Front canopy (with frame) .......
Rear canopy (fabric only) ........
Swivel lock button ....................
* On certain models only.
Price:**
$10.00
$15.00
$18.00
$16.00
$ 8.00 (each)
$ 11.00
$12.00
$10.00
$16.00
$13.00
$15.00
no charge
** Prices subject to change without notice.
IF YOU NEED HELP
If you have any questions or if you need
any part not listed, please call toll-free:
1-800-345-4109
or visit our Internet website, www.gracobaby.com.
HELPFUL HINTS
IF WHEEL SQUEAKS, use a light
oil (e.g., WD-40, 3-in-1, or sewing
machine oil). It is important to get
the oil into the axle and wheel
assembly as shown.
WHEN USING YOUR STROLLER AT THE
BEACH, completely clean your stroller afterward to
remove sand and salt from mechanisms and wheel
assemblies.
CARE AND MAINTENANCE
DO NOT MACHINE WASH SEAT. It should only be
wiped with a mild detergent, taking care not to soak
the material. NO BLEACH.
REMOVABLE SEAT PAD may be machine washed
in lukewarm water on delicate cycle and drip-dried.
NO BLEACH.
TO CLEAN STROLLER FRAME, use only household
soap or detergent and warm water. NO BLEACH.
FROM TIME TO TIME CHECK YOUR STROLLER
for loose screws, worn parts, torn material or stitching.
Replace or repair the parts as needed. Use only
Graco®replacement parts.
EXCESSIVE EXPOSURE TO SUN OR HEAT could
cause fading or warping of parts.
SHIP TO:
Name
Address
City, State, Zip
( )
Telephone
Check enclosed
(payable to Graco Childrens
Products Inc.)
Charge to credit card:
Visa
MasterCard
Discover
Account #:
Expiration date:
Signature:
Front seat
Rear seat
Seat pads (front/rear)
Front wheel assembly
Rear wheel
Rear axle
Front tray
Rear arm bar
Basket
Front canopy
Rear canopy
Swivel lock button
Subtotal:
Shipping
& handling*: $5.00
6% sales tax
(PA only):
Total:
*$15.00 outside the continental U.S.
Model No. (required)
Serial No. (required)
Front Seat Pad:
Unfasten the single snap at each side of seat pad. Push
crotch strap and waist belt through slots in pad, and lift pad
off the seat back.
To replace pads, reverse the above steps.
Loading...
