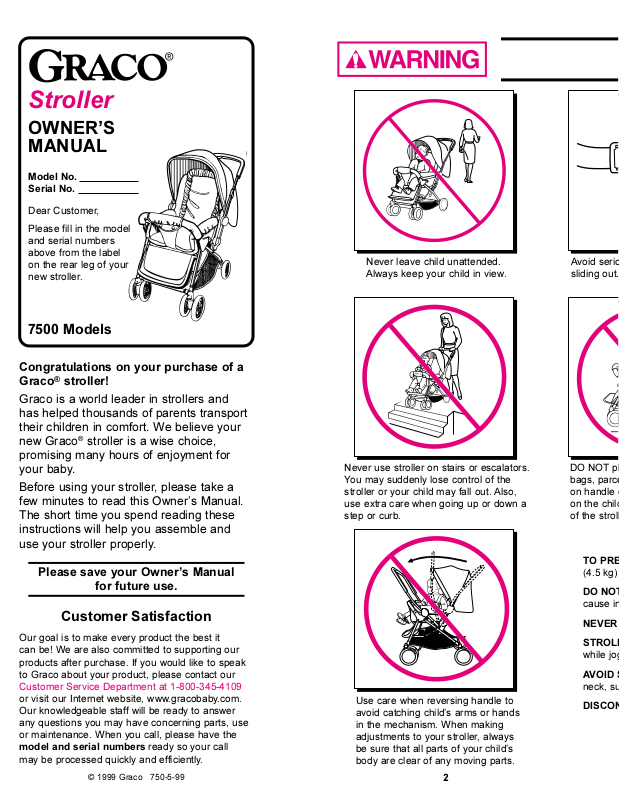

Stroller
OWNERS
MANUAL
Model No.
Serial No.
Dear Customer,
Please fill in the model
and serial numbers
above from the label
on the rear leg of your
new stroller.
7500 Models
Congratulations on your purchase of a
®
Graco
stroller!
Never leave child unattended.
Always keep your child in view.
Avoid serious injury from falling or
sliding out. Always use seat belt.
Graco is a world leader in strollers and
has helped thousands of parents transport
their children in comfort. We believe your
®
new Graco
stroller is a wise choice,
promising many hours of enjoyment for
your baby.
Before using your stroller, please take a
few minutes to read this Owners Manual.
The short time you spend reading these
instructions will help you assemble and
use your stroller properly.
Please save your Owners Manual
for future use.
Customer Satisfaction
Our goal is to make every product the best it
can be! We are also committed to supporting our
products after purchase. If you would like to speak
to Graco about your product, please contact our
Customer Service Department at 1-800-345-4109
or visit our Internet website, www.gracobaby.com.
Our knowledgeable staff will be ready to answer
any questions you may have concerning parts, use
or maintenance. When you call, please have the
model and serial numbers ready so your call
may be processed quickly and efficiently.
© 1999 Graco 750-5-99
Never use stroller on stairs or escalators.
You may suddenly lose control of the
stroller or your child may fall out. Also,
use extra care when going up or down a
step or curb.
Use care when reversing handle to
avoid catching childs arms or hands
in the mechanism. When making
adjustments to your stroller, always
be sure that all parts of your childs
body are clear of any moving parts.
234
DO NOT place purses, shopping
bags, parcels and accessory items
on handle or canopy. They may fall
on the child or change the balance
of the stroller and make it unstable.
TO PREVENT A HAZARDOUS CONDITION, do not place more than 10 lbs.
(4.5 kg) in the storage basket or more than 2 lbs. (0.9 kg) in the canopy bag.
DO NOT ALLOW YOUR CHILD to stand on the basket. It may collapse and
cause injury.
NEVER ALLOW YOUR STROLLER to be used as a toy.
STROLLER TO BE USED only at walking speed. Product not intended for use
while jogging, skating, etc.
AVOID STRANGULATION. DO NOT place items with a string around your childs
neck, suspend strings from this product, or attach strings to toys.
DISCONTINUE USING YOUR STROLLER should it become damaged or broken.
Page 2
Failure to follow these warnings and the assembly instructions
could result in serious injury or death.
Be certain the stroller is fully erected
and latched before allowing your
child near the stroller.
Use of the stroller with a child weighing
more than 40 lbs. (18.1 kg) will cause
excessive wear and stress on the
stroller. Use the stroller with only one
child at a time.
Never place child in the stroller with
head toward front of the stroller.
Child may slip into leg openings
and strangle. Never use in reclined
carriage position unless footrest is
placed under padded front bar and
wire snapped into lower notch.
TO PREVENT A HAZARDOUS CONDITION, do not place more than 10 lbs.
(4.5 kg) in the storage basket or more than 2 lbs. (0.9 kg) in the canopy bag.
DO NOT ALLOW YOUR CHILD to stand on the basket. It may collapse and
cause injury.
NEVER ALLOW YOUR STROLLER to be used as a toy.
STROLLER TO BE USED only at walking speed. Product not intended for use
while jogging, skating, etc.
AVOID STRANGULATION. DO NOT place items with a string around your childs
neck, suspend strings from this product, or attach strings to toys.
DISCONTINUE USING YOUR STROLLER should it become damaged or broken.
FOR ADDITIONAL IMPORTANT
INFORMATION, please see the
Helpful Hints and Care and
Maintenance sections in these
instructions.
Page 3
PARTS LIST
CHECK that you have all the parts listed below
BEFORE assembling your stroller.
If any parts are missing, call Customer Service
at 1-800-345-4109 or visit our Internet website,
www.gracobaby.com.
THIS PRODUCT REQUIRES ADULT ASSEMBLY
No tools required for assembly.
Handle
with
wire
Frame
OR
Handle
without
wire
To Install Handle
Step 1.
Turn handle brackets straight up.
Handle
bent
towards
rear
Step 2.
.
Position handle as shown.
Step 3.
Place both sides of handle
into brackets and push down
until latched.
Be sure buttons are securely latched in bracket holes.
Check by pulling firmly up on handle.
Handle
bracket
Front wheel
assembly (2)
Swivel lock
button (2)
Pin (2)
Basket support wire
(on models with
small basket)
Cap (2,
1 extra)
Rear axle
assembly
OR
Rear axle
Rear wheel (2)
Retainer (2,
1 extra)
Storage basket
(on certain models)
To Assemble Rear Axle
Your stroller will have either a rear axle or a rear axle
assembly with brackets. Follow the appropriate
instructions below.
Rear Axle:
Step 1.
Turn stroller over as shown.
Step 2.
Slide the rear axle through the
holes in both axle brackets.
Rear Axle Assembly:
Smooth side of
brackets UP
Button
To Unpack Stroller
Step 1.
Flatten stroller carton to
protect floor.
Step 2.
Open stroller on
carton as shown
until latched.
750-5-99
Flattened
carton
Rear legs
Step 1.
Turn stroller over as pictured above.
Step 2.
Position rear axle assembly as shown.
Latch
6785
Page 4
Step 3.
Push both brackets all the way on until metal buttons snap
into bracket holes on inside of legs.
Pull firmly on each bracket to be sure buttons are
snapped into bracket holes.

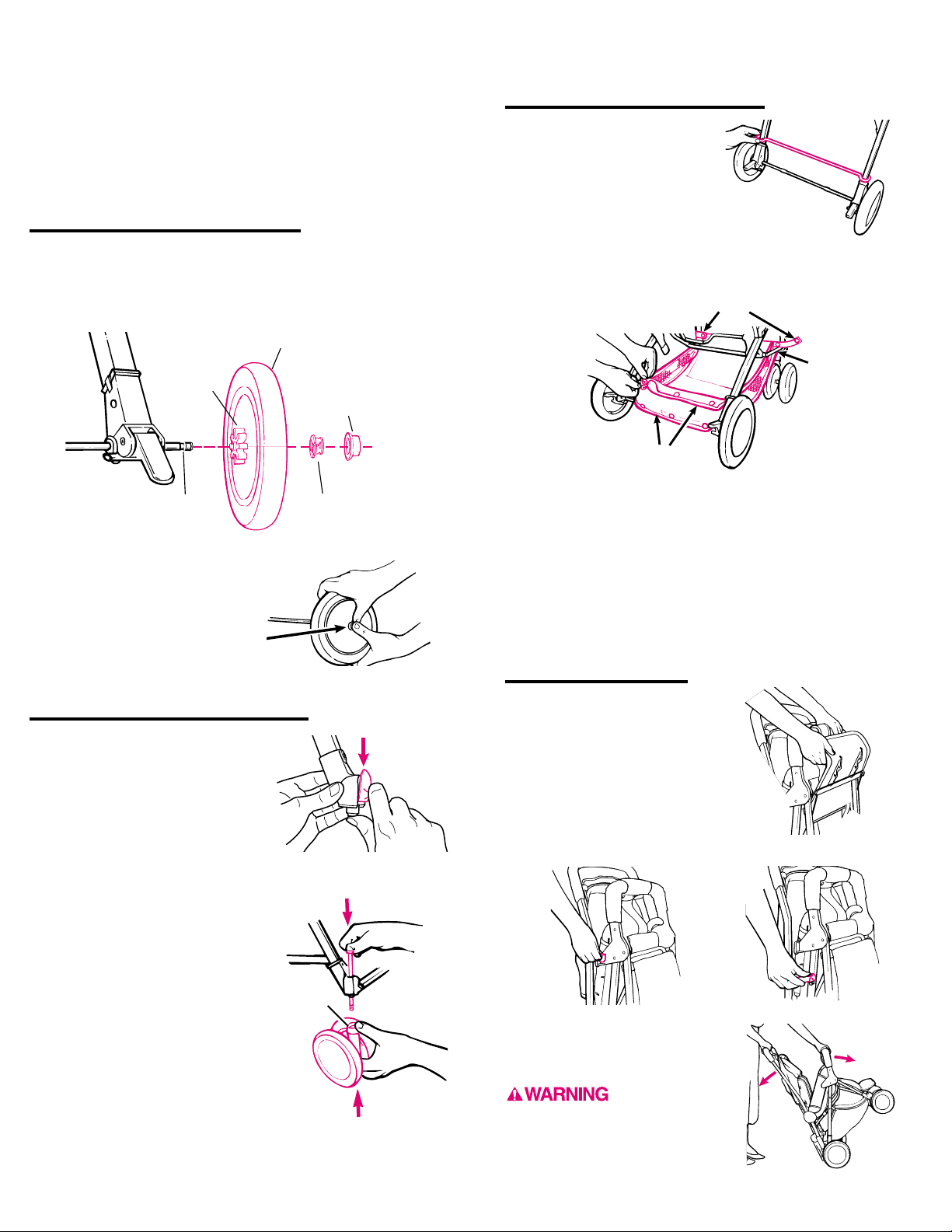

To Assemble Rear Wheels
Place one rear wheel, red retainer, and white cap on one
end of rear axle in order as shown below. Push red retainer
onto axle BEFORE attaching white cap. Repeat on other
side.
Wheel
Spokes
toward
inside
Rear
axle
Retainer (red)
Wide end
toward wheel
To Install Storage Basket
(on certain models)
Step 1.
Snap basket support wire
onto rear legs as shown.
Step 2.
Fasten the two straps around front legs, above the side
braces, as shown.
Step 3.
Fasten the bottom row of snaps around the rear axle.
Step 4.
Fasten the top row of snaps around the basket support
wire.
Straps
Snaps
Side
brace
Step 1.
Snap swivel lock button onto
wheel mount as shown. This
must be done BEFORE pin is
inserted (next step).
Step 2.
Insert pin through hole in wheel
mount. Then push round end of
a front wheel assembly up onto
pin as shown until it snaps into
place.
Check wheel attachment by
pulling down on the front
wheel assembly.
Step 3.
Repeat above steps for the
other side.
Insert pin
Push
wheels up
To Assemble Front Wheels
Snap red retainer into axle
groove. Then snap cap over
red retainer as shown.
Be sure cap is snapped
securely over red retainer.
Cap (white)
Attach AFTER
retainer is on axle
To Unfold Stroller
Step 1.
Unfold footrest from under
armrest.
Step 2.
Release storage latch.
Step 3.
Unfold as shown.
Be certain
the stroller is fully erected
and latched before allowing
your child near the stroller.
OR
Round
end
Page 5

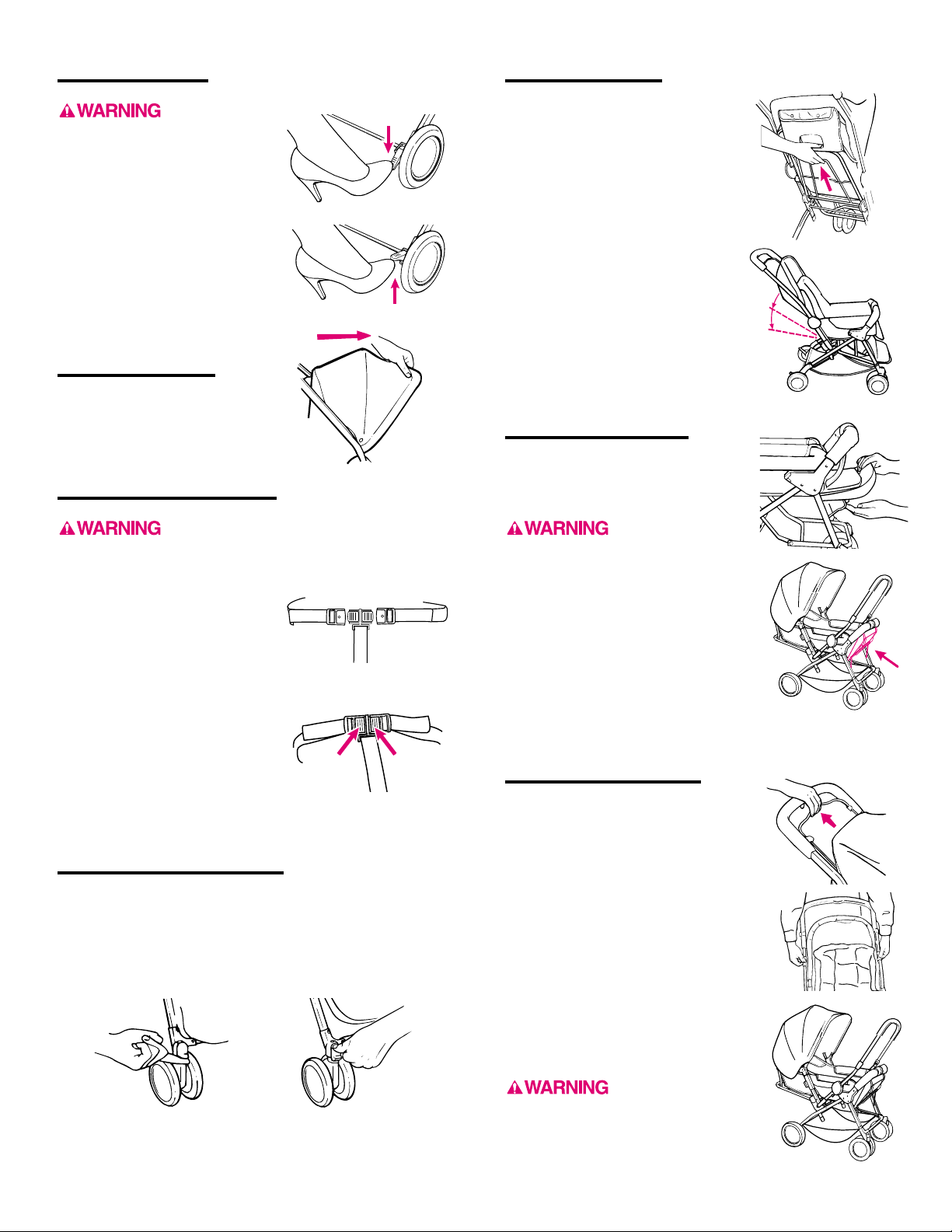

To Use Brakes
To Adjust Back
Always apply
both brakes to park stroller.
Push DOWN on each brake
to park.
Check to make sure brakes
are on by trying to push the
stroller.
Lift UP on each brake to stroll.
To Use Canopy
To open canopy, pull it
forward.
To Secure Your Child
Avoid serious injury from falling or
sliding out. Always use seat belt.
Step 1.
Place crotch strap between
childs legs and snap both side
buckles to the center buckle.
Adjust belt as needed to get
a snug fit around your child.
Step 1.
Push back of seat slightly
forward while squeezing as
shown to unlock.
Step 2.
Adjust to desired position.
To Raise Footrest
Lift footrest to desired position
and hook wire into footrest
bracket.
Child may
slip into leg openings and
strangle. Never use in a
reclined carriage position
unless footrest is placed under
padded front bar and wire is
snapped into lower notch.
Step 2.
Push in on front of buckle to
release.
To Change to Swivel
or Non-swivel Wheels
Front swivel wheels lock for use on uneven surfaces
such as grass, stones or gravel.
Before locking swivels, push stroller forward a
few feet to ensure that the wheels are correctly
positioned.
Push buttons up or down, depending on model, to lock
or release swivels. Turn swivel to check that it is locked
or released.
To Move Handle to
Carriage Position
Step 1.
On handles with a wire,
squeeze wire as shown to
unlock.
On handles without a wire, pull
up on both plastic slides on the
handle as shown to unlock.
Step 2.
Move handle to new position.
Use care when
reversing handle to avoid
catching childs arms or hands
in the folding mechanism.
750-5-99
9
10 11 12
Page 6

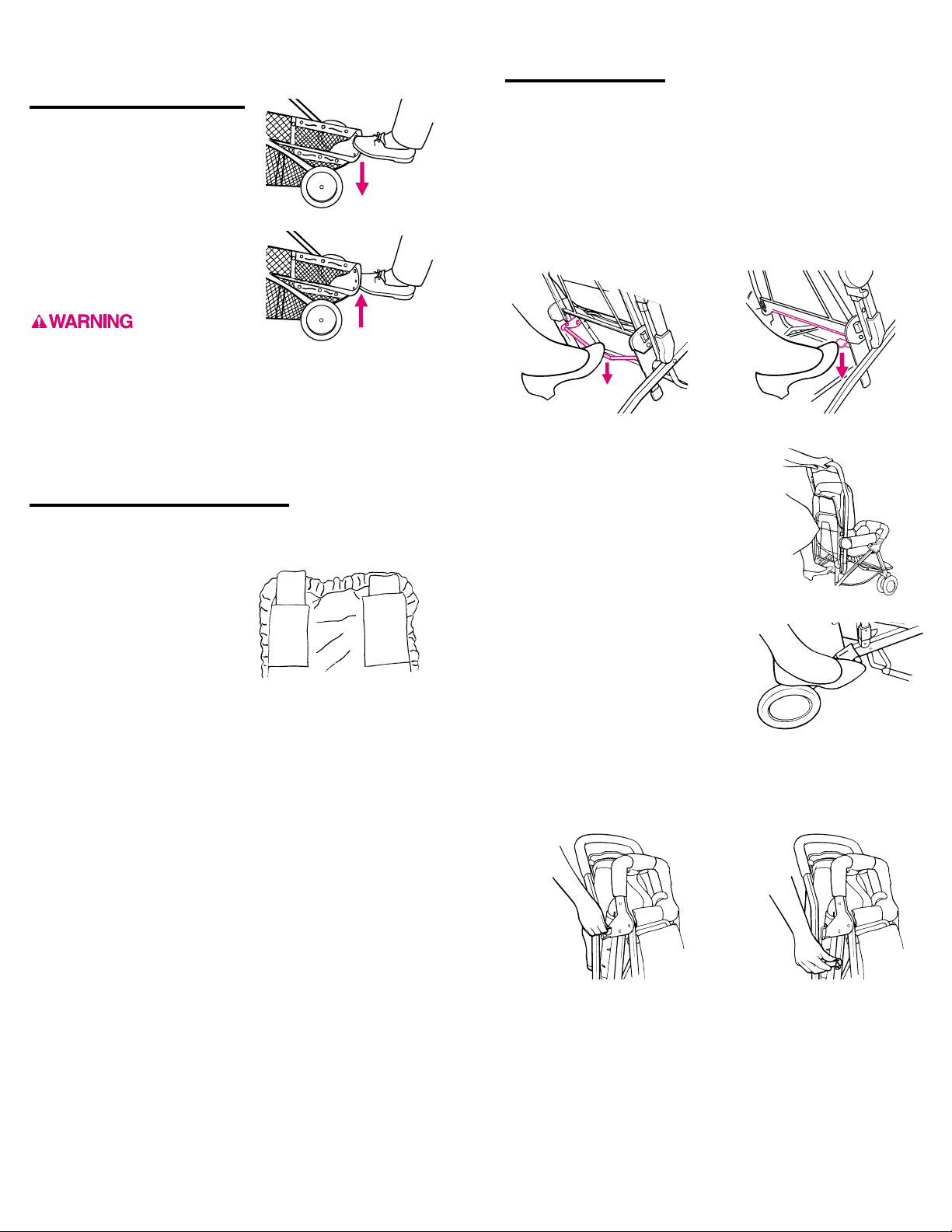

To Use Large Basket
(on certain models)
To lower basket, push DOWN
on basket.
To raise basket, lift UP on
basket.
Do not allow
your child to stand on the
basket. It may collapse and
cause injury.
To use stroller with a smaller
child, pull the plastic pieces
from pockets located in the
back of the cloth seat pad, and
reinsert them with curved side
toward the front.
To use stroller with a larger
child who does not need head
support, insert the plastic
pieces with the curved side
toward the back.
Back of cloth seat pad
To Adjust Head Supports
(on certain models)
Step 2.
Push handle forward.
Step 3.
Push on secondary lock
on right side of stroller
(red button).
Step 4.
Lock storage latch as shown.
OR
To Fold Stroller
Before folding, (1) adjust back to upright position;
(2) adjust handle to rear position; (3) fold canopy.
On models with a large collapsible basket, lower the basket
first to provide easier access to the folding latch.
Step 1.
Push on latch to fold as shown.
OR
Page 7
Replacement Parts
HELPFUL HINTS
IF WHEEL SQUEAKS, use a
light oil (e.g., WD-40, 3-in-1,
or sewing machine oil). It is
important to get the oil into
the axle and wheel assembly
as shown.
WHEN USING YOUR STROLLER AT THE BEACH,
completely clean your stroller afterward to remove
sand and salt from mechanisms and wheel assemblies.
CARE AND MAINTENANCE
DO NOT MACHINE WASH SEAT (with permanent
inner boards). It should only be wiped with a mild
detergent, taking care not to soak the material. NO
BLEACH.
REMOVABLE SEAT PAD may be machine washed
in lukewarm water on delicate cycle and drip-dried.
NO BLEACH.
FROM TIME TO TIME CHECK YOUR STROLLER
for loose screws, worn parts, torn material or stitching. Replace or repair the parts as needed. Use only
®
Graco
DISCONTINUE USING YOUR STROLLER should it
become damaged or broken.
TO CLEAN STROLLER FRAME, use only
household soap or detergent and warm water.
NO BLEACH.
EXPOSURE TO SUN OR HEAT could cause fading
or warping of parts.
replacement parts.
Instructions for ordering stroller parts:
Complete form below. Your stroller model number MUST be
included on the form to ensure proper replacement parts.
Your model number can be found on a sticker on the rear
leg of your stroller. Payment must accompany your order.
Parts List:
Removable seat pad .........
Front wheel assembly .......
Price:*
$22.00
$16.00 (each)
(2 wheels per unit)
Rear axle assembly* .........
Rear axle* .........................
Rear wheel ........................
Small basket .....................
Large basket .....................
Footrest cover ...................
Canopy ..............................
Handle with wire ................
Handle without wire ...........
Seat ...................................
Wheel hardware ................
* Certain models only
$12.00
$ 7.00
$ 8.00 (each)
$16.00
$16.00
$13.00
$18.00
$25.00
$25.00
$30.00
No charge
* Prices subject to change without notice.
IF YOU NEED HELP
If you have any questions or if you need any parts
not listed, please call toll-free:
1-800-345-4109
or visit our Internet website, www.gracobaby.com.
Return the form below with payment to:
GRACO CHILDRENS PRODUCTS INC.
CUSTOMER SERVICE DEPARTMENT
P.O. BOX 100, MAIN STREET
ELVERSON, PA 19520
Model Number
(Must be filled in)
Removable seat pad
Front wheel assembly
Rear axle assembly
Rear axle
Rear wheel
Small basket
Large basket
Footrest cover
Canopy
Handle with wire
Handle without wire
Seat
Wheel hardware
Total:
Shipping
& handling: $5.00
6% sales tax
(PA only):
Total amount
due:
SHIP TO:
Name
Address
City, State, Zip
( )
Telephone
Check enclosed
(payable to Graco Childrens
Products Inc.)
Charge to credit card:
Visa
MasterCard
Discover
Account #:
Expiration date:
Signature:
750-5-99
1413
Loading...
