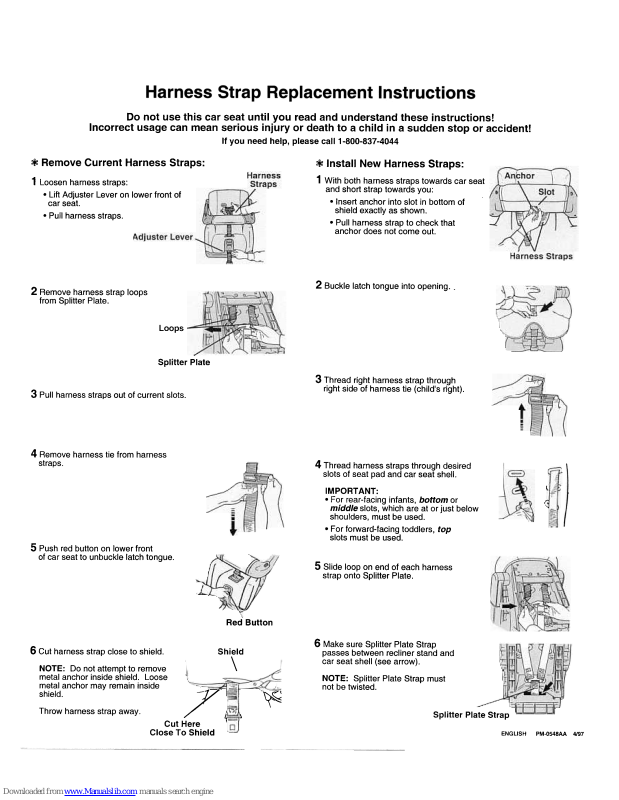

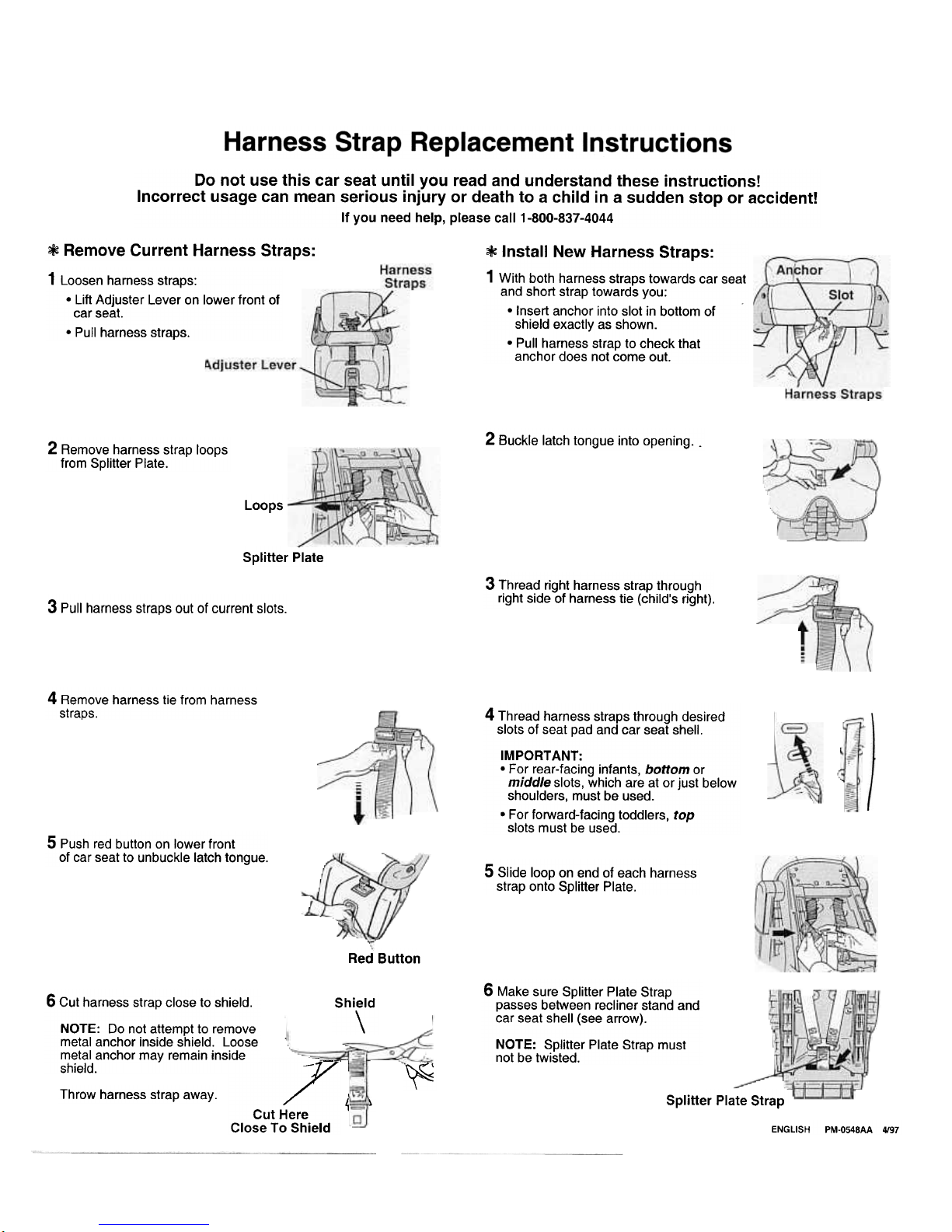

Graco STE 4388, STE 44331, STE 44388, STE PM-O548AA, 4331 Replacement Instructions Manual

Page 1
Page 2
Forward-facing
HEIGHT & WEIGHT LIMITS
A preterm infant or low birth weight infant may be at special risk in a vehicle or aircraft.
According to the American Academy of Pediatrics, these infants may suffer breathing difficulties if improperly reclined in a car seat.
Century advises that you have your physician or hospital staff evaluate your infant and recommend the proper car seat or car bed before you and your infant leave the hospital.
5
❃
Preterm or Low Birth Weight Infants
❃
Outgrowing Car Seat
Prevent serious injury or death:
• Top of child’s ears must be below top edge of car seat.
• Child’s shoulders MUST not be above top harness slots.
WARNING
Rear-facing: Birth to 22 lbs. (10 kg)
• Infants from birth to 20 lbs. (9.1 kg) MUST be rear-facing.
• Infants or toddlers 20 to 22 lbs. (9.1 to 10 kg) may be rear-facing.
Forward-facing: 20 to 40 lbs. (9.1 to 18.1 kg)
• Toddlers 20 to 22 lbs. (9.1 to 10 kg) who are capable of sitting upright unassisted may be forward-facing
*
. If unable to sit
unassisted, use rear-facing.
• Toddlers 22 to 40 lbs. (10 to 18.1 kg) and up to 40 inches (101.6 cm) tall MUST be forward-facing.
*
The American Academy of Pediatrics recommends that children should be at least one year of age before being positioned forward facing.
Rear-facing
40 lbs.
(18.1 kg)
Birth
22 lbs.
(10 kg)
20 lbs.
(9.1 kg)
