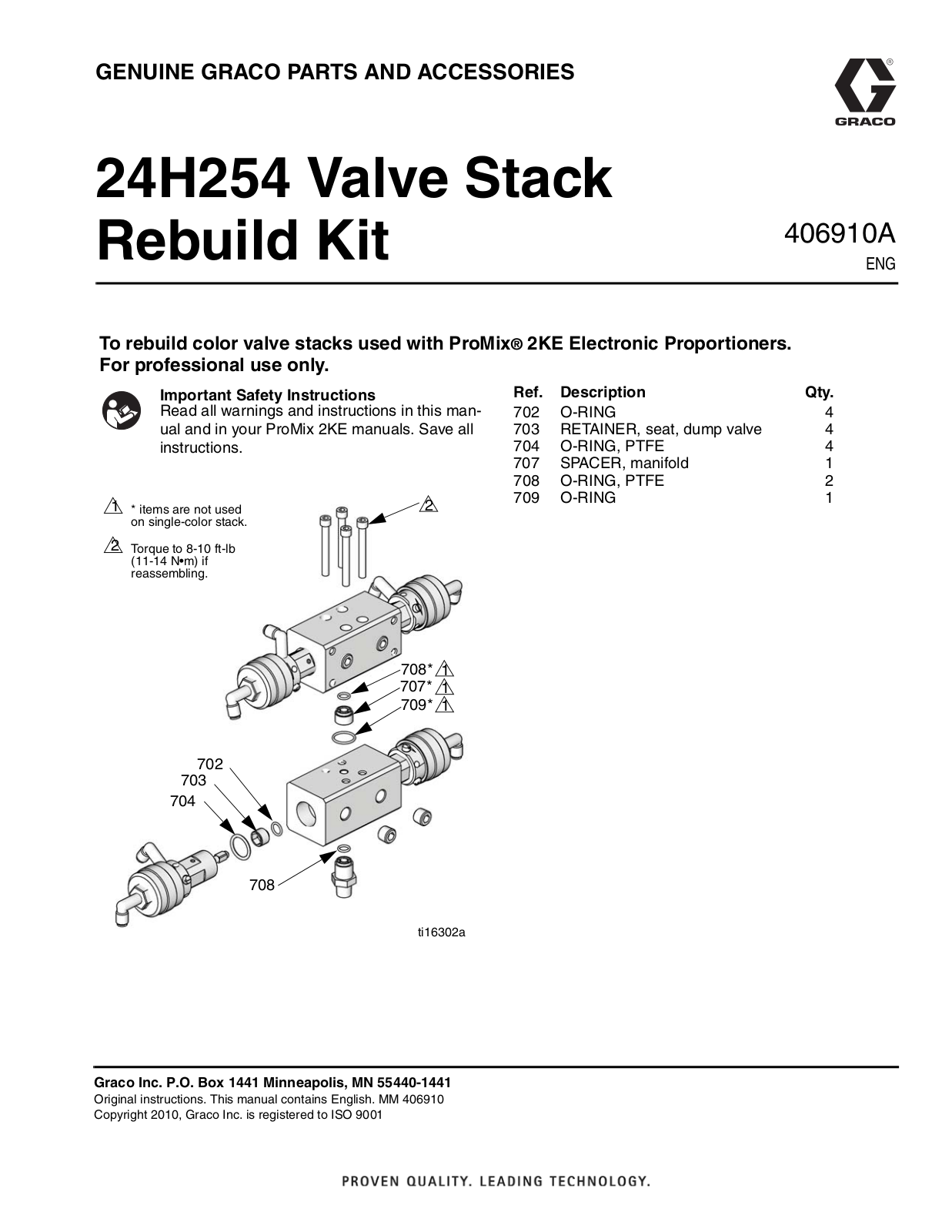

Graco 406910A User Manual

GENUINE GRACO PARTS AND ACCESSORIES

24H254 Valve Stack
Rebuild Kit

To rebuild color valve stacks used with ProMix® 2KE Electronic Proportioners.
For professional use only.

Important Safety Instructions

Read all warnings and instructions in this man­ual and in your ProMix 2KE manuals. Save all
instructions.

1

* items are not used
on single-color stack.

2

Torque to 8-10 ft-lb
(11-14 N•m) if
reassembling.

2

Ref. Description Qty.

702 O-RING 4
703 RETAINER, seat, dump valve 4
704 O-RING, PTFE 4
707 SPACER, manifold 1
708 O-RING, PTFE 2
709 O-RING 1

406910A

ENG

708*
707*

709*

702

703

704

708

ti16302a

Graco Inc. P.O. Box 1441 Minneapolis, MN 55440-1441

Original instructions. This manual contains English. MM 406910
Copyright 2010, Graco Inc. is registered to ISO 9001
