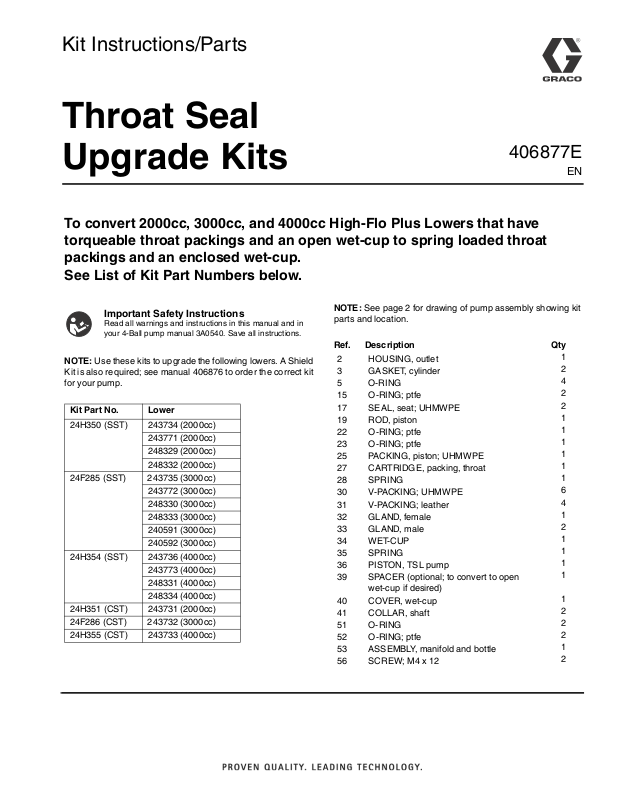

Kit Instructions/Parts
Throat Seal
406877E
Upgrade Kits
To convert 2000cc, 3000cc, and 4000cc High-Flo Plus Lowers that have
torqueable throat packings and an open wet-cup to spring loaded throat
packings and an enclosed wet-cup.
See List of Kit Part Numbers below.
EN
Important Safety Instructions
Read all warnings and instructions in this manual and in
your 4-Ball pump manual 3A0540. Save all instructions.
NOTE: Use these kits to upgrade the following lowers. A Shield
Kit is also required; see manual 406876 to order the correct kit
for your pump.
Kit Part No. Lower
24H350 (SST) 243734 (2000cc)
243771 (2000cc)
248329 (2000cc)
248332 (2000cc)
24F285 (SST) 243735 (3000cc)
243772 (3000cc)
248330 (3000cc)
248333 (3000cc)
240591 (3000cc)
240592 (3000cc)
24H354 (SST) 243736 (4000cc)
243773 (4000cc)
248331 (4000cc)
248334 (4000cc)
24H351 (CST) 243731 (2000cc)
24F286 (CST) 243732 (3000cc)
24H355 (CST) 243733 (4000cc)
NOTE: See page 2 for drawing of pump assembly showing kit
parts and location.
Ref. Description Qty
2 HOUSING, outlet
3 GASKET, cylinder
5O-RING
15 O-RING; ptfe
17 SEAL, seat; UHMWPE
19 ROD, piston
22 O-RING; ptfe
23 O-RING; ptfe
25 PACKING, piston; UHMWPE
27 CARTRIDGE, packing, throat
28 SPRING
30 V-PACKING; UHMWPE
31 V-PACKING; leather
32 GLAND, female
33 GLAND, male
34 WET-CUP
35 SPRING
36 PISTON, TSL pump
39 SPACER (optional; to convert to open
wet-cup if desired)
40 COVER, wet-cup
41 COLLAR, shaft
51 O-RING
52 O-RING; ptfe
53 ASSEMBLY, manifold and bottle
56 SCREW; M4 x 12
1
2
4
2
2
1
1
1
1
1
1
6
4
1
2
1
1
1
1
1
2
2
2
1
2
2
5
56
4
17
15
1
1
22
3
23
1
1
40
1
36
2
25
1
41
5
1
3
1
35
53
51
1
34
3
1
1
6
52
31
32
31
1
1
1
19
8
33
1
30
1
33
1
28
27
7
4
52
1
1
Apply lubricant to all packings.
2
Apply removable (blue) Loctite
entire length of threads. Sealant must
be allowed to cure for a minimum of 12
hours before use.
3
Torque to 200-210 ft-lb (270-285 N•m).
All written and visual data contained in this document reflects the latest product information available at the time of publication.
® 243 to
Graco reserves the right to make changes at any time without notice.
Original instructions. This manual contains English. MM 406877
4
Apply thread lubricant.
5
Torque to 18-20 ft-lb (24-27 N•m).
6
Tighten uniformly until cylinder is
seated then torque to 60-65 ft-lb (81-88
N•m).
7
Torque 95-100 ft-lb (129-135 N•m).
8
Apply high strength (red) Loctite
or 2760 to entire length of threads.
Sealant must be allowed to cure for a
minimum of 12 hours before use.
Graco Headquarters: Minneapolis
International Offices: Belgium, China, Japan, Korea
GRACO INC. AND SUBSIDIARIES • P.O. BOX 1441 • MINNEAPOLIS, MN 55440-1441 • USA
Copyright 2010, Graco Inc. All Graco manufacturing locations are registered to ISO 9001.
www.graco.com
Revised June 2013
