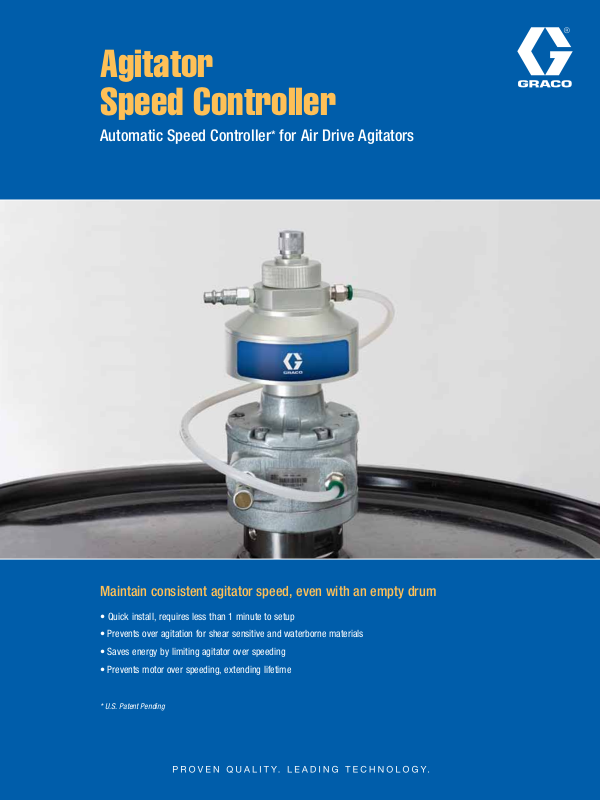

Agitator Speed Controller

Automatic Speed Controller* for Air Drive Agitators

Maintain consistent agitator speed, even with an empty drum

• Quick install, requires less than 1 minute to setup

• Prevents over agitation for shear sensitive and waterborne materials

• Saves energy by limiting agitator over speeding

• Prevents motor over speeding, extending lifetime

* U.S. Patent Pending

Target Applications

2300

• Waterborne material

• Shear-sensitive material

• Energy conscious users

Ordering Information

Part No. Description

24G621 Agitator Speed Controller

Installation Information

Speed controller fits on most Graco air driven agitators and many competitive agitators. Contact your Graco Account Manager for more information.

Technical Specifications

Maximum air input pressure 100 psi (7 bar, 0.7 MPa)

Maximum speed 1000 rpm

Speed control range 100-1000 rpm

Weight 1.4 lb (0.64 kg)

Performance Curve

Speed Controller versus Needle Valve

Needle valve at 400 RPM Speed Controller at 400 RPM

1800

1300

800

300

Speed - RPM

1/4 0 1/2 3/4 FULL

Drum Level
