Repair Kit
Check-Mate® 800
Throat Seal Kits
For replacing throat seal kits. For professional use only.
Important Safety Instructions
Read all warnings and instructions in this manual. Save these
instructions.
Kit No. 24V752
Kit No. 24V753
334128A
EN
PROVEN QUALITY. LEADING TECHNOLOGY.
Replace Throat Packings
Note
The throat packings are available as a
preassembled kit.
6. If necessary, use an arbor press to install o-ring
(6) in packing housing (4).
7. Screw the packing nut (N) and packing housing
(4) into the outlet housing (H). Torque to 150 ±
30 ft-lb (203 ± 41 N•m ).
Pump Part No.
24W152 24V752
24W153 24V753
24W150 24V752
24W151 24V753
1. Relieve the pressure. See
Procedure
2. Unscrew the packingnut (N) using a pipe wrench.
Remove the o-ring (6) and washer (5) from the
bottom of the packing housing (4) or from the
outlet housing (H).
3. Place the flats of the packing nut (N) in a v is e.
Unscrew the packing housing (4) and discard it
and the packings. Remove the washer (3), seal
(2), and backup washer (1) from the packing nut.
4. The throat repair kit is preassembled. Screw the
kit into the packing nut (N), making sure that the
backup washer (1), seal (2), and washer (3) are
properly positioned on top of the packing housing
(4), with the lips of the seal facing down. Torque
the packing housing (4) to 225 ±1 0 ft-lb (305 ±
14 N•m).
in t he pump manual 334127.
Throat Seal Repair
Kit
Pressure Relief
Figure 1 Throat Packings
Torque t o 225 ± 10 ft-lb (305 ± 14 N•m).
1
Torque to 150 ± 30 ft-lb (203 ± 41 N•m).
2
Lips of u-cup packing must face down.
3
5. Before installing packing housing into pump,
generously lubricate seals with high temperature
grease supplied with repair kit.
2
334128A

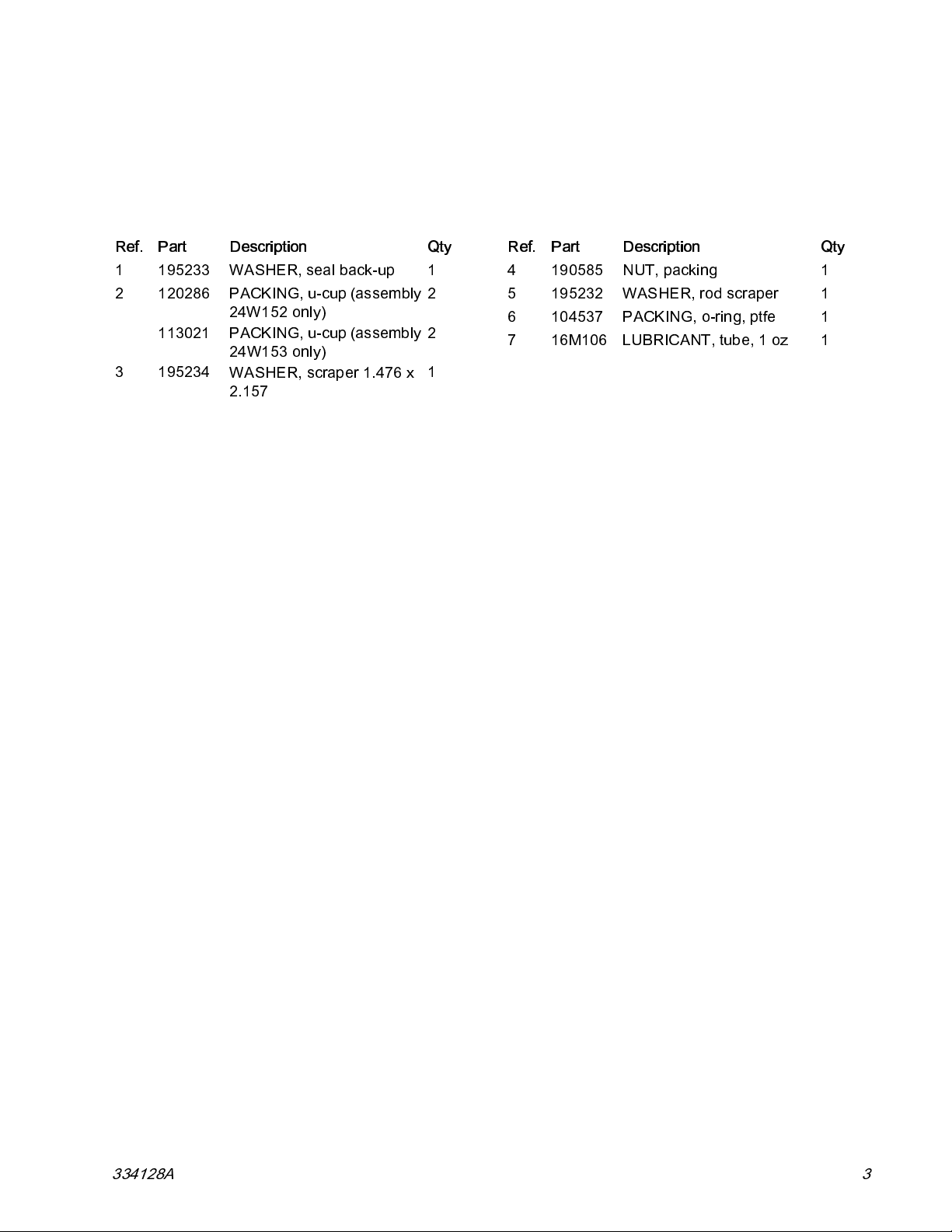

Parts
Carbon Filled Pump Seal Kit, 24V752
Glass Filled Pump Seal Kit, 24V753
Parts
Part Description
Ref.
1 195233
2 120286
113021
3 195234
WASHER, seal back-up
PACKING, u-cup (assembly
24W152 only)
PACKING, u-cup (assembly
24W153 only)
WASHER, scraper 1.476 x
2.157
Qty
1
2
2
1
Part Description
Ref.
4 190585 NUT, packing 1
5
195232
6104537
7
16M106
WASHER, rod scraper
PACKING, o-ring, ptfe
LUBRICANT, tube, 1 oz
Qty
1
1
1
334128A 3
Parts

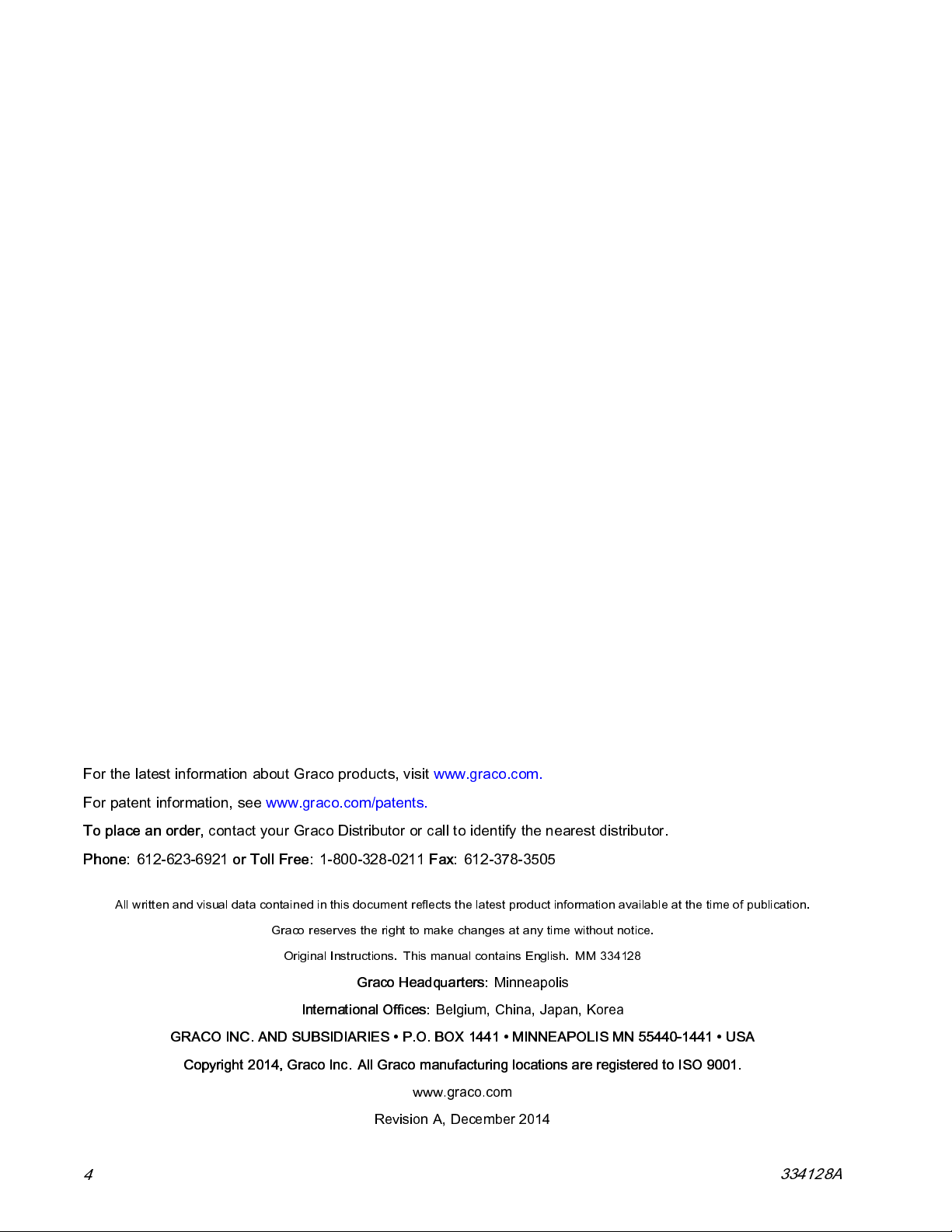

Graco Information
