Graco 333023F User Manual

Operation

Reactor 2 E-30 and E-XP2

Proportioning Systems

Electric, Heated, Plural Component Proportioner for spraying polyurethane foam and polyurea coatings.
Not for outdoor use. For professional use only. Not approved for use in explosive atmospheres or
hazardous locations.

Important Safety Instructions

Read all warnings and instructions in this manual.

Save these instructions.

333023F

EN

PROVEN QUALITY. LEADING TECHNOLOGY.

Contents

Warnings ........................................................... 3

Important Isocyanate Information......................... 7

Models............................................................... 9

Approvals........................................................... 11

Accessories........................................................11

Supplied Manuals............................................... 12

Related Manuals ................................................ 12

Typical Installation, without circulation.................. 13

Typical Installation, with system fluid manifold

to drum circulation................................. 14

Typical Installation, with gun fluid manifold to

drum circulation.....................................15

Component Identification..................................... 16

Advanced Display Module (ADM).................. 18

Electrical Enclosure......................................23

Motor Control Module (MCM)........................ 24

Temperature Control Module (TCM) Cable

Connections................................... 25

Installation.......................................................... 26

Setup................................................................. 27

Grounding ................................................... 27

Close gun fluid manifold valves A and

B ................................................... 27

General Equipment Guidelines ..................... 27

Connect Power............................................ 28

Supply Wet Cups With Throat Seal Liquid

(TSL).............................................29

Install Fluid Temperature Sensor .................. 29

Registerand Activate the Graco InSite........... 29

Advanced Display Module (ADM)

Operation..............................................30

Advanced Setup Screens ............................. 33

System 1 ..................................................... 34

System 2 ..................................................... 34

Recipes....................................................... 34

Run Mode ................................................... 35

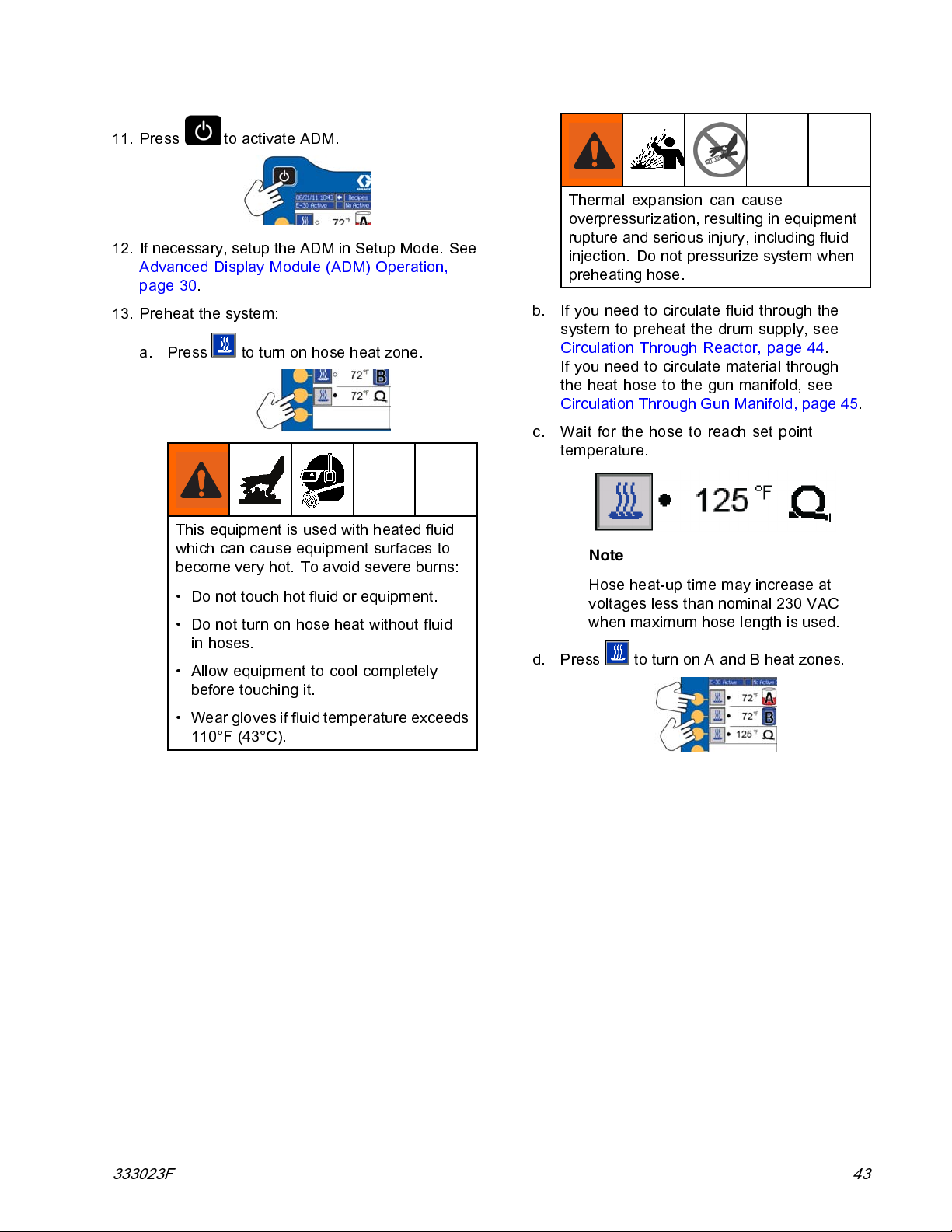

Startup............................................................... 41

Fluid Circulation..................................................44

Circulation Through Reactor ......................... 44

Circulation Through Gun Manifold ................. 45

Jog Mode ........................................................... 45

Spraying ............................................................ 46

Spray Adjustments....................................... 47

Manual Hose Heat Mode .............................. 48

Shutdown...........................................................50

Pressure Relief Procedure .................................. 52

Flushing............................................................. 53

Maintenance ...................................................... 54

Preventative Maintenance Schedule ............. 54

Proportioner Maintenance ............................ 54

Flush Inlet Strainer Screen ........................... 55

Pump Lubrication System............................. 56

Errors ................................................................ 57

View Errors.................................................. 57

Troubleshoot Errors ..................................... 57

Troubleshooting..................................................58

Error Codes and Troubleshooting..................58

USB Data........................................................... 59

Download Procedure.................................... 59

USB Logs.................................................... 59

System Configuration Settings...................... 60

Custom Language File ................................. 61

Upload Procedure ........................................ 61

Performance Charts............................................ 62

Technical Specifications...................................... 65

Graco Extended Warranty for Reactor® 2

Components ......................................... 67

2

333023F

Warnings

Warnings

The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The
exclamation point symbol alerts you to a general warning and the hazard symbols refer to procedure-specific
risks. When these symbols appear in the body of this manual or on warning labels, refer back to these
Warnings. Product-specific hazard symbols and warnings not covered in this section may appear throughout
the body of this manual where applicable.

WARNING

ELECTRIC SHOCK HAZARD

This equipment must be grounded. Improper grounding, setup, or usage of the system can
cause electric shock.

• Turn off and disconnect power at main switch before disconnecting any cables and before
servicing or installing equipment.

• Connect only to grounded power source.

• All electrical wiring must be done by a qualified electrician and comply with all local codes
and regulations.

• Do not expose to rain. Store indoors.

TOXIC FLUID OR FUMES

Toxic fluids or fumes can cause serious injury or death if splashed in the eyes or on skin,
inhaled, or swallowed.

• Read MSDSs to know the specific hazards of the fluids you are using.

• Store hazardous fluid in approved containers, and dispose of it according to applicable
guidelines.

• Always wear chemically impermeable gloves when spraying, dispensing, or cleaning
equipment.

PERSONAL PROTECTIVE EQUIPMENT

Wear appropriate protective equipment when in the work area to help prevent serious injury,
including eye injury, hearing loss, inhalation of toxic fumes, and burns. This protective
equipment includes but is not limited to:

• Protective eyewear, and hearing protection.

• Respirators, protective clothing, and gloves as recommended by the fluid and solvent
manufacturer.

333023F 3

Warnings

WARNING

SKIN INJECTION HAZARD

High-pressure fluid from gun, hose leaks, or ruptured components will pierce skin. This may
look like just a cut, but it is a serious injury that can result in amputation.

treatment

• Do not spray without tip guard and trigger guard installed.

• Engage trigger lock when not spraying.

• Do not point gun at anyone or at any part of the body.

• Do not put y our hand over the spray tip.

• Do not stop or deflect leaks with your hand, body, glove, or rag.

• Follow the
or servicing equipment.

• Tighten all fluid connections before operating the equipment.

• Check hoses and couplings daily. Replace worn or damaged parts immediately.

FIRE AND EXPLOSION HAZARD

.

Pressure Relief Procedure

when you stop spraying and before cleaning, checking,

Get immediate surgical

Flammable fumes, such as solvent and paint fumes, in
prevent fire and explosion:

• Use equipment only in well ventilated area.

• Eliminate all ignition sources; such as pilot lights, cigarettes, portable electric lamps, and
plastic drop cloths (potential static arc).

• Keep work area free of debris, including solvent, rags and gasoline.

• Do not plug or unplug power cords, or turn power or light switches on or off when flammable
fumes are present.

• Ground all equipment in the work area. See

• Use on ly grounded hoses.

• Hold gun firmly to side of grounded pail when triggering into pail. Do not use pail liners unless
they are antistatic or conductive.

•

Stop operation immediately

equipment until you identify and correct the problem.

• Keep a working fire extinguisher in the work area.

THERMAL EXPANSION HAZARD

Fluids subjected to heat in confined spaces, including hoses, can create a rapid rise in pressure
due to the thermal expansion. Over-pressurization can result in equipment rupture and serious
injury.

• Open a valve to relieve the fluid expansion during heating.

• Replace hoses proactively at regular intervals based on your operating conditions.

if static sparking occurs or you feel a shock.Do not use

Grounding

work area

instructions.

canigniteorexplode.Tohelp

4

333023F

Warnings

WARNING

PRESSURIZED ALUMINUM PARTS HAZARD

Use of fluids that are incompatible with aluminum in pressurized equipment can cause serious
chemical reaction and equipment rupture. Failure to follow this warning can result i n death,
serious injury, or property damage.

• Do not use 1,1,1-trichloroethane, methylene chloride, other halogenated hydrocarbon
solvents or fluids containing such sol vents.

• Many other fluids may contain chemicals that can react with alumi num. Contact your material
supplier for compatibility.

PLASTIC PARTS CLEANING SOLVENT HAZARD

Many solvents can degrade plastic parts and cause them to fail, which could cause serious
injury or property damage.

• Use only compatible water-based solvents to clean plastic structural or pressure-containing
parts.

•See

Technical Data

solvent manufacturer’s MSDSs and recommendations.

in this and all other equipment instruction manuals. Read fluid and

EQUIPMENT MISUSE HAZARD

Misuse can cause death or serious injury.

• Do not operate the unit when fat igued or under the influence of drugs or alcohol.

• Do not exceed the maximum working pressure or temperature rating of the lowest rated
system component. See

• Use fluids and solvents that are compatible with equipment wetted parts. See Te chnical Data
in all equipment manuals. Read fluid and solvent manufacturer’s warnings. For complete
information about your material, request MSDS from distributor or retailer.

• Do not leave the work area while equipment is energized or under pressure.

• Turn off all equipment and follow the

• Check equipment daily. Repair or replace worn or damaged parts immediately with genuine
manufacturer’s replacement parts only.

• Do not alter or mo d ify equipment. Alterations or modifications may void agency approvals
and create safety hazards.

• Make sure all equipment is rated and approv ed for the environm ent in which you are using it.

• Use equipment only for its intended purpose. Call your distributor for information.

• Route hoses and cables away from traffic areas, sharp edges, moving parts, and hot surfaces.

• Do not kink or over bend hoses or use hoses to pull equipment.

• Keep children and animals away from work area.

• Comply with all applicable safety regulations.

MOVING PARTS HAZARD

Technical Data

Pressure Relief Procedure

in all equipment manuals.

when equipment is not in use.

Moving parts can pinch, cut or amputate fingers and other body parts.

• Keep clear of moving parts.

• Do not operate equipment with protective guards or covers removed.

• Pressurized equipment c an start without warning. Before checking, moving, or servicing
equipment, follow the

333023F 5

Pressure Relief Procedure

and disconnect all power sources.

Warnings

WARNING

BURN HAZARD

Equipment surfaces and fluid that is heated can become very hot during operation. To avoid
severe burns:

• Do not touch hot fluid or equipment.

6 333023F

Important Isocyanate Information

Isocyanates (ISO) are catalysts used in two component materials.

Important Isocyanate Information

Isocyanate Conditions

Spraying or dispensing materials containing
isocyanates creates potentially harmful mists,
vapors, and atomized particulates.

Read material manufacturer’s warni ngs and
material MSDS to know specific hazards and
precautions related to isocyanates.

Prevent inhalation of isocyanate mists, vapors,
and atomized particulates by providing sufficient
ventilation in the work area. If sufficient ventilation
is not available, a supplied-air respirator is required
for everyone in the work area.

To prevent contact with isocyanates, appropriate
personal protective equipment, including
chemically impermeable gloves, boots, aprons,
and goggles, is also required for everyone in the
work area.

Keep Components A and B Separate

Cross-contamination can result in cured
material in fluid lines which could cause serious
injury or damage equipment. To prevent
cross-contamination:

•

Never

interchange component A and component

B wetted parts.

• Never use solvent on one side if it has been
contaminated from the other side.

Moisture Sensitivity of Isocyanates

Exposure to moisture (such as humidity) will cause
ISO to partially cure; forming small, hard, abrasive
crystals, which become suspended in the fluid.
Eventually a film will form on the surface and the ISO
will begin to gel, increasing in viscosity

Material Self-Ignition

Some materials may become self-igniting if applied
too thick. Read material manufacturer’s warnings
and material MSDS.

NOTICE

Partially cured ISO will reduce performance and
the life of all wetted parts.

• Always use a sealed container with a desiccant
dryer in the vent, or a nitrogen atmosphere.

Never

store ISO in an open container.

• Keep the ISO pump wet cup or reservoir (if
installed) filled with appropriate lubricant. The
lubricant creates a barrier between the ISO and
the atmosphere.

• Use only moisture-proof hoses compatible with
ISO.

• Never use reclaimed solvents, which may
contain moisture. Always keep solvent
containers closed when not in use.

• Always lubricate threaded parts with an
appropriate lubricant when reassembling.

333023F

7

Important Isocyanate Information

Foam Resins with 245 fa Blowing Agents

Some foam blowing agents will froth at temperatures
above 90°F (33°C) when not under pressure,
especially if agit ated. To reduce frothing, minimize
preheating in a circulation system.

Changing Materials

NOTICE

Changing the material types used in your
equipment requires special attention to avoid
equipment damage and downtime.

• When changing materials, flush the equipment
multiple times to ensure it is thoroughly clean.

• Always clean the fluid inlet strainers after
flushing.

• Check with your material manufacturer for
chemical compatibility.

• When changing between epoxies and urethanes
or polyureas, disassemble and clean all fluid
components and change hoses. Epoxies often
have amines on the B (hardener)side. Polyureas
often have amines on the B (resin) side.

8 333023F

Models

Models

Reactor 2 E-30 and E-30 Elite

All elite systems include fluid inlet sensors, Graco InSite™, and Xtreme-Wrap 50 ft (15 m) heated hose. For
part numbers, see Accessories, page 11

Model

Proportioner

★ 272010 272011 272110 272111

Maximum Fluid Working
Pressure psi (MPa, bar)
Approximate Output per
Cycle (A+B) gal. (liter)
Max Flow Rate lb/min
(kg/min)
Total System Load †



(Watts)
Configurable Voltage
Phase



Full Load Peak Current*

Fusion AP Package

(Gun Part No.)

Fusion CS Package

(Gun Part No.)

Probler P2 Package

(Gun Part No.)

d Hose

Heate

15 m)

50 ft (

40 (scuff guard)

24K2

40 (Xtreme-Wrap)

24Y2

Heated Whip Hose
10 ft (3 m)

Graco Insite
Fluid Inlet Sensors (2)

™







E-30 Model E-30 Elite Model

10 kW 15 kW 10 kW 15kW

2000 (14, 140) 2000 (14, 140) 2000 (14, 140) 2000 (14, 140)

0.0272 (0.1034) 0.0272 (0.1034) 0.0272 (0.1034) 0.0272 (0.1034)

30 (13.5) 30 (13.5) 30 (13.5) 30 (13.5)

17,900 23,000 17,900 23,000

2301Ø230

3Ø∆

380
3ØY

2301Ø230

3Ø∆

380
3ØY

2301Ø230

3Ø∆

380
3ØY

2301Ø230

3Ø∆

380
3ØY

78 50 34 100 62 35 78 50 34 100 62 35

AP2010

(246102)

CS2010

(CS02RD)

P22010

(GCP2R2)

24K24

Qty:

246050 246050 246050 246050

0

1

AH2010

(246102)

CH2010

(CS02RD)

PH2010

(GCP2R2)

0

24K24

Qty:

5

AP2011

(246102)

CS2011

(CS02RD)

P22011

(GCP2R2)

0

24K24

Qty:

1

AH2011

(246102)

CH2011

(CS02RD)

PH2011

(GCP2R2)

0

24K24

Qty:

5

AP2110

(246102)

CS2110

(CS02RD)

P22110

(GCP2R2)

24Y24

Qty:

✓✓
✓✓

0

1

AH2110

(246102)

CH2110

(CS02RD)

PH2110

(GCP2R2)

0

24Y24

Qty:

5

AP2111

(246102)

CS2111

(CS02RD)

P22111

(GCP2R2)

24Y24024Y24

Qty:

1

AH2111

(246102)

CH2111

(CS02RD)

PH2111

(GCP2R2)

Qty:

0

5



Full load amps with all devices operating at

*

maximum capabilities. Fuse requirements at
various flow rates and mix chamber sizes may be
less.



Total system watts used by system, based on
maximum heated hose length for each unit.

• E–30 and E–XP2 series: 310 ft (94.5 m)
maximum heated hose length, including whip
hose.

★

See Approvals, page 11.

Packages include gun, heated hose, and whip
hose. Elite packages also include Graco InSite
and fluid inlet sensors.



Low line input voltage will reduce power available
and heaters will not perform at full capacity.

Voltage Configurations Key

Phase

Ø
∆

DELTA

YWYE

333023F 9

Models

Reactor 2 E-XP2 and E-XP2 Elite

All elite systems include fluid inlet sensors, Graco InSite™, and Xtreme-Wrap 50 ft (15 m) heated hose. For
part numbers, see Accessories, page 11

Model

Proportioner
Maximum Fluid Working

Pressure psi (MPa, bar)
Approximate Output per

Cycle (A+B) gal. ( liter)
Max Flow Rategpm/min

(l/min)
Total System Load †

(Watts)
Configurable Voltage

Phase
Full Load Peak Current

(amps)

Fusion AP Package

(Gun Part No.)

Probler P2 Package

(Gun Part No.)

Heated Hose
50 ft (15 m)

Heated Whip Hose
10 ft (3 m)

Graco Insite
Fluid Inlet Sensors (2)

★ 272012 272112









™

E–XP2 Model E–XP2 Elite Model

15 kW 15 kW

3500 (24.1, 241) 3500 (24.1, 241)

0.0203 (0.0771) 0.0203 (0.0771)

2 (7.6) 2 (7.6)

23,000 23,000

230 1Ø 230 3Ø∆ 230 3ØY 230 1Ø 230 3Ø∆ 380 3ØY

100 62 35 100 62 35

AP2012

(246101)

P22012

(GCP2R1)

24K241
(scuff guard)

246055 246055

AP2112

(246101)

P22112

(GCP2R1)

24Y241
(Xtreme-Wrap)

✓
✓

Full load amps with all devices operating at

*

maximum capabilities. Fuse requirements
at various flow rates and mix chamber sizes
may be less.



Total system watts used by system, based on
maximum heated hose length for each unit.

• E–30 and E–XP2 series: 310 ft (94.5 m)
maximum heated hose length, including
whip hose.

★

See Approvals, page 11.

10 333023F



Packages include gun, heated hose, and
whip hose. Elite packages also include
GracoInSiteandfluidinletsensors.



Low line input voltage will reduce power
available and heaters will not perform at full
capacity.

Voltage Configurations Key

Phase

Ø
∆

DELTA

YWYE

Approvals

Approvals

Intertek approvals apply to proportioners without
hoses.

Proportioner Approvals:

9902471

Conforms to ANSI/UL Std. 499

Certified to CAN/CS A Std. C22.2 No. 88

Note

Heated hoses provided with a system or sold
individually are not approved by Intertek.

Accessories

Kit Number Description

24U315
24U314 Wheel and Handle Kit
24T280
16X521

24N449 50 ft (15 m) CAN cable (for remote

24K207

24U174 Remote Display Module Kit
15V551
15M483 Remote Display Module Protective

24M174
121006

24N365

Air Manifold Kit (4 outlets)

GracoInSiteKit
GracoInSiteExtensioncable24.6ft

(7.5 m)

display module)
Fluid Temperature Sensor (FTS)

with RTD

ADM Protective Covers (10 pack)

Covers (10 pack)
Drum Level Sticks
150 ft (45 m) CAN cable (for remote

display module)
RTD Test Cables (to aide resistance

measurements)

333023F

11

Supplied Manuals

Supplied Manuals

The following manuals are shipped with the Reactor

2. Refer to these manuals for detailed equipment
information.

Manuals are also available at www.graco.com.

Manual Description

333023 Reactor 2 E-30 and E-XP2

Operation

333091

333092 Reactor 2 E-30 and E-XP2

Reactor 2 E-30 and E-XP2 Startup
Quick Guide

Shutdown Quick Guide

Related Manuals

The following manuals are for accessories used with
the Reactor.

Component Manuals in English:

Manuals are available at www.graco.com.

System Manuals

333024 Reactor 2 E-30 and E-XP2,

Repair-Parts

Displacement Pump Manual

309577 Electric Reactor Displacement Pump,

Repair-Parts

Feed System Manuals

309572 Heated Hose, Instructions-Parts
309852

309815 Feed Pump Kits, Instructions-Parts
309827

Spray Gun Manuals

309550
312666
313213

Accessory Manuals

3A1905

3A1906 Light Tower Kit, Instructions-Parts
3A1907 Remote Display Module Kit,

332735
332736 Handle and Wheel Kit,

333276

Circulation and Return Tube Kit,
Instructions-Parts

Feed Pump Air Supply Kit,
Instructions-Parts

Fusion ™ AP Gun
Fusion ™ CS Gun

®

Probler

Feed Pump Shutdown Kit,
Instructions-Parts

Instructions-Parts
Air Manifold Kit, Instructions-Parts

Instructions-Parts
Graco InSite ™ Kit, Instructions-Parts

P2 Gun

12

333023F

Typical Installation, without circulation

Typical Installation, without circulation

H

K

G

J

M

K

G

L

J

A

F

N

(RES)

N

(ISO)

D

S

Figure 1

* Shown exposed for clarity. Wrap with tape during operation.

A Reactor Proportioner
BHeatedHose
C Fluid Temperature Sensor (FTS)
D HeatedWhipHose
E
F
G Feed Pump Air Supply Lines
H

Fusion Spray Gun
Gun Air Supply Hose

Agitator Air Supply Line

E

P

C*

J
K Feed Pumps
L Agitator
MDesiccantDryer
NBleedLines
P
S Remote Display Module Kit (optional)

B

Fluid Supply Lines

Gun Fluid Manifold (part of gun)

333023F 13

Typical Installation, with system fluid manifold to drum circulation

Typical Installation, with system fluid manifold to drum
circulation

M

K

H

G

J

R

M

K

G

J

A

L

R

(RES)

F

(ISO)

D

S

Figure 2

* Shown exposed for clarity. Wrap with tape during operation.

A Reactor Proportioner
BHeatedHose
C Fluid Temperature Sensor (FTS)
D Heated Whip Hose
E
F
G Feed Pump Air Supply Lines
H

Fusion Spray Gun
Gun Air Supply Hose

Agitator Air Supply Line

E

P

C*

J
K Feed Pumps
L Agitator
M Desiccant Dryer
P
R Recirculation Lines
S Remote Display Module (optional)

B

Fluid Supply Lines

Gun Fluid Manifold (part of gun)

14

333023F

Typical Installation, with gun fluidmanifoldtodrumcirculation

Typical Installation, with gun fluid manifold to drum
circulation

Figure 3

* Shown exposed for clarity. Wrap with tape during operation.

A Reactor Proportioner
BHeatedHose
C Fluid Temperature Sensor (FTS)
CK Circulation Block (accessory)
D HeatedWhipHose
F
G Feed Pump Air Supply Lines
H

333023F 15

Gun Air Supply Hose

Agitator Air Supply Line

J
K Feed Pumps
L Agitator
MDesiccantDryer
P
R Recirculation Lines
S Remote Display Module (optional)

Fluid Supply Lines

Gun Fluid Manifold (part of gun)

Component Identification

Component Identification

16 333023F

Figure 4

Key

BA
BB

CD Advanced Disp
DG Drive Gear Hou
EC Electrical C
EM Electric Motor
FA
FB
FH
FM
FV
GA ISO Side Pre
GB RES Side Pr
HA
HB
HC Heated Ho
MP
PA
PB

ISO Side Pressure Relief Outlet
RES Side Pressure Relief Outlet

ord Strain Relief

ISO Side Flui
RES Side Flui
Fluid Heate
Reactor Flu
Fluid Inlet

ISO Side Ho
RES Side H

Main Powe
ISO Side P
RES Side P

rs (behind shroud)

id Manifold

Valve(RESsideshown)

se Electrical Connectors

rSwitch

ump

lay Module (ADM)

sing

d Manifold Inlet

d Manifold Inlet

ssure Gauge
essure Gauge
se Connection

ose Connection

ump

Component Identification

RR

RS Red Stop Button
SA ISO Side PRESSURE RELIEF/SPRAY

SB RES Side PRESSURE RELIEF/SPRAY

TA

TB

XA Fluid Inlet Sensor (ISO side, Elite models

XB

GracoInSiteCellularModule(Elitemodels
only)

Valve

Valve
ISO Side Pressure Transducer (behind

gauge GA)
RES Side Pressure Transducer (behind

gauge GB)

only)
Fluid Inlet Sensor (RES side, Elite models

only)

333023F

17

Component Identification

Advanced Display Module (ADM)

The ADM display shows graphical and text
information related to setup and spray operations.

NOTICE

To prevent damage to the softkey buttons, do not
press buttons with sharp objects such as pens,
plastic cards, or fingernails.

Figure 5 Front View

18 333023F

Table 1 : ADM Keys and Indicators

Key Function

Press to startup or shutdown the system.

Component Identification

Startup/Shu

Key and Indic

Soft Keys

Navigation Keys

Numeric Keypad

tdown

ator

Stop

Press to stop all proportioner processes. This Is not a safety or emergency stop.

Press to select the specific screen or operation shown on the display directly next to
each key.

•

Left/Right Arrows:

•

Up/Down Arrows:

menu, or multiple screens within a function.

Use to input values.
Usetocanceladataentryfield.

Usetomovefromscreentoscreen.

Usetomoveamongfieldsonascreen,itemsonadropdown

Cancel

Press to enter or exit Setup mode.

Setup

Press to choose a field to update, to make a selection, to save a selection or value, to
enter a screen, or to acknowledge an event.

Enter

333023F 19

Component Identification

Figure 6 Back View

CJ Flat Panel Mount (VESA 100)
CK Model and Serial Num ber
CL USB Port and Status LEDs
CM CAN Cable Connection

Table 2 ADM LED Status Descriptions

LED
System Status

USB Status (CL)

ADM Status (CN)

CN Module Status LEDs
CP Accessory Cable Connection
CR Token Access Cover
CS Battery Access Cover

Conditions

Green Solid Run Mode, System On
Green Flashing Setup Mode, System On
Yellow Solid Run Mode, System Off
Yellow Flashing

Green Flashing
Yellow Solid Downloading information to USB
Green and Yellow Flashing ADM is busy, USB cannot transfer

Green Solid
Yellow Solid Active Communication

Description

Setup Mode, System Off
Data recording in progress

informationwheninthismode
Power applied to module

Red Steady Flashing Software upload from token in

progress

Red Random Flashing or Solid

20 333023F

Module error exists

Component Identification

ADM Display Details

Power Up Screen

The following screen appears when the ADM is
powered up. It remains on while the ADM runs through
initialization and establishes communication with other
modules in the system.

Menu Bar

The menu bar appears at the top of each screen. (The
following image is only an example.)

Alarm/Deviation

The current system error is displayed in the middle of
the menu bar. There are four possibilities:

Icon Function

No Icon

Status

The current system status is displayed at the lower right
of the menu bar.

No information or no error has occurred
Advisory

Deviation

Alarm

Soft Keys

Icons next to the soft keys indicate which mode or
action is associated with each soft key. Soft keys that
do not have an icon next to them are not active in the
current screen.

NOTICE

To prevent damage to the soft key buttons, do not
press buttons with sharp objects such as pens, plastic
cards, or fingernails.

Date and Time

The date and time are always displayed in one of the
following formats. The time is always displayed as a
24-hour clock.

• DD/MM/YY HH:MM

• YY/MM/DD HH:MM

• MM/DD/YY HH:MM

Arrows

The left and right arrows indicate screen navigation.

Screen Menu

The screen menu indicates the currently active screen,
which is highlighted. It also indicates the associated
screens that are available by scrolling left and right.

System Mode

The current system mode is displayed at the lower left
of the menu bar.

Navigating the Screens

Therearetwosetsofscreens:

• The Run s creens control spraying operations and
display system status and data.

• The Setup screens control system parameters and
advanced features.

Press
screens. If the system has a password lock, the
Password screen displays. If the system is not locked
(password is set to 0000), System Screen 1 displays.

Press
Home screen.

Press the Enter soft key
function on any screen.

Press the Exit soft key
Use the other softkeys to select

to them.

on any Run screen to enter the Setup

on any Setup screen to return to the

to activate the editing

to exit any screen.

the function adjacent

333023F

21

Component Identification

Icons

Icons

Icon Function

Component A

Component B

Estimated Supply Material

Hose Temperature

Jog Mode Speed

Pressure

Cycle Counter (press and
hold)

Advisory.
See Errors, page 37 for more
information.

Deviation.
See Errors, page 37 for more
information

Alarm.
See Errors, page 37 for more
information

Softkeys

Icon Function

Start Proportioner

Start and Stop Proportioner in Jog Mode

Stop Proportioner

Turn on or off the specified heat zone.

Park pump

Enter Jog Mode. See Jog Mode, page 45

Reset Cycle Counter
(press and hold)

Select Recipe

Search

Move Cursor Left One Character

Move Cursor Right One Character

Toggle between upper-case, lower-case, and
numbers and special characters.

Backspace

22

Cancel

Clear

Troubleshoot Selected Error

Increase value

Decrease value

Next screen

Previous screen

Return to first screen

333023F

Electrical Enclosure

Component Identification

AAA Temperature Control Module (TCM)

AAB Motor Control Module (MCM)

AAC Enclosure Fan

AAD Wiring Terminal Blocks

AAE Power Supply

AAF Surge Protector

AAG Hose Breaker

AAH Motor Breaker

AAJ A Side Heat Breaker

AAK B Side Heat Breaker

AAL Transformer Breaker

MP Main Power Switch

333023F 23

Component Identification

Motor Control Module (MCM)

Base Model Elite Model

Figure 7

Description

MS Module Status LEDs see LED Status Table
1
2 Motor Temperature
3 Not used
4 Not used
5
6
7
8
9

Table 3 MCM Module LED (MB) Status Descriptions

LED Conditions Description
MCM Status

CAN Communication Connections

Not used
A Pump Output Pressure
B Pump Output Pressure
A Fluid Inlet Sensor (Elite only)
B Fluid Inlet Sensor (Elite only)

Green Solid
Yellow Solid Active Communication
Red Steady Flashing Software upload from token in

10 Accessory output
11 Not used
12 Pump Cycle Counter
14 Graco Insite
15 Motor Power Output
16 Main Power Input

*

RS Rotary Switch

* MCM Rotary Switch Positions

2=E-30

3=E-XP2

™

Power applied to module

progress

24

Red Random Flashing or Solid

Module error exists

333023F

Temperature Control Module (TCM) Cable Connections

Component Identification

Figure 8

1 Power Input
2 Heater Overtemperature
3 CAN Communications Connections
4 Power Out (ISO)
5
6PowerOut(Hose)
7
8 Heater A Temperature (ISO)
9 Heater B Temperature (RES)
10 Hose Temperature

Power Out (Res)

Module Status LEDs

333023F 25

Installation

Installation

Setup From Shipping Configuration

1. Remove bolts (A) and nuts.

2. Swing up the electrical enclosure and reins tal l
bolt (A) with nut. Tighten bolt (B) and nut.

3. Position cable bundles against the frame and
attach to the frame with loose wire tie (C) on
each side.

1. Use the supplied bolts to install the sup plied
L-brackets onto the system frame in the top-most
square holes. Install brackets on both the left
and right side of system frame.

2. Secure the L-brackets to the wall. If L-brackets
donotlineupwiththewallstudspacing,bolta
piece of wood to the studs then secure L -brackets
to wood.

3. Use the four holes in the base of the system
frame to secure base to the floor. Bolts not
supplied.

To prevent serious injury due to system tipping
over, ensure Reactor is properly secured to wall.

Note

Mounting brackets and bolts are included in the box
of loose parts, shipped with your system.

26 333023F

Setup

Setup

Grounding

The equipment must be grounded to reduce the
risk of static sparking. Static sparking can cause
fumes to ignite or explode. Grounding provides an
escape wire for the electric current.

•

Reactor:

cord.

•

Spray gun:

See Install Fluid Temperature Sensor, page 29.
Do not disconnect ground wire or sp ray without
whip hose.

•

Fluid supply containers:

•

Object being sprayed:

•

Solvent pails used when flushing:

code. Use only metal pails, which are conductive,
placed on a grounded surface. Do not place pail
on a nonconductive surface, such as paper or
cardboard, which interrupts grounding continuity.

•

To maintain grounding cont inu ity when flushi ng or
relieving pressure,

firmly to the side of a grounded
trigger gun.

System is grounded through the power

connect whip hose ground wire to FTS.

follow your local code.

follow your local code.

follow your local

hold a metal part of spray gun

metal

pail, then

General Equipment Guidelines

• Determine th e correct size generator. Using the

correct size generator and proper air compressor
will enable the proportioner to run at a nearly
constantRPM.Failuretodosowillcausevoltage
fluctuations that can damage electrical equipment.

Use the following procedure to determine the correct
size generator.

1. List system components that use peak load

requirements in watts.

2. Add the wattage required by the system

components.

3. Perform the following equation:

Total watts x 1.25 = kVA (kilovolt-am peres )

4. Select a generator size that is equal to or greater

than the determined kVA.

• Use proportioner power cords that meet or exceed

therequirementslistedinTable4.Failuretodoso
will cause voltage fluctuations that can damage
electrical equipment.

• Use an air compressor with continuous run head

unloading devices. Direct online air compressors
that start and stop during a job will cause voltage
fluctuations that can damage electrical equipment.

• Maintain and inspect the generator, air

compressor, and other equipment per the
manufacturer recommendations to avoid an
unexpected shutdown. Unexpected equipment
shutdown will cause voltage fluctuations that can
damage electrical equipment.

Close gun fluid manifold valves A and
B

333023F

• Use a wall power supply with enough current

to meet system requirements. Failure to do so
will cause voltage fluctuations that can damage
electrical equipment.

27

Setup

Connect Power

All electrical wiring must be done by a qualified
electrician and comply with all local codes and
regulations.

1. Turn main power switch (MP) OFF.

2. Open electrical enclosure door.

NOTE:

Terminal jumpers are located inside the

electrical enclosure door.

3. Install supplied terminal jumpers in the positions
shown in image for the power source used.

4. Route power cable through strain relief (EC) in
electrical enclosure.

5. Connect incoming power wires as shown in
image. Gently pull on all connections to verify
they are properly secured.

6. Verify all items are connected properly as shown
in image then close electrical enclosure door.

Table 4 Power Cord Requirements

Model Input Power

E-30, 10 kW

200–240 VAC,
1Phase

200–240 VAC,
3 Phase,
DELTA

350–415 VAC,
3 Phase, WYE

E-30, 15 kW

200–240 VAC,
1Phase

200–240 VAC,
3 Phase,
DELTA

350–415 VAC,
3 Phase, WYE

Cord
Specifications
AWG (mm

2

)

4 (21.2), 2 wire
+ ground

6(13.3),3wire
+ground

8 (8.4), 4 wire
+ground

4 (21.2), 2 wire
+ ground

6(13.3),3wire
+ground

8 (8.4), 4 wire
+ground

Model Input Power

E-XP2, 15 kW

200–240 VAC,
1Phase

200–240 VAC,
3Phase,
DELTA

350–415 VAC,
3 Phase, WYE

Cord
Specifications
AWG (mm

2

)

4 (21.2), 2 wire
+ ground

6(13.3),3wire
+ground

8(8.4),4wire
+ground

28 333023F

Supply Wet Cups With Throat Seal Liquid (TSL)

Pump rod and connecting rod m ove during
operation. Moving parts can cause serious injury
such as pinching or amputation. Keep hands and
fingers away from wet-cup during operation.

To prevent the pump from moving, turn the main
power switch OFF.

•

Component A (ISO) Pump:

with Graco Throat Seal Liquid (TSL), Part 206995.
Wet-cup piston circulates TSL through wet-cup, to
carry away isocyanate film on displacement rod.

Keep reservoir (R) filled

Setup

•

Component B (Resin) Pump:

in packing nut/wet-cup (S) daily. Keep saturated
with Graco Throat Seal Liquid (TSL), Part No.
206995, to prev en t material from hardening on
displacement rod. Replace felt washers when worn
or contaminated with hardened material.

Figure 10 Component B Pump

Check felt washers

Install Fluid Temperature Sensor

Figure 9 Component A Pump

The Fluid Temperature Sensor (FTS) is supplied.
Install FTS between main hose and whip hose. See
Heated Hose manual for instructions.

Register and Activate the Graco InSite

Note

Elite systems only.

1. Go to www.GracoInSite.com, then follow the

instructions on the screen.

2. Find and record the 15 digit serial number from

the cellular module below.

333023F 29

Advanced Display Module (ADM) Operation

Advanced Display Module (ADM) Operation

When main power is turned on by turning the main
power switch (MP) to the ON position, the power up
screen will be displayed until communication and
initialization is complete.

Then the power key icon screen will display until the
ADM power on/off button (A)

first time after system power-up.
To begin using the ADM, the machine must be active.

To verify the machine is active, verify that the System
Status Indicator Light (B) is illum inated green, see

Advanced Display Module (ADM), page 18.Ifthe

System Status Indicator Light is not green, press
the ADM Power On/Off (A) button

Status Indicator Light will illuminate yellow if the
machine is disabled.

is pressed for the

. The System

Perform t

1. Set pressure values for the Pressure Imbalance

2. Enter, enable, or disable recipes. See

3. Set general system settings. See

4. Set units of measure. See

5. Set USB settings. See

6. Set target temperatures and pressure. See

7. Set component A and component B supply

he following tasks to fully setup your system.

Alarm to activate. See System Screen 1, page 34.

Recipes Screen, page 34.

Advanced Screen 1 — General, page 33.

Advanced Screen 2 — Units, page 33.

Advanced Screen 3— USB, page 33.

Targets, page 36.

levels. See Maintenance, page 37.

30 333023F

Advanced Display Module (ADM) Operation

Setup Mode

The ADM will start in the Run screens at the Home screen. From the Run screens, press to
access the Setup screens. The system defaults with no password, entered as 0000. Enter the

current password then press

Setup Screens Navigation Diagram, page 45.

.Press to navigate through the Setup Mode screens. See

Set Password

Set a password to allow Setup screen access, see Advanced Screen 1 – General, page 33. Enter any number
from 0001 to 9999. To remove the password, enter the current password in the Advanced Screen – Ge neral
screen and change the password to 0000.

From the Setup screens, press to return to the Run screens.

333023F 31

Advanced Display Module (ADM) Operation

Setup Screens Navigation Diagram
Figure 11

32 333023F

Advanced Display Module (ADM) Operation

Advanced Setup Screens

Advanced setup screens enable users to set units, adjust values, set formats, and view software information
for each comp
Advanced setup screen, press

to exit edit mode.

Note

Users must be out of edit mode to scroll
through the Advanced setup screens.

onent. Press

to scroll through the Advanced setup screens, Once in the desired

to access the fields and make changes. When changes are complete press

Advanced Screen 1 — General

Use this screen to set the language, date format,
current date, time, setup screens password (0000 –
for none) or (0001 to 9999), and screen saver delay.

Advanced Screen 3 — USB

Use this screen to enable USB downloads/uploads,
enable a logs 90% full advisory, enter the maximum
number of days to download data, enable specifying
date range of data to download, and how frequently
USB logs are recorded. See .

Advanced Screen 2 — Units

Usethisscreentosetthetemperatureunits,pressure
units, volume units, and cycle units (pump cycles or
volume).

Advanced Screen 4— Software

This screen displays the software part number and
software version for the Advanced Display Module,
USB Configuration, Motor Control Module, and
Temperature Control Modules.

333023F 33

Advanced Display Module (ADM) Operation

System 1

Usethisscreentosettheactivationpressureforthe
Pressure Imbalance Alarm and Deviation, enable or
disable diagnostic screens, set the maximum and
minimum drum volume, and enable drum alarms.

System 2

Use this screen to enable Manual Hose Mode and
inlet sensors, as well as setting the inlet sensor
low pressure alarm and low temperature deviation.
Manual Hose Mode disables the hose temperature
RTD sensor so the system can operate if the sensors
were to malfunction. Default settings are 10 psi (0.07
MPa, 0.7 bar) for low inlet pressure alarm and 50˚F
(10˚C) for low inlet temperature deviation.

Recipes

Use this screen to add recipes, view saved recipes ,
and enable or disable saved recipes. Enabled
recipes can be selected at the Home Run Screen. 24
recipes can displayed on the three recipe screens.

Add Recipe

1. Press andthenuse to select a
recipe field. Press

(maximum 16 characters). Press
old recipe name.

to enter a recipe name

to clear the

2.Use to highlight the next field and use the

mber pad to enter a value. Press

nu

nable or Disable Recipes

E

1. Press and then use to select the
recipe that needs to be enabled or disabled.

2.Use
Press

34 333023F

to highlight the enabled check box.

to enable or disable the recipe.

to save.

Advanced Display Module (ADM) Operation

g

Run Mode

The ADM will start in the Run screens at the “Home” screen. Press to navigate through the Run Mode
screens. See Run Screens Navigation Diagram, page 44.

From the Run screens, press

to access the Setup screens.

333023F 35

Run Screens Navigation Diagram
Fi

ure 12

Advanced Display Module (ADM) Operation

Home — System Off

This is the home screen when the system is off.
This screen displays actual temperatures, actual
pressures at the fluid manifold, jog speed, coolant
temperature, and number of cycles.

Home — Sys

When the
actual t
at the flu
the numb
contro

emperature for heat zones, actual pressures

id manifold, coolant temperature, jog speed,

l soft keys.

tem Active

system is active, the home screen displays

er of cycles, along with all associated

Home — System With Error

Active errors are shown in the status bar. The error
code, alarm bell, and description of the error will
scroll in the status bar.

1. Press

2. See for corrective action.

to acknowledge the error.

Targets

Use this screen to define the setpoints for the
A Component Temperature, B Component
Temperature, heated hose temperature, and
pressure.

Maximum A and B temperature:

Maximum heated hose temperature:

above the highest A or B temperature setpoint or
180°F (82°C).

Note

If the remote display module kit is used,
thesesetpointscanbemodifiedatthegun.

190°F (88°C)

10°F (5°C)

Use this screen to turn on heat zones, view
coolant temperature, start the proportioner, stop the
proportioner, park the component A pump, enter jog
mode, and clear cycl es.

NOTE:

temperatures and pressures. These will not be
shown on models without inlet sensors.

Screen shown displays inlet sensor

36 333023F

Advanced Display Module (ADM) Operation

Maintenance

Use this screen to view daily and lifetime cycles or
gallons that have been pumped and gallons or liters
remaining in the drums.

The lifetime value is the number of pump cycles or
gallons since the first time the ADM was turned on.

The daily value automatically resets at midnight.

The manual value is the counter that can be manually
reset. Press

and hold to reset manual counter.

Events

This screen shows the date, time, event code, and
description of all events that have occurred on
the system. There are 10 pages, each holding 10
events. The 100 most recent events are shown. See

System Events

for event code descriptions.
See Error Codes and Troubleshooting, page 58 for
error code descriptions.

All events and errors listed on this screen can be
downloaded on a USB flash drive. To download logs,
see Download Procedure, page 59.

Cycles

This screen shows daily cycles and gallons that have
been sprayed for the day.

All information listed on this screen can be
downloaded on a USB flash drive.

Errors

This screen shows the date, time, error code, and
description of all errors that have occurred on the
system.

All errors listed on this screen can be downloaded on
a USB flash drive.

333023F 37

Advanced Display Module (ADM) Operation

Troubleshooting

This screen displays the last ten errors that
occurred on the system. Use the up and down

arrows to select an error and press
the QR code for the selected error. Press

to access the QR code screen for an error
code that is not listed on this screen. See

Error Codes and Troubleshooting, page 58,formore

information on error codes.

to view

QR Codes

To quickly view online help for a given error code,
scanthedisplayedQRcodewithyoursmartphone.
Alternately, visit http://help.graco.com and search for
theerrorcodetoviewonlinehelpforthatcode.

38 333023F

Advanced Display Module (ADM) Operation

Diagnostic

Usethisscreentoviewinformationforallsystem
components.

The following information is displayed:

Temperature

•AChemical

•BChemical

• Hose Chemical

• TCM PCB — temperature control module
temperature

Amps

•ACurrent
15 kW heater)

•BCurrent
15 kW heater)

• Hose Current

★

(0–25 A for 10kW heater, 0–38 A for

★

(0–25 A for 10kW heater, 0–38 A for

★

(0–45 A typical)

Note

Maximum values based on maximum input

★

voltage. Values will lower with lower input
voltage.

Job Data

Usethisscreentoenterajobnameornumber.

Recipes

Usethisscreentoselectanenabledrecipe. Usethe
up and down arrows to highlight a recipe and press

to load

by a gre

Note

This screen will not display if there are not
any enabled recipes. To enable or disable
recipes, see Recipes Setup Screen, page 34.

. The currently loaded recipe is outlined

en box.

Volts

•MCMBus
motor controller, which is the DC voltage that has
been converted from the AC voltage supplied to
the system (275–400 VAC typical full range)

• Hose V oltage (90V)

Pressure

•PressureA—chemical

•PressureB—chemical

Cycles

•CPM—cyclesperminute

• Total Cycles — lifetime cycles

333023F 39

★

— displays the voltage supplied to the

Advanced Display Module (ADM) Operation

System Events

Use the table below to find a description for all system non-error events. All events are logged in the USB
log files.

Event Code Description

EACX
EADA
EADB

EADH

EAPX
EARX
EAUX
EB0X
EBDA
EBDB

EBDH

EBPX
EBRX
EBUX

EC0X
ECDA
ECDB
ECDH
ECDP
ECDX

EL0X
EM0X
EP0X
EQU1
EQU2
EQU3
EQU4
EQU5
ER0X
EVUX

Recipe Selected
Heat On A
Heat On B
Heat On Hose
Pump On
Jog On
USB Drive Inserted
ADM Red Stop Button Pressed
Heat Off A
Heat Off B
Heat Off Hose
Pump Off
Jog Off
USB Drive Removed
Setup Value Changed
A Temperature Setpoint Changed
B Temperature Setpoint Changed
Hose Temperature Setpoint Changed
Pressure Setpoint Changed
Recipe Changed
System Power On
System Power Off
Pump Parked
System Settings Downloaded
System Settings Uploaded
Custom Language Downloaded
Custom Language Uploaded
Logs Downloaded
User Counter Reset
USB Disabled

40 333023F

Startup

desired, the level can be entered and tracked in
the ADM. See Advanced Setup Screens, page 33.

4.

Check generator fuel level.

Startup

To prevent serious injury, only operate Reactor
with all covers and shrouds in place.

NOTICE

Proper system setup, startup, and shutdow n
procedures are critical to electrical equipment
reliability. The following procedures ensure steady
voltage. Failure to follow these procedures will
cause voltage fluctuations that can damage
electrical equipment and void the warranty.

1.

Check fluid inlet filter screens.

Before daily startup, ensure that the
fluid inlet screens are clean. See

Flush Inlet Strainer Screen, page 55

NOTICE

Running out of fuel will cause voltage
fluctuations that can damage electrical
equipment and void the warranty. Do not run
out of fuel.

5.

Confirm main power switch is OFF before starting
generator.

6. Ensure the main breaker on the generator is in
the off position.

7. Start the generator. Allow it to reach full operating
temperature.

2.

Check ISO lubrication reservoir.

Check level and condition of ISO lube daily. See

Pump Lubrication System, page 56.

3. Use A and B Drum Level Sticks (24M174) to
measure the material l evel in each drum.. If

333023F

8.

Turn main power switch ON.

The ADM will display the following screen until
communication and initialization is complete.

41

Startup

9. Switch on the air compressor, air dryer, and
breathing air, if included.

10.

For first startup of new system, load fluid with
feed pumps.

a. Check that all

See Setup, page 27.

b. If an agitator is used, open the agitator’s air

inlet valve.

c. Ifyouneedtocirculatefluidthroughthe

system to preheat the drum supply, see

Circulation Through Reactor, page 44.

If you need to circulate material through
the heat hose to the gun manifold, see

Circulation Through Gun Manifold, page 45.

d. Turn both PRESSURE RELIEF/SPRAY

valves (SA, SB) to SPRAY

Setup

steps are complete.

.

e. Open fluid inlet valves (FV). Check for leaks.

Cross-contamination can result in cured
material in fluid lines which could cause
serious injury or damage equipment. To
prevent cross-contamination:

•

Never

interchange component A and

component B wetted parts.

• Never use solvent on one side if it has
been contaminated from the other side.

• Always provide two grounded waste
containers to keep component A and
component B fluids separate.

f. Hold gun fluid manifold over two grounded

waste containers. Open fluid valves A and B
until clean, air-free fluid comes from valves.
Close valves.

42

The Fusion AP gun manifold is shown.

333023F

11. Press to activate ADM.

12. If necessary, setup the ADM in Setup Mode. See

Advanced Display Module (ADM) Operation,
page 30.

13. Preheat th e system:

a. Press

to turn on hose heat zone.

Startup

Thermal expansion can cause
overpressurization, resulting in equipment
rupture and serious injury, including fluid
injection. Do not pressurize system when
preheating hose.

b. Ifyouneedtocirculatefluidthroughthe

system to preheat the drum supply, see

Circulation Through Reactor, page 44.

Ifyouneedtocirculatematerialthrough
the heat hose to the gun manifold, see

Circulation Through Gun Manifold, page 45.

c. Wait fo r the hose to reach set point

temperature.

This equipment is used with heated fluid
which can cause equipment surfaces to
become very hot. To avoid severe burns:

• Do not touch hot fluid or equipment.

• Do not turn on hose heat without fluid
in hoses.

• Allow equipment to cool completely
before touching it.

• Wear gloves if fluid temperature exceeds
110°F (43°C).

d. Press

Note

Hose heat-up time may increase at
voltages less than nominal 230 V AC
when maximum hose length is used.

to turn on A and B heat zones.

333023F 43

Fluid Circulation

Fluid Circulation

Circulation Through Reactor

NOTICE

To prevent equipment damage, do not circulate
fluid containing a blowing agent without consulting
with your material supplier regarding fluid
temperature limits.

NOTE:

fluid flow rates with temperature set points at desired
drum temperature. Low temperature rise deviation
errors may result.
To circulate through gun manifold and preheat hose,
see Circulation Through Gun Manifold, page 45.

1. Follow Startup, page 41.

Optimum heat transfer is achieved at lower

To avoid injection injury and splashing, do not
install shutoffs downstream of the PRESSURE
RELIEF/SPRAY valve outlets (BA, BB). The
valves function as overpressure relief valves

when set to SPRAY
open so valves can automatically relieve
pressure when machine is operating.

. Lines must be

3. Set PRESSURE RELIEF/SPRAY valves (SA,

SB) to PRESSURE RELIEF/CIRCULATION

4. Set temperature targets. See Targe ts, page 36.

5. Press
A and B temperatures reach targets. See

Jog Mode, page 45 for more information about

jog mode.

6. Press

7. Turn on the A and B heat zones. Wait until the
fluid inlet valve temperature gauges (FV) reach
the minimum chemical temperature from the
supply drums.

8. Exit jog mode.

9. Set PRESSURE RELIEF/SPRAY valves (SA,
SB) to SPRAY

to circulate fluid in jog mode until

to turn on the hose heat zone.

.

.

2.SeeTypical Installation, with system fluid

manifold to drum circulation, page 14. Route

circulation lines back to respective component
A or B supply drum. Use hoses rated a t the
maximum working pressure of this equipment.
See Technical Specifications, page 65.

44

333023F

Jog Mode

Circulation Through Gun Manifold

NOTICE

To prevent equipment damage, do not circulate
fluid containing a blowing agent without consulting
with your material supplier rega rding fluid
temperature limits.

NOTE:

fluid flow rates with temperature set points at desired
drum temperature. Low temperature rise deviation
errors may result.
Circulating fluid through the gun manifold allows
rapid preheating of the hose.

1. Install gun fluid manifold (P) on accessory

Optimum heat transfer is achieved at lower

circulation kit (CK). Connect high pressu re
circulation lines (R) to circulation manifold.

hoses rated at the maximum working
pressure of this equipment. See

Technical Specifications, page 65.

3. Follow procedures from Startup, page 41.

4. Turn main power switch on

5. Set temperature targets. See Targets, page 36.

6. Press
A and B temperatures reach targets. See

Jog Mode, page 45 for more information about

jog mode.

to circulate fluid in jog mode until

.

Jog Mode

Jogmodehastwopurposes:

• It can speed fluid heating during circulation.

• It can e ase system flushing and priming.

The Fusion AP gun manifold is shown.

CK Gun

246362 Fusion AP 309818
256566

2. Route circulation lines back to respective
component A or B s upply drum. Use

Fusion CS

Manual

313058

1. Turn main power switch on

2. Press circulate

3. Press up or down
(J1 through J20).

Note

Jog speeds correlate to 3-30% of motor
power, but will not operate over 700 psi
(4.9 MPa, 49 bar) for either A or B.

4. Press

5. To stop the motor and exit jog mode press
or .

to start motor.

to enter jog mode.

to change jog speed

.

333023F 45

Spraying

Spraying

The Fusi on AP gun is shown.

1. Engage gun piston safety lock and close gun
fluid inlet valves A and B.

Fusion Probler

2. Attach gun fluid manifold. Connect gun air line.
Open air line valve.

6. Open fluid inlet valve located at each pump inlet.

7. Press to start motor and pumps.

3. Adjust the gun air regulator to desired gun air
pressure. Do not exceed the maximum rated
air pressure.

4. Set PRESSURE RELIEF/SPRAY valves (SA,

SB) to SPRAY

5. Verify heat zones are on and temperatures
and pressures are on target, see

Home screen, page 36.

.

8. Check fluid pressure gauges (GA, GB) to
ensure proper pressure balance. If imbalanced,
reduce pressure of higher component by

slightly

valve for that component toward PRESSURE

RELIEF/CIRCULATION
balanced pressures.

turning PRESSURE RELIEF/SPRAY

until gauges show

46 333023F

Spraying

9. Open gun fluid inlet valves A and B.

Fusion Probler

NOTICE

To prevent material crossover on impingement
guns,

never

open fluid manifold valves or

trigger gun if pressures are imbalanced.

10. Disengage gun piston safety lock.

Fusion Probler

11. Pull gun trigger to test spray onto cardboard. If

necessary, adjust pressure and temperature to
get desired results.

Spray Adjustments

Flow rate, atomization, and amount of overspray are
affected by four variables.

•

Fluid pressure setting.

in an uneven pattern, coarse droplet size, low
flow, and poor mixing. Too much pressure results
in excessive overspray, high flow rates, difficult
control, and excessive wear.

•

Fluid temper at u r e.

setting. The A and B temperatures can be offset to
help balance the fluid pressure.

•

Mix chamber size.

on desired flow rate and fluid viscosity.

•

Clean-off air adjustment.

resultsindropletsbuildinguponthefrontofthe
nozzle, and no pattern containment to control
overspray. Too much clean-off air results in
air-assisted atomization and excessive overspray.

Toolittlepressureresults

Similareffectstofluidpressure

Choice of mix chamber is based

Too little clean-off air

333023F

47

Spraying

Manual Hose Heat Mode

If the system produces the T6DH sensor error hose
alarm or the T6DT sensor error TCM alarm, use
manual hose heat mode until the hose RTD cable or
FTS temperature sensor can be repaired.

Do not use Manual Hose Mode for extended periods
of time. The system performs best when the hose
has a valid RTD and can operate in temperature
control mode. If a hose RTD breaks, the first priority
is to fix the RTD. Manual Hose Mode can help finish
a job while waiting for repair parts.

3. Select Enable Manual Hose Mode.

Note

When manual hose mode is enabled, the
manual hose mode advisory EVCH-V
will appear.

4. Enter Run Mode and navigate to the Target
screen. Use the up and down arrows to set the
desired hose current.

Enable Manual Hose Mode

1. Disconnect the hose RTD sensor from the TCM.

2. Enter Setup Mode and navigate to System
Screen 2.

Hose Current Settings Hose Current

Default
Maximum 37A

20A

48 333023F

Spraying

5. Navigate back to the Run Mode Home screen.

The hose now displays a current instead of a
temperature.

Note

Until the RTD sensor is repaired, the
T6DH sensor error alarm will di splay
each time the system is powered up.

Disable Manual Hose Mode

1. Enter Setup Mode and navigate to System 2
Screen and deselect Enable Manual Hose Mode,
or repair the hose RTD cable or FTS.

2. Manual hose mode is automatically disabled
when the system detects a valid RTD sensor in
the hose.

333023F 49

Shutdown

Shutdown

NOTICE

Proper system setup, startup, and shutdown
procedures are critical to electrical equipment
reliability. The following procedures ensure steady
voltage. Failure to follow these procedures will
cause voltage fluctuations that can damage
electrical equipment and void the warranty.

1. Press to stop the pumps.

2. Turn off all heat z on es .

6. Turn off the air compressor, air dryer, and
breathing air.

7. Turn main power switch OFF.

3. Relieve pressure. See

Pressure Relief Procedure, page 52.

4. Press to park the Component A Pump. The
park operation is complete when green dot goes
out. Verify the park operation is complete before
moving to next step.

5. Press to deactivate the system.

To prevent electric shock do not remove any
shrouds or open the electrical enclosure door.

8. Close all fluid supply valves.

50 333023F

Shutdown

9. Set PRESSURE RELIEF/SPRAY valves (SA,

SB) to SPRAY

to seal out moisture from

drain line.

10. Engage gun piston safety lock then close fluid
inlet valves A and B.

Fusion Probler

333023F 51

Pressure Relief Procedure

Pressure Relief Procedure

Follow the Pressure Relief Procedure
whenever you see this symbol.

This equipment stays pressurized until pres sure
is manually relieved. To help prevent serious
injury from pressurized fluid, such as skin injection,
splashing fluid and moving parts, follow the
Pressure Relief Procedure when you stop spraying
and before cleaning, checking, or servicing
equipment.

The Fusi on AP gun is shown.

1. Relieve pressure in gun and perform gun
shutdown procedure. See gun manual.

2. Close gun fluid inlet valves A and B.

4. Route fluid to waste containers or supply tanks.
Turn PRESSURE RELIEF/SPRAY valves (SA,
SB) to PRESSURE RELIEF/CIRCULATION

. Ensure gauges drop to 0.

5. Engage gun piston safety lock.

6. Disconnect gun air line and remove gun fluid
manifold.

3. Shut off feed pumps and agitator, if used.

52 333023F

Flushing

Flushing

To flush feed hoses, pumps, and heaters
separately from heated hoses, set PRESSURE
RELIEF/SPRAY valves (SA, SB) to PRESSURE

To help prevent fire and explosion:

• Flush equipment only in a well-ventilated area.

• Do not spray flammable fluids.

• Do not turn on heaters while flushing with
flammable solvents.

• Flush out old fluid with new fluid, or flush out old
fluid with a compatible solvent before introducing
new fluid.

• Use the lowest possible pressure when flushing.

• All wetted parts are com patible with common
solvents. Use only moisture-free solvents.

RELIEF/CIRCULATION
lines (N).

To flush entire system, circulate through gun fluid
manifold (with manifold removed from gun).

To prevent moisture from reacting with isocyanate,
always leave the system filled with a moisture-free
plasticizer or oil. Do not use water. Never
leave the system dry. See Important Two-

Component Material Information, page 7 .

.Flushthroughbleed

333023F 53

Maintenance

Maintenance

Prior to performing any maintenance procedures,
follow Pressure Relief Procedure, page 52.

Preventative Maintenance Schedule

The operating conditions of your particular system
determine how often maintenance is required.
Establish a preventive maintenance schedule by
recording when and what kind of maintenance is
needed, and then determine a regular schedule for
checking your system.

Proportioner Maintenance

Wet Cup

Check th e wet cup daily. Keep it 2/3 full with G rac o
Throat Seal Liquid (TSL
not overtighten packing nut/wet cup.

Packing Nuts

Do not overtighten packing nut/wet cup. Throat u-cup
is not adjustable.

Fluid Inlet Strainer Screens

Inspect fluid inlet strainer screens daily, see

Flush Inlet Strainer Screen, pa ge 55.

®

) or compatible solvent. Do

Grease Circulation Valves

Grease circulation valves (SA and SB) with Fusion
grease (117773) weekly.

SA

SB

ti10955a

ISO Lubricant Level

Inspect ISO lubricant level and condition
daily. Refill or replace as needed. See

Pump Lubrication System, page 56.

Moisture

To prevent crystallization, do not expos e component
Atomoistureinair.

Gun Mix Chamber Ports

Clean gun mix chamber ports regularly. See gun
manual.

Gun Check Valve Screens

Clean gun check valve screens regularly. See gun
manual.

Dust Protection

Useclean,dry,oil-freecompressedairtoprevent
dust buildup on control modules, fans, and mot or
(under shield).

Vent Holes

Keep vent holes on bottom of electrical cabinet open.

54 333023F

Maintenance

Flush Inlet Strainer Screen

The inlet strainers filter out particles that can plug the
pump inlet check valves. Inspect the screens daily as
part of the startup routine, and clean as required.

Isocyanate can crystallize from moisture
contamination or from freezing. If the chemicals used
are clean and proper storage, transfer, and operating
procedures are followed, there should be minimal
contamination of the A-side screen.

Note

Clean the A-side screen only during
daily startup. This minimizes moisture
contamination by immediately flushing
out any isocyanate residue at the start of
dispensing operations.

1. Close the fluid inlet valve at the pump inlet and
shut off the appropriate feed pump. This prevents
material from being pumped while cleaning the
screen.

compatible solvent and shake it dry. Inspect the
screen.Nomorethan25%ofthemeshshould
berestricted.Ifmorethan25%ofthemeshis
blocked, replace the screen. Inspect the gasket
(B) and replace as required.

4. Ensurethepipeplug(D)isscrewedintothe
strainer plug (C). Install the strainer plug with the
screen (A) and o-ring (B) in place and tighten. Do
not overtighten. Let the gasket make the seal.

5. Open the fluid inlet valve, ensure that there are
no leaks, and wipe the equipment clean. Proceed
with operation.

2. Place a container under the strainer base to catch
drain off when removing the strainer plug (C).

3. Remove the screen (A) from the strainer
manifold. Thoroughly flush the screen with

Figure 13

333023F 55

Maintenance

Pump Lubrication System

Check the condition of the ISO pump lubricant daily.
Change the lubricant if it becomes a gel, its color
darkens, or it becomes diluted with isocyanate.

Gel formation is due to moisture absorption by the
pump lubricant. The interval between changes
depends on the environment in which the equipment
is operating. The pump lubrication system minimizes
exposure to moisture, but some contamination is still
possible.

Lubricant discoloration is due to continual seepage of
small amounts of isocyanate past the pump packings
during operation. If the packings are operating
properly, lubricant replacem ent due to discoloration
should not be necessary more often than every 3 or
4weeks.

To change pump lubricant:

1. Follow Pressure Relief Procedure, page 52.

2. Lift the lubricant reservoir (R) out of the bracket
and remove the container from the cap. Holding
the cap over a suitable container, remove the
check valve and allow the lubricant to drain.
Reattach the check valve to the inlet hose.

3. Drain the reservoir and flush it with clean
lubricant.

4. When the reservoir is flushed clean, fill with fresh
lubricant.

5. Thread the reservoir onto the cap assembly and
place it in the bracket.

6. The lubrication system is ready for operation. No
priming is required.

Pump Lubrication System
Figure 14

56 333023F

Errors

Errors

View Errors

When an error occurs the error information sc reen
displays the active error code and description.

The error code, alarm bell, and active errors will scroll
in the status bar. For a list of the ten most recent
errors see Troubleshooting, page 58. Error codes
are stored in the error log and displayed on the Error
and Troubleshooting screens on the ADM.

There are
are indic
tower (op

Alarms are indicated by
a parameter critical to the process has reached a
level requiring the system to stop. The alarm needs
to be addressed immediately.

Deviations are indicated by
indicates a parameter critical to the process has
reached a level requiring attention, but not sufficient
enough to stop the system at this time.

Advi

cates a parameter that is not immediately critical

indi
to th
prev

three types of errors that can occur. Errors

ated on the display as well as by the light

tional).

. This condition indicates

. This condition

sories are indicated by

e process. The advisory needs attention to
ent more serious issues in the future.

. This condition

Troubleshoot Errors

To troubleshoot the error:

1. Press the soft key next to “Help With This Error”

for help with the active error.

Note

Press or to return to the
previously displayed screen.

2. The QR code screen will be displayed. Scan

theQRcodewithyoursmartphonetobesent
directly to online troubleshooting for the active
error code. Otherwise, manually navigate to
http://help.graco.com and search for the active
error.

To diagnose the active error, see

Troubleshoot Errors, page 57.

3. If no internet connection is available, see

Error Codes and Troubleshooting, page 58 for

causes and solutions for each error code.

333023F 57

Troubleshooting

Troubleshooting

See Errors, page 57 for information about errors that
can occur on the system.

Error Codes and Troubleshooting

See system repair manual or visit
http://help.graco.com for causes and solutions to
each error code.

See Troubleshooting, page 38 for the ten most
recent errors that have occurred on the system. See

Troubleshoot Errors, page 57 to diagnose errors on

the ADM that have occurred on the system.

58 333023F

USB Data

USB Data

Download Procedure

Note

System configuration setting files and custom
language files can be modified if the files
are in the UPLOAD folder of the USB flash
drive. See System Configuration Settings
File, Custom Language File, and Upload
Procedure sections.

1. Insert USB flash drive into USB port.

2. The menu bar and USB indicator lights indicate
that the USB is downloading files. Wait for USB
activity to complete.

3. Remove USB flash drive from USB port.

4. Insert USB flash drive into USB port of co mputer.

5. The USB flash drive window automatically opens.
If it does not, open USB flash drive from within
Windows® Explorer.

6. Open GRACO folder.

7. Instructions continue on next page.

8. Open the system folder. If downloading data
from more than one system, there will be more
than one folder. Each folder is labeled with the
corresponding serial number of the ADM (The
serial number is on the back of the ADM.)

9. Open DOWNLOAD folder.

10. Open DATAxxxx folder.

11. Open DATAxxxx folder labeled with the highest
number. The highest number indicates the most
recent data download.

12. O pen log file. Log files open in Microsoft® E x ce l
by default as long as the program is installed.
However, they can also be opened in any text
editor or Microsoft® Word.

Note

All USB logs are saved in Unicode
(UTF-16) format. If opening the log
file in Microsoft Word, select Unicode
encoding.

USB Logs

Note

TheADMcanread/writetoFAT(File
Allocation Table) storage devices. NTFS,
used by 32 GB or greater storage devices,
is not supported.

During operation, the ADM stores system and
performance related information to memory in the
form of log files. The ADM maintains six log files:

• Event Log

• Job Log

•DailyLog

• System Software Log

•BlackboxLog

•DiagnosticsLog
Follow Download Procedure, page 59,toretrieve

log files.

EachtimeaUSBflashdriveisinsertedintotheADM
USB port, a new folder named DATAxxxx is created.
The number at the end of the folder name increases
each time a USB flash drive is inserted and data is
downloaded or uploaded.

Event Log

Theeventlogfilenameis1–EVENT.CSVandis
stored in the DATAxxxx folder.

Theeventlogmaintainsarecordofthelast49,000
events and errors. Each event record contains:

• Date of event code

• Time of event code

•Eventcode

•Eventtype

•Actiontaken

• Event Description

Event codes include both error codes (alarms,
deviations, and advisories) and record only events.

Actions Taken includes setting and clearing event
conditions by the system, and acknowledging e rror
conditions by the user.

333023F 59

USB Data

Job Log

The job log file name is 2–JOB.CSV and is stored
in the DATAxxxx folder.

The job log maintains a record of data points
based on the USB Log Frequency defined
in the Setup screens. The ADM stores the
last 237,000 data points for download. See

Setup - Advanced Screen 3 — USB, page 33,for

information on setting the Download Depth and USB
Log Frequency.

• Data point date

• Data point time

• A side temperature

• B side temperature

• Hose temperature

• A side temperature setpoint

• B side temperature setpoint

• Hose temperature setpoint

•Asideinletpressure

•Bsideinletpressure

• Inlet pressure setpoint

System Software Log

The system software file name is 4–SYSTEM.CSV
andisstoredintheDATAxxxxfolder.

The system software log lists the following:

• Date log was created

• Time log was created

• Component name

• Software version loaded on the above component

Blackbox Log File

The black box file name is 5–BLACKB.CSV and is
stored in the DATAxxxx folder.

The Blackbox log maintains a record of how the
system runs and the features that are used. This log
will help Graco troubleshoot system errors.

Diagnostics Log File

The diagnostics file name is 6–DIAGNO.CSV and is
stored in the DATAxxxx folder.

The Diagnostics log maintains a record of how the
system runs and the features that are used. This log
will help Graco troubleshoot system errors.

• System lifetime pump cycle counts

• Pressure, volume, and temperature units

• Job name/number

Daily Log

The daily log file name is 3–DAILY.CSV and is stored
in the DATAxxxx folder.

The daily log maintains a record of the total cycle
and volume sprayed on any day that the system is
powered up. The volume units will be the same units
that were used in the Job Log.

The following data is stored in this file:

• Date that material was sprayed

• Time — unused column

• Total pump cycle count for day

• Total volume sprayed for day

System Configuration Settings

The system configuration settings file name is
SETTINGS.TXT and is stored in the DOWNLOAD
folder.

A system configuration settings file automatically
downloads each time a USB flash drive is inserted
into the ADM. Use this file to back up system
settings for future recovery or to easily replicate
settings across multiple systems. Refer to the

Upload Procedure, page 61 for instructions on how

to use this file.

60 333023F

USB Data

Custom Language File

The custom language file name is DISPTEXT.TXT
and is stored in the DOWNLOAD folder.

A custom language file automatically downloads
eachtimeaUSBflashdriveisinsertedintotheADM.
If desired, use this file to create a user-defined set of
custom language strings to be displayed within the
ADM.

The system is able to display the following Unicode
characters. For characters outside of this set,
the system will display the Unicode replacement
character, which appears as a white question mark
inside of a black diamond.

• U+0020 - U+007E (Ba sic Latin)

• U+00A1 - U+00FF (Latin-1 Supplement)

• U+0100 - U+017F (Latin Extended-A)

• U+0386 - U+03CE (Greek)

• U+0400 - U+045F (Cyrillic)

Create Custom Language Strings

The custom language file is a tab-delimited text file
that contains two columns. The first column consists
of a list of strings in the language selected at the
time of download. The second column can be used
to enter the custom language strings. If a custom
language was previously installed, this column
contains the custom strings. Otherwise the second
column is blank.

Modify the second column of the custom langua ge file
as needed and the follow Upload Procedure, page 61 ,
to install the file.

The format of the custom language file is critical.
Thefollowingrulesmustbefollowedinorderforthe
installation process to succeed.

• Define a custom string for each row in the second

column.

Note

• The fil e format must be a tab-delimited text file
using Unicode (UTF-16) character representation.

• The file must contain only two columns, with
columns separated by a single tab character.

• Donotaddorremoverowstothefile.

• Do not change the order of the rows.

Upload Procedure

Use this procedure to install a system configuration
file and/or a custom language file.

1. If necessary, follow the

automatically generate the proper folder structure
on the USB flash drive.

2. Insert USB flash drive into USB port of co mputer.

3. The USB flash drive window automatically opens.

If it does not, open USB flash drive from within
Windows Explorer.

4. Open GRACO folder.

5. Open the system folder. If working w ith more

thanonesystem,therewillbemorethanone
folder within the GRACO folder. Each folder is
labeled with the corresponding serial number of
the ADM. (The serial number is on the back of
the module.)

6. If installing the system configuration settings

file, place SETTINGS.TXT file into the UPLOAD
folder.

7. If installing the custom language file, place

DISPTEXT.TXT file into the UPLOAD folder.

8. Remove USB flash d rive from th e computer.

9. Install USB flash drive into the ADM USB port.

10. The menu bar and USB indicator lights indicate

that the USB is downloading files. Wait for USB
activity to complete.

11. Remove USB flash drive from USB port.

Note

Download Procedure

to

If the custom language file is used, you
must define a custom string for each
entry in the DISPTEXT.TXT file. Blank
second-column fields will be displayed
blank on the ADM.

• ThefilenamemustbeDISPTEXT.TXT.

333023F 61

If the custom language file was installed,
users can now select the new language
from the Language drop-down menu in

Advanced Screen 1 — General, page 33.

Performance Charts

Performance Charts

Use these charts to help identify the proportioner t hat will work most efficiently with each mix chamber. Flow
rates are based on a material viscosity of 60 cps.

NOTICE

To prevent system damage, do not pressurize the
system above the line for the gun tip size being used.

Proportioners For Foam

2000

(138)

AR4242

(01)

PRESSURE

psi (bar)

150 0

(103)

100 0

(69)

500

(34)

05

(2.3)

AR5252

(02)

10

(4.5)

15

(6.8)

20

(9.1)

FLOW lbs/min (kg/min)

AR6060

(03)

AR7070

(04)

(11.3)

E-30

25

30

(13.6)

35

(15.9)

40

(18.1)

62 333023F

Proportioners For Coatings

Table 5 Fusion Air Purge, Round Pattern

3500

(241)

3000

(207)

Performance Charts

2500

(172)

PRESSURE

psi (bar)

2000

(138)

150 0

(103)

100 0

(69)

500

(34)

0 0.5

Table 6 Fusion Air Purge, Flat Pattern

3500

(241, 24.1)

3000

(207, 20.7)

2500

(174, 17.4)

PRESSURE

2000

(138, 13.8)

psi (bar)

1500

(103, 10.3)

1000

(69, 6.9)

AR2020

(000)

AR2929

(00)

(1.9)

1.0

(3.8)

FLOW gal./min (l/min)

AF2020

(FTXX24 TIP)

AR4242

(01)

AF2929

(FTXX38 TIP)

AF4242

(FTXX38 TIP)

AF5252

(FTXX48 TIP)

E-XP2

1.5

(5.7)

E-XP2

2.0

(7.6)

500

(35, 3.5)

0 0.5

(1.9)

1.0

(3.8)

1.5

(5.7)

2.0

(7.6)

FLOW gal./min (l/min)

333023F 63

Performance Charts

Table 7 Fusion Mechanical Purge, Round Pattern

3500

(241, 24.1)

3000

PRESSURE

(207, 20.7)

2500

(174, 17.4)

2000

(138, 13.8)

XR2323

(RTM040)

psi (bar)

1500

(103, 10.3)

1000

(69, 6.9)

500

(35, 3.5)

0 0.5

(1.9)

(RTM040)

XR3535

(RTM055)

E-XP2

XR2929

1

(3.8)

MR3535

(RTM040)

XR4747

(RTM055)

MR4747

(RTM055)

1.5

(5.7)

2.0

(7.6)

FLOW gal./min (l/min)

Table 8 Fusion Mechanical Purge, Flat Pattern

3500

(241, 24.1)

(1.5)

XF2323

(FTM424)

MF2929

(FTM424)

XF2929

(FTM424)

XF3535

(FTM638)

0.6

(2.3)

PRESSURE

psi (bar)

3000

(207, 20.7)

2500

(174, 17.4)

2000

(138, 13.8)

1500

(103, 10.3)

1000

(69, 6.9)

500

(35, 3.5)

0 0.4

XF1313

(FTM424)

(FTM424)

XF1818

(FTM424)

0.2

(0.7)

MF1818

FLOW gal./min (l/min)

MF3535

(FTM638)

0.8

(3.0)

(3.8)

1

MF4747

(FTM638)

XF5757

(FTM638)

MF5757

(FTM638)

1.2

(4.5)

1.4

(5.3)

1.6

(6.0)

E-XP2

1.8

(6.8)

2.0

(7.6)

64 333023F

Technical Specifications

Technical Specifications

Reactor 2 E-30 and E-XP2 Proportioning System

U.S.

Maximum Fluid Working Pressure

E-30 2000 psi 14 MPa, 140 bar
E-XP2 3500 psi 24.1 MPa, 241 bar

Maximum Fluid Temperature

E-30
E-XP2

Maximum Flow Rate

E-30 30 lb/min 13.5 kg/min
E-XP2 2 gpm 7.6 lpm

Maximum Heated Hose Length

Length

Output per Cycle

ISO and RES

E-30 0.0272 gal. 0.1034 liter
E-XP2 0.0203 gal. 0.0771 liter

Operating Ambient Temperature Range

Temperature

Line Voltage Requirement

Nominal 200–240 VAC, 1 Phase,
50/60 Hz

Nominal 2 00– 24 0 VAC, 3 phase,
DELTA, 50/60 Hz

Nominal 350–415 VAC, 3 phase,
WYE, 50/60 Hz

Heater Power

(at 230 VAC rated v oltage)

E-30 10 kW 10,200 Watts
E-30, 15 kW 15,300 Watts
E-XP2 15 kW 15,300 Watts

190°F 88°C
190°F 88°C

310 ft

20° to 120°F -7° to 49°C

195–265 VAC

195–265 VAC

340–455 VAC

Metric

94 m

333023F 65

Technical Specifications

Sound Pressure

Sound Pressure measured per ISO-9614–2.

E-30

Measured from 3.1 ft (1 m), at
1000 psi (7 MPa, 70 bar), 3 gpm
(11.4 lpm)

E-XP2

Measured from 3.1 ft (1 m), at
3000 psi (21 MPa, 207 bar), 1 gpm
(3.8 lpm)

Sound Power

E-30

Measured from 3.1 ft (1 m), at
1000 psi (7 MPa, 70 bar), 3 gpm
(11.4 lpm)

E-XP2

Measured from 3.1 ft (1 m), at
3000 psi (21 MPa, 207 bar), 1 gpm
(3.8 lpm)

Fluid Inlets

Component A ISO) and
Component B (RES)

Fluid Outlets

Component A (ISO) #8 (1/2 in.) JIC, with #5 (5/16 in.) JIC adapter
Component B (RES) #10 (5/8 in.) JIC, with #6 (3/8 in.) JIC adapter

Fluid Circulation Ports

Size 1/4 NPSM(m)
Maximum Pressure 250 psi 1.75 MPa, 17.5 bar

Dimensions

Width 26.3 in. 668 mm
Height 63 in. 1600 mm
Depth 15 in. 381 mm

Weight

E-30, 10 kW 315 lb 143 kg
E-30, 15 kW 350 lb 159 kg
E-30, 10 kW Elite 320 lb 145 kg
E-30, 15 kW Elite 355 lb 161 kg
E-XP2 345 lb 156 kg
E-XP Elite 350 lb 159 kg

Wetted Parts

Material Aluminum, stain less steel, zinc plated carbon steel, brass,

carbide, chrome, chemically resistant o-rings, PTFE, ultra-high

3/4 NPT(f) with 3/4 NPSM(f) union

molecular weight polyethylene

87.3 dBA

79.6 dBA

93.7 dBA

86.6 dBA

66 333023F

Graco Extended Warranty for Reactor®2 Components

Graco warrants all equipment referenced in this document which is manufactured by Graco and bearing its
name to be free from defects in material and workmanship on the date of sale to the original purchaser for use.
With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of
twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be
defective. This warranty applies only when the equipment is installed, operated and maintained in accordance
with Graco’s written recommendations.

Graco Part Number

24U050 Electric Motor
24U051 Electric Motor
24U831
24U832
24U855
24U854 Advanced Display Module
All other Reactor 2 parts 12 Months

This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction,
damage or wear caused by faulty installation, misapplication, abrasion, corrosion, inadequate or improper
maintenance, negligence, accident, tampering, or substitution of non-Graco component parts. Nor shall Graco
be liable for malfunction, damage or wear caused by the incompatibility of Graco equipment with structures,
accessories, equipment or materials not supplied by Graco, or the improper design, manufacture, installation,
operation or maintenance of structures, accessories, equipment or materials not supplied by Graco.

This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized
Graco distributor for verification of the claimed defect. If the claimed defect is verified, Graco will repair or replace
free of charge any defective parts. The equipment will be returned to the original purchaser transportation
prepaid. If inspection of the equipment does not disclose any defect in material or workmanship, repairs will be
made at a reasonable charge, which charges may include the costs of parts, labor, and transportation.

THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING BUT NOT LIMITED TO WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS
FORAPARTICULARPURPOSE.

Graco’s sole obligation and buyer’s sole remedy for any breach of warranty shall be as set forth above. The
buyer agrees that no other remedy (including, but not limited to, incidental or consequential damages for lost
profits, lost sales, injury to person or property, or any other incidental or consequential loss) shall be available.
Any action for breach of warranty hereunder must be brought within the latter of two (2) years of the date of
sale, or one (1) year the warranty period expires.

GRACO MAKES NO WARRANTY, AND DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE, IN CONNECTION WITH ACCESSORIES, EQUIPMENT,
MATERIALS OR COMPONENTS SOLD BUT NOT MANUFACTURED BY GRACO.

manufactured by Graco (such as electric motors, switches, hose, etc.), are subject to the warranty, if any, of
their manufacturer. Graco will provide purchaser with reasonable assistance in making any claim for breach of
these warranties.

In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from Graco
supplying equipment hereunder, or the furnishing, performance, or use of any products or other goods sold
hereto, whether due to a breach of contract, breach of warranty, the negligence of Graco, or otherwise.

FOR GRACO CANADA CUSTOMERS
The Parties acknowledge that they have required that the present document, as well as all documents, notices

and legal proceedings entered into, given or instituted pursuant hereto or relating directly or indirectly hereto, be
drawn up in English. Les parties reconnaissent avoir convenu que la rédaction du présente document sera en
Anglais, ainsi que tous documents, avis et procédures judiciaires exécutés, donnés ou intentés, à la suite de ou
en rapport, directement ou indirectement, avec les procédures concernées.

Description Warranty Period

36 Months or 3 Million Cycles

36 Months or 3 Million Cycles
Motor Control Module 36 Months or 3 Million Cycles
Motor Control Module 36 Months or 3 Million Cycles
Heater Control Module 36 Months or 3 Million Cycles

36 Months or 3 Million Cycles

These items sold, but not

Graco Information

For the latest information about Graco products, visit www.graco.com.

To place an order,
Phone:

612-623-6921

All written and visual data contained in this document reflects the latest product information available at the time of publication.

GRACO INC. AND SUBSIDIARIES • P.O. BOX 1441 • MINNEAPOLIS MN 55440-1441 • USA

contact your Graco Distributor or call to identify the nearest distributor.

or Toll Free:

Graco reserves the right to make c hanges at any time without notice.

Original Instructions. This manual contains English. MM 333023

Copyright 2014, Graco Inc. All Graco manufacturing locations are registered to ISO 9001.

1-800-328-0211

For patent information, see www.graco.com/patents.

Graco Headquarters:

International Offices:

Revision F, February 2015

Fax:

612-378-3505

Minneapolis

Belgium, China, Japan, Korea

www.graco.com
