Instructions/Parts
™
ExactaBlend
AGP
Air Motor
For use with ExactaBlend AGP U100 systems. For professional use only.
Not approved for use in European explosive atmosphere locations.
24T884
Series A
Displacement. . . . . . 700 cc
Stroke. . . . . . . . . . . . 1.5 in.
Piston Diameter . . . . 6.0 in. (152 mm)
333007A
EN
100 psi (0.7 MPA, 7.0 bar) Maximum Working Pressure
Important Safety Instructions
Read all warnings and instructions in this
manual. Save all instructions.
Related Manuals
Contents
Related Manuals . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Component Identification . . . . . . . . . . . . . . . . . . . . 5
Grounding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Repair Air Valve . . . . . . . . . . . . . . . . . . . . . . . . . 8
Replace Pilot Valves . . . . . . . . . . . . . . . . . . . . . 11
Repair Air Motor . . . . . . . . . . . . . . . . . . . . . . . . 11
Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Air Motor Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Air Valve Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Kits and Accessories . . . . . . . . . . . . . . . . . . . . . . 18
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Graco Standard Warranty . . . . . . . . . . . . . . . . . . . 22
Graco Information . . . . . . . . . . . . . . . . . . . . . . . . . 22
Related Manuals
Manual Description
3A2894 ExactaBlend AGP
Advanced Glazing Proportioner,
Setup-Operation
332452 ExactaBlend AGP
Advanced Glazing Proportioner,
Par ts
2 333007A
Warnings
Warnings
The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclamation point symbol alerts you to a general warning and the hazard symbols refer to procedure-specific risks. When
these symbols appear in the body of this manual or on warning labels, refer back to these Warnings. Product-specific
hazard symbols and warnings not covered in this section may appear throughout the body of this manual where
applicable.
WARNING
FIRE AND EXPLOSION HAZARD
Flammable fumes, such as solvent and paint fumes, in work area can ignite or explode. To help prevent
fire and explosion:
• Use equipment only in well ventilated area.
• Eliminate all ignition sources; such as pilot lights, cigarettes, portable electric lamps, and plastic drop
cloths (potential static arc).
• Keep work area free of debris, including solvent, rags and gasoline.
• Do not plug or unplug power cords, or turn power or light switches on or off when flammable fumes are
present.
• Ground all equipment in the work area. See Grounding instructions.
• Use only grounded hoses.
• Hold gun firmly to side of grounded pail when triggering into pail. Do not use pail liners unless they are
antistatic or conductive.
• Stop operation immediately if static sparking occurs or you feel a shock. Do not use equipment until
you identify and correct the problem.
• Keep a working fire extinguisher in the work area.
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
• Do not operate the unit when fatigued or under the influence of drugs or alcohol.
• Do not exceed the maximum working pressure or temperature rating of the lowest rated system component. See Technical Data in all equipment manuals.
• Use fluids and solvents that are compatible with equipment wetted parts. See Technical Data in all
equipment manuals. Read fluid and solvent manufacturer’s warnings. For complete information about
your material, request MSDS from distributor or retailer.
• Do not leave the work area while equipment is energized or under pressure.
• Turn off all equipment and follow the Pressure Relief Procedure when equipment is not in use.
• Check equipment daily. Repair or replace worn or damaged parts immediately with genuine manufacturer’s replacement parts only.
• Do not alter or modify equipment. Alterations or modifications may void agency approvals and create
safety hazards.
• Make sure all equipment is rated and approved for the environment in which you are using it.
• Use equipment only for its intended purpose. Call your distributor for information.
• Route hoses and cables away from traffic areas, sharp edges, moving parts, and hot surfaces.
• Do not kink or over bend hoses or use hoses to pull equipment.
• Keep children and animals away from work area.
• Comply with all applicable safety regulations.
333007A 3
Warnings
WARNING
SKIN INJECTION HAZARD
High-pressure fluid from gun, hose leaks, or ruptured components will pierce skin. This may look like just a
cut, but it is a serious injury that can result in amputation. Get immediate surgical treatment.
• Do not spray without tip guard and trigger guard installed.
• Engage trigger lock when not spraying.
• Do not point gun at anyone or at any part of the body.
• Do not put your hand over the spray tip.
• Do not stop or deflect leaks with your hand, body, glove, or rag.
• Follow the Pressure Relief Procedure when you stop spraying and before cleaning, checking, or ser-
vicing equipment.
• Tighten all fluid connections before operating the equipment.
• Check hoses and couplings daily. Replace worn or damaged parts immediately.
MOVING PARTS HAZARD
Moving parts can pinch, cut or amputate fingers and other body parts.
• Keep clear of moving parts.
• Do not operate equipment with protective guards or covers removed.
• Pressurized equipment can start without warning. Before checking, moving, or servicing equipment, follow the Pressure Relief Procedure and disconnect all power sources.
PERSONAL PROTECTIVE EQUIPMENT
Wear appropriate protective equipment when in the work area to help prevent serious injury, including eye
injury, hearing loss, inhalation of toxic fumes, and burns. This protective equipment includes but is not limited to:
• Protective eyewear, and hearing protection.
• Respirators, protective clothing, and gloves as recommended by the fluid and solvent manufacturer
4 333007A
Component Identification
C
D
A
Component Identification
FIG. 1: NXT Air Motor components
Key:
A Air valve
BMuffler
C Pilot valve
D Manifold
B
333007A 5
Component Identification
Grounding
The equipment must be grounded to reduce the risk
of static sparking. Static sparking can cause fumes
to ignite or explode. Grounding provides an escape
wire for the electric current.
See FIG. 2. Verify that the ground screw (GS) is attached
and tightened securely to the air motor. Connect the
other end of the ground wire (U) to a true earth ground.
GS U
F
IG. 2: Ground wire
ti12914a
6 333007A
Troubleshooting
Troubleshooting
NOTICE
Check all possible problems and causes before disassembling the pump.
Relieve the pressure before checking or servicing
the equipment.
Problem Cause Solution
Air motor will not run. Damaged air valve (17). Replace or service air valve (17).
See page 8.
Damaged pilot valve (19). Replace pilot valves (19). See page
11.
Air continuously exhausting
around air motor piston rod.
Air continuously exhausting from
muffler.
Air motor “bounces” at top of
stroke.
Air motor “bounces” at bottom of
stroke.
Icing inside motor. Air motor operating at high pressure
Damaged u-cups (3, 43). Replace piston rod u-cups (3, 43).
See page 11.
Damaged air valve plate (105) or cup
(112).
Damaged bottom pilot valve. Replace bottom pilot valve (19). See
Damaged top pilot valve. Replace top pilot valve (19). See
or high cycle rate.
Replace or service air valve (17).
See page 8.
page 11.
page 11.
Reduce pressure, cycle rate, or duty
cycle of motor.
Reduce dew point of compressed air
in moisture coalescing filter.
333007A 7
Repair
Repair
Repair Air Valve
Replace Complete Air Valve
1. Stop the pump at the middle of its stroke. Relieve
the pressure. Perform Pressure Relief Procedure
within the ExactaBlend AGP Advanced Glazing Proportioner, Setup-Operation manual.
2. Disconnect the air line to the motor.
3. Remove screws (18). Remove the air valve (17) and
gasket (16*◆).
4. To repair the air valve, go to Disassemble the Air
Val ve, page 8. To install a replacement air valve,
continue with step 5.
5. Align the new air valve gasket (16*◆) on the manifold, then attach the air valve (17).
Replace Seals or Rebuild Air Valve
Air Valve Seal Kits are available. See page 18 to order
the correct kit for your pump. Parts are marked †.
Air Valve Repair Kits are available. See page 18 to order
the correct kit for your pump. Parts are marked ◆.
Air Valve End Cap Kits are available. See page 18 to
order the correct kit for your pump. Parts are marked ✠.
Disassemble the Air Valve
1. Perform steps 1-3 under Replace Complete Air
Val ve, page 8.
2. See F
3. Remove the two-piece cup assembly (◆112a, b,
IG. 3. Use a 2 mm or 5/64 hex key to remove
two screws (109†◆). Remove the valve plate
(105◆).
and c), and spring (111◆).
6. Reconnect the air line to the motor.
111◆
◆112a
◆112b
◆112c
105◆
109†◆
FIG. 3: Air plate removal
4. Remove the snap ring (110◆✠) from each end. Use
the piston to push the end caps (107✠) out of the
ends. Remove end cap o-rings (106†✠◆).
5. Remove the piston (102◆). Remove the u-cup seals
(108†◆) from each end and the detent assembly
(103◆) and detent cam (104◆) from the center.
8 333007A
110◆✠
106†✠◆
1
Repair
1
105
◆112c
◆
1
◆112b
Apply lubricant.
1
112a◆
111◆
1
103◆
104◆
101
107✠
1
108†◆
102◆
109†◆
108
†◆
1
107✠
106†✠◆
1
110◆✠
FIG. 4: Air valve assembly
333007A 9
Repair
Reassemble the Air Valve
1. Lubricate detent cam (104◆) and install into housing.
2. Lubricate the u-cups (108†◆) and install on the piston (102◆) with lips facing toward the center of the
piston.
108†◆
Lips face down
102◆
108†◆
Lips face up
7. Install the spring (111◆).
8. Lubricate and install the cup o-ring (◆112b) on the
cup body (◆112a), then assemble the cup body to
the cup base (◆112c). Lubricate and install the cup
assembly. Align the small round magnet with the air
inlet.
◆112a
◆112b
◆112c
FIG. 6: Two-piece cup installation
9. Install the valve plate (105◆). Tighten the screws
(109†◆) to hold it in place.
F
IG. 5: Air valve u-cup installation
3. Lubricate both ends of the piston (102◆) and install
it in the housing.
4. Lubricate and install the detent assembly (103◆)
into the piston.
5. Lubricate new o-rings (106†✠◆) and install on the
end caps (107✠). Install the end caps into the housing.
6. Install a snap ring (110◆✠) on each end to hold end
caps in place.
10 333007A
Repair
Replace Pilot Valves
1. Stop the pump at the middle of its stroke. Relieve
the pressure. Perform Pressure Relief Procedure
within the ExactaBlend AGP Advanced Glazing Proportioner, Setup-Operation manual.
2. Disconnect the air line to the motor.
3. Remove the tie rod shield (TS). Slide the drip shield
(DS) down on the tie rods.
TSDS
4. Use a 10 mm socket wrench to remove the old pilot
valves (19) from the top and bottom covers.
Repair Air Motor
NOTE: Air Motor Seal Kits are available. See page 18
for the correct kit for your motor. Parts included in the kit
are marked with an asterisk (*). For best results, use all
the parts in the kit.
Disconnect the Air Motor
1. Flush the pump, if possible. Relieve the pressure.
Perform Pressure Relief Procedure within the
ExactaBlend AGP Advanced Glazing Proportioner,
Setup-Operation manual.
2. Disconnect the air and fluid hoses, the ground wire,
and the tie rod shield.
3. Remove the retaining spring and pin (P).
5. Lubricate and install the new pilot valves (19).
Torque to 95-105 in-lb (11-12 N•m).
P
TN
FIG. 7: Pin removal
4. Remove the tie rod nuts (TN).
NOTICE
The pump lower will no longer be attached to the motor
once all the tie rod nuts are removed. To avoid damage
that may be caused from falling, hold the pump lower
during the removal of the tie rod nuts.
5. Use a socket to remove the mounting screws.
6. Remove the air motor. The tie rods and drip shield
will remain attached.
333007A 11
Repair
Disassemble the Air Motor
1. Use a 10 mm socket wrench to remove four screws
(18). Remove the air valve (17) and gasket (16*◆).
2. Remove the muffler.
3. Remove four screws (18) and remove the manifold
(15*) and two gaskets (14*).
4. Use a 10 mm socket wrench to remove the pilot
valves (19) from the top and bottom cover.
5. Remove the 17 mm tie bolts.
6. Remove the top cover. Remove the o-ring (9*).
Reassemble the Air Motor
NOTE: For easier reassembly, start with the top cover
(13) turned over on the workbench and assemble the air
motor upside-down.
1. Lubricate and install the o-ring (9*) on the top cover
(13).
2. Lubricate the inside of the cylinder (11). Lower the
cylinder (11) onto the top cover (13).
3. Lubricate and install the o-ring (8*) around the piston (5).
4. Slide the piston assembly (5) down into the cylinder
(11). Be sure the o-ring (9*) stays in place.
5. See F
3*
IG. 8. Lubricate and install new u-cup seal with
flange (43*) in the bottom of the bearing in the bottom cover (1). The u-cup must face up and the
flange must face down. Lubricate and install new
u-cup seal (3*) in the top of the bearing. Lips must
face up.
Lips face up
7. Remove the cylinder (11).
8. Depending on your displacement pump model, you
may need to remove an adapter from the bottom of
the piston assembly.
9. Slide the piston assembly (5) straight up off the bottom cover.
NOTICE
Do not attempt to take apart the piston assembly (5).
10. Remove o-ring (8*) from around the piston.
11. Remove u-cup seals (3*, 43*), and o-ring (9*) from
the bottom cover.
43*
U-cup faces up.
Flange faces down.
ti12755a
FIG. 8: Air motor u-cup installation
6. Lubricate and install the o-ring (9*) on the bottom
cover (1).
7. Install the piston bumper (28) on the bottom
cover (1).
12 333007A
8. See FIG. 9. Carefully place the bottom cover (1) on
the cylinder (11), sliding the rod through the bearing. The manifold surfaces of the top and bottom
covers must align.
1
28
Repair
13
F
IG. 9: Bottom cover install
9. Install the tie bolts (10) hand tight.
10. Install two gaskets (14*) on the manifold (15). Install
the manifold (15). Torque bolts to 95-105 in-lb
(10.7-11.9 N•m).
NOTE: The manifold is reversible for ease of placement
of muffler or remote exhaust.
11. Align the air valve gasket (16*◆) on the manifold,
then attach the air valve.
12. Tighten the tie bolts (10) halfway. Work in a crisscross pattern. Continue tightening the bolts in pattern to 25-30 ft-lb (34-40 N•m).
13. Lubricate and install pilot valves (19) in top and bottom cover. Torque to 95-105 in-lb (11-12 N•m).
14. Reinstall muffler.
333007A 13

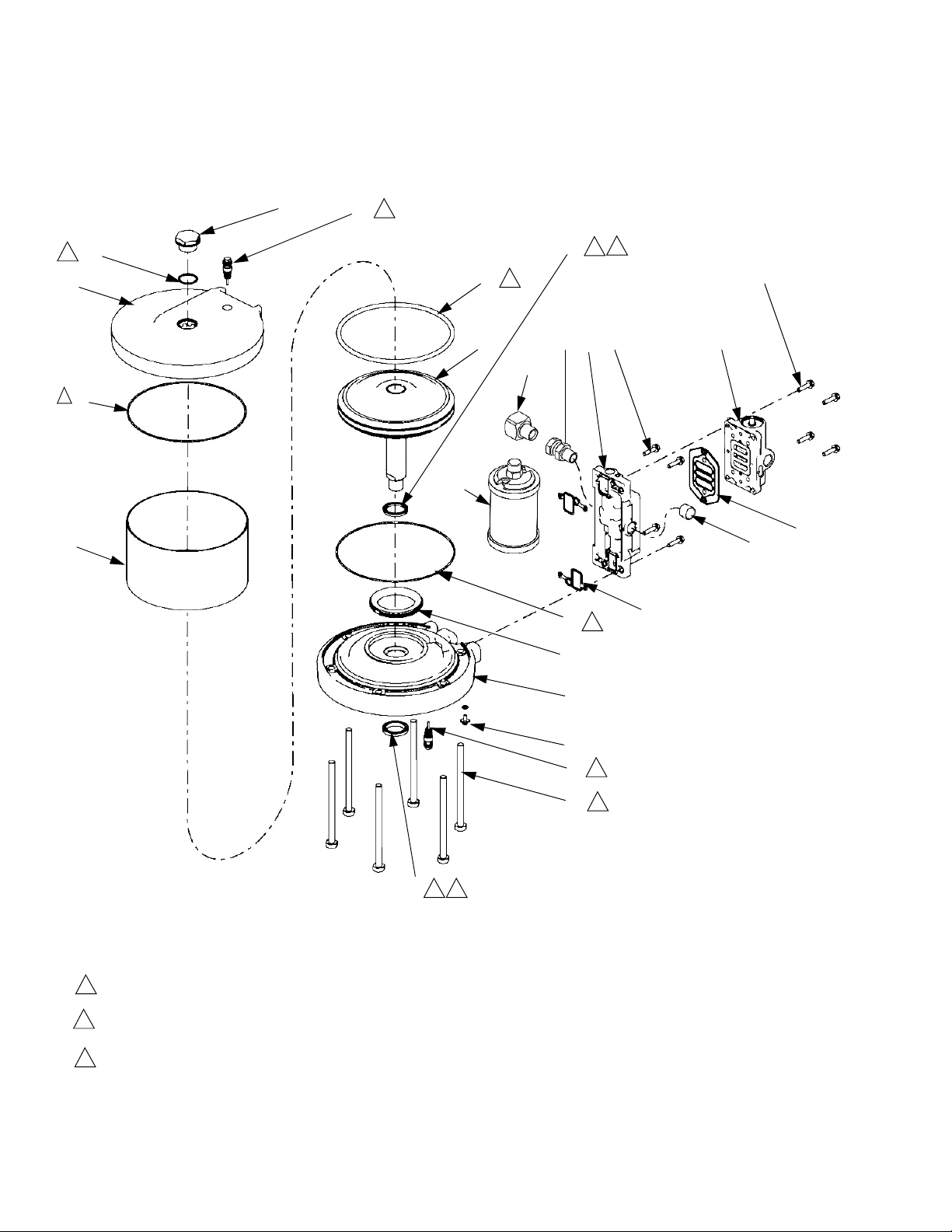

Parts
Parts
13
11
40
2
39
19
2
3
2
3*
2
8*
15 18
5
34
18
17
45
2
9*
20
16*
◆
44
9*
2
14*
28
1
Torque to
2
Apply lubricant.
U-cup faces up. Flange (bottom seal only)
3
faces down. See F
25-30 ft-lb (34-40 N•m)
IG. 8, page 12.
.
43*
1
22
2
19
1
10
2
3
14 333007A
Air Motor Parts
Air Motor Parts
Ref. Part Number Description Qty
1 24A549 COVER, lower, assembly (includes 3, 9, 19,
22, 28, and 43)
3* Not sold separately. See Air Motor Seal Kit (page 18) or
Lower Cover Assembly (1, this table)
5 16W626 PISTON, motor, assembly 1
8* Not sold separately. See Air Motor Seal Kit (page 18) or
Piston Assembly (5, this table)
9* Not sold separately. See Air Motor Seal Kit (page 18) or
Lower Cover Assembly (1, this table) or
Upper Cover Assembly (13, this table)
10 15M316 BOLT, tie, hex head 4
11 24T883 CYLINDER, motor 1
13 15X354 COVER, upper, assembly, includes 9, 19,
14* Not sold separately. See Air Motor Seal Kit (page 18) or
Manifold Assembly (15, this table)
15 24A580 MANIFOLD, assembly, includes 14, 16, and
16*◆ Not sold separately. See Air Motor Seal Kit (page 18) or
Manifold Assembly (15, this table)
17 24A352 VALVE, air 1
18 Not sold separately. See Manifold Assembly (15, this table) SCREW, M6 x 25 8
19 24A366 VALVE, pilot 2
20 117237 MUFFLER 1
22 116343 SCREW, ground 1
28 24A914 BUMPER KIT, includes lower bumper, and
34 190451 UNION, adapter 1
35▲ 15W719 LABEL, warning (not shown)
39 Not sold separately. See Upper Cover Assembly (13, this table),
OR Plug (40)
40 24E990 PLUG, upper cover 1
43 Not sold separately. See Air Motor Seal Kit (page 18) or
Lower Cover Assembly (1, this table)
44 100361 PLUG, pipe 1
45 115764 FITTING, elbow, 90 1
U-CUP 2
O-RING, piston 1
O-RING, cover 2
39, 40, and 41
GASKET, manifold 2
18 (qty. 4)
GASKET, air valve 1
upper bumper
O-RING, upper cover plug 1
SEAL, u-cup with flange 1
1
1
1
1
* Included in Air Motor Seal Kit. See page 18.
▲ Replacement Warning labels, signs, tags, and cards are available at no cost.
333007A 15
Air Valve Parts
Air Valve Parts
110◆✠
106†✠◆
1
1
105
◆112c
◆
1
◆112b
Apply lubricant.
1
112a◆
111◆
1
103◆
104◆
101
107✠
1
108†◆
102◆
109†◆
108
†◆
1
107✠
106†✠◆
1
110◆✠
16 333007A
Air Valve Parts
Air valve parts are not sold individually. The table below shows possible kit options for each part. See page 18 to
order the correct kit(s), or full replacement air valves, for your motor.
Ref. Description Qty.
Air Valve
Repair Kit
Air Valve
Seal Kit
Air Valve
End Cap Kit Other
101 HOUSING 1
102◆ AIR VALVE PISTON 1
103◆ DETENT PISTON ASSEMBLY 1
104◆ DETENT CAM 1
105◆ PLATE, air valve 1
106†✠◆ O-RING 2
107✠ CAP, standard 2
108†◆ U-CUP 2
109†◆ SCREW 2
✔
✔
✔
✔
✔✔ ✔
✔
✔✔
✔ ✔
Screws Kit 24A359
(pack of 10)
110◆✠ SNAP RING 2
111◆ DETENT SPRING 1
112a◆
112b◆
TWO-PIECE CUP ASSEMBLY, with o-ring
1
✔✔
✔
✔
112c◆
18 SCREW, M6 x 25 4 See Manifold Assembly
(15, Air Motor Parts table)
or
Solenoid Assembly (25,
Air Motor Parts table)
16*†◆ AIR VALVE GASKET 1
✔✔
See Air Motor Seal Kit
(page 18) or
Manifold Assembly (15,
Air Motor Parts table
† Included in Air Valve Seal Kit. See page 18.
◆ Included in Air Valve Repair Kit. See page 18.
✠Included in Air Valve End Cap Kit. See page 18.
333007A 17
Kits and Accessories
Kits and Accessories
Kit Description Part Number
Complete Air Valve Replacement Kit – Standard 24A352
* Air Motor Seal Kit 24A547
◆ Air Valve Repair Kit 24A538
† Air Valve Seal Kit 24A536
✠ Air Valve End Cap Kit – Standard 24A361
Screws Kit — Includes ten screws (109) 24A359
18 333007A
Dimensions
Dimensions
A
inch (mm)Binch (mm)Cinch (mm)Dinch (mm)Einch (mm)
7.7 (261) 10.8 (274) 11.4 (290) 8.6 (218) 9.8 (249) 24 (10.9)
B
A
Weight
lb (kg)
Midstroke
C
D
E
333007A 19
Dimensions
20 333007A
Technical Data
Maximum air inlet pressure . . . . . . . . . . . . . . . . . . . . . . . 100 psi (0.7 MPa, 7.0 bar)
Stroke length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.5 in.
Air inlet size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/2 in.
Maximum motor speed . . . . . . . . . . . . . . . . . . . . . . . . . . .
(Do not exceed maximum recommended speed of fluid
pump, to prevent premature pump wear.)
Sound data
Sound power* . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sound pressure** . . . . . . . . . . . . . . . . . . . . . . . .
* Sound power at 70 psi (0.48 MPa, 4.8 bar), 20 cpm. Sound power measured per ISO-9614-2.
** Sound pressure was tested 3.28 feet (1 m) from equipment.
60 cycles per minute
80.1 dBA
70.2 dBA
Technical Data
333007A 21
Graco Standard Warranty
Graco warrants all equipment referenced in this document which is manufactured by Graco and bearing its name to be free from defects in
material and workmanship on the date of sale to the original purchaser for use. With the exception of any special, extended, or limited warranty
published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by
Graco to be defective. This warranty applies only when the equipment is installed, operated and maintained in accordance with Graco’s written
recommendations.
This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear caused by faulty
installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or substitution of
non-Graco component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the incompatibility of Graco equipment with
structures, accessories, equipment or materials not supplied by Graco, or the improper design, manufacture, installation, operation or
maintenance of structures, accessories, equipment or materials not supplied by Graco.
This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor for verification of
the claimed defect. If the claimed defect is verified, Graco will repair or replace free of charge any defective parts. The equipment will be returned
to the original purchaser transportation prepaid. If inspection of the equipment does not disclose any defect in material or workmanship, repairs will
be made at a reasonable charge, which charges may include the costs of parts, labor, and transportation.
THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED
TO WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.
Graco’s sole obligation and buyer’s sole remedy for any breach of warranty shall be as set forth above. The buyer agrees that no other remedy
(including, but not limited to, incidental or consequential damages for lost profits, lost sales, injury to person or property, or any other incidental or
consequential loss) shall be available. Any action for breach of warranty must be brought within two (2) years of the date of sale.
GRACO MAKES NO WARRANTY, AND DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, IN CONNECTION WITH ACCESSORIES, EQUIPMENT, MATERIALS OR COMPONENTS SOLD BUT NOT
MANUFACTURED BY GRACO. These items sold, but not manufactured by Graco (such as electric motors, switches, hose, etc.), are subject to
the warranty, if any, of their manufacturer. Graco will provide purchaser with reasonable assistance in making any claim for breach of these
warranties.
In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from Graco supplying equipment hereunder, or
the furnishing, performance, or use of any products or other goods sold hereto, whether due to a breach of contract, breach of warranty, the
negligence of Graco, or otherwise.
FOR GRACO CANADA CUSTOMERS
The Parties acknowledge that they have required that the present document, as well as all documents, notices and legal proceedings entered into,
given or instituted pursuant hereto or relating directly or indirectly hereto, be drawn up in English. Les parties reconnaissent avoir convenu que la
rédaction du présente document sera en Anglais, ainsi que tous documents, avis et procédures judiciaires exécutés, donnés ou intentés, à la suite
de ou en rapport, directement ou indirectement, avec les procédures concernées.
Graco Information
For the latest information about Graco products, visit www.graco.com.
For patent information, see www.graco.com/patents.
TO PLACE AN ORDER, contact your Graco distributor or call to identify the nearest distributor.
Phone: 612-623-6921 or Toll Free: 1-800-328-0211 Fax: 612-378-3505
All written and visual data contained in this document reflects the latest product information available at the time of publication.
GRACO INC. AND SUBSIDIARIES • P.O. BOX 1441 • MINNEAPOLIS MN 55440-1441 • USA
Copyright 2013, Graco Inc. All Graco manufacturing locations are registered to ISO 9001.
Graco reserves the right to make changes at any time without notice.
Original instructions. This manual contains English. MM 333007
Graco Headquarters: Minneapolis
International Offices: Belgium, China, Japan, Korea
www.graco.com
Loading...
