Kit Instructions
ti20740a
Bead Gun Kit for LL250
SPS and LL200HS
Pressurized Bead System
For professional use only.
Model 16R963
psi (MPa, bar) Maximum Working Pressure
Important Safety Instructions
Read all warnings and instructions in the bead system and striper manual.
Be familiar with the controls and the proper usage of the equipment.
Save these instructions.
332226C
EN
Tools Needed:
ti20569a
ti20709a
ti20707a
ti20708a
Both Models:
200 Models:
250 Models:
ti20568a
A
B
ti20548a
C
ti20566a
H
G
ti20547b
D
Tools Needed:
•Wrench
• Adjustable Wrench
• Phillips Screwdriver
• Cutting Blade
Gun Kit Assembly 16R963
1. If needed, configure unit gun assembly with gun arm
brackets included in Retro-fit Kit.
4. Slide bead gun assembly (C) so bead outlet is horizontally level with paint tip guard and as close to
paint outlet as possible.
5. Install 10 in. air line (G) and push into bottom valve.
Push other end into 90° air line fitting (H) on bead
gun.
6. Connect bead hose (D) from gun to bead hopper.
2. See Parts diagram to assemble bead gun
accessory parts, page 5.
3. Position air switch button (A) begins to touch bracket
(B) when trigger is in neutral position. Tighten hardware.
NOTE:
and bracket (B) should be .02 in. (0.5 mm).
The gap between air switch button (A)
2 332226C
Gun Kit Assembly 16R963
ti20565a
J
10 in.
60 in.
60 in.
ti21419a
1 Gun:
2 Gun:
ti21419a
ti20979b
ti20980b
250 Models
200 Models
ti20564a

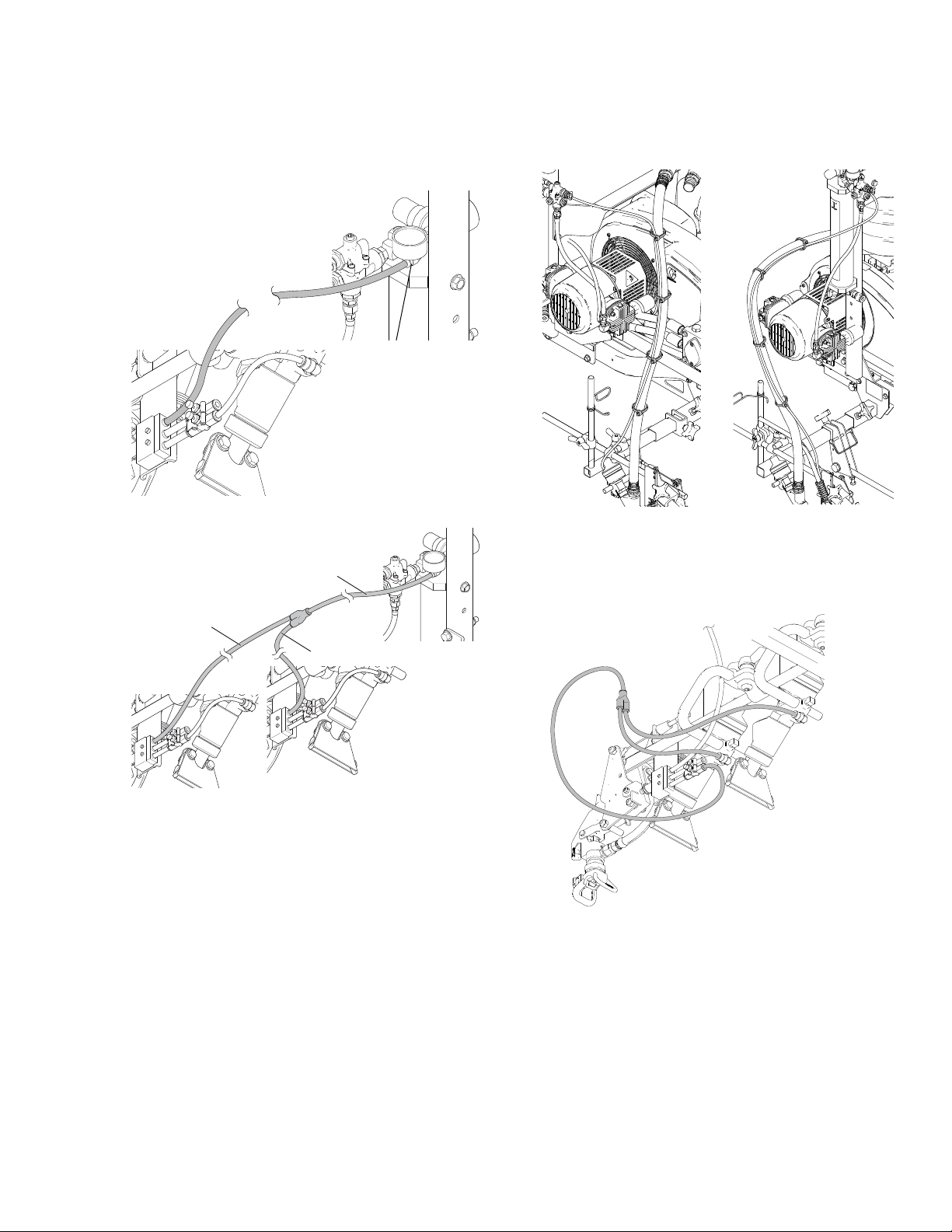

7. Push one end of remaining air line into top hole on
air switch and run along bead hose to tank and then
route and push into elbow fitting (J) on air tank.
8. Zip tie air and bead hoses together with supplied
ties.
9. A “Y” fitting can be used to create a dual bead gun
set up for double drop beads. Splice exit hose on
bottom of air switch and branch into both guns.
332226C 3
Gun Kit Assembly 16R963
ti20977a
ti20978b
ti21258a
ti21085b
ti20564a

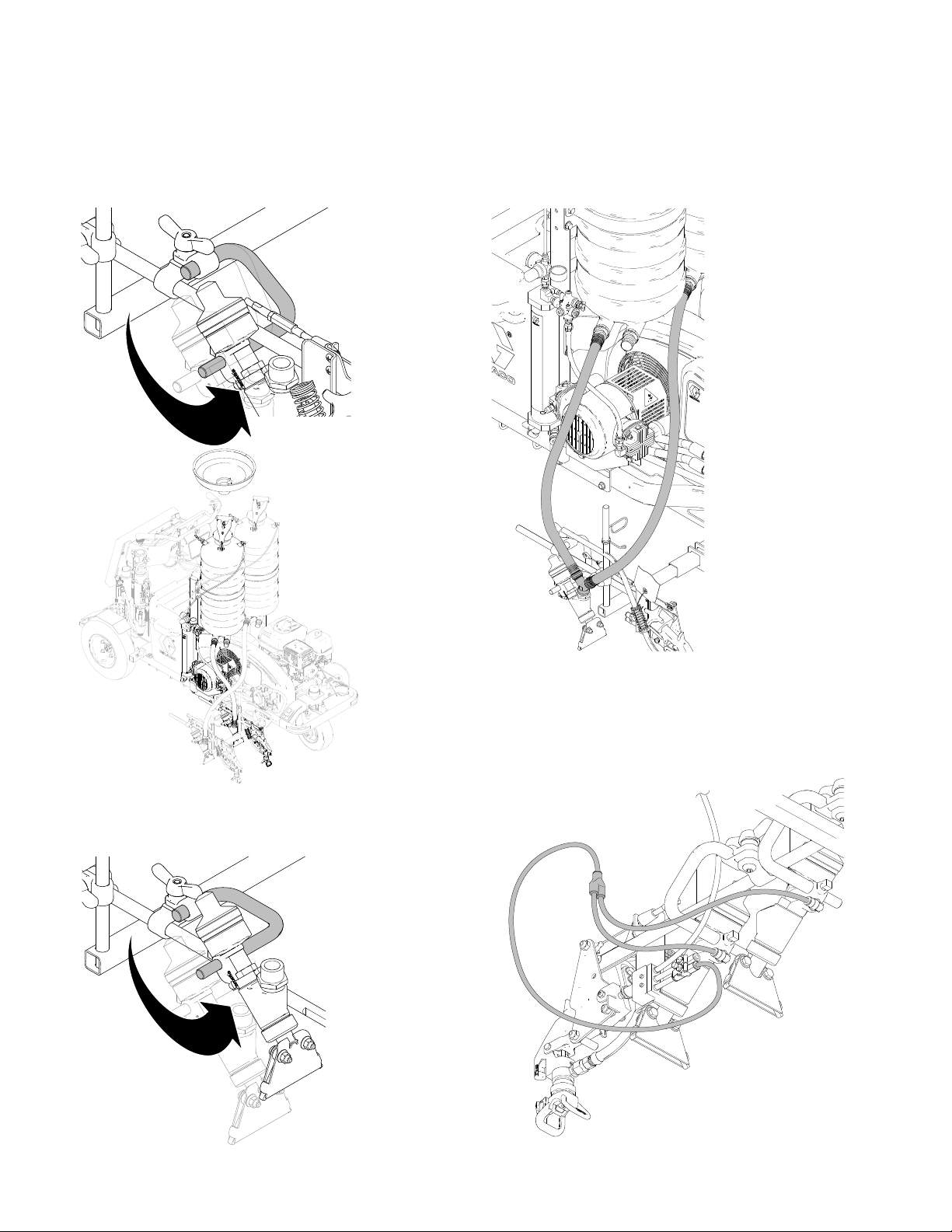

0 to 8 in. Line Setup
For wider lines it may be necessary to mount bead gun
as shown below.
2 Tank 1 Gun Setup
Connect “Y” fitting as shown below to allow two tanks to
flow into one gun.
8 - 12 in. Line Setup
Double Drop Setup
Use a “Y” fitting to create a dual bead gun setup for
double drop beads. Splice exit hose on bottom of air
switch and branch into both guns.
4 332226C
Parts
90
75
88
76
83
85
79
77
73
80
81
71
70
72
85
83
82
84
78
74
90
918991
89
ti20722a
Parts
Parts List
Ref. Part Description
70 16T646 SWITCH, air 1
71 16T804 BRACKET, switch, air 1
72 16T771 BOOT, button, push 1
73 238329 GUN, spray, bead 1
74 16U274 HOSE, pneumatic 1
75 16T829 HOSE, bead, 3/4 in., clear 1
76 16T816 BRACKET, switch, air 1
77 16T803 ARM, gun 1
78 104387 SCREW, mach pnh 2
79 287566 KIT, clamp 1
80 111834 NIPPLE, pipe, hex 1
Qty
Ref. Part Description
.
81 114109 FITTING, elbow, male, swivel 1
82 116876 WASHER, flat 2
83 115483 NUT, lock 3
84 100020 WASHER, lock 2
85 116610 SCREW, mach, phil, pan, #10 3
86 103473 STRAP, tie, wire 5
87 238665 KIT, repair 1
88 115287 FITTING, Y tube 1
89 16V047 HOSE, pneumatic 2
90 16V530 HOSE, pneumatic 1
91 16V046 RESTRICTOR, air flow, adjustable 2
Qty
.
332226C 5
