Page 1
Instructions- Parts
®
Viscount
I Hydraulic
Motor
Model 255345, Series A
1500 psi (10 MPa, 102 bar) Maximum Hydraulic Input Pressure
Important Safety Instructions
Read all warnings and instructions in this manual.
Save these instructions.
312484C
EN
ti10714a
Page 2
Table of Contents
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
General Information . . . . . . . . . . . . . . . . . . . . . . 5
Grounding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Startup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Pressure Relief Procedure . . . . . . . . . . . . . . . . . 6
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Required Tools . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Hydraulic Motor Disassembly . . . . . . . . . . . . . . . 8
Hydraulic Motor Reassembly . . . . . . . . . . . . . . 10
Viscount I Hydraulic Motor Parts . . . . . . . . . . . . . 12
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Graco-Approved Hydraulic Fluid . . . . . . . . . . . . 14
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Graco Standard Warranty . . . . . . . . . . . . . . . . . . . 16
Graco Information . . . . . . . . . . . . . . . . . . . . . . . . . 16
2 312484C
Page 3
Warnings
Warnings
The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclamation point symbol alerts you to a general warning and the hazard symbol refers to procedure-specific risk. Refer back
to these warnings. Additional, product-specific warnings may be found throughout the body of this manual where
applicable.
WARNING
WARNINGWARNINGWARNING
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
• Do not operate the unit when fatigued or under the influence of drugs or alcohol.
• Do not exceed the maximum working pressure or temperature rating of the lowest rated system com-
ponent. See Technical Data in all equipment manuals.
• Use fluids and solvents that are compatible with equipment wetted parts. See Technical Data in all
equipment manuals. Read fluid and solvent manufacturer’s warnings. For complete information about
your material, request MSDS forms from distributor or retailer.
• Check equipment daily. Repair or replace worn or damaged parts immediately with genuine manufacturer’s replacement parts only.
• Do not alter or modify equipment.
• Use equipment only for its intended purpose. Call your distributor for information.
• Route hoses and cables away from traffic areas, sharp edges, moving parts, and hot surfaces.
• Do not kink or over bend hoses or use hoses to pull equipment.
• Keep children and animals away from work area.
• Comply with all applicable safety regulations.
SKIN INJECTION HAZARD
High-pressure fluid from gun, hose leaks, or ruptured components will pierce skin. This may look like just a
cut, but it is a serious injury that can result in amputation. Get immediate surgical treatment.
• Do not point gun at anyone or at any part of the body.
• Do not put your hand over the spray tip.
• Do not stop or deflect leaks with your hand, body, glove, or rag.
• Do not spray without tip guard and trigger guard installed.
• Engage trigger lock when not spraying.
• Follow Pressure Relief Procedure in this manual, when you stop spraying and before cleaning,
checking, or servicing equipment.
MOVING PARTS HAZARD
Moving parts can pinch or amputate fingers and other body parts.
• Keep clear of moving parts.
• Do not operate equipment with protective guards or covers removed.
• Pressurized equipment can start without warning. Before checking, moving, or servicing equipment,
follow the Pressure Relief Procedure in this manual. Disconnect power or air supply.
BURN HAZARD
Equipment surfaces and fluid that’s heated can become very hot during operation. To avoid severe burns,
do not touch hot fluid or equipment. Wait until equipment/fluid has cooled completely.
312484C 3
Page 4
Warnings
WARNING
WARNINGWARNINGWARNING
FIRE AND EXPLOSION HAZARD
Flammable fumes, such as solvent and paint fumes, in work area can ignite or explode. To help prevent
fire and explosion:
• Use equipment only in well ventilated area.
• Do not fill fuel tank while engine is running or hot; shut off engine and let it cool. Fuel is flammable and
can ignite or explode if spilled on hot surface.
• Eliminate all ignition sources; such as pilot lights, cigarettes, portable electric lamps, and plastic drop
cloths (potential static arc).
• Keep work area free of debris, including solvent, rags and gasoline.
• Do not plug or unplug power cords, or turn power or light switches on or off when flammable fumes are
present.
• Ground all equipment in the work area. See Grounding instructions.
• Use only grounded hoses.
• Hold gun firmly to side of grounded pail when triggering into pail.
• If there is static sparking or you feel a shock, stop operation immediately. Do not use equipment until
you identify and correct the problem.
• Keep a working fire extinguisher in the work area.
TOXIC FLUID OR FUMES HAZARD
Toxic fluids or fumes can cause serious injury or death if splashed in the eyes or on skin, inhaled, or swallowed.
• Read MSDS’s to know the specific hazards of the fluids you are using.
• Store hazardous fluid in approved containers, and dispose of it according to applicable guidelines.
• Always wear impervious gloves when spraying or cleaning equipment.
PERSONAL PROTECTIVE EQUIPMENT
You must wear appropriate protective equipment when operating, servicing, or when in the operating area
of the equipment to help protect you from serious injury, including eye injury, inhalation of toxic fumes,
burns, and hearing loss. This equipment includes but is not limited to:
• Protective eyewear
• Clothing and respirator as recommended by the fluid and solvent manufacturer
•Gloves
• Hearing protection
4 312484C
Page 5
Installation
Installation
General Information
Reference numbers and letters in parentheses in the
text refer to the callouts in the figures and the parts
drawing.
Always use Genuine Graco Parts and Accessories,
available from your Graco distributor.
Grounding
• Pump: Use a ground wire and clamp. See separate
system manual.
• Hydraulic, and fluid hoses: Use only electrically
conductive hoses.
• Hydraulic power supply: Follow manufacturer's
recommendations.
• Spray gun: Ground through connection to a prop-
erly grounded fluid hose and pump.
• Fluid supply container: Follow your local code.
• Object being sprayed: Follow your local code.
Startup
Before each use, check the hydraulic fluid level and add
fluid as necessary to fill the lines.
FIRE AND EXPLOSION HAZARD
If hydraulic oil becomes too hot, it can reach its flash
point and cause a fire. Operating at too high an oil temperature can also cause faster motor seal wear and
leakage. The recommended hydraulic oil operating
temperature is 80 to 115° F (27 to 45° C). If the oil temperature approaches 130° F (54° C), shut off the motor
and check the hydraulic oil supply cooling system, filters, etc. Clean or repair as needed.
Always use Graco-approved Hydraulic Oil or equivalent
(see Accessories). Do not substitute a lower grade oil
or one with a lower flash point.
The equivalent is a premium, ISO grade 46
petroleum-based hydraulic oil containing rust and oxidation inhibitors and anti-wear agents. Before using
any other type of oil in this equipment, call your Graco
distributor. Unauthorized use of lesser grade oil or substitutes will void the warranty.
• Solvent pails used when flushing: Follow your
local code. Use only metal pails, which are conductive, placed on a grounded surface. Do not place the
pail on a nonconductive surface, such as paper or
cardboard, which interrupts the grounding continuity.
• To maintain grounding continuity when flushing or
relieving pressure, hold a metal part of the spray
gun firmly to the side of a grounded metal pail, then
trigger the gun.
312484C 5
Page 6
Installation
Pressure Relief Procedure
SKIN INJECTION HAZARD
The system pressure must be manually relieved to
prevent the system from starting or spraying accidentally. Fluid under high pressure can be injected
through the skin and cause serious injury. To reduce
the risk of an injury from injection, splashing fluid, or
moving parts, follow the Pressure Relief Procedure
whenever you:
• are instructed to relieve the pressure,
• stop spraying,
• check or service any of the system equipment,
• or install or clean the spray tip.
1. Engage the gun safety latch.
2. Shut off the hydraulic power supply.
3. Close the supply line shutoff valve, and then the
return line shutoff valve.
4. Disengage the gun safety latch.
5. Hold a metal part of the gun firmly to the side of a
grounded metal pail, and trigger the gun to relieve
pressure.
6. Engage the gun safety latch.
7. Open the drain valve (required in your system), and
have a container ready to catch drainage.
8. Leave the drain valve open until you are ready to
spray again.
If you suspect that the spray gun or hose is completely
clogged or that pressure has not been fully relieved after
following the steps above, very slowly loosen the hose
end coupling and relieve pressure gradually, then loosen
completely, then clear the valve or hose.
6 312484C
Page 7
Troubleshooting
Problem Cause Solution
Troubleshooting
Hydraulic Motor stops running. Worn valve or valve balls (3); broken
valve spring (18).
Broken trip rod (17), spring (12) or
retainers (11).
Poor performance or reduced efficiency.
Oil leaking around cylinder. Worn cylinder o-rings (2). Replace o-rings. See page 8.
Oil leaking around inlet or return tube
fittings.
Excessive oil in drain bottle, or bottle
needs frequent emptying.
Worn piston seals (5, 6, 7). Repair valve. See page 8.
Loose fittings or worn fitting o-rings
(31, 34, and 38).
Worn seals (2, 15, 14, and 49) in bottom cylinder cap.
Repair valve. See page 8.
Repair valve. See page 8.
Tighten nuts (27). See page 10.
Replace seals. See page 8.
Service
Required Tools
• Set of allen wrenches
• Set of socket or box wrenches
• Adjustable wrench
• Torque wrench
• Spanner wrench
• O-ring pick
• 10-24 unc-2b tap
•Vise
• Shallow metal or plastic pan (approx. 12 x 20 in.)
• Repair Tool 189305 (see page 14)
• Thread lubricant
• Lithium-base grease
• Fresh Loctiter 242 thread sealant and Loctiter
Primer T or Perma-Locr 115 thread sealant and
Perma-Bondr Surface Conditioner I
• Chlorinated solvent
312484C 7
Page 8
Service
Hydraulic Motor Disassembly
NOTE: Repair Kit 247557 is available. For best results,
use all the parts in the kit. Kit parts are marked with an
asterisk in the Parts List.
When disassembling, lay out all parts in sequence, to
make reassembly easier. Clean and inspect all parts for
wear or damage before reassembling. Replace as necessary.
1. Remove the hydraulic motor from the pump as
explained in the separate system manual. Lay it on
its side in a pan.
2. Unthread the tie rods (37) from the retainer (36) and
the tie plate, and pull them out through the top of the
hydraulic motor. It will be necessary to remove the
lower four nuts (27) and lockwashers (28).
3. Unscrew the four fluid tube nuts (N) and remove the

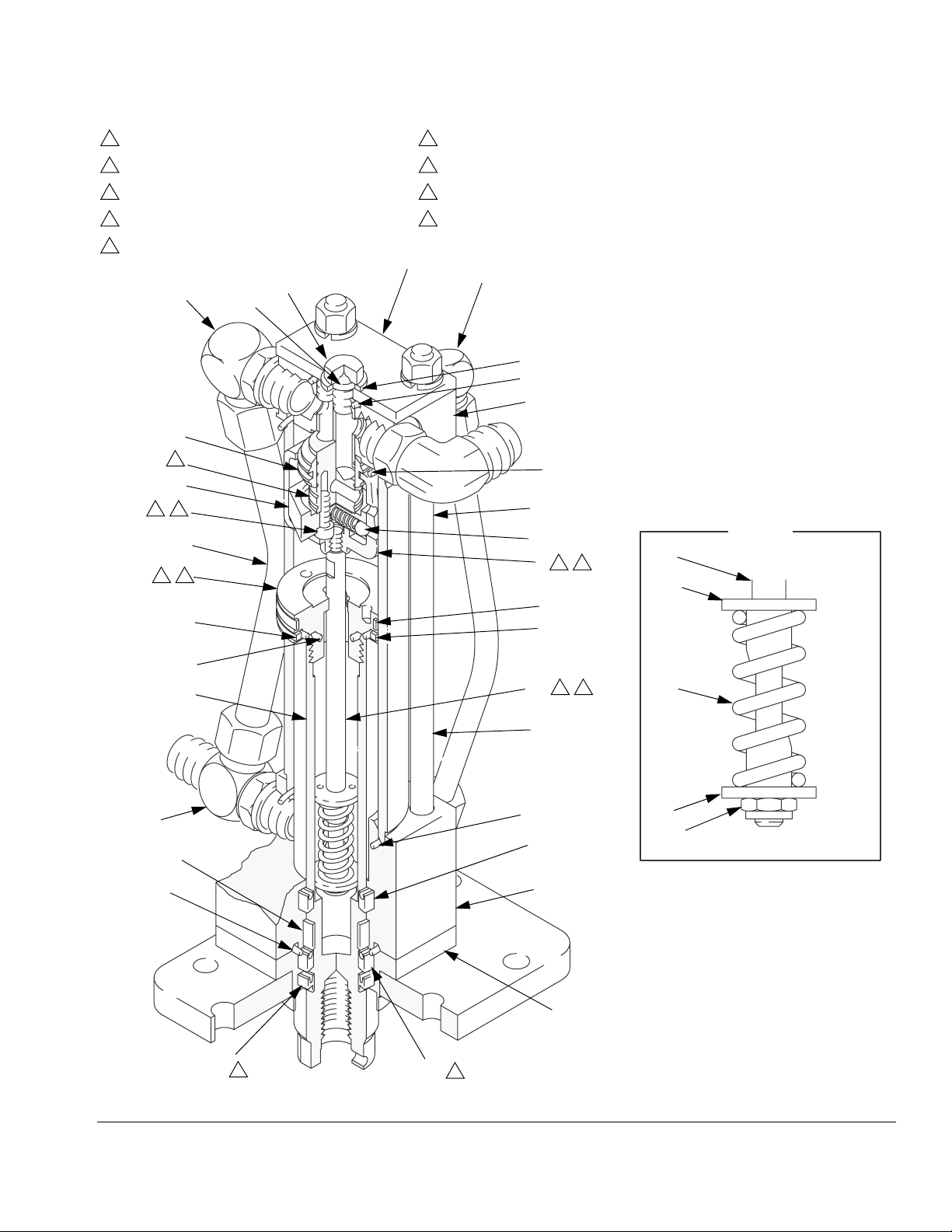

tubes (32, 39). See F
from the hydraulic motor, then plug the fluid fittings.
Keep the hydraulic system clean. Always plug the
hydraulic inlets, outlets and lines when disconnecting them for any reason to avoid introducing dirt and
other contaminants into the system.
4. Pull the top valve spool (1), cylinder (33), and displacement rod (9) together off the bottom cylinder
cap (35). Remove the o-ring (2) from the bottom
cap.
5. Grasp the valve spool(1) and pull the cylinder (33)
off. Slide the cylinder off the displacement rod (9).
Be careful not to damage the rod. Remove the
o-ring (2) from the valve spool.
IG. 1. Allow excess oil to drain
NOTICE
NOTE: If any of these parts are being reused, thor-
oughly clean any adhesive residue from the screws and
female threads of the spool. Use a surface cleaner such
as chlorinated solvent on the threads and blow dry with
compressed air. If necessary, use a 10-24 unc-2b tap to
remove adhesive from the female threads.
8. Remove the capscrew (23), sealing washer (22) and
o-ring (24) from the cap plate (29). Lift off the cap
plate and remove the o-ring (20).
9. Hold the flats of the displacement rod (9) in a vise
and use a spanner wrench in the pin holes of the
piston (16) to screw it off the rod. Remove the trip
rod (17) from the displacement rod.
NOTICE
Be careful not to scratch the outside of the displacement rod.
10. Unscrew the nut (48) and remove the retainers (11)
and spring (12) from the trip rod (17).
11. Slide the piston (16) off the trip rod (17). Remove
the bearing (5), seal (6), and o-rings (7 and 8) from
the piston.
12. Inspect the yoke (4) and trip rod (17) for damage. If
either part requires replacement, slide the yoke into
Repair Tool 189-305 and set the tool in a vise. See
F
IG. 2. Use a wrench on the flats of the trip rod and
unscrew the rod from the yoke.
13. Pull the housing retainer (36) away from the bottom
cylinder cap (35).
14. Remove the block packings (14 and 49), wiper (15),
bearing (13), and o-ring (2) from the housing
retainer and bottom cylinder cap.
6. Lay the valve spool (1) and displacement rod (9) on
a table. Place a clean rag around the yoke (4) to
prevent the detent balls (3) from popping out. Push
the yoke (4) sideways off the valve sleeve (19) while
holding the balls (3) and spring (18) with the rag,
then carefully remove the balls and spring.
7. Inspect the valve sleeve (19), valve stop (25), and
spool (S) for damage. See F
IG. 2. If any of these
parts requires replacement, unscrew the two screws
(26) holding the stop (25) to the spool (S). Remove
the stop and slide the sleeve (19) off the spool. If the
spool is damaged, replace the valve spool (1).
8 312484C
Page 9
Service
23
24
27
28
22
29
21
1
5
31
N
19
32
4
20
30
39
38
50
6
7
16
8
11
12
49
13
14
15
2
36
3
11
25
26
2
10
33
2
18
17
37
3
32 (Ref)
N
48
52
9
28
27
39 (Ref)
N
38
34
35
ti11189b
FIG. 1
312484C 9
Page 10
Service
Hydraulic Motor Reassembly
1. Install the block packing (14*) and wiper (15*) in the
housing retainer (36). The spring of the block packing and the lips of the wiper must face up. Install the
o-ring (2*) on the top surface of the retainer. See
F
IG. 2.
2. Install the bearing (13*) and block packing (49*) in
the bottom cylinder cap (35). The lips of the block
packing must face up.
3. Reassemble the housing retainer (36) and the bottom cylinder cap (35).
4. To reassemble the yoke (4) and trip rod (17), clean
the threads with primer or chlorinated solvent and
let dry for 3 to 4 minutes. Apply thread sealant to the
female threads of the yoke. Slide the yoke into
Repair Tool 189-305 and place the tool in a vise.
Using a wrench on the flats of the trip rod, screw the
rod into the yoke. Torque to 54 to 56 in-lb (6.1 to 6.3
N•m).
5. Install the bearing (5*), o-ring (7*), and seal (6*) on
the piston (16). Install the second o-ring (8*) on the
underside of the piston. Slide the piston onto the trip
rod (17) so the wide end of the piston faces the yoke
(4).
10. To assemble the valve mechanism, use Repair Tool
189305 as follows:
a. Slide the yoke (4) into the repair tool, as shown
in the Detail in F
IG. 2. Align the upper detent
holes (H) of the yoke with the center line of the
tool.
b. Insert the spring (18*) and one ball (3*) into the
valve stop (25). Tilt the valve stop and start
guiding it into the tool, making sure the ball is
sliding into the rounded slot in the tool.
c. Place the second ball (3*) at the other end of
the spring (18*) and push it in with your thumb
while rotating the valve stop (25) until the spring
is horizontal and the balls are in place. Continue
holding this assembly together.
d. Align the curved ends of the yoke with the valve
sleeve groove, then press the assemblies firmly
together. Make sure the balls snap into the
upper detent holes (H) of the yoke (4), and the
curved ends of the yoke engage the valve
sleeve (19) groove. To remove the tool, slide it
over the trip rod (17).
6. Install the retainers (11) and spring (12*) on the trip
rod (17). Thread the nut (48*) onto the rod until it
runs out of thread, so that it bottoms out on the
shoulder of the rod. See the Detail in F
IG. 2.
7. Hold the flats of the displacement rod (9) in a vise.
Slide the trip rod (17) into the displacement rod. Use
a spanner wrench in the pin holes of the piston (16)
to screw it into the displacement rod. Torque to 30 to
40 ft-lb (41 to 54 N•m).
8. Install the o-ring (20*) in the top cylinder cap (1),
then install the cap plate (29), o-ring (24*), sealing
washer (22), and capscrew (23).
9. To reassemble the valve sleeve (19) and valve stop
(25), slide the sleeve (19) onto the valve spool (S).
(Either side of the sleeve can face up.) Apply primer
to the threads of the screws (26) and let dry for 3 to
4 minutes. Apply 1 or 2 drops of thread sealant to
the female threads of the spool (S). Install the stop
(25) and torque the screws (26) to 42 to 45 in-lb (4.7
to 5.1 N•m).
11. Place the bottom cylinder cap (35) in a vise. Install
the o-ring (2*) in the cap. Set the cylinder (33) on
the bottom cap.
12. Install the o-ring (2*) in the top valve spool (1). Make
sure the hydraulic fittings (31, 34, and 38) are oriented as shown in F
IG. 1, then slide the displace-
ment rod (9) and piston (16) into the cylinder (33)
until it seats in the top cap.
NOTICE
When inserting the piston into the cylinder, carefully
guide the piston seal (6*) and bearing (5*) to prevent damage to these parts.
13. Install the tie rods (37). If the nuts and washers were
removed, screw them onto the ends with short
threads.
14. Remove the plugs from the fluid fittings (31, 34, and
38). Install the tubes (32, 39) and tighten the four
fluid tube nuts (N).
15. Install the hydraulic motor on the pump as explained
in the separate system manual.
10 312484C
Page 11
Service
1
Spring faces up.
2
Lips face up.
3
Apply thread sealant to female threads.
4
Torque to 54 to 56 in.-lb (6.1 to 6.3 N•m).
5
Wide end faces yoke (4).
31
23
24
19
7
S
25
6 8
26
32
16
5 9
7
6
Apply primer to threads and let dry 3 to 4 minutes
7
Apply 1 or 2 drops of thread sealant to female threads.
8
Torque to 42 to 45 in.-lb (4.7 to 5.1 N•m).
9
Torque to 30 to 40 ft-lb (41 to 54 N•m).
29
38
22
20
1
2
37
3, 18
4
3 6
5
6
DETAIL
17
11
FIG. 2
34
13
2
8
17
9
4 6
12
33
2
49
11
48
ti11188a
35
36
ti11190a
15
2
14
1
312484C 11
Page 12
Viscount I Hydraulic Motor Parts
Viscount I Hydraulic Motor Parts
Model 255345, Series A
23
24
22
1
31
N
19
3
32
21
27
28
29
4
20
30
39
38
50
5
6
7
16
8
11
12
11
49
13
14
15
2
36
25
26
2
10
33
2
18
17
37
3
32 (Ref)
N
34
35
48
52
9
28
27
39 (Ref)
N
38
ti11189b
12 312484C
Page 13
Model 255435, Series A
Viscount I Hydraulic Motor Parts
Ref.
No. Part No. Description Qty.
1* VALVE, spool 1
2* 106274 O-RING; buna-N 3
3* BALL; carbon steel 2
4* YOKE, valve 1
5* 178207 BEARING, piston; bronze-filled
PTFE
6* 178226 SEAL, piston; glass-filled PTFE 1
7* 108014 O-RING; buna-N 1
8* 105765 O-RING; buna-N 1
9* ROD, displacement 1
10▲ 188070 LABEL, warning 1
11* RETAINER, spring 2
12* SPRING, compression 1
13 112342 BEARING, rod; bronze-filled PTFE 1
14 112340 PACKING, block; nitrile rubber 1
15 112341 WIPER, rod; nitrile rubber 1
16* PISTON 1
17* ROD, trip 1
18* SPRING, compression 1
19* SLEEVE, valve 1
20* 104093 O-RING; buna-N 1
21* 103147 PLUG, pipe
22 178179 WASHER, sealing 1
23 106276 SCREW, cap, hex hd; 3/8-24
unf-2a; 0.625 (16 mm) long
24* 155685 O-RING; buna-N 1
25* STOP, valve 1
26* SCREW, cap, socket hd;
10-24 unrc-3a; 0.625 (16 mm) long 2
27 106292 NUT, hex; 3/8-24 unf-2b 8
28 100133 WASHER, lock; 3/8 in. size 8
29 178181 PLATE, cap 1
30* CAP, cylinder top 1
31 106470 ELBOW, 90_; 3/4-16 unf-2a;
fits 1/2 in. (13 mm) diameter tube 1
32 236419 TUBE, inlet; w/3/4-16 unf-2b fittings 1
33 178229 CYLINDER 1
34 113584 TEE; 3/4-16 unf-2a 1
35 189073 CAP, cylinder, bottom 1
36 189074 RETAINER, housing 1
37 189075 ROD, tie 4
38 110792 ELBOW, 90_; 7/16-20 unf-2a x
9/16-18 unf-2a;
fits 3/8 in. (10 mm) diameter tube 2
Ref.
No. Part No. Description Qty.
39 236420 TUBE, drain; w/9/16-18 unf-2b fit-
tings
48* NUT, hex, self locking;
1/4-28 UNF-2B 1
49 112561 PACKING, block; urethane 1
1
50 113585 ELBOW, 90_; 7/8-14 unf 2a x
3/4-16 unf-2a; 1
52 191216 PLATE, tie 1
53 189305 TOOL, assy (used to assemble Kit
247557)
* These parts are included in Repair Kit 247557, which
may be purchased separately. See manual 312486.
▲ Replacement Danger and Warning labels, tags and
cards are available at no cost.
1
312484C 13
Page 14
Accessories
Accessories
NOTE: Use Only Genuine Graco Parts and Accesso-
ries.
Graco-Approved Hydraulic Fluid
Premium, ISO Grade 46 petroleum-based hydraulic oil
containing rust and oxidation exhibitors and anti-wear
agents. 210° F (99° C) Flash Point.
Parts Description
169236 5 gallon (20 liter)
207428 1 gallon (3.8 liter)
Technical Data
Maximum hydraulic fluid input pressure . . . . . . . . . . . . . . 1,500 psi (10 MPa, 102 bar)
Maximum hydraulic fluid input volume . . . . . . . . . . . . . . . 3 gpm (11.3 liter/min)
Fluid consumption rate. . . . . . . . . . . . . . . . . . . . . . . . . . . 6.5 ounces (0.195 liter) per cycle or 1 gallon per 19.5
cycles
Minimum operating temperature . . . . . . . . . . . . . . . . . . . 40° F (4° C)
Maximum water content of hydraulic fluid . . . . . . . . . . . . 1 percent
Maximum fluid temperature . . . . . . . . . . . . . . . . . . . . . . . 130° F (54° C)
Effective piston area. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Piston rod diameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 3/8 in. (34.9 mm)
Stroke. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 in. (101.6 mm)
Thrust at 1,500 psi (10 MPa, 102 bar) . . . . . . . . . . . . . . . 2,220 lb (9,875 N)
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17.5 lb (7.93 Kg)
1.48 sq in. (9.55 cm
2
)
Loctite® is a registered trademark of the Loctite Corporation.
®
Perma-Loc
14 312484C
and Perma-Bond® are registered trademarks of Perma-Loc Company.
Page 15
Notes
Notes
312484C 15
Page 16
Graco Standard Warranty
Graco warrants all equipment referenced in this document which is manufactured by Graco and bearing its name to be free from defects in
material and workmanship on the date of sale to the original purchaser for use. With the exception of any special, extended, or limited warranty
published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by
Graco to be defective. This warranty applies only when the equipment is installed, operated and maintained in accordance with Graco’s written
recommendations.
This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear caused by faulty
installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or substitution of
non-Graco component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the incompatibility of Graco equipment with
structures, accessories, equipment or materials not supplied by Graco, or the improper design, manufacture, installation, operation or
maintenance of structures, accessories, equipment or materials not supplied by Graco.
This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor for verification of
the claimed defect. If the claimed defect is verified, Graco will repair or replace free of charge any defective parts. The equipment will be returned
to the original purchaser transportation prepaid. If inspection of the equipment does not disclose any defect in material or workmanship, repairs will
be made at a reasonable charge, which charges may include the costs of parts, labor, and transportation.
THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED
TO WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.
Graco’s sole obligation and buyer’s sole remedy for any breach of warranty shall be as set forth above. The buyer agrees that no other remedy
(including, but not limited to, incidental or consequential damages for lost profits, lost sales, injury to person or property, or any other incidental or
consequential loss) shall be available. Any action for breach of warranty must be brought within two (2) years of the date of sale.
GRACO MAKES NO WARRANTY, AND DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, IN CONNECTION WITH ACCESSORIES, EQUIPMENT, MATERIALS OR COMPONENTS SOLD BUT NOT
MANUFACTURED BY GRACO. These items sold, but not manufactured by Graco (such as electric motors, switches, hose, etc.), are subject to
the warranty, if any, of their manufacturer. Graco will provide purchaser with reasonable assistance in making any claim for breach of these
warranties.
In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from Graco supplying equipment hereunder, or
the furnishing, performance, or use of any products or other goods sold hereto, whether due to a breach of contract, breach of warranty, the
negligence of Graco, or otherwise.
FOR GRACO CANADA CUSTOMERS
The Parties acknowledge that they have required that the present document, as well as all documents, notices and legal proceedings entered into,
given or instituted pursuant hereto or relating directly or indirectly hereto, be drawn up in English. Les parties reconnaissent avoir convenu que la
rédaction du présente document sera en Anglais, ainsi que tous documents, avis et procédures judiciaires exécutés, donnés ou intentés, à la suite
de ou en rapport, directement ou indirectement, avec les procédures concernées.
Graco Information
For the latest information about Graco products, visit www.graco.com.
TO PLACE AN ORDER, contact your Graco distributor or call 1-800-690-2894 to identify the nearest distributor.
All written and visual data contained in this document reflects the latest product information available at the time of publication.
GRACO INC. AND SUBSIDIARIES • P.O. BOX 1441 • MINNEAPOLIS MN 55440-1441 • USA
Copyright 2007, Graco Inc. All Graco manufacturing locations are registered to ISO 9001.
Graco reserves the right to make changes at any time without notice.
For patent information, see www.graco.com/patents.
Original instructions. This manual contains English. MM 312484
Graco Headquarters: Minneapolis
International Offices: Belgium, China, Japan, Korea
www.graco.com
Revised September 2012
Loading...
