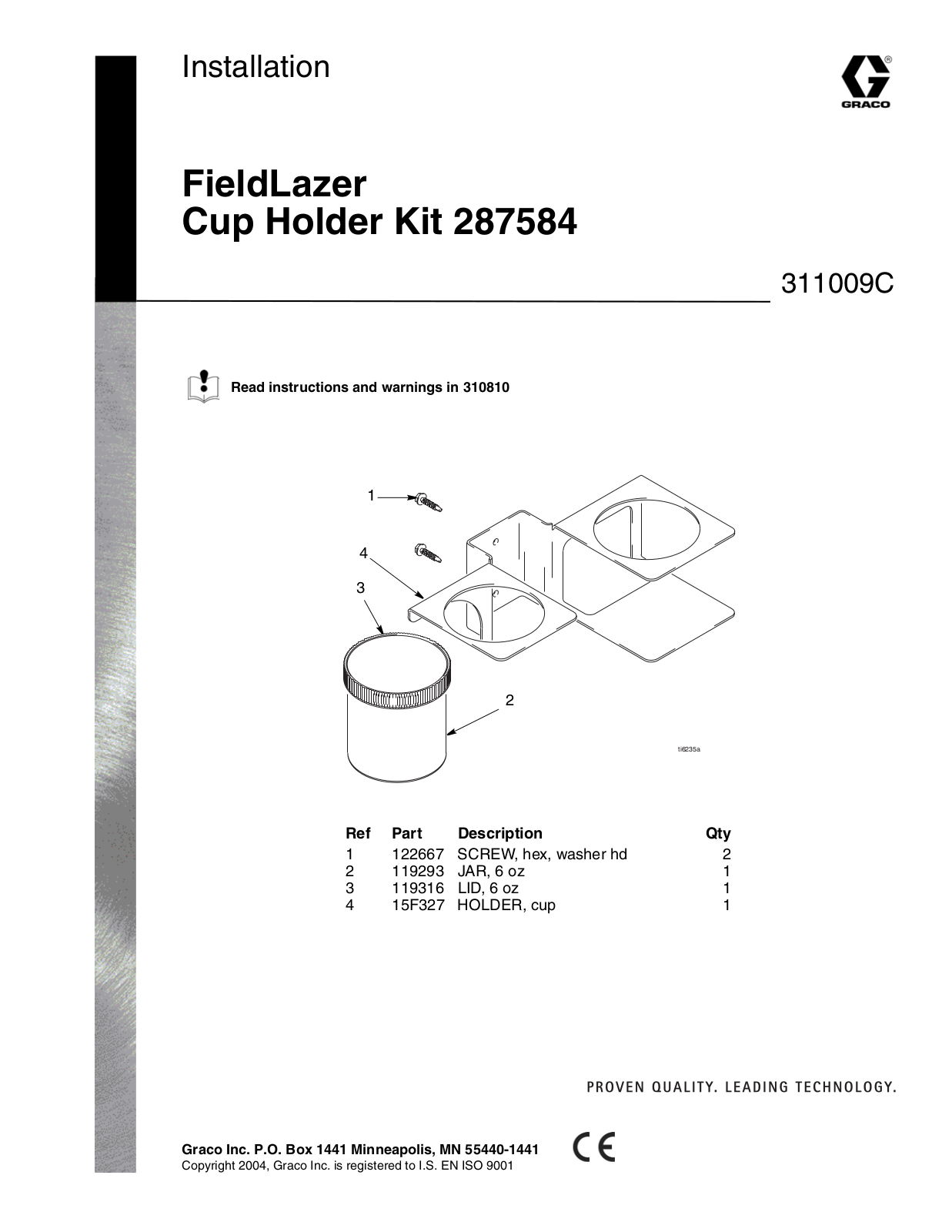

Installation

FieldLazer
Cup Holder Kit 287584

Read instructions and warnings in 310810

1

311009C

4

3

2

ti6235a

Ref Part Description Qty

1 122667 SCREW, hex, washer hd 2
2 119293 JAR, 6 oz 1
3 119316 LID, 6 oz 1
4 15F327 HOLDER, cup 1

Graco Inc. P.O. Box 1441 Minneapolis, MN 55440-1441

Copyright 2004, Graco Inc. is registered to I.S. EN ISO 9001

ti6237a

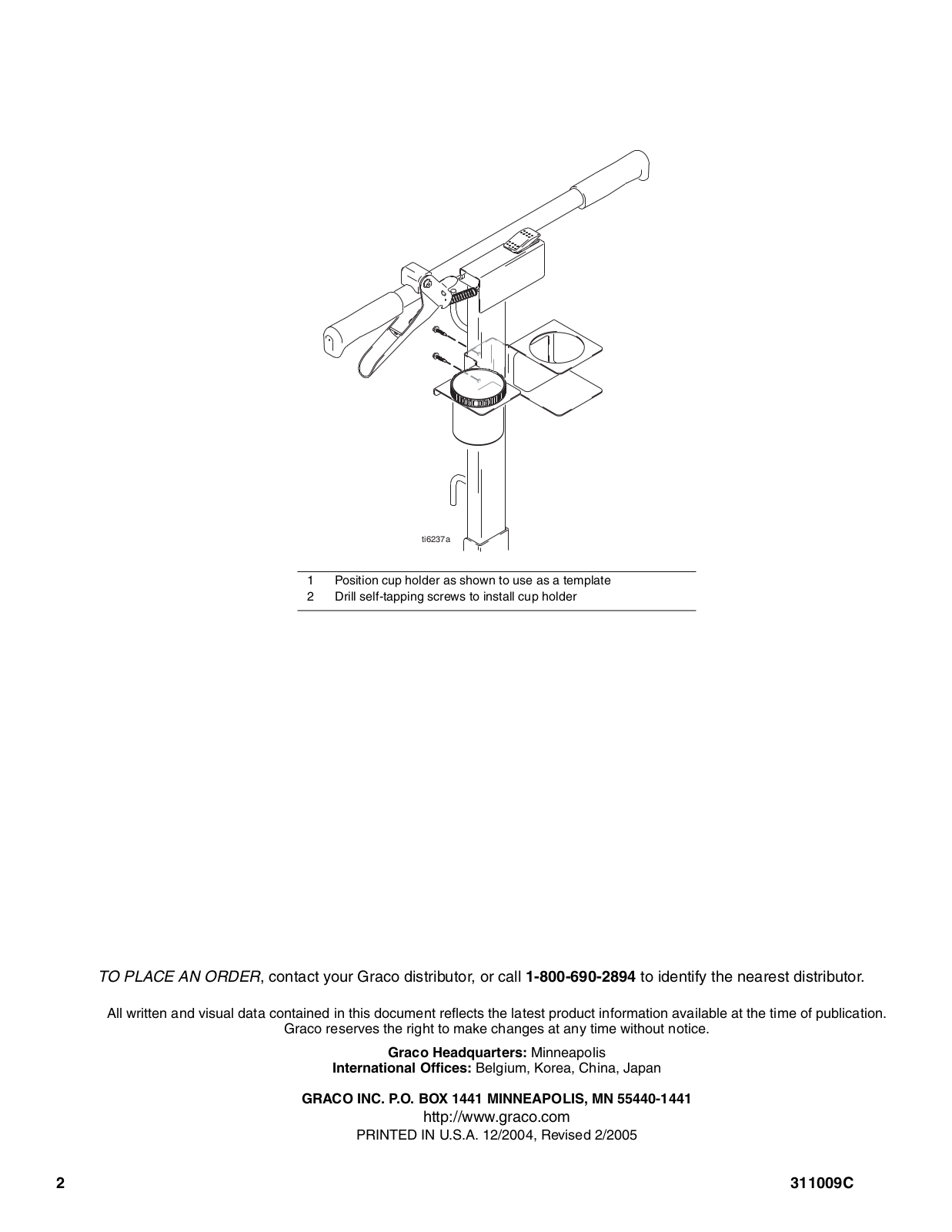

1 Position cup holder as shown to use as a template
2 Drill self-tapping screws to install cup holder

TO PLACE AN ORDER, contact your Graco distributor, or call 1-800-690-2894 to identify the nearest distributor.

All written and visual data contained in this document reflects the latest product information available at the time of publication.

Graco reserves the right to make changes at any time without notice.

Graco Headquarters: Minneapolis

International Offices: Belgium, Korea, China, Japan

GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440-1441

http://www.graco.com

PRINTED IN U.S.A. 12/2004, Revised 2/2005

2 311009C
