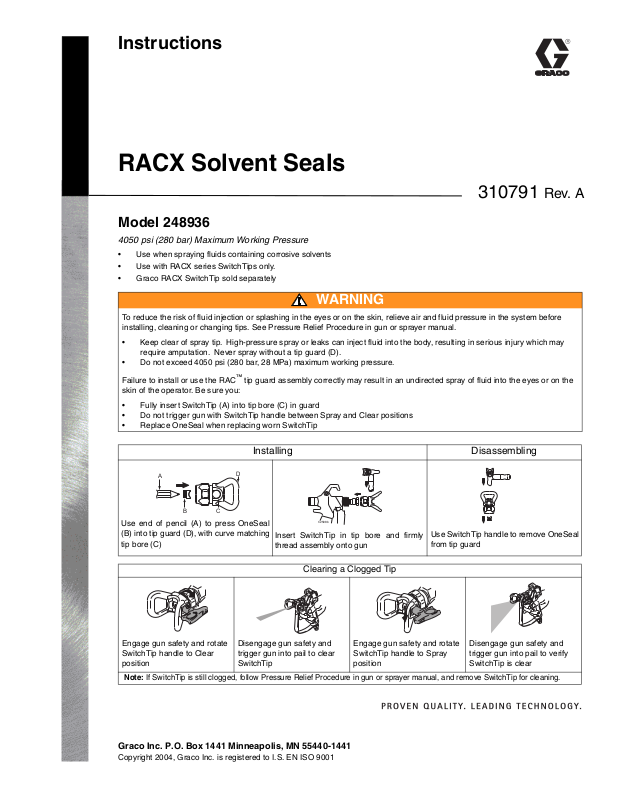

Instructions

RACX Solvent Seals

310791 Rev. A

Model 248936

4050 psi (280 bar) Maximum Working Pressure

• Use when spraying fluids containing corrosive solvents

• Use with RACX series SwitchTips only.

• Graco RACX SwitchTip sold separately

WARNING

To reduce the risk of fluid injection or splashing in the eyes or on the skin, relieve air and fluid pressure in the system before installing, cleaning or changing tips. See Pressure Relief Procedure in gun or sprayer manual.

• Keep clear of spray tip. High-pressure spray or leaks can inject fluid into the body, resulting in serious injury which ma require ampu

• Do not exceed 4050 psi (280 bar, 28 MPa) maximum working pressure.

Failure to install or use the RAC skin of the operator. Be sure you:

• Fully insert SwitchTip (A) into tip bore (C) in guard

• Do not trigger gun with SwitchTip handle between Spray and Clear positions

• Replace OneSeal when replacing worn SwitchTip

tation. Never spray without a tip guard (D).

™

tip guard assembly correctly may result in an undirected spray of fluid into the eyes or on the

Installing Disassembling

Use end of pencil (A) to press OneSeal (B) into tip guard (D), with curve matching tip bore (C)

Engage gun safety and rotate SwitchTip handle to Clear position

Note:

If SwitchTip is still clogged, follow Pressure Relief Procedure in gun or sprayer manual, and remove SwitchTip for cleaning.

Insert SwitchTip in tip bore and firmly thread assembly onto gun

Disengage gun safety and trigger gun into pail to clear SwitchTip

ti2508b

Clearing a Clogged Tip

Engage gun safety and rotate SwitchTip handle to Spray position

Use SwitchTip handle to remove OneSeal from tip guard

Disengage gun safety and trigger gun into pail to verify SwitchTip is clear
