Graco 310692C User Manual

Instructions - Parts

Delta Spray

For Airspray, HVLP, and Compliant guns with pressure, siphon, and gravity feeds

300 psi (2.1 MPa, 21bar) Maximum Working Fluid Pressure

100 psi (0.7 MPa, 7 bar) Maximum Working Air Pressure

Read warnings and instructions.

See page 4 for selection chart of models.

XT Gun

310692C

Graco Inc. P.O. Box 1441 Minneapolis, MN 55440-1441

ti4819

II 2 G

Contents

Manual Conventions

Manual Conventions . . . . . . . . . . . . . . . . . . . . . . . . 2

Related Manuals . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Selection Charts . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Gun Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Air Caps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Nozzle, Needle, and Tip Selection . . . . . . . . . . . . . 7

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Manual Conventions

WARNING

WARNING indicates a potentially hazardous situation

which, if not avoided, could result in death or serious injury.

Warnings included in instructions generally have a symbol indicating the hazard. Follow the instructions and read the hazard section on warning page 3 for additional information.

Daily Gun Maintenance . . . . . . . . . . . . . . . . . . . . . 14

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Graco Standard Warranty . . . . . . . . . . . . . . . . . . . 34

Graco Information . . . . . . . . . . . . . . . . . . . . . . . . . 34

CAUTION

CAUTION indicates a potentially hazardous situation

which, if not avoided, may result in property damage or destruction of equipment.

Note

A note indicates additional helpful information.

Related Manuals

The Delta Spray XT manual is also available in the following languages. See chart below for specific language and part number.

French

German

Italian

Spanish

Finnish

2 310692C

310779

310780

310781

310782

310783

Danish

Norwegian

Swedish

Dutch

Japanese

Korean

Chinese

310784

310785

310786

310787

310788

310789

310790

Warnings

The following warnings include general safety information for this equipment. More specific warnings are included in the text where applicable.

WARNING

FIRE AND EXPLOSION HAZARD - FE CED/IND General

Flammable fumes, such as solvent and paint fumes, in work area can ignite or explode. To help prevent fire and explosion:

• Use equipment only in well ventilated area.

• Eliminate all ignition sources; such as pilot lights, cigarettes, portable electric lamps, and plastic drop cloths (potential static arc).

• Keep work area free of debris, including solvent, rags and gasoline.

• Do not plug or unplug power cords, or turn power or light switches on or off when flammable fumes are present.

• Ground equipment and conductive objects in work area. See Grounding instructions.

• Use only grounded hoses.

• Hold gun firmly to side of grounded pail when triggering into pail.

• If there is static sparking or you feel a shock, stop operation immediately. Do not use equipment until you identify and correct the problem.

PRESSURIZED EQUIPMENT HAZARD

Fluid from the gun/dispense valve, leaks, or ruptured components can splash in the eyes or on skin and cause serious injury.

• Follow Pressure Relief Procedure in this manual, when you stop spraying and before cleaning, checking, or servicing equipment.

• Tighten all fluid connections before operating the equipment.

• Check hoses, tubes, and couplings daily. Replace worn or damaged parts immediately.

EQUIPMENT MISUSE HAZARD

Misuse can cause death or serious injury.

• Do not exceed the maximum working pressure or temperature rating of the lowest rated system component. See Technical Data in all equipment manuals.

• Use fluids and solvents that are compatible with equipment wetted parts. See Technical Data in all equipment manuals. Read fluid and solvent manufacturer’s warnings.

• Check equipment daily. Repair or replace worn or damaged parts immediately.

• Do not alter or modify equipment.

• For professional use only.

• Use equipment only for its intended purpose. Call your Graco distributor for information.

• Route hoses and cables away from traffic areas, sharp edges, moving parts, and hot surfaces.

• Do not use hoses to pull equipment.

• Comply with all applicable safety regulations.

TOXIC FLUID OR FUMES HAZARD

Toxic fluids or fumes can cause serious injury or death if splashed in the eyes or on skin, inhaled, or swallowed.

• Read MSDS’s to know the specific hazards of the fluids you are using.

• Store hazardous fluid in approved containers, and dispose of it according to applicable guidelines.

310692C 3

Selection Charts

Pressure feed spray guns

Orifice Size

in. (mm) HVLP Compliant Airspray

.030 (0.75) 234647 234693 234636

.042 (1.0) 234648 234694 234637

.055 (1.4) 234649 234695 234638

.070 (1.8) 234650 234696 234639

.086 (2.2) 234651 234640

.110 (2.8) 234652 234641

.042 (1.0) 234653* 234644*

.055 (1.4 234654* 234645*

.070 (1.8) 234655* 234646*

Selection Charts

*Guns included with hardened SST needle tips, and nozzles

Pressure feed spray guns with 1 quart pressure feed cup 239802

Orifice Size

in. (mm) HVLP

.042 (1.0) 234709

.055 (1.4) 234710

.070 (1.8) 234711

.086 (2.2) 234712

Siphon feed spray guns

Spray Gun with 1 quart

Orifice Size

in. (mm)

.055 (1.4) 234695 234642 234732 234718

.070 (1.8) 234696 234643 234733 234719

Spray Gun Only

Compliant Airspray Compliant Airspray

SST cup

4 310692C

Gravity feed spray guns (without gravity cup)

Orifice size

in. (mm) HVLP Compliant Airspray

.055 (1.4) 234658 234685 234662

.070 (1.8) 234659 234686 234663

Gravity feed spray guns with 16 oz. gravity cup

Orifice size

in. (mm) HVLP Compliant Airspray

.055 (1.4) 234713 234721 234705

.070 (1.8) 234714 234722 234706

Selection Charts

Gravity feed spray guns with 3M

Orifice Size

in. (mm) HVLP Compliant Airspray

.055 (1.4) 234681 234689 234677

.070 (1.8) 234682 234690 234678

™

PPS™ gravity cup

310692C 5

Gun Selection

HVLP Guns

An HVLP gun is a high transfer efficiency gun which limits the air pressure at the aircap to 10 psi maximum. In some areas, an HVLP gun is required for compliance with environmental standards.

Air Caps

The chart below lists the air caps available for pressure feed, gravity, and siphon feed guns.

Typical Pattern

Spray Gun

Air Cap

Width*

in. (mm) Gun Feed

Compliant Guns

A compliant gun is a high transfer efficiency gun which has been tested to have a transfer efficiency greater than or equal to HVLP guns. The Graco compliant guns have no restrictions on aircap pressures, but the gun inlet pressure must remain under 29 psi (21 MPa 2.1 bar) to remain in compliance.

Airspray Guns

Excellent atomization and high production rates typically with some reduction in transfer efficiency.

Nozzle Orifice

in. (mm)

Part

Number

HVLP 321 15 (381) Pressure Feed .030-.070

(.75-1.8)

HVLP 322 15 (381) Pressure Feed .086 (2.2) 234754

HVLP 323 15 (381) Pressure Feed .110 (2.8) 234755

HVLP 320 12 (305) Gravity/Siphon

Feed

Compliant 006 11 (279) All Models .030-.070

Airspray 315 13 (330) Pressure Feed .030-.070

Airspray 318 10 (254) Pressure Feed .086 (2.2) 234760

Airspray 319 10 (254) Pressure Feed .110 (2.8) 234761

Airspray 317 9 (229) Gravity/Siphon

Feed

Airspray 313 10 (254) Pressure Feed .030-.070

Airspray 316 10 (254) Pressure Feed .030-.070

* Measured with gun nozzle 8 in. (203 mm) from target surface.

.030-.070

(.75-1.8)

.030-.070

(.75-1.8)

234753

234752

234762

234757

234759

234756

234758

6 310692C

Nozzle, Needle, and Tip Selection

The chart below lists the available nozzle sizes and required fluid needle and nozzles for the Delta Spray XT guns. The HVLP, Compliant, and Airspray guns all use the same nozzle design and fluid needles. When spraying high flow rates and high viscosity materials use the larger nozzle sizes and when spraying light materials or low flow rates, use the smaller nozzle sizes.

Nozzle Orifice

in.

(mm) Nozzle

Fluid

Needle

Assy.

Needle

Tip

Needle/Nozzle

Kit

Nozzle, Needle, and Tip Selection

Typi c al

Uses

.030

(.75)

.042 (1.0)

.051 (1.3)

.055 (1.4)

.059 (1.5)

.070 (1.8)

.086 (2.2)

.110 (2.8)

.042 (1.0)

.055 (1.4)

.070 (1.8)

234741 234765 234777 234829 Light

Stains

234742 234765 234777 234830

234743 234767 234778 234831 Low

Viscosity

234744 234767 234778 234832

234745 234767 234778 234833 Medium

Viscosity

234746 234767 234778 234834

234747 234769 234779 234835 High

Viscosity-

Adhesives

234748 234770 234780 234836

234749 234766 234781* 234774 Nozzle

and

234750 234768 234782* 234775

234751 234768 234782* 234776

needle tip

made from

hardened

stainless

steel for

longer life

low flow

high flow

* Use with shut off spring 110402, see parts page 26.

310692C 7

Installation

Top and bottom feed guns

Installation

ti4819

IG. 1

Key:

A Delta Spray XT Gun B Fluid Inlet, 3/8 npsm (R3/8-19)* CAir Inlet D Air Hose

recommended 5/16 in. (7.9 mm) ID hose optional 3/8 in. (9.5 mm) ID hose

E Air Shutoff Valve F Air Regulator GAir Filter H Air Supply Line

*Pressure and siphon feed guns will have bottom feed insert. Gravity feed guns will have a top feed insert.

8 310692C

Setup

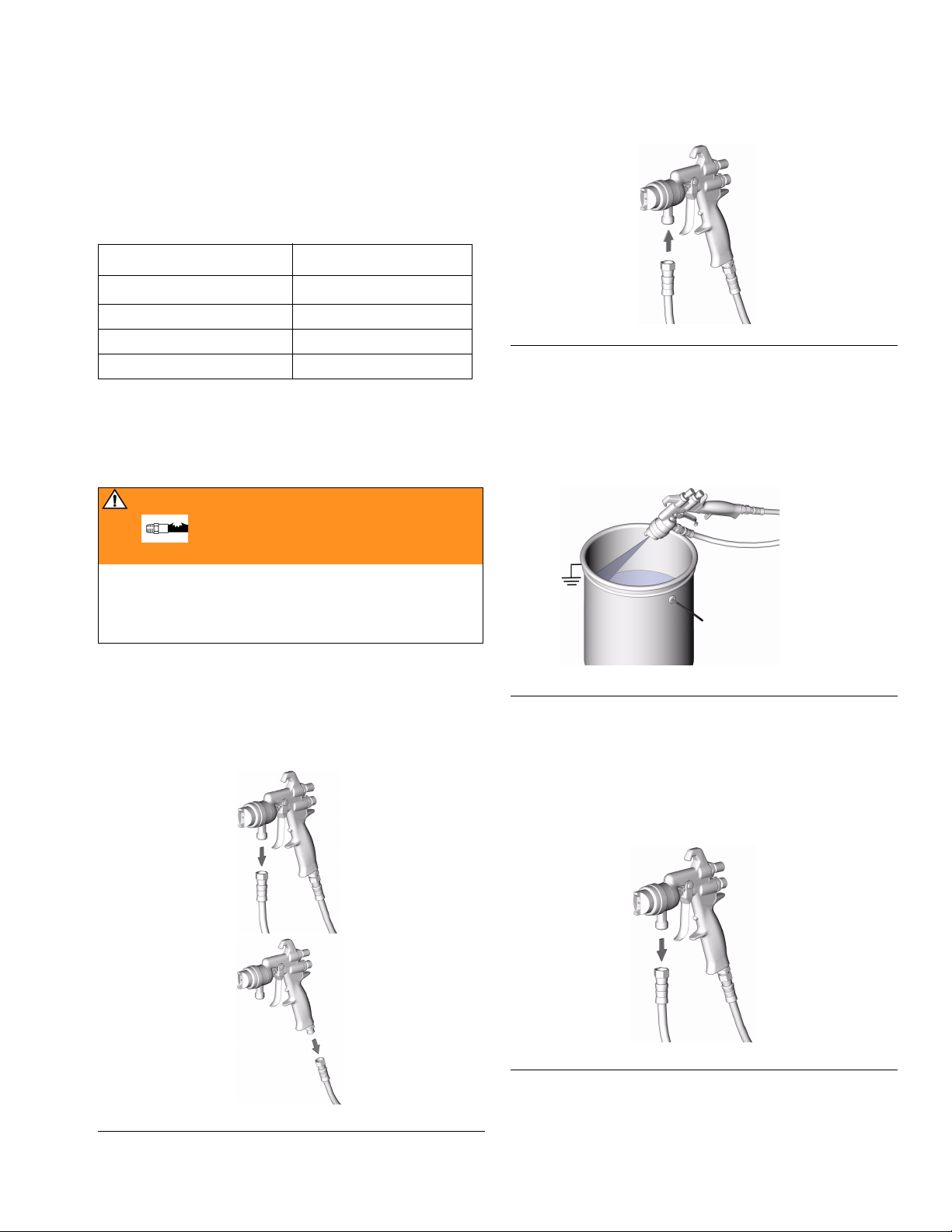

Flushing the gun

Flush the spray gun before putting any paint through the gun.

WAR NING

Read warnings, page 3. Follow Top and bottom feed guns installation, page 8.

1. To flush the gun, use a solvent that is compatible with paint to be sprayed. Hold a metal part of the gun firmly to a grounded metal pail. Trigger the gun to flush solvent through gun.

3. Install an air filter (G). See F

4. Use a 5/16 inch (7.9 mm) I.D. air hose to minimize excessive pressure drop in the hose.

5. Connect the air hose (D) to the 1/4 npsm gun air inlet (C).

FIG. 3

6. Connect the other end of the air hose (D) to a regulated air supply line.

IG. 1.

ti4837a

ti4836a

IG. 2

ti4838a

IG. 4

Connecting the air line

2. Install an air pressure regulator (F). See FIG. 1.

310692C 9

Setup

Connecting the fluid hose

(Pressure feed guns only)

1. To control fluid pressure to the gun, install a fluid regulator on the fluid line.

2. Connect the fluid hose (J) to the gun fluid inlet (B) 3/8-18 npsm [R 3/8-19] compound thread.

ti4854a

IG. 5

3. Connect the other end of the fluid hose (J) to a regulated fluid supply line.

Connecting the fluid supply

For packages that include fluid cups, use the following chart for installation instructions.

Cup attachment Instruction Manual

3M PPS 310693

Gravity Cup 308792

Siphon Cup 308792

Pressure Cups 308791

Positioning the Air Cap

Rotate the air cap as needed to achieve the desired spray pattern direction. To create a round pattern, turn the pattern air off by turning the pattern adjustment knob (25) fully clockwise. See F

IG. 7.

ti4839a

IG. 6

10 310692C

Setup

Adjusting the Spray Pattern

1. To achieve full fan pattern, open the pattern adjustment valve (25) by turning the knob fully counterclockwise.

(Close)

(Open)

ti4841a

IG. 7

2. Trigger gun and adjust gun air pressure:

Hose Inlet Air

Gun Inlet Air

Pressure

PSI (kpa, bar)

HVLP Gravity 29 (210, 2.1) 50 (345, 3.4)

HVLP

40 (280, 2.8) 72 (480, 4.8)

Pressure

Compliant 29 (210, 2.1) 41 (280, 2.8)

Airspray

40 (280, 2.8) 52 (345, 3.4)

gravity feed

Airspray

40 (280, 2.8) 56 (410 4.1)

pressure feed

Pressure

PSI (kPa, bar)

25 ft 5/16 in.

(7.9 mm) ID hose

3. To establish the correct fluid flow, turn the fluid adjustment knob (21) counterclockwise until no restriction of the trigger movement is felt, then turn out another half turn. When the knob is turned far enough, the trigger should be able to touch the gun handle when the gun is triggered.

(Open) (Close)

ti4840a

IG. 8

4. Pressure feed only: Adjust fluid pressure to achieve desired fluid flow rate

5. To reduce fluid flow, turn the fluid adjustment knob (21) clockwise.

• If the fluid adjustment knob is turned clockwise all the way, the gun will emit only air.

• If you cannot achieve the correct fluid flow with the fluid adjustment knob, a different sized nozzle may be necessary. For smaller fluid flow, use the next size smaller nozzle. For a larger fluid flow, use the next size larger nozzle.

WARINING

(Open) (Close)

PRESSURIZED EQUIPMENT HAZARD

To avoid injury, never open the fluid adjustment knob (21) beyond the one half turn indicated in step 3 in Adjusting the Spray Pattern. If the red band on the knob stem (21) is visible, the knob is not adjusted correctly and could result in serious injury. Repeat step 3 in Adjusting the Spray

IG. 9

ti4840a

Pattern.

6. Spray a test pattern. Evaluate the spray pattern size and atomization.

310692C 11
