Graco 310622ZAF User Manual

Instructions/Parts List

Model SA3AAA Shown

TI8760b

™

SaniForce

High Sanitation

Diaphragm Pumps

Models 1590 HS, 1590 3A, 3150 HS, 3150 3A

For use in sanitary applications. For professional use only.

See Models on page 3 for model numbers, descriptions, and compliance approvals.

120 psi (0.8 MPa, 8 bar) Maximum Fluid Working Pressure
120 psi (0.8 MPa, 8 bar) Maximum Air Input Pressure

Important Safety Instructions. Read
all warnings and instructions in this
manual. Save these instructions.

See page 2 for Table of Contents.

310622ZAF

EN

Contents

Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Models for Ram or BES Mounting . . . . . . . . . . . . 4

Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

General Information . . . . . . . . . . . . . . . . . . . . . . 8

Leak Detection System . . . . . . . . . . . . . . . . . . . . 8

Tighten Clamps Before First Use . . . . . . . . . . . . 8

Stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Grounding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Mountings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Air Line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Fluid Suction Line . . . . . . . . . . . . . . . . . . . . . . . . 9

Fluid Outlet Line . . . . . . . . . . . . . . . . . . . . . . . . 10

Typical Installation . . . . . . . . . . . . . . . . . . . . . . . 10

Changing the Orientation of the

Fluid Inlet and Outlet Ports . . . . . . . . . . . . . 11

Air Exhaust Ventilation . . . . . . . . . . . . . . . . . . . 12

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Pressure Relief Procedure . . . . . . . . . . . . . . . . 13

Sanitizing the Pump Before First Use . . . . . . . . 13

Starting and Adjusting the Pump . . . . . . . . . . . 13

Pump Shutdown . . . . . . . . . . . . . . . . . . . . . . . . 13

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Flushing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Routine Cleaning of Product Contact

Section of Pump . . . . . . . . . . . . . . . . . . . . . 14

Tightening Connections . . . . . . . . . . . . . . . . . . 14

Preventive Maintenance Schedule . . . . . . . . . . 15

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Repairing the Air Valve . . . . . . . . . . . . . . . . . . . 18

Check Valve Repair . . . . . . . . . . . . . . . . . . . . . . 21

Standard Diaphragm Repair . . . . . . . . . . . . . . . 23

3A/Overmolded Diaphragm Repair . . . . . . . . . . 26

Bearing and Air Gasket Removal . . . . . . . . . . . 28

Pump Matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

SaniForce 3150 Stainless Steel

Sanitary Pumps . . . . . . . . . . . . . . . . . . . . . 30

SaniForce 1590 Stainless Steel

Sanitary Pumps . . . . . . . . . . . . . . . . . . . . . 31

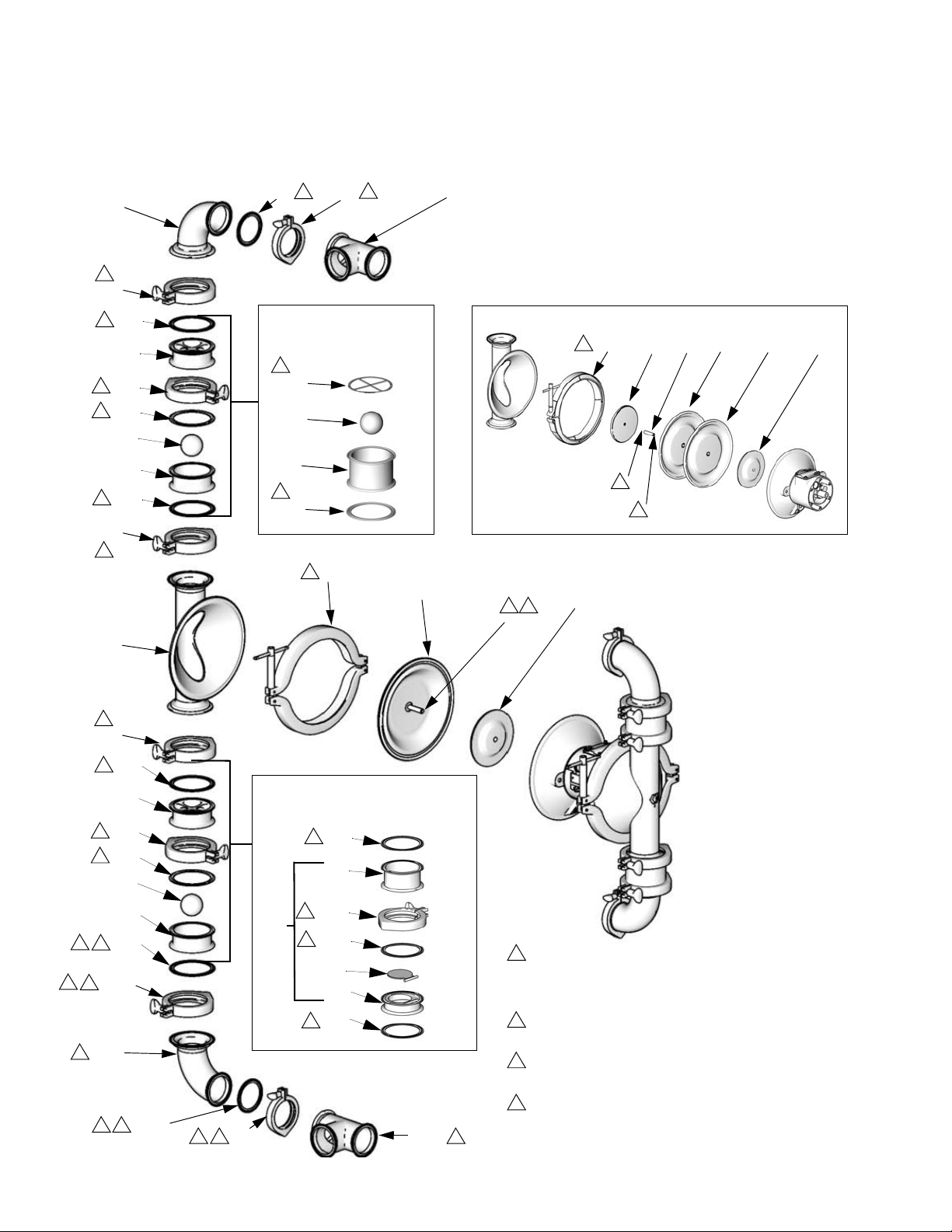

Parts Drawing, Fluid Section . . . . . . . . . . . . . . . . 32

Parts List, Fluid Section . . . . . . . . . . . . . . . . . . . . 33

Pump Configuration . . . . . . . . . . . . . . . . . . . . . . 33

Inlet and Outlet . . . . . . . . . . . . . . . . . . . . . . . . . 33

Diaphragm Material . . . . . . . . . . . . . . . . . . . . . . 35

Parts Drawing, Air Section and Stand . . . . . . . . . 38

Parts List, Air Section and Stand . . . . . . . . . . . . . 39

Air Section - All Models . . . . . . . . . . . . . . . . . . . 39

Leak Detector and Pump Stand . . . . . . . . . . . . 39

Kit 24N798

Hinge Repair Kit . . . . . . . . . . . . . . . . . . . . . 39

Kit 24N799

Quick-Release Pin Repair Kit . . . . . . . . . . . 39

Parts List, Models 248273, 248274, 24C124,

24E440, 24E667, 24J388, and 24J389 . . . . . . 40

Fluid Section Parts . . . . . . . . . . . . . . . . . . . . . . 40

Ball Check Parts . . . . . . . . . . . . . . . . . . . . . . . . 40

Flapper Check Parts . . . . . . . . . . . . . . . . . . . . . 40

Air Section Parts . . . . . . . . . . . . . . . . . . . . . . . . 40

Parts that Vary by Model . . . . . . . . . . . . . . . . . . 41

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

15D990 Leak Detector . . . . . . . . . . . . . . . . . . . . 42

3150 Conversion Kits . . . . . . . . . . . . . . . . . . . . . . . 42

15H461 3A Approved Ball Check

Conversion Kit . . . . . . . . . . . . . . . . . . . . . . . 42

16E975 Flapper Valve Conversion Kit . . . . . . . . 42

15E285 Sanitary Ball Check Conversion Kit . . . 42

Model 1590 Dimensional Drawing . . . . . . . . . . . . 44

Model 1590 Technical Data . . . . . . . . . . . . . . . . . . 45

Model 1590 Performance Chart . . . . . . . . . . . . . . 46

Model 3150 Dimensional Drawing . . . . . . . . . . . . 47

Model 3150 Technical Data . . . . . . . . . . . . . . . . . . 48

Model 3150 Performance Chart . . . . . . . . . . . . . . 49

Graco Warranties . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Graco Standard Pump Warranty . . . . . . . . . . . . 50

Extended Product Warranty . . . . . . . . . . . . . . . . 50

Graco Information . . . . . . . . . . . . . . . . . . . . . . . . . 50

2 310622ZAF

Models

44-03

II 2 G c T6

II 2 G c T6

44-03

II 2 G c T6

Model Series Connection Description

1590 SABAAA B Flange
3150 SA_AAA E Flange

Sanitary Diaphragm Pump

Models

Compliance

Approvals

3150 SA_3_ 1 E Flange
3150 SA73A1 A DIN
1590 SB_ _ _ _ B Flange
3150 SB_ _ _ 1 E Flange
3150 SB6881 A DIN
3150 SB7771 A DIN
3150 SB_ _ _ 3 D Flange
3150 SF_ _ F1 F Flange

3150 SF76F1 A DIN
3150 SA1AAA E Flange
3150 SA2AAA E Flange
3150 SA3AAA E Flange
3150 SA4AAA E Flange
3150 SA6AAA A DIN
3150 SA7AAA A DIN
1590 SADAAA A DIN
1590 SBBA11 B Flange
1590 SBDAAA A DIN
1590 SABA13 B Flange
1590 SBBA13 B Flange
3150 SA33A1 E Flange
3150 SA43A1 E Flange
3150 SA73A1 A DIN
3150 SB2AA1 E Flange
3150 SB3AA1 E Flange
3150 SF3AF1 F Flange
3150 SF4AF1 F Flange
3150 SFPAF1 F Flange
3150 SF7AF1 A DIN
3150 SF8AF1 A DIN

Heavy Duty Sanitary Ball Check Pump

Sanitary Ball Check Pump

Sanitary Flapper Check Pump3150 SF_ _ F3 E Flange

Sanitary Diaphragm Pump

Sanitary Ball Check Pump

Sanitary Flapper Check Pump

NOTE: See Pump Matrix, page 30, to determine the part number of configured pumps.

310622ZAF 3

Continued on next page.

Models

II 2 G c T6

II 2 G c T6

II 2 G c T6

Models for Ram or BES Mounting

24C124
(for ram and BES
mounting)

24J388
(for ram mounting)

248273
(for BES mounting)

24E440
(for BES mounting)

24J389
(for ram mounting)

24E667
(for BES mounting)

248274
(for BES mounting)

B 3150 Sanitary Ball Check Pump for Ram systems, with

EPDM overmolded diaphragms and PTFE check balls.
24C124 is the same as SA3AA3 except it does not
include a fluid inlet tee, elbows, and related parts.

B 3150 Sanitary Ball Check Pump for Ram systems, with

santoprene diaphragms and santoprene check balls.
24J388 is the same as SA3663, except it does not
include a fluid inlet tee, elbows, and related parts.

B 3150 Sanitary Ball Check Pump for Bin Evacuation Sys-

tems, with santoprene diaphragms and santoprene
check balls. 248273 is the same as SB3663 except it
does not include a fluid inlet tee, elbows, and related
parts.

B 3150 Sanitary Ball Check Pump for Bin Evacuation Sys-

tems, with EPDM overmolded diaphragms and PTFE
check balls. 24E440 is the same as SA3AA3 except it
does not include a fluid inlet tee, elbows, and related
parts. The clamp handles are positioned for use with
BES3F3.

B 3150 Sanitary Ball Check Pump for Ram Systems, with

PTFE/EPDM overmolded diaphragms and PTFE check
balls. 24J389 is the same as SA33A3 except it does not
include a fluid inlet tee, elbows, and related parts.

B 3150 Sanitary Ball Check Pump for Bin Evacuation Sys-

tems, with PTFE/EPDM overmolded diaphragms and
santoprene check balls. 24E667 is the same as
SB3363 except it does not include a fluid inlet tee,
elbows, and related parts.

B 3150 Sanitary Flapper Check Pump for Bin Evacuation

Systems, with santoprene diaphragms. 248274 is the
same as SF36F3 except it does not include a fluid inlet
tee, elbows, and related parts.

NOTE: See pages 40-41 for parts.

4 310622ZAF

Material Certification

Reference: SaniForce Product Family

Issue Date: September 14, 2011

All fluid contact materials in the SaniForce product family are FDA-Compliant and meet the United States
Code of Federal Regulations (CFR) Title 21, Section 177 or are of a corrosion resistant grade Stainless
Steel. This includes the below product groups:

1. SaniForce 1040, 1590, 2150 Air-Operated Double Diaphragm Pumps

2. SaniForce 1590, 3150 HS Air-0perated Double Diaphragm Pumps

3. SaniForce 1590, 3150 HS 3-A Certified Air-Operated Double Diaphragm Pumps

4. SaniForce 5:1, 6:1 and 12:1 Air-Operated Piston Pumps

5. SaniForce Diaphragm Pump and Piston Pump Drum Unloaders

6. SaniForce Diaphragm Pump and Piston Pump Bin Evacuation Systems

Bradley A. Byron
Quality Manager
Graco Inc.

Models

310622ZAF 5

Warnings

Warnings

The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclama­tion point symbol alerts you to a general warning and the hazard symbol refers to procedure-specific risk. When
these symbols appear in the body of this manual, refer back to these warnings. Additional, product-specific warnings
may be found throughout the body of this manual where applicable.

WARNING

FIRE AND EXPLOSION HAZARD

Flammable fumes, such as solvent and paint fumes, in work area can ignite or explode. To help prevent
fire and explosion:

• Use equipment only in well ventilated area.

• Eliminate all ignition sources; such as pilot lights, cigarettes, portable electric lamps, and plastic
drop cloths (potential static arc).

• Keep work area free of debris, including solvent, rags and gasoline.

• Do not plug or unplug power cords, or turn power or light switches on or off when flammable fumes
are present.

• Ground all equipment in the work area. See Grounding instructions.

• Use only grounded hoses.

• Hold gun firmly to side of grounded pail when triggering into pail.

• If there is static sparking or you feel a shock, stop operation immediately. Do not use equipment
until you identify and correct the problem.

• Keep a working fire extinguisher in the work area.

PRESSURIZED EQUIPMENT HAZARD

Fluid from the gun/dispense valve, leaks, or ruptured components can splash in the eyes or on skin and
cause serious injury.

• Follow the Pressure Relief Procedure when you stop spraying and before cleaning, checking, or
servicing equipment.

• Tighten all fluid connections before operating the equipment.

• Check hoses, tubes, and couplings daily. Replace worn or damaged parts immediately.

6 310622ZAF

Warnings

WARNING

EQUIPMENT MISUSE HAZARD

Misuse can cause death or serious injury.

• Do not operate the unit when fatigued or under the influence of drugs or alcohol.

• Do not exceed the maximum working pressure or temperature rating of the lowest rated system

component. See Technical Data in all equipment manuals.

• Use fluids and solvents that are compatible with equipment wetted parts. See Technical Data in all

equipment manuals. Read fluid and solvent manufacturer’s warnings. For complete information
about your material, request MSDS from distributor or retailer.

• Do not leave the work area while equipment is energized or under pressure. Turn off all equipment

and follow the Pressure Relief Procedure when equipment is not in use.

• Check equipment daily. Repair or replace worn or damaged parts immediately with genuine
manufacturer’s replacement parts only.

• Do not alter or modify equipment.

• Use equipment only for its intended purpose. Call your distributor for information.

• Route hoses and cables away from traffic areas, sharp edges, moving parts, and hot surfaces.

• Do not kink or over bend hoses or use hoses to pull equipment.

• Keep children and animals away from work area.

• Comply with all applicable safety regulations.

TOXIC FLUID OR FUMES HAZARD

Toxic fluids or fumes can cause serious injury or death if splashed in the eyes or on skin, inhaled, or
swallowed.

• Read MSDSs to know the specific hazards of the fluids you are using.

• Route exhaust away from work area. If diaphragm ruptures, fluid may be exhausted into the air.

• Store hazardous fluid in approved containers, and dispose of it according to applicable guidelines.

BURN HAZARD

Equipment surfaces and fluid that’s heated can become very hot during operation. To avoid severe
burns:

• Do not touch hot fluid or equipment.

PERSONAL PROTECTIVE EQUIPMENT

You must wear appropriate protective equipment when operating, servicing, or when in the operating
area of the equipment to help protect you from serious injury, including eye injury, hearing loss,
inhalation of toxic fumes, and burns. This equipment includes but is not limited to:

• Protective eyewear, and hearing protection.

• Respirators, protective clothing, and gloves as recommended by the fluid and solvent manufacturer.

310622ZAF 7

Installation

TI8765b

638e

Installation

General Information

• The typical installation shown in FIG. 3 is only a
guide for selecting and installing system compo­nents. Contact your Graco distributor for assistance
in planning a system to suit your needs.

• Always use genuine Graco parts and accessories.

• Reference numbers and letters in parentheses refer
to the callouts in the figures and the parts lists on
pages 32 - 41.

The pump is very heavy (see Technical Data on
pages 45 and 48 for specific weights). If the pump
must be moved, follow the Pressure Relief Proce-
dure on page 13 and have two people lift the pump
by grasping the outlet manifold securely, or use
appropriate lifting equipment. Never have one person
move or lift the pump.

Leak Detection System

NOTE: To drain or service the pump, pull on the

quick-release pins (638e, one on each side) to allow the
pump to rotate while still securely mounted to the
bracket.

F

IG. 1: Quick-release pins for pump rotation

Grounding

NOTE: A leak detection system is included with all

approved pumps. See manual 311200 included with
leak detector for leak detector installation instructions.

Tighten Clamps Before First Use

After you unpack the pump, and before you use it for the
first time, check all clamps, and tighten as necessary.

Stand

NOTE: See pages 38 and 39 for parts.

1. Place the stand assembly on a level surface.

2. Mount the pump securely to the brackets using bolts
provided.

Keep clear of moving parts.

Ground the pump and all other equipment used or
located in the pumping area. Grounding reduces the
risk of static and electric shock by providing an
escape wire for the electrical current due to static
build up or in the event of a short circuit. Check your
local electrical code for detailed grounding
instructions for your area and type of equipment.

• Pump: Connect a ground wire and clamp as shown
in F

IG. 2. Loosen the grounding screw (W). Insert

one end of a 12 ga (1.5 mm²) minimum ground wire
(X) behind the grounding screw and tighten the
screw securely. Connect the clamp end of the
ground wire to a true earth ground. To order a
ground wire and clamp, order part number 222011.

8 310622ZAF

FIG. 2: Ground Wire Connection

X

W

TI4736A

• Air and fluid hoses: Use only grounded hoses with a
maximum of 500 ft (150 m) combined hose length to
ensure grounding continuity.

• Air compressor: Follow the manufacturer’s recom­mendations.

• Fluid supply container: Follow the local code.

Mountings

NOTE: The pump exhaust air may contain contami-

nants. Ventilate to a remote area if the contaminants
could affect your fluid supply. See Air Exhaust Ventila-
tion on page 12.

• Be sure the mounting surface can support the
weight of the pump, hoses, and accessories, as well
as the stress caused during operation.

• For ease of operation and service, mount the pump
so the air valve cover, air inlet, and fluid inlet and
outlet ports are easily accessible.

Air Line

A bleed-type master air valve (B) is required in the
system to relieve air trapped between this valve and
the pump. Trapped air can cause the pump to cycle
unexpectedly, which could result in serious injury
including splashing in the eyes or on the skin, injury
from moving parts, or contamination from hazardous
fluids. See F

1. Install the air line accessories as shown in FIG. 3.
Mount these accessories on the wall or on a
bracket. Be sure the air line supplying the accesso­ries is grounded.

a. Install an air regulator (C) and gauge to control

IG. 3.

the fluid pressure. The fluid outlet pressure will
be the same as the setting of the air regulator.

Installation

b. Locate one bleed-type master air valve (B)

close to the pump and use it to relieve trapped
air. Locate the other master air valve (E)
upstream from all air line accessories and use it
to isolate them during cleaning and repair.

c. The air line filter (F) removes harmful dirt and

moisture from the compressed air supply.

2. Install a grounded, flexible air hose (A) between the
accessories and the 1/2 npt(f) pump air inlet (M).
Use a minimum 3/8 in. (9.5 mm) ID air hose. Screw
an air line quick disconnect coupler (D) onto the end
of the air hose (A), and screw the mating fitting into
the pump air inlet snugly.

Do not connect the coupler (D) to the fitting until you
are ready to operate the pump. Connecting the cou­pler too early can result in unintentional operation of
the pump, leading to serious injury from moving parts,
splashing fluid in the eyes or on the skin, and contact
with hazardous fluids.

Fluid Suction Line

1. Use flexible, grounded fluid hoses (G) where possi­ble.

2. For best sealing results, use a standard tri-clamp or
DIN style sanitary gasket of a flexible material such
as EPDM, Buna-N, fluoroelastomer, or silicon.

3. NOTE: Compliance with 3A sanitary standards
requires DIN connections to use certain gaskets.
See CCE Coordination Bulletin Number 2011-3.
Two such gaskets are the Siersema Komponent
System (S.K.S.), the Netherlands, and the
ASEPTO-STAR k-flex gasket from Kieselmann
GmbH, Germany.

4. If the fluid inlet pressure to the pump is more than
25% of the outlet working pressure, the ball check
valves will not close fast enough, resulting in ineffi­cient pump operation. Excessive inlet fluid pressure
also will shorten diaphragm life. Approximately
3-5 psi (0.02-0.03 MPA, 0.21-0.34 bar) should be
adequate for most materials.

5. See the Technical Data on pages 45 and 48 for
maximum suction lift (wet and dry). For best results,
always install the pump as close as possible to the
material source.

310622ZAF 9

Installation

Key:

A Air supply line
B Bleed-type master air valve

(required for pump)
C Air regulator
D Air line quick disconnect
E Master air valve (for accessories)
F Air line filter
G Flexible fluid suction line
J Fluid drain valve
K Fluid shutoff valve
L Flexible fluid line
M 1/2 npt (f) air inlet
X Ground wire (required; see page

8 for installation instructions)

E

F

C

B

A

K

L

J

G

X

D

M

TI8766a

Fluid Outlet Line

A fluid drain valve (J) is required to relieve pressure in
the hose if it is plugged. The drain valve reduces the
risk of serious injury, including splashing in the eyes or
on the skin, or contamination from hazardous fluids
when relieving pressure. Install the valve close to the
pump fluid outlet. See F

IG. 3.

Typical Installation

1. Use flexible, grounded fluid hoses (L) where possi­ble.

2. For best sealing results, use a standard tri-clamp or
DIN style sanitary gasket of a flexible material such
as EPDM, Buna-N, fluoroelastomer, or silicon

3. Install a fluid drain valve (J) near the fluid outlet. See
F

IG. 3.

4. Install a shutoff valve (K) in the fluid outlet line.

FIG. 3: Typical Floor-Mount Installation

10 310622ZAF

Changing the Orientation of the Fluid Inlet

130

339

TI5133f

P

and Outlet Ports

The pump is shipped with the ports facing the same
direction. To reorient the ports into any position:

1. Remove the clamps (130) holding the inlet and/or
outlet tee to the elbows.

2. Rotate the manifold tee (339) and reattach. Install
the clamps (130) and tighten handtight.

Installation

F

IG. 4: Orientation of Fluid Ports (tri-clamp model

shown)

310622ZAF 11

Installation

P

U

T

D

A

B

C

F

E

TI8767b

Key:

A Air supply line
B Bleed-type master air valve

(required for pump)
C Air regulator
D Air line quick disconnect
E Master air valve (for accessories)
F Air line filter
P Muffler
T Grounded air exhaust hose
U Container for remote air exhaust

Air Exhaust Ventilation

Be sure the system is properly ventilated for your type
of installation. You must vent the exhaust to a safe
place, away from people, animals, food handling
areas, and all sources of ignition when pumping flam­mable or hazardous fluids.

Diaphragm failure can cause the fluid being pumped
to exhaust with the air. Place an appropriate con­tainer at the end of the air exhaust line to catch the
fluid. See F

IG. 5.

The air exhaust port is 3/4 npt(f). Do not restrict the air
exhaust port. Excessive exhaust restriction can cause
erratic pump operation.

To provide a remote exhaust:

1. Remove the muffler (P) from the pump air exhaust
port. See F

IG. 5.

2. Install a grounded air exhaust hose (T) and connect
the muffler (P) to the other end of the hose. The
minimum size for the air exhaust hose is 3/4 in.
(19 mm) ID. If a hose longer than 15 ft (4.57 m) is
required, use a larger diameter hose. Avoid sharp
bends or kinks in the hose.

3. Place a grounded container (U) at the end of the air
exhaust line to catch fluid in case of a diaphragm
rupture. See F

IG. 5.

IG. 5: Venting Exhaust Air

F

12 310622ZAF

Operation

Operation

Pressure Relief Procedure

Trapped air can cause the pump to cycle
unexpectedly, which could result in serious injury
from injection, splashing or moving parts. Relieve
pressure when you stop pumping and before
cleaning, checking, or servicing equipment.

1. Shut off the air to the pump.

2. Open any available outbound fluid valve to relieve
fluid pressure from the pump.

3. If fluid is still in the outbound fluid lines, isolate this
fluid as follows:

a. Close the outbound fluid valves.

b. Slowly remove the fluid connections from the

pump, and have a container ready to catch any
fluid that runs out.

NOTE: If fluid inlet pressure to the pump is more than
25% of the outlet working pressure, the ball check
valves will not close fast enough, resulting in inefficient
pump operation.

4. Place the end of fluid hose (L) into an appropriate
container.

5. Close the fluid drain valve (J).

6. Back out the air regulator (C) knob, and open all
bleed-type master air valves (B, E).

7. If the fluid hose has a dispensing device, hold it
open while continuing with the following step.

8. Slowly increase air pressure with the air regulator
(C) until the pump starts to cycle. Do not exceed the
maximum operating air pressure as listed in the
Technical Data section on pages 45 and 48. Allow
the pump to cycle slowly until all air is pushed out of
the lines and the pump is primed.

Pump Shutdown

Sanitizing the Pump Before First Use

NOTE: The pump was built and tested using a food

grade lubricant.

It is the user’s responsibility to properly sanitize the
pump before first use. It is up to the user whether this
will include disassembling and cleaning individual parts
or simply flushing pump with a sanitizing solution. As
necessary, follow the steps under Starting and Adjust-
ing the Pump below, under Flushing on page 14, or
under Disassembly in the Service section on pages
21, 23, and 26.

Starting and Adjusting the Pump

1. Be sure the pump is properly grounded. See

Grounding, page 8.

2. Check connections to be sure they are tight. Tighten
fluid inlet and outlet connections securely.

At the end of the work shift, relieve pressure.

3. Place the suction tube (if used) in fluid to be
pumped.

310622ZAF 13

Maintenance

Maintenance

Lubrication

The air valve is designed to operate unlubricated. If
lubrication is desired, every 500 hours of operation (or
monthly) remove the hose from the pump air inlet and
add two drops of machine oil to the air inlet.

NOTICE

Do not over-lubricate the pump. Oil is exhausted
through the muffler and could contaminate your fluid
supply or other equipment. Excessive lubrication can
also cause the pump to malfunction.

Flushing

Insert suction tube into cleaning solution. Open air regu­lator to supply low pressure air to the pump. Run the
pump long enough to thoroughly clean the pump and
hoses. Close the air regulator. Remove the suction tube
from the cleaning solution and drain pump. Place suc­tion tube in the fluid to be pumped.

Flush the pump often enough to prevent the fluid you
are pumping from drying or freezing in the pump and
damaging it. Flushing schedule will be based on what
the pump is being used for. Use a compatible cleaning
solution and always cycle the pump during the entire
flushing process.

4. Using a brush or other C.I.P. methods, wash all
product contact pump parts with an alkaline deter­gent at the manufacturer’s recommended tempera­ture and concentration.

5. Rinse these parts again with water and allow parts
to completely dry.

6. Inspect the parts and reclean any soiled parts.

7. Immerse all product contact parts in an approved
sanitizer before assembly. Leave the parts in the
sanitizer, taking them out only one by one as
needed for assembly. See Check Valve Repair,
page 21, and Standard Diaphragm Repair, page
23, or 3A/Overmolded Diaphragm Repair, page

26.

8. Lubricate the clamps, clamping surfaces, and gas­kets with waterproof sanitary lubricant.

9. Circulate the sanitizing solution through the pump
and the system prior to use. Cycle the pump as the
sanitizing solution is circulated.

Tightening Connections

Before each use, check all hoses for wear or damage,
and replace as necessary. Check to be sure all connec­tions are tight and leak-free.

Always flush the pump and relieve the pressure before
storing it for any length of time.

Routine Cleaning of Product Contact
Section of Pump

NOTE: The pump and the system should be cleaned in

accordance with your state sanitary standard codes and
local regulations.

1. Flush the system. See Flushing above.

2. Follow the Pressure Relief Procedure, page 13.

3. Disassemble the fluid section of the pump and

accessories. See Check Valve Repair, page 21,
and Standard Diaphragm Repair, page 23, or
3A/Overmolded Diaphragm Repair, page 26.

14 310622ZAF

Preventive Maintenance Schedule

Maintenance

Establish a preventive maintenance schedule based on
the pump’s service history. This is especially important
for prevention of spills or leakage due to diaphragm
failure.

Operator Maintenance Person

Task

Inspect system for leaks
Depressurize fluid, after operation

Remove heat from system, after
operation

Inspect diaphragm for wear
Inspect check valve components

for wear
Check hoses for wear

Check/tighten fluid connections ✓
Check/tighten air connections ✓

Lubricate air valves

Daily Weekly Monthly

✓

✓

✓

✓

✓

The following is a list of recommended maintenance
procedures and frequencies. Maintenance must be per­formed by trained personnel per the established
schedule.

✓

✓

310622ZAF 15

Troubleshooting

Troubleshooting

• Follow the Pressure Relief Procedure, page 13, before checking or servicing the equipment.

• Check all possible problems and causes before disassembling the pump.

PROBLEM

Pump cycles at stall or fails to hold
pressure at stall.

Pump will not cycle, or cycles once
and stops.

Pump operates erratically. Clogged suction line. Inspect; clear.

CAUSE SOLUTION

Worn check valve balls (541) or
seats (233).

Air valve is stuck or dirty. Disassemble and clean air valve.

Check valve ball (541) severely
worn and wedged in seat (233) or
manifold.

Check valve ball (541) is wedged
into seat (233), due to overpressur­ization.

Dispensing valve clogged. Relieve pressure and clear valve.

Leak detector has activated a shut­down solenoid

Sticky or leaking balls (541). Clean or replace. See page 21.

Diaphragm ruptured. Replace. See page 23 (standard)

Replace. See page 21.

See page 18. Use filtered air.

Replace ball and seat. See page

21.

Follow Pressure Relief Proce-
dure, page 13. Disassemble ball
check assembly and inspect for
damage, see page 21.

Investigate failure and reset leak
detector

or page 26 (3A/Overmolded).

Restricted exhaust. Remove restriction.

Air bubbles in fluid. Suction line is loose. Tighten.

Diaphragm ruptured. Replace. See page 23 (standard)

or page 26 (3A/Overmolded).

Loose inlet manifold, damaged seal
between manifold and seat, dam­aged gaskets.

16 310622ZAF

Tighten manifold clamps or replace
seats or gaskets. See page 21.

Troubleshooting

PROBLEM

Leak in inlet or outlet sanitary fit-

CAUSE SOLUTION

Loose sanitary clamp. Tighten clamp.

ting.

Damaged or worn gasket. Replace gasket.

Misalignment of inlet/outlet hose or
pipe.

Use flexible hoses at pump inlet
and outlet.

Gasket does not seal. Use a standard sanitary gasket of

flexible material such as EPDM,
Buna-N, fluoroelastomer, or silicon.

Fluid in exhaust air. Diaphragm ruptured. Replace. See page 23 (standard)

or page 26 (3A/Overmolded).

Loose diaphragm plate. Tighten or replace. See page 23

(standard) or page 26 (3A/Over­molded).

Pump exhausts excessive air at
stall.

Worn air valve block, plate, pilot
block, u-cups, or pilot pin o-rings.

Repair or replace. See page 18.

Worn shaft seals. Replace. See page 23 (standard)

or page 26 (3A/Overmolded).

Pump leaks air externally. Air valve cover is loose. Tighten screws. See page 18.

Air valve gasket or air cover gasket
is damaged.

Air cover clamps are loose Tighten clamps.

Pump leaks fluid externally from
ball check valves.

Loose manifolds, damaged seal
between manifold and seat, dam­aged gaskets.

Chattering. Check balls not seating prop-

erly/cleanly due to imbalance
between fluid inlet and outlet line
sizing. Noise is accentuated with
light viscosity fluids.

Inspect; replace. See page 18.

Tighten manifold clamps or replace
seats or clamps (132). See page

21.

Reduce size/diameter of inlet line
relative to outlet line. Outlet line
size should not exceed pump size.

310622ZAF 17

Service

102

104

◆

103

TI4682b

TI4616b

116

◆

105

◆

TI4617b

110

◆

111

115

◆

114

Service

Repairing the Air Valve

Tool Required

• Torque wrench

• Torx (T20) screwdriver or 7 mm (9/32 in.) socket
wrench

• Needle-nose pliers

• O-ring pick

• Lithium base grease

Air Valve Repair Kit 255122 is available. Refer to Parts
on page 39. Parts included in the kit are marked with ◆
symbol. Use all the parts in the kit for the best results.

Disassembly

1. Follow the Pressure Relief Procedure, page 13.

2. With a Torx (T20) screwdriver or 7 mm (9/32 in.)
socket wrench, remove the six screws (103), air
valve cover (102), and gasket (104). See F

IG. 6.

3. Move the valve carriage (105) to the center position
and pull it out of the cavity. Using a needle-nose pli­ers, pull the pilot block (116) straight up and out of
the cavity. See F

IG. 7.

FIG. 7

4. Pull the two actuator pistons (111). Remove the
u-cups (110) from the pistons. Pull the pilot pins
(114). Remove the o-rings (115) from the pilot pins.
See F

IG. 8.

FIG. 6

IG. 8

F

18 310622ZAF

Service

103

108

◆

TI4618c

TI4617b

115

◆

114

110

◆

111

5. Inspect the valve plate (108) in place. If damaged,
use a Torx (T20) screwdriver or 7 mm (9/32 in.)
socket wrench to remove the three screws (103).
Remove the valve plate (108). See F

IG. 9

F

IG. 9.

6. Inspect the bearings (112, 117) in place. See Parts
on page 39. The bearings are tapered and, if dam­aged, must be removed from the outside. This
requires disassembly of the fluid section. See page

28.

Reassembly

1. If you replaced the bearings (112, 117), reinstall as
explained on page 28. Reassemble the fluid section.

2. Install the valve plate (108) in the cavity, seal down.
Install the three screws (103), using a Torx (T20)
screwdriver or 7 mm (9/32 in.) socket wrench.
Tighten until the screws bottom out on the housing.
See F

IG. 9.

3. Install an o-ring (115) on each pilot pin (114).
Grease the pins and o-rings. Insert the pins into the
bearings, narrow end first. See F

IG. 10.

7. Clean all parts and inspect for wear or damage.
Replace as needed. Reassemble, page 19.

FIG. 10

4. Install u-cups (110) on each actuator piston (111),

so the lips of the packings face the narrow end of
the pistons. See F

IG. 10.

5. Lubricate the u-cups (110) and actuator pistons
(111). Insert the actuator pistons in the bearings,
wide end first. Leave the narrow end of the pistons
exposed. See F

IG. 10.

310622ZAF 19

Service

TI4616b

116

◆

105

◆

102

104

◆

103

TI4682b

6. Grease the lower face of the pilot block (116) and
install so its tabs snap into the grooves on the ends
of the pilot pins (114). See F

IG. 11.

7. Grease the lower face of the valve carriage (105).
See F

IG. 11.

8. Install the valve carriage (105) so its tabs slip into
the grooves on the narrow end of the actuator pis­tons (111). See F

IG. 11.

9. Align the valve gasket (104) and cover (102) with
the six holes in the center housing (101). Secure
with six screws (103), using a Torx (T20) screw­driver or 7 mm (9/32 in.) socket wrench. Torque to
50-60 in-lb (5.7-6.8 N•m). See F

IG. 12.

FIG. 12

F

IG. 11

20 310622ZAF

Check Valve Repair

TI8768a

128

129*

132c

*240

2XB

132a

*240

130

2XA

*240

132b

*541

Disassembly

Reference numbers with an asterisk (*) are replacement
parts. For a complete list of replacement parts see
Parts, page 32 and following.

1. Follow the Pressure Relief Procedure, page 13.

Disconnect all hoses.

2. Pull the quick release pins and tilt the pump to drain.

3. From the outlet manifold, remove both upper clamps
(132a).

4. Remove outlet manifold leaving elbows (128), gas­kets (129), clamps (130), and tee (339) assembled.

Service

5. For 3A Ball Check pumps: remove ball gasket (240).
Remove middle clamp (132c) and ball stop housing
(2XA). Remove middle gasket (240) and ball (541).
Remove lower clamp (132b), seat (2XB), and gasket
(240). Clean all parts and inspect for wear or dam­age. Replace parts as needed.

FIG. 13: 3A Ball Check Assembly

310622ZAF 21

Service

TI8769a

128

129*

339*

233

*240

132b

132a

*242

130

*541

331*

TI8770a

129*

130

132a
240*

252
132c

251

248
240*

132b

240*

For Sanitary Ball Check pumps: remove ball gasket
(242) and ball (541). Remove lower clamp (132b),
seat (233), and gasket (240). Clean all parts and
inspect for wear or damage. Replace parts as
needed.

For Flapper Check pumps: remove gasket (240).
Remove middle clamp (132c) and housing (252).
Remove middle gasket (240), and flapper valve
(251). Remove lower clamp (132b), lower flapper
housing (248), and gasket (240). Clean all parts and
inspect for wear or damage. Replace parts as
needed.

F

IG. 14: Sanitary Ball Check Assembly

FIG. 15: Flapper Check Assembly

22 310622ZAF

Service

TI8771a

135

234

Y

6. Disassemble the outlet manifold. Remove clamps
(130), tee (339), gasket (129), and elbow (128).
Clean all parts and inspect for wear or damage.
Replace parts as needed.

7. Repeat for inlet manifold.

Reassembly

NOTE: Lubricate clamps, clamping surfaces, and gas-

kets with waterproof, sanitary lubricant.

1. Reassemble inlet and outlet fluid manifolds in
reverse order. See step 6. Tighten clamps hand­tight.

2. Reassemble ball or flapper check assembly in
reverse order. See step 5. Tighten clamps hand­tight.

NOTE: For flapper check, make sure flapper check
(251) is placed properly in housing (248) groove. Ensure
that the flapper check moves freely.

Standard Diaphragm Repair

NOTE: See page 26 for overmolded diaphragms, includ-

ing all 3A diaphragms.

Tools Required

• Torque wrench

• 5/8 in. wrench

• 19 mm open end wrench

• O-ring pick

• Lithium-base grease

• Spanner wrench

Disassembly

1. Follow the Pressure Relief Procedure, page 13.

2. Remove the manifolds and disassemble the ball
check valves as explained on page 21.

3. Hold fluid covers in place and remove the clamps
(135). Pull the fluid covers (234) off the pump.

.

FIG. 16

310622ZAF 23

Service

TI8772a

446*

444

445

121

Y

143

447

TI4789a

121

101

4. With both fluid covers removed, using two 5/8 in.
wrenches hold the wrench flats (Y) on the plates of
each diaphragm assembly and loosen. One dia­phragm assembly will come free and the other will
remain attached to the shaft.

5. Disassemble the free diaphragm assembly.

6. Remove plate (444) with bolt (143) installed, dia­phragm (446), backer (447) if present, and plate
(445).

.

F

IG. 17

8. Inspect the diaphragm shaft (121) for wear or
scratches. If it is damaged, inspect the bearings
(117) in place. If the bearings are damaged, refer to
Bearing and Air Gasket Removal on page 28.

9. Reach into the center housing (101) with an o-ring
pick and hook the u-cups (110), then pull them out
of the housing. This can be done with the bearings
(117) in place. See F

IG. 24, page 28.

10. Clean all parts and inspect for wear or damage.
Replace parts as needed.

7. Pull the other diaphragm assembly and the dia­phragm shaft (121) out of the center housing (101).
Hold the shaft flats with a 19 mm open end wrench,
and remove the diaphragm assembly from the shaft.
Disassemble the remaining diaphragm assembly.

IG. 18

F

24 310622ZAF

Reassembly

446*

444

445121101

143

TI8774a

447

Apply a medium-strength thread locker to the shaft side of the
screw.

2

Apply a high-strength thread locker to attach the screw to the
diaphragm plate, if needed.

1

1 2

135

234

TI8771a

Service

1. Install the shaft u-cups (110) so the lips face out of
the housing (101). Lubricate the u-cups. See Reas-
sembly of Bearing, page 28.

2. Assemble diaphragm (446), backer (447) if pres-

ent, and plate (445) onto plate (444) with screw
(143). Rounded side of plate (445) should face dia­phragm. Make sure the side marked AIR SIDE
faces the center housing.

NOTE: Thread locker must be applied to screw (143) as
shown in F

IG. 19 for all diaphragm assemblies.

3. Screw assembled diaphragm assembly into shaft
(121) and hand tighten.

4. Grease the length of the diaphragm shaft (121), and

slide it through the housing (101).

5. Assemble the other diaphragm assembly to the

shaft as explained in step 2.

6. Using a 5/8 in. wrench hold the wrench flats of one

diaphragm assembly and torque the other dia­phragm to 60-70 ft-lb (81-94 N

•m).

NOTE: Waterproof, sanitary lubricant may be applied to
the clamp (135) and clamping surface of the cover (234)
to ease assembly.

7. Align the fluid covers (234) and the center housing.

Secure the covers with the clamps (135) and hand
tighten.

F

IG. 19

310622ZAF 25

FIG. 20

8. Reassemble the ball check valves and manifolds as

explained on page 21.

Service

121 445

TI12434a

446

135

234

120

3A/Overmolded Diaphragm Repair

NOTE: If your pump uses standard diaphragms, see

page 23.

Tools Required

• Torque wrench

• 19 mm open end wrench

• O-ring pick

• Lithium-base grease

Disassembly

1. Follow the Pressure Relief Procedure, page 13.

2. Remove the manifolds and disassemble the ball
check valves as explained on page 21.

3. Remove the clamps (135) holding the fluid covers
(234) to the air covers (120). Pull the fluid covers
(234) off the pump. See F

IG. 21.

4. Once the fluid covers are removed, the diaphragm
on the side of the pump which was last pressurized
with air will be separated from the center section/air
cover. This allows you to grip the diaphragms.

6. Pull the opposite diaphragm assembly and shaft
(121) out of the center housing (101). Hold the shaft
flats with a 19 mm open end wrench and remove the
diaphragm and air side plate from the shaft.

7. Inspect the diaphragm shaft (121) for wear or
scratches. If it is damaged, inspect the bearings
(117) in place. If the bearings are damaged, refer to
page 28.

8. Reach into the center housing (101) with an o-ring
pick and hook the u-cup packings (110), then pull
them out of the housing. This can be done with the
bearings (117) in place.

9. Clean all parts and inspect for wear or damage.
Replace parts as needed.

5. Diaphragms are assembled handtight. To loosen,
grip both diaphragms securely around the outer
edge and rotate counterclockwise. One diaphragm
assembly will come free and the other will remain
attached to the shaft. Remove the freed diaphragm
(446) and air side plate (445).

FIG. 21

26 310622ZAF

Reassembly

Apply a medium-strength thread locker to
the shaft side of the screw.

2

446

445

121

101

135

234

TI17273a

Apply a high-strength thread locker to attach
the screw to the diaphragm, if needed.

1

2

446a

1

3A Pump Shown

Service

NOTICE

To reduce the risk of serious injury, including
amputation, do not put your fingers or hand between
the air cover and the diaphragm.

1. Install the shaft u-cup packings (110*) so the lips

face out of the housing (101). Lubricate the pack­ings. See F

2. Apply high-strength (red) Loctite

attach the bolt (446a) to the diaphragm (446), if needed.

IG. 24, page 28.

® or equivalent to

Assemble the air side plate (445) onto the dia­phragm (446). The wide, radiused side of the plate
must face the diaphragm. Apply medium-strength
(blue) Loctite

® or equivalent to the threads of the

diaphragm assembly. Screw the assembly into the
shaft (121) hand tight.

3. Grease the length and ends of the diaphragm shaft
(121). Insert the shaft/diaphragm assembly into one
side of the pump.

NOTE: Turn the pump 90° on the stand for easier fluid
cover clamping.

Do not deform the diaphragm manually. The diaphragm
needs uniform pressure to deform properly.

6. Assemble the fluid cover (234) and clamp (135) so
the cover is aligned to the center housing. Tilt pump
for easier assembly. Securely tighten the clamp.

NOTE: If the diaphragm contacts the pilot pin and is
forced away from the air cover, try Step 5 again. If nec­essary, return to Step 3.

7. Reassemble the ball check valves and manifolds as
explained on page 21.

Align the fluid cover (234) and the center housing.
Securely tighten the clamp (135).

4. Assemble the other diaphragm assembly to the
shaft as explained in step 2. This diaphragm will be
lifted off the air cover at this point.

5. Supply the pump with low pressure air (less than 7
psi [.05 MPa, 0.5 bar]). The diaphragm will very
slowly pull onto the air cover (120). Find the pres­sure that keeps the diaphragm close enough to
clamp, but does not let it contact the pilot pin.

F

IG. 22

310622ZAF 27

Service

TI4733a

119 120 122101

110*

101

112
113

117

TI4731a

110*

Z

112
113

117

TI4731a

101

Bearing and Air Gasket Removal

Tools Required

• Torque wrench

• 10 mm socket wrench

• Bearing puller

• O-ring pick

• Press, or block and mallet

Disassembly
NOTE: Do not remove undamaged bearings.

1. Follow the Pressure Relief Procedure, page 13.

2. Remove the manifolds and disassemble the ball
check valves as explained on page 21.

3. Remove the fluid covers and diaphragm assemblies
as explained on page 23 (standard) or page 26
(3A/Overmolded).

NOTE: If you are removing only the diaphragm shaft
bearing (117), skip step 4.

4. Disassemble the air valve as explained on page 18.

5. Using a 10 mm socket wrench, remove the screws
(122) holding the air covers (120) to the center
housing (101).

.

FIG. 24

8. If you removed the diaphragm shaft bearings (117)
reach into the center housing (101) with an o-ring
pick and hook the u-cups (110), then pull them out
of the housing. Inspect the u-cups. See F

IG. 24.

Replace parts as needed.

Reassembly
NOTE: Adhesive must be applied to the outside surface

of the bearing (112) and the inside surface of bore (Z)
prior to assembly.

1. Install the shaft u-cups (110) so the lips face out of
the housing.

2. Insert new bearings (112, 113, and 117) into the
center housing (101), tapered end first. Using a
press or a block and rubber mallet, press-fit the
bearing so it is flush with the surface of the center
housing.

FIG. 23

6. Remove the air cover gaskets (119). Always replace
the gaskets with new ones.

F

IG. 25

7. Use a bearing puller to remove the diaphragm shaft
bearings (117), air valve bearings (112) or pilot pin

3. Reassemble the air valve as explained on page 18.

bearings (113). Do not remove undamaged bear­ings

28 310622ZAF

4. Align the new air cover gasket (119) so the pilot pin

114 119

TI4730a

M114

TI4790a

120

122

TI4790a

(114) protruding from the center housing (101) fits
through the proper hole in the gasket

.

F

IG. 26

5. Align the air cover (120) so the pilot pin (114) fits in
the middle hole (M) of the three small holes near the
center of the cover.

Service

FIG. 28

7. Reassemble the ball check valves and manifolds as
explained on page 21.

F

IG. 27

6. Apply medium-strength (blue) Loctite

®

or equivalent
to the threads of the screws (122). Install the screws
(122), handtight. Using a 10 mm socket wrench,
torque the screws oppositely and evenly to 130-150
in-lb (15-17 N

•m). Install the diaphragm assemblies

and fluid covers as explained on page 23.

310622ZAF 29

Pump Matrix

Pump Matrix

NOTE: For BES/Ram Models (Non-Matrix Part Numbers 24xxxx), see page 40.

SaniForce 3150 Stainless Steel Sanitary Pumps

Your Model No. is marked on the pump’s serial plate. To
determine the Model No. of your pump from the follow­ing matrix, select the six digits which describe your
pump, working from left to right. The first digit is always

S, designating Graco Sanitary diaphragm pumps. The

remaining five digits define the pump configuration, size,
and materials of construction. For example, a sanitary

Sanitary
Pump

S - (for all

pumps)

Pump
Configuration

A 3A Approved

Ball Check
(HD)

Inlet and Outlet
(in.)

1 1 1/2 x 1 1/2 A 3A Approved

B Ball Check 2 2 x 2 3 (HD) PTFE/EPDM

F Flapper Check 3 3 x 3

4 4 x 4 7 Buna-N 8 fluoroelasto-

5 3 x 2 8 fluoroelastomer F Flapper

6 50 mm DIN

ball check pump with a three inch inlet and outlet, San­toprene balls and diaphragms, a pump stand, and no

leak detector is model

SB3661. To order replace-

ment parts, refer to the part lists on pages 32 - 40. The
digits in the matrix do not correspond to the reference
numbers in the parts drawing and lists.

Diaphragm Check Ball

Material

A 3A Approved

(EPDM)

(PTFE)

6 Santoprene

overmolded

6 Santoprene

®

7 Buna-N 3 None

mer

Leak Detector,
Pump Stand

A Leak Detec-

®

1 Pump Stand

tor and Pump
Stand

7 80mm DIN

8 100 mm DIN

P NONE

30 310622ZAF

SaniForce 1590 Stainless Steel Sanitary Pumps

The table below shows all available configurations for 1590 Stainless Steel Sanitary Pumps.

Pump Matrix

Model Number Pump

Configuration

SABAAA

SADAAA

SBBAAA

SBDAAA

SBBA11

SBBA22

SABA13

SBBA13

3A Approved with

Leak Detector

3A Approved with

Leak Detector

Non-3A Approved

No Leak Detector

Non-3A Approved

No Leak Detector

Non-3A Approved

No Leak Detector

Non-3A Approved

No Leak Detector

Non-3A Approved with

Leak Detector

Non-3A Approved

No Leak Detector

Inlet and Outlet
(in.)

2 x 2 3A Ball Checks (HD) 3A PTFE 3A Approved EPDM

50 mm DIN 3A Ball Checks (HD) 3A PTFE 3A Approved EPDM

2 x 2 3A Ball Checks (HD) 3A PTFE 3A Approved EPDM

50 mm DIN 3A Ball Checks (HD) 3A PTFE 3A Approved EPDM

2 x 2 3A Ball Checks (HD) 3A PTFE PTFE

2 x 2 3A Ball Checks (HD) Santoprene Santoprene

2 x 2 3A Ball Checks (HD) 3A PTFE PTFE/EPDM

2 x 2 3A Ball Checks (HD) 3A PTFE PTFE/EPDM

Check Valve Style Check Ball

Material

Diaphragm Material

overmolded (HD)

overmolded (HD)

310622ZAF 31

Parts Drawing, Fluid Section

128

132

*242

*541

233

*240

234

128

*129

130 *331

129* 130

135

446*

Flapper Check Valve

Assembly

ti17272a

339*

445

Apply a high-strength thread locker to attach
the screw to the diaphragm plate (sanitary

pump) or to the diaphragm (3A pump), if
needed.

Apply a medium strength thread locker to
shaft side of screw threads.

Apply a waterproof sanitary lubricant to
clamps, clamping surfaces, and gaskets.

Parts not included on BES/ram models (Part
Numbers 24xxxx).

123

4

3

3

3

3

3

3

3

3

2

Sanitary Ball Check

Valve Assembly

*240

*240

2XA

132

2XB

*240

541

3

3

3

3

132

3

132

3

*240

*240

2XA

132

2XB

*240

541

3

3

3

3

132

3

TI7644a

446*444 143 445135

1

2

3

TI4729c

Sanitary Diaphragm Assembly

447*

*240

*240

252

132

248

*240

251

200

3

3

3

3

TI4683a

4

4

4

4

4

4

446a*

1

Tri-Clamp Model
Shown

Parts Drawing, Fluid Section

3A Pump Shown

32 310622ZAF

Parts List, Fluid Section

Parts List, Fluid Section

Pump Configuration

Digit Ref.

Model 3150

A

B

F

Model 1590

All
All
All
All
All

A

B

* Indicates replacement parts.

Part No. Description Qty

No.

3A Approved Ball Check Pump

132 510490 CLAMP, 4 in. 4
2XB 15H406 SEAT 4
234 249533 COVER, fluid 2
240* 15H460 GASKET, 4 in., EPDM 12
2XA 15H407 STOP, ball 4

Standard Ball Check Pump

16X086 CLAMP, 4 in. 4

132

15D026 SEAT 4

233

234530 COVER, fluid 2

234

240* 15H460 GASKET, 4 in., EPDM 4
242* 15D346 GASKET, ball stop 4

Flapper Check Pump

234 234530 COVER, fluid 2
240* 15H460 GASKET, 4 in., EPDM 12
200 16E975 MODULE, flapper;

132 510490 CLAMP, 4 in. 4
248 16D853 HOUSING, lower

251 16D854 VALVE, flapper,

252 15D090 HOUSING, upper

132 15D475 CLAMP, 3 in. 4
2XB 15H481 SEAT 4
234 249892 COVER, Fluid 2
240* 15H459 GASKET, 3 in., EPDM 12
2XA 15H482 STOP, Ball 4
3A Approved Ball Check Pump

135 24J608 CLAMP, sanitary, diaphragm 2
Standard Ball Check Pump
135 15H341 CLAMP, sanitary, diaphragm 2

includes 4x of items 132,
248, 251, 252, and 12x
item 240

flapper

weldment

flapper

Inlet and Outlet

Digit Ref.

No.
Model 3150

1

331* 234536 TEE, inlet, 1 1/2 in. 1

339* 234536 TEE, outlet, 1 1/2 in. 1

2

331* 234534 TEE, inlet, 2 in. 1

339* 234534 TEE, outlet, 2 in. 1

3

331* 234532 TEE, inlet, 3 in. 1

339* 234532 TEE, outlet, 3 in. 1

4

331* 234535 TEE , inlet, 4 in. 1

339* 234535 TEE, outlet, 4 in. 1

5

331* 234532 TEE , inlet, 3 in. 1

1

339* 234534 TEE, outlet, 2 in. 1

6

331* 24U212 TEE , inlet, 50 mm 1

339* 24U212 TEE, outlet, 50 mm 1

4

4

7

331* 24U213 TEE , inlet, 80 mm 1

339* 24U213 TEE, outlet, 80 mm 1

8

4

331* 24U214 TEE , inlet, 100 mm 1

339* 24U214 TEE, outlet, 100 mm 1

Model 1590

All Tri-

Clamp

SADAAA
SBDAAA

* Indicates replacement parts.

331* 249893 TEE, Inlet, 2 in. 1

339* 249893 TEE, Outlet, 2 in. 1

331* 24U211 TEE, Inlet, 50 mm 1

339* 24U211 TEE, Outlet, 50 mm 1

Part
No.

Tri-clamp tee

DIN tee

Description Qty

Tri-clamp tee

Tri-clamp tee

Tri-clamp tee

Tri-clamp tee

Tri-clamp tee

DIN tee

DIN tee

DIN tee

Continued on next page.

310622ZAF 33

Parts List, Fluid Section

Inlet and Outlet Parts (Continued)

Digit Ref. Part Description Qty.

Model 3150

128 234531 ELBOW 4

All

129 15H459 GASKET, sanitary, EPDM,

130 15D475 CLAMP, sanitary, 3 in. 4
132 510490 CLAMP, sanitary, 4 in. 8
135 15G323 CLAMP, sanitary,

Model 1590

3 in.

diaphragm

128 249894 ELBOW
129 15H598 GASKET, sanitary,

All

EPDM, 2 in.
130 500984 CLAMP, sanitary, 2 in.
132 15D475 CLAMP, sanitary, 3 in.

4

2

4

4

4

8

34 310622ZAF

Diaphragm Material

Parts List, Fluid Section

Digit Ref. Part Description Qty
Model 3150

A

3

6

7

8

253224 3A Approved, EPDM, Overmolded;

includes 110 and 446
110 112181 U-CUP 2
446*† DIAPHRAGM

ASSY

445 189298 PLATE, diaphragm

(air side)

253628 (HD) PTFE; includes 110, 446

110 112181 U-CUP 2
446*† DIAPHRAGM

ASSY

445 15H811 PLATE, diaphragm (air

side)

253225 Santoprene; includes 110, 446

110 112181 U-CUP 2
446*† DIAPHRAGM 2
143 15D021 BOLT 2
444 15D018 PLATE, diaphragm 2
445 189298 PLATE, diaphragm 2

253223 Buna-N; includes 110, 446

110 112181 U-CUP 2
446*† DIAPHRAGM 2
143 15D021 BOLT 2
444 15D018 PLATE, diaphragm 2
445 189298 PLATE, diaphragm 2

253222 fluoroelastomer; includes 110, 446

110 112181 U-CUP 2
446*† DIAPHRAGM 2
143 15D021 BOLT 2
444 15D018 PLATE, diaphragm 2
445 189298 PLATE, diaphragm 2

2

2

2

2

Model Ref. Part Description Qty
Model 1590

255058 3A Approved, EPDM, Overmolded;

includes 110 and 446

SABAAA
SADAAA
SBBAAA
SBDAAA

SBBA22

SBBA11

SABA13
SBBA13

All diaphragm modules above include 2 u-cups (110) to
replace seals around shaft (121). See page 38.

110 112181 U-CUP 2
446*† DIAPHRAGM

ASSEMBLY

445 15K448 PLATE, Diaphragm (air

side)

255059 Santoprene; includes 110 and 446

110 112181 U-CUP 2
446*† DIAPHRAGM 2
143 15D021 BOLT 2
444 15K288 PLATE, Diaphragm

(fluid side)

445 15K448 PLATE, Diaphragm (air

side)

255060 PTFE; includes 110 and 446 and 447

110 112181 U-CUP 2
446*† DIAPHRAGM 2
447*† BACKER 2
143 15D021 BOLT 2
444 15K288 PLATE, Diaphragm

(fluid side)

445 15K448 PLATE, Diaphragm (air

side)

253627 (HD) PTFE; includes 110, 446

110 112181 U-CUP 2
446*† DIAPHRAGM

ASSY

445 15H810 PLATE, diaphragm (air

side)

2

2

2

2

2

2

2

* Indicates replacement parts.
† Indicates a recommended spare part.

310622ZAF 35

Parts List, Fluid Section

Check Ball Material

Digit Ref. Part Description Qty

Model 3150

A

F

6

7

8

Model 1590

SABAAA
SADAAA
SBBAAA

SBBA11

SBDAAA

SBBA22

541*† 112359 BALL 4

541*† 112361 BALL 4

541*† 15B492 BALL 4

541*† 15B491 BALL 4

541*† 112419 BALL 4

541*† 112421 BALL 4

3A Approved, PTFE

Flapper check

NONE

Santoprene

BUNA-N

fluoroelastomer

3A Approved PTFE

Santoprene

* Indicates replacement parts.
† Indicates a recommended spare part.

36 310622ZAF

Parts List, Fluid Section

310622ZAF 37

Parts Drawing, Air Section and Stand

104◆

103
102

105◆

111

110◆

116◆114115◆

103

108◆

112

113

110◆

117

121

101

659

164

TI4680c

TI8068b

638

122 120

119

637

147

Z

3

2

Apply medium strength adhesive to outside
surface of piston bearing and inside surface of
center housing bore.

Apply a medium strength thread locker to
screw threads and torque to 130-150 in-lbs
(14.6-16.9 N•m).

Torque to 50-60 in-lb (5.7-6.8 N•m).

1

2

3

1

660
661

638a

638f

638b

638c

638d

638e

ti19226a

Parts Drawing, Air Section and Stand

38 310622ZAF

Parts List, Air Section and Stand

Parts List, Air Section and Stand

Air Section - All Models

Digit Ref. Part Description Qty.

101 15K010 HOUSING, center 1
102 15K697 HOUSING, cover 1
103 116344 SCREW, mach, torx 10

188618 GASKET, cover 1

◆

104

248904 CARRIAGE, manifold

◆

ALL
Models

105

15H178 VALVE, plate 1

◆

108

112181 U-CUP, packing 4

◆

110
111 188612 PISTON, actuator 2
112 188613 BEARING, piston 2
113 188611 BEARING, pin 2
114 188610 PIN, push 2
115

116◆
117 188609 BEARING, shaft 2
119 188603 GASKET air cover 2
120 15D016 COVER, machined air,

121 189245 SHAFT 1
122 112178 SCREW 12
147 103778 PLUG 2
162
164 15G332 MUFFLER 1

157628 O-RING 2

◆

188614 BLOCK, pilot 1

15G694 COVER, machined air,

188621 TAG, warning 1

▲

assy

3150

1590

Leak Detector and Pump Stand

Digit Ref. Part Description Qty

A

1

1

3

* Indicates replacement parts.
† Indicates a recommended spare part.

2

Kit 24N798
Hinge Repair Kit

2

Ref. Description Qty.

638a BUSHING 2
638b BOLT 2
638c WASHER 2
638d NUT, acorn 2

3A Approved, Leak Detector and Pump Stand

3150 and 1590 SABAAA
637 15D990 LEAK DETECTOR 1
638 24L978 FRAME (includes

659 15D008 BOLT, sst 4
660 15H971 GASKET, upper 1
661 15H972 GASKET, lower 1

Pump Stand Only 3150 and 1590 SBBAAA,

SBBA11, SBBA22

638 24L978 FRAME (includes

659 15D008 BOLT, sst 4

4 bolts, ref. 659)

1

1

4 bolts, ref. 659)

Bare Pump

none

◆ Parts included in Air Valve Repair Kit 255122
(purchase separately).

Kit 24N799
Quick-Release Pin Repair Kit

▲ Replacement Danger and Warning labels, tags, and
cards are available at no cost.

310622ZAF 39

Ref. Description Qty.

638e LOCK PIN, with lanyard 2
638f RETAINER 2

Parts List, Models 248273, 248274, 24C124, 24E440, 24E667, 24J388, and 24J389

Parts List, Models 248273, 248274, 24C124, 24E440,
24E667, 24J388, and 24J389

NOTE: These 3150 models are for use with ram systems or Bin Evacuation Systems and do not include a fluid inlet

tee, elbows, and related parts.

Fluid Section Parts

(see Parts Drawing, Fluid Section on page 32)

Ref. Part Description Qty.

128 234531 ELBOW 2
129 15H459 GASKET, sanitary, EPDM, 3 in. 2
130 15D475 CLAMP, sanitary, 3 in. 2
132 510490 CLAMP, sanitary, 4 in. 8

16X086 CLAMP, sanitary, 4 in.; used on

models 248273 and 24E667
135 15G323 CLAMP, sanitary, diaphragm 2
143 15D021 BOLT 2
339* 234532 TEE, outlet; 3 x 3 in. 1
444 See Table PLATE, diaphragm 2
445 See Table PLATE, diaphragm 2
446*† See Table DIAPHRAGM 2

Ball Check Parts

(Models 248273, 24C124, 24E440, 24E667, 24J388,
and 24J389)

Ref. Part Description Qty.

233 See Table SEAT 4
234 234530 COVER, fluid 2
240* 15H460 GASKET, 4 in., EPDM 2 or 3
242* See Table BALL STOP/GASKET 4
2XA See Table BALL STOP 4
541*† See Table BALL 4

Flapper Check Parts

(Model 248274 only)

Ref. Part Description Qty.

234 234530 COVER, fluid 2
240* 15H460 GASKET, 4 in., EPDM 10
200

132 510490 . CLAMP, 4 in. 4
248 16D853 . HOUSING, lower flapper 4
251 16D854 . VALVE, flapper, weldment 4
252 15D090 . HOUSING, upper flapper 4

16E975 MODULE, flapper;

includes 4x of items 132,
248, 251, 252, and 12x item
240

Air Section Parts

(see Parts Drawing, Air Section and Stand on page

38)

Ref. Part Description Qty.

101 15K010 HOUSING, center 1
102 15K697 HOUSING, cover 1
103 116344 SCREW, mach, torx 10

188618 GASKET, cover 1

◆

104

248904 CARRIAGE, manifold assy 1

◆

105
108
110
111 188612 PISTON, actuator 2

112 188613 BEARING, piston 2
113 188611 BEARING, pin 2
114 188610 PIN, push 2
115
116
117 188609 BEARING, shaft 2
119 188603 GASKET air cover 2
120 15D016 COVER, machined air, 3150 2
121 189304 SHAFT 1
122 112178 SCREW 12
147 103778 PLUG 2
162

◆

Parts included in Air Valve Repair Kit 255122 (purchase

separately).

▲ Replacement Danger and Warning labels, tags, and cards

are available at no cost.

1

15H178 VALVE, plate 1

◆

112181 U-CUP, packing 4

◆

157628 O-RING 2

◆

188614 BLOCK, pilot 1

◆

188621 TAG, warning 1

▲

* Indicates replacement parts.
† Indicates a recommended spare part.

40 310622ZAF

Parts List, Models 248273, 248274, 24C124, 24E440, 24E667, 24J388, and 24J389

Parts that Vary by Model

Ref. Description Qty 248273 248274 24C124 24E440 24E667 24J388 24J389

2XB SEAT 4
2XA BALL STOP 4
233 SEAT 4 15D026
242 BALL STOP/GASKET 4 15D346 15D346
444 PLATE diaphragm, fluid side 2 15D018 15D018 15D018
445 PLATE, diaphragm, air side 2 189289 189289 189298 189298 15H811 189298 15H811
446 DIAPHRAGM 2

Santoprene, includes 2 u-cups

(110)
EPDM Overmolded 15F914 15F914
PTFE/EPDM Overmolded 15G746 15G746

541 BALL 4

PTFE 112359 112359 112359
Santoprene 112361

253225 253225 253225

15H406 15H406 15H406 15H406
15H407 15H407 15H407 15H407

15D026

112361 112361

310622ZAF 41

Accessories

Accessories

15D990 Leak Detector

Sensor and control package that monitors the dia­phragm condition. In case of diaphragm failure, the con­trol will provide an audible alarm and relay contacts for
remote alarms or solenoids. See Leak Detector manual

311200.

NOTE: To be approved, a leak detection system
must be used on the pump. Any pump with a leak detec-

tor installed is NOT Atex approved.

NOTE: To replace a sensor, order Part No. 24B290 Leak
Detector Sensor Replacement Kit. The kit includes one
sensor.

3150 Conversion Kits

15H461 3A Approved Ball Check
Conversion Kit

Converts flapper check valve to 3A ball check valve.
Includes four seats and four ball stops. Balls need to be
ordered separately.

Part No. Description

15B406 SEAT, ball 4
15H460 GASKET, 4 in. 12
510490 CLAMP, 4 in. 4
15H407 STOP, ball 4

16E975 Flapper Valve Conversion Kit

Converts ball check valve to flapper check valve.
Includes four flapper assemblies. See Flapper Check

Valve Assembly, page 32.

Part No. Description

15H460 GASKET, 4 in., EPDM 12
15D090 HOUSING, upper flapper 4
16D853 HOUSING, lower flapper 4
16D854 VALVE, flapper, weldment 4
510490 CLAMP, 4 in. 4

Qty.

Qty.

15E285 Sanitary Ball Check Conversion Kit

Converts flapper check valve to sanitary ball check
valve. Includes four seats and four ball stops. Balls need
to be ordered separately.

Part No. Description

15D026 SEAT, ball 4
15D346 GASKET, ball stop 4

Qty.

42 310622ZAF

3150 Conversion Kits

310622ZAF 43

Model 1590 Dimensional Drawing

23.6 in.

(594.4 mm)

17.0 in.

(431.8 mm)

35.8 in.

(909.3 mm)

24.9 in.

(632.5 mm)

8.6 in.

(218.4 mm)

TI8778a

TI8777a

23.5 in.

(596.9 mm)

Model 1590 Dimensional Drawing

NOTE: Dimensions are identical for tri-clamp and DIN models.

44 310622ZAF

Model 1590 Technical Data

Model 1590 Technical Data

Maximum fluid working pressure . . . . . . . . . . . . . . . . . . . 120 psi (0.8 MPa, 8 bar)

Air pressure operating range . . . . . . . . . . . . . . . . . . . . . . 20-120 psi (0.14-0.8 MPa, 1.4-8 bar)

Maximum air consumption . . . . . . . . . . . . . . . . . . . . . . . . 125 scfm

Air consumption at 70 psi air inlet pressure/60 gpm. . . . .

Maximum free-flow delivery . . . . . . . . . . . . . . . . . . . . . . . 100 gpm (378.5 l/min)

Maximum pump speed . . . . . . . . . . . . . . . . . . . . . . . . . . . 200 cpm

* Gallons (Liters) per cycle . . . . . . . . . . . . . . . . . . . . . . . .

Maximum suction lift (varies widely based on ball/seat
selection and wear, operating speed, material properties,

and other variables) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Maximum size pumpable solids . . . . . . . . . . . . . . . . . . . . 5/8 in. (15.9 mm)

** Maximum Noise Level at 100 psi, full flow . . . . . . . . . . 90 dBa

** Sound Power Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103 dBa

** Noise Level at 70 psi and 50 cpm . . . . . . . . . . . . . . . . . 85 dBa

Maximum fluid operating temperature is based on the
following maximum diaphragm, ball, and seat temperature
ratings.

PTFE balls; PTFE/EPDM 2-piece diaphragm . . . . . . 220°F (104.4°C)

PTFE /EPDM Overmolded (HD) diaphragm. . . . . . . . 180°F (82.2°C)

Santoprene balls or diaphragm . . . . . . . . . . . . . . . . . 180°F (82.2°C)

3A Approved EPDM Overmolded diaphragm. . . . . . . 275°F (135°C)

50 scfm (see chart)

0.5 (1.96)
28 ft (8.5 m) wet, 15 ft (4.57 m) dry

Air inlet size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Wetted parts
***All fluid contact materials are FDA-compliant and meet the United States Code of Federal Regulations (CFR)
Title 21, Section 177.

All fluid contact materials are FDA-compliant.

Wetted materials on all models. . . . . . . . . . . . . . . . . . . . .

Wetted material depending on model . . . . . . . . . . . . . . . .

CAUTION:
Santoprene® may be used only with non-fatty, non-oily foods or alcohols up to 15%.

Non-wetted external parts. . . . . . . . . . . . . . . . . . . . . . . . .

Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97 lb (44 kg)

Santoprene® is a registered trademark of the Monsanto Co.
Loctite® is a registered trademark of the Loctite Corporation.
* Displacement per cycle may vary based on suction condition, discharge head, air pressure, and fluid type.
** Noise levels measured with the pump mounted on the stand. Sound power measured per ISO Standard 9614-1.

*** The pump user must verify that the construction materials meet their specific application requirements.

0.5 in. npt(f)

316 SST, 3A Approved EPDM, PTFE,
Santoprene®, 3A Approved EPDM, PTFE

300 series stainless steel, polyester (labels), LDPE foam
(gasket)

310622ZAF 45

Model 1590 Performance Chart

1590 3A Performance Chart

120

(3.4)
100

(2.8)

80

(2.2)

60

(1.7)

40

(1.1)

20

(0.6)

Air Consumption

scfm (m

3

/min)

0

20

(76)

40

(152)

60

(227)

80

(303)

100

(379)

120

(454)

0

20

(1.4, 0.14)

40

(2.8, 0.28)

60

(4.2, 0.42)

80

(5.5, 0.55)

100

(7, 0.7)

120

(8.4, 0.84)

Fluid Outlet Pressure

psi (bar, MPa)

TI8646

TI8647

Fluid Flow

gpm (lpm)

Model 1590 Performance Chart

Test Conditions: Pump tested in water with inlet submerged

To find Fluid Outlet Pressure

(psi/MPa/bar) at a specific fluid flow (gpm/lpm) and
operating air pressure (psi/MPa/bar):

1. Locate fluid flow rate along bottom of chart.

2. Follow vertical line up to intersection with selected
fluid outlet pressure curve.

3. Follow left to scale to read fluid outlet pressure.

To find Pump Air Pressure

(scfm or m

3

/min) at a specific fluid flow (gpm/lpm) and

operating air pressure (psi/MPa/bar):

1. Locate fluid flow rate along bottom of chart.

2. Read vertical line up to intersection with selected air
consumption curve.

3. Follow left to scale to read fluid outlet pressure.

46 310622ZAF

Model 3150 Dimensional Drawing

TI4685e

37.5 in.

(952.5 mm)

19.3 in.

(490.2 mm)

22.0 in

(558.8 mm)

TI4929e

28.3 in.

(718.8 mm)

6.5 in.

(165.1 mm)

23.5 in.

(596.9 mm)

28.4 in.

(721.4 mm)

6.5 in.

(165.1 mm)

37.6 in.

(955.0 mm)

TI7610d

3A Ball Check Valve Pumps

Sanitary Ball Check Valve Pumps

TI4928e

19.3 in.

(490.2 mm)

29.5 in.

(749.3 mm)

5.9 in.

(149.9 mm)

38.1 in.

(967.7 mm)

Flapper Check Valve Pumps

Model 3150 Dimensional Drawing

NOTE: Dimensions are identical for tri-clamp and DIN models.

310622ZAF 47

Model 3150 Technical Data

Model 3150 Technical Data

Maximum fluid working pressure . . . . . . . . . . . . . . . . . . . 120 psi (0.8 MPa, 8 bar)

Air pressure operating range . . . . . . . . . . . . . . . . . . . . . . 20-120 psi (0.14-0.8 MPa, 1.4-8 bar)

Maximum air consumption . . . . . . . . . . . . . . . . . . . . . . . . 175 scfm

Air consumption at 70 psi air inlet pressure/60 gpm. . . . .

Maximum free-flow delivery . . . . . . . . . . . . . . . . . . . . . . . 160 gpm ( 606 l/min)

Maximum pump speed . . . . . . . . . . . . . . . . . . . . . . . . . . . 145 cpm

* Gallons (Liters) per cycle . . . . . . . . . . . . . . . . . . . . . . . .

Maximum suction lift (varies widely based on ball/seat
selection and wear, operating speed, material properties,

and other variables) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Maximum size pumpable solids . . . . . . . . . . . . . . . . . . . . Flapper 2.5 in. (63.5 mm)

** Maximum Noise Level at 100 psi, full flow . . . . . . . . . . 90 dBa

** Sound Power Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103 dBa

** Noise Level at 70 psi and 50 cpm. . . . . . . . . . . . . . . . . 85 dBa

50 scfm (see chart)

1.03 (3.90)

Flapper 10 ft (3.5 m) wet, 5 ft (1.75 m) dry
Ball 18 ft (5.5 m) wet, 9 ft (2.75 m) dry

Ball 1.0 in. (25.4 mm)

Maximum fluid operating temperature is based on the
following maximum diaphragm, ball, and seat temperature
ratings.

PTFE balls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220°F (104.4°C)

PTFE/EPDM Overmolded (HD) diaphragm . . . . . . . . 180°F (82.2°C)

Santoprene balls or diaphragm . . . . . . . . . . . . . . . . . 180°F (82.2°C)

3A Approved EPDM Overmolded diaphragm . . . . . . 275°F (135°C)

Buna-N balls or diaphragm . . . . . . . . . . . . . . . . . . . . 180°F (82.2°C)

Fluoroelastomer balls or diaphragm. . . . . . . . . . . . . . 250°F (121.1°C)

Air inlet size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Wetted parts
***All fluid contact materials are FDA-compliant and meet the United States Code of Federal Regulations (CFR)
Title 21, Section 177.

Wetted materials on all models . . . . . . . . . . . . . . . . . . . . 316 SST, 3A Approved EPDM

Wetted material depending on model. . . . . . . . . . . . . . . . 316 SST, Santoprene®, Buna-N (Nitrile), fluoroelastomer,

CAUTION:
Santoprene® may be used only with non-fatty, non-oily foods or alcohols up to 15%.

Non-wetted external parts . . . . . . . . . . . . . . . . . . . . . . . . 300 series stainless steel, polyester (labels), LDPE foam

Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145 lb (66 kg)

0.5 in. npt(f)

3A Approved EPDM, PTFE

(gasket)

Santoprene® is a registered trademark of the Monsanto Co.
Loctite® is a registered trademark of the Loctite Corporation.

* Displacement per cycle may vary based on suction condition, discharge head, air pressure, and fluid type.
** Noise levels measured with the pump mounted on the stand. Sound power measured per ISO Standard 9614-1.

*** The pump user must verify that the construction materials meet their specific application requirements.

48 310622ZAF

Model 3150 Performance Chart

3150 3A Performance Chart

150

(4.2)
125

(3.5)

100

(2.8)

75

(2.1)

50

(1.4)

25

(0.7)

0

0

20

(76)

40

(152)

60

(227)

80

(303)

100

(379)

120

(454)

140

(531)

160

(606)

20

(1.4, 0.14)

40

(2.8, 0.28)

60

(4.2, 0.42)

80

(5.5, 0.55)

100

(7, 0.7)

120

(8.4, 0.84)

Air Consumption

scfm (m

3

/min)

Fluid Outlet Pressure

psi (bar, MPa)

TI8644a

TI8645a

Fluid Flow

gpm (lpm)

Test Conditions: Pump tested in water with inlet submerged

Model 3150 Performance Chart

To find Fluid Outlet Pressure

(psi/MPa/bar) at a specific fluid flow (gpm/lpm) and
operating air pressure (psi/MPa/bar):

1. Locate fluid flow rate along bottom of chart.

2. Follow vertical line up to intersection with selected
fluid outlet pressure curve.

3.Follow left to scale to read fluid outlet pressure.

To find Pump Air Pressure

(scfm or m

3

/min) at a specific fluid flow (gpm/lpm) and

operating air pressure (psi/MPa/bar):

1. Locate fluid flow rate along bottom of chart.

2. Read vertical line up to intersection with selected air
consumption curve.

3. Follow left to scale to read fluid outlet pressure.

310622ZAF 49

Graco Warranties

Graco Standard Pump Warranty

Graco warrants all equipment manufactured by Graco and bearing its name to be free from defects in material and workmanship on the date of
sale to the original purchaser for use. With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period
of five years from the date of sale, repair or replace any part of the equipment determined by Graco to be defective. This warranty applies only
when the equipment is installed, operated and maintained in accordance with Graco’s written recommendations.

This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear caused by faulty
installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or substitution of
non-Graco component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the incompatibility of Graco equipment with
structures, accessories, equipment or materials not supplied by Graco, or the improper design, manufacture, installation, operation or
maintenance of structures, accessories, equipment or materials not supplied by Graco.

This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor for verification of
the claimed defect. If the claimed defect is verified, Graco will repair or replace free of charge any defective parts. The equipment will be returned
to the original purchaser transportation prepaid. If inspection of the equipment does not disclose any defect in material or workmanship, repairs will
be made at a reasonable charge, which charges may include the costs of parts, labor, and transportation.

THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED
TO WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.

Graco’s sole obligation and the buyer’s sole remedy for any breach of warranty shall be as set forth above. The buyer agrees that no other remedy
(including, but not limited to, incidental or consequential damages for lost profits, lost sales, injury to person or property, or any other incidental or
consequential loss) shall be available. Any action for breach of warranty must be brought within six years of the date of sale.

Graco makes no warranty, and disclaims all implied warranties of merchantability and fitness for a particular purpose in connection with
accessories, equipment, materials or components sold but not manufactured by Graco. These items sold, but not manufactured by Graco (such as
electric motors, switches, hose, etc.), are subject to the warranty, if any, of their manufacturer. Graco will provide purchaser with reasonable
assistance in making any claim for breach of these warranties.

In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from Graco supplying equipment hereunder, or
the furnishing, performance, or use of any products or other goods sold hereto, whether due to a breach of contract, breach of warranty, the
negligence of Graco, or otherwise.

FOR GRACO CANADA CUSTOMERS

The parties acknowledge that they have required that the present document, as well as all documents, notices and legal proceedings entered into,
given or instituted pursuant hereto or relating directly or indirectly hereto, be drawn up in English. Les parties reconnaissent avoir convenu que la
rédaction du présente document sera en Anglais, ainsi que tous documents, avis et procédures judiciaires exécutés, donnés ou intentés, à la suite
de ou en rapport, directement ou indirectement, avec les procédures concernées.

Extended Product Warranty

Graco warrants all 205, 307, 515, 716, 1040, 1590, 2150, 3150, and 3275 air valve center sections to be free from defects in material and
workmanship for a period of fifteen years from date installed in service by the original purchaser. Normal wear of items such as packings or seals
are not considered to be defects in material and workmanship.

Five years Graco will provide parts and labor.
Six to Fifteen years Graco will replace defective parts only.

Graco Information

For the latest information about Graco products, visit www.graco.com.
For patent information, see www.graco.com/patents.

TO PLACE AN ORDER, contact your Graco distributor or call to identify the nearest distributor.
Phone: [phone] or Toll Free: 1-800-328-0211 Fax: [phone]

All written and visual data contained in this document reflects the latest product information available at the time of publication.

GRACO INC. AND SUBSIDIARIES • P.O. BOX 1441 • MINNEAPOLIS MN 55440-1441 • USA

Copyright 2004, Graco Inc. All Graco manufacturing locations are registered to ISO 9001.

Graco reserves the right to make changes at any time without notice.

Original instructions. This manual contains English. MM 310622

Graco Headquarters: Minneapolis

International Offices: Belgium, China, Japan, Korea

www.graco.com

Revision ZAF - August 2014
