Instructions – Parts List
Parts
55 GALLON SUPPLY PUMPS
3:1 Presidentr, 4:1 Presidentr,
and 2:1 Monarkr
With drum cover and agitator
Model 220575, Series B
with 3:1 Ratio President Pump
500 psi (3.5 MPa, 35 bar) MAXIMUM FLUID WORKING PRESSURE
∗ Model 230992, Series C
with 4:1 Ratio President Pump
400 psi (2.8 MPa, 28 bar) MAXIMUM FLUID WORKING PRESSURE
Model 230993, Series C
with 2:1 Ratio Monark Pump
200 psi (1.4 MPa, 14.0 bar) MAXIMUM FLUID WORKING PRESSURE
307745G
Read warnings and instructions.
See page 2 for table of contents.
Model 230992 Shown
GRACO INC.ąP.O. BOX 1441ąMINNEAPOLIS, MNą55440-1441
Copyright 1985, Graco Inc. is registered to I.S. EN ISO 9001
04281A
Table of Contents
Warnings 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setup
Grounding 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Positioning the Unit 5. . . . . . . . . . . . . . . . . . . . . . . . . .
System Accessories 5. . . . . . . . . . . . . . . . . . . . . . . . .
Connecting the Unit and Accessories 6. . . . . . . . . . .
Operation
Pressure Relief Procedure 7. . . . . . . . . . . . . . . . . . . .
Flushing 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Symbols
Warning Symbol
WARNING
This symbol alerts you to the possibility of serious injury or death if you do not follow the instructions.
Adjusting the Unit 8. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Starting and Adjusting the Pump 8. . . . . . . . . . . . . . .
Shutdown and Care of the Pump 9. . . . . . . . . . . . . .

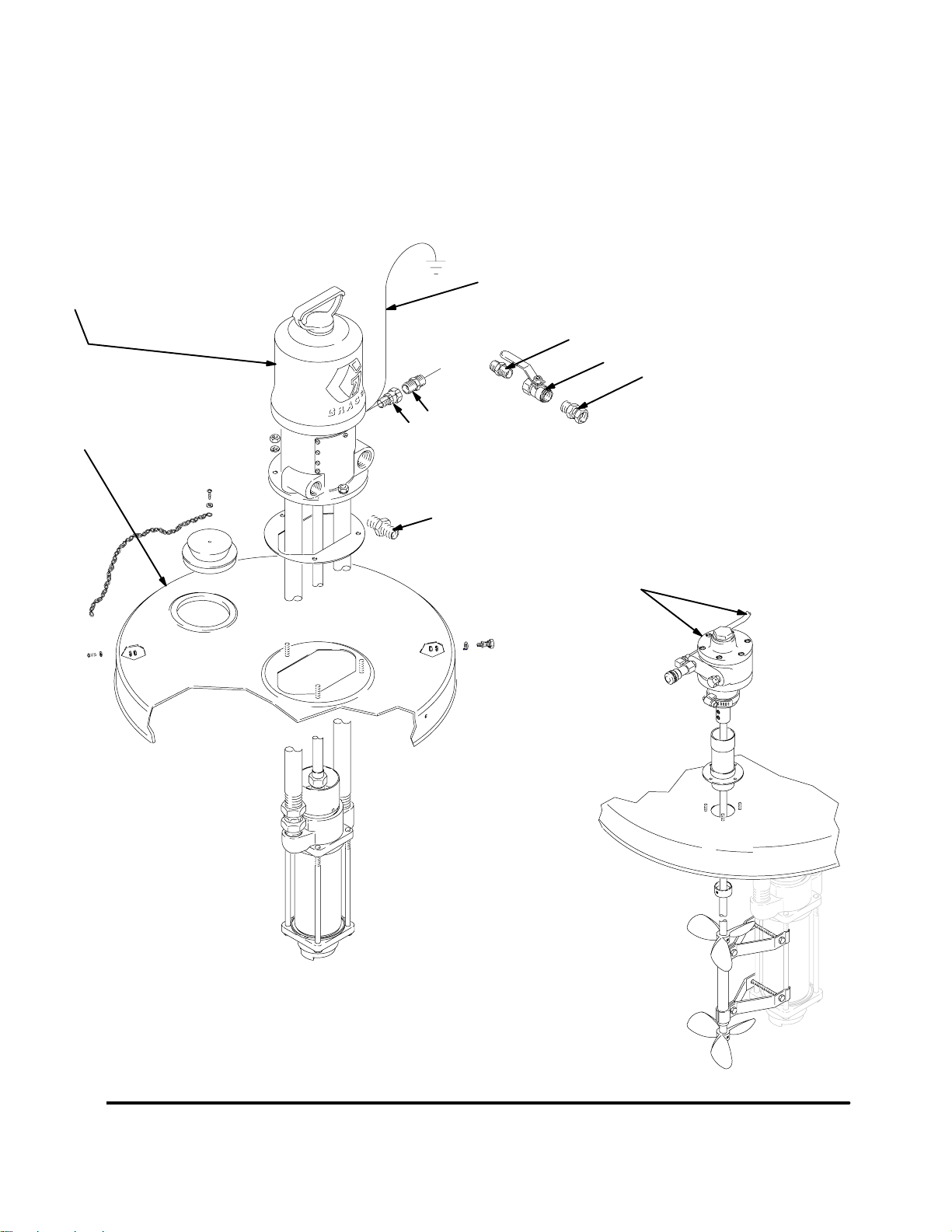

Parts Drawing 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parts List 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Data 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Warranty 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Graco Information 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Caution Symbol
CAUTION
This symbol alerts you to the possibility of damage to
or destruction of equipment if you do not follow the
instructions.
INSTRUCTIONS
WARNING
EQUIPMENT MISUSE HAZARD
Equipment misuse can cause the equipment to rupture or malfunction and result in serious injury.
D This equipment is for professional use only.
D Read all instruction manuals, tags, and labels before operating the equipment.
D Use the equipment only for its intended purpose. If you are not sure, call your Graco distributor.
D Do not alter or modify this equipment. Use only genuine Graco parts and accessories.
D Check equipment daily. Repair or replace worn or damaged parts immediately.
D Do not exceed the maximum working pressure of the lowest rated system component. See Tech-
nical Data on page 15 for the maximum working pressure of this equipment.
D Use fluids and solvents that are compatible with the equipment wetted parts. Refer to the Techni-
cal Data section of all equipment manuals. Read the fluid and solvent manufacturer’s warnings.
D Do not use hoses to pull equipment.
D Route hoses away from traffic areas, sharp edges, moving parts, and hot surfaces. Do not expose
Graco hoses to temperatures above 180_F (82_C) or below –40_F (–40_C).
2 307745
D Wear hearing protection when operating this equipment.
D Do not lift pressurized equipment.
D Comply with all applicable local, state, and national fire, electrical, and safety regulations.
WARNING
MOVING PARTS HAZARD
D The air motor piston can pinch or amputate your fingers.
D The rotating blades of the agitator can pinch or amputate your fingers or other body parts and can
cause splashing in the eyes or on the skin.
D Always shut off the agitator and disconnect the air line before adjusting the angle of the agitator,
removing the agitator from the drum, or checking or repairing any part of the agitator.
D Keep clear of all moving parts when starting or operating the equipment.
D Before servicing the equipment, follow the Pressure Relief Procedure on page 7 to prevent the
equipment from starting unexpectedly.
307745 3
WARNING
FIRE AND EXPLOSION HAZARD
Improper grounding, poor ventilation, open flames or sparks can cause a hazardous condition and
result in a fire or explosion and serious injury.
D Ground the equipment and the object being sprayed. Refer to Grounding on page 5.
D If there is any static sparking or you feel an electric shock while using this equipment, stop spray-
ing immediately. Do not use the equipment until you identify and correct the problem.
D Provide fresh air ventilation to avoid the buildup of flammable fumes from solvents or the fluid
being sprayed.
D Keep the spray area free of debris, including solvent, rags, and gasoline.
D Electrically disconnect all equipment in the spray area.
D Extinguish all open flames or pilot lights in the spray area.
D Do not smoke in the spray area.
D Do not turn on or off any light switches in the spray area while operating or if fumes are present.
D Do not operate a gasoline engine in the spray area.
TOXIC FLUID HAZARD
Hazardous fluid or toxic fumes can cause serious injury or death if splashed in the eyes or on the skin,
inhaled, or swallowed.
D Know the specific hazards of the fluid you are using.
D Store hazardous fluid in an approved container. Dispose of hazardous fluid according to all local,
state and national guidelines.
D Always wear protective eyewear, gloves, clothing, and respirator as recommended by the fluid and
solvent manufacturer.
4 307745
Setup
NOTES:
D Reference numbers and letters in parentheses in
the text refer to the callouts in the figures and the
parts drawing.
D Accessories are available from your Graco repre-
sentative. If you supply your own accessories, be
sure they are adequately sized and pressure-rated
to meet the system’s requirements.
Grounding
WARNING
FIRE AND EXPLOSION HAZARD
Before operating the pump, ground the
system as explained below. Also read
the section FIRE AND EXPLOSION
HAZARD on page 4.
Proper grounding is an essential part of maintaining a
safe system.
To reduce the risk of static sparking, the mounting
cover and all electrically conductive objects or devices
in the spray area must be properly grounded. Check
your local electrical code for detailed grounding
instructions for your area and type of equipment.
Agitator and drum cover: Connect one end of the
ground wire (Y) to the ground connector (X) on the rim
of the drum cover. See Fig. 1. Connect the other end
of the ground wire to a true earth ground. See the
pump instruction manual (307986 for 230992, 307985
for model 230993, or 308793 for model 220575) for
instructions on grounding the pump.
Object being sprayed: Follow your local code.
Fluid supply container: Follow your local code.
Solvent pails used when flushing: Follow your local
code. Use only metal pails, which are conductive,
placed on a grounded surface. Do not place the pail
on a nonconductive surface, such as paper or cardboard, which interrupts the grounding continuity.
To maintain proper grounding continuity when flushing
or relieving pressure, always hold the metal part of the
spray gun firmly to the side of a grounded metal pail,
then trigger the gun.
Positioning the Unit
Select a convenient location for the unit. The air
valves for the pump (37) and agitator (5) must be fully
accessible.
System Accessories
WARNING
A bleed-type master air valve (N) and a fluid drain
valve (K) are required in your system. These
accessories help reduce the risk of serious injury,
including splashing of fluid in the eyes or on the
skin, and injury from moving parts if you are adjusting or repairing the pump or agitator.
The bleed-type master air valve relieves air
trapped between this valve and the pump after the
air is shut off. Trapped air can cause the pump to
cycle unexpectedly. Locate the valve close to the
pump. A red–handled bleed–type ball valve is
supplied to relieve air trapped in the air motor.
The fluid drain valve assists in relieving fluid pressure in the displacement pump, hose, and gun.
Triggering the gun to relieve pressure may not be
sufficient. Order Part No. 210071.
X
Y
Fig. 1
Air and fluid hoses: Use only electrically conductive
hoses with 500 ft. (150 m) maximum combined hose
length to ensure grounding continuity.
Air compressor: Follow manufacturer’s recommendations.
Spray gun or dispensing valve: Ground through connection to a properly grounded fluid hose and pump.
307745 5
Setup
The installation shown in Fig. 2 is only a guide for selecting and installing system components and accessories.
Contact your Graco representative for assistance in designing a system to suit your particular needs.
Connecting the Unit and Accessories
D Ground the unit as described in Grounding on
page 5.
D The fluid line must include a fluid drain valve (K),
which helps relieve fluid pressure in the hose and
gun.
D The main air supply must include a bleed-type
master air valve (N) for shutting off air pressure to
the unit (supplied with Model 230992).
D Connect a grounded air supply hose to the bleed
type pump air valve (N).
MAIN AIR SUPPLY LINE
FLUID SUPPLY LINE
A
B
D You should install an air line filter (J) to remove dirt
and moisture from the air supply.
D Downstream from the air filter, you should install an
air line lubricator (H) for automatic air motor lubrica-
tion.
F
E
G
J
203
201
204
3
206a
Y
D
C
N
HK
KEY
A Air Filter/Regulator to Gun
B Fluid Pressure Regulator
C Fluid Shutoff Valve
D Fluid Filter
E Surge Tank
F Bleed–type Master Air Valve
G Pump Ground Wire
Fig. 2
206b
M
L
SECONDARY FLUID RETURN
MAIN FLUID RETURN
H Air Line Lubricator
J Air Filter to Pump
K Drain Valve
L Air Spray Circulating Gun
M Back Pressure Valve
(same as 203 except customer supplied)
N Bleed–type Pump Air Valve
Y Drum Cover/Agitator Ground Wire
3 Agitator
201 Air Supply Hose
203 Back Pressure Valve
204 Air Regulator
206a Return Fluid Hose
206b Supply Fluid Hose
04283A
6 307745
Operation
Pressure Relief Procedure
WARNING
PRESSURIZED EQUIPMENT HAZARD
The system pressure must be manually relieved to
prevent the system from starting or spraying accidentally. To reduce the risk of an injury from accidental spray from the gun, splashing fluid, or
moving parts, follow the Pressure Relief Proce-
dure whenever you:
D are instructed to relieve the pressure,
D stop spraying,
D check or service any of the system equipment,
D or install or clean the spray nozzle.
1. Lock the gun trigger safety.
2. Shut off the air supply to the pump.
3. Close the bleed-type master air valve (required in
your system). On Model 230992, this is the red–
handled ball valve, assembled next to the air
regulator.
4. Unlock the gun trigger safety.
5. Hold a metal part of the gun firmly to the side of a
grounded metal pail, and trigger the gun to relieve
pressure.
Flush the pump before first use. The pump is
tested with lightweight oil, which is left in to protect the
pump parts. If the fluid you are using may be contaminated by the oil, flush it out with a compatible solvent.
WARNING
To reduce the risk of serious injury whenever you
are instructed to relieve pressure, always follow the
Pressure Relief Procedure at left.
To clean any settled particles out of the system, flush
the entire system at least once each 90 days or less. If
possible, circulate the solvent and leave it in the lines
for two days, such as over the weekend, to help loosen
any dried paint.
1. Relieve the pressure.
2. Shutdown the system as explained in Shutdown
and Care of the Pump on page 9.
3. Start the pump and operate it at about 30 cycles
per minute.
4. Lubricate the agitator, if you haven’t already done
so, and then close its air valve to stop agitation.
WARNING
6. Lock the gun trigger safety.
7. Open the drain valve (required in your system),
and have a container ready to catch the drainage.
8. Leave the drain valve open until you are ready to
spray again.
If you suspect that the spray tip or hose is completely
clogged, or that pressure has not been fully relieved
after following the steps above, very slowly loosen the
tip guard retaining nut or hose end coupling and relieve
the pressure gradually. Then loosen it completely.
Then clear the tip or hose.
Flushing
WARNING
FIRE AND EXPLOSION HAZARD
Before flushing, read the section FIRE
AND EXPLOSION HAZARD on page
4. Be sure the entire system and
flushing pails are properly grounded.
Refer to Grounding on page 5.
Failure to shut off the agitator before raising the
pump assembly may result in serious injury from
splashing paint in the eyes or contact with the
blades of the agitator.
5. Raise the pump out of the paint while it is still
running and let it run itself dry to force the paint
back into the drum. Shut off the pump.
CAUTION
Never leave water or water-based fluid in the pump
overnight. Flush with a compatible solvent to protect
the parts from corrosion.
6. Remove the paint drum and place a 55 gallon
drum, containing enough solvent to thoroughly fill
and flush the system, under the pump. Lower the
pump.
7. Start the pump again and allow the solvent to
circulate for at least one hour.
307745 7
Operation
8. Shut off the air to the pump, open the bleed–type
master air valve, and open the drain valve (K).
Leave the solvent in the system overnight or, if
possible, all weekend.
9. Start the pump and circulate it again for 30 minutes. Raise the pump out of the solvent and let it
dry to force out the solvent. Drain solvent from all
outlet loops and filters.
10. Place the paint supply drum under the pump,
agitate the paint, install the gun and hoses.
11. Reset the air and fluid pressure regulators to
complete the system flushing.
Adjusting the Unit
Install supply drum under cover/pump. Make sure that
the cover is supported by the drum.
CAUTION
Shortened or recycled drums may cause the pump
or agitator to bottom out in the drum, causing
damage. Contact your fluid supplier to order a
standard size drum.
5. When the paint returns through the return line in a
steady stream, turn on the air to one gun, open
both fluid shutoff valves (C) near the gun, and
adjust the fluid regulator (B). See the manuals
supplied with these components for pressure
range and adjustment . Repeat for all gun stations.
6. Paint line pressure is controlled by the back pressure regulator (203). This regulator restricts flow of
paint in the line so there is sufficient paint pressure
at all gun stations. Turn the regulator handle
clockwise to increase and counter–clockwise
to decrease pressure.
Adjust the regulator so there is about 10 psi
(0.6 bar) more fluid pressure at the regulator
than is required at the last gun in the line.
NOTE: As you increase fluid line pressure, you must
also increase air pressure to the pump, so the pump
can handle the heavier load. However, never increase
the pressure so much that you exceed the maximum
working pressure of any component in the system.
7. As you start to spray, adjust the air and fluid
pressures to the gun to obtain the best results.
1. Unscrew the filter bowl and remove the filter
screen. Replace the bowl. Flush the unit until
clear solvent comes from the gun, then reinstall
the filter screen.
2. Before operation, ensure that all fasteners and
tube connections are tightened securely.
Starting and Adjusting the Pump
1. Close the air regulator (204).
2. Start the agitator (3). Agitate the paint just fast
enough to keep all paint particles suspended.
Over–agitating causes air bubbles in the paint
which can cause poor gun performance and poor
surface finish.
3. Open the red–handled ball valve. Open the pump’s
bleed-type master air valve (N).
4. Slowly open the air regulator until the pump starts.
Adjust it until the pump cycles slowly – about 50
cycles per minute.
CAUTION
Do not allow the pump to run dry. It will quickly
accelerate to a high speed, causing damage. If
your pump is running too fast, stop it immediately
and check the fluid supply. If the container is
empty and air has been pumped into the lines, refill
the container and prime the pump and the lines, or
flush and leave it filled with a compatible solvent.
Eliminate all air from the fluid system.
WARNING
COMPONENT RUPTURE HAZARD
To reduce the risk of overpressurizing
your system, which could cause component rupture and serious injury, never
exceed the specified Maximum Incoming Air Pressure to the pump. (see Technical Data on
page 15.)
8 307745
Operation
Shutdown and Care of the Pump
WARNING
To reduce the risk of serious injury whenever you
are instructed to relieve pressure, always follow the
Pressure Relief Procedure on page 7.
Never allow paint to dry in the pump and lines.
To shutdown the system
1. Relieve the pressure. Stop the agitator, and
lubricate it.
2. If using a Graco fluid pressure regulator at the
gun, reverse its regulating key and thread it into
the regulator cap as far as it will go.
3. Loosen the spray gun air cap about three turns,
hold a rag over the front of the air cap and fully
trigger the gun. This forces paint in the gun, hose
and regulator back into the circulating line. Close
the fluid shutoff valves (C) at that gun station,
Repeat for the other gun stations.
4. Open the bleed–type master air valve (N), and the
pump air regulator (204) to restart the pump.
Circulate the paint to remove all trapped air before
shutting down.
5. Disconnect the gun’s fluid hose from the gun and
the fluid regulator. Plug the regulator outlet. Blow
compressed air and compatible solvent through
the hose to clean it. Clean the gun according to the
instructions supplied with it. Each month remove
and clean the fluid regulator.
6. If you are not using an air line lubricator, manually
lubricate the motor at least once a day.
7. Circulate the fluid in the lines often enough during
the shutdown to prevent the paint from drying.
NOTE: To drain the circulating lines and flush the
system, see Flushing on page 7.
307745 9
Parts Drawing
Model 230992, Series B
4:1 Ratio President Carbon Steel
55 Gallon Drum System
Includes items 1 to 4, and 6 to 12
1 or 5
(MONARK PUMP SHOWN)
2
Model 230993, Series B
2:1 Ratio Monark Carbon Steel
55 Gallon Drum System
Includes items 2 to 6, and 11
6
8
11
12
7
9
10
3
Fig. 3
10 307745
c
Parts List
Model 230992, Series B
4:1 Ratio President Carbon Steel
55 Gallon Drum System
Includes items 1 to 4, and 6 to 12
Model 230993, Series B
2:1 Ratio Monark Carbon Steel
55 Gallon Drum System
Includes items 2 to 6, and 11
Ref.
No. Part No. Description Qty.
1 223183 4:1 RATIO PRESIDENT PUMP;
See 307986 for parts. 1
2 237307 COVER, drum;
See 308466 for parts. 1
3 203711 AGITATOR;
See 306459 for parts. 1
5 223185 2:1 RATIO MONARK PUMP;
See 307985 for parts 1
6 237569 GROUND WIRE AND CLAMP 1
Ref.
No. Part No. Description Qty.
7 160032 NIPPLE; 3/4 npt x 2 1
8 158491 NIPPLE; 1/2 npt x 2 1
9 113331 BALL VALVE, air, bleed-type 1
10 156684 UNION, adapter, swivel; 1/2” npt(m)
x 1/2 npt(f) 1
11 158491 FITTING, nipple(used on 230992) 1
159239 FITTING, nipple(used on 230993)1
12 162505 UNION, swivel 1
307745 11
Parts Drawing
Model 220575, Series B
3:1 Ratio President Stainless Steel
55 Gallon Drum System
Includes items 1–35
6d
1
4
1 REF
Remove and discard 1/2 x 3/8 npt nipple from outlet of
1
air regulator (5a), and replace with 1/2 npt nipple (5c). Then
connect air regulator assy to pump air inlet.
Agitator (3) is tilted at a 6_ angle.
2
1
Ref No. 5 includes
items 5a–5c.
5a
5c
35
3 REF
22
23
2
6b,6c
Ref No. 6 includes
items 6a–6d.
6a
19
18
17
20
3 REF
3
2
12 307745
7679A
Model 220575, Series B
3:1 Ratio President Stainless Steel
55 Gallon Drum System
Parts List
Ref Part
No. No. Description Qty
1 220564 PUMP, President
See 308793 for parts 1
2 237309 COVER, drum, 55 gal. (200 liter)
See 308466 for parts 1
3 222698 AGITATOR
See 306840 for parts 1
4 220580 RISER TUBE KIT
See 307837 for parts 1
5 223180 AIR REGULATOR KIT
Includes items 5a–5c 1
5a 203716 REGULATOR, air
See 308167 for parts 1
5b 205418 HOSE, air; buna-N; 1/2” ID;
coupled 1/2 npt (mbe); 6 ft (1.9 m) lg 1
5c 158491 NIPPLE; 1/2 npt 1
6 223319 RETURN TUBE KIT
Includes items 6a–6d 1
Ref Part
No. No. Description Qty
6a 185393 TUBE, return; sst; 1” npt(m) 1
6b 178941 NUT, hex; 1–5/8–18 unef–2b 1
6c 185394 ADAPTER, return;
1–5/8–18 unef–2a(m) x
1” npt(f) x 1” npt(f) 1
6d 108761 ELBOW, street; 1” npt (m x f) 1
7 185466 NIPPLE, half; 1–1/2” npt 1
17 190192 GASKET, agitator, guide 1
18 112896 SCREW, cap, hex hd 4
19 104123 WASHER, lock, spring 4
20 174092 PLATE, adapter 1
22 112894 SCREW, cap, hex hd 3
23 112904 WASHER, lock, 5/16 in. 3
35 100839 ELBOW, 1/8 npt (m x f) 1
307745 13
Notes
14 307745
Technical Data
Category Model 220575 Model 230992 Model 230993
Ratio 3:1 4:1 2:1
Maximum fluid working
pressure
Maximum air input
pressure
Pump cycles per 1 gallon
(3.8 liters)
Fluid flow at 60 cycles per
minute
Fluid inlet size 1–1/2 npt(f) 1–1/2 npt(f) 1–1/2 npt(f)
Fluid outlet size 1 in. npt(f) 1 in. npt(f) 1 in. npt(f)
Air inlet size 1/2 npt(f) 3/8 npt(f) 3/8 npsm(f)
Weight 110 lb (50 kg) 110 lb (50 kg) 110 lb (50 kg)
Maximum pump operating
temperature
* Sound pressure levels
(dBa) (Input air pressures
at 15 cycles per minute)
* Sound power levels
(dBa) (Input air pressures
at 15 cycles per minute)
Wetted parts Chrome Plated Stainless
500 psi (3.5 MPa, 35 bar) 400 psi (2.8 MPa, 28 bar) 200 psi (1.4 MPa, 14 bar)
166 psi (1.2 MPa, 11.6
bar)
6.3 8 11
9.2 gpm (35.1 liters/min) 8 gpm (30.4 liters/min) 5.5 gpm (21 liters/min)
180_F (82_C) 180_F (82_C) 180_F (82_C)
73.6 dB(A) @ 40psi
(0.3 MPa, 2.8 bar)
78.3 dB(A) @ 70 psi
(0.5 MPa, 4.8 bar)
80.9 dB(A) @100 psi
(0.7 MPa, 7 bar)
87.4 dB(A) @ 40 psi
(0.3 MPa, 2.8 bar)
92.1 dB(A) @ 70 psi
(0.5 MPa, 4.8 bar)
94.6 dB(A) @100 psi
(0.7 MPa, 7 bar)
Steel, Ultra–High
Molecular Weight
Polyethylene, Leather,
PTFE
100 psi (0.7 MPa, 7 bar) 100 psi (0.7 MPa, 7 bar)
73.6 dB(A) @ 40 psi
(0.3 MPa, 2.8 bar)
78.3 dB(A) @ 70 psi
(0.5 MPa, 4.8 bar)
80.9 dB(A) @100 psi
(0.7 MPa, 7 bar)
87.4 dB(A) @ 40 psi
(0.3 MPa, 2.8 bar)
92.1 dB(A) @ 70 psi
(0.5 MPa, 4.8 bar)
94.6 dB(A) @100 psi
(0.7 MPa, 7 bar)
Supply and Return Tubes: Nickel-plated carbon steel
Air Motor Base: Aluminum
Displacement Pump: Refer to manual 307983
73.3 dB(A) @ 40 psi
(0.3 MPa, 2.8 bar)
75.9 dB(A) @ 70 psi
(0.5 MPa, 4.8 bar)
77.7 dB(A) @100 psi
(0.7 MPa, 7 bar)
87.0 dB(A) @ 40 psi
(0.28 MPa, 2.8 bar)
89.7 dB(A) @ 70 psi
(0.5 MPa, 4.8 bar)
91.4 dB(A) @100 psi
(0.7 MPa, 7 bar)
* Tested in accordance with ISO 9614–2.
307745 15
Graco Standard Warranty
Graco warrants all equipment manufactured by Graco and bearing its name to be free from defects in material and workmanship on the
date of sale to the original purchaser for use. With the exception of any special, extended, or limited warranty published by Graco,
Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be
defective. This warranty applies only when the equipment is installed, operated and maintained in accordance with Graco’s written
recommendations.
This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear caused by
faulty installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or substitution of non–Graco component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the incompatibility of
Graco equipment with structures, accessories, equipment or materials not supplied by Graco, or the improper design, manufacture,
installation, operation or maintenance of structures, accessories, equipment or materials not supplied by Graco.
This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor for
verification of the claimed defect. If the claimed defect is verified, Graco will repair or replace free of charge any defective parts. The
equipment will be returned to the original purchaser transportation prepaid. If inspection of the equipment does not disclose any defect
in material or workmanship, repairs will be made at a reasonable charge, which charges may include the costs of parts, labor, and
transportation.
THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT
NOT LIMITED TO WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.
Graco’s sole obligation and buyer’s sole remedy for any breach of warranty shall be as set forth above. The buyer agrees that no other
remedy (including, but not limited to, incidental or consequential damages for lost profits, lost sales, injury to person or property, or any
other incidental or consequential loss) shall be available. Any action for breach of warranty must be brought within two (2) years of the
date of sale.
Graco makes no warranty, and disclaims all implied warranties of merchantability and fitness for a particular purpose in connection
with accessories, equipment, materials or components sold but not manufactured by Graco. These items sold, but not manufactured
by Graco (such as electric motors, switches, hose, etc.), are subject to the warranty, if any, of their manufacturer. Graco will provide
purchaser with reasonable assistance in making any claim for breach of these warranties.
In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from Graco supplying equipment
hereunder, or the furnishing, performance, or use of any products or other goods sold hereto, whether due to a breach of contract,
breach of warranty, the negligence of Graco, or otherwise.
FOR GRACO CANADA CUSTOMERS
The parties acknowledge that they have required that the present document, as well as all documents, notices and legal proceedings
entered into, given or instituted pursuant hereto or relating directly or indirectly hereto, be drawn up in English. Les parties reconnaissent avoir convenu que la rédaction du présente document sera en Anglais, ainsi que tous documents, avis et procédures judiciaires
exécutés, donnés ou intentés à la suite de ou en rapport, directement ou indirectement, avec les procedures concernées.
Graco Information
TO PLACE AN ORDER, contact your Graco distributor, or call one of the following numbers
to identify the distributor closest to you:
1–800–328–0211 Toll Free
612–623–6921
612–378–3505 Fax
All written and visual data contained in this document reflects the latest product information available at the time of publication.
Graco reserves the right to make changes at any time without notice.
International Offices: Belgium, Korea, Hong Kong, Japan
Sales Office: Minneapolis
www.graco.com
PRINTED IN USA 307745 05/1986, Revised 04/2004
16 307745
Loading...
