Instructions–Parts List
HYDRA–SPRAY
R
Presidentr and Monarkr
Pumps
For airless and air–assisted spraying of finishing materials.
Important Safety Instructions
Read all warnings and instructions in this manual.
Save these instructions.
30:1 RATIO PRESIDENT PUMPS
3600 psi (25 MPa, 248 bar) Maximum Fluid Working Pressure
120 psi (0.8 MPa, 8 bar) Maximum Air Input Pressure
Part No. 221075, Series C
55 Gallon (200 Liter) Drum Size
II 1/2 G T3
ITS03ATEX11228
306981AD
Part No. 243664, Series A
Stubby Size
II 2 G T3
Part No. 223586, Series B
Stubby Size
II 2 G T3
15:1 RATIO MONARK PUMPS
1500 psi (10.5 MPa, 105 bar) Maximum Fluid Working Pressure
100 psi (0.7 MPa, 7 bar) Maximum Air Input Pressure
Part No. 239327, Series A
Stubby Size
II 1/2 G T3
ITS03ATEX11228
02501
Model 223586
07196A
Model 239327
0359
Table of Contents
Symbols
Warnings 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operation 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Troubleshooting 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parts 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Data 20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dimensions 23. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mounting Hole Layout 23. . . . . . . . . . . . . . . . . . . . . . . . . .
Graco Standard Warranty 24. . . . . . . . . . . . . . . . . . . . . .
Graco Information 24. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
WARNING
EQUIPMENT MISUSE HAZARD
Equipment misuse can cause the equipment to rupture or malfunction and result in serious injury.
INSTRUCTIONS
This equipment is for professional use only.
Warning Symbol
WARNING
This symbol alerts you to the possibility of serious
injury or death if you do not follow the instructions.
Caution Symbol
CAUTION
This symbol alerts you to the possibility of damage to
or destruction of equipment if you do not follow the
instructions.
Read all instruction manuals, tags, and labels before operating the equipment.
Use the equipment only for its intended purpose. If you are uncertain about usage, call your Graco
distributor.
Do not alter or modify this equipment. Use only genuine Graco parts and accessories.
Check equipment daily. Repair or replace worn or damaged parts immediately.
Do not exceed the maximum working pressure of the lowest rated system component. Refer to the
Technical Data on page 20 for the maximum working pressure of this equipment.
Use fluids and solvents which are compatible with the equipment wetted parts. Refer to the Tech-
nical Data section of all equipment manuals. Read the fluid and solvent manufacturer’s warnings.
Do not use hoses to pull equipment.
Route hoses away from traffic areas, sharp edges, moving parts, and hot surfaces. Do not expose
Graco hoses to temperatures above 180F (82C) or below –40F (–40C).
Wear hearing protection when operating this equipment.
Do not lift pressurized equipment.
Comply with all applicable local, state, and national fire, electrical, and safety regulations.
2 306981
WARNING
SKIN INJECTION HAZARD
Spray from the gun, hose leaks, or ruptured components can inject fluid into your body and cause
extremely serious injury, including the need for amputation. Fluid splashed in the eyes or on the skin
can also cause serious injury.
Fluid injected into the skin might look like just a cut, but it is a serious injury. Get immediate surgi-
cal treatment.
Do not point the gun at anyone or at any part of the body.
Do not put your hand or fingers over the spray tip.
Do not stop or deflect leaks with your hand, body, glove or rag.
Do not “blow back” fluid; this is not an air spray system.
Always have the tip guard and the trigger guard on the gun when spraying.
Check the gun diffuser operation weekly. Refer to the gun manual.
Be sure the gun trigger safety operates before spraying.
Lock the gun trigger safety when you stop spraying.
Follow the Pressure Relief Procedure on page 9 whenever you: are instructed to relieve pres-
sure; stop spraying; clean, check, or service the equipment; and install or clean the spray tip.
Tighten all fluid connections before operating the equipment.
Check the hoses, tubes, and couplings daily. Replace worn, damaged, or loose parts immediately.
Permanently coupled hoses cannot be repaired; replace the entire hose.
Use only Graco approved hoses. Do not remove any spring guard that is used to help protect the
hose from rupture caused by kinks or bends near the couplings.
MOVING PARTS HAZARD
Moving parts, such as the air motor piston, can pinch or amputate your fingers.
Keep clear of all moving parts when starting or operating the pump.
Before servicing the equipment, follow the Pressure Relief Procedure on page 9 to prevent the
equipment from starting unexpectedly.
306981 3
WARNING
FIRE AND EXPLOSION HAZARD
Improper grounding, poor ventilation, open flames or sparks can cause a hazardous condition and
result in a fire or explosion and serious injury.
Ground the equipment and the object being sprayed. Refer to Grounding on page 5.
If there is any static sparking or you feel an electric shock while using this equipment, stop spray-
ing immediately. Do not use the equipment until you identify and correct the problem.
Provide fresh air ventilation to avoid the buildup of flammable fumes from solvents or the fluid
being sprayed.
Keep the spray area free of debris, including solvent, rags, and gasoline.
Electrically disconnect all equipment in the spray area.
Extinguish all open flames or pilot lights in the spray area.
Do not smoke in the spray area.
Do not turn on or off any light switch in the spray area while operating or if fumes are present.
Do not operate a gasoline engine in the spray area.
TOXIC FLUID HAZARD
Hazardous fluid or toxic fumes can cause serious injury or death if splashed in the eyes or on the skin,
inhaled, or swallowed.
Know the specific hazards of the fluid you are using.
Store hazardous fluid in an approved container. Dispose of hazardous fluid according to all local,
state and national guidelines.
Always wear protective eyewear, gloves, clothing and respirator as recommended by the fluid and
solvent manufacturer.
4 306981
Installation
0
General Information
NOTE: Reference numbers and letters in parentheses
in the text refer to the callouts in the figures and the
parts drawing.
NOTE: Always use Genuine Graco Parts and Accessories, available from your Graco distributor. If you
supply your own accessories, be sure they are adequately sized and pressure-rated for your system.
Fig. 2 is only a guide for selecting and installing system components and accessories. Contact your Graco
distributor for assistance in designing a system to suit
your particular needs.
Prepare the Operator
All persons who operate the equipment must be
trained in the safe, efficient operation of all system
components as well as the proper handling of all fluids.
All operators must thoroughly read all instruction
manuals, tags, and labels before operating the equipment.
Grounding
Z
Y
X
W
Fig. 1
2. Air and fluid hoses: use only electrically conductive
hoses.
3. Air compressor: follow manufacturer’s recommendations.
4. Spray gun: ground through connection to a properly grounded fluid hose and pump.
072
WARNING
FIRE AND EXPLOSION HAZARD
Before operating the pump, ground the
system as explained below. Also read
the section FIRE AND EXPLOSION
HAZARD on page 4.
1. Pump: use a 12 gauge (1.5 mm) minimum ground
wire and clamp. See Fig. 1. Loosen the grounding
lug locknut (W) and washer (X). Insert one end of
the ground wire (Y) into the slot in lug (Z) and
tighten the locknut securely. Connect the other end
of the wire to a true earth ground. Order Part No.
238909.
5. Fluid supply container: follow your local code.
6. Object being sprayed: follow your local code.
7. Solvent pails used when flushing: follow your local
code. Use only metal pails, which are conductive,
placed on a grounded surface. Do not place the
pail on a nonconductive surface, such as paper or
cardboard, which interrupts the grounding continuity.
8. To maintain grounding continuity when flushing or
relieving pressure, hold a metal part of the spray
gun firmly to the side of a grounded metal pail,
then trigger the gun.
306981 5
Installation
Refer to the Typical Installation drawing (Fig. 2).
WARNING
A bleed-type master air valve (D) and a fluid drain
valve (J) are required in your system. These accessories help reduce the risk of serious injury, including skin injection and splashing of fluid in the eyes
or on the skin, and injury from moving parts if you
are adjusting or repairing the pump.
The bleed-type master air valve relieves air trapped
between this valve and the pump after the air is
shut off. Trapped air can cause the pump to cycle
unexpectedly. Locate the valve close to the pump.
Order Part No. 113333.
The fluid drain valve assists in relieving fluid pressure in the displacement pump, hose, and gun.
Triggering the gun to relieve pressure may not be
sufficient. Order Part No. 238635.
Mounting Accessories
Mount the pump (A) to suit the type of installation
planned. The pump dimensions and mounting hole
layout are shown on page 23.
Air Line Accessories
Install the following accessories in the order shown in
Fig. 2, using adapters as necessary:
An air line lubricator (C) provides automatic air
motor lubrication.
A bleed-type master air valve (D) is required in
your system to relieve air trapped between it and
the air motor when the valve is closed (see the
WARNING at left). Be sure the bleed valve is easily
accessible from the pump, and is located down-
stream from the air regulator.
A pump runaway valve (B) senses when the
pump is running too fast and automatically shuts off
the air to the motor. A pump which runs too fast can
be seriously damaged.
An air regulator (E) controls pump speed and
outlet pressure by adjusting the air pressure to the
pump. Locate the regulator close to the pump, but
upstream from the bleed-type master air valve.
An air line filter (F) removes harmful dirt and
moisture from the compressed air supply.
Air and Fluid Hoses
Ensure that you have an adequate compressed air
supply. Refer to the performance chart on page 20 to
find the air consumption of your pump.
Be sure all air and fluid hoses are properly sized and
pressure-rated for your system. Use only electrically
conductive air and fluid hoses. Fluid hoses must have
spring guards on both ends.
Connect an electrically conductive fluid hose (L) to the
pump’s 3/8 npt(f) fluid outlet. Use of a short whip hose
between the main fluid hose (L) and the gun (M) allows
freer gun movement.
Connect a fluid suction hose or tube (N) to the pump’s
3/4 npt(m) fluid intake.
Use an electrically conductive 1/2 in. I.D. (minimum)
air hose (H) to supply air to the pump.
A second bleed-type air valve (G) isolates the air
line accessories for servicing. Locate upstream
from all other air line accessories.
Fluid Line Accessories
Install the following accessories in the positions shown
in Fig. 2, using adapters as necessary:
A fluid drain valve (J) is required in your system
to relieve fluid pressure in the hose and gun (see
the WARNING at left). Install the drain valve pointing down, but so the handle points up when the
valve is opened.
A fluid filter (K) filters harmful particles from the
fluid.
A spray gun (M) dispenses the fluid. The gun
shown in Fig. 2 is an airless spray gun.
6 306981
KEY
A Pump
B Pump Runaway Valve
C Air Line Lubricator
D Bleed-Type Master Air Valve
(required, for pump)
E Pump Air Regulator
F Air Line Filter
G Bleed-Type Master Air Valve
(for accessories)
H Air Supply Hose
J Fluid Drain Valve (required)
K Fluid Filter
L Fluid Supply Hose
M Spray Gun
N Fluid Suction Hose
Y Ground Wire (required; see page 5
for installation instructions)
Model 223586 Shown
Installation
A
Y
EF
H
G
Fig. 2
B
D
C
M
K
J
N
L
02502
306981 7
Notes
8 306981
Operation
Pressure Relief Procedure
WARNING
SKIN INJECTION HAZARD
The system pressure must be manually
relieved to prevent the system from
starting or spraying accidentally. Fluid
under high pressure can be injected through the
skin and cause serious injury. To reduce the risk of
an injury from injection, splashing fluid, or moving
parts, follow the Pressure Relief Procedure
whenever you:
are instructed to relieve the pressure,
stop spraying,
check or service any of the system equipment,
or install or clean the spray tip.
1. Lock the gun trigger safety.
2. Close the bleed-type master air valve (D, required
in your system). See Fig. 2.
3. Unlock the gun trigger safety.
If you suspect that the spray tip or hose is completely
clogged, or that pressure has not been fully relieved
after following the steps above, very slowly loosen the
tip guard retaining nut or hose end coupling and relieve
pressure gradually, then loosen completely. Now clear
the tip or hose.
WARNING
MOVING PARTS HAZARD
Do not operate without the air motor
plates (P, Fig. 3) in place. Pinching or
amputation of fingers or hands may
occur. See MOVING PARTS HAZARD
on page 3.
Packing Nut
Keep the packing nut/wet-cup (36) filled with Graco
Throat Seal Liquid (TSL) or compatible solvent, to help
prolong the packing life. See Fig. 3.
WARNING
To reduce the risk of serious injury whenever you
are instructed to relieve pressure, always follow the
Pressure Relief Procedure at left.
4. Hold a metal part of the gun firmly to the side of a
grounded metal pail, and trigger the gun to relieve
pressure.
5. Lock the gun trigger safety.
6. Open the drain valve (J, required in your system),
having a container ready to catch the drainage.
7. Leave the drain valve open until you are ready to
spray again.
The packing nut is torqued at the factory and is ready
for operation. If it becomes loose and there is leaking
from the throat packings, relieve pressure, then torque
the nut to 18–20 ft–lb (24–27 N.m). Do this whenever
necessary. Do not overtighten the packing nut.
Flush the Pump Before First Use
The pump is tested with lightweight oil, which is left in
to protect the pump parts. If the fluid you are using
may be contaminated by the oil, flush it out with a
compatible solvent. See Flushing on page 11.
306981 9
Operation
Starting and Adjusting the Pump
See Fig. 2 on page 7. Be sure the air regulator (E)
and bleed-type master air valve (D) are closed. Do not
install the spray tip yet!
Connect a suction hose (N) to the pump’s fluid inlet.
Hold a metal part of the spray gun (M) firmly to the
side of a grounded metal pail and hold the trigger
open. Then open the pump’s bleed-type master air
valve (D). Now slowly open the air regulator until the
pump starts, about 40 psi (0.3 MPa, 3 bar).
Cycle the pump slowly until all the air is pushed out
and the pump and hoses are fully primed. Release the
spray gun trigger and lock the trigger safety. The pump
should stall against pressure when the trigger is released.
WARNING
To reduce the risk of serious injury whenever you
are instructed to relieve pressure, always follow the
Pressure Relief Procedure on page 9.
Relieve the pressure. Install the spray tip as explained
in your separate gun manual.
With the pump and lines primed, and with adequate air
pressure and volume supplied, the pump will start and
stop as the spray gun is opened and closed. In a circulating system, the pump will run continuously and will
speed up or slow down as supply demands until the air
supply is shut off.
Use an adequately sized air regulator (E) to control the
pump speed and the fluid pressure. Always use the
lowest air pressure necessary to get the desired results. Higher pressures waste fluid and cause premature wear of the pump packings and spray tip.
WARNING
COMPONENT RUPTURE HAZARD
To reduce the risk of overpressurizing
your system, which could cause component rupture and serious injury, never
exceed the Maximum Air Input Pressure marked
on the pump. Refer to the Technical Data on page
20.
CAUTION
Do not allow the pump to run dry. It will quickly
accelerate to a high speed, causing damage. If your
pump is running too fast, stop it immediately and
check the fluid supply. If the container is empty and
air has been pumped into the lines, refill the container and prime the pump and the lines, or flush and
leave it filled with a compatible solvent. Eliminate all
air from the fluid system.
A pump runaway valve (B), which shuts off the air
supply to the pump if the pump accelerates beyond
the pre-set speed, is available. See Fig. 2 on page
7. Contact your Graco distributor for further information.
10 306981

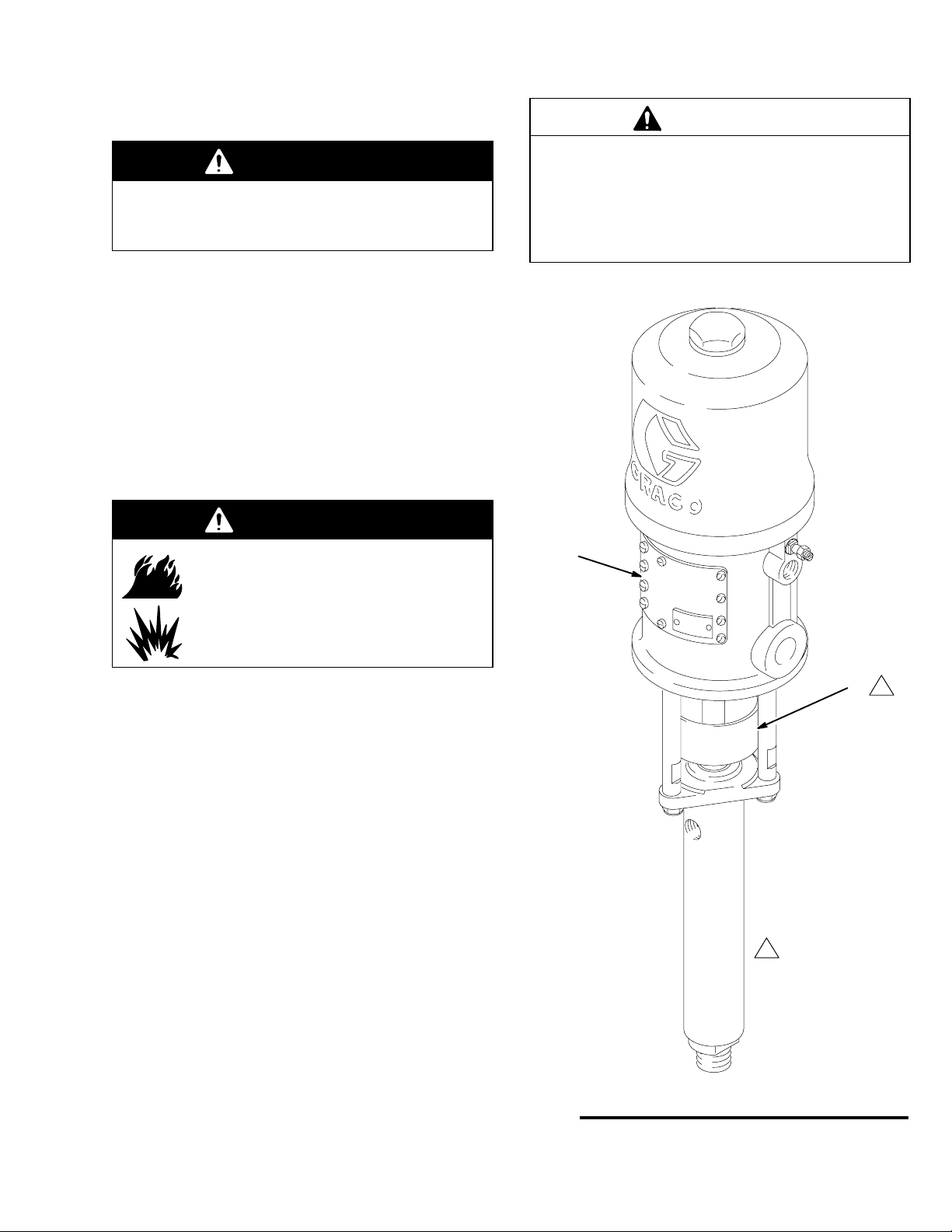

Shutdown and Care of the Pump
Operation
CAUTION
WARNING
To reduce the risk of serious injury whenever you
are instructed to relieve pressure, always follow the
Pressure Relief Procedure on page 9.
For overnight shutdown, relieve the pressure. Always
stop the pump at the bottom of the stroke to prevent
the fluid from drying on the exposed displacement rod
and damaging the throat packings.
Always flush the pump before the fluid dries on the
displacement rod. See Flushing below.
Flushing
WARNING
FIRE AND EXPLOSION HAZARD
Before flushing, read the section FIRE
AND EXPLOSION HAZARD on page
4. Be sure the entire system and flushing pails are properly grounded. Refer to
Grounding on page 5.
Never leave water or water-base fluid in the pump
overnight. If you are pumping water-base fluid, flush
with water first, then with a rust inhibitor such as
mineral spirits. Relieve the pressure, but leave the
rust inhibitor in the pump to protect the parts from
corrosion.
Model 223586 Shown
P
Flush the pump:
Before the first use
When changing colors or fluids
Before fluid can dry or settle out in a dormant pump
(check the pot life of catalyzed fluids)
Before storing the pump.
Flush with a fluid that is compatible with the fluid you
are pumping and with the wetted parts in your system.
Check with your fluid manufacturer or supplier for
recommended flushing fluids and flushing frequency.
If the pump is being used to supply a circulating system, allow the solvent to circulate until the pump is
thoroughly flushed.
Fig. 3
Torque to 18–20 ft–lb
1
(24–27 N.m)
36
1
02501
306981 11
Troubleshooting
NOTE: Check all possible problems and solutions before disassembling the pump.
PROBLEM
Pump fails to operate. Restricted line or inadequate air supply. Clear line; increase air supply.
Pump operates but output is low on both
strokes.
Pump operates but output is low on down
stroke.
Pump operates but output is low on down
stroke.
Erratic or accelerated operation.
CAUSE SOLUTION
Insufficient air pressure; closed or
clogged air valves, etc.
Exhausted fluid supply. Refill; purge all air from pump and fluid
Damaged air valving mechanism; stalling. Service air motor (see manual, supplied).
Dried fluid seizure of displacement rod
(26).
Restricted line or inadequate air supply. Clear line; increase air supply.
Insufficient air pressure; closed or
clogged air valves, etc.
Exhausted fluid supply. Refill; purge all air from pump and fluid
Clogged fluid line, valves, etc. Clear*.
Packing nut (36) is too tight. Loosen (see page 9).
Loose packing nut (36) or worn throat
packings (18, 23).
Held open or worn intake valve. Clear; service. See page 14.
Held open or worn fluid piston valve or
packings (18, 23).
Exhausted fluid supply. Refill; purge all air from pump and fluid
Held open or worn intake valve. Clear; service. See page 14.
Open, clean.
lines.
Clean rod; check or replace throat packings (18, 23); always stop pump at bottom of stroke and keep wet-cup filled with
compatible solvent.
Open, clean.
lines.
Tighten packing nut (see page 9);
replace throat packings (see page 14).
Clear; service. See page 14.
lines.
Held open or worn fluid piston valve or
packings (18, 23).
* To determine if the fluid hose or gun is obstructed, relieve the pressure. Disconnect the fluid hose and place a
container at the pump fluid outlet to catch any fluid. Turn on the air just enough to start the pump (about 20–40
psi [0.14–0.28 MPa, 1.4–2.8 bar]). If the pump starts when the air is turned on, the obstruction is in the fluid
hose or gun.
12 306981
Clear; service. See page 14.
Service
Disconnecting the Displacement Pump
WARNING
To reduce the risk of serious injury whenever you
are instructed to relieve pressure, always follow the
Pressure Relief Procedure on page 9.
1. Flush the pump if possible. Stop the pump at the
bottom of its stroke. Relieve the pressure.
2. Disconnect the air and fluid hoses. Remove the
pump from its mounting. Note the relative position
of the pump’s fluid outlet to the air motor’s air inlet.
3. See Fig. 4. (For Model 221075, refer also to the
Parts Drawing on page 16.) Unscrew the tie rod
locknuts (4) from the tie rods (12). Remove the
cotter pin (3). Unscrew the displacement rod (26)
from the air motor (14) or connecting rod (37, Model 221075 only). Carefully pull the displacement
pump (15) off the air motor (14). Inspect the o-ring
(7).
4. Refer to page 14 for displacement pump service.
To service the air motor, refer to the separate air
motor manual, supplied.
Reconnecting the Displacement Pump
Model 223586 Shown
President Pumps:
1
Torque to 20–30 ft–lb (27–41 N.m)
Monark Pumps:
Torque to 15–20 ft–lb (20–27 N.m)
Torque to 18–20 ft–lb (24–27 N.m)
2
3
Lubricate
3
26
14
12
1
7
1. Lubricate the o-ring (7) and place it on the displacement rod (26). Orient the pump’s fluid outlet
to the air motor’s air inlet as was noted in step 2
under Disconnecting the Displacement Pump.
Position the displacement pump (15) on the tie
rods (12). See Fig. 4.
2. Screw the locknuts (4) onto the tie rods (12) loosely. Screw the displacement rod (26) into the shaft
of the air motor (14) or the connecting rod (37,
Model 221075 only) until the pin holes align. Install
the cotter pin (3).
3. Mount the pump and reconnect all hoses.
Reconnect the ground wire if it was disconnected
during repair. Torque the packing nut/wet-cup (36)
to 18–20 ft–lb (24–27 N.m). Fill the wet-cup with
Graco Throat Seal Liquid or compatible solvent.
4. Tighten the tie rod locknuts (4) evenly, and torque
as specified in Fig. 4.
5. Start the pump and run it at about 40 psi (3 bar) air
pressure, to check that it is operating properly.
Fig. 4
36
2
3
4
1
15
02503
306981 13
Displacement Pump Service
Service
Disassembly
When disassembling the pump, lay out all removed
parts in sequence, to ease reassembly. Refer to Fig. 5.
NOTE: Repair Kit 235635 is available. For the best
results, use all the new parts in the kit. Parts included
in the kit are denoted with an asterisk, for example
(17*).
Clean all the parts thoroughly when disassembling.
Check them carefully for damage or wear, replacing
parts as needed.
1. Remove the displacement pump from the air motor
as explained on page 13.
2. Unscrew the intake valve housing (33) from the
outlet housing (35). If it is difficult to remove,
squirt penetrating oil around the threads and gently
tap around the valve housing with a plastic hammer to loosen it. See Fig. 5.
3. Remove the ball stop pin (29), o-ring retainer (31),
o-ring (30), guide (32) and ball (28) from the intake
valve housing (33).
4. Loosen the packing nut (36). Push the displacement rod (26) down as far as possible, then pull it
out the bottom of the outlet housing (35).
Reassembly
1. Lubricate the throat packings and install them in
the outlet housing (35) one at a time as follows,
with the lips of the v-packings facing down: the
male gland (24*), one leather v-packing (18*), one
PTFE (23*), one leather (18*), one PTFE (23*),
one leather (18*), one PTFE (23*), and the female
gland (25*). Install the packing nut (36) loosely.
See the Throat Packing Detail in Fig. 5.
2. If you removed the sleeve (20), reinstall it in the
outlet housing (35), making sure to replace the
gasket (19*). Be sure the tapered end of the
sleeve faces down, toward the pump intake.
3. Lubricate the piston packings and install them onto
the piston stud (34) one at a time in the following
order, with the lips of the v-packings facing up: the
female gland (25*), one PTFE v-packing (23*), one
leather v-packing (18*), one PTFE (23*), one leather (18*), one PTFE (23*), one leather (18*), the
male gland (24*), and the packing retainer (22).
See the Piston Packing Detail in Fig. 5.
5. Secure the flats of the displacement rod (26) in a
vise. Screw the piston stud (34) out of the rod. Remove the ball (17), retainer (22), packings (18, 23)
and glands (24, 25).
6. Remove the packing nut (36), throat packings (18,
23) and glands (24, 25) from the outlet housing
(35).
7. Inspect all parts for damage. Clean all parts and
threads with a compatible solvent before reassembling. Inspect the polished surfaces of the displacement rod (26) and sleeve (20) for scratches,
scoring or other damage, which can cause premature packing wear and leaking. To check, run a
finger over the surface or hold the part up to the
light at an angle. Be sure the ball seats of the piston (R) and intake valve housing (S) are not
chipped or nicked. Replace any worn or damaged
parts.
NOTE: If the sleeve (20) needs replacement and is
hard to remove, contact your Graco distributor.
4. Use thread sealant on the piston stud (34). Install
the piston ball (17*) on the piston and screw the
piston valve assembly into the displacement rod
(26). Torque to 55–65 ft–lb (74–88 N.m).
5. Insert the displacement rod (26) into the bottom of
the outlet housing (35), being careful not to scratch
the sleeve (20). Push the rod straight up until it
protrudes from the packing nut (36).
6. Install the ball (28*), guide (32), o-ring (30*), retainer (31), and ball stop pin (29) in the intake valve
housing (33). Apply thread lubricant and screw the
intake housing into the outlet housing (35). Torque
to 55–65 ft–lb (74–88 N.m).
7. Reconnect the displacement pump to the air motor
as explained on page 13.
14 306981
26
Service
1
Torque to 18–20 ft–lb (24–27 N.m)
2
Torque to 55–65 ft–lb (74–88 N.m)
3
Lips of v-packings must face down.
4
Lips of v-packings must face up.
Tapered end must face down,
5
toward pump intake (33).
6
Apply thread lubricant.
7
Lubricate.
Throat Packing Detail
36
1
(Ref)
35
36
(Ref)
*18
3
7
*19
See Throat Packing
Detail at Right
20
5
25*
23*
7
24*
02505
3
Piston Packing Detail
35
26
See Piston Packing
Detail at Right
(Ref)
*30
Fig. 5
32
31
2
17*
R
35
29
(Ref)
22
7
24*
4
23*
*18
4
7
33
6
S
25*
*28
34
02504 02505
26
306981 15
Parts
Model 221075, Series C
30:1 Ratio President Pump, 55 gal. (200 liter) Drum Size
Ref.
No. Part No. Description Qty.
3 101946 PIN, cotter; stainless steel;
0.12” (3.2 mm) x 1.5” (38 mm) 1
4 101566 NUT, lock; 3/8–16 3
7 156082 SEAL, o-ring; nitrile rubber 1
12 168220 ROD, tie; carbon steel;
20” (508 mm),
shoulder-to-shoulder 3
13 168222 TUBE, intake extension;
aluminum 1
14 207352 AIR MOTOR
See 306982 for parts 1
15 223587 DISPLACEMENT PUMP ASSY
See pages 18–19 1
37 207698 ROD, connecting; carbon steel 1
14
Keep these spare parts on hand to reduce down
time.
7
12
3
37
4
15
16 306981
13
02507
Parts
Model 243664, Series A
Model 223586, Series B
30:1 Ratio President Pump, Stubby Size
Ref.
No. Part No. Description Qty.
3 101946 PIN, cotter; stainless steel;
0.12” (3.2 mm) x 1.5” (38 mm) 1
4 101566 NUT, lock; 3/8–16 3
7 156082 SEAL, o-ring; nitrile rubber 1
12 168221 ROD, tie; carbon steel;
4.5” (114 mm),
shoulder-to-shoulder 3
14 207352 AIR MOTOR
See 306982 for parts 1
15 223587 DISPLACEMENT PUMP ASSY
Model 223586 only 1
243663 DISPLACEMENT PUMP ASSY
Model 243664 only
See pgs 18–19 1
Keep these spare parts on hand to reduce down
time.
Part No. 239327, Series A
15:1 Ratio Monark Pump, Stubby Size
Ref Part
No. No. Description Qty
3 101946 PIN, cotter; stainless steel;
0.12” (3.2 mm) x 1.5” (38 mm) 1
4 101566 NUT, lock; 3/8–16 3
7 154771 O-RING; buna-N 1
12 164722 ROD, tie; carbon steel; 4.375 in.
(111 mm) shoulder to shoulder 3
14 215363 AIR MOTOR
See 307043 for parts 1
15 223587 DISPLACEMENT PUMP ASSY
See pgs 18–19 1
Keep these spare parts on hand to reduce down
time.
14
14
12
12
7
7
3
4
15
3
4
15
02503
07197A
306981 17
Model 243663, Series A
Model 223587, Series D
Severe-Duty Displacement Pumps
36
*25
*18
*24
Parts
26
23*
35
*19
20
22
24*
18*
*23
25*
17*
34
29
31
32
18 306981
30*
28*
33
02506
Model 243663, Series A
Model 223587, Series D
Severe-Duty Displacement Pumps
Parts
Ref.
No. Part No. Description Qty.
17* 105444 BALL, piston; stainless steel;
0.31” (7.9 mm) dia. 1
18* see chart V-PACKING 6
19* 164480 GASKET, flat; PTFE 1
20 24C500 SLEEVE, housing; stainless steel 1
22 186184 RETAINER, packing;
stainless steel 1
23* see chart V-PACKING 6
24* 186182 GLAND, packing, male;
stainless steel 2
25* 186181 GLAND, packing, female;
stainless steel 2
26 24C507 ROD, displacement;
stainless steel 1
28* 105445 BALL, intake; stainless steel;
0.5” (13 mm) dia. 1
29 186179 PIN, ball stop; stainless steel 1
30* 165052 SEAL, o-ring; PTFE 1
Repair Kit and Packing Chart
Ref.
No. Part No. Description Qty.
31 186183 RETAINER, o-ring; stainless steel 1
32 186187 GUIDE, ball; stainless steel 1
33 223593 HOUSING, valve, intake;
stainless steel with
tungsten carbide seat 1
34 223565 STUD, piston; stainless steel with
tungsten carbide seat 1
35 207011 HOUSING, outlet; carbon steel 1
36 207731 PACKING NUT/WET-CUP;
carbon steel 1
38 172479 TAG, warning (not shown) 1
* These parts are included in Standard Repair Kits.
See chart below for the packing materials of each
kit.
Keep these spare parts on hand to reduce down
time.
MODEL REF NO V – PACKING MATERIAL REPAIR KIT
223587 18
23
243663 18
23
18
23
18
23
164477
164862
164477
108453
164862
164862
Leather
PTFE
Tuff–Stack
Tuff–Stack
Leather
Ultra–High Molecular
Weight Polyethylene
PTFE
PTFE
6 leather and 6 PTFE V–packings are
included in kit 235635
12 Tuff–Stack V–packings are
included in kit 243687
6 leather and 6 UHMWPE V–packings
are included in kit 223675
12 PTFE V–packings are included in
kit 237725
Packing Set 243621 contains 12 Tuff–Stack V–packings
306981 19
Technical Data
Category Data
Maximum fluid working pressure Models 221075, 223586, and 243664: 3600 psi (25 MPa, 248 bar)
Model 239327: 1500 psi (10.5 MPa, 105 bar)
Maximum air input pressure Models 221075, 223586, and 243664: 120 psi (0.8 MPa, 8 bar)
Model 239327: 100 psi (0.7 MPa, 7 bar)
Ratio Models 221075, 223586, and 243664: 30:1
Model 239327: 15:1
Fluid flow at 60 cycles per minute Models 221075, 223586, and 243664: 1 gallon (3.8 liters) per minute
Model 239327: 0.7 gallon (2.6 liters) per minute
Recommended pump speed 15 to 25 cycles per minute
Weight Model 221075: approximately 30 lb (14 kg)
Model 223586 and 243664: approximately 24 lb (11 kg)
Model 239327: approximately 18 lb (8 kg)
Wetted parts Carbon Steel; Chrome and Zinc Plating; Tungsten Carbide; PTFE; Leather;
AISI 304, 316, 420, 440, and 17–4 PH Grades of Stainless Steel
Sound Pressure Levels (dBa)
(measured at 1 meter from unit)
Input Air Pressures at 15 cycles per minute
Air Motor 40 psi (0.28 MPa, 2.8 bar) 70 psi (0.48 MPa, 4.8 bar) 100 psi (0.7 MPa, 7 bar)
President 73.6 dB(A) 78.34 dB(A) 80.85 dB(A)
Monark 73.3 dB(A) 75.9 dB(A) 77.7 dB(A)
Sound Power Levels (dBa)
(tested in accordance with ISO 9614–2)
Input Air Pressures at 15 cycles per minute
Air Motor 40 psi (0.28 MPa, 2.8 bar) 70 psi (0.48 MPa, 4.8 bar) 100 psi (0.7 MPa, 7 bar)
President 87.4 dB(A) 92.09 dB(A) 94.62 dB(A)
Monark 87.0 dB(A) 89.7 dB(A) 91.4 dB(A)
20 306981
Technical Data
30:1 Ratio President Pumps
To find Fluid Outlet Pressure (psi/MPa/bar) at a specific fluid flow
(lpm/gpm) and operating air pressure (psi/MPa/bar):
1. Locate desired flow along bottom of chart.
2. Follow vertical line up to intersection with selected fluid outlet
pressure curve (black). Follow left to scale to read fluid outlet
pressure.
A 120 psi (0.8 MPa, 8 bar) air pressure
B 100 psi (0.7 MPa, 7 bar) air pressure
C 70 psi (0.49 MPa, 4.9 bar) air pressure
D 40 psi (0.28 MPa, 2.8 bar) air pressure
psi
MPa, bar
4000
28, 274
3000
21, 207
2000
14, 138
1000
FLUID PRESSURE
7, 69
0
0.0 0.2 0.4 0.6 0.8 1.0
gpm
liters/minute
FLUID FLOW (TEST FLUID: NO. 10 WEIGHT OIL)
A
B
C
D
cycles per minute
12 24 36 48 60
0.8 1.5 2.3 3.0 3.8
To find Pump Air Consumption (m/min or scfm) at a specific fluid
flow (lpm/gpm) and air pressure (psi/MPa/bar):
1. Locate desired flow along bottom of chart.
2. Read vertical line up to intersection with selected air consumption
curve (dashes). Follow left to scale to read air consumption.
scfm
m/min
1.12
0.84
0.56
AIR CONSUMPTION
0.28
gpm
liters/minute
40
30
20
10
0
0.0 0.2 0.4 0.6 0.8 1.0
FLUID FLOW (TEST FLUID: NO. 10 WEIGHT OIL)
cycles per minute
12 24 36 48 60
A
B
C
D
0.8 1.5 2.3 3.0 3.8
15:1 Ratio Monark Pump
To find Fluid Outlet Pressure (psi/MPa/bar) at a specific fluid flow
(lpm/gpm) and operating air pressure (psi/MPa/bar):
1. Locate desired flow along bottom of chart.
2. Follow vertical line up to intersection with selected fluid outlet
pressure curve (black). Follow left to scale to read fluid outlet
pressure.
A 100 psi (0.7 MPa, 7 bar) air pressure
B 70 psi (0.49 MPa, 4.9 bar) air pressure
C 40 psi (0.28 MPa, 2.8 bar) air pressure
psi
MPa, bar
1500
104, 10.4
1250
87, 8.7
1000
70, 7
750
51, 5.1
500
34, 3.4
FLUID PRESSURE
250
17, 1.7
0
0.0 0.2 0.4 0.6 0.8 1.0
gpm
liters/minute
FLUID FLOW (TEST FLUID: NO. 10 WEIGHT OIL)
cycles per minute
19 37 54 71 8860
A
B
C
0.8 1.5 2.3 3.0 3.8
To find Pump Air Consumption (m/min or scfm) at a specific fluid
flow (lpm/gpm) and air pressure (psi/MPa/bar):
1. Locate desired flow along bottom of chart.
2. Read vertical line up to intersection with selected air consumption
curve (dashes). Follow left to scale to read air consumption.
scfm
m/min
0.70
0.56
0.42
0.28
AIR CONSUMPTION
0.14
gpm
liters/minute
25
20
15
10
5
0
0.0 0.2 0.4 0.6 0.8 1.0
FLUID FLOW (TEST FLUID: NO. 10 WEIGHT OIL)
cycles per minute
19 37 54 71 8860
A
B
C
0.8 1.5 2.3 3.0 3.8
306981 21
Notes
22 306981
Dimensions
Mounting Hole
Model 223586 Shown
Layout
Use Gasket 166392
(Order Separately)
B
4.38” (111.3 mm) dia.
A
2.5”
(64 mm)
0.28” (7.1 mm) dia.
5” (127 mm)
President Pumps:
Air Inlet
1/2 npt(f);
Monark Pumps:
3/8 npt(f)
C
3/8 npt(f)
Fluid Outlet
3/4 npt(m)
Fluid Intake
Pump Model A B C
223586
243664
221075 47 in.
239327 28 in.
30 in.
(762 mm)
(1194 mm)
(711 mm)
15 in.
(381 mm)
15 in.
(381 mm)
13 in.
(330 mm)
15 in.
(381 mm)
32 in.
(810 mm)
15 in.
(381 mm)
0775
02501
306981 23
Graco Standard Warranty
Graco warrants all equipment manufactured by Graco and bearing its name to be free from defects in material and workmanship on the
date of sale to the original purchaser for use. With the exception of any special, extended, or limited warranty published by Graco,
Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be
defective. This warranty applies only when the equipment is installed, operated and maintained in accordance with Graco’s written
recommendations.
This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear caused by
faulty installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or substitution of non–Graco component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the incompatibility of
Graco equipment with structures, accessories, equipment or materials not supplied by Graco, or the improper design, manufacture,
installation, operation or maintenance of structures, accessories, equipment or materials not supplied by Graco.
This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor for
verification of the claimed defect. If the claimed defect is verified, Graco will repair or replace free of charge any defective parts. The
equipment will be returned to the original purchaser transportation prepaid. If inspection of the equipment does not disclose any defect
in material or workmanship, repairs will be made at a reasonable charge, which charges may include the costs of parts, labor, and
transportation.
THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT
NOT LIMITED TO WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.
Graco’s sole obligation and buyer’s sole remedy for any breach of warranty shall be as set forth above. The buyer agrees that no other
remedy (including, but not limited to, incidental or consequential damages for lost profits, lost sales, injury to person or property, or any
other incidental or consequential loss) shall be available. Any action for breach of warranty must be brought within two (2) years of the
date of sale.
Graco makes no warranty, and disclaims all implied warranties of merchantability and fitness for a particular purpose in connection
with accessories, equipment, materials or components sold but not manufactured by Graco. These items sold, but not manufactured
by Graco (such as electric motors, switches, hose, etc.), are subject to the warranty, if any, of their manufacturer. Graco will provide
purchaser with reasonable assistance in making any claim for breach of these warranties.
In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from Graco supplying equipment
hereunder, or the furnishing, performance, or use of any products or other goods sold hereto, whether due to a breach of contract,
breach of warranty, the negligence of Graco, or otherwise.
FOR GRACO CANADA CUSTOMERS
The parties acknowledge that they have required that the present document, as well as all documents, notices and legal proceedings
entered into, given or instituted pursuant hereto or relating directly or indirectly hereto, be drawn up in English. Les parties reconnaissent avoir convenu que la rédaction du présente document sera en Anglais, ainsi que tous documents, avis et procédures judiciaires
exécutés, donnés ou intentés à la suite de ou en rapport, directement ou indirectement, avec les procedures concernées.
Graco Information
For the latest information about Graco products, visit www.graco.com.
TO PLACE AN ORDER, contact your Graco distributor, or call one of the following numbers
to identify the distributor closest to you:
1–800–328–0211 Toll Free
612–623–6921
612–378–3505 Fax
All written and visual data contained in this document reflects the latest product information available at the time of publication.
Graco reserves the right to make changes at any time without notice.
24 306981
This manual contains English. MM 306981
Graco Headquarters: Minneapolis
International Offices: Belgium, China, Japan, Korea
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441
Copyright 1991, Graco Inc. is registered to ISO 9001
www.graco.com
Revised 07/2009
Loading...
