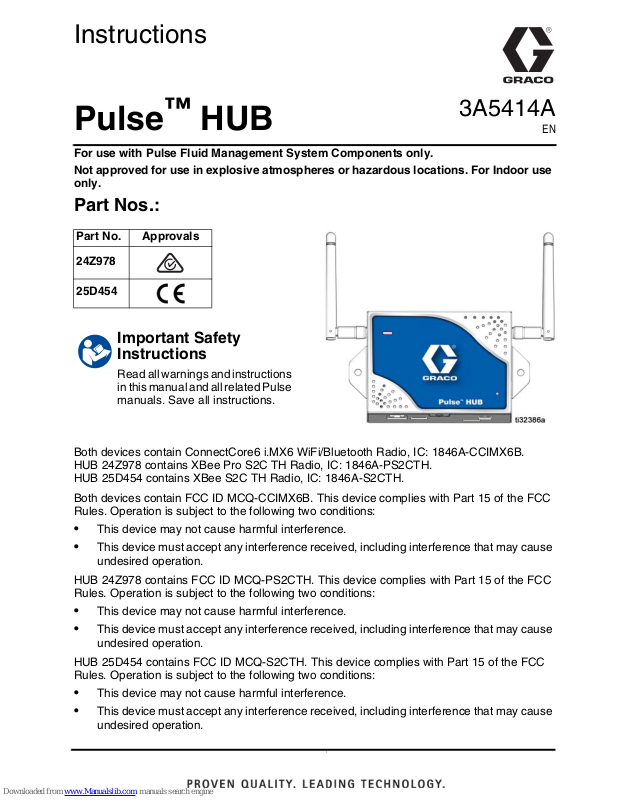

3A5414A
EN
Instructions
Pulse
™
HUB
For use with Pulse Fluid Management System Components only.
Not approved for use in explosive atmospheres or hazardous locations. For Indoor use
only.
Part Nos.:
Both devices contain ConnectCore6 i.MX6 WiFi/Bluetooth Radio, IC: 1846A-CCIMX6B.
HUB 24Z978 contains XBee Pro S2C TH Radio, IC: 1846A-PS2CTH.
HUB 25D454 contains XBee S2C TH Radio, IC: 1846A-S2CTH.
Both devices contain FCC ID MCQ-CCIMX6B. This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two conditions:
• This device may not cause harmful interference.
• This device must accept any interference received, including interference that may cause
undesired operation.
HUB 24Z978 contains FCC ID MCQ-PS2CTH. This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two conditions:
• This device may not cause harmful interference.
• This device must accept any interference received, including interference that may cause
undesired operation.
HUB 25D454 contains FCC ID MCQ-S2CTH. This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two conditions:
• This device may not cause harmful interference.
• This device must accept any interference received, including interference that may cause
undesired operation.
I
Part No. Approvals
24Z978
25D454
Important Safety
Instructions
Read all warnings and instructions
in this manual and all related Pulse
manuals. Save all instructions.
Pulse HUB Overview and Component ID
2 3A5414A
Pulse HUB Overview and Component ID
The Pulse HUB is a self-contained computer with the Pulse Fluid Management Software
preloaded. It also is the Personal Area Network (PAN) host used for RF communication with
other Pulse system components (meters, Pump Air Control [PAC’s], Tank Level Monitors
[TLM’s]). Access to the Pulse Fluid Management system is accomplished by http protocol (web
browser on the Local Area Network [LAN]).
FIG. 1
Item Name Description
A Power Inlet Port
Plug end of power adapter into power inlet port (A). The other
end of the power adapter is plugged into 120-240 VAC electrical
outlet.
BUSB Port
USB connection port.
C Ethernet
Connection
Supplies connection to the LAN.
D Power Light
Steady, green light. When lit, indicates the unit is receiving
power.
E Micro SD Slot
Micro SD card access
FAntenna
External antenna for RF signal transmission
G Pulse Fluid
Management
Software Status
Light
Green, Red, and Orange LED indicated status of the Pulse Fluid
Management Software. See HUB Status Light, page 5.
A
ti32390B
C
E
D
G
F
F
Installation
3A5414A 3
Installation
Locate the Pulse HUB in the main part of the shop, high on a wall or on the ceiling, in a
location that provides an unobstructed line of sight, near the meters, PACs, and/or tank level
monitors.
Always c
omply with all applicable local, state and national fire, electrical and safety
regulations.
Facility Layout
FIG. 2
Installation
4 3A5414A
Connecting HUB to LAN
(Local Area Network)
There are two options available for connecting the HUB to the LAN: Ethernet Cable (C)
or WiFi.
WiFi Connection
See Setup Your Network Guide included with
the HUB for assistance in connection to the
LAN network.
HUB Installation
During installation zip-ties or screws can be
used to allow relocation of the HUB to
optimize RF communication.
Once RF communication is confirmed, the
HUB can be permanently mounted on the
wall or ceiling.
Secure HUB backplate to wall or ceiling using
backplate mounting holes and (user
supplied) screws (FIG. 4).
FIG. 3
C
FIG. 4
