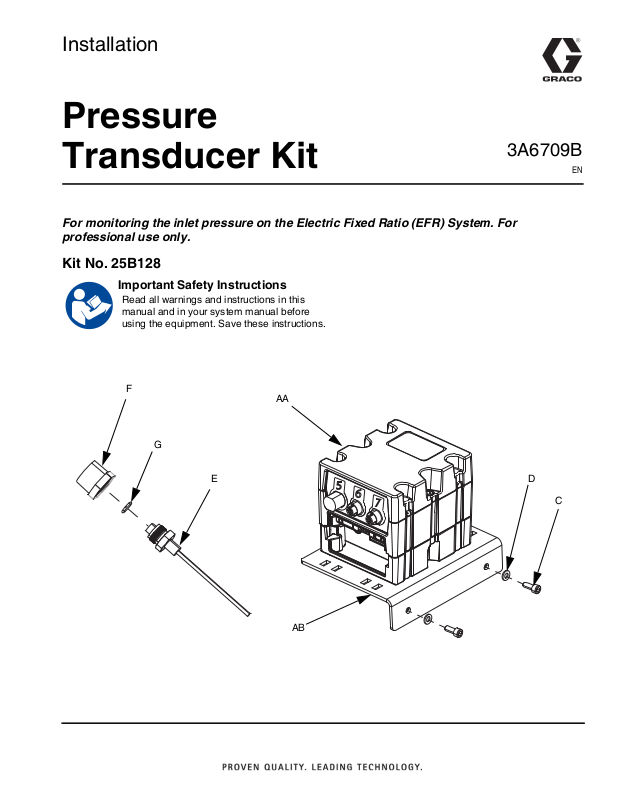

Installation
Pressure
3A6709B
Transducer Kit
For monitoring the inlet pressure on the Electric Fixed Ratio (EFR) System. For
professional use only.
Kit No. 25B128
Important Safety Instructions
Read all warnings and instructions in this
manual and in your system manual before
using the equipment. Save these instructions.
EN

Related Manuals
Related Manuals
Manual Description
3A6165
406987
Electric Fixed Ratio Proportioner, Setup Operation
GCA CAN Cables, Reference
Overview
The inlet pressure transducer kit enables the inlet
pressure reading to be displayed on the ADM screen for
easy viewing. This kit also enables the EFR system to
detect when high or low inlet pressure may inhibit
performance.
Qty
Ref. Part Description
--- MODULE, inlet transducer
A
--- MODULE, FCM 1
AA
--- BRACKET, mounting 1
AB
B 127068 CABLE, CAN, 1.0M 1
C 102598 SCREW, cap, socket head 2
D --- WASHER, nylon blk 2
E 15M669 SENSOR, pressure, fluid outlet 2
F 16U440 ADAPTER, fitting, pressure
G 121399 PACKING, o-ring 2
H--- CABLE TIE 12
monitor
sensor
.
1
2
Installation
ELECTRIC SHOCK HAZARD
To avoid electric shock, make sure the
system power is OFF before connecting or
disconnecting CAN cables.
PRESSURIZED FLUID HAZARD
This equipment stays pressurized until
pressure is manually relieved. To help
prevent serious injury from pressurized
fluid, such as skin injection, splashing fluid
and moving parts, follow the Pressure
Relief Procedure when you stop spraying
and before cleaning, checking or servicing
the equipment.
PERSONAL PROTECTIVE EQUIPMENT
Wear appropriate protective equipment
when in the work area to help prevent
serious injury, including eye injury, hearing
loss, inhalation of toxic fumes, and burns.
1. Ensure the system power is OFF and pressure has
been relieved. Follow the Pressure Relief Procedure
in the Electric Fixed Ratio Proportioner, Setup Operation manual.
2. Remove the pump yoke shroud (J) and frame cover
(K) from the EFR system.
FIG. 1
2 3A6709B

Related Manuals
3. Mount the inlet transducer monitor (A) inside the
system frame with screws (C) and washers (D).
FIG. 2
4. Remove the pressure gauges (L) from the inlet
pumps.
5. Install the pressure transducer fittings (E,F,G) into
the ports the pressure gauges were removed from.
6. Route the transducer cables along the pumps and
connect them to the monitor. Secure the cables
along the pump tie bolts and along the lower pair of
EFR tie rods with the provided cable ties (H) as
shown in F
IG. 4.
FIG. 3
FIG. 4
3A6709B 3

7. Connect the red inlet transducer cable to connector
seven on the inlet transducer monitor (A), and
connect the blue inlet transducer cable to connector
six on the inlet transducer monitor (A).
8. Connect the CAN cable (B) from either CAN
connection on the inlet transducer monitor (A) to
CAN connector 1 or 2 found on the motor.
9. Secure the CAN cable (B) to the frame using the
cable ties (H) provided, and route it through the
protected opening as shown in F
IG. 5.
10. Re-install the pump yoke shroud (J) and frame
cover (K) onto the EFR system.
11. The transducers will be automatically recognized
upon connection.
FIG. 5
