Instructions - Parts
2K Manual
Dispense Valve
For use with two component proportioners to mix and dispense beads of non-abrasive
material. For professional use only.
Not approved for use in European explosive atmosphere locations.
Model 24R021
2000 psi (14 MPa, 137 bar) Maximum Fluid Working Pressure
Important Safety Instructions
Read all warnings and instructions in this manual
and the system manual. Save all instructions.
332198C
EN
ti20167a
Related Manuals
Contents
Related Manuals . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Important Isocyanate (ISO) Information . . . . . . . . 5
Isocyanate Conditions . . . . . . . . . . . . . . . . . . . . . 5
Material Self-ignition . . . . . . . . . . . . . . . . . . . . . . 5
Keep Components A (ISO) and B (RES) Separate 5
Moisture Sensitivity of Isocyanates . . . . . . . . . . . 5
Foam Resins with 245 fa Blowing Agents . . . . . . 5
Changing Materials . . . . . . . . . . . . . . . . . . . . . . . 6
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Prime . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Pressure Balance the Gun . . . . . . . . . . . . . . . . . 8
Ratio Checking . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Install Disposable Static Mixer . . . . . . . . . . . . . . 9
Dispense . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Pressure Relief Procedure . . . . . . . . . . . . . . . . 10
Daily Shutdown . . . . . . . . . . . . . . . . . . . . . . . . . 10
Flushing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Install Restrictors or Plugs . . . . . . . . . . . . . . . . 11
Volume Balancing . . . . . . . . . . . . . . . . . . . . . . . 11
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Routine Cleaning . . . . . . . . . . . . . . . . . . . . . . . 11
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Typical Restrictor Pressure Drop . . . . . . . . . . . 15
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Graco Standard Warranty . . . . . . . . . . . . . . . . . . . 16
Related Manuals
The following manuals are available at www.graco.com.
Part Description
3A1602 E-8p Proportioner Operation and Repair
2 332198C
Warnings
Warnings
The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclamation point symbol alerts you to a general warning and the hazard symbols refer to procedure-specific risks. When
these symbols appear in the body of this manual or on warning labels, refer back to these Warnings. Product-specific
hazard symbols and warnings not covered in this section may appear throughout the body of this manual where
applicable.
WARNING
TOXIC FLUID OR FUMES HAZARD
Toxic fluids or fumes can cause serious injury or death if splashed in the eyes or on skin, inhaled, or
swallowed.
• Read MSDSs to know the specific hazards of the fluids you are using.
• Store hazardous fluid in approved containers, and dispose of it according to applicable guidelines.
• Always wear chemically impermeable gloves when spraying, dispensing, or cleaning equipment.
PERSONAL PROTECTIVE EQUIPMENT
Wear appropriate protective equipment when in the work area to help prevent serious injury, including
eye injury, hearing loss, inhalation of toxic fumes, and burns. This protective equipment includes but is
not limited to:
• Protective eyewear, and hearing protection.
• Respirators, protective clothing, and gloves as recommended by the fluid and solvent manufacturer
SKIN INJECTION HAZARD
High-pressure fluid from dispensing device, hose leaks, or ruptured components will pierce skin. This
may look like just a cut, but it is a serious injury that can result in amputation. Get immediate surgical
treatment.
+
• Do not point dispensing device at anyone or at any part of the body.
• Do not put your hand over the fluid outlet.
• Do not stop or deflect leaks with your hand, body, glove, or rag.
• Follow the Pressure Relief Procedure when you stop dispensing and before cleaning, checking, or
servicing equipment.
• Tighten all fluid connections before operating the equipment.
• Check hoses and couplings daily. Replace worn or damaged parts immediately.
FIRE AND EXPLOSION HAZARD
Flammable fumes, such as solvent and paint fumes, in work area can ignite or explode. To help prevent
fire and explosion:
• Use equipment only in well ventilated area.
• Eliminate all ignition sources; such as pilot lights, cigarettes, portable electric lamps, and plastic drop
cloths (potential static arc).
• Keep work area free of debris, including solvent, rags and gasoline.
• Do not plug or unplug power cords, or turn power or light switches on or off when flammable fumes
are present.
• Ground all equipment in the work area. See Grounding instructions.
• Use only grounded hoses.
• Hold gun firmly to side of grounded pail when triggering into pail. Do not use pail liners unless they
are antistatic or conductive.
• Stop operation immediately if static sparking occurs or you feel a shock. Do not use equipment
until you identify and correct the problem.
• Keep a working fire extinguisher in the work area.
332198C 3
Warnings
WARNING
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
• Do not operate the unit when fatigued or under the influence of drugs or alcohol.
• Do not exceed the maximum working pressure or temperature rating of the lowest rated system
component. See Technical Data in all equipment manuals.
• Use fluids and solvents that are compatible with equipment wetted parts. See Technical Data in all
equipment manuals. Read fluid and solvent manufacturer’s warnings. For complete information
about your material, request MSDS from distributor or retailer.
• Do not leave the work area while equipment is energized or under pressure.
• Turn off all equipment and follow the Pressure Relief Procedure when equipment is not in use.
• Check equipment daily. Repair or replace worn or damaged parts immediately with genuine manufacturer’s replacement parts only.
• Do not alter or modify equipment. Alterations or modifications may void agency approvals and create
safety hazards.
• Make sure all equipment is rated and approved for the environment in which you are using it.
• Use equipment only for its intended purpose. Call your distributor for information.
• Route hoses and cables away from traffic areas, sharp edges, moving parts, and hot surfaces.
• Do not kink or over bend hoses or use hoses to pull equipment.
• Keep children and animals away from work area.
• Comply with all applicable safety regulations.
PRESSURIZED ALUMINUM PARTS HAZARD
Use of fluids that are incompatible with aluminum in pressurized equipment can cause serious chemical
reaction and equipment rupture. Failure to follow this warning can result in death, serious injury, or property damage.
• Do not use 1,1,1-trichloroethane, methylene chloride, other halogenated hydrocarbon solvents or fluids containing such solvents.
• Many other fluids may contain chemicals that can react with aluminum. Contact your material supplier for compatibility.
4 332198C
Important Isocyanate (ISO) Information
Important Isocyanate (ISO) Information
Isocyanates (ISO) are catalysts used in two component materials.
Isocyanate Conditions
Spraying or dispensing materials containing isocyanates creates potentially harmful mists, vapors, and
atomized particulates.
Read material manufacturer’s warnings and material
MSDS to know specific hazards and precautions
related to isocyanates.
Prevent inhalation of isocyanate mists, vapors, and
atomized particulates by providing sufficient ventilation in the work area. If sufficient ventilation is not
available, a supplied-air respirator is required for
everyone in the work area.
To prevent contact with isocyanates, appropriate personal protective equipment, including chemically
impermeable gloves, boots, aprons, and goggles, is
also required for everyone in the work area.
Material Self-ignition
Some materials may become self-igniting if applied
too thick. Read material manufacturer’s warnings and
material MSDS.
Keep Components A (ISO) and
Moisture Sensitivity of Isocyanates
Exposure to moisture (such as humidity) will cause ISO
to partially cure; forming small, hard, abrasive crystals,
which become suspended in the fluid. Eventually a film
will form on the surface and the ISO will begin to gel,
increasing in viscosity.
NOTICE
Partially cured ISO will reduce performance and the
life of all wetted parts.
• Always use a sealed container with a desiccant
dryer in the vent, or a nitrogen atmosphere. Never
store ISO in an open container.
• Keep the ISO pump wet cup or reservoir (if
installed) filled with appropriate lubricant. The
lubricant creates a barrier between the ISO and
the atmosphere.
• Use only moisture-proof hoses compatible with
ISO.
• Never use reclaimed solvents, which may contain
moisture. Always keep solvent containers closed
when not in use.
• Always lubricate threaded parts with an appropriate lubricant when reassembling.
NOTE: The amount of film formation and rate of crystallization varies depending on the blend of ISO, the
humidity, and the temperature.
B (RES) Separate
Foam Resins with 245 fa Blowing Agents
Some foam blowing agents will froth at temperatures
Cross-contamination can result in cured material in
fluid lines which could cause serious injury or damage
equipment. To prevent cross-contamination:
• Never interchange component A (ISO) and com-
ponent B (RES) wetted parts.
• Never use solvent on one side if it has been contaminated from the other side.
332198C 5
above 90°F (33°C) when not under pressure, especially
if agitated. To reduce frothing, minimize preheating in a
circulation system.
Important Isocyanate (ISO) Information
Changing Materials
NOTICE
Changing the material types used in your equipment
requires special attention to avoid equipment damage
and downtime.
• When changing materials, flush the equipment
multiple times to ensure it is thoroughly clean.
• Always clean the fluid inlet strainers after flushing.
• Check with your material manufacturer for chemical compatibility.
• When changing between epoxies and urethanes
or polyureas, disassemble and clean all fluid components and change hoses. Epoxies often have
amines on the B (hardener) side. Polyureas often
have amines on the B (resin) side
6 332198C
Installation
Installation
1. Relieve all system pressure before installing the dispense valve.
GROUNDING
The equipment must be grounded to reduce the risk
of static sparking. Static sparking can cause fumes
to ignite or explode. Grounding provides an escape
wire for the electric current.
2. Ground the gun through connection to a properly
grounded fluid hose and pump. See your system
manual for further information.
3. Thread the handle (K) onto the manifold (L).
4. Connect the gun fluid supply hoses to the A (ISO)
and B (RES) fluid inlets of gun.
NOTE: Hoses are color coded: red for component A
(ISO), blue for component B (RES). Red (ISO) usually is
connected to the left side of the valve (as viewed from
the back of the gun).
5. Perform Prime procedure, page 8.
A
B
H
J
Key:
A A (Iso) Hose
B B (Resin) Hose
C OFF (Closed) Position
D ON (Open) Position
E Restrictor or Plug
F Outlet Manifold
G Static Mixer Nut (Static Mixer Not Shown)
HLever
J Inlet Ball Valves
K Handle
L Manifold
M Check Valves
C
D
L
ti20166a
M
K
F
E
E
G
FIG. 1
332198C 7
Operation
Operation
Prime
Perform this procedure whenever air is introduced into
the material lines, such as after connecting the material
supply lines to the dispense valve.
1. Perform Pressure Relief Procedure on page 10.
2. If a static mixer is installed, remove static mixer.
3. Use lever (H) to open the dispense valve inlet ball
valves (J).
NOTICE
Always open and close lever (H) fully and quickly.
Opening the valve partially or slowly will cause soft
spots in the material and may shut down the proportioner because of a pressure imbalance.
4. If necessary, prime the proportioner. See proportioner manual for priming instructions.
5. Run the proportioner until clean, air-free material
begins to exit the dispense valve.
6. If necessary, Pressure Balance the Gun.
7. Install Disposable Static Mixer.
1. Use lever (H) to close the dispense valve inlet ball
valves (J).
NOTICE
Always open and close lever (H) fully and quickly.
Opening the valve partially or slowly will cause soft
spots in the material and may shut down the proportioner because of a pressure imbalance.
2. Remove static mixer.
3. With the static mixer removed, dispense into a
waste container. Note pressure gauge readings. If
pressures are more than 25% apart, continue to
next step. If not, pressures are sufficiently balanced.
4. If pressures are more than 25% apart, replace one
or both plugs or restrictors with a different restrictor
size:
NOTE: An extra 0.032 in. restrictor is included with the
gun. If necessary, use this restrictor to balance the pressures. Put the larger orifice on the side with the higher
viscosity material.
a. Perform Pressure Relief Procedure on
page 10.
b. Select the new restrictors required to achieve
desired back pressure and balance. See pressure drop chart in F
IG. 2 on page 15.
Pressure Balance the Gun
Balancing the back pressure:
• controls ratio lead-lag when the gun opens
• holds pressure in the hose, providing a very smooth
flow
• minimizes oozing from mixer
• minimizes material crossover.
8 332198C
NOTE: The valve should be able to achieve the desired
flow rate at a pressure of 200-1500 psi (1.4-10 MPa,
14-103 bar). A (ISO) and B (RES) pressures should balance within 25% of each other.
c. Install Restrictors or Plugs, see page 11.
d. Repeat this procedure to verify pressures are
balanced.
Operation
Ratio Checking
NOTE: Use ratio check nozzle 255247 with retaining nut
512292. Purchase separately.
The output mix ratio of your proportioner can be
checked by dispensing the two fluids separately out of
the nosepiece into tared cups. The cups can then be
weighed and the weights divided to get the mix ratio by
weight.
Ratio checks provide information about the ratio of an
overall sample. Transient problems (soft spots) caused
by starting and stopping the flow (lead-lag) may not
show up in this kind of ratio check. Physical tests of the
mixed fluid are the best check of correct ratio and mix
quality.
Install Disposable Static Mixer
NOTE: Use the lowest proportioner pressure setting that
produces the desired flow.
NOTICE
If the proportioner pressure setting is too high, any differences in viscosity will cause a pressure differential
that will result in improper mixing.
5. Use lever (H) to open and close dispense valve inlet
ball valves (J) as desired to dispense materials.
NOTICE
Always open and close lever (H) fully and quickly.
Opening the valve partially or slowly will cause soft
spots in the material and may shut down the proportioner because of a pressure imbalance.
6. If stopping dispensing for longer than the cure time
of the materials:
a. Use lever (H) to close dispense valve inlet ball
valves (J) as desired to dispense materials.
1. Perform Pressure Relief Procedure, page 10.
2. Use lever (H) to close the dispense valve inlet ball
valves (J).
3. Coat threads of outlet manifold (F) with grease to
prevent material curing on threads.
4. Install static mixer and secure with nut (G).
Dispense
1. If it is possible that air may be in the fluid lines, perform Prime procedure on page 8.
2. If the gun has not yet been pressure balanced, perform Pressure Balance the Gun procedure on
page 8.
3. If the fluid in the static mixer is cured or there is no
static mixer installed, Install Disposable Static
Mixer, page 9.
b. Keep static mixer installed.
c. When ready to dispense again, Install Dispos-
able Static Mixer, page 9.
7. When done using the dispense valve for the day,
perform Daily Shutdown on page 10.
4. Start proportioner and adjust to desired pressure.
See proportioner manual for instructions.
332198C 9
Operation
Pressure Relief Procedure
Follow the Pressure Relief Procedure whenever
you see this symbol.
This equipment stays pressurized until pressure is
manually relieved. To help prevent serious injury
from pressurized fluid, such as skin injection,
splashing fluid and moving parts, follow the Pressure
Relief Procedure when you stop spraying and before
cleaning, checking, or servicing the equipment.
This procedure describes how to relieve pressure from
the dispense valve. See the supply system manual for
instructions on relieving pressure from the entire system.
1. Shut off material supply pumps.
2. With the valve pointed into a grounded metal pail,
use the lever (H) to open the inlet ball valves (J) and
relieve the fluid pressure.
Daily Shutdown
NOTE: For brief shutdowns, leave the cured mixer in
place until it is time to use a fresh mixer.
When you finish using the 2K Manual Dispense Valve,
clean the outlet manifold (F) and protect it from drying or
crystallization as follows:
1. Perform Pressure Relief Procedure, page 10.
2. Remove and properly dispose of the static mixer.
3. Dispense one shot of material into a waste container to clear any crossover in the outlet
manifold (F).
4. Wipe the nose with a clean rag, being careful not to
let the materials contact each other.
5. Install PTFE night capt (19) and retaining nut (G).
3. If the valve nozzle or fluid hose is clogged or if pressure has not been fully relieved after following the
steps above:
a. Use lever (H) to close dispense valve inlet ball
valves (J).
b. VERY SLOWLY loosen the static mixer nut (G)
from the outlet manifold (F) or the hose end
coupling to relieve pressure gradually, then
loosen completely. Clear hose or nozzle
obstruction.
c. Use lever (H) to open dispense valve inlet ball
valves (J).
Flushing
Flush the valve regularly to remove material build up.
1. Perform Pressure Relief Procedure, page 10.
2. Remove static mixer.
3. To maintain ground continuity, press and hold a
metal part of the dispense valve against the side of
a grounded metal pail then pump solvent through
the gun into the grounded metal pail until clean solvent is dispensed. Use the lowest pressure possible
while dispensing solvent.
10 332198C
Maintenance
Install Restrictors or Plugs
Two 0.024 in. restrictors are installed with the gun. An
extra 0.032 in. restrictor is included with the gun. If necessary, use this restrictor to balance the pressures.
Optional restrictors in various sizes are also available.
Restrictors create back pressure and make up for viscosity differences between A (ISO) and B (RES). See
pressure drop chart in F
Volume Balancing section. See 249765 Restrictor Kit
on page 14.
1. Perform Pressure Relief Procedure, page 10.
2. Remove restrictors (E).
3. If using one or more restrictors, assemble
o-rings (CC) and screens (BB) onto restrictors (AA).
See F
IG. 2 on page 15.
4. If using one or more plugs (see Accessories on
page 14), assemble o-rings (CC) onto plugs.
IG. 2 on page 15 and see the
Sizing Restrictors
If resin and hardener are at or near 1:1 ratio and viscosities are similar, add a few hundred psi pressure drop to
each side to prevent check valve oscillation. Use the
chart in F
twice the size of your spray tip, on both sides.
IG. 2 on page 15, or use a restrictor about
Maintenance
Routine Cleaning
Restrictor Screens
Soak the restrictor screens in solvent regularly to clean.
If soaking is ineffective, replace restrictor screens.
Restrictors
Soak the restrictors in solvent and use the included
vise (30) and drill bit (31) to clean the orifice.
Check Valves
5. Screw assembled restrictors or plugs into outlet
manifold (F).
NOTICE
Restrictors and plugs can be damaged if they are
overtightened. Torque to 40-50 in-lb (4.5-5.6 N•m).
Volume Balancing
Ratio errors can occur between the proportioner and the
manifold, even if the proportioner output ratio is very
accurate.
Different restrictor sizes are available to correct imbalances. See F
Check Valve Imbalance
If resin and hardener are at or near 1:1 ratio, when one
check valve opens, the resulting surge closes the other.
This check valve oscillation causes ratio imbalance.
Install restrictors on both sides to meter a smooth flow to
the manifold.
IG. 2 on page 15 for available sizes.
Soak the check valves in solvent. Use a small screw
driver to actuate the check valve ball and spring to
remove any restriction. Ensure fluid flows freely through
the check valve before re-installing.
Outlet Manifold
Use drill bits to clean the outlet manifold (F) regularly.
See the following drill bit size table.
Item Drill Bit Size
Outlet manifold fluid outlet . . . . . 1/4 in. (6 mm)
Outlet manifold inner passage . . 1/8 in. (3 mm)
(Restrictor size) 0.018 in. . . . . . . #77 (0.45 mm)
0.024 in. . . . . . . . . . . . . . . . . . . . #73 (0.61 mm);
included
0.032 in. . . . . . . . . . . . . . . . . . . . #67 (0.81 mm)
0.040 in. . . . . . . . . . . . . . . . . . . . #60 (1.01 mm)
0.062 in. . . . . . . . . . . . . . . . . . . . 1/16 in. (1.59 mm)
0.094 in. . . . . . . . . . . . . . . . . . . . 3/32 in. (2.38 mm)
Drill bit pin vise . . . . . . . . . . . . . . 117661; included
332198C 11
Troubleshooting
Troubleshooting
Problem Cause Solution
Pressure is higher on one side
when setting pressure with function
knob.
Pressures are not balanced when
running but pressure is generated
and holds on both strokes.
A (ISO) side rich; lack of B (RES)
side.
Pump intake valve partially plugged. Clean pump intake valve.
Air in hose. Fluid is compressible. Purge air from hose.
Unequal size hoses. Use matching hoses.
Feathering the valve lever to
decrease the flow rate through the
gun.
Unequal viscosities. Check that A (ISO) and B (RES)
Restriction on one side. Clean mix module, restrictors, or
A (ISO) side gauge is low. B (RES) side restriction down-
B (RES) side gauge is low. B (RES) side material supply prob-
When opening or closing the valve,
always move the lever all the way.
Do not try to control the flow rate by
partially opening the lever.
chemicals are within the chemical
manufacturer’s specified application temperature range.
Change restrictor at mix point to
balance back pressure.
check valves at mix manifold.
stream of gauge. Check gun check
valve spring, mix module, or mix
manifold restrictor screen.
lem. Check B (RES) side inlet
strainer and pump intake valve.
B (RES) side rich; lack of A (ISO)
side.
Flow will not shut off when ball valve
lever is closed.
12 332198C
A (ISO) side gauge is low. A (ISO) side material supply prob-
lem. Check A (ISO) side inlet
strainer and pump intake valve.
B (RES) side gauge is low. A (ISO) side restriction downstream
of gauge. Check gun check valve
spring, mix module, or mix manifold
restrictor screen.
Worn ball valve seat of ball. Replace ball valve. See assembly
specifications in illustration on
page 13.

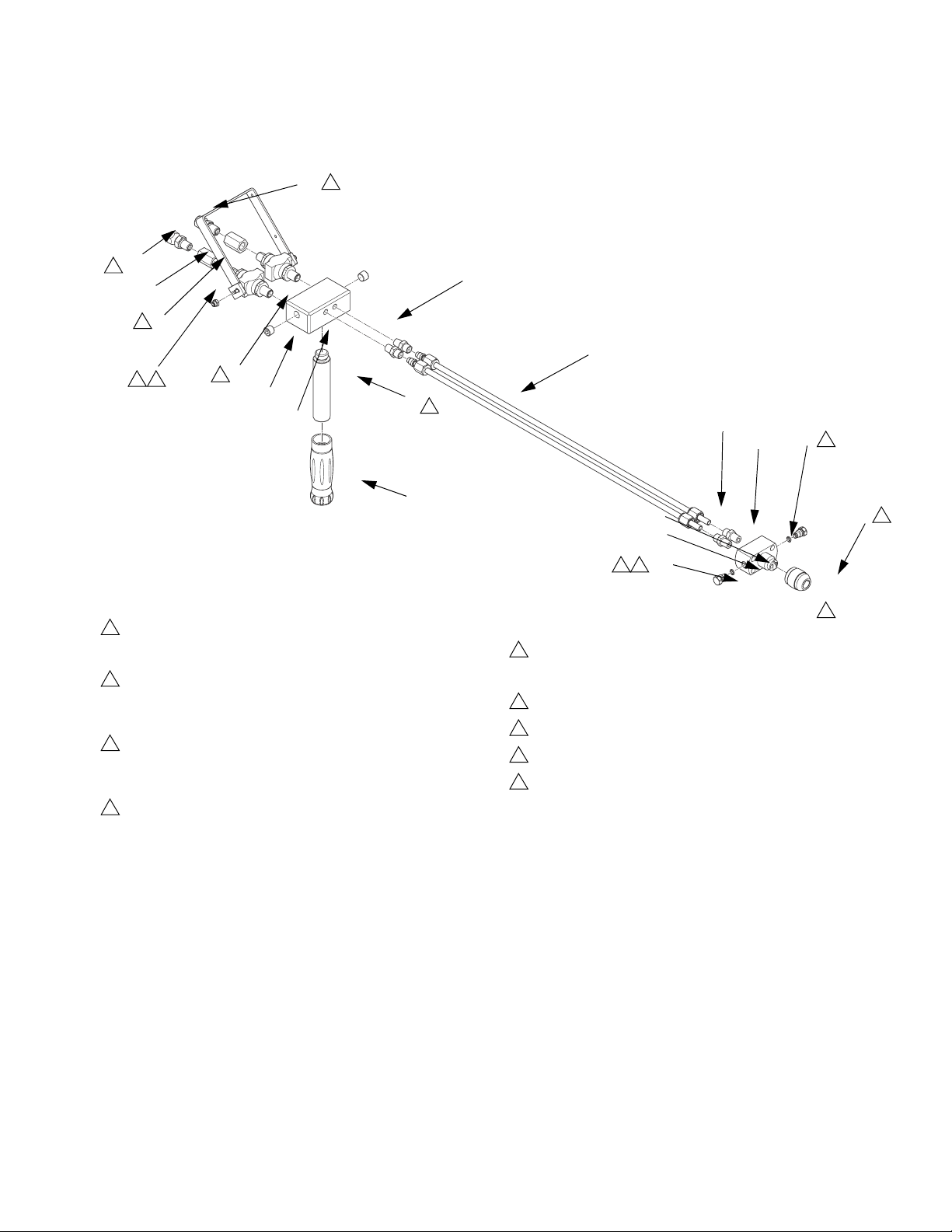

Parts
13
8
12
9
5
3 6
Parts
14
8
4
5
8
4
10
1
2
7
4
27
6
9
ti20581b
NOTE: Apply thread sealant on all tapered thread fittings.
3
When installing a new ball valve (8), remove the acorn nuts and
handle from the ball valves (8). Keep the acorn nuts, discard the
handle.
4
Install and tighten ball valves (8) so that the studs are pointing
away from each other. The flats line up squarely with the flat of
the inlet manifold (1), and the pressure laser marking are on the
handle (2) side of the inlet manifold (1).
5
Orient lever (9) and adjust balls in valves (8) so they are closed
when lever is pulled back. Carefully install the lever onto the ball
valve (8) studs, making sure the stud flats line up with the slots
in the lever.
6
Install acorn nuts from ball valves (8) on top of the lever (9).
Torque to 40-50 in-lb (4.5-5.6 N•m).
3
Ref Part Description Qty
1 24R986 MANIFOLD, inlet 1
2 16U410 HANDLE, manual 2K gun 1
3 16F422 GRIP, handle, 390st 1
4 119984 FITTING, union, 1/8 npt x 5/16 tube 4
5 15G421 TUBE, 5/16 extension, assembly 2
6 24K994 MANIFOLD, outlet 1
7 512292 NUT, mixer 1
8 214037 VALVE, ball, 1/4, 5000 psi, with lever 2
9 217562 LEVER, valve 1
10 100721 PLUG, pipe 2
12 113093 CONNECTOR, pipe 2
13 117506 FITTING, swivel, 1/4 npt x #6 JIC 1
14 117595 FITTING, swivel, 1/4 npt x #5 JIC 1
15 512289 MIXER, 1/2-30 spray 10
28
7
12
16
18
1110
7
red thread locking liquid to the threads of the handle (2).
8
Make sure that #6 JIC adapter (13) is on the right and #5 JIC
adapter (14) is on the left of the inlet manifold (1), when viewed
from the rear of the gun.
9
Squarely align outlet manifold (6) to inlet manifold (1).
10
Apply lithium grease.
11
Torque restrictors (18) to 40-50 in-lb (4.5-5.6 N•m).
12
Hand tighten mixer nut (7) onto outlet manifold (6).
Apply
Ref Part Description Qty
16 111516 PACKING, o-ring 2
17 249036 PACKING, o-ring (not shown),
includes qty 6 of item 16
18 15E373 RESTRICTOR, 0.024 in. 2
19 15K652 CAP, night 1
27 563199 VALVE, check, 1/8 npt, rev, 5000 2
28 15E378 FILTER, screen, 40 mesh 2
29 118665
GREASE, Fusion
®
30 117661 VISE, drill pit pin 1
31 --- BIT, 0.024 in. cleanout drill 1
32 15E374 RESTRICTOR, 0.032 in. 1
--- Not for sale.
Items are shipped loose.
1
1
332198C 13
Accessories
Accessories
Restrictors
15E372 0.018 in. Orifice Restrictor
15E373 0.024 in. Orifice Restrictor
15E374 0.032 in. Orifice Restrictor
15E375 0.040 in. Orifice Restrictor
15E376 0.062 in. Orifice Restrictor
15E377 0.094 in. Orifice Restrictor
249765 Restrictor Kit
Includes one each of restrictor sizes 0.018, 0.024,
0.032, 0.040, 0.062, and 0.094 in., one plug with no
restriction, package of 10 screens, and package of 6
o-rings.
15E370 Plug
Fits restrictor port, but with minimal restriction. Uses
249036 O-ring Kit.
249036 Restrictor O-ring Kit
Package of 6.
249037 Restrictor Screen Kit
40 mesh. Package of 10.
Gun Length Reduction
To reduce the overall length of the gun from 47 in.
(1194 mm) to 24 in. (610 mm), purchase two of each of
the following fittings: 503279 and 151243. Use these fittings to replace fittings (4) and tubes (5).
Standard Disposable Mixer
512289† 1/2 in. (13 mm) ID x 5/8 in. (16 mm) OD
x 30 element.
Alternate Disposable Mixers
120042 1/4 in. (6 mm) ID x 3/8 in. (10 mm) OD x
24 element; package of 50.
512014 1/4 in. (6 mm) ID x 3/8 in. (10 mm) OD x
32 element.
512016 3/8 in. (10 mm) ID x 1/2 in. (13 mm) OD
x 24 element.
512017 3/8 in. (10 mm) ID x 1/2 in. (13 mm) OD
x 30 element.
551979† 1/2 in. (13 mm) ID x 5/8 in. (16 mm) OD
x 36 element.
512291 Retainer Nut for 1/2 in. (13 mm) OD and
smaller mixers.
512292† Retainer Nut for 5/8 in. (16 mm) OD mix-
ers.
15K652 PTFE Night Cap
Partially fill with ISO pump oil or ISO pump grease to
protect outlet manifold (6) from air and moisture.
Use retainer nut 512291 for 1/2 in. (13 mm) OD and
smaller mixers.
† Use retainer nut 512292 for 5/8 in. (16 mm) OD and
smaller mixers.
217374 ISO Pump Oil
1 pint (0.5 liter) container.
106565 ISO Pump Grease
14.6 oz (0.4 kg) cartridge
255247 Ratio Check Nozzle
Use with retainer nut 512292.
246385 Pump Inlet Strainer
Use to strain material before it enters proportioner.
14 332198C
Typical Restrictor Pressure Drop
Technical Data
(17.5, 175)
(14.0, 140)
(10.5, 105)
(7.0, 70)
Pressure Drop in psi (MPa, bar)
(3.5, 35)
2500
2000
1500
1000
500
0.094 0.062 0.040 0.032 0.024 0.018
15E377 15E376 15E375 15E374 15E373 15E372
Restrictor Diameter and Part No.
Restrictors use 40 mesh screens and o-rings. Order 249037 Screens
(package of 10) and 249036 O-rings (package of 6).
Key:
5000 cps, 1.0 gpm (3.8 lpm)
5000 cps, 0.25 gpm (0.95 lpm)
1000 cps, 0.25 gpm (0.95 lpm)
500 cps, 0.25 gpm (0.95 lpm)
200 cps, 0.25 gpm (0.95 lpm)
200 cps, 0.10 gpm (0.38 lpm)
249036
O-ring (CC)
Restrictor
Fitting (AA)
249037
Screen (BB)
FIG. 2
Technical Data
Maximum Fluid Working Pressure . . . . . . . . . . . . . . . .
Wetted Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
TI5627a
TI5628a
2000 psi (14 MPa, 137 bar)
Carbon steel, stainless steel, aluminum, chemically resis-
tant o-rings, PTFE, PEEK
332198C 15
Graco Standard Warranty
Graco warrants all equipment referenced in this document which is manufactured by Graco and bearing its name to be free from defects in
material and workmanship on the date of sale to the original purchaser for use. With the exception of any special, extended, or limited warranty
published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by
Graco to be defective. This warranty applies only when the equipment is installed, operated and maintained in accordance with Graco’s written
recommendations.
This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear caused by faulty
installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or substitution of
non-Graco component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the incompatibility of Graco equipment with
structures, accessories, equipment or materials not supplied by Graco, or the improper design, manufacture, installation, operation or
maintenance of structures, accessories, equipment or materials not supplied by Graco.
This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor for verification of
the claimed defect. If the claimed defect is verified, Graco will repair or replace free of charge any defective parts. The equipment will be returned
to the original purchaser transportation prepaid. If inspection of the equipment does not disclose any defect in material or workmanship, repairs will
be made at a reasonable charge, which charges may include the costs of parts, labor, and transportation.
THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED
TO WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.
Graco’s sole obligation and buyer’s sole remedy for any breach of warranty shall be as set forth above. The buyer agrees that no other remedy
(including, but not limited to, incidental or consequential damages for lost profits, lost sales, injury to person or property, or any other incidental or
consequential loss) shall be available. Any action for breach of warranty must be brought within two (2) years of the date of sale.
GRACO MAKES NO WARRANTY, AND DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, IN CONNECTION WITH ACCESSORIES, EQUIPMENT, MATERIALS OR COMPONENTS SOLD BUT NOT
MANUFACTURED BY GRACO. These items sold, but not manufactured by Graco (such as electric motors, switches, hose, etc.), are subject to
the warranty, if any, of their manufacturer. Graco will provide purchaser with reasonable assistance in making any claim for breach of these
warranties.
In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from Graco supplying equipment hereunder, or
the furnishing, performance, or use of any products or other goods sold hereto, whether due to a breach of contract, breach of warranty, the
negligence of Graco, or otherwise.
FOR GRACO CANADA CUSTOMERS
The Parties acknowledge that they have required that the present document, as well as all documents, notices and legal proceedings entered into,
given or instituted pursuant hereto or relating directly or indirectly hereto, be drawn up in English. Les parties reconnaissent avoir convenu que la
rédaction du présente document sera en Anglais, ainsi que tous documents, avis et procédures judiciaires exécutés, donnés ou intentés, à la suite
de ou en rapport, directement ou indirectement, avec les procédures concernées.
Graco Information
For the latest information about Graco products, visit www.graco.com.
TO PLACE AN ORDER, contact your Graco distributor or call to identify the nearest distributor.
Phone: 612-623-6921 or Toll Free: 1-800-328-0211 Fax: 612-378-3505
All written and visual data contained in this document reflects the latest product information available at the time of publication.
GRACO INC. AND SUBSIDIARIES • P.O. BOX 1441 • MINNEAPOLIS MN 55440-1441 • USA
Copyright 2012, Graco Inc. All Graco manufacturing locations are registered to ISO 9001.
Graco reserves the right to make changes at any time without notice.
For patent information, see www.graco.com/patents.
Original instructions. This manual contains English. MM 332198
Graco Headquarters: Minneapolis
International Offices: Belgium, China, Japan, Korea
www.graco.com
Revised August 2013
Loading...
