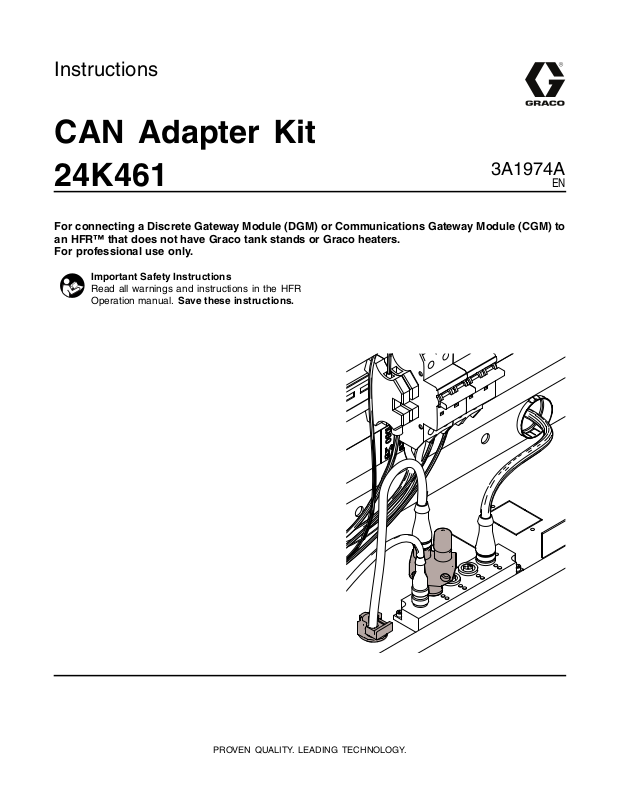

Page 1
Instructions
CAN Adapter Kit
3A1974A
24K461
For connecting a Discrete Gateway Module (DGM) or Communications Gateway Module (CGM) to
an HFR™ that does not have Graco tank stands or Graco heaters.
For professional use only.
Important Safety Instructions
Read all warnings and instructions in the HFR
Operation manual. Save these instructions.
EN
PROVEN QUALITY. LEADING TECHNOLOGY.
Page 2
Contents
Related Manua
Kit Overview....................................................... 2
Installation.......................................................... 3
ls ................................................ 2
Related Manuals
The follow
www.grac
Manual No
313997
313998 HFR Repa
ing manuals are available at
o.com. Manuals listed are in English.
.
Descript
HFR Operation
ion
ir
Kit Overview
This kit is used to connect a DGM or CGM to an
HFR that does not have Graco tank stands or Graco
heaters. This kit is not for HFR’s with ADM part
number 289701. This kit enables connection of the
CGM or DGM CAN cable to the DeviceNet CAN bus
inside the Power Distribution Box through use of a
CAN splitter and a protective bushing.
Parts.................................................................. 5
Graco Standard Warranty.................................... 6
2
3A1974A
Page 3
Installation
Installation
To prevent death or serious injury from electric shock
hazard, shutdown the system and disconnect main
power before installing kit.
1. Perform Shutdown procedure as described in the
system manual.
2. Disconnect main power so that no power is
coming into the power distribution box.

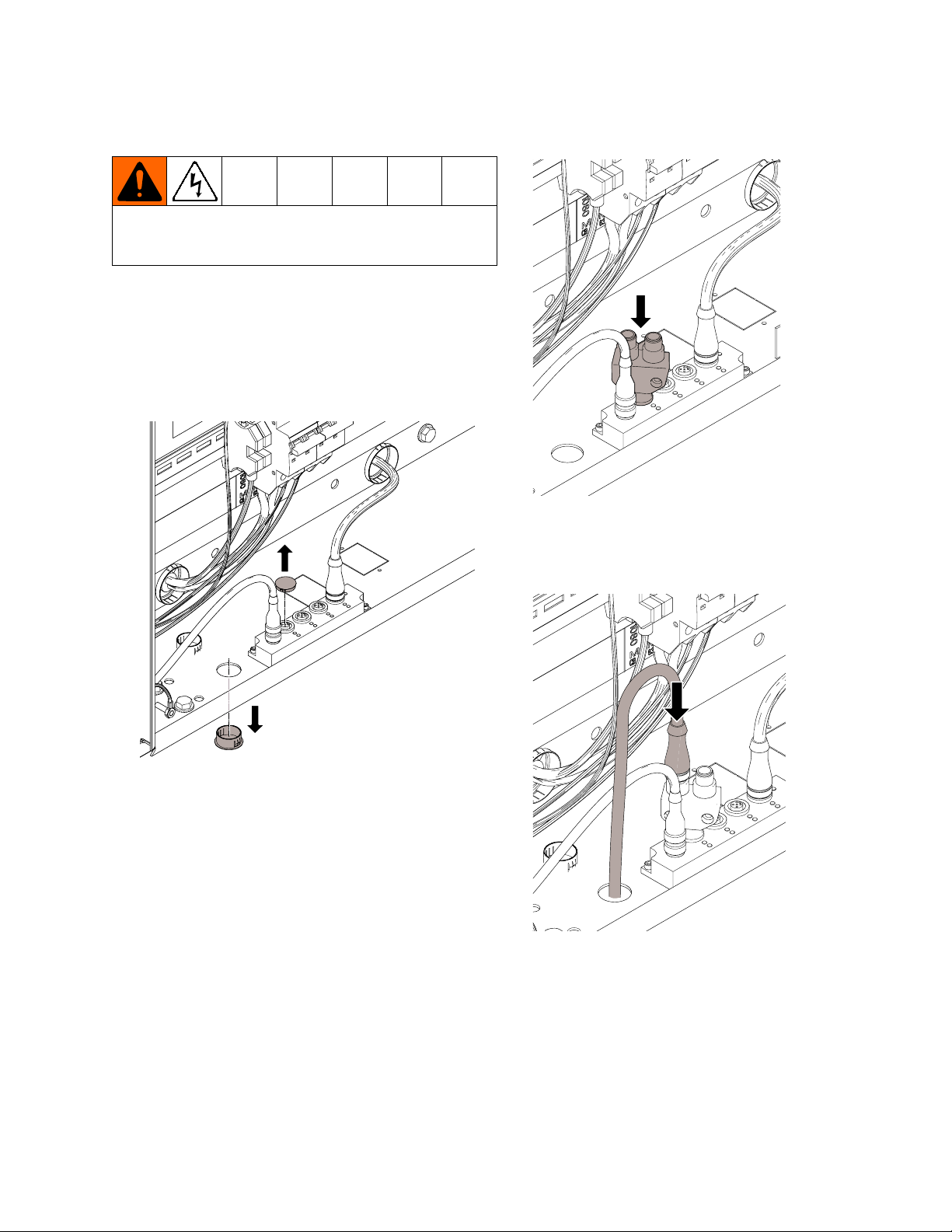

3. Remove one of the black caps from the electrical
box and a black cap from the DeviceNet bus bar.
4. Install the CAN splitter (Part No. 121807) into
the DeviceNet bus bar.
5. Bring the CAN cable from the CGM or DGM into
the power distribution box through the access
hole from step 3. Connect the CAN cable to the
splitter.
3A1974A 3
Page 4
Installation

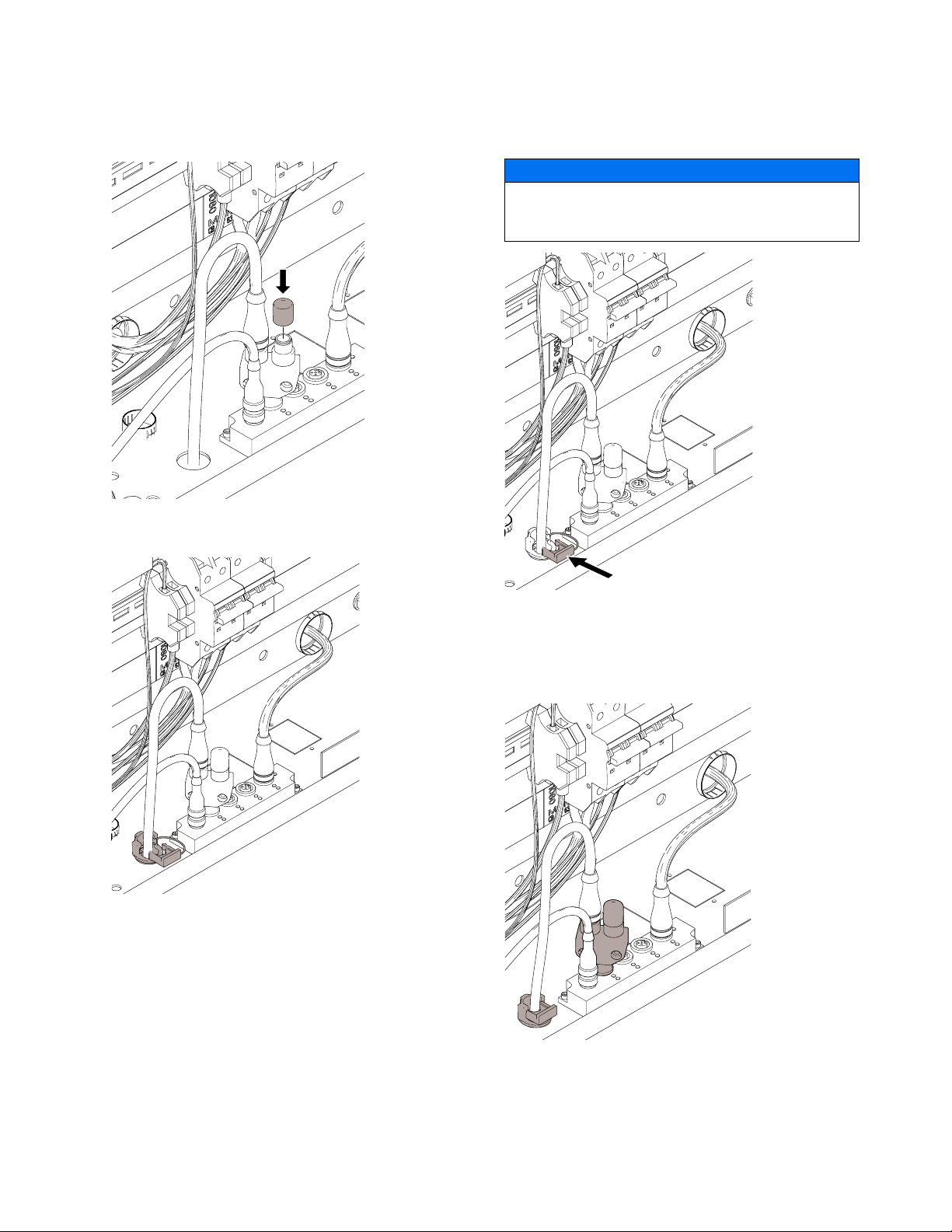

6. Install the supplied vinyl cap (Part No. 125738)
onto the free port of the splitter.
7. Install the supplied strain relief bushing in the
access hole.
8. Clamp the cable into the strain relief bushing.
NOTICE
To prevent dam
theCANcablei
slack to avoid
agetotheCANbus,whenlocking
n place be sure to leave enough
torquing the splitter or CAN bus.

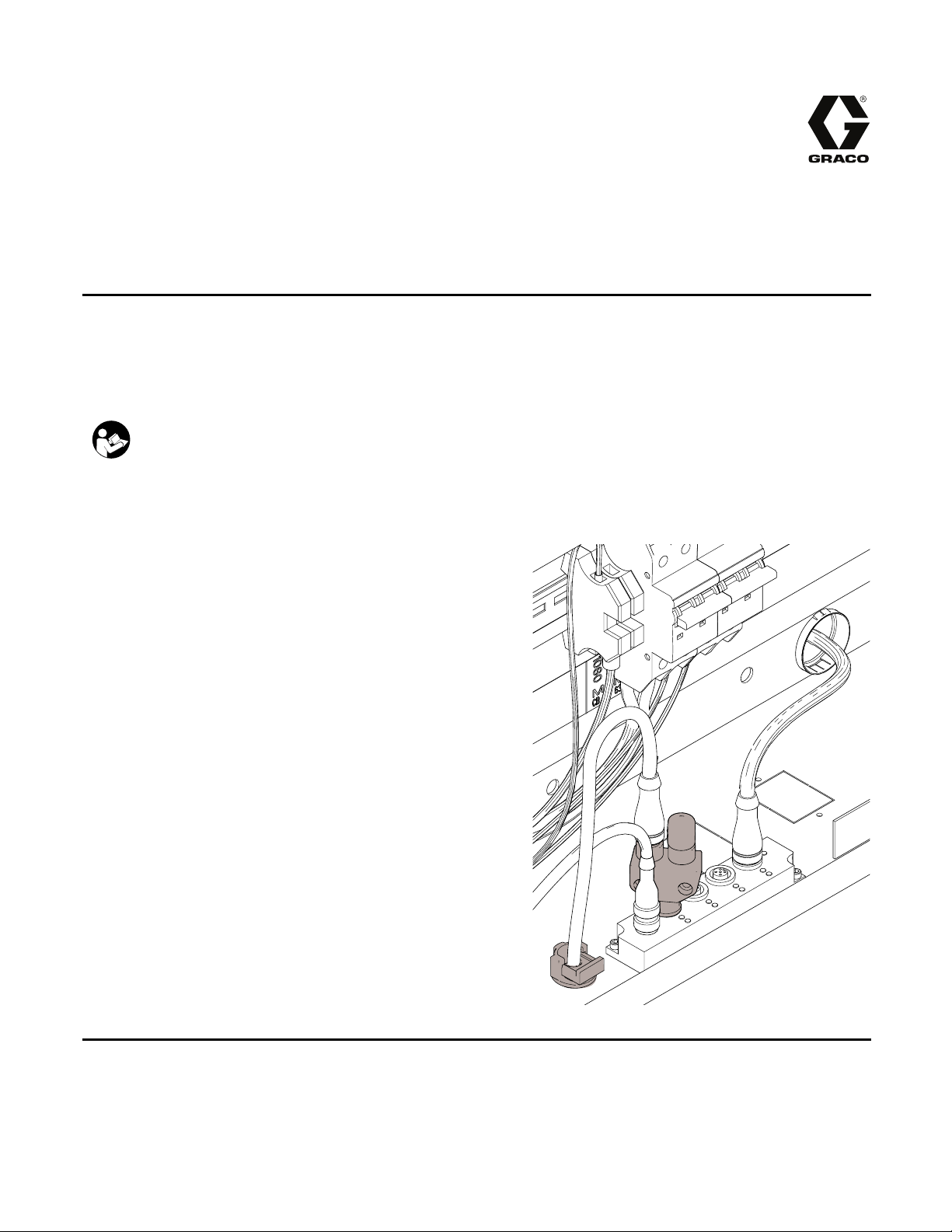

With the kit fully installed, the system will look
like this:
4
3A1974A
Page 5

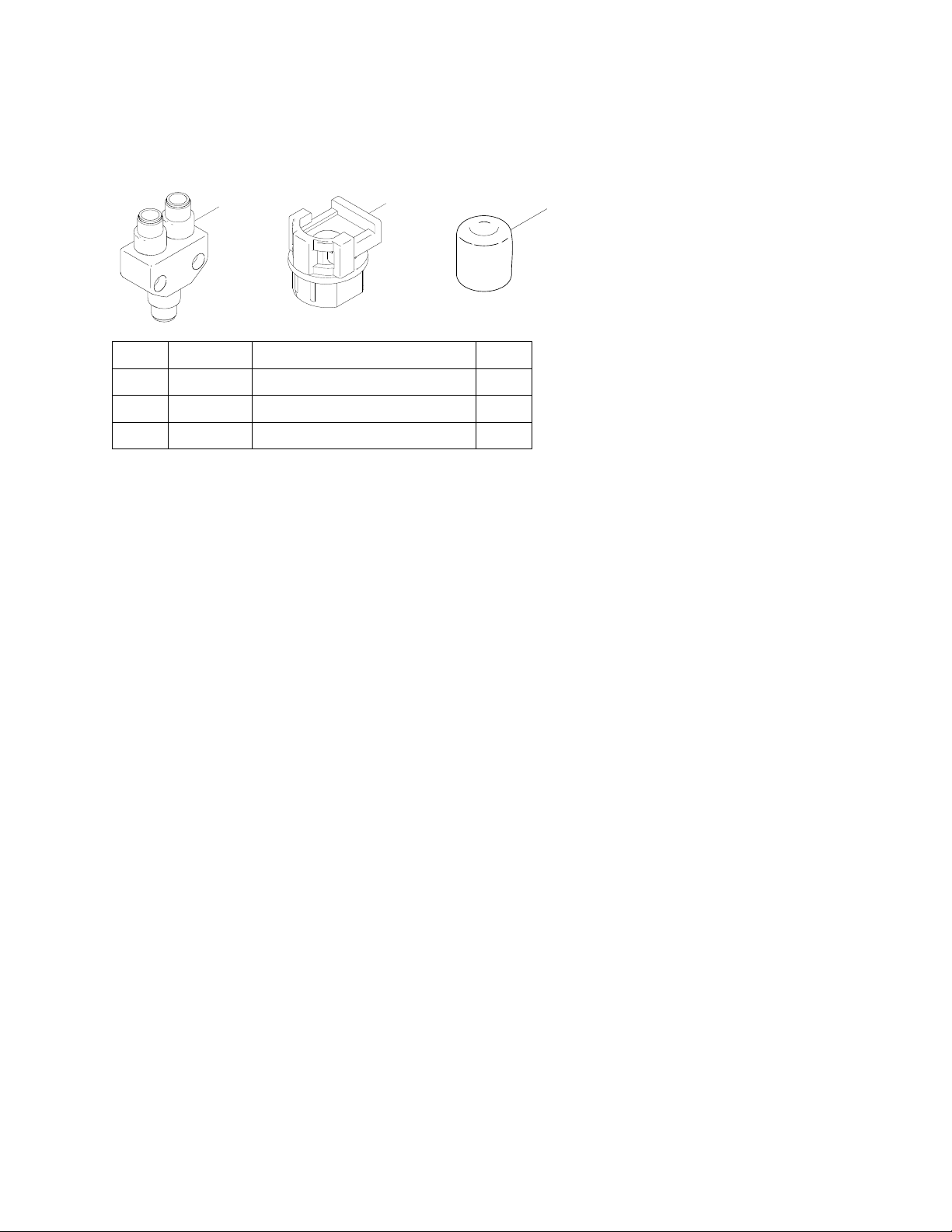

Parts
Parts
Ref
Part Description
1 121807
2 124005
3 125738
1
CONNECTOR, splitter
BUSHING, strain relief
CAP, rubber
2
3
Qty
1
1
1
3A1974A 5
Page 6
Graco Standard Warranty
Graco warrants all equipment referenced in this document which is manufactured by Graco and bearing its
name to be free from defects in material and workmanship on the date of sale to the original purchaser for
use. With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a
period of twelve months from the date of sale, repair or replace any part of the equipment determined
by Graco to be defective. This warranty applies only when the equipment is installed, operated and
maintained in accordance with Graco’s written recommendations.
This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction,
damage or wear caused by faulty installation, misapplication, abrasion, corrosion, inadequate or improper
maintenance, negli
Graco be liable for malfunction, damage or wear caused by the incompatibility of Graco equipment
with structures, accessories, equipment or materials not supplied by Graco, or the improper design,
manufacture, ins
not supplied by G
This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an
authorized Graco distributor for verification of the claimed defect. If the claimed defect is verified, Graco
will repair or replace free of charge any defective parts. The equipment will be returned to the original
purchaser transportation prepaid. If inspection of the equipment does not disclose any defect in material
or workmanship, repairs will be made at a reasonable charge, which charges may include the costs of
parts, labor, and transportation.
THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR
IMPLIED, INCLUDING BUT NOT LIMITED TO WARRANTY OF MERCHANTABILITY OR WARRANTY
OF FITNESS FOR A PARTICULAR PURPOSE.
Graco’s sole obligation and buyer’s sole remedy for any breach of warranty
The buyer agrees that no other remedy (including, but not limited to, incidental or consequential damages
for lost profits, lost sales, injury to person or property, or any other incidental or consequential loss) shall
be available. Any action for breach of warranty must be brought within tw
GRACO MAKES NO WARRANTY, AND DISCLAIMS ALL IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, IN CONNECTION WITH
ACCESSORIES, EQUIPMENT, MATERIALS OR COMPONENTS SOLD BUT NOT MANUFACTURED BY
GRACO. These items sold, but not manufactured by Graco (such as electric motors, switches, hose, etc.),
are subject to the warranty, if any, of their manufacturer. Graco will provide purchaser with reasonable
assistance in making any claim for breach of these warranties.
In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from
Graco supplying equipment hereunder, or the furnishing, performance, or use of any products or other
goods sold hereto, whether due to a breach of contract, breach of warranty, the negligence of Graco, or
otherwise.
FOR GRACO CANADA CUSTOMERS
The Parties acknowledge that they have required that the present document, as well as all documents,
notices and legal proceedings entered into, given or instituted pursuant hereto or relating directly or
indirectly hereto, be drawn up in English. Les parties reconnaissent avoir convenu que la rédaction du
présente document sera en Anglais, ainsi que tous documents, avis et procédures judiciaires exécutés,
donnés ou intentés, à la suite de ou en rapport, directement ou indirectement, avec les procédures
concernées.
gence, accident, tampering, or substitution of non-Graco component parts. Nor shall
tallation, operation or maintenance of structures, accessories, equipment or materials
raco.
shall be as set forth above.
o (2) years of the date of sale.
Graco Information
For the latest information about Graco products, visit www.graco.com.
To place an order, contact your Graco Distributor or call to identify the nearest distributor.
Phone: 612-623-6921 or Toll Free: 1-800-328-0211 Fax: 612-378-3505
All written and visual data contained in this document reflects the latest product information available at the time of publication.
Graco reserves the right to make changes at any time without notice.
Original Instructions. This manual contains English. MM 3A1974
Graco Headquarters: Minneapolis
International Offices: Belgium, China, Japan, Korea
GRACO INC. AND SUBSIDIARIES • P.O. BOX 1441 • MINNEAPOLIS MN 55440-1441 • USA
Copyright 2011, Graco Inc. All Graco manufacturing locations are registered to ISO 9001.
www.graco.com
