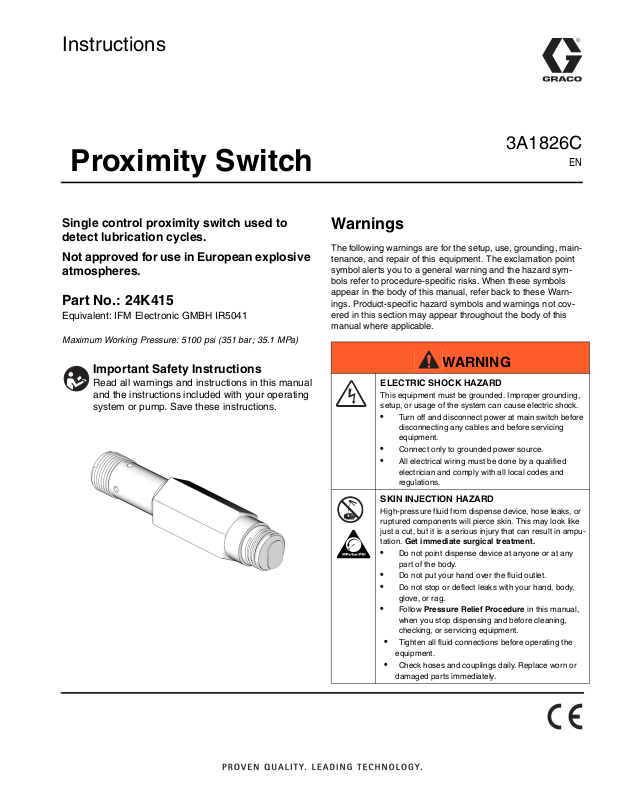

Graco 24K415 Instructions Manual

Instructions

3A1826C

Proximity Switch

Single control proximity switch used to
detect lubrication cycles.

Not approved for use in European explosive
atmospheres.

Part No.: 24K415

Equivalent: IFM Electronic GMBH IR5041

Maximum Working Pressure: 5100 psi (351 bar; 35.1 MPa)

Important Safety Instructions

Read all warnings and instructions in this manual
and the instructions included with your operating
system or pump. Save these instructions.

EN

Warnings

The following warnings are for the setup, use, grounding, main­tenance, and repair of this equipment. The exclamation point
symbol alerts you to a general warning and the hazard sym­bols refer to procedure-specific risks. When these symbols
appear in the body of this manual, refer back to these Warn­ings. Product-specific hazard symbols and warnings not cov­ered in this section may appear throughout the body of this
manual where applicable.

WARNING

ELECTRIC SHOCK HAZARD

This equipment must be grounded. Improper grounding,
setup, or usage of the system can cause electric shock.

• Turn off and disconnect power at main switch before

disconnecting any cables and before servicing
equipment.

• Connect only to grounded power source.

• All electrical wiring must be done by a qualified

electrician and comply with all local codes and
regulations.

SKIN INJECTION HAZARD

High-pressure fluid from dispense device, hose leaks, or
ruptured components will pierce skin. This may look like
just a cut, but it is a serious injury that can result in ampu­tation. Get immediate surgical treatment.

• Do not point dispense device at anyone or at any

part of the body.

• Do not put your hand over the fluid outlet.

• Do not stop or deflect leaks with your hand, body,

glove, or rag.

• Follow Pressure Relief Procedure in this manual,

when you stop dispensing and before cleaning,
checking, or servicing equipment.

• Tighten all fluid connections before operating the

equipment.

• Check hoses and couplings daily. Replace worn or

damaged parts immediately.

Pressure Relief Procedure

Relieve pressure in the system following the procedure

recommended for your operating system or pump.

Installation

NOTICE

• Electrical ratings must not be exceeded. Over­load on a switch can cause switch to fail on the
first cycle.

• Never exceed pressure limits. Unit can be oper­ated up to maximum pressure on a limited basis
(i.e., set-up, testing) but continuous operation
must be restricted to the designated adjustable
range. Excessive cycling at maximum pressure
limits could reduce sensor life.

1. Disconnect power.

Technical Data and Dimensions

Electrical Design DC PNP
Output Normally open
Operating Voltage 10 - 36 VDC
Maximum Operating Pressure 5100 psi (35.1 MPa, 351 bar)
Ambient Temperature Range -13° to 176°F (-25° to 80°C)
Current Rating 100 mA
Voltage Drop <2.5 V
Current Consumption <15 mA
Maximum Switching Frequency 100 Hz
Connection M12
Thread type 7/16 inch
Sensing range 1.5 mm (f)
Display Power Indicator: LED yellow
Wetted Parts steel, chromium-plated, PBT
Weight 1.8 oz (0.053 kg)
Enclosure (Ingression Protection) IP67

Dimensions

Wiring Diagram

2. Relieve pressure.

3. Remove plug (or in existing installations, proximity
switch) from divider block o-ring port you will be

2.58 in.
(65.5 mm)

using to install the proximity switch.

4. Screw the proximity switch into the port. Torque to
15 ft. lbs (20.3 N.m)

5. Reconnect power source.

6. Verify the yellow status indicator LED illuminates
when the switch is compressed and there is power
supplied to the divider block.

Graco Information

TO PLACE AN ORDER, contact your Graco distributor or call to identify the nearest distributor.

Phone: [phone] or Toll Free: 1-800-533-9655, Fax: [phone]

All written and visual data contained in this document reflects the latest product information available at the time of publication.

GRACO INC. AND SUBSIDIARIES • P.O. BOX 1441 • MINNEAPOLIS MN 55440-1441 • USA

Copyright 2011, Graco Inc. All Graco manufacturing locations are registered to ISO 9001.

Graco reserves the right to make changes at any time without notice.

For patent information, see www.graco.com/patents.

Original instructions. This manual contains English. MM 3A1826

Graco Headquarters: Minneapolis

International Offices: Belgium, China, Japan, Korea

www.graco.com

Revised August 2012

1

4

3

L+

L -
